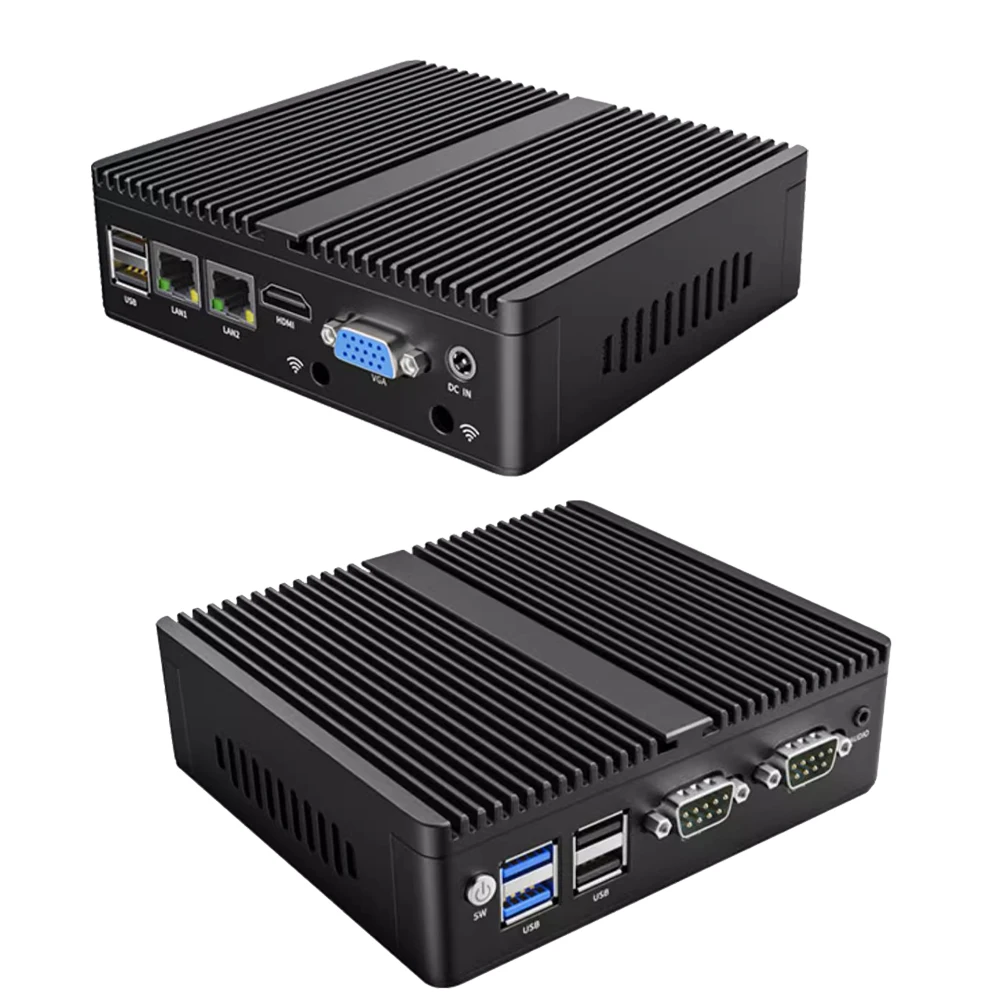

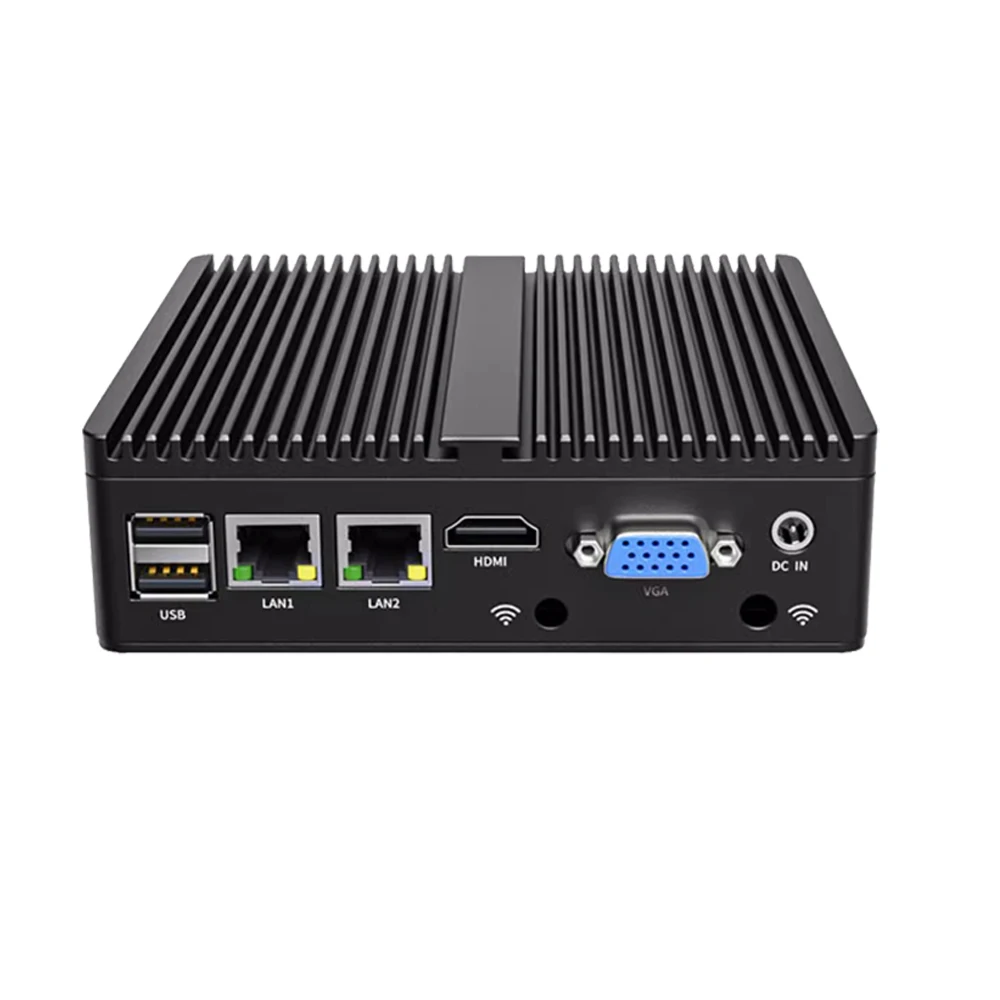

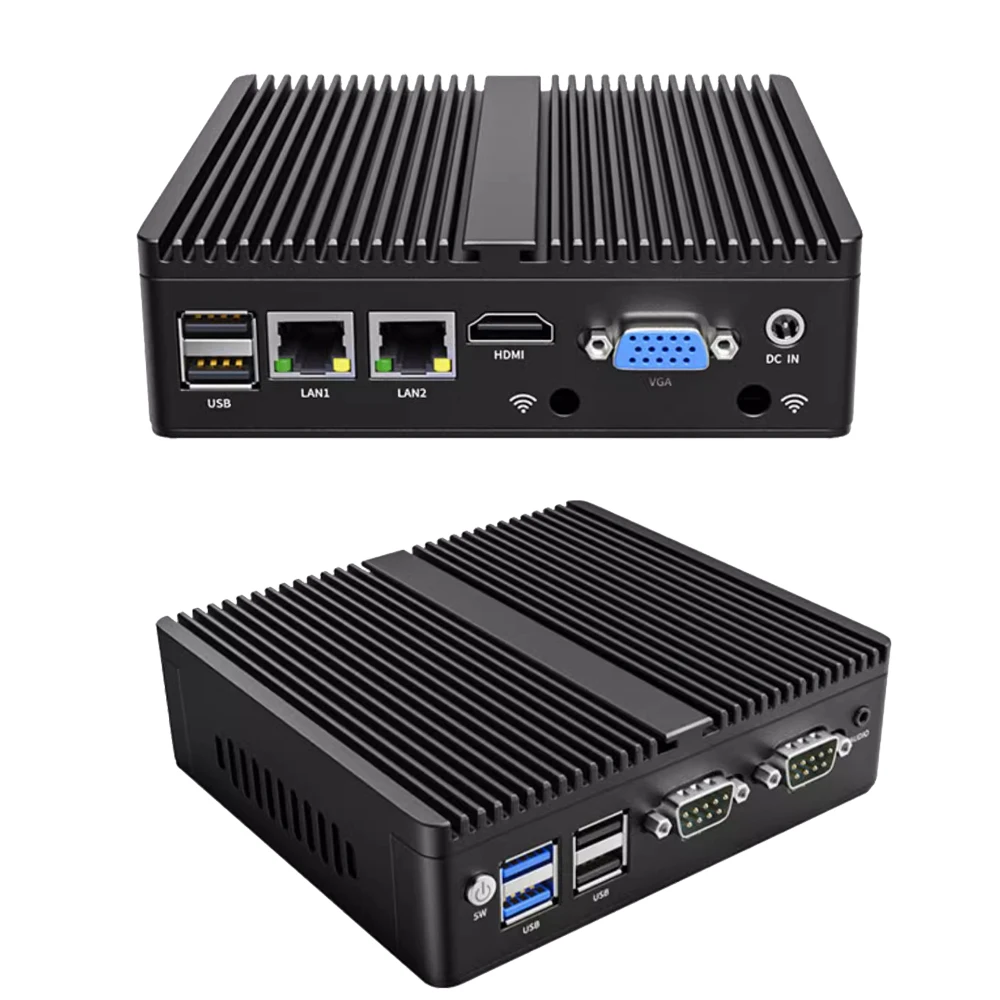

Fanless Industrial Mini pc j4125 N2840 N4000 J1900 Dual LAN Dual RS232 Win10/11 Pro Linux Ubuntu WIFI Desktop Computer Home pc
- Category: >>>
- Supplier: Dongguan Mini Tree Computer Manufacturing Co. Ltd.
Share on (1601202425290):
Product Overview
Description
Intel Celeron N2840 J1900 DDR3 N4000 J4125 DDR4 Mini PC Micro Firewall Appliance 2LAN Fanless Router Computer OPNsense pfSense
Product Highlight:
-2xRealtek RTL8111H 10/100/1000M network card,
-2xUSB3.0, 4xUSB2.0,2*DB9 COM console.
-1xDDR3L SODIMM non-ecc ram slot,Max 8G(J4125 1xDDR4 max 16GB)
-Support two storage: 1xMSATA3.0 SSD+1x2.5''SATA3.0 SSD/HDD.
-Support 1xHDMI and 1xVGA Dual display
- 1xMPCIE wireless slot, support WiFi&Bluetooth connection.
-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
-Full Aluminum Alloy high quality solid-built shell, excellent cooling performance, Exquisite production craft on outside design.
-Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7x24 hours.

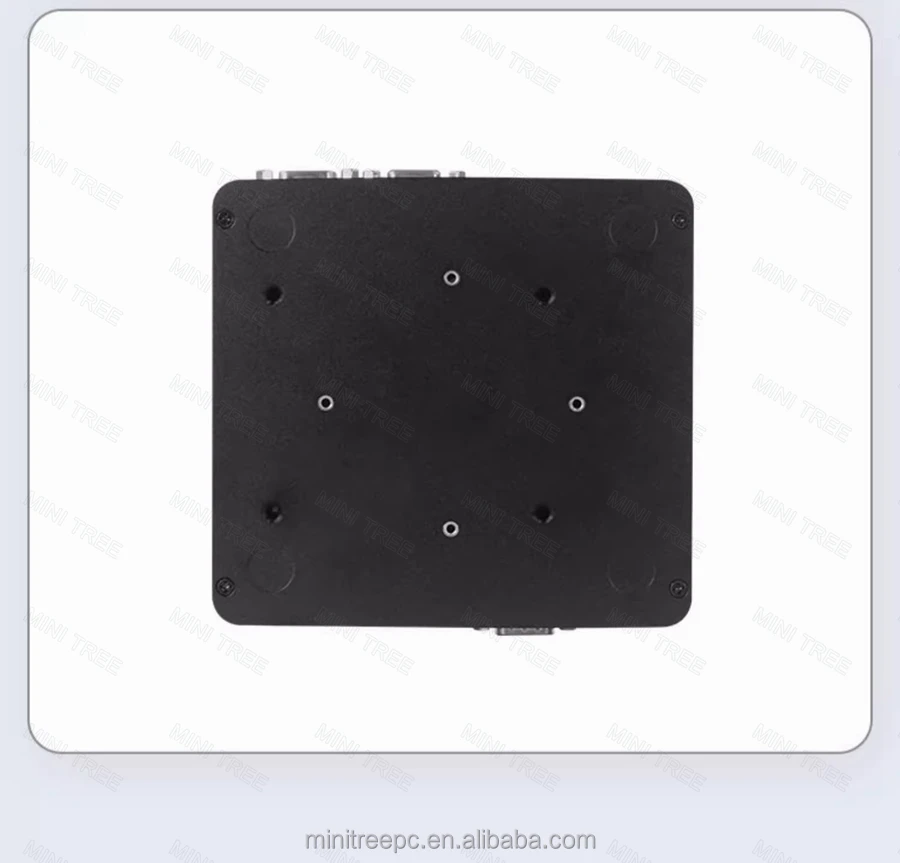

-Low consumption TDP and can be mounted back of monitor by VESA bracket(optional).
-2xUSB3.0, 4xUSB2.0,2*DB9 COM console.
-1xDDR3L SODIMM non-ecc ram slot,Max 8G(J4125 1xDDR4 max 16GB)
-Support two storage: 1xMSATA3.0 SSD+1x2.5''SATA3.0 SSD/HDD.
-Support 1xHDMI and 1xVGA Dual display
- 1xMPCIE wireless slot, support WiFi&Bluetooth connection.
-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
-Full Aluminum Alloy high quality solid-built shell, excellent cooling performance, Exquisite production craft on outside design.
-Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7x24 hours.
-Low consumption TDP and can be mounted back of monitor by VESA bracket(optional).
Processors | Cores & Threads | L3 Cache | Base Frequency | Max Turbo Frequency | TDP |
Celeron J4125 | 4 cores, 4 threads | 4M | 2.00 GHz | 2.70 GHz | 10W |
Celeron N2810 | 2 cores, 2 threads | 1M | 2.0 GHz | / | 7.5W |
Celeron 3215u | 2 cores, 2 threads | 2M | 1.7GHz | / | 10W |
Celeron J1900 | 4 cores, 4 threads | 2M | 2.0GHz | 2.42GHz | 10W |
Celeron N2920 | 4 cores, 4 threads | 2M | 1.86GHz | / | 7.5W |
CPU | Celeron J4125/N2840/N2940/J4125/3215U |
Memory | 1*DDR3L SO-DIMM, maximum 8GB RAM(J4125 1*DDR4 RAM ) |
Storage | 1*MSATA3.0 SSD, 1*SATA 3.0, support 2.5 inch HDD/SSD |
Display Chip | Depend on CPU |
Display Connection | 1*VGA, 1*HDMI |

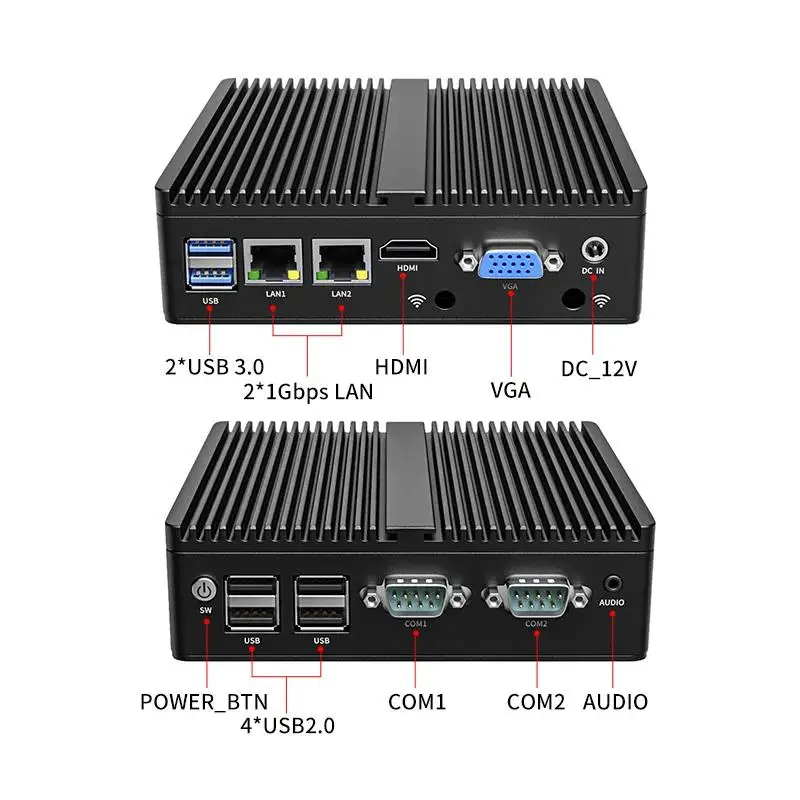

I/O | 2*Realtek RTL8111H 10/100/1000M network card, 2*USB3.0,4*USB2.0,2*COM,1*HDMI,1*VGA, 1*Audio |
CPU Fan | Passive heat dissipation(Fanless) |
Power Source | External power 12V 4ADC5.5*2.5（optional） |
Support System | Windows,10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Lede/Liunx |
Working humidity | 0%~95% （Noncondensing state） |
Working Temperature | 10°C~60°C |
Safety Certification | CE/CCC/FCC Class A/ROHS |
Product Measurement | 136*126*40 mm |
Machine Fan | NO FAN |
Material | Aluminum 1*2.5Hard drive position7-9MM height |
Packing Contains | OPS, a power cord, HDMI Cord |
