Sound Isolation Clip For Ceilings, Sound Ioslation Furring channel, Drywall, Ceiling clip
- Category: >>>
- Supplier: Qingdao Hagoin Rubber And Plastic Products Co. Ltd.
Share on (1601202430002):
Product Overview
Description
Product Description

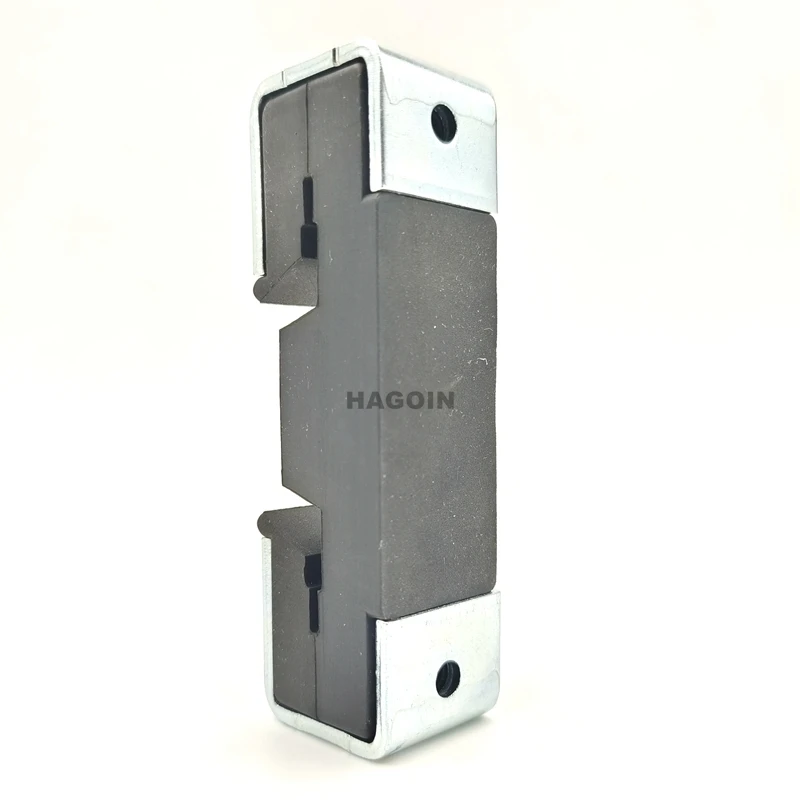

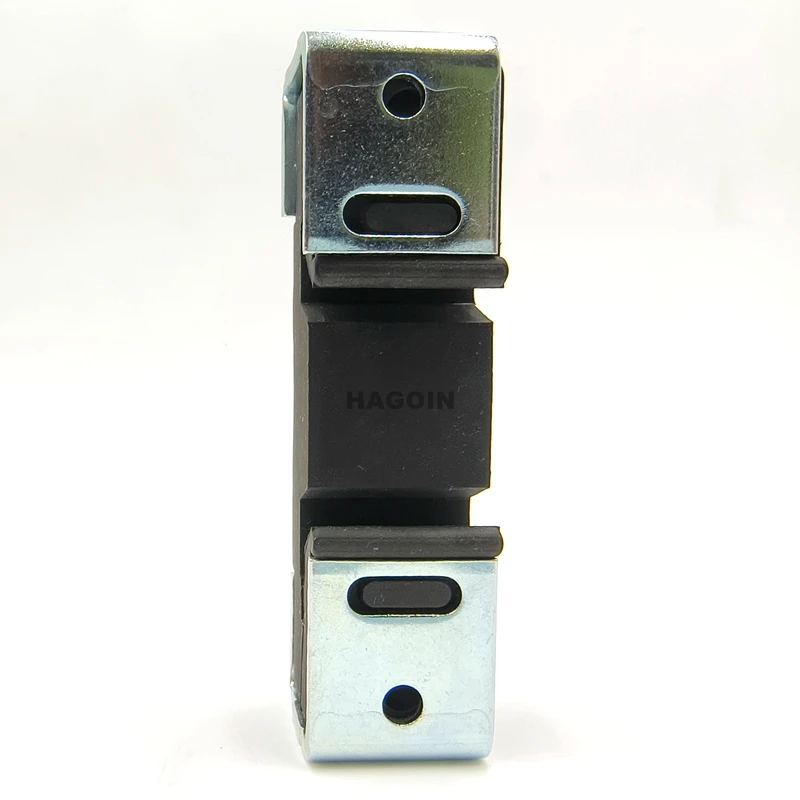

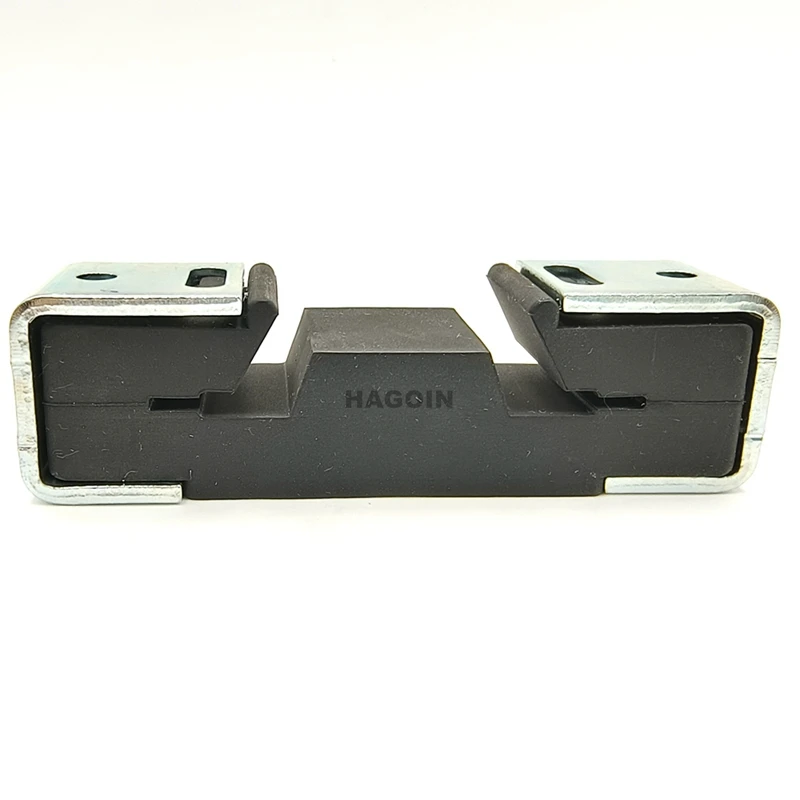

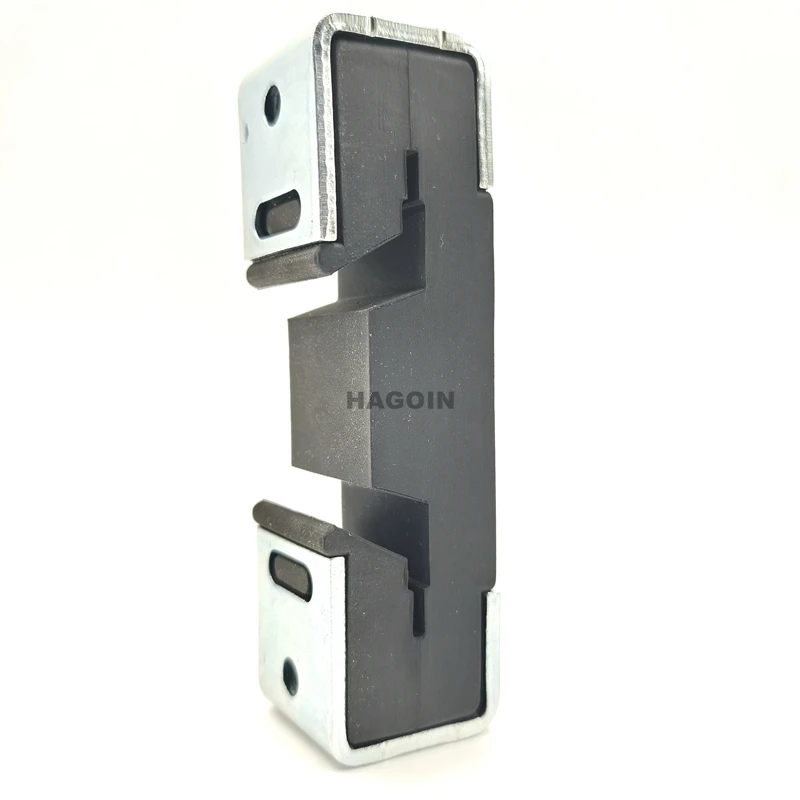

Resilient Sound Isolation Clip (HSIC CLIP)

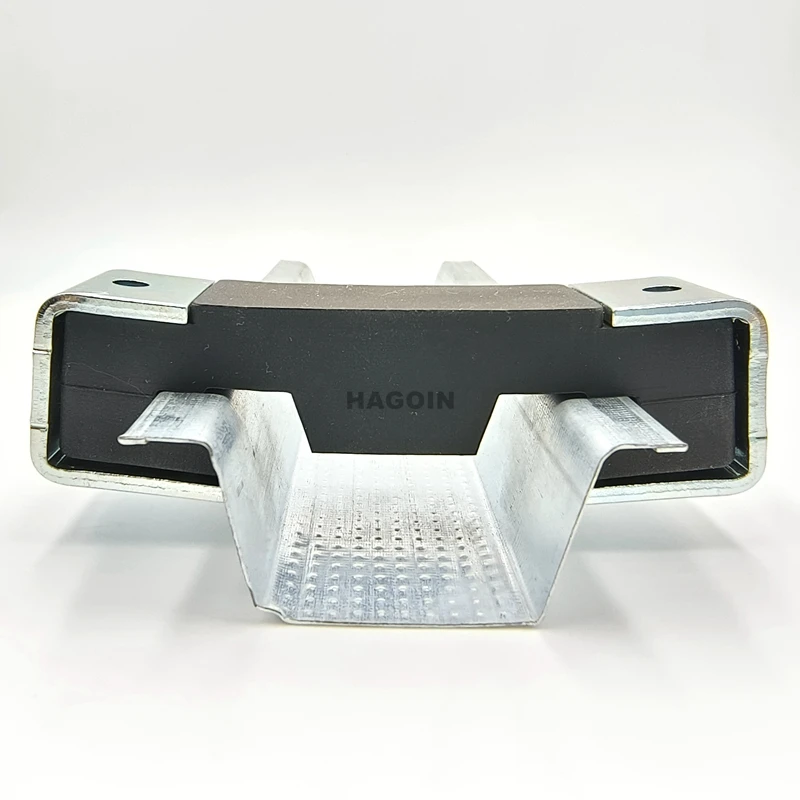

HSIC Sound Isolation Clips are part of an isolation system which helps decouple a new wall/ceiling from the studs/joists in which they are attached to. Hat Channel is clipped into the Clips and drywall is fastened directly to the channel which runs perpendicular to the studs/joists. The soft neoprene rubber isolator cradles the hat channel and reduces the transfer of structure-borne noise (vibrations) to the attached channel. HSIC Sound Isolation Clips offer significantly higher STC values than drywall attached to resilient channel. HSIC Clips ensure that installers will not inadvertently screw through the “resilient” leg of the channel into the joist or stud.
Our Advantages

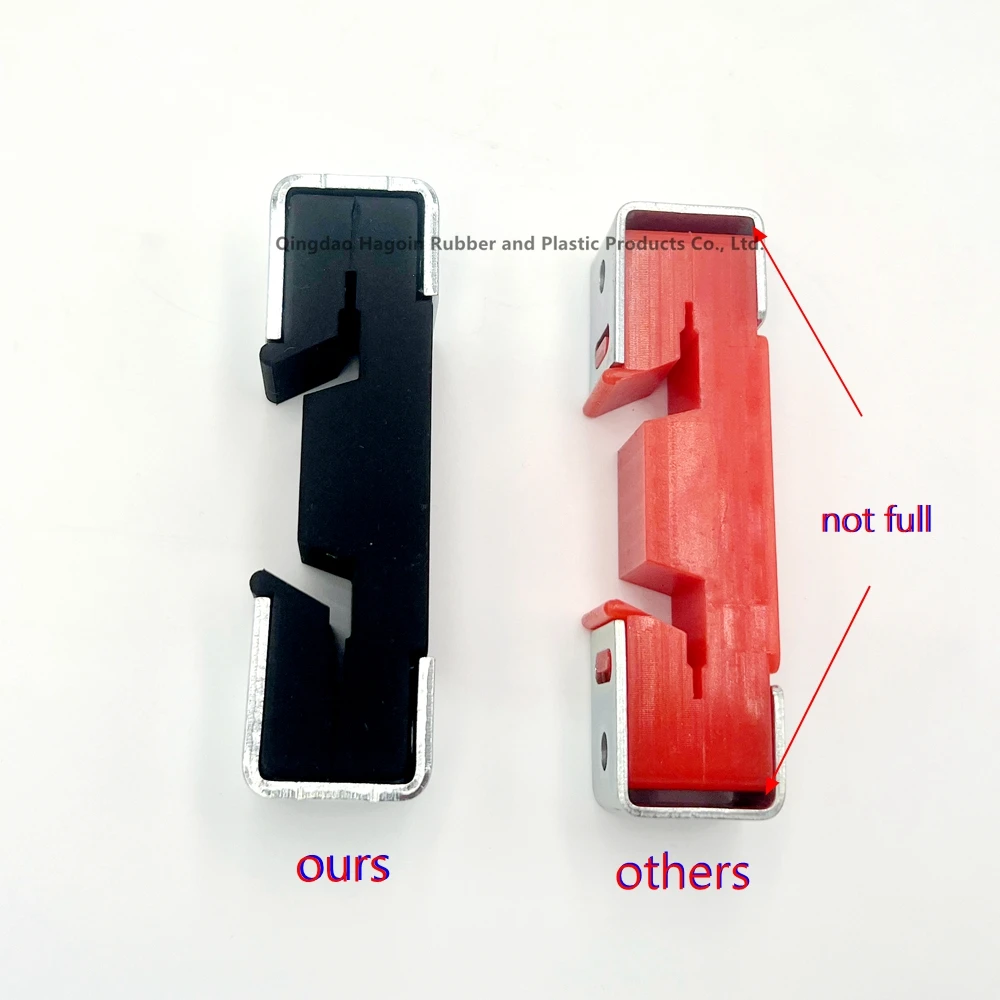

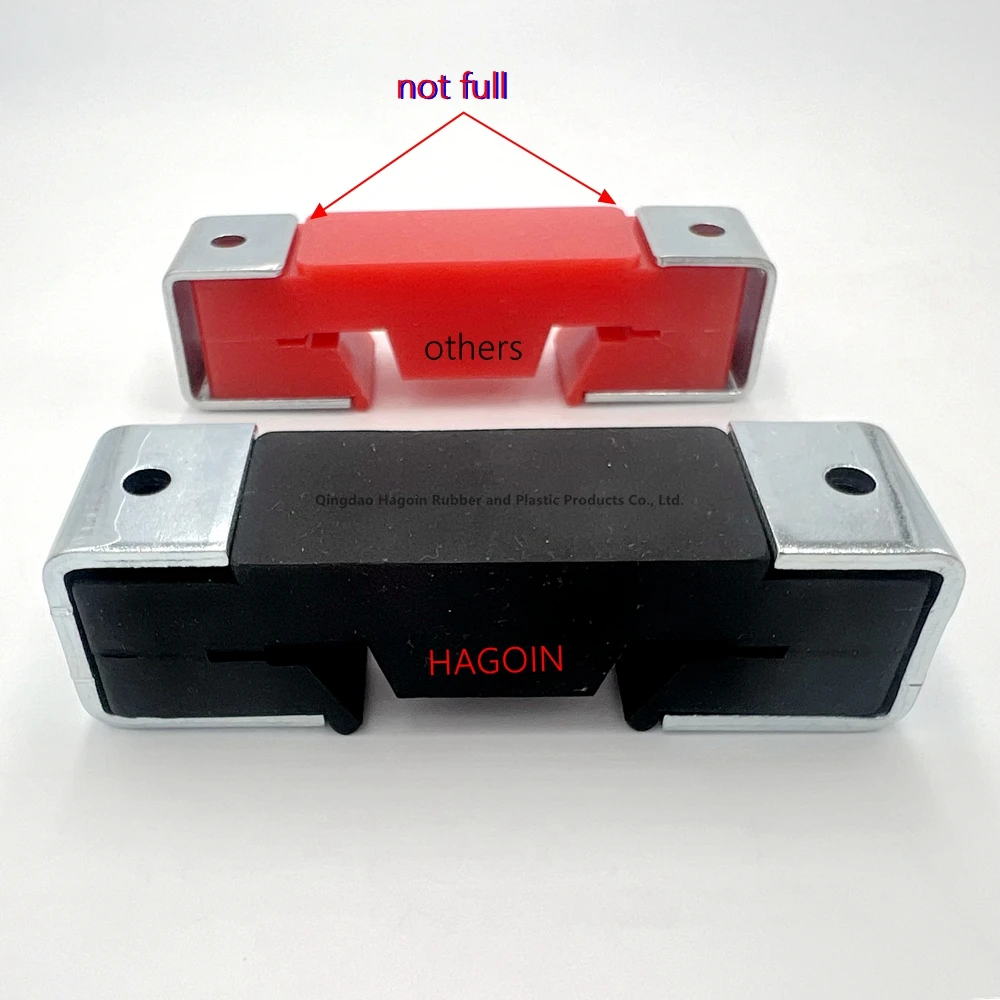

Material: Our material is Vo class fire retarded pure silicone rubber material

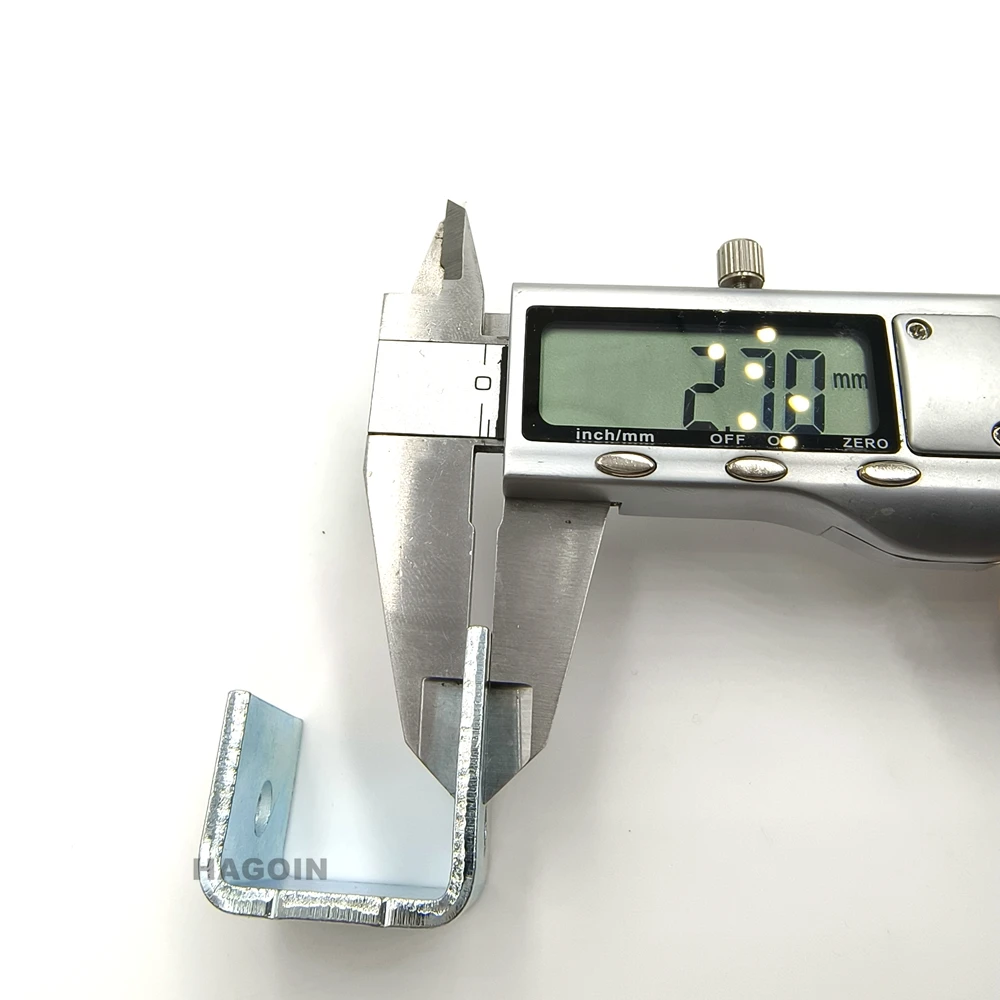

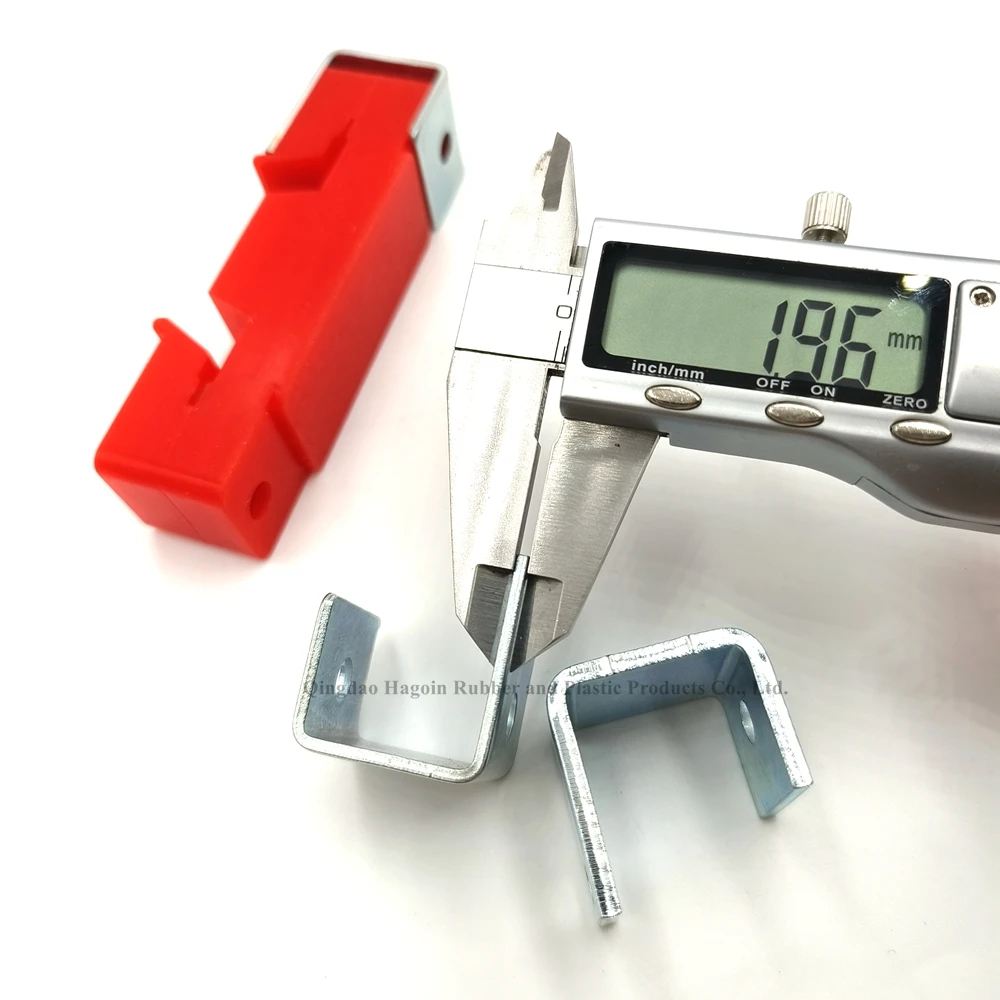

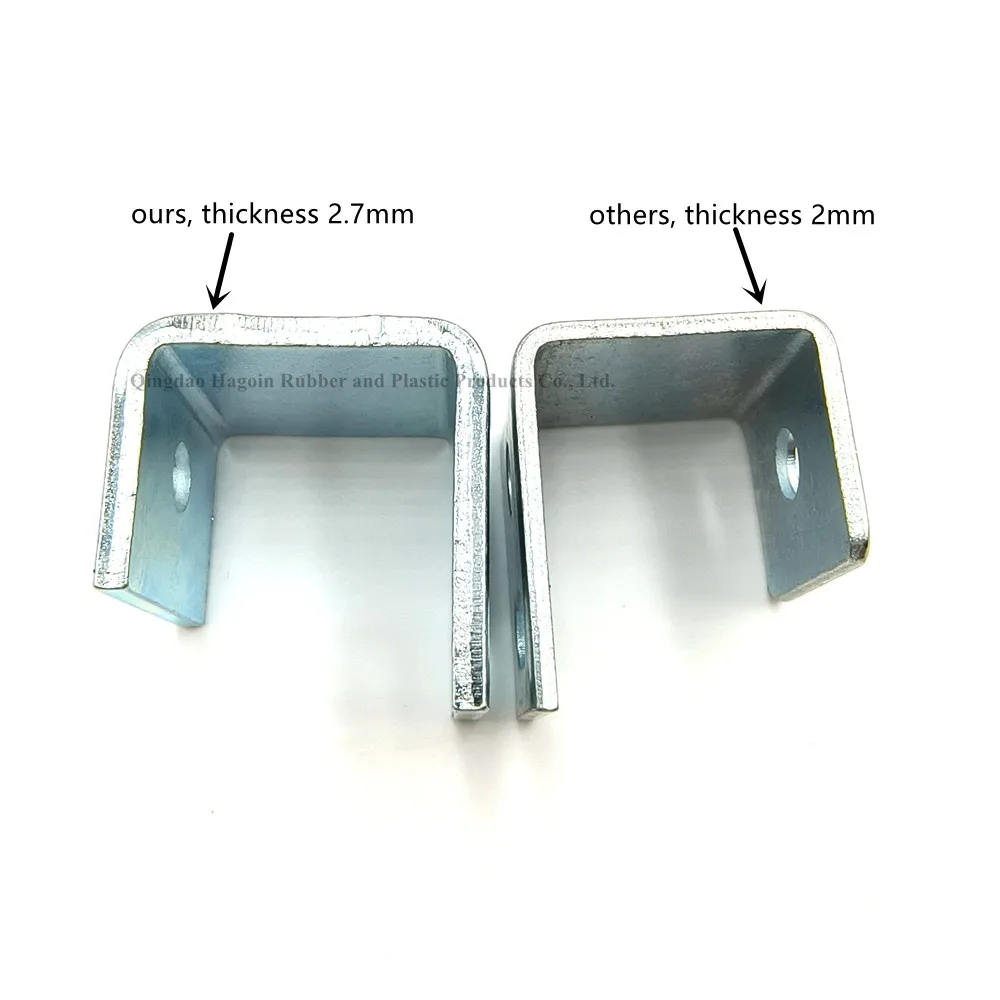

Material of steel clip: full galvanized Steel, thickness is 2.7mm. Thickness of others are less than 2mm.
Installation Instructions

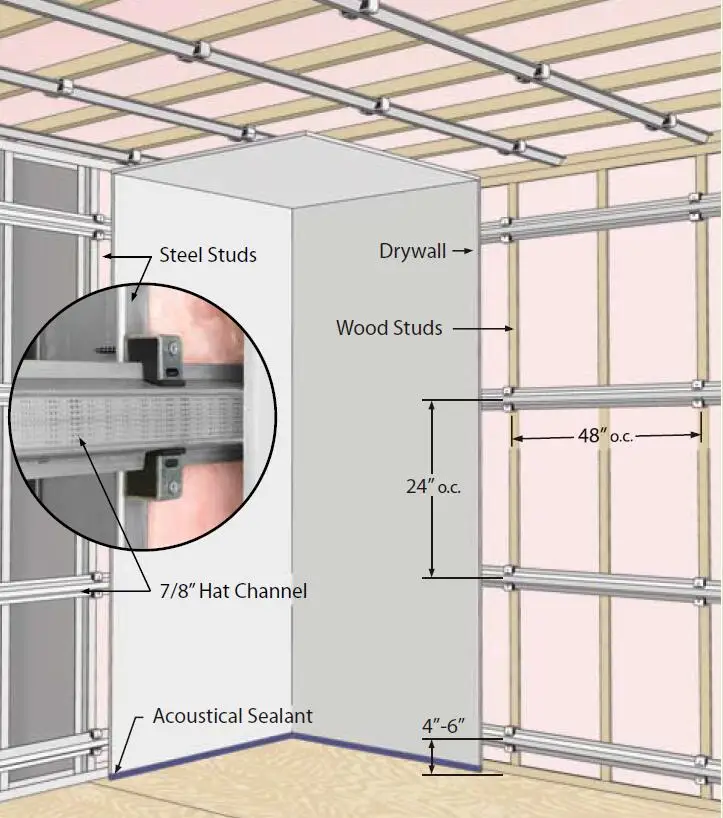

Wall Installation Guide
NOTES
• Use 25 gauge furring channel on walls.
• Furring channel is installed across studs horizontal to the floor.
• Use a 4 ft. level to ensure furring channel is installed level.
• Clips are spaced no further than 48 inches apart horizontally
• Hat channel must not be spaced more than 24 inches vertically
• Bottom clips must be less than 3 inches from the floor
• Top clips must be less than 6 inches from the ceiling
• Make sure to leave a 1/4 in. gap between wall and celling and wall and floor to fill with acoustical caulk.
• Use 25 gauge furring channel on walls.
• Furring channel is installed across studs horizontal to the floor.
• Use a 4 ft. level to ensure furring channel is installed level.
• Clips are spaced no further than 48 inches apart horizontally
• Hat channel must not be spaced more than 24 inches vertically
• Bottom clips must be less than 3 inches from the floor
• Top clips must be less than 6 inches from the ceiling
• Make sure to leave a 1/4 in. gap between wall and celling and wall and floor to fill with acoustical caulk.

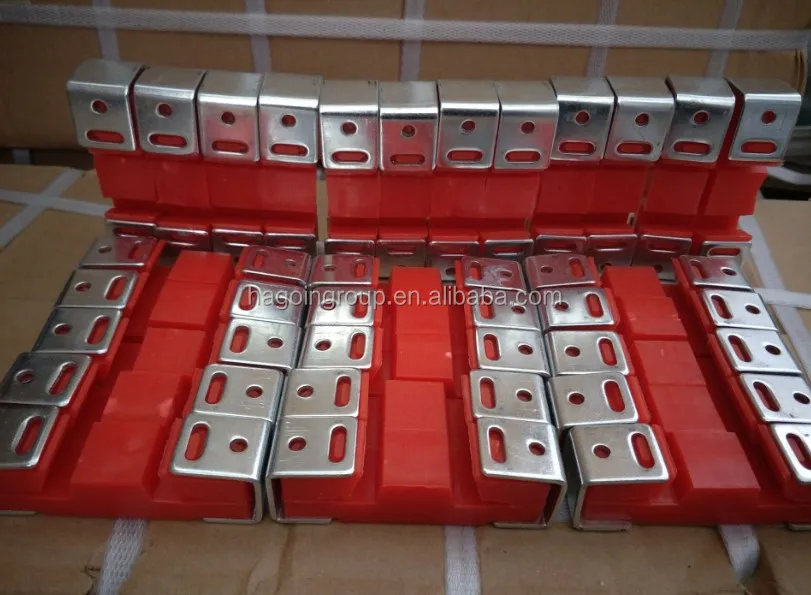

Product packaging
Company Profie
Hagoin(Hæ Gu′i: N) group was originally found in the year 1998, has been devoted to produce high quality rubber parts, plastic parts and metal parts for both domestic and oversea customers. Our products are widely used in automotive, industrial, Agriculture, aerospace, building, electronic, mobile phone, daily life etc fields. Our products get CE, RoHS, REACH, LFGB certified, meet great demand on both USA and European markets. We have 46 employees, including 2 master′s degrees, 7 bachelor degrees and 37 experienced workers. We have flat vulcanized machines, injection machines, material mixer, punching machines, bending machines, laser, CNC center etc 35 sets. We have advanced test equipment, including the UV aging tester, tensile strength tester, tear strength tester, hardness reader, high and low temperature tester, ensure the quality meet customers′ requirements.
We also meet ISO9001 and TS16949 system. Most of our raw material are imported from USA, Germany, Japan, Thailand and Russia.
We also meet ISO9001 and TS16949 system. Most of our raw material are imported from USA, Germany, Japan, Thailand and Russia.
