Description

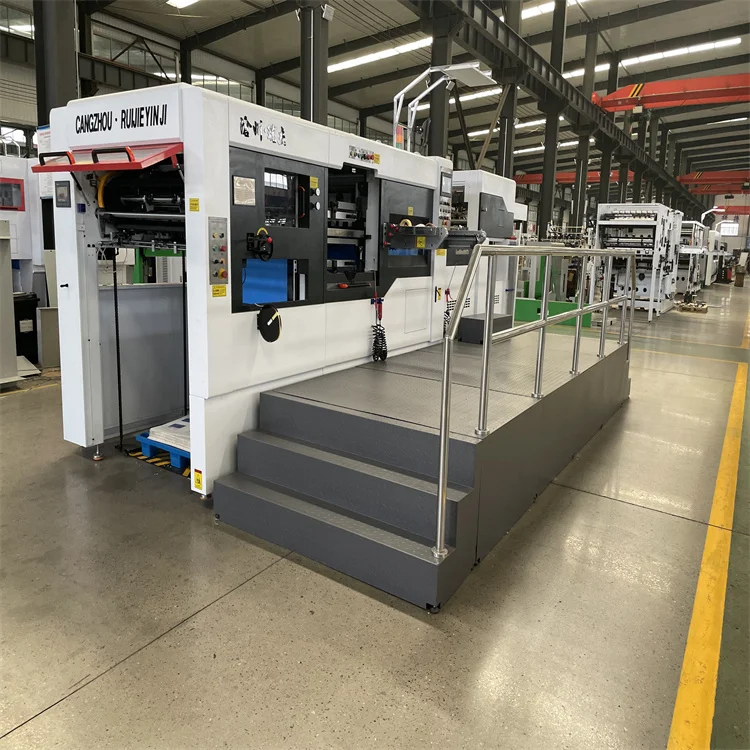

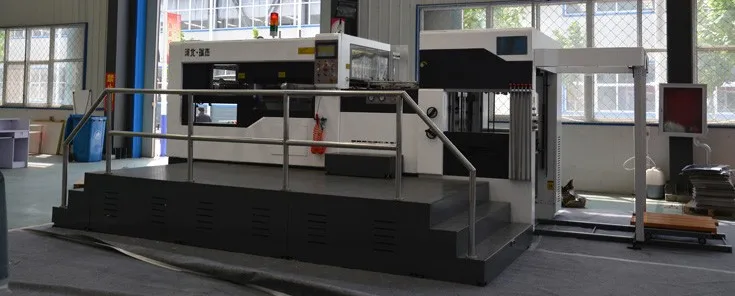

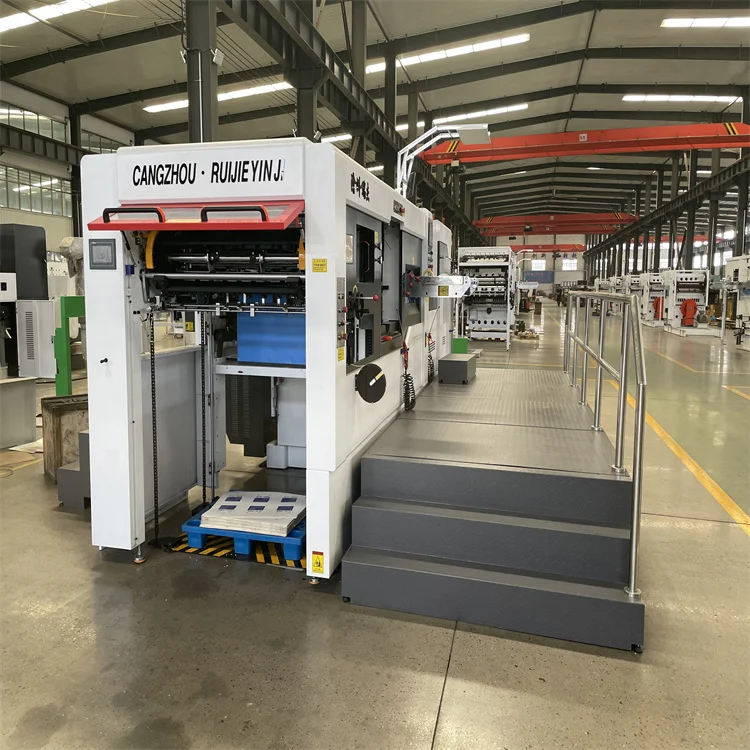

Fully Automatic Stripping Waste Remove Press Die Cutting Cut Punch Machine



    Established in 2004, our factory specialized in the manufacturing of Die Cutting Creasing Machines and Hot Foil Stamping Machines. Located in Dongguang County, Hebei Province, we enjoy convienience access to major transportation networks of Beijing and Tianjin. Our factory covers an area of 20,000 square meters and has around 60 staff members. Furthermore, all our machines manufacturered with advanced equipment and strict QC procedurers in order to ensure high quality.

   With stable and timely supply, credible quality and sincere service, our automatic creasing machine sell well in both domestic and overseas market...



Certificates Approved:









Main Technical Parameters:



Item		Parameters
Model		MY-1100
Die cutting type		Pressed flat die cutting(Lower side is movable while upper side is unmovable)
Max paper transmitting size		1100*780mm
Min paper transmitting size		400*370mm
Max die cutting size		1090*770mm
Min gripper size		5mm
Max die cutting pressure		300N/cm²
Paper processed	Ivory board	0.1-2mm
	Corrugated board	Less than 5mm
Die cutting precision		±0.1mm
Max die cutting speed		6500 sheets/h
Max feeding pile height		1100mm(above the level)
Min feeding pile height		1100mm(above the level)
Total power		17kw
Total weight		17T
Overall size		5800*2170*2245mm (Not including the pedal)



System Introduction

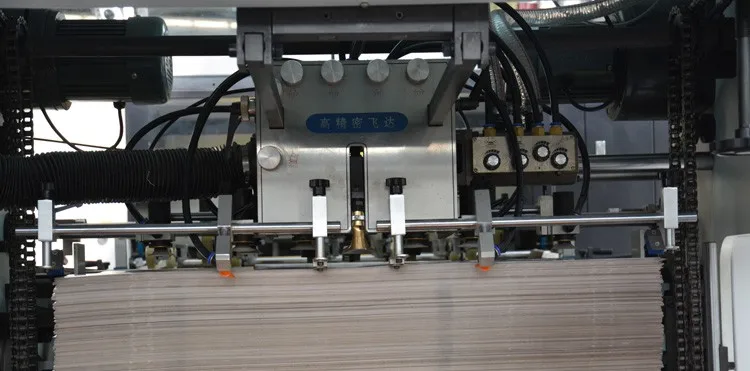

 Feeding and Collecting Part



l The extra feeder can do paper and corrugated board,Install the vacuum pump of BECKER.

l At the middle of head install the monitor ,worker can easily see the back

l Pre-paper pile design and special pneumatic bench can save much time

l The non-stop sampling system can check the board accurate without stop the machine

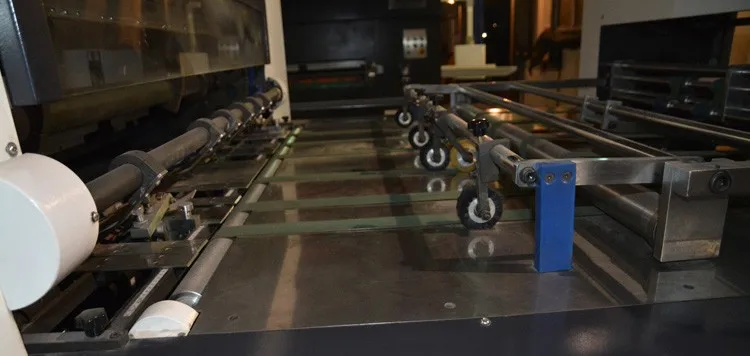

 Feeding table





l Additional brush wheels and pressing wheels for thin paper and corrugated board running

l Advance push and pull lay of registration can assure the die cutting precision

l Rikko light front lay detection system prevent the slanting paper move in main body

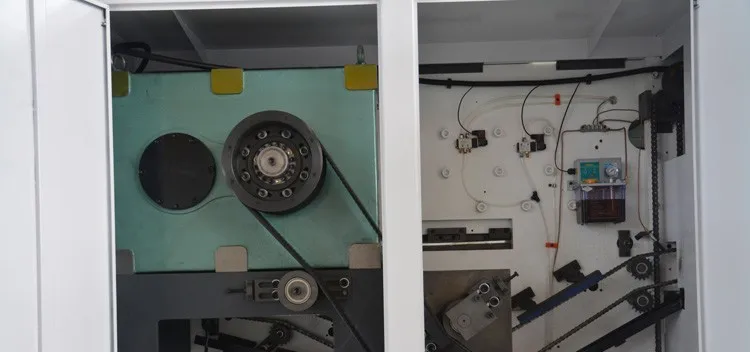

 Main body





l Adopt automatic centralized lubricating system and setting main chain lubricating system by HMI



l Patented design shock absorption system can prolong the life of main body and increase the pressure



l The intermittent gearbox made in Taiwan can assure the accurate registration and decrease the gripper attack

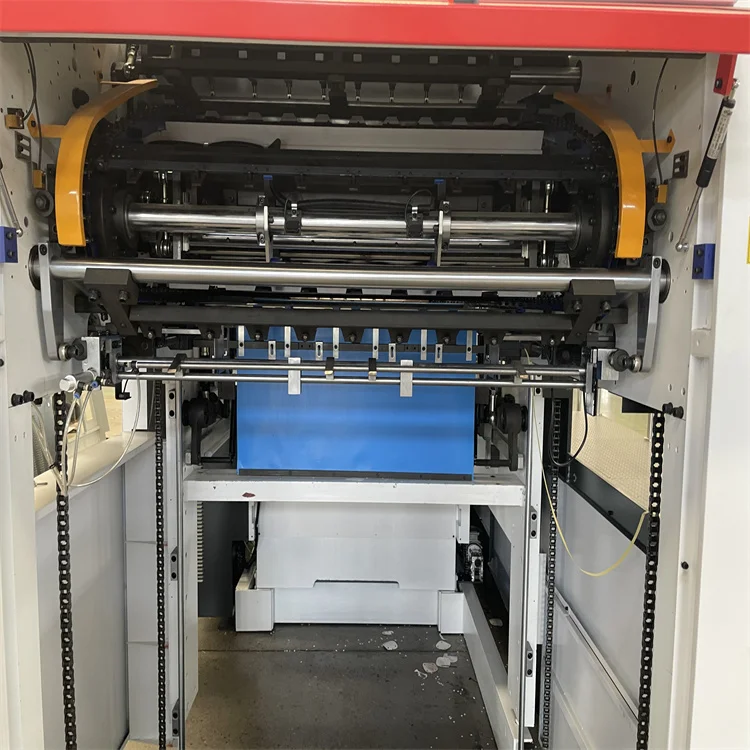

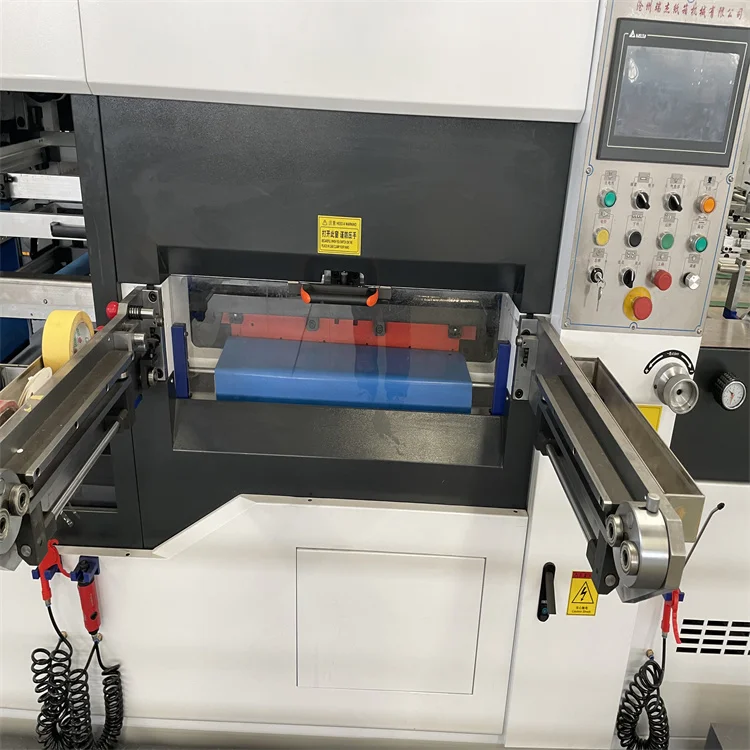

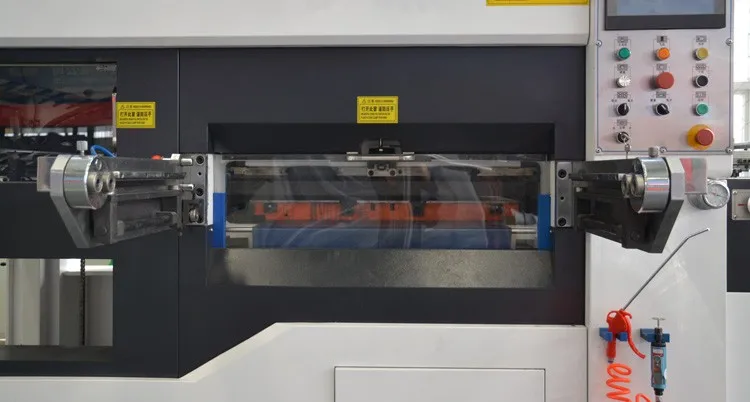

Diecutting part and Delivery system











l Diecutting chase fixed accurately by pneumatic lock system







l Diecutting plate is putted in and out by air floating device

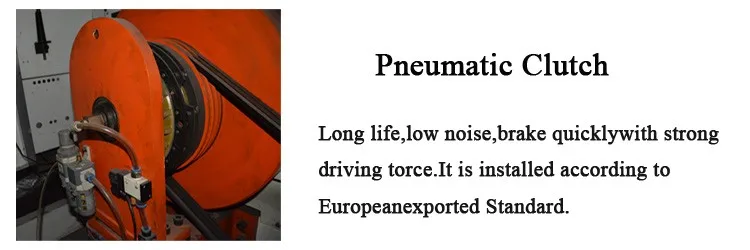

l Electric clutch system of main chain can assure the chain steady when it is stopped at high speed

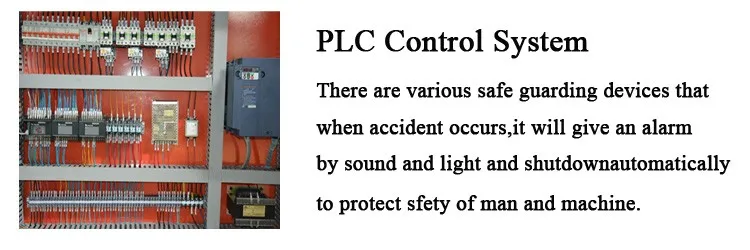

l Main chain and assist chain is lubricated periodically controlled by PLC







l Protection window of diecutting can hold the main body clean

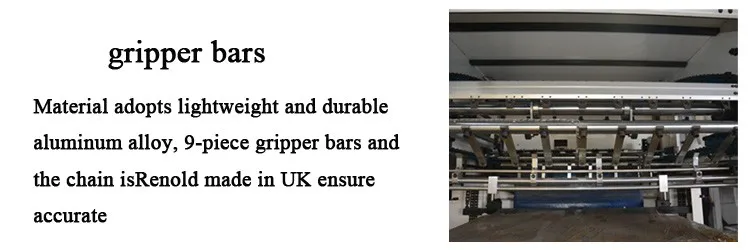

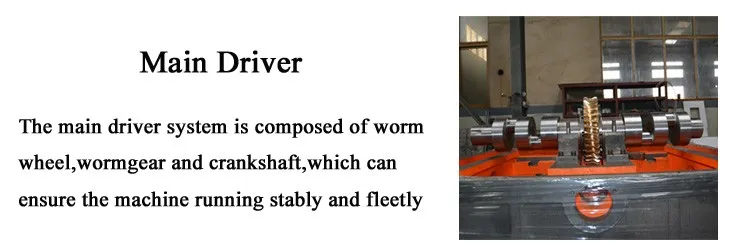

Detail Parts



 Exhibition









Machine weight	17 Tons
Machine size	5800*2170*2245mm without pedal, so one 40’ container can contain one set of this model machine.
Packing Item	PE film wrapping and typing, we can also package our manual punching die cutter with wooden pallet or wooden box but for this model machine as we all know, the size is big so can only package it with this method, hope you can understand





PS: Normally our machines are uneasy to broken because of our professional machine making team and strict QC team, we will also send you our manual and video, what you need to do is just learn some basic thing such as machine maintenance.







1. Are you a factory or trading company?

Ruijie Machinery is a factory and manufacturer in this field about 10 years since 2004.



2. What is the terms of payment you accept?

We usually accept the T/T payment, we need 30% of total amount as deposit, pay the 70% balance before delivery.



3. Where is your factory located ? How can I visit there?

Our factory located in Dongguang County,Hebei Province,China., near to the capital city Beijing and port Tianjin. You can fly to Bejing airport directly and we will pick you up there.



4. How does your factory do regarding quality control?

Quality is priority.We always regard great importane to quality controlling from the very small thing(even a small screw we will choose the best quality) from the begining.



5. Why we choose Ruijie Machinery?

Exporting to over 20 countries such as Mexico, Russia, Turkey, we have gained a lot of experience that enable us to meet more and more customers.
