Epever Off Grid Solar Inverter 12V 24V48Vdc To 220Vac 230V Inverter 3KW Pure Sine Wave Inverter For Solar Rv System
- Category: >>>
- Supplier: Huizhou Epever Technology Co. Ltd.Huizhou Ltd.
Share on (1601202468199):
Product Overview
Description
Products Description

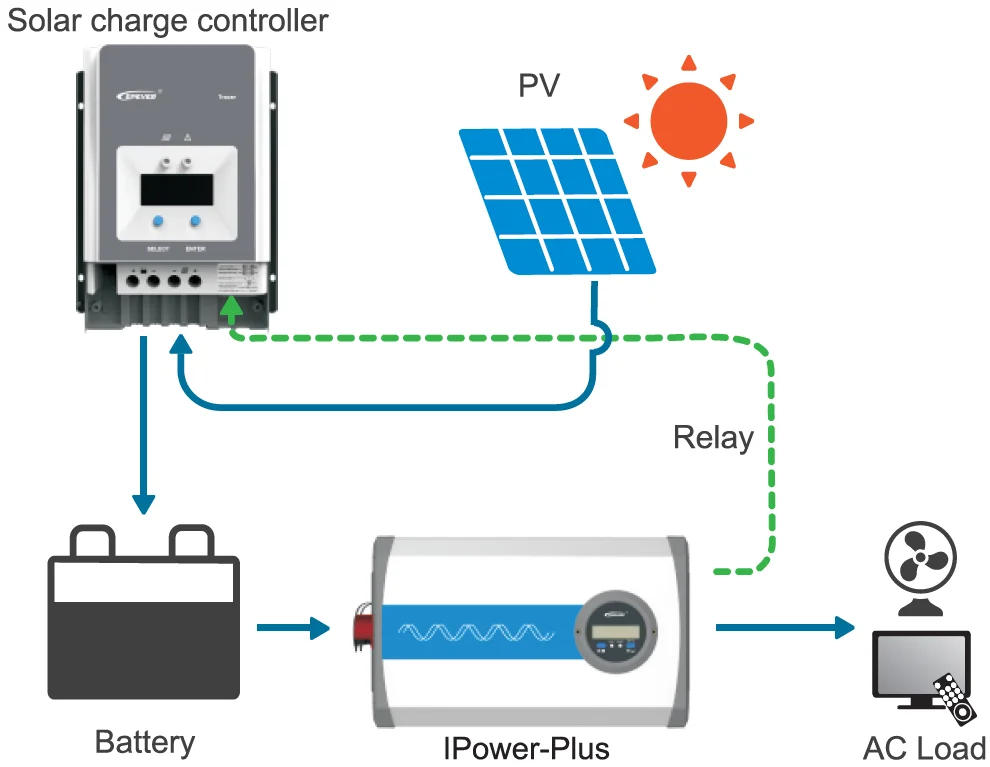

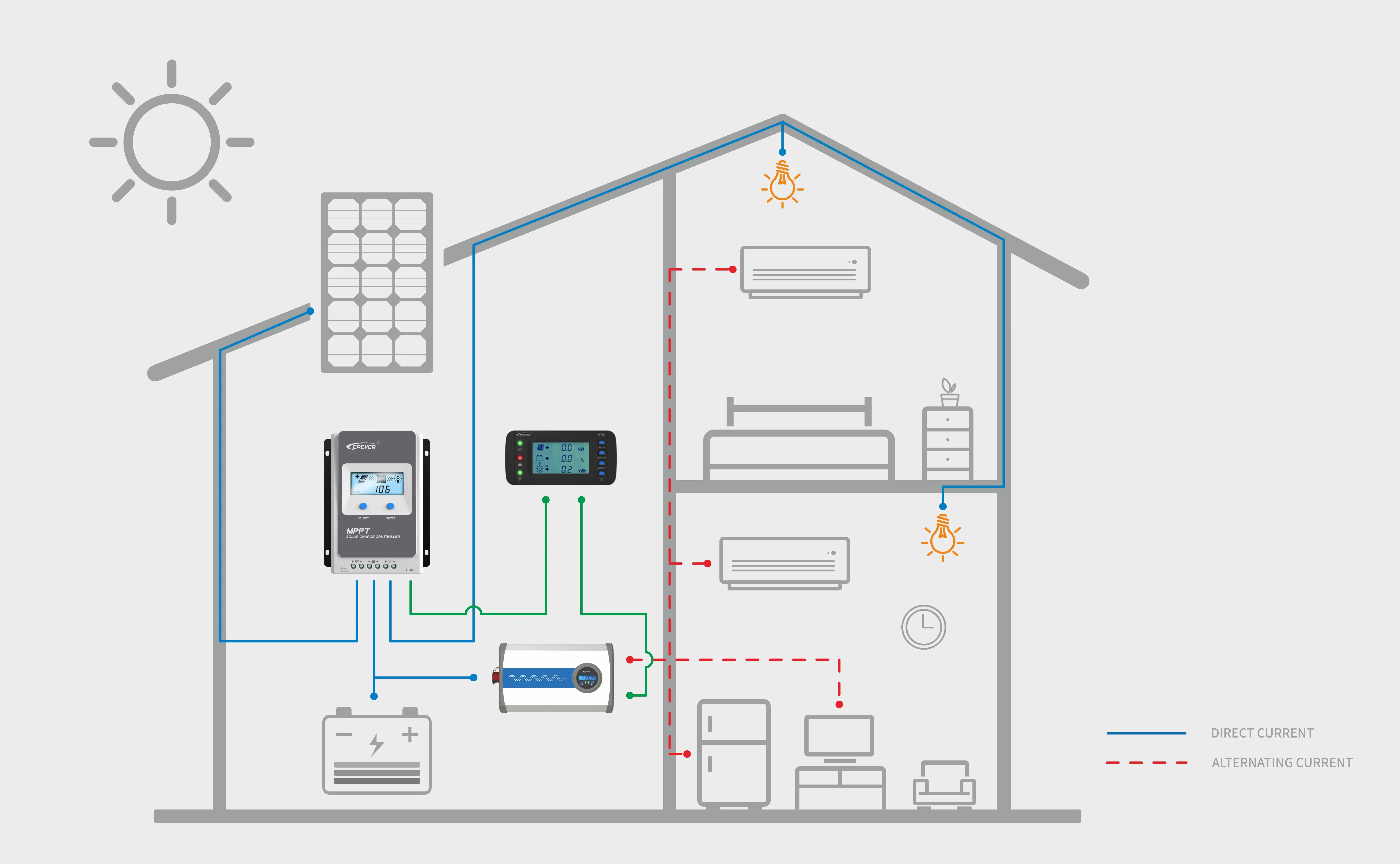

System connection diagram
Technical Specifications
Parameters | IP3000-12-Plus | IP3000-22-Plus | IP3000-42-Plus | IP4000-42-Plus | IP5000-42-Plus | |||||
Continuous output power | 3000W@35℃@Rated input voltage | 4000W@35℃ @Rated input voltage | 5000W@35℃ @Rated input voltage | |||||||
Surge power | 6000W@5S | 8000W@5S | ||||||||
Surge current when power on | < 100A | < 100A | < 65A | < 65A | ||||||
Output voltage | 220VAC (±3%); 230VAC (-6%~+3%); 240VAC (-9%~+3%) | 220VAC (±3%); 230VAC (-6%~+3%); 240VAC (-9%~+3%) | ||||||||
Output frequency | 50/60Hz ± 0.2% | 50/60Hz ± 0.2% | ||||||||
Output wave | Pure Sine Wave | Pure Sine Wave | ||||||||
Output distortion THD | THD ≤ 3% (Resistive load) | THD ≤ 3% (Resistive load) | ||||||||
Load power factor | 0.2 ~ 1 (Load power ≤ Continuous output power) | 0.2 ~ 1 (Load power ≤ Continuous output power) | ||||||||
Rated input voltage | 12VDC | 24VDC | 48VDC | 48VDC | ||||||
Input voltage range | 10.8 ~ 16.0VDC | 21.6 ~ 32.0VDC | 43.2 ~ 64.0VDC | 43.2 ~ 64.0VDC | ||||||
Rated output efficiency① | > 87.0% | > 90.0% | > 92.5% | > 91.0% | ||||||
Max. output efficiency② | > 94.0%(30% loads) | > 94.0% (30% loads) | > 94.5% (30% loads) | > 94.0%(30% loads) | ||||||
Idle current | < 0.2A | < 0.15A | < 0.1A | < 0.1A | < 0.1A | |||||
No-load current | < 1.6A | < 1A | < 0.5A | < 0.6A | < 0.8A | |||||
USB output | 5VDC/Max.1A | 5VDC/Max.1A | --- | --- | ||||||
RS485 com. port | 5VDC/200mA | 5VDC/200mA | ||||||||
Mechanical parameters | ||||||||||
Input terminal | M10 | M6 | M6 | M6 | M6 | |||||
Dimension (L x W x H) | 557 × 231.5 × 123 mm | 521 × 274 × 148 mm | 491 × 231.5 × 123 mm | 516 × 231.5 × 123 mm | 531 × 231.5 × 123 mm | |||||
Mounting size (L x W) | 532 × 145mm | 495 × 145mm | 465 × 145mm | 490 × 145mm | 505 × 145mm | |||||
Mounting hole size | Φ6mm | Φ6mm | ||||||||
Net Weight | 10.5kg | 8.0kg | 7.0kg | 8.0kg | 9.0kg | |||||
Environment parameters | ||||||||||
Environment temperature | -20℃ ~ +60℃ (Refer to the Derating Curve) | |||||||||
Storage temperature | -35℃ ~ +70℃ | |||||||||
Relative humidity | < 95% (N.C.) | |||||||||
Enclosure | IP20 | |||||||||
Altitude | < 5000m (If the altitude exceeds 1000 meters, the rated power will be reduced according to IEC62040.) | |||||||||
Certification | ||||||||||
Safety | EN/IEC62109-1，UL1741，UL458，CSA C22.2#107.1 | |||||||||
EMC (Electromagnetic compatibility) | EN61000-6-1/EN61000-6-3 FCC 47 CFR Part 15，Subpart B | |||||||||
RoHS | IEC62321-3-1 | |||||||||
