Suzhou Yuda mini automatic PET plastic bottle blowing machine price
- Category: >>>
- Supplier: Suzhou Yuda Compressor Co. Ltd.
Share on (1601202607601):
Product Overview
Description
Product Overview

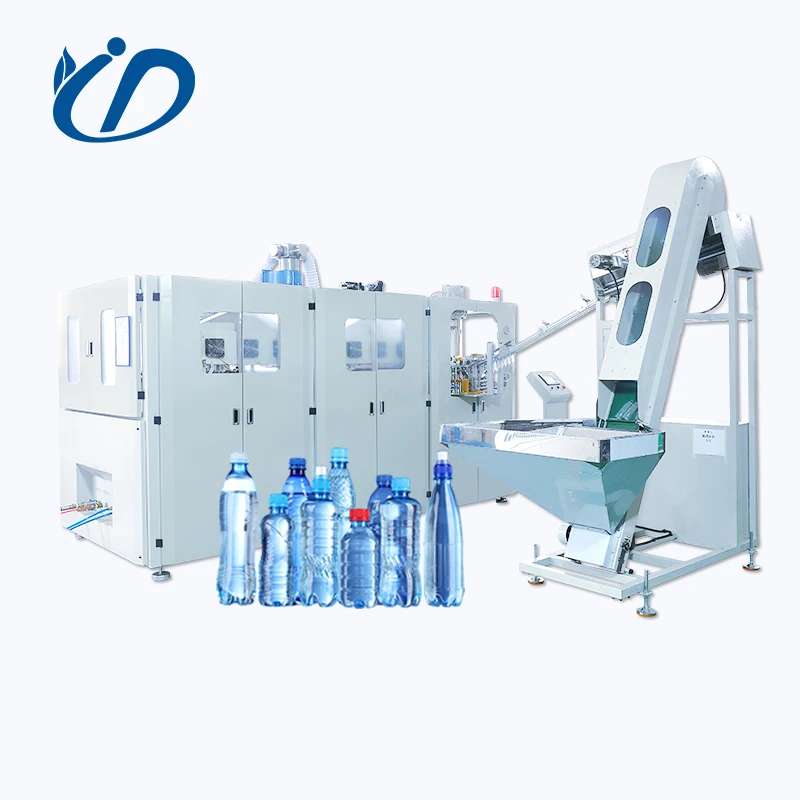

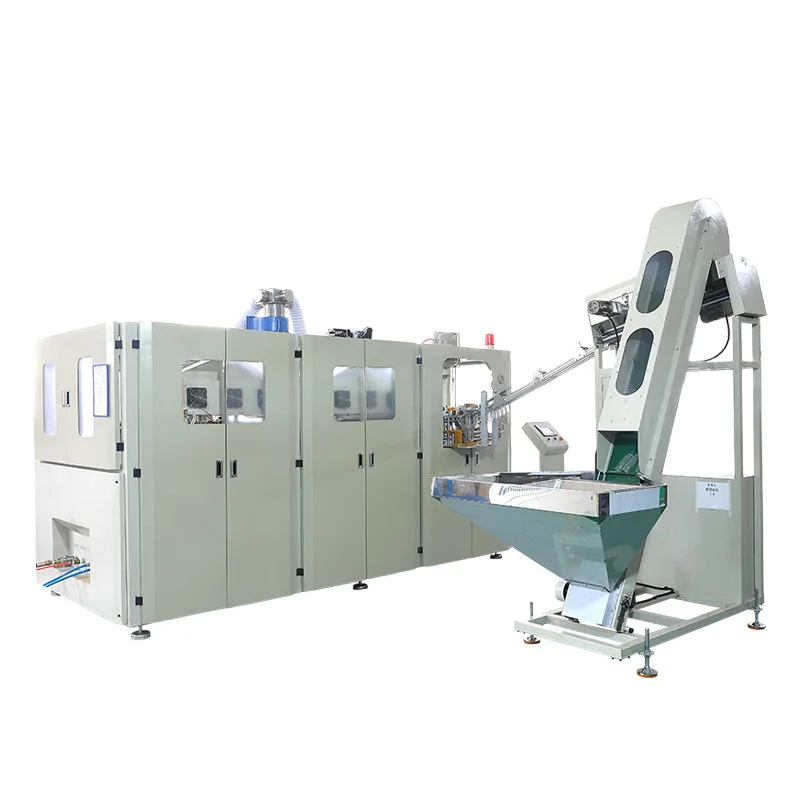

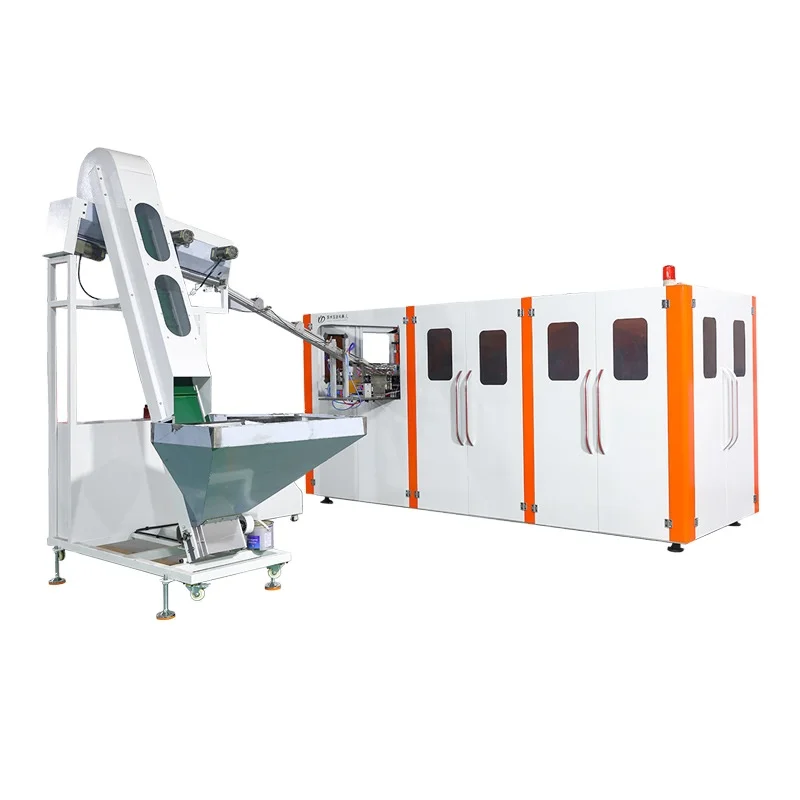

Yuda Series Two Cavity Full Automatic PET Bottle Blowing Machine
Adopt PLC control system, easy to operate.
Upgrade power efficiency.
Simplified operation by HMI control panel.
Modular design facilitates maintenance.
Energy saving, high capacity.
Small space.
YDBA-0.6-2 | YDBA-2L-2 | YDBA-2L-4 | |
Cavity | 2 | 2 | 4 |
Bottle Spacing | 76.2 | 114.3 | 114.3 |
Bottle preform number | 52 | 52 | 78 |
Max. Volume | 600ml | 1500ml | 1500ml |
MAX. Bottle Body Height | 260 | 330 | 330 |
Max Bottle Body Diameter | 68 | 105 | 105 |
Max Bottle Preform Height | 100 | 140 | 140 |
Max Bottle Mouth Diameter | 38 | 38 | 38 |
Install power | 55 | 55 | 72 |
Weight | 2000kgs | 2500kgs | 3500kgs |
Dimension | 2700*1800*2200 | 3300*1800*2000 | 4800*2200*2200 |
FEATURES AT A GLANCE
Adopt touch-type color HMI systemeasyto operate Can blow maximum 1.5 liter bottles. Maximum production speed can be 2500 bottles/hour.
Bottle outlet system is able to add a linking unit and combine with conveyor sysem to connect to the filling machine, hence reduce
bottles secondary pollution and save labors.
The machine main parts consist of torque transmission design constant rotary heating system and high speed clamping unit,excellent
machine layout and patented preform heating system save more than 40% of energy than the traditional one.
Adopt tight high-pressure combination valves and equipped with high-pressure air-recycle device air recycle efficiency can be as much as 40% meanwhile save the investment of low pressure equipment and save power
consumption of 15%.
SALES AND SERVICE NETWORK
FAQ
Q:Are you machinery factory or trading company?
A:We are machinery factory
Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
Q:Installation and stuff training available from you?
A:Yes, our engineers will guide machine installation and train your workers.
Q:How can we visit your company and machines?
A:We are located in Zhangjiagang City which is about 2.5 hours nearby Shanghai Airport.If customer want to visit our factory, we will pick up you at the airport.
Q:What`s the payment method?
A: T/T, L/C,Western Union,etc
Q:How long is the warranty?
A:1 year
Q:How long is the delivery time?
A:Under normal conditions, products are delivered within 45 working days.
Q:How can I know the stauts of my order?
A:We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.
A:We are machinery factory
Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
Q:Installation and stuff training available from you?
A:Yes, our engineers will guide machine installation and train your workers.
Q:How can we visit your company and machines?
A:We are located in Zhangjiagang City which is about 2.5 hours nearby Shanghai Airport.If customer want to visit our factory, we will pick up you at the airport.
Q:What`s the payment method?
A: T/T, L/C,Western Union,etc
Q:How long is the warranty?
A:1 year
Q:How long is the delivery time?
A:Under normal conditions, products are delivered within 45 working days.
Q:How can I know the stauts of my order?
A:We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.
Q: What need you prepare?
A: Machine space required:
Machine voltage: 380V (the power supply shall be within 3 meter away from the machine), If the voltage is different , the price will be increased by 10% percent.
Bottle samples and preforms will be provided by you in time or it will delay the delivery time. We don't undertake the delay of delivery because of it.
Machine voltage: 380V (the power supply shall be within 3 meter away from the machine), If the voltage is different , the price will be increased by 10% percent.
Bottle samples and preforms will be provided by you in time or it will delay the delivery time. We don't undertake the delay of delivery because of it.
