CCTV Security K10 Vandalproof Mini Dome PTZ Camera Audio Video Camera System TF card Slot IP66 Waterproof Outdoor use IP Camera
- Category: >>>
- Supplier: Shenzhen Qianpei Technology Co. Ltd.
Share on (1601202625841):
Product Overview
Description
Product Description
Features
* 4X Zoom, 2MP/5MP, 2 inch, IP66, IK10
* HD-IP PTZ dome, full metal body construction
* Built-in Mic & speaker, support two-way audio
* TF card slot(max 512G)
* Support P2P, ONVIF-compatible with HIKVISION, DAHUA NVR ect.
* Support RJ45 network connection

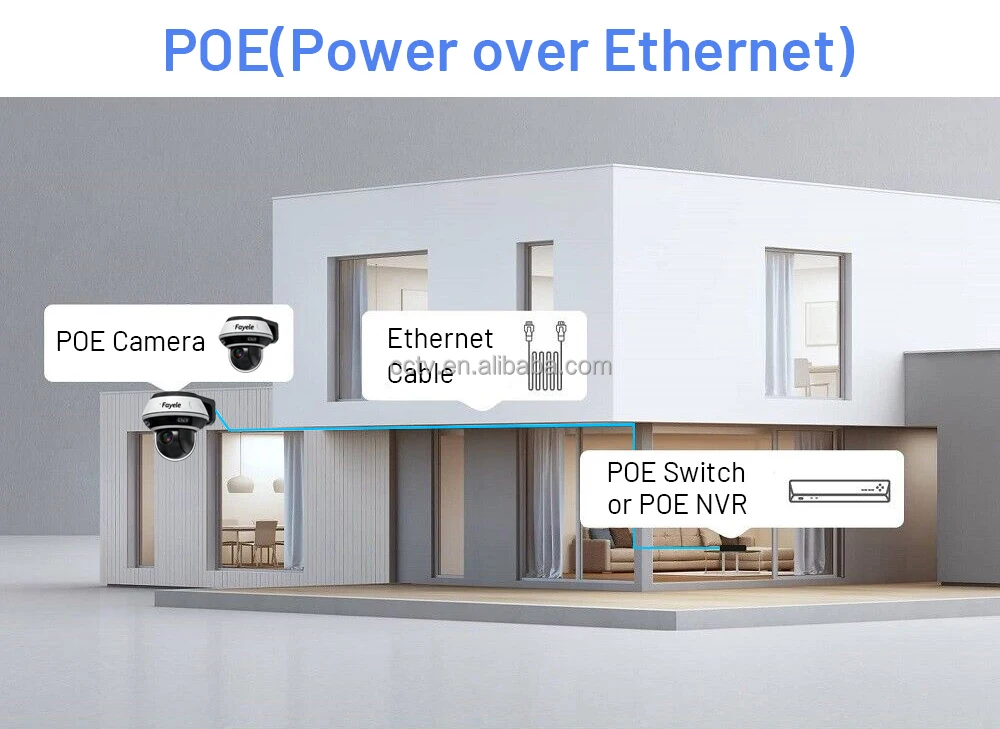

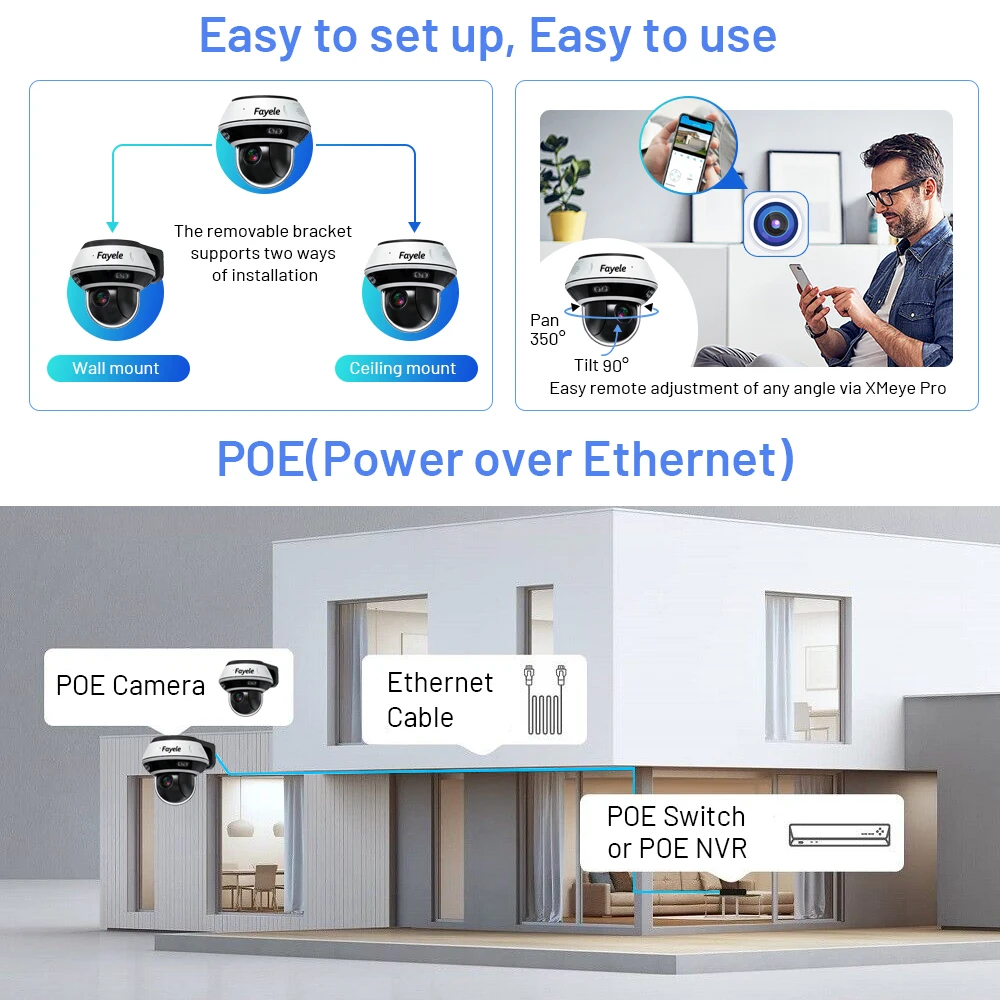

* Optional: POE
* APP: IVS365
* HD-IP PTZ dome, full metal body construction
* Built-in Mic & speaker, support two-way audio
* TF card slot(max 512G)
* Support P2P, ONVIF-compatible with HIKVISION, DAHUA NVR ect.
* Support RJ45 network connection
* Optional: POE
* APP: IVS365
Specification
Model NO. | NDR-CS45F | |
Camera | ||
System Structure | GK7502V300 | |
Image Sensor | 5MP 1/2.8"IMX335 CMOS; 0.03Lux@(F1.8, AGC ON), 3.0 Lux with IR | |
Solution | GK7502V300+ Sony IMX335 | |
Digital Noise Reduction | 2D/3D DNR | |
Image Setting | Brightness, contrast, saturation, sharpness, reverse light compensation, fluorescent light anti-flashing, electronic fog, wide dynamic, image flip | |
Lightning Protection | Power supply and network comprehensive lightning protection | |
Function | Support OSD, support real -time video transmission, humanoid detection, cloud services | |
Lens | ||
Lens Focal Length | 3.41~10.33mm | |
Field of View | Wide: Diagonal 133° Horizontal: 108.6° Vertical: 56.2° Tele: Diagonal 36.7° Horizontal: 32° Vertical: 18° | |
Aperture Value | F1.66(Wide) ~ F3.03(Tele) ±5% | |
Rotation Control | ||

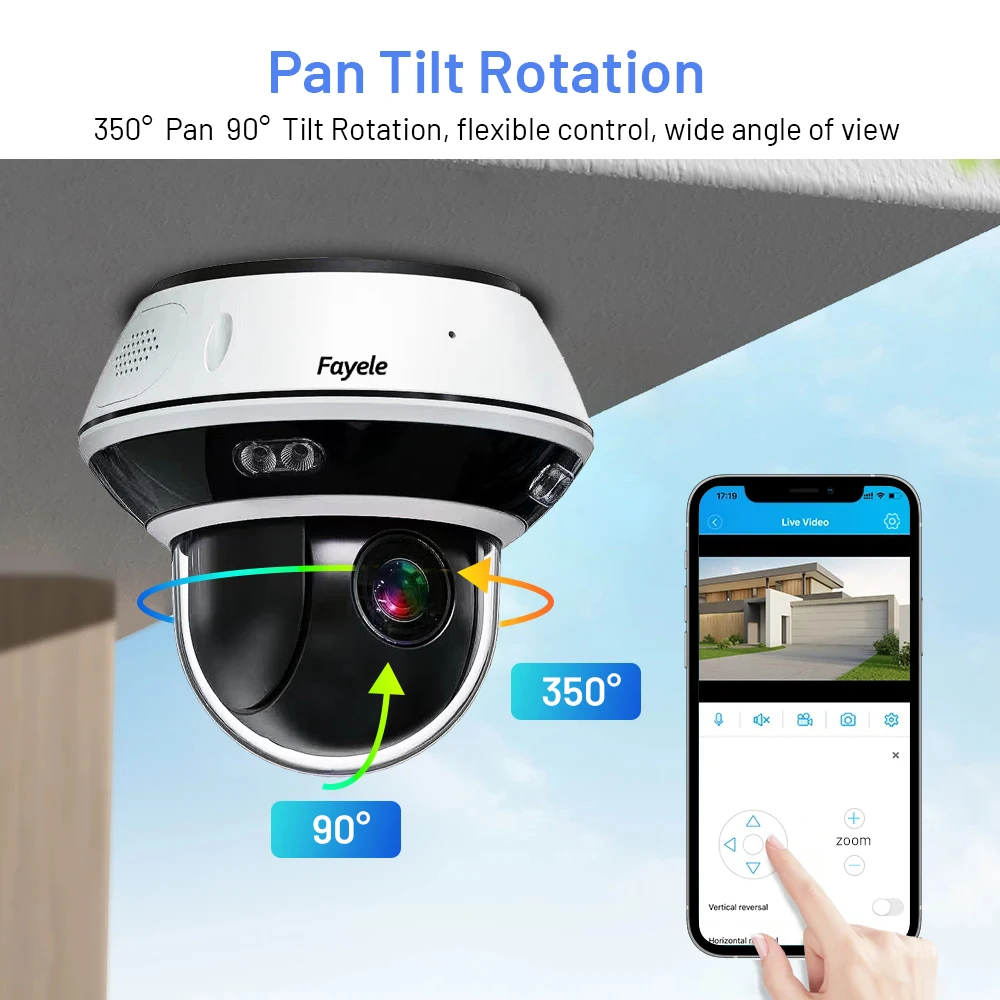

Range | Pan:0- 340° Pan: 0-90º | |
Speed | Pan: 22°/s Tilt:15°/s | |
Video | ||
Video Compression | Support H.265+/H.265/H.264; Code stream 0.1M~8Mpbs adjustable; Frame rate 1~30 fps adjustable | |
Image Output | Main Stream： PAL: 5MP(2592*1944)@20fps/ 4MP(2560*1440)@25fps/ 1080P(1920*1080)@25fps/ 720P(1280*720)@25fps NTSC: 5MP(2592*1944)@20fps/ 4MP(2560*1440)@25fps/ 1080P(1920*1080)@30fps 1920*1080@30fps | |
Sub-Stream： PAL: D1(720*480)@20fps/ VGA(640*480)@20fps NTSC: D1(720*480)@20fps/ VGA(640*480)@20fps | ||
Alarm | APP alarm | |
Network | ||
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP | |
APP | ||
Mobile View | IVS365 (Android, IOS) | |
Interface | ||
Communication Interface | 1 RJ45 10 M / 100 M Ethernet interface | |
TF Card | Max support 512G | |
Microphone | Built in | |
Speaker | Built in | |
Reset | Support | |
Light | ||
IR Distance | Up to 25 m | |
LEDS | 8 pcs IR LED | |
General | ||
Power Supply | DC：12V±25％ 2A | |
Power Connector | Φ5.5mm circular interface | |
Power consumption | DC12V, Consumption: 3~15W | |
Operating Conditions | -30℃ ~ 45℃ | |
Factory Data Reset | Support software to restore factory settings | |
Material | Metal + plastic | |

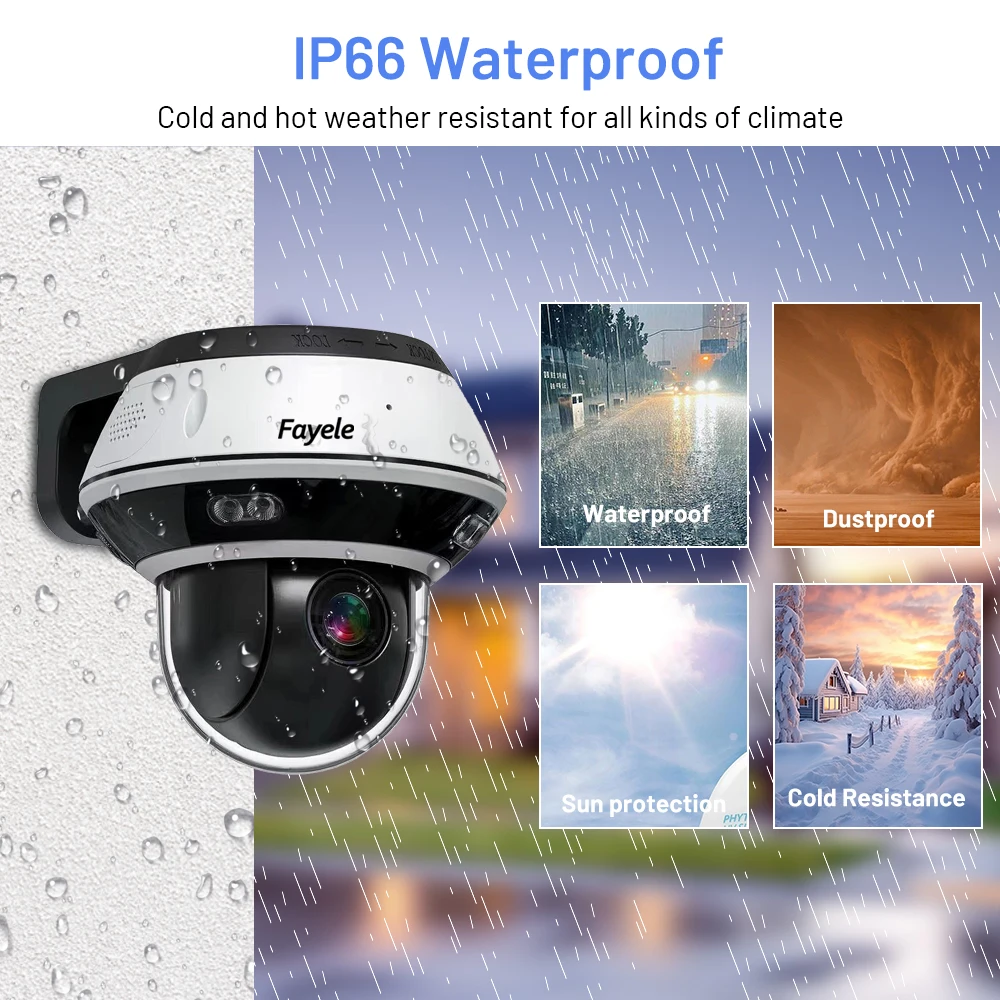

Weather Proof Rating | IP66 | |
Accessories | ||

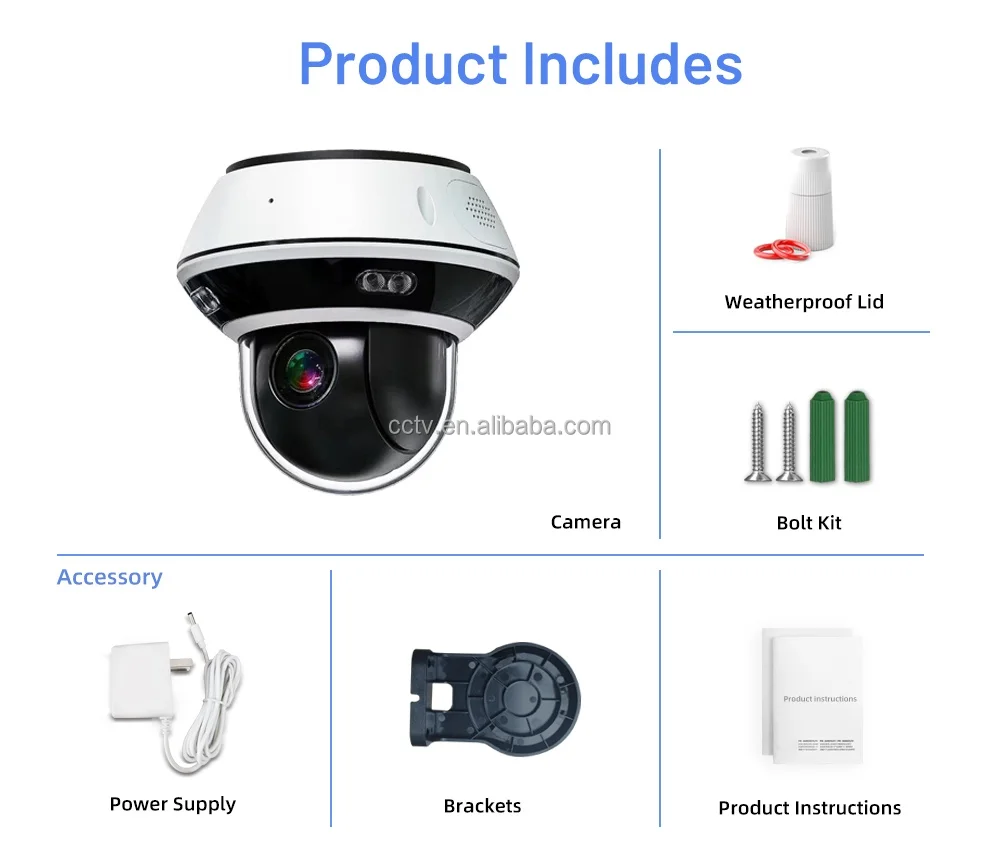

Packaging Accessories | Waterproof Cap*1, User Manual*1, Certificate of Conformity*1, Screw Pack*1, Bracket*1, Power Supply*1 | |
