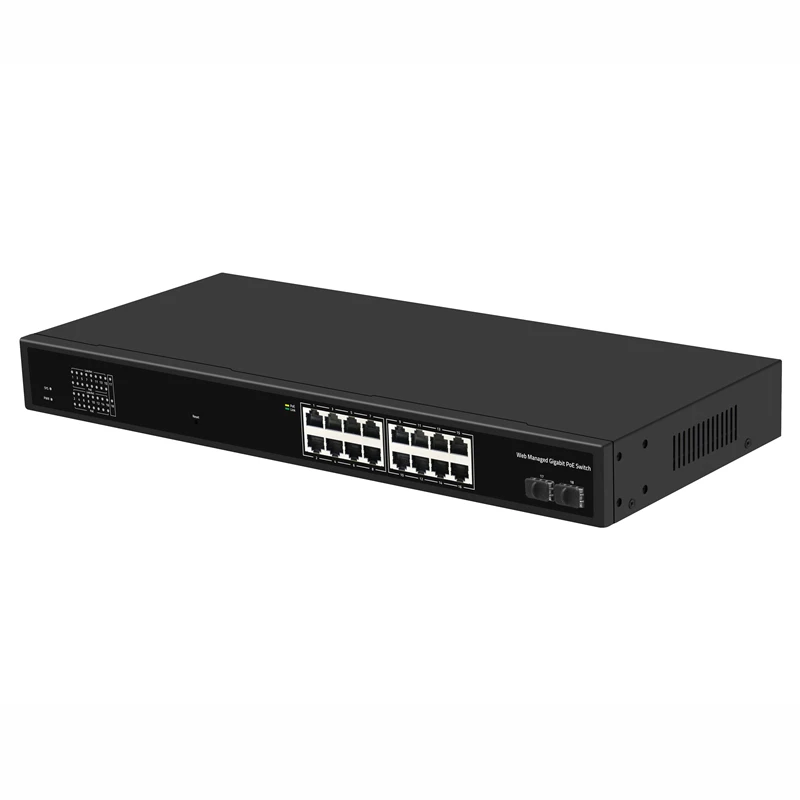

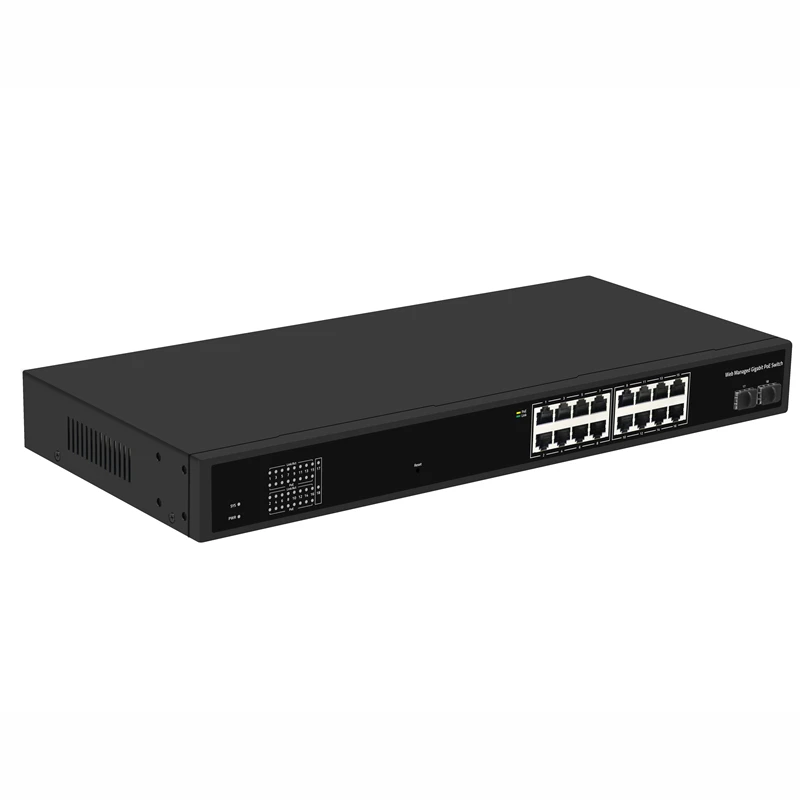

New 2024 Easy Smart 16 ports Web Managed gigabit poe switch with 2 ports SFP uplink
- Category: >>>
- Supplier: Shenzhen Sunsoont Technology Co. Ltd.
Share on (1601202642425):
Product Overview
Description
Product Description
16 port PoE switch web smart switches 1G managed switch ODM OEM
16 Port Gigabit Web Managed Ethernet PoE Switch adopts high-quality and high-speed network IC. It has a fan less and silent design, which completely solves the problem of high noise when small switches are deployed in an office environment.This switch has 16* Gigabit POE RJ45 ports+ 2* Gigabit SFP ports, which can provide seamless connection
for 10/100/1000M Ethernet, supports WEB management, and is easy to manage and maintain. This product can be widely used in security network video surveillance, hotels, campuses, and small and medium-sized enterprises. Network engineering and other occasions.
for 10/100/1000M Ethernet, supports WEB management, and is easy to manage and maintain. This product can be widely used in security network video surveillance, hotels, campuses, and small and medium-sized enterprises. Network engineering and other occasions.
Feature
* Support 16* Gigabit PoE RJ45 ports+2* Gigabit SFPPorts;
* Support IEEE802.3, 3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z standard;
* Ethernet port supports 10/100/1000M adaptive;
* Support port auto flip(Auto MDI/MDIX);
* Adopting a storage and forwarding exchange mechanism;
* All ports support line speed switching;
* 1U rack installation;
* Panel indicator lights monitor working statusand help failure analysis;
* Support QOS data priority;
* Surge Protection: General 4KV, Differential 2KV(level B), ESD 8KV air, 6KV contact(level C)
* Support IEEE802.3, 3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z standard;
* Ethernet port supports 10/100/1000M adaptive;
* Support port auto flip(Auto MDI/MDIX);
* Adopting a storage and forwarding exchange mechanism;
* All ports support line speed switching;
* 1U rack installation;
* Panel indicator lights monitor working statusand help failure analysis;
* Support QOS data priority;
* Surge Protection: General 4KV, Differential 2KV(level B), ESD 8KV air, 6KV contact(level C)
Details Images
Specification
I/O Interface | ||
Power | AC100-240V / 50-60Hz | |
Ethernet | 16*Gigabit POE RJ45 Ports 2* Gigabit SFP Ports | |
Performance | ||
Bandwidth | 36Gbps | |
Pack Forward Rate | 26.78Mpps | |
Pack Cache | 4Mbit | |
VLAN | VLAN range 1-4094, with a maximum active VLAN of 31 | |
MAC Address Table | 8K | |
Transfer Mode | Storage & Forward | |
Standard | ||
Network Protocol | IEEE 802.3: Ethernet Media Access Control (MAC) Protocol IEEE 802.3i: 10BASE-T Ethernet IEEE 802.3u: 100BASE-TX Fast Ethernet IEEE 802.3ab: 1000BASE-T Gigabit Ethernet IEEE 802.3z: 1000BASE-X Gigabit Ethernet (fiber optic) IEEE 802.3x: Flow Control | |
POE protocol | IEEE802.3af（15.4W） IEEE802.3at（30W） POE port output voltage: DC 44-57V POE power supply core: 1/2+; 3/6- | |
Industry Standard | EMS: EN61000-4-2 (ESD) EN61000-4-5 (Surge) | |
Network Medium | 10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m) 100Base-TX: Cat5 or above UTP/STP(≤100m) 1000Base-TX: Cat5 or above UTP/STP(≤100m) | |
Fiber Optic Medium | Multi mode: 50/125, 62.5/125, 100/140um Single mode: 8/125, 8.7/125, 9/125, 10/125um | |
Environment Standard | ||
Working Environment | Working Temperature: -10~40°C Storage Temperature: -40~70°C Working Humidity: 10%~90%，non-condensing Storage Temperature: 5%~95%，non-condensing | |
Function Indicator | ||
Indicator | PWR(Power Indicator), 1000M(Link Light), Act(Link&Data Light) | |
PWR | On: Powered on Off: Powered off | |
1000M | On: Gigabit link on Off: 10/100M Link or Link off | |
Act | On: Link connecting Flashing: Data transmitting Off: Link off | |
Reset | Short press to restart long press 5S to restore factory settings | |
Physical Structure | ||
Structure size | Product Size: 440*204*44mm Package Size: 500*290*85mm Product Net-Weight: KG Product Gross-Weight: KG | |
Packing Info | Carton Size: 520*445*310mm Packing Qty: 5 PCS Packing Weight: KG | |

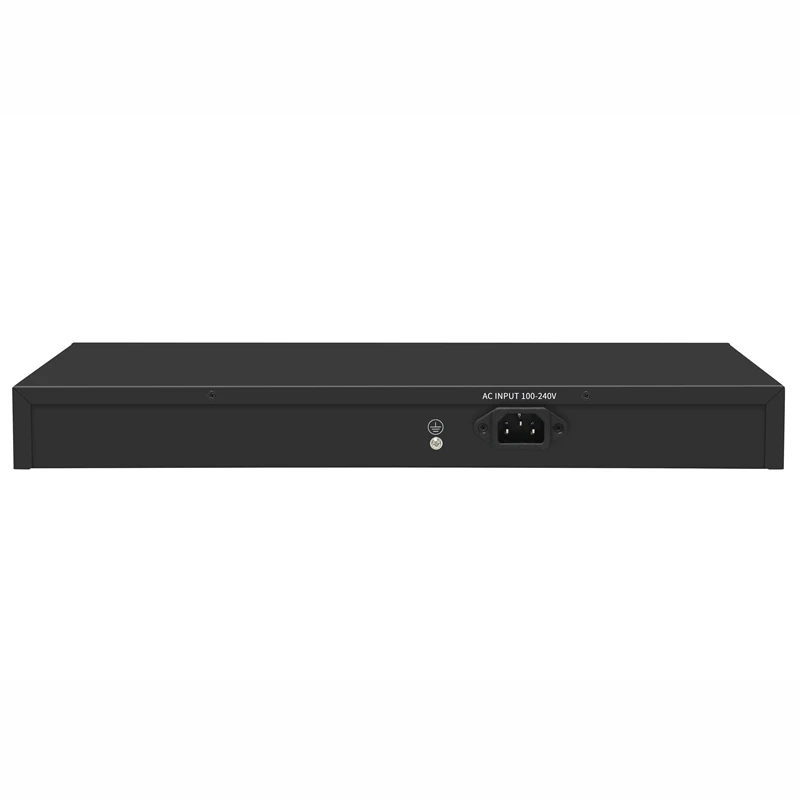

Power Voltage | Input Voltage: AC 100-240V 50/60Hz Power Supply: 52V 5.76A | |
Consumption | Mother Board Power: Maximum 20W POE Power: Maximum 280W | |
Packaging List | 1 Switch, 1 Power cord, 1 Manual, 1 Certificate of Conformity, and 1 Pair of Hanging Ears | |
Consumption | Mother Board Power: Maximum 20W POE Power: Maximum 380W | |
Packaging List | 1 Switch, 1 Power cord, 1 Manual, 1 Certificate of Conformity, and 1 Pair of Hanging Ears | |
Web Managed Function | ||
Port | Port Switch Configuration | |
Port Speed Configuration | ||
Port Duplex Configuration | ||
Port Flow Control Configuration | ||
Jumbo, Up to 9216bytes | ||
EEE | ||
Link Aggregation | Static Group | |
Up to 4 groups | ||
Max. 8 members per group | ||
Storm Control | Board cast | |
Unknown Multicast | ||
Unknown Uni cast | ||
Port Mirroring | support | |
Port Security | MAC Address Constraints | |
Port Isolation | support | |
Port Rate-limit | support | |
Loop back Detection | support | |
VLAN | Access/Trunk/Hybrid | |
VLAN range 1-4094, with a maximum active VLAN of 31 | ||
MAC Address | Dynamic Address | |
Static Address | ||
Address Lookup | ||
Spanning Tree Protocol | STP/RSTP | |
Edge Port | ||
Multicast | IGMP Snooping | |
IGMP V1/V2 | ||
Router Port | ||
Static IGMP Join | ||
QOS | Traffic classification based, Strict priority and WRR | |
Port Priority | ||
Supports up to 8 queues per port | ||
Services | ||
Access Protocol | HTTP | |
Port Statistics | support | |
Management | support | |
Manager IP | Static Address | |
DHCP Client | ||
User | support | |
Firmware | Firmware Upgrade | |
Configuration | Upload and download | |
Save | support | |
Restart | support | |
Factory Defaults | support | |
Standards Compliance | ||
IEEE 802.3x flow control and back pressure | ||
IEEE 802.1D Spanning Tree Protocol | ||
IEEE 802.1w Rapid Spanning Tree Protocol | ||
IEEE 802.1p Class of Service | ||
IEEE 802.1Q VLAN tagging | ||
RFC 768 UDP | ||
RFC 791 IP | ||
RFC 792 ICMP | ||
RFC 2068 HTTP | ||
RFC 1112 IGMP v1 | ||
RFC 2236 IGMP v2 | ||
