MXUS 135mm dropouts e Bike kit 48V 72V 3000w e Bike Conversion Kit 100km/h Speed kit
- Category: >>>
- Supplier: Changzhou Mxus Imp.&Exp. Co. Ltd.Changzhou Ltd.
Share on (1601202644786):
Product Overview
Description
Product Description

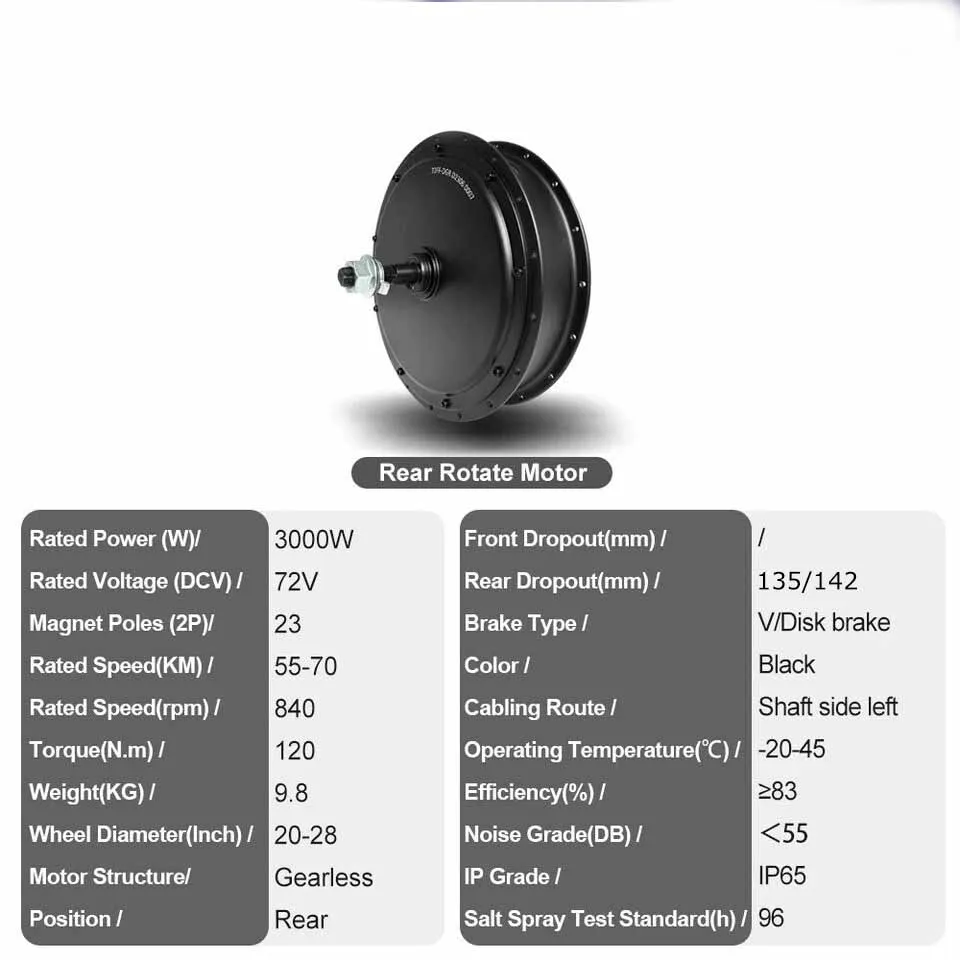

XF40-45H 3T
Rated Voltage | 72v | Rated Power | 3000w |
Dropout | 142mm | Weight | 10kg |
Brake Type | V/Disc Brake | Magnet ploes | 23 |
Construction | Gearless | Freewheel | 6s |
Wheel Diameter | 20-28inch | Rated Speed | 50km/h |
Hallsensor | Double | Postion | Rear |
Cabling Route | Shaft center left | Color | Black |
Efficiency | 83% | Temp Sensor | Optional |
Detailed Images

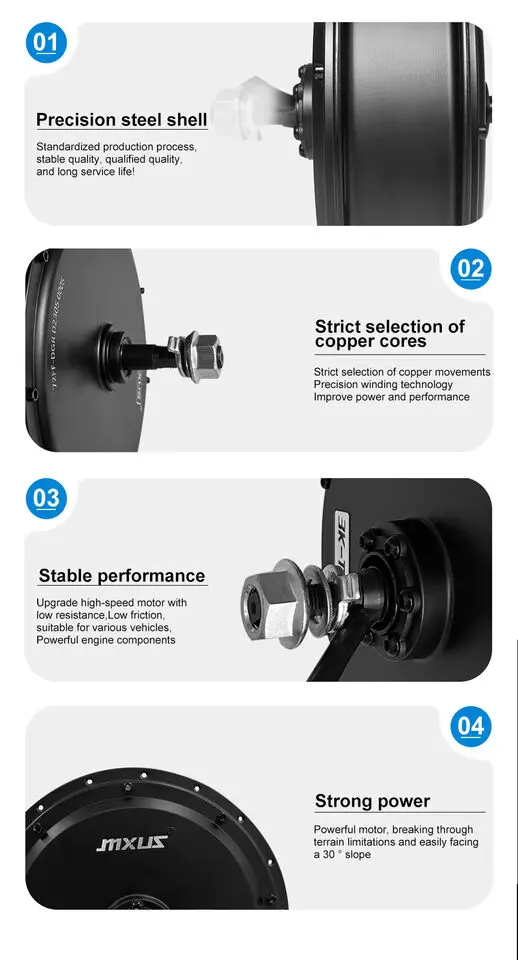

The advantage of mxus 3000w-45H motor :

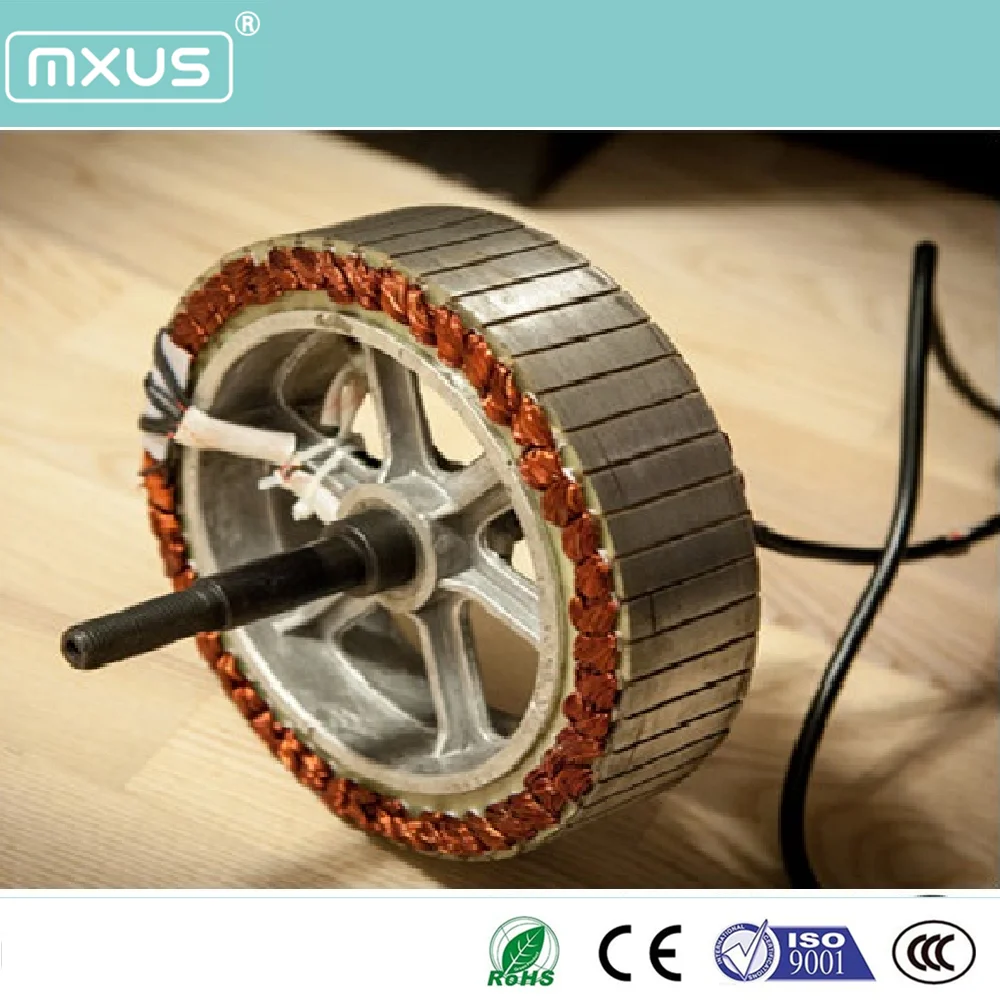

1)It 's aluminum stator is 0.35mm 300 silicon steel sheets. The engine has "more power, more torque and higher efficiency"!
2)The phase wire is 4.0mm square, it can afford bigger current.
3)It has 2 pieces of hall wire,so you don't need to be worried about the hall problem.
2)The phase wire is 4.0mm square, it can afford bigger current.
3)It has 2 pieces of hall wire,so you don't need to be worried about the hall problem.
4）If need temperasure sensor, please contact us, we will add for free.
If you need it,please tell me these details:
1)What's the size of wheel? you can choose 20inch----29inch.
2)What's the voltage of your battery? you can choose 48V---96V.
3)How fast do you need ? you can choose 30km/h--120km/h(with load)
If you buy directly without any connection, we will send you only the motor with the standard wingding 3T.
2)What's the voltage of your battery? you can choose 48V---96V.
3)How fast do you need ? you can choose 30km/h--120km/h(with load)
If you buy directly without any connection, we will send you only the motor with the standard wingding 3T.

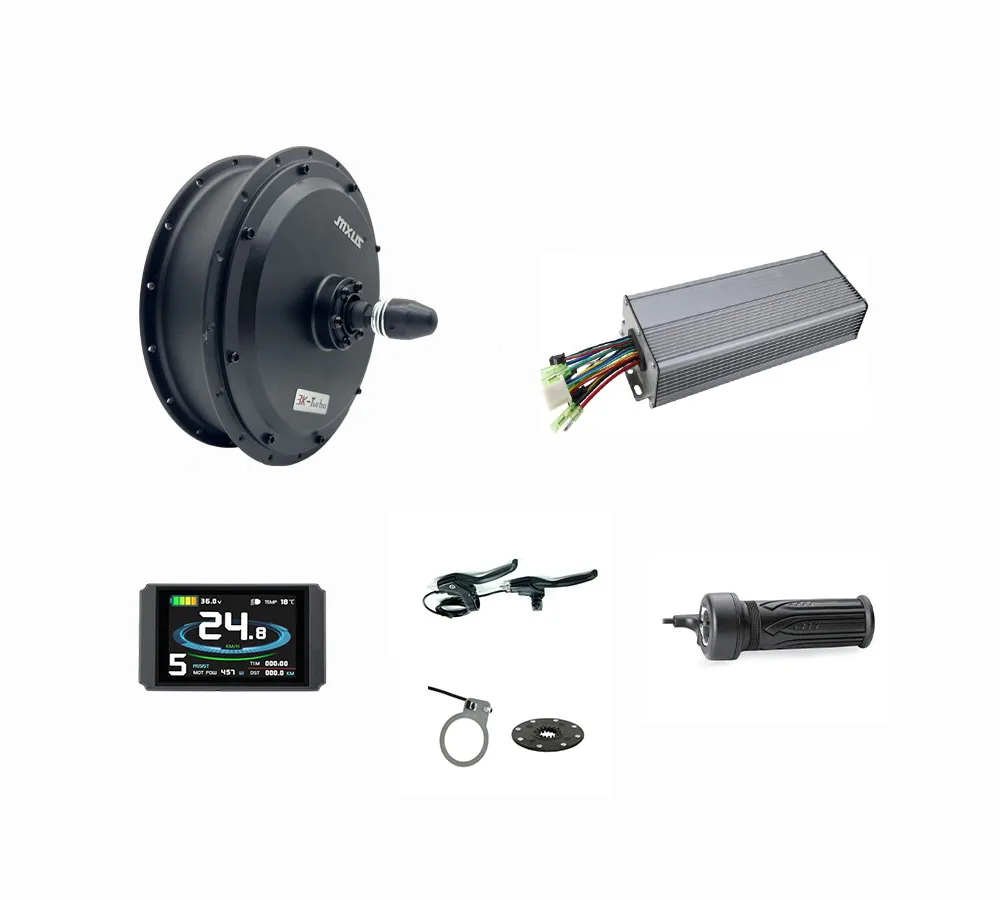

Sabvoton Controller
KT Controller
The rated voltage and rated power of the motor(can be customized):
Rated Voltage 48V 60V 72V 84V 96V
Rated Power 1500W 1900W 2200W 2600W 3000W
The max load speed of the motor
48V 60V 72V 84V 96V
3T 560rpm 700rpm 840rpm 980rpm 1120rpm
4T 430rpm 535rpm 645rpm 750rpm 860rpm
5T 350rpm 435rpm 525rpm 610rpm 700rpm
Rated Voltage 48V 60V 72V 84V 96V
Rated Power 1500W 1900W 2200W 2600W 3000W
The max load speed of the motor
48V 60V 72V 84V 96V
3T 560rpm 700rpm 840rpm 980rpm 1120rpm
4T 430rpm 535rpm 645rpm 750rpm 860rpm
5T 350rpm 435rpm 525rpm 610rpm 700rpm
Other Products
Our Company
Packing & Delivery
Our most professional packaging
Transport of large trucks to the seaport
And international transport cooperation

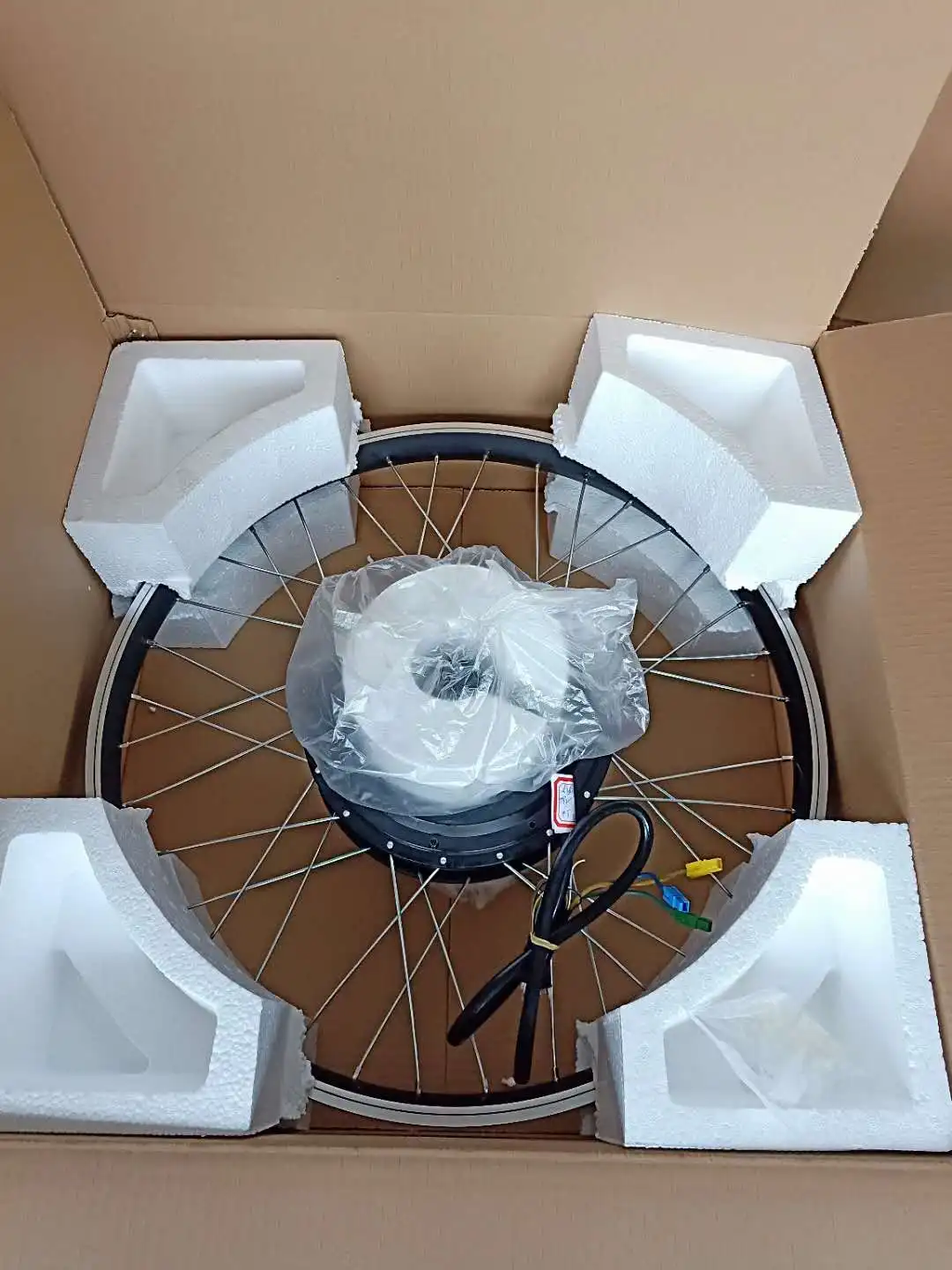

Motors have been finished, waiting to mount rim and spokes
We can provide mounting rim, spokes and motor service.None MOQ.
Our Service
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral yellow cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take about 30 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the shipping cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
