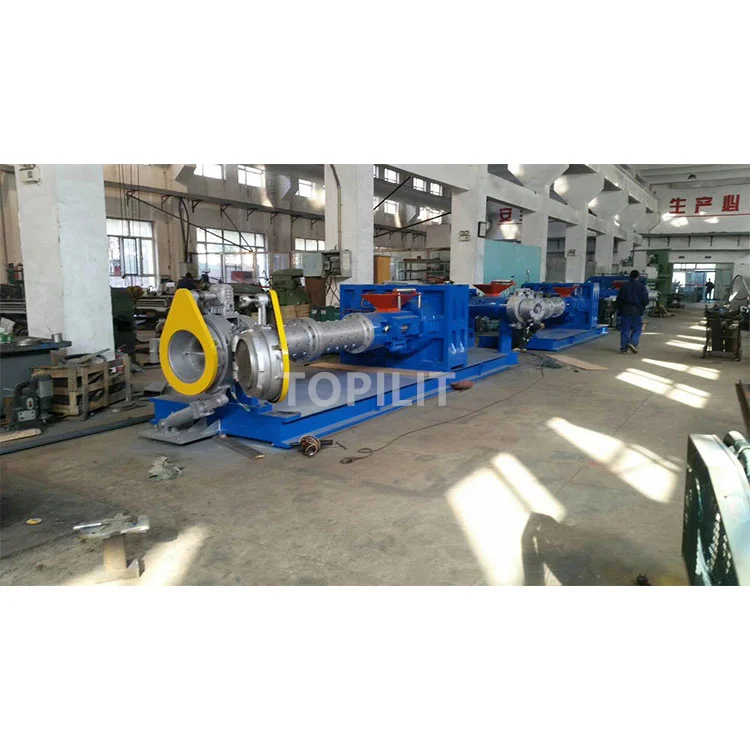

New Technology Rubber Screw Extruder Machine XJ-65 (CE Approved)
$34,000.00-35,000.00

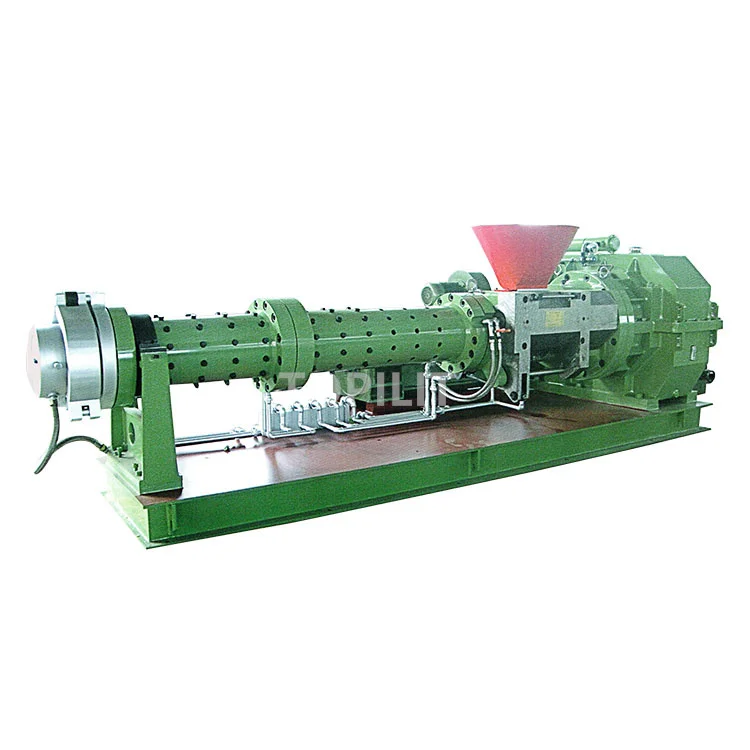

High Quality China Manufacture Tire Rubber Extruder Hard Tooth Surface Reducer Cold Feed Extruder For Final Mixing Rubber
- Category: >>>
- Supplier: Qingdao Toplit Industry Co. Ltd.
Share on (1601202800533):
Product Overview
Description

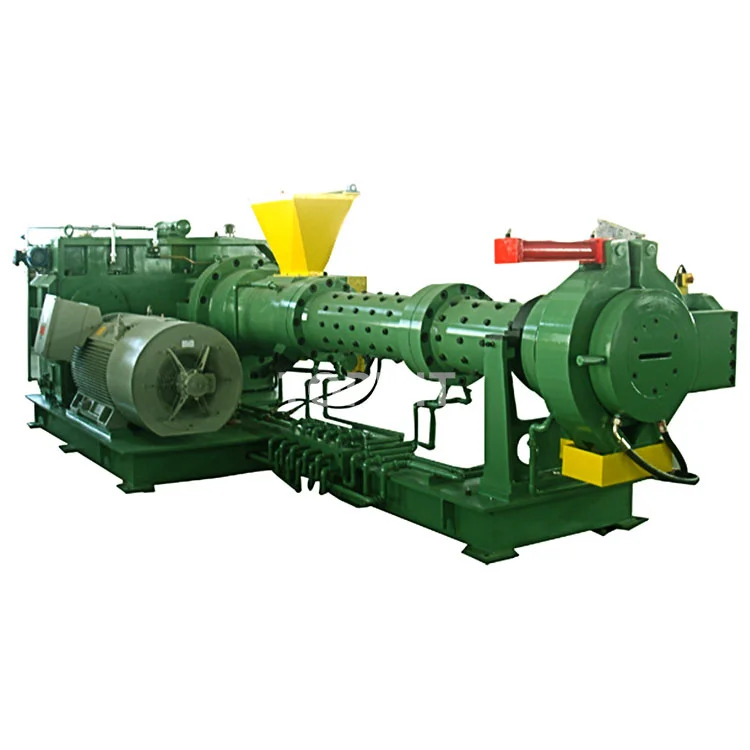

High Efficiency Rubber Strip Extruder Cold Feed Rubber Extruder / Rubber Extruder Machine
Equipment summary
Introduction:
Cold feed rubber extruder suitable for the extrusion of tire tread, tire sidewall, hose stereotypes, cable, rubber sheet, conveyor belts, fireproof materials, rubber flooring and similar rubber products. And supplying rubber for calendering machine.Main configuration:
1. Screw: the screw is made of 38CRMOA1A high-quality nitrification steel. Through tempering and surface nitrogen treatment, the surface hardness of spiral part can reach to HRC60-70, and the hardness layer depth can reach to 0.5 0.7mm.
2. Machine body: it is made of casted steel ZG270-450 the force feeding rollers are equipped.
3. Reducer: we adopt the hard tooth surface reducer, and the precision of gear in mesh reach to sixth grade.
4. Motor: DC motor

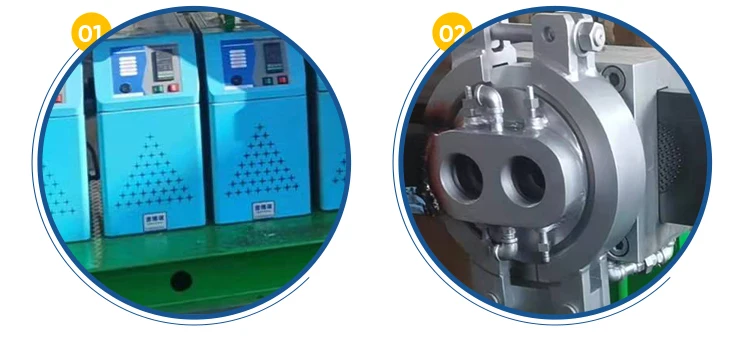

5. Temperature control system: The machine is provided with three units temperature controller, each control unit can be independently controlled. The recycling media of the temperature control system is soft water; the inlet water pressure is 0.2-0.3MPa, the heating power of each unit is 9 kW, it is used with hot water circulating pump from German Ville Company and the temperature controller of intelligent automatic adjusted from Japanese RKC Company, the temperature control accuracy is ± 2℃ and it has automatic water replenishment function, hot water circulation pump can not be activated if it has no water or at anhydrous state and the heater can not be heated, it also has functions of alarm automatic shut-off if the temperature is over and has function of automatic exhaust.
6. Die head: we can design according to your requirements.

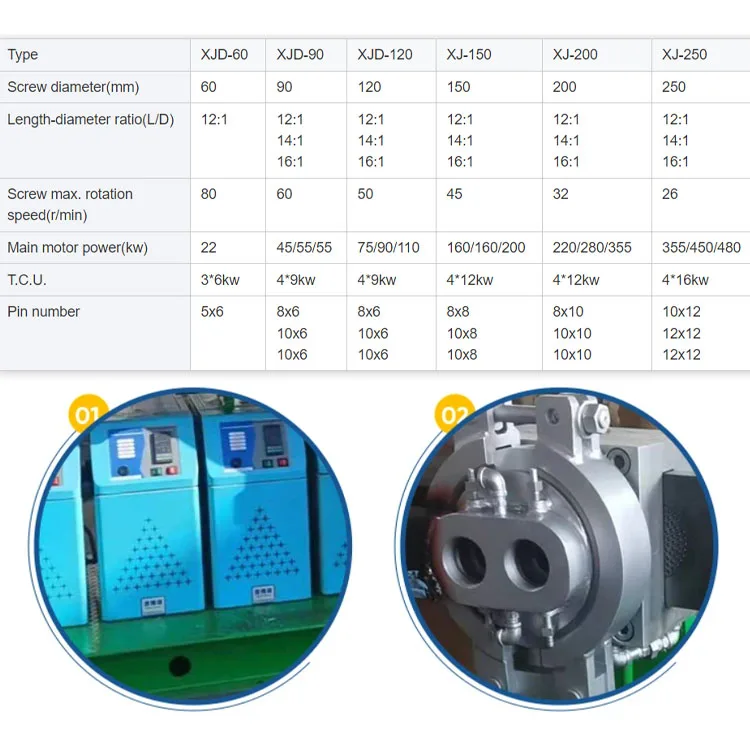

Type | XJD-60 | XJD-90 | XJD-120 | XJ-150 | XJ-200 | XJ-250 |
Screw diameter(mm) | 60 | 90 | 120 | 150 | 200 | 250 |
Length-diameter ratio(L/D) | 12:1 | 12:1 14:1 16:1 | 12:1 14:1 16:1 | 12:1 14:1 16:1 | 12:1 14:1 16:1 | 12:1 14:1 16:1 |
Screw max. rotation speed(r/min) | 80 | 60 | 50 | 45 | 32 | 26 |
Main motor power(kw) | 22 | 45/55/55 | 75/90/110 | 160/160/200 | 220/280/355 | 355/450/480 |
T.C.U. | 3*6kw | 4*9kw | 4*9kw | 4*12kw | 4*12kw | 4*16kw |
Pin number | 5x6 | 8x6 10x6 10x6 | 8x6 10x6 10x6 | 8x8 10x8 10x8 | 8x10 10x10 10x10 | 10x12 12x12 12x12 |
Qingdao TOPLIT Industry Co.,Ltd is a professional provider of rubber machine.
Our products mainly include kneader, banbury mixer, mixing mill, refiner, calender, extruder, batch off cooler, plate curing press, microwave curing machine, cracker mill, skiving machine, extruder, tire reclaimed rubber machines, butyl reclaimed rubber machines, EPDM reclaimed rubber machines, rubber powder machines, and so on.
Our products mainly include kneader, banbury mixer, mixing mill, refiner, calender, extruder, batch off cooler, plate curing press, microwave curing machine, cracker mill, skiving machine, extruder, tire reclaimed rubber machines, butyl reclaimed rubber machines, EPDM reclaimed rubber machines, rubber powder machines, and so on.
We enjoy good reputation with reasonable price, best quality and good delivery. And we sincerely welcome clients from home and abroad to establish long and steady business relations and develop domestic and international market jointly on the base of equality and mutual benefit.
Q1.WHO ARE YOU?
A: We are Professional Provider of Rubber Machine in China for many years.
Q2.ARE YOU AN COMPREHENSIVE SUPPLIER FOR RUBBER&PLASTIC MACHINE?
A: Yes, we can provide the complete solution line to customer according to customer's requirement.
Q3. HOW ABOUT THE QUALITY CONTROL IN YOUR FACTORY?
A: We has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP.
Q4. WHAT ABOUT THE AFTER-SERVICE? WILL YOU SEND YOUR ENGINEER TO MY COUNTRY TO HELP COMMISSION AND INSTALL THE MACHINE?
A: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers.
Q5. WHAT IS THE DELIVERY TIME OF THE MACHINE?
A: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within10-60 days.
Q6. WHAT IS THE WARRANTY OF THE MACHINE?
A: The whole machine's warranty period is 12 months and spare parts will be depended.
