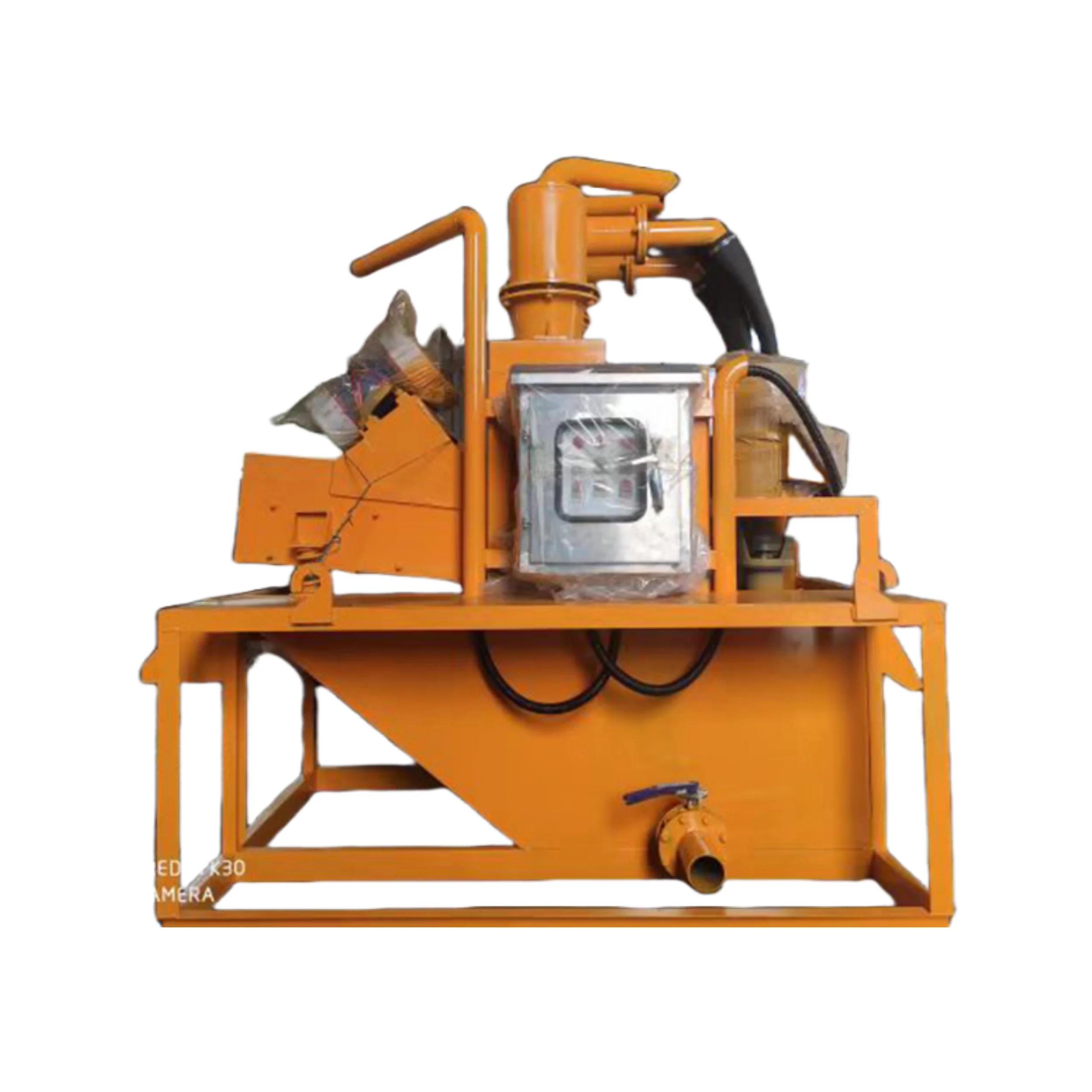

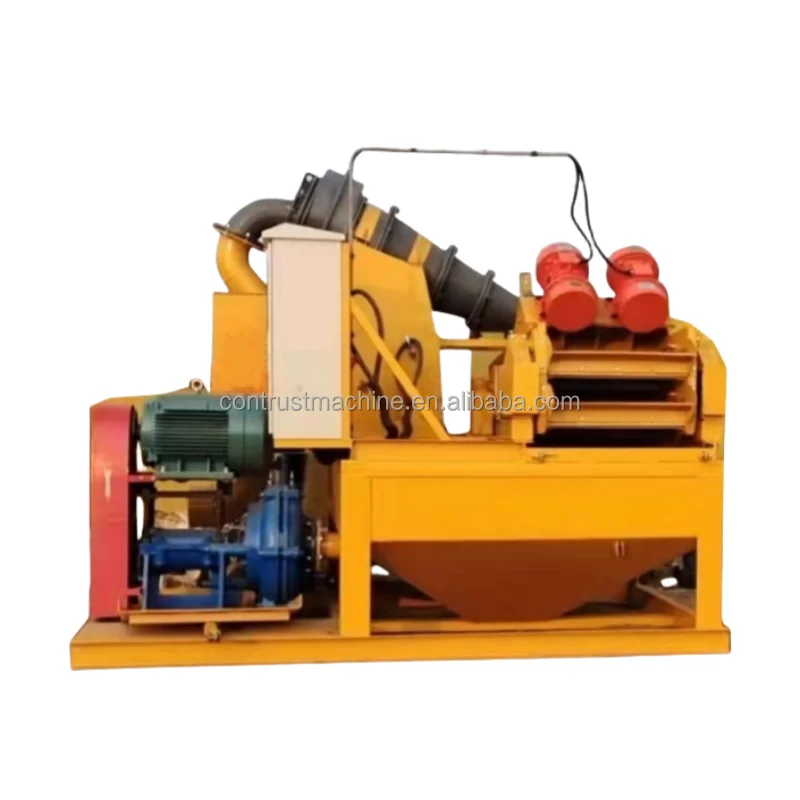

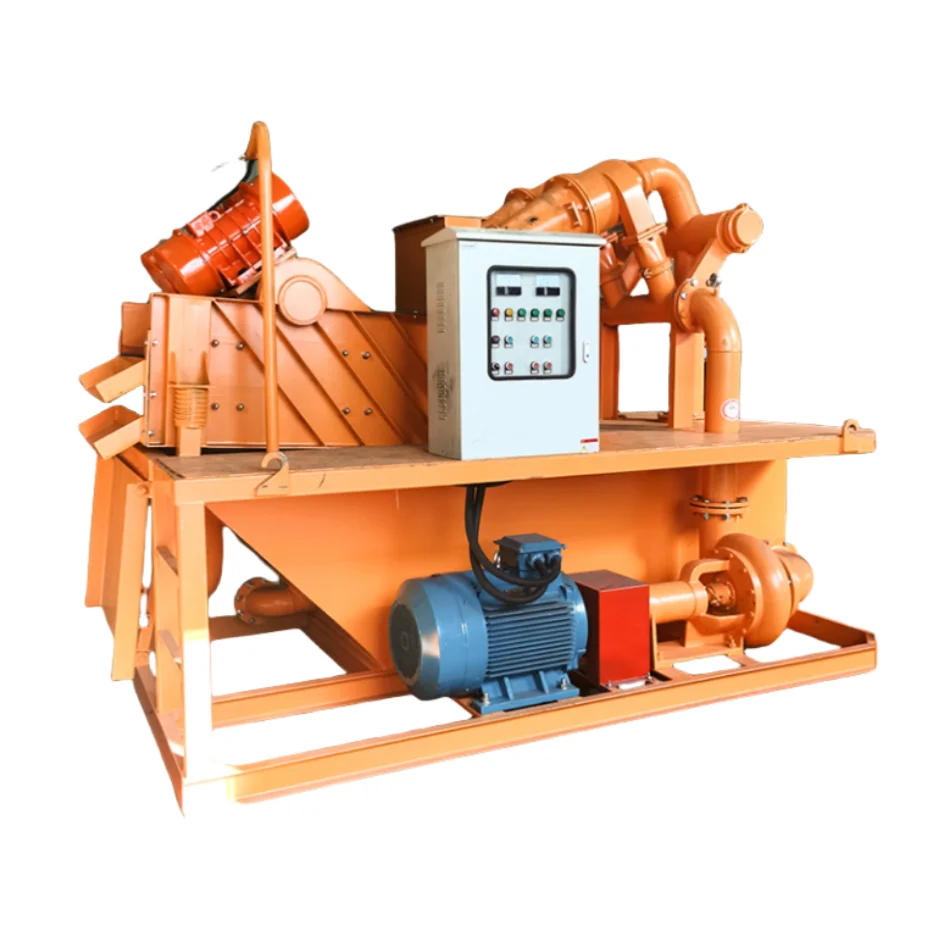

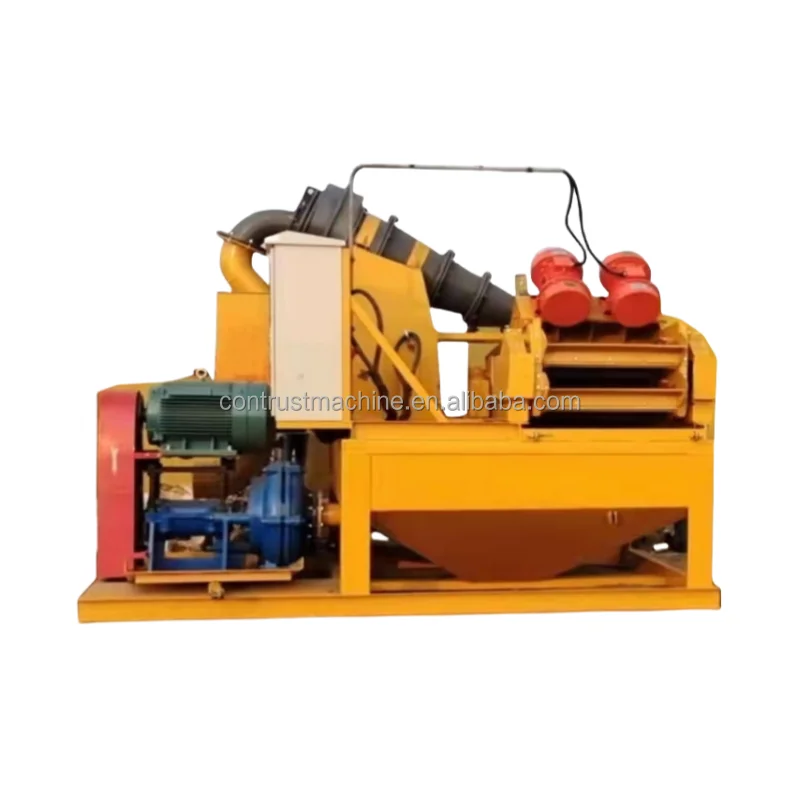

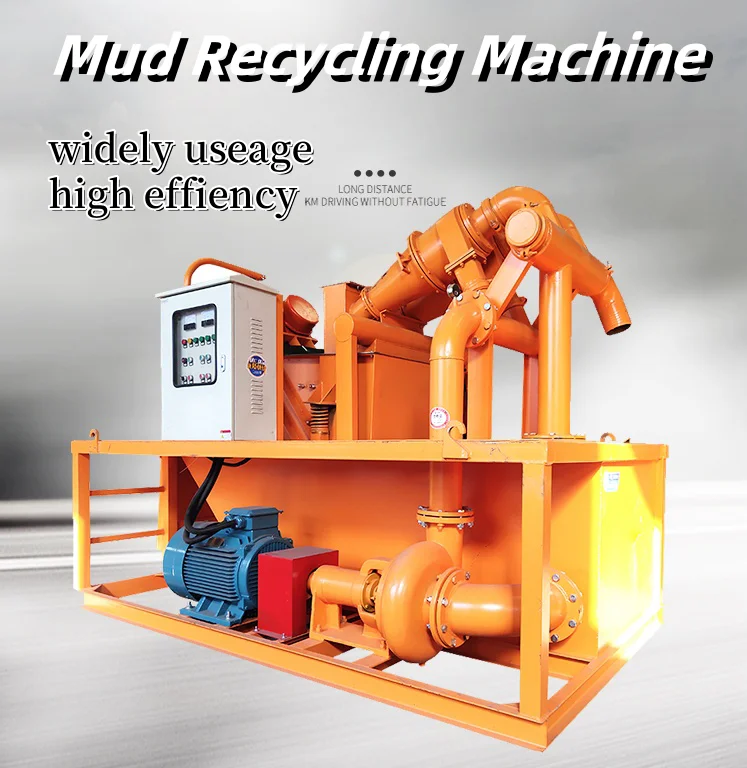

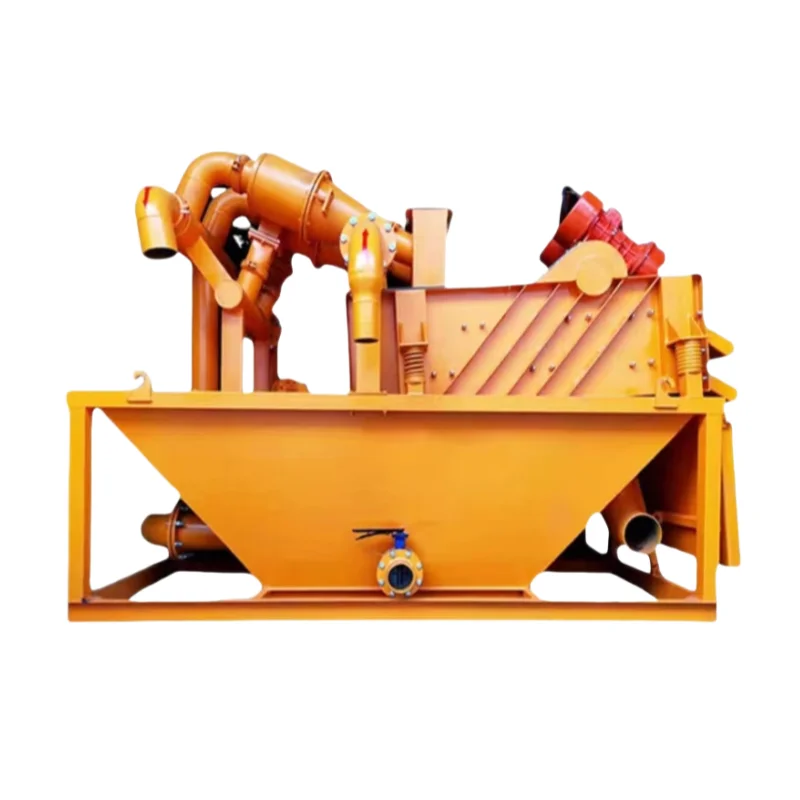

The mud separator
The mud separator is mainly applicable to large diameter pile foundation (including rotary drilling and percussive drilling) with mud wall fixation and circulating drilling technology and anti-seepage wall (diaphragm wall and double wheel milling), mud water balance shield construction and mud water pipe jacking construction. Greatly improve the reuse rate of waste mud, avoid the random
discharge of mud, help customers reduce construction costs, civilized and environmentally friendly construction.Specification
Model | 100-A | 150-A | 200-B | 250-D |
Slurry treatment capacity（m³/h） | 80 | 120 | 180 | 220 |
Separation granularity d50（μm） | 30 | 45 | 60 | 70 |
Slag screening capacity（t/h） | 15-26 | 25-50 | 25-80 | 35-90 |
Maximum water content of undersize | 30% | 30% | 30% | 30% |
Sand content of purified slurry | <2% | <2% | <2% | <2% |
Total power（kw) | 8 | 25 | 48 | 50 |
Overall dimensions (L * W * H)m | 2.5*1.1*2.3 | 3.5*1.3*2.4 | 3.5*1.9*2.5 | 4.2*2.3*2.5 |
Weight（kg) | 800 | 1500 | 3300 | 4500 |
Details Images
1.Completely purify slurry, effectively control sury performance, reduce the dnd-jamming accidents and improve pore-forming qualty;
2. Realize slurry recycling usage and save slimy making material; Drastically reduce the waste slurry transportation cost and slurry making cost;
3.The effective separation of soil slag by the equipment will help to improve pore-forming efficiency;
4.The slury closed cycle purification mode and lower slag moisture content reduce the impacts to environment;
5. The purification effect of double-deck screens is more than 50% higher than single-deck screen structure. Safe and easy operation, simple maintenance, stable and reliable operation;
6. Rational design, compact structure, and small footprint prevent dry pumping and effectively prolong the service life of hydrocyclone feeding pump;
7. Hydrocyclone adopts PU material with features of long service ife, lightweight, and easy maintenance
2. Realize slurry recycling usage and save slimy making material; Drastically reduce the waste slurry transportation cost and slurry making cost;
3.The effective separation of soil slag by the equipment will help to improve pore-forming efficiency;
4.The slury closed cycle purification mode and lower slag moisture content reduce the impacts to environment;
5. The purification effect of double-deck screens is more than 50% higher than single-deck screen structure. Safe and easy operation, simple maintenance, stable and reliable operation;
6. Rational design, compact structure, and small footprint prevent dry pumping and effectively prolong the service life of hydrocyclone feeding pump;
7. Hydrocyclone adopts PU material with features of long service ife, lightweight, and easy maintenance
Application
The mud separator can be widely used in eight scenarios to make the project more convenient: Pile foundation cleaning
Build a bridge
Filter sand
Hole cleaning
Sediment separation
Mud separation
Sediment dewatering
Engineering dewatering
Build a bridge
Filter sand
Hole cleaning
Sediment separation
Mud separation
Sediment dewatering
Engineering dewatering
FAQ
● What is the Minimum Quality Order?
-- The MOQ is 1 set. If you order large amount, you will get discount.
● What is the payment terms?
-- T/T, L/C, Western Union,credit card.
● Which kind of shipment do you support?
-- Sea transportation, air transportation and international express.
● When will you deliver the machine?
-- 7-15 workdays after receiving the balance payment.
● Do you supply training and after-sale service?
-- Yes, we will supply installation and training on site or online. Also we have a professional service team that can solve problems as fast as possible.
● What about the warranty time of machine?
-- 12 months after shipment or 2000 working hours.
-- The MOQ is 1 set. If you order large amount, you will get discount.
● What is the payment terms?
-- T/T, L/C, Western Union,credit card.
● Which kind of shipment do you support?
-- Sea transportation, air transportation and international express.
● When will you deliver the machine?
-- 7-15 workdays after receiving the balance payment.
● Do you supply training and after-sale service?
-- Yes, we will supply installation and training on site or online. Also we have a professional service team that can solve problems as fast as possible.
● What about the warranty time of machine?
-- 12 months after shipment or 2000 working hours.
