radial ball bearing 6322 C3 VL0241 electrically insulated deep groove ball bearing 6322 6322M
- Category: >>>
- Supplier: Shandong Bohong Bearing Co. Ltd.
Share on (1601202825366):
Product Overview
Description

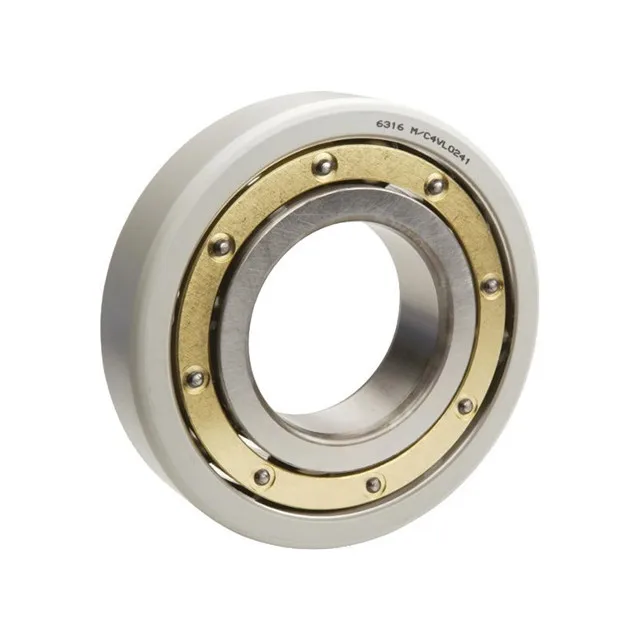

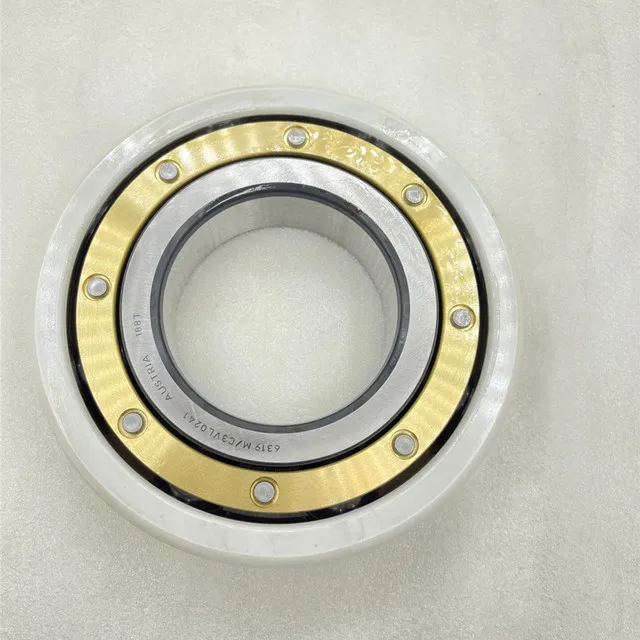

radial ball bearing 6322 C3 VL0241 electrically insulated deep groove ball bearing 6322 6322M
Product Description
China BHR deep groove ball bearings are available in a variety of sizes and are the most popular of the rolling bearings. This type of bearing supports radial load and a small degree of axial load in both directions simultaneously. Deep groove ball bearings are popular due to their versatility, affordability, and capability to run at high speeds. Most bearings in the 6000 series up to 60mm bore can be made available in stainless steel (AISI 440C material) upon request. Contact a BHR sales engineer for details.
Specifications: 6322 bearing deep groove ball bearing 6322 C3 | |
Clearance | C3 C4 C0 |
Cage type | M type brass cage |
Seal type | open type, sealed type 2RS 2Z |
Number of row | single row |
Dimensions: | |
Bore size d | 110mm |
Outside Diameter D | 240mm |
Outside Ring Width B | 50mm |
Weight | 9.66kgs |
Bearing features: | |
Ball bearing types | deep groove ball bearing |
Number of row | single row |
Precision rate | grade p4 p5 p6 p0 |
material | steel ball bearing |
Origin | china bearing linqing |
China BHR deep groove ball bearing catalogue 6300 series
| Bearing No. | Main dimesion | Load rating /KN | maximum speed | Weight | |||||
| d | D | B | r min | Dynamin | Static | Grease | Oil | approx. | |
| mm | mm | mm | mm | Cr | C0 | r/min | r/min | KG | |
| 6300 | 10 | 35 | 11 | 0.6 | 6.448 | 2.72 | 16000 | 20800 | 0.053 |
| 6301 | 12 | 37 | 12 | 1 | 7.8 | 3.32 | 15200 | 19200 | 0.06 |
| 6302 | 15 | 42 | 13 | 1 | 9.12 | 4.32 | 13600 | 16000 | 0.082 |
| 6303 | 17 | 47 | 14 | 1 | 10.8 | 5.24 | 12800 | 15200 | 0.12 |
| 6320 | 100 | 215 | 47 | 3 | 139.2 | 112 | 2400 | 2880 | 7 |
| 6321 | 105 | 225 | 49 | 3 | 145.6 | 122.4 | 2240 | 2720 | 8.25 |
| 6322 | 110 | 240 | 50 | 3 | 162.4 | 144 | 2080 | 2560 | 9.55 |
| 6324 | 120 | 260 | 55 | 3 | 166.4 | 148.8 | 1920 | 2400 | 14.5 |
| 6326 | 130 | 280 | 58 | 4 | 183.2 | 172.8 | 1760 | 2240 | 18 |
| 6328 | 140 | 300 | 62 | 4 | 200.8 | 196 | 1600 | 2080 | 22 |
| 6330 | 150 | 320 | 65 | 4 | 220.8 | 228 | 1520 | 1920 | 26 |
| 6332 | 160 | 340 | 68 | 4 | 220.8 | 228 | 1440 | 1760 | 29 |
| 6334 | 170 | 360 | 72 | 4 | 249.6 | 272 | 1360 | 1600 | 34.5 |
| 6336 | 180 | 380 | 75 | 4 | 280.8 | 324 | 1280 | 1600 | 42.5 |
| 6338 | 190 | 400 | 78 | 5 | 296.8 | 344 | 1280 | 1520 | 49 |
