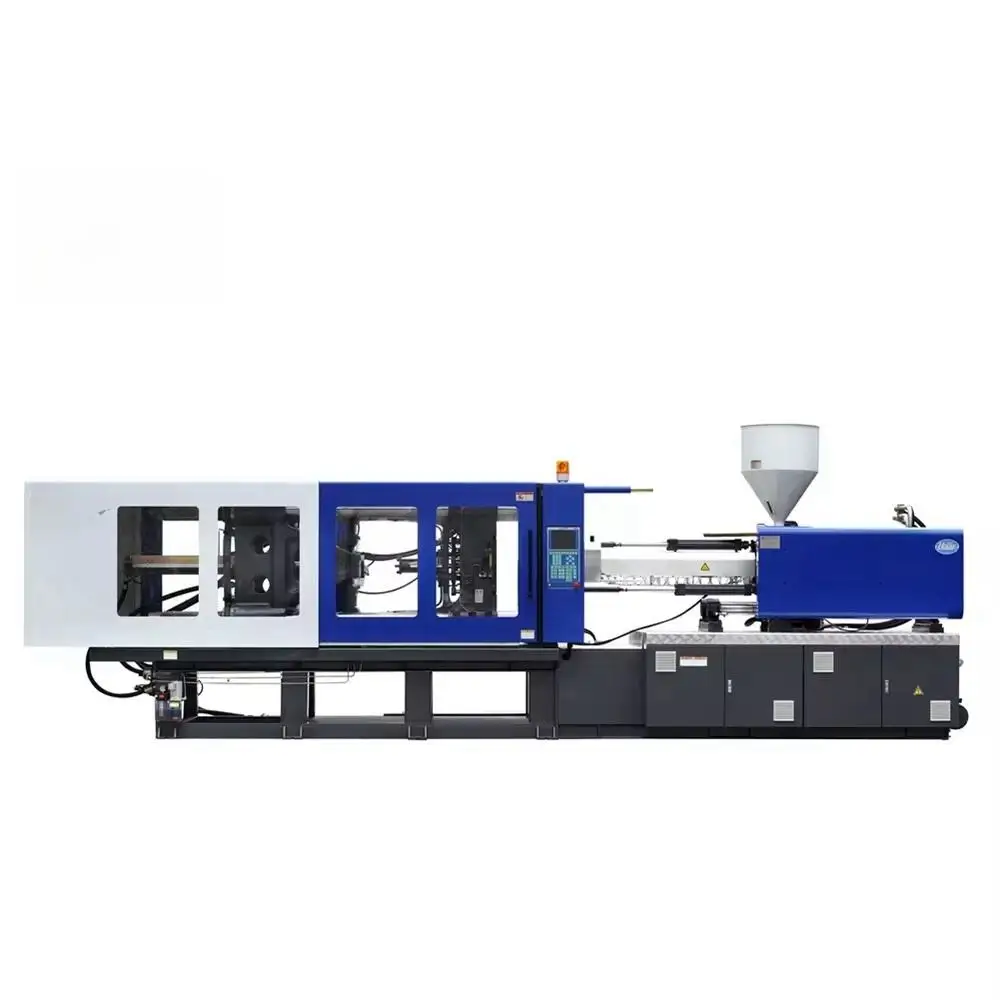

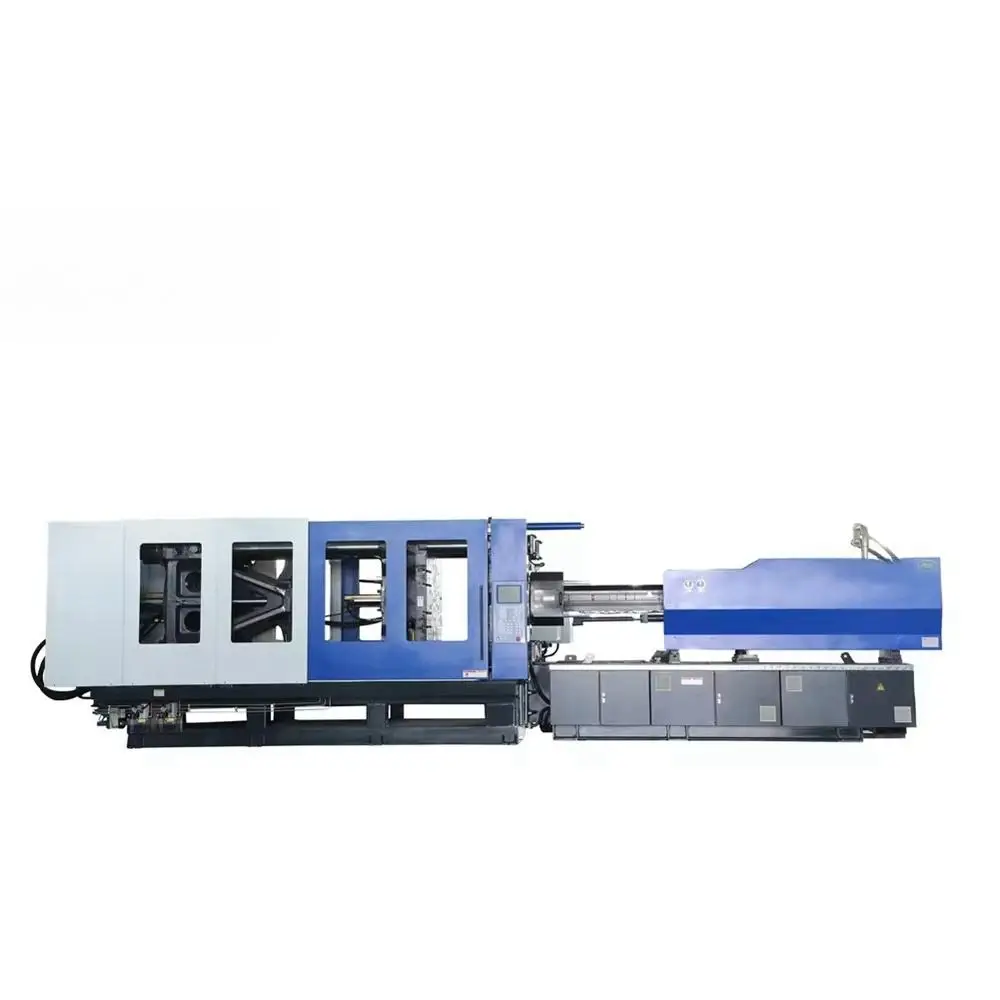

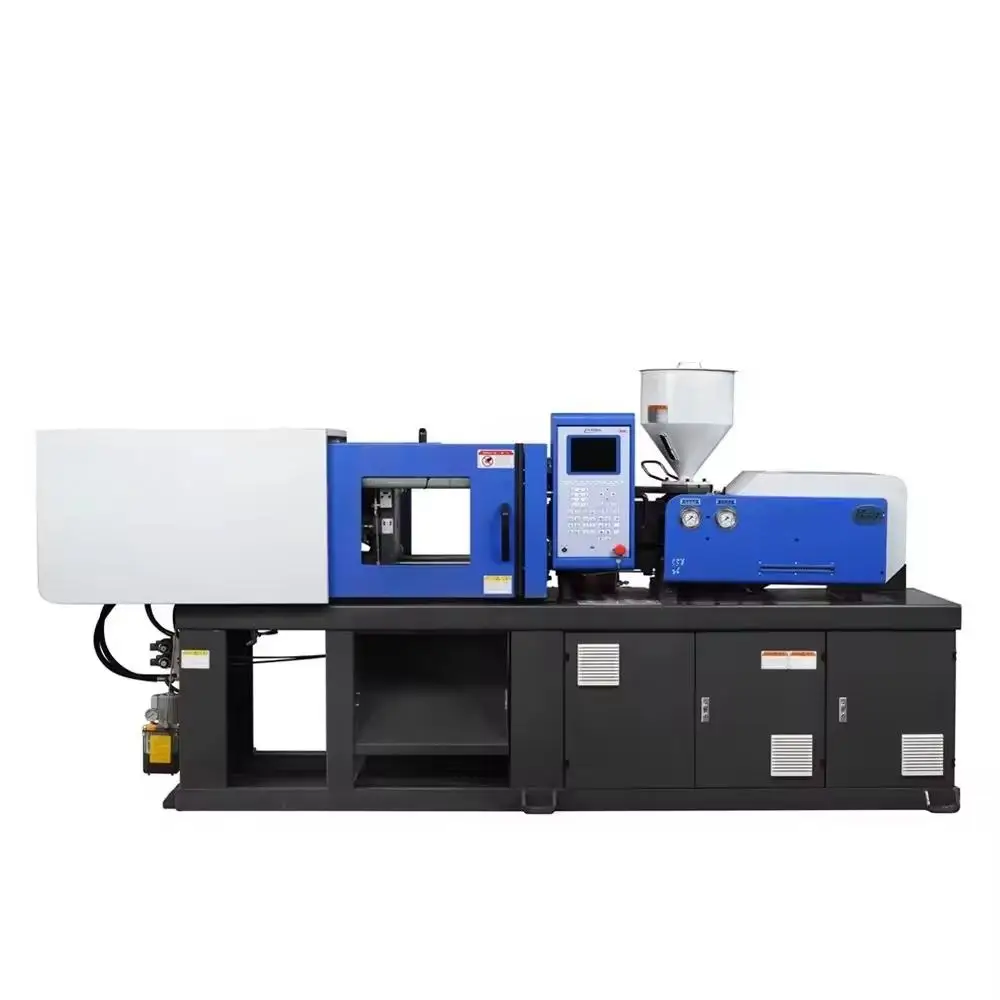

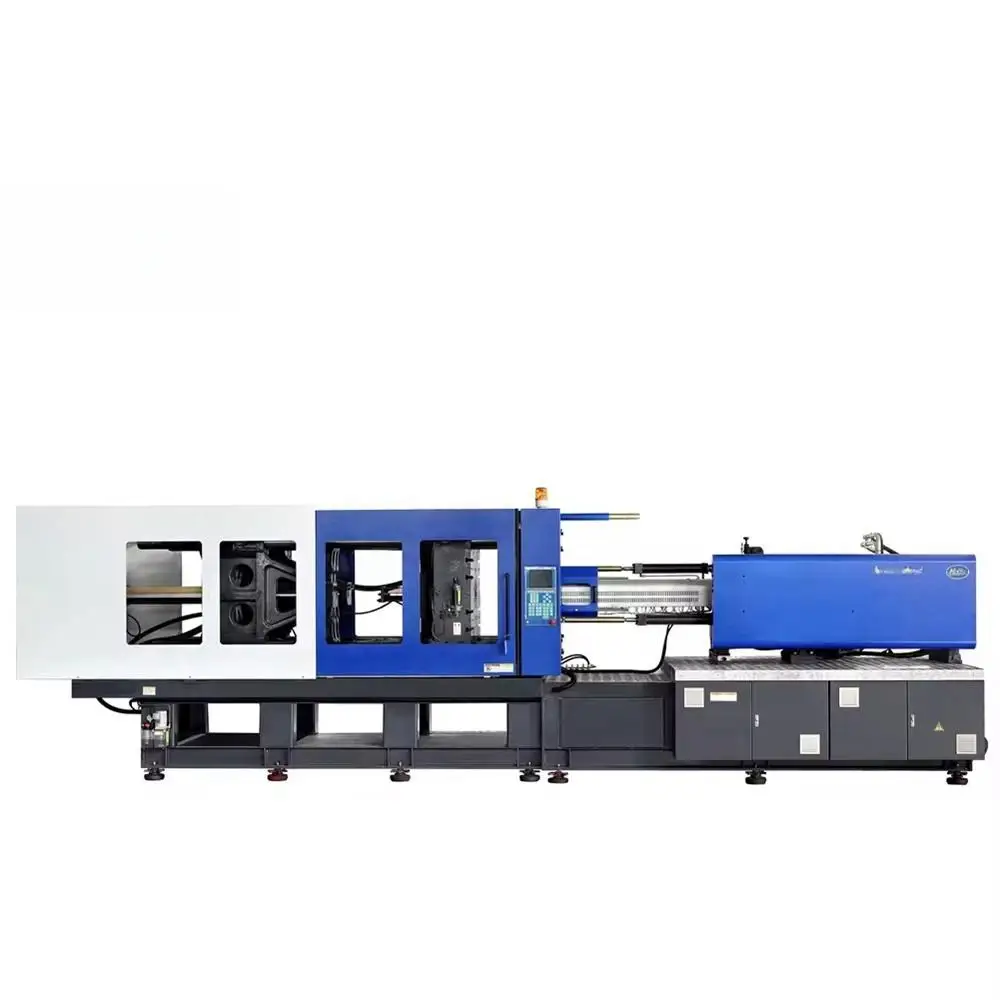

Second hand Haida 88 ton 70ton 80ton mini small pet/pvc/micro thermoplastic Automatic i hone Case Injection Molding Machine
- Category: >>>
- Supplier: Shenzhen Strong Machinery Equipment Co. Ltd.
Share on (1601202880077):
Product Overview
Description
Products Description
Product Description:
The formwork structure adopts the European style design, the comprehensive optimization parameter and the force distribution, the
frame USES the high rigid material and the manufacture craft, guarantees the complete machine solid, the stability is reliable.
frame USES the high rigid material and the manufacture craft, guarantees the complete machine solid, the stability is reliable.
Concise And Effective, Rapid Flexible ,
Manipulation Of The Simplified Simple Maintenance
Manipulation Of The Simplified Simple Maintenance
Machine Parameter
ITEM | UNIT | DATA | ||||||
INJECTION UNIT | Screw Diameter | mm | 35 | 38 | 40 | |||
Screw L/D Ratio | L/D | 20.5 | 19 | 18 | ||||
Injection Volume | cm3 | 144 | 170 | 188 | ||||
Shot Weight | g | 131 | 155 | 171 | ||||
Injection Rate | g/s | 84.8 | 100 | 110.8 | ||||
Injection Pressure | Mpa | 194 | 165 | 149 | ||||
CLAMPING UNIT | Clamping Force | KN | 880 | |||||
Opening Stroke | mm | 320 | ||||||
Space Between Tie-Bars | mm | 365*365 | ||||||
Mould Thickness(Min-Max) | mm | 150-360 | ||||||
Ejector Force | KN | 38 | ||||||
Ejector Stroke | mm | 100 | ||||||
GENERAL | Pump Pressure | MPa | 16 | |||||
Motor Power | KW | 11 | ||||||
Heater | KW | 6.5 | ||||||
Machine Dimension | m | 4.1*1.1*1.9 | ||||||
Machine Weight | t | 2.8 | ||||||
Mould Orientation Ring Diameter | mm | Φ125 | ||||||
Nozzle Radius | mm | SR10 | ||||||
Packing & Delivery
Packing
Machine packing inside is plastic films and outside is fumigation wooden case.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Machine packing inside is plastic films and outside is fumigation wooden case.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Delivery
For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery solution:
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us for confirm delivery cost before you place order.
For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery solution:
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us for confirm delivery cost before you place order.
Company Profile
Shenzhen Strong Machine Co., Ltd. has been committed to R&D, production and sales of the packing machine field ever since its establishment in 1995.
We are professional designer and manufacturer of High Frequency Welding Machine, Ultrasonic Plastic Welding Machine, Blister Forming Machine, Tube Sealing and Filling Machine and other Packing Machine with over 15 years.
We welcome both new and regular customers at home and abroad to visit us and cooperate with us to achieve mutual profits and create a better future. We are convinced that your partnership with us can help your business scale a new high.
We are professional designer and manufacturer of High Frequency Welding Machine, Ultrasonic Plastic Welding Machine, Blister Forming Machine, Tube Sealing and Filling Machine and other Packing Machine with over 15 years.
We welcome both new and regular customers at home and abroad to visit us and cooperate with us to achieve mutual profits and create a better future. We are convinced that your partnership with us can help your business scale a new high.
Certifications
Since its inception, STRONG MACHINE has been devoted to optimization and integration of developing, producing, sealing, and application of technology of ultrasonic machinery. After almost twenty years of unremitting efforts, STRONG MACHINE with high quality products, excellent technical support and perfect after-sales service has established a good reputation among the customers, and also gains a number of provincial and national honnors.
FAQ
Q: Are you trading company or manufacturer ?
A:Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
Q: Can you guarantee your quality?
A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q:What should I do if we are not able to operate the machine when we receive it?
A:Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer's site to solve any problems.
Q: How could I get the spares on machines?
A: We will send extra sets of easy broken spares and accessories etc. Non-artificial damaged spares will be sent freely and shipping free during 1 year's warranty.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance. The machine will have two years warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L .
Pre-sale services:
1. Providing professional technical support.
2. Send the product catalog and instruction manual.
3. If you have any question PLS contact us online or send us email, we promise we will give you a reply at the first time!
4. Personal call or visit are warmly welcome
2. Send the product catalog and instruction manual.
3. If you have any question PLS contact us online or send us email, we promise we will give you a reply at the first time!
4. Personal call or visit are warmly welcome
Sale of services:
1. We promise honest and fair, it's our pleasure to serve you as your purchasing consultant.
2. We guarantee punctuality, quality and quantities strictly implement the terms of contract.
2. We guarantee punctuality, quality and quantities strictly implement the terms of contract.
After-sales service:
1. Where to buy our products for 1 years warranty and life long maintenance.
2. 24-hours telephone service.
3. A large stock of components and parts, easily-worn part
2. 24-hours telephone service.
3. A large stock of components and parts, easily-worn part
