High Quality 75 Inch Wall Mounted 4K UHD Industrial LCD Display Outdoor IP65 Smart TV 3000cd/m Sunlight Readable Digital Signage
- Category: >>>
- Supplier: Shenzhen Outdoor Special Display Equipment Co. Ltd.Shenzhen Ltd.
Share on (1601202969013):
Product Overview
Description
Products Description

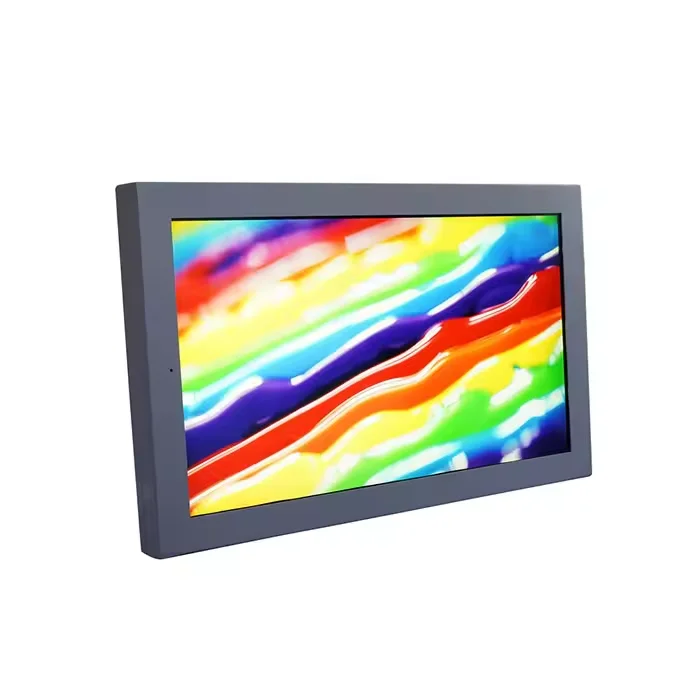

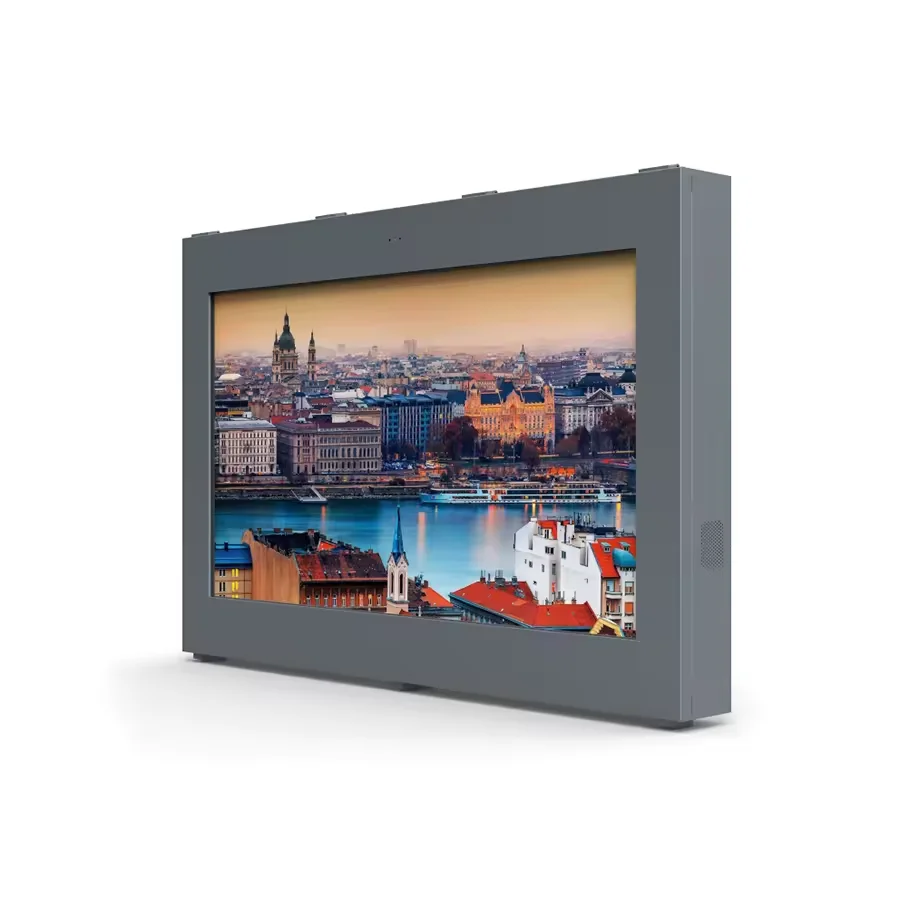

Wall-mounted 75" 4K Outdoor IP55 High Brightness LCD Display
Screen Size: 75 Inch
Brightness:, 2000cd/㎡~3000cd/㎡; With ambient light sensing technology;
Resolution: 3840*2160(4K); UHD
Mainboard: Android (optional)
Durability: Suitable for commercial applications, capable of long-term stable operation
Brightness:, 2000cd/㎡~3000cd/㎡; With ambient light sensing technology;
Resolution: 3840*2160(4K); UHD
Mainboard: Android (optional)
Durability: Suitable for commercial applications, capable of long-term stable operation
Glass: 5mm tempered explosion-proof glass, suitable for outdoor environments

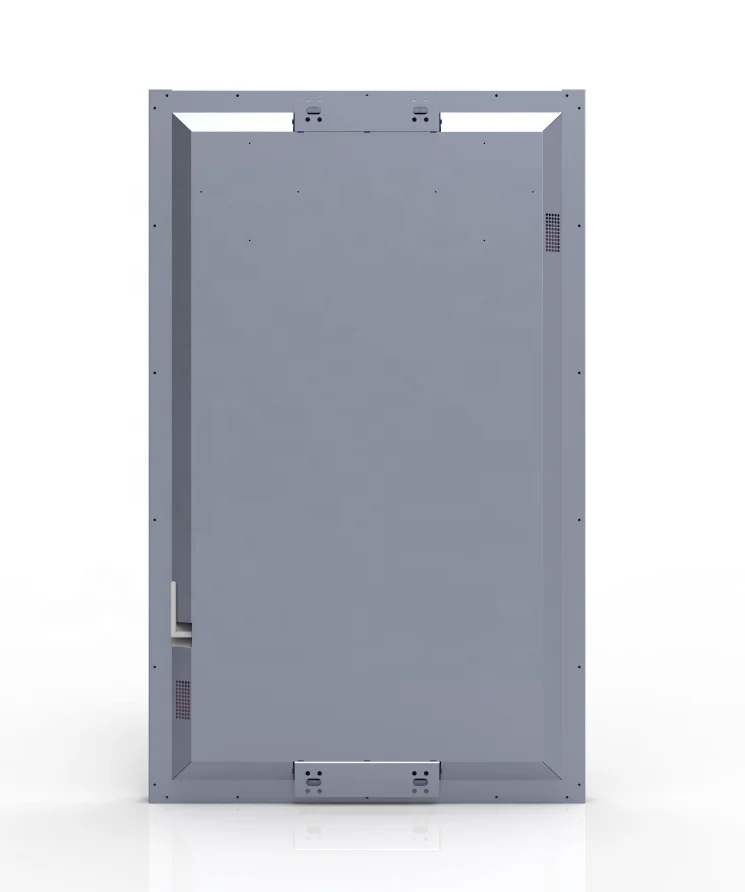

Installation: Wall-mounted
Product Paramenters
Sceen Parameter | Model | TX750M-M02 | ||
Backlight type | Direct down LED backlight | |||
Active area | 1649.66(W)×927.936(H) mm | |||
Resolution | 3840*2160 (4K) | |||
Color | 1.07B (10-bit) | |||
Pixel pitch | 0.4296×0.4296 mm (H×V) | |||
Brightness | 2000-3000cd/㎡ | |||
Contrast ratio | 1200:1 (Typ.) | |||
Viewing angle | 89/89/89/89 (Min.)(CR≥10) | |||
Response time | 8 (Typ.)(G to G) ms | |||
Dimming mode | Automatic Adjustment / Main Board Adjustment | |||
Heat Dissipation Parameters | Heat dissipation | Air Cooling | ||
Operating temperature | ‘-10℃~50℃ | |||
Heat dissipation power | 100W | |||
Speed control | Auto-adjustment | |||
Protection grade | IP55 | |||
Dust filter | Primary filter | |||
Additional Heating | 150W/PTC heater option | |||
Shell parameters | Main structure, Back door, Base material | SGCC hot dip galvanized anti-corrosion sheet + Outdoor powder coating Thickness T=1.5MM | ||
Protective glass | 5mm Tempered Glass | |||

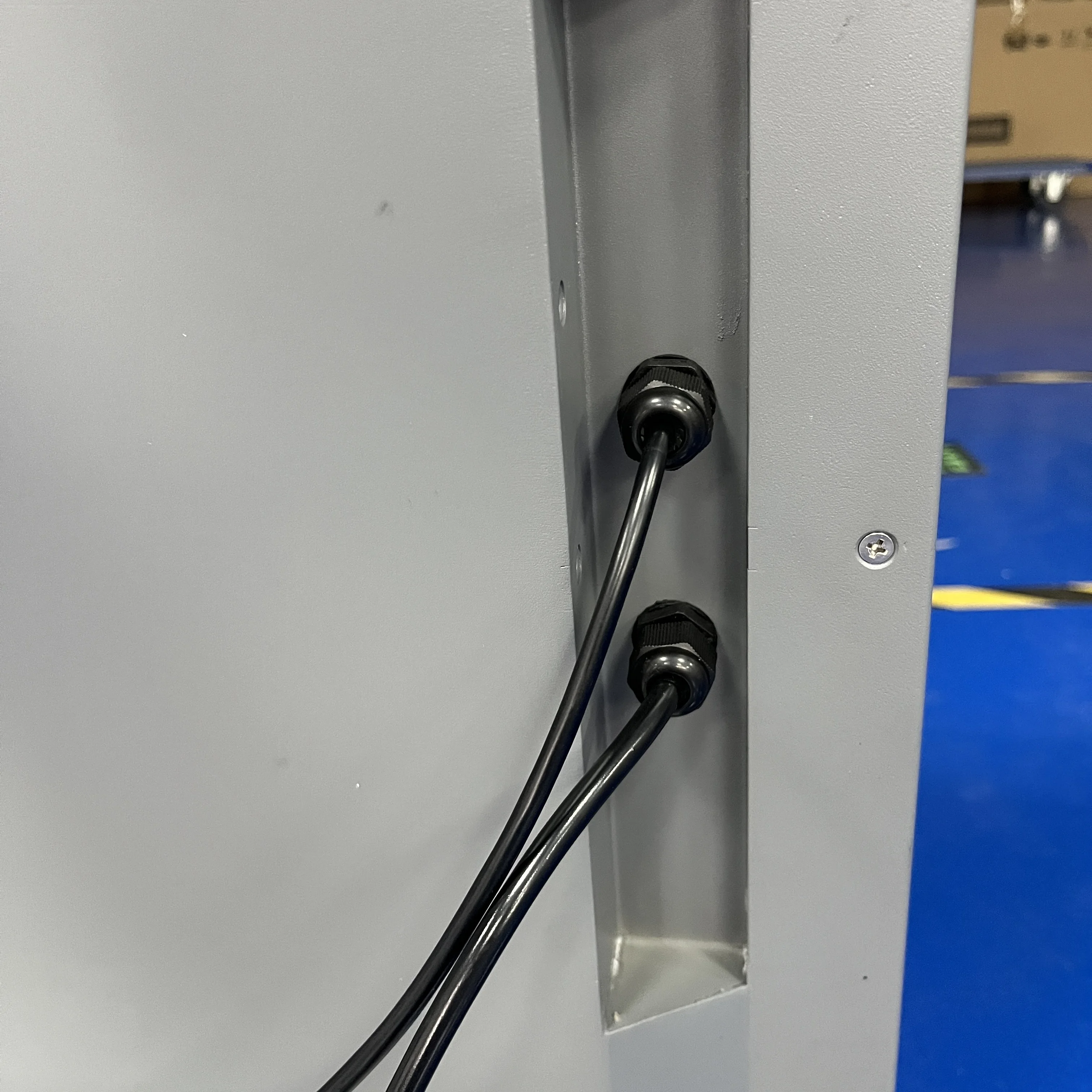

Waterproof and anti-theft | Waterproof sealing strip/ Anti-theft lock for connecting rod | |||

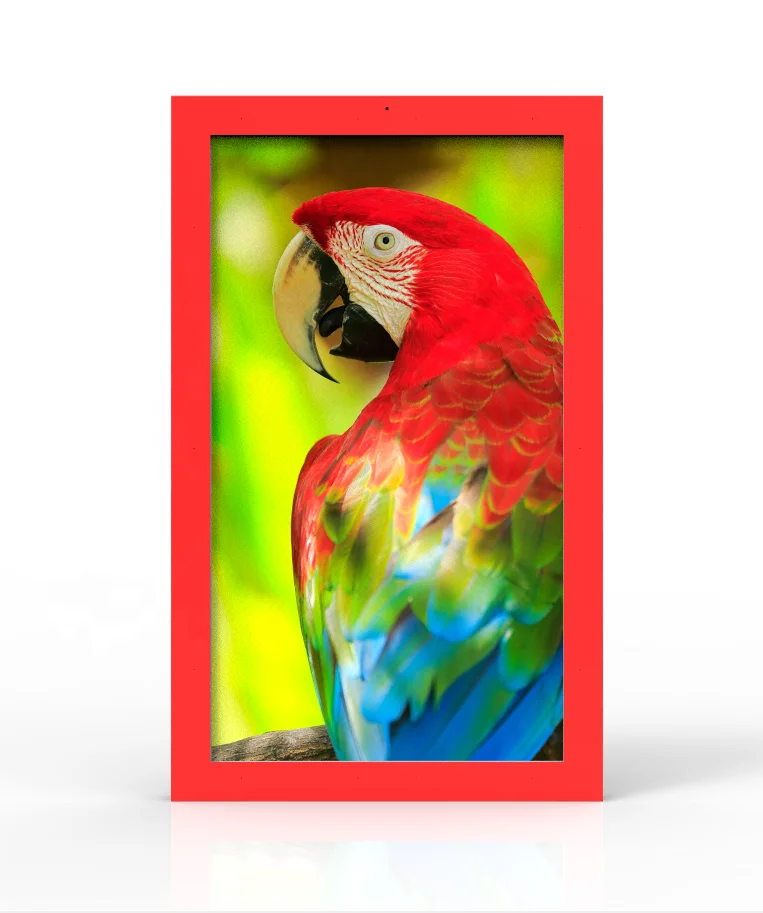

Painted color | Outdoor white corrugated, Outdoor gray, Outdoor black corrugated | |||

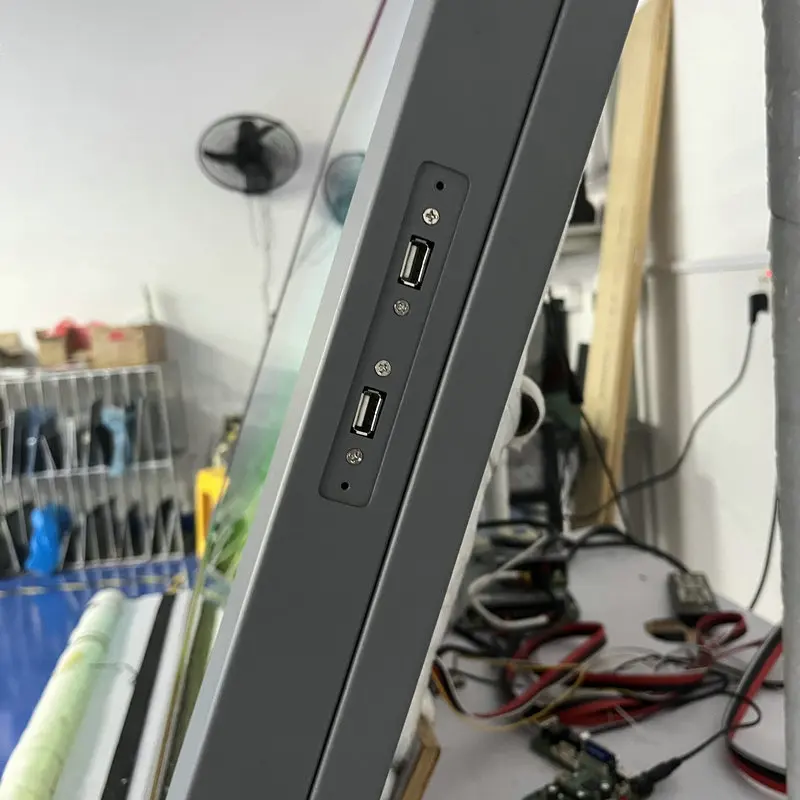

Mainboard Optional | Display Motherboards (Codename M) | 2*HDMI-IN(4K@60Hz), USB2.0*1(for upgrading and playing USB disk content) | ||
Android motherboards ( Codename A ) | CPU RK3288 Cortex-A17 quad-core up to 1.6GHz DDR DDR-III 2GB (4GB optional) Storage Default standard 8GB EMMC NAND chip (supports up to 128GB) LVDS 30-pin industry-standard dual LVDS interface, support VESA/JEITA format, up to 1080P output support EDP 20-pin general-purpose four-channel EDP interface, up to support 1080P output HDMI output HDMI 2.0 standard display interface, up to support 2016P output HDMI input HDMI 1.4a standard input interface, up to support 1080P input Line Output Support standard left and right channel line output (row pin interface) Amplifier output 8 ohm-6W dual audio amplifier output | |||
Touch Optional | Nano Touch | 10-point, metal grid nano-touch | ||
Power Supply | Power Input | AC 100V~240V | ||
Maximum power consumption | ≦220W | |||
Standby power | <5W | |||
Products Details
Screen Specifications and Performance:
* Screen Size: 75-inch LG LCD screen
* Brightness: 2000cd/㎡~3000cd/㎡, with ambient light sensing technology
* Glass: 5mm tempered explosion-proof glass, suitable for outdoor environments
* Brightness: 2000cd/㎡~3000cd/㎡, with ambient light sensing technology
* Glass: 5mm tempered explosion-proof glass, suitable for outdoor environments
Overall Design and Performance:

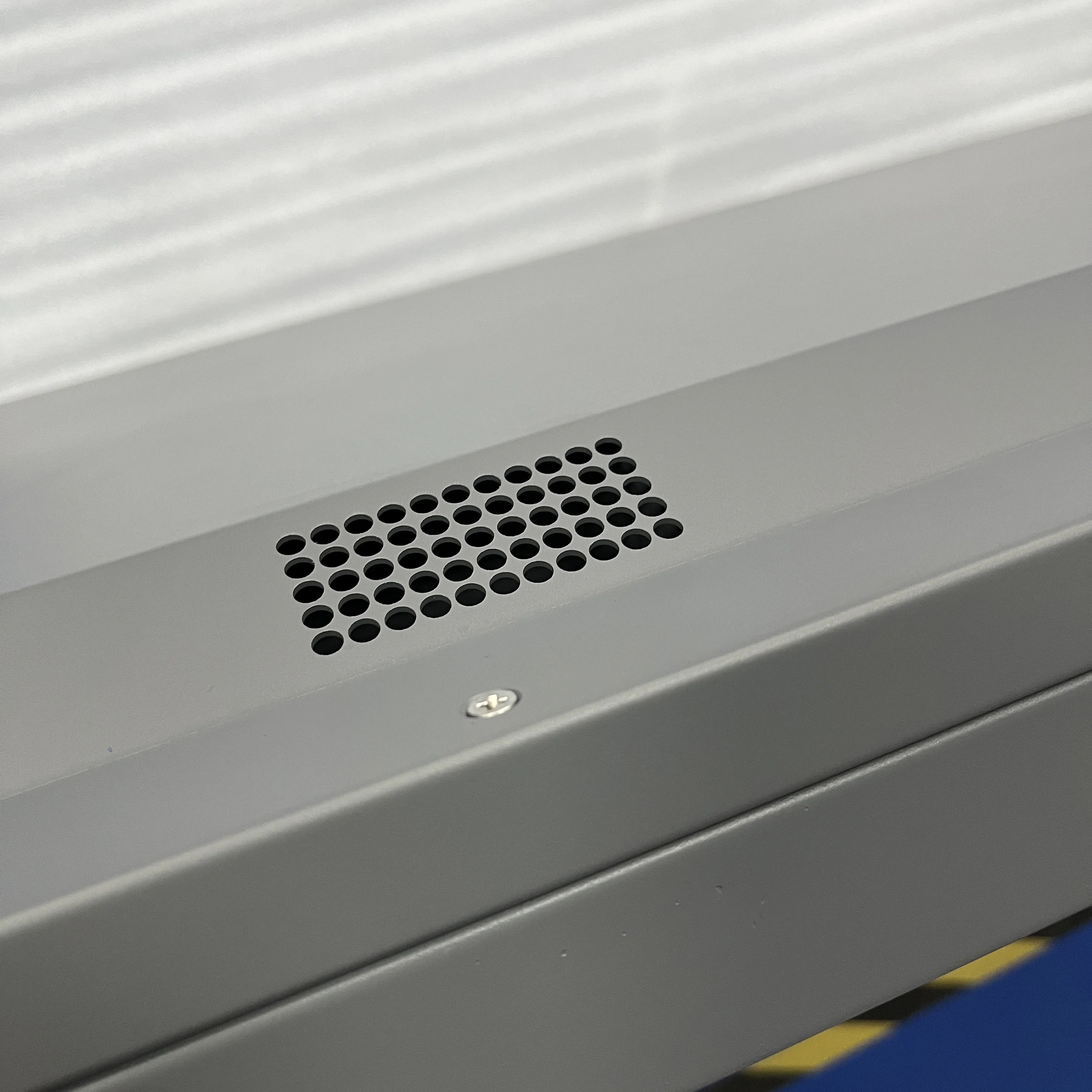

* Cooling System: High-quality cooling fan system to prevent screen blackout during prolonged outdoor use
* System: Industrial-grade embedded Android motherboard, supports Wifi, RJ45 interface, Full HD 1920*1080 decoding
* Exterior Design: Stylish and elegant standard shell, customizable design according to customer requirements
* Temperature Control: Intelligent temperature control system ensures stable operation in high temperatures, activates fans at 40°C
* System: Industrial-grade embedded Android motherboard, supports Wifi, RJ45 interface, Full HD 1920*1080 decoding
* Exterior Design: Stylish and elegant standard shell, customizable design according to customer requirements
* Temperature Control: Intelligent temperature control system ensures stable operation in high temperatures, activates fans at 40°C
Content Playback and Interaction:
* Content Playback: Supports a variety of content formats including images, animations, videos, etc.
* Interactive Features: Touch capabilities can be added for audience interaction, enhancing engagement and attraction
* Network Management: Smart network system supports synchronized playback across multiple devices nationwide, facilitating
content management
Display Module:
* Modular Design: Industrial-grade, highly reliable modular design for easy installation and maintenance
* Visual Performance: High resolution, high contrast, high brightness, automatic ghosting elimination, UV protection, heat insulation
* Color: 1.07B (10-bit) colors, natural and delicate image representation

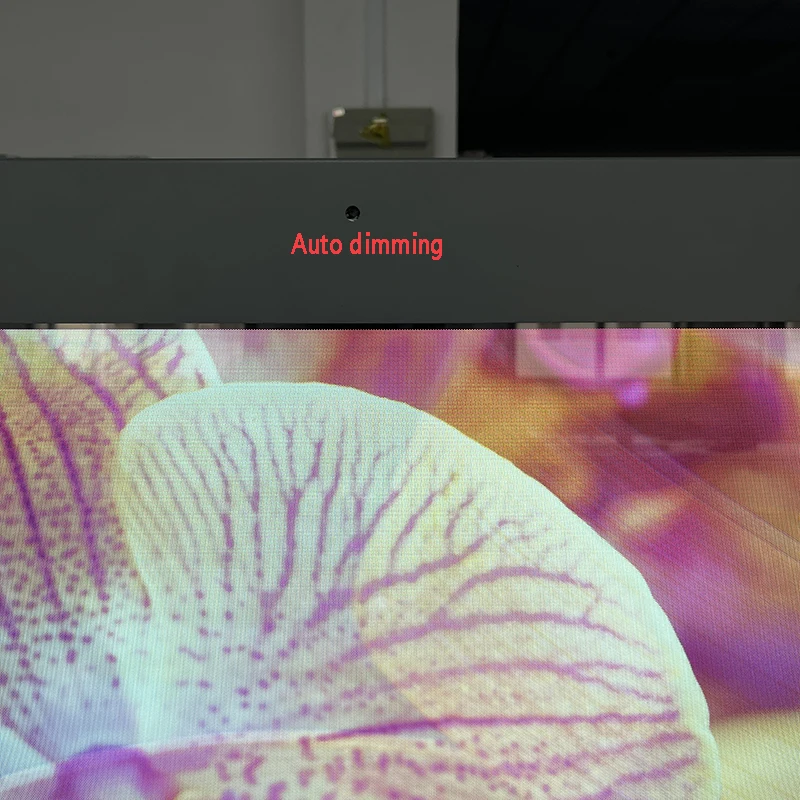

* Environmental Adaptability: Automatic ambient light sensing, intelligent brightness adjustment, screen protection, and energy saving
* Durability: 24/7 continuous operation, lifespan exceeds 50,000 hours
* Visual Performance: High resolution, high contrast, high brightness, automatic ghosting elimination, UV protection, heat insulation
* Color: 1.07B (10-bit) colors, natural and delicate image representation
* Environmental Adaptability: Automatic ambient light sensing, intelligent brightness adjustment, screen protection, and energy saving
* Durability: 24/7 continuous operation, lifespan exceeds 50,000 hours
Design and Installation:
* Operating Temperature: Designed for -30~50℃ environments, with high-quality combination fan cooling
* Protection: 6mm tempered explosion-proof glass on the front panel, non-waterproof design on the back
* Modular Design: Enhances sustainability and maintainability
* Installation: Secured with multiple M18-24 screws embedded in the ground for stability
Specific Uses:
1. Advertising Display: Capable of showcasing dynamic advertisements such as video ads, animated ads, and static images to capture the attention of passersby and motorists.
2. Information Dissemination: Used for posting community announcements, event notifications, or public service messages like weather forecasts and traffic updates, providing practical information services to residents.
3. Interactive Experience: With touchscreen capabilities, it facilitates interactive features such as touchscreen maps, product showcases, and interactive games, enhancing user engagement.
4. Brand Promotion: As a pivotal channel for brand promotion, it displays brand stories, product features, and brand imagery,
boosting brand awareness and recognition.
5. Public Spaces: Installed in parks, squares, shopping malls, or commercial districts, it entertains and informs the public.

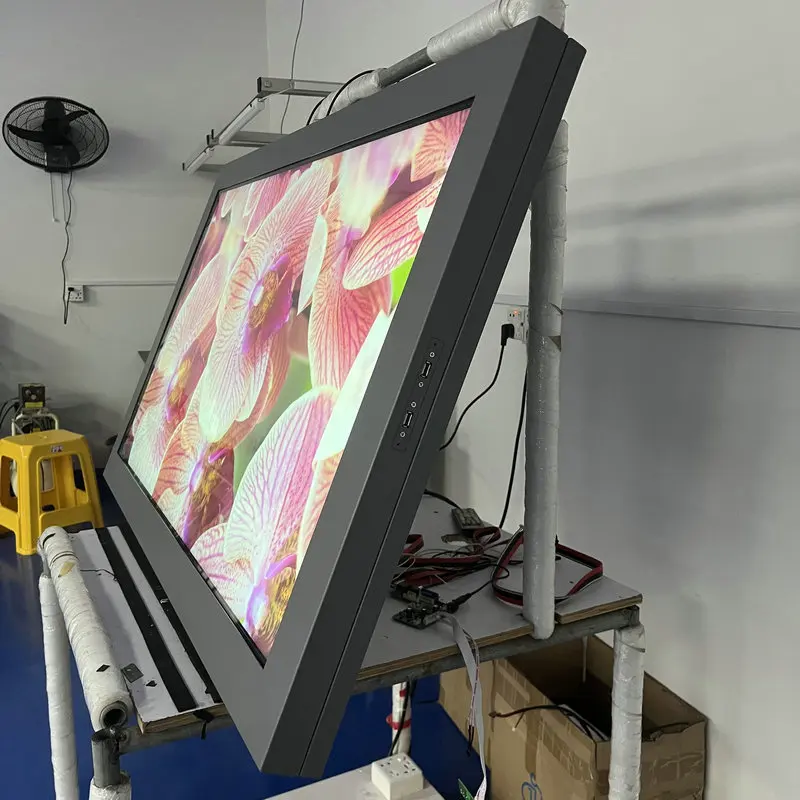

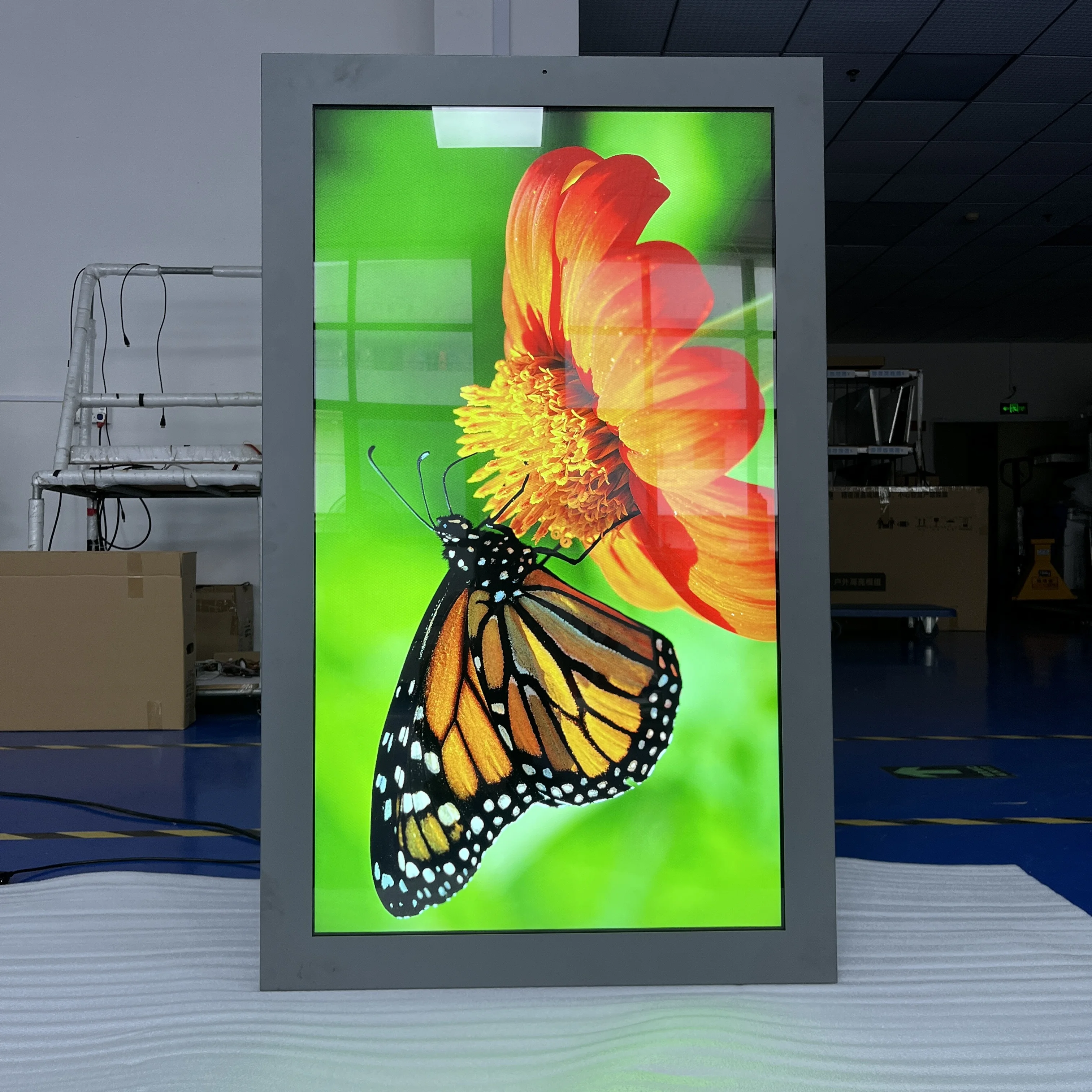

Product Details
Recommend Products
Logistics and Transport
Company Profile
FAQ
1.Q: Are you a factory?
A: Yes, we are an OEM/ODM manufacturer of indoor & outdoor LCD digital signage in Shenzhen, China. Welcome to visit our company at any time!
2.Q: What’s sample production time?
A: For standard model of outdoor display, normally need 2-3 working weeks. For customized project, the production time need to be confirmed accordingly. (Around 5-6 working weeks)
3.Q:What’s your warranty term?
A: Our product Warranty--one year under normal use. Definition – All products ordered will be covered by a parts replacement warranty. Should any faulty product be identified by customer, customer shall inform us of the component that is faulty, and we shall ship a replacement component to CUSTOMER free of charge.
4.Q: What’s the outdoor LCD display working temperature range?
A: With air flow cooling system, working temperature -10℃-60℃.
5.Q: What’s your outdoor LCD screen brightness?
A: For outdoor display, we have 1500nits to 5000nits high brightness LCD panel optional.
6.Q: How to use and install it?
A: To help customer easy to use and install, we will send user manual and instruction videos to customer.
7.Q: What’s the packing?
A:For LCD digital signage, we adopt thick foam inside with goods packed into strong plywood wooden box to ensure the safety during export delivery.
A: Yes, we are an OEM/ODM manufacturer of indoor & outdoor LCD digital signage in Shenzhen, China. Welcome to visit our company at any time!
2.Q: What’s sample production time?
A: For standard model of outdoor display, normally need 2-3 working weeks. For customized project, the production time need to be confirmed accordingly. (Around 5-6 working weeks)
3.Q:What’s your warranty term?
A: Our product Warranty--one year under normal use. Definition – All products ordered will be covered by a parts replacement warranty. Should any faulty product be identified by customer, customer shall inform us of the component that is faulty, and we shall ship a replacement component to CUSTOMER free of charge.
4.Q: What’s the outdoor LCD display working temperature range?
A: With air flow cooling system, working temperature -10℃-60℃.
5.Q: What’s your outdoor LCD screen brightness?
A: For outdoor display, we have 1500nits to 5000nits high brightness LCD panel optional.
6.Q: How to use and install it?
A: To help customer easy to use and install, we will send user manual and instruction videos to customer.
7.Q: What’s the packing?
A:For LCD digital signage, we adopt thick foam inside with goods packed into strong plywood wooden box to ensure the safety during export delivery.
