stainless steel welding electrode aws e308 16 309 309l e316l e304 e310 stainless steel welding electrode welding rod production
- Category: >>>
- Supplier: Shijiazhuang Jianliang Metal Products Co. Ltd.
Share on (1601203016830):
Product Overview
Description
Applications :
For welding of the working temperature is less than 300 ℃ corrosion resistant stainless steel structure, such as SUS304 etc..
For welding of the working temperature is less than 300 ℃ corrosion resistant stainless steel structure, such as SUS304 etc..

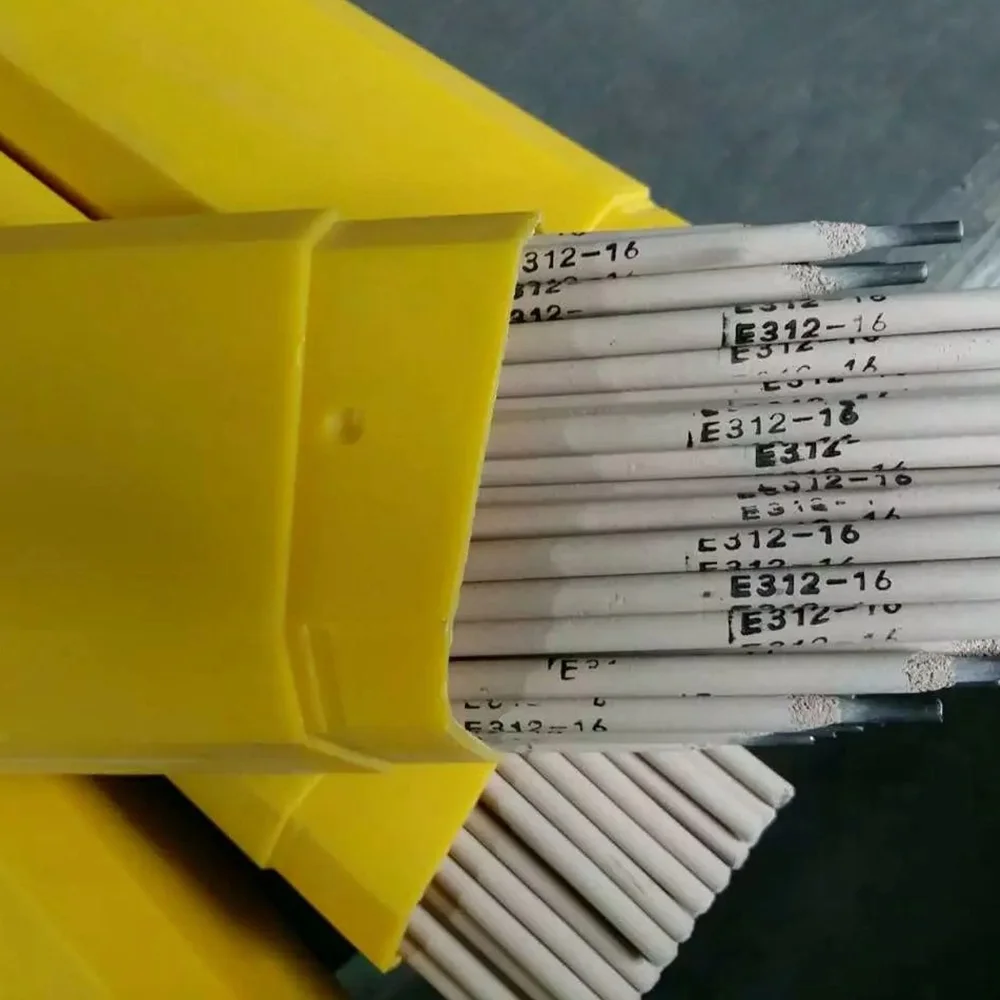

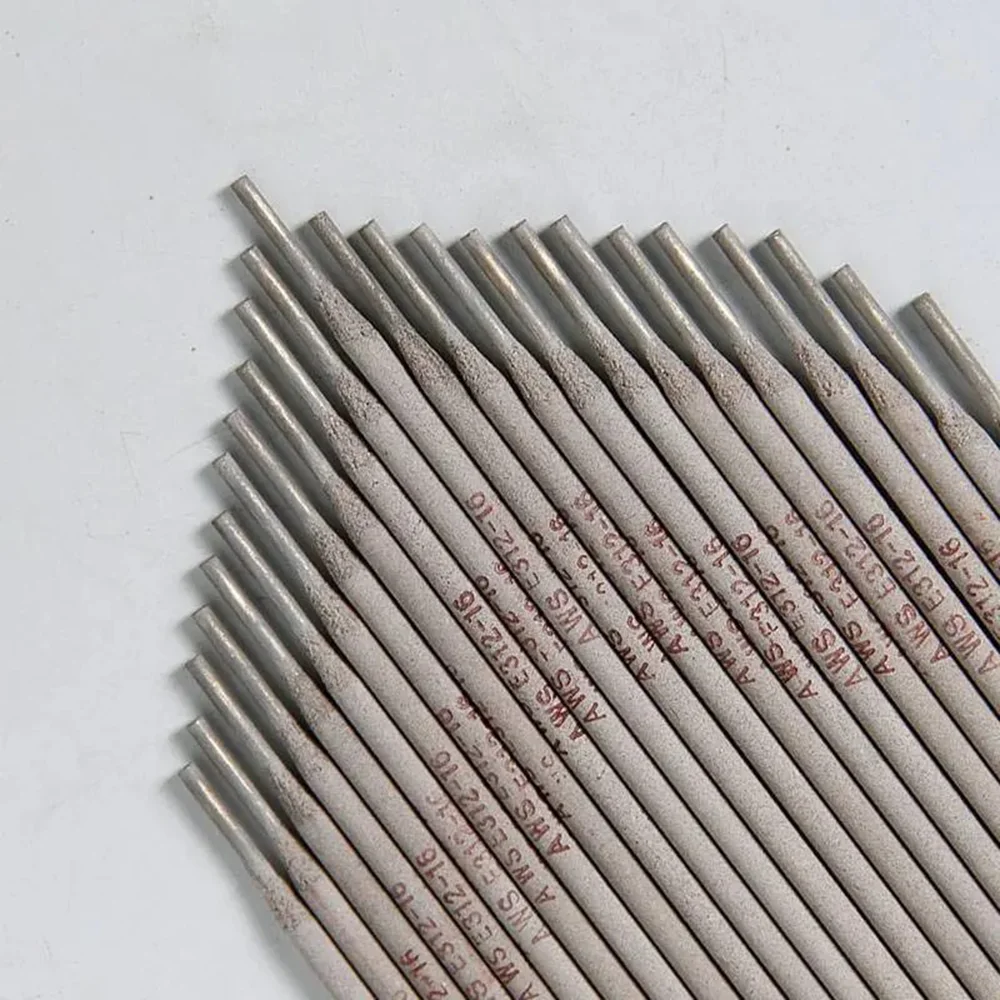

E312-16
Chemical Composition Of Deposited Metal (%) | ||||||||||||||||||
items | C | Mn | Si | Cr | Ni | Mo | Cu | S | P | |||||||||
Requirements | ≤0.15 | 0.5-2.50 | ≤1.00 | 28.0-32.0 | 8-10.5 | ≤0.75 | ≤0.75 | ≤0.03 | ≤0.04 | |||||||||
Typical Results | 0.085 | 1.11 | 0.78 | 29.39 | 9.97 | 0.16 | 0.2 | 0.011 | 0.028 | |||||||||
Mechanical Properties of Deposited Metal (AW) | ||||
items | Tensile Strength Rm (MPa) | Elongation A4(%) | ||
Requirements | ≥660 | ≥15 | ||
Typical Results | 785 | 26 | ||

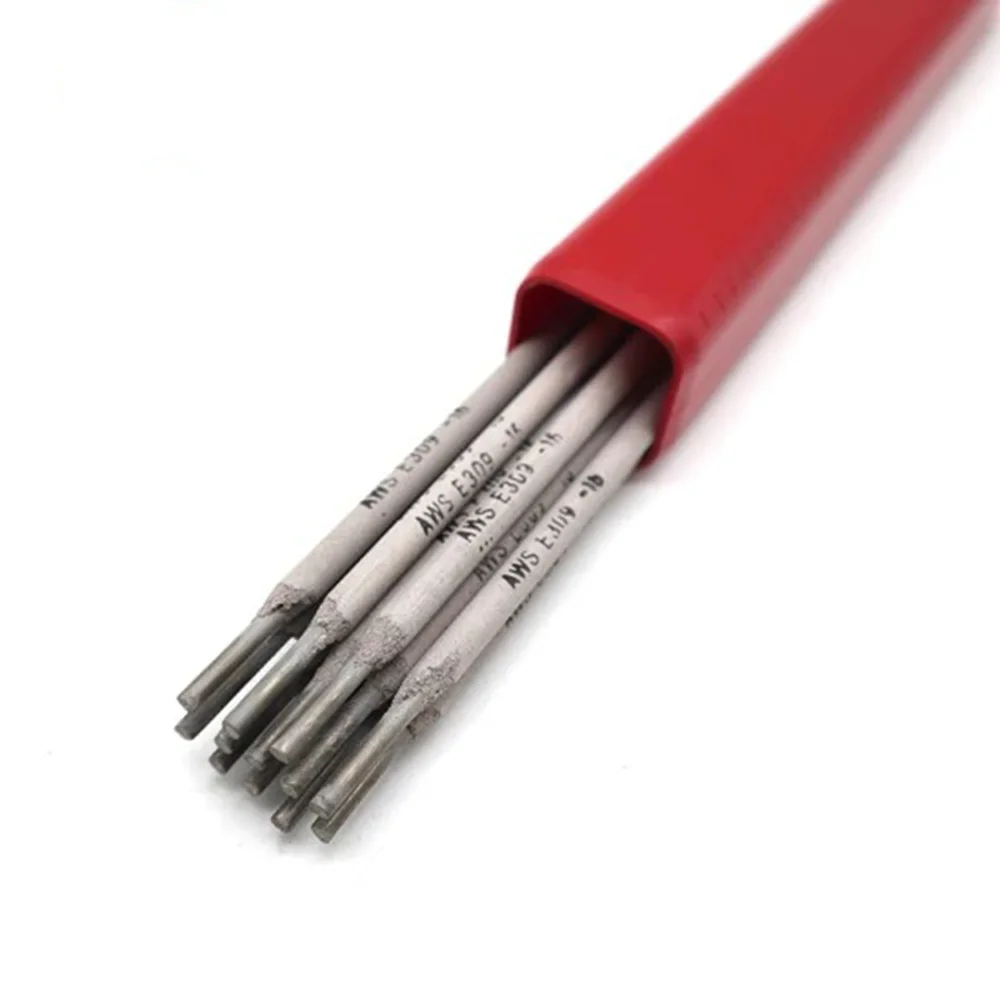

E309-16
Chemical Composition Of Deposited Metal (%) | ||||||||||||||||||
items | C | Mn | Si | Cr | Ni | Mo | Cu | S | P | |||||||||
Requirements | ≤0.15 | 0.5-2.50 | ≤1.00 | 22.0-25.0 | 12.0-14.0 | ≤0.75 | ≤0.75 | ≤0.03 | ≤0.04 | |||||||||
Typical Results | 0.06 | 0.89 | 0.69 | 24.05 | 12.5 | 0.10 | 0.08 | 0.010 | 0.028 | |||||||||
Mechanical Properties of Deposited Metal (AW) | ||||
items | Tensile Strength Rm (MPa) | Elongation A4(%) | ||
Requirements | ≥550 | ≥25 | ||
Typical Results | 600 | 38 | ||

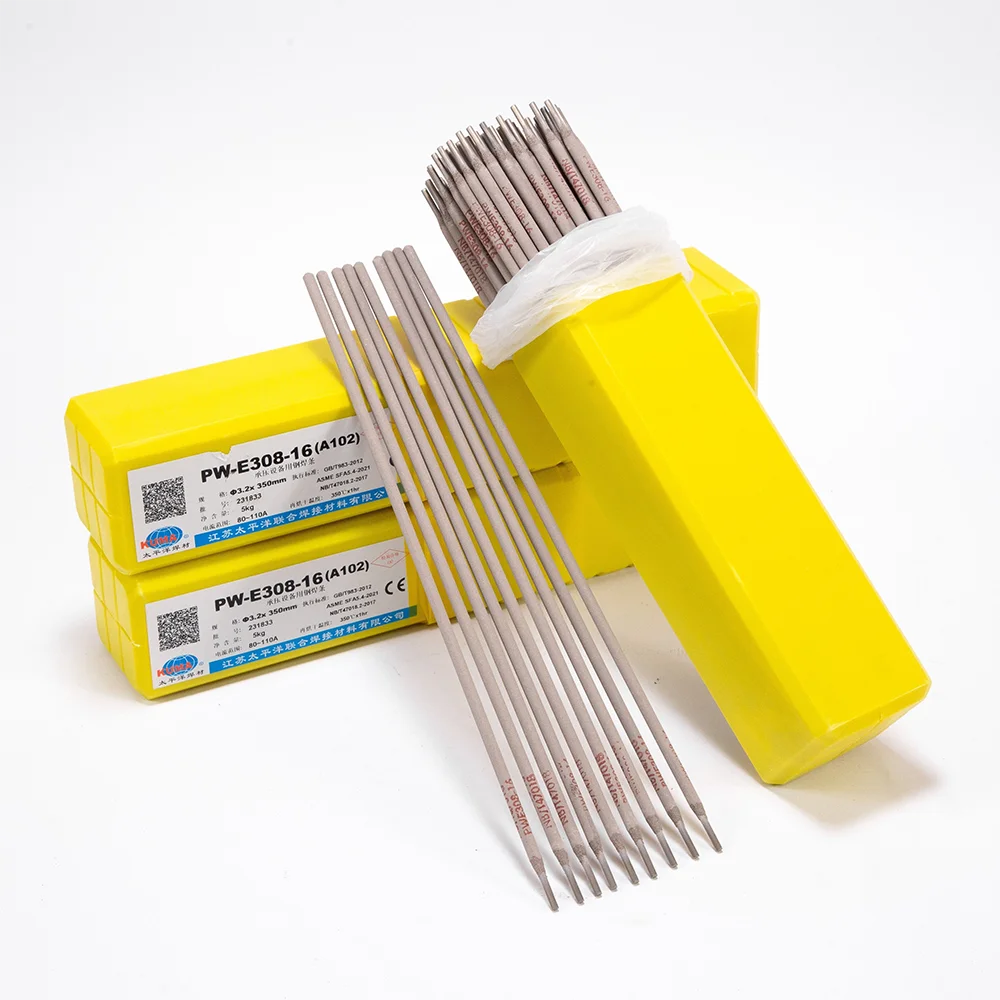

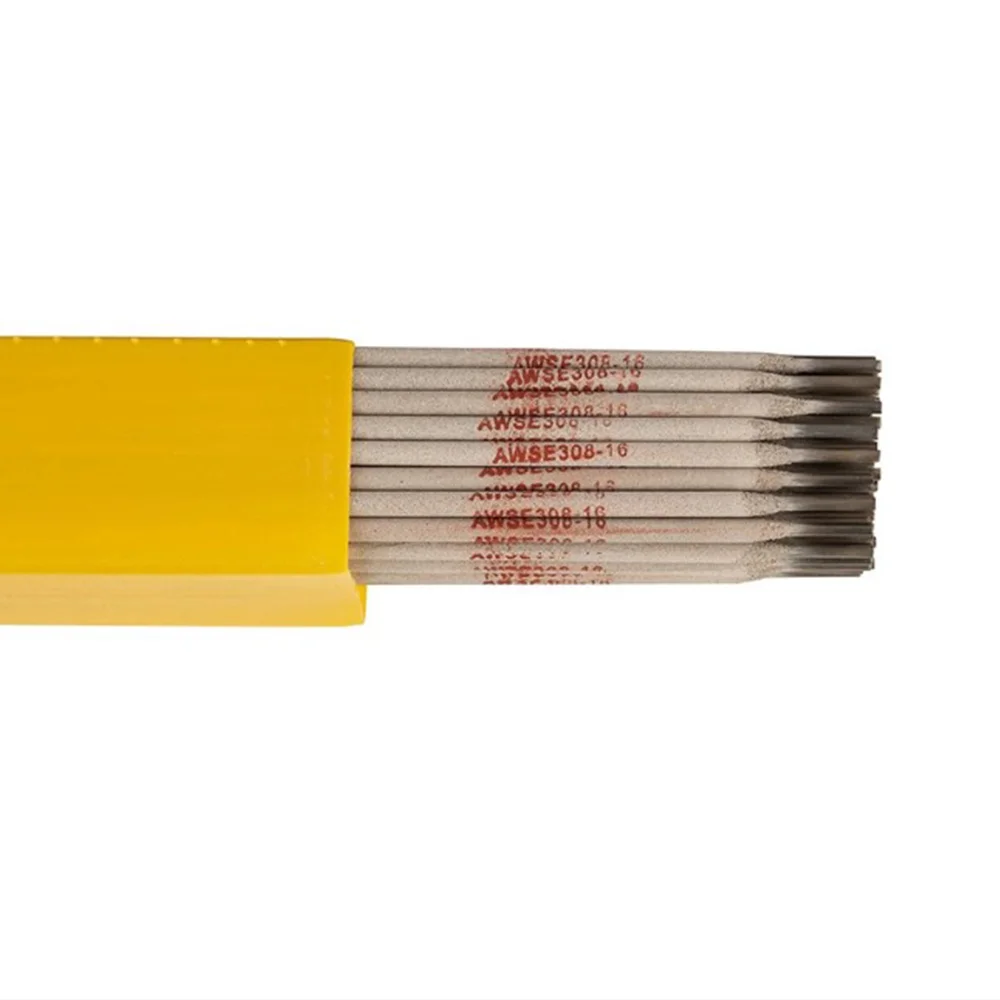

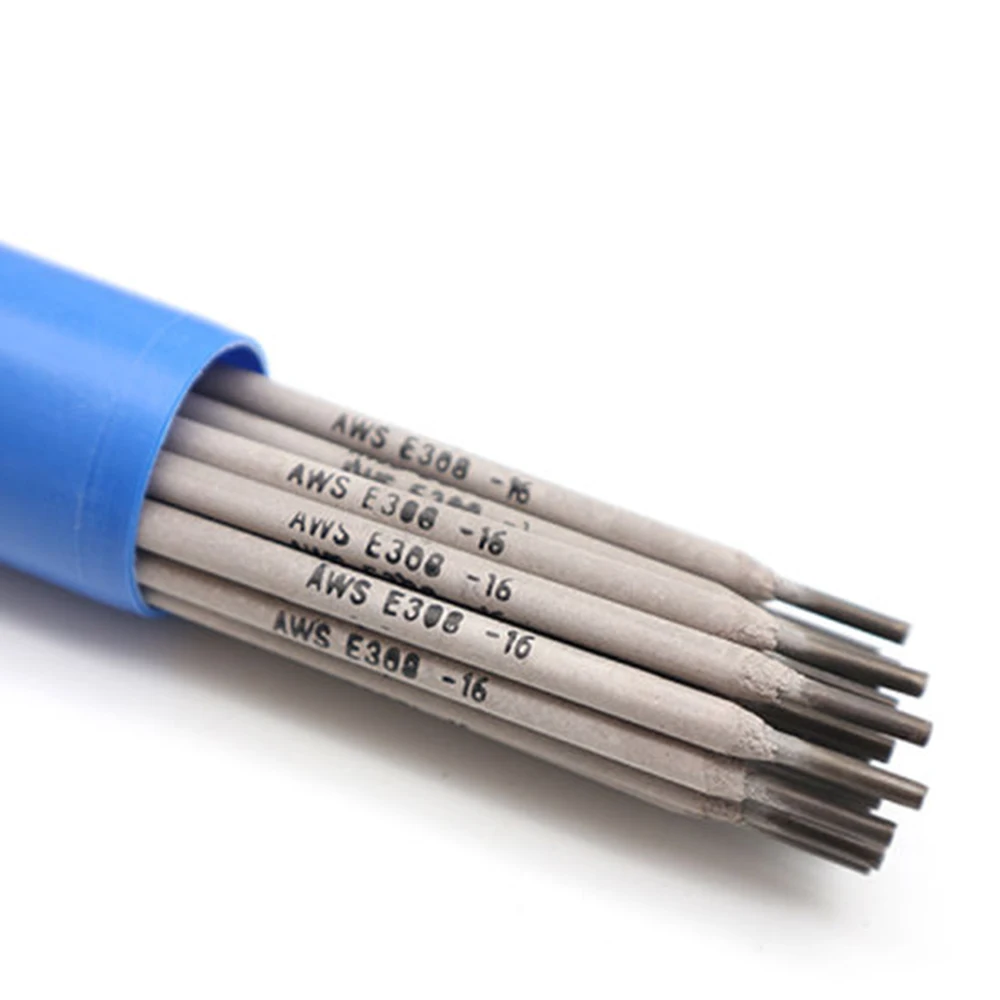

E308-16 | ||||||||||||||||||
Chemical Composition Of Deposited Metal (%) | ||||||||||||||||||
items | C | Mn | Si | Cr | Ni | Mo | Cu | S | P | |||||||||
Requirements | ≤0.08 | 0.5-2.5 | ≤1.00 | 18.0-21.0 | 9.0-11.0 | ≤0.75 | ≤0.75 | ≤0.03 | ≤0.04 | |||||||||
Typical Results | 0.06 | 0.87 | 0.67 | 20.00 | 9.50 | 0.09 | 0.08 | 0.010 | 0.025 | |||||||||
Mechanical Properties of Deposited Metal (AW) | ||||||||||||||||||
items | Tensile Strength Rm (MPa) | Elongation A4(%) | ||||||||||||||||
Requirements | ≥550 | ≥30 | ||||||||||||||||
Typical Results | 596 | 43 | ||||||||||||||||

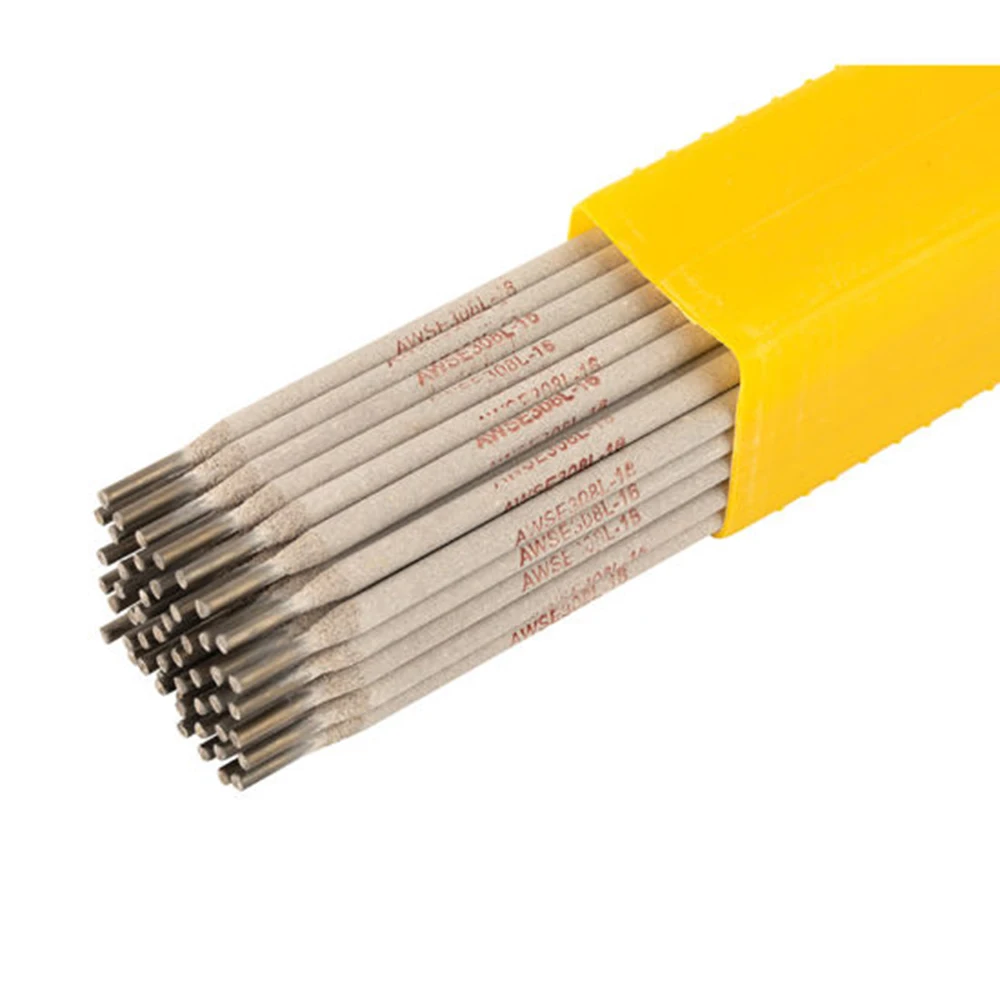

E308L-16 | ||||||||||||||||||
Chemical Composition Of Deposited Metal (%) | ||||||||||||||||||
items | C | Mn | Si | Cr | Ni | Mo | Cu | S | P | |||||||||
Requirements | ≤0.04 | 0.5-2.50 | ≤1.00 | 18.0-21.0 | 9.0-12.0 | ≤0.75 | ≤0.75 | ≤0.03 | ≤0.04 | |||||||||
Typical Results | 0.29 | 0.94 | 0.73 | 19.6 | 9.60 | 0.08 | 0.10 | 0.010 | 0.028 | |||||||||
Mechanical Properties of Deposited Metal (AW) | ||||
items | Tensile Strength Rm (MPa) | Elongation A4(%) | ||
Requirements | ≥510 | ≥30 | ||
Typical Results | 578 | 41 | ||

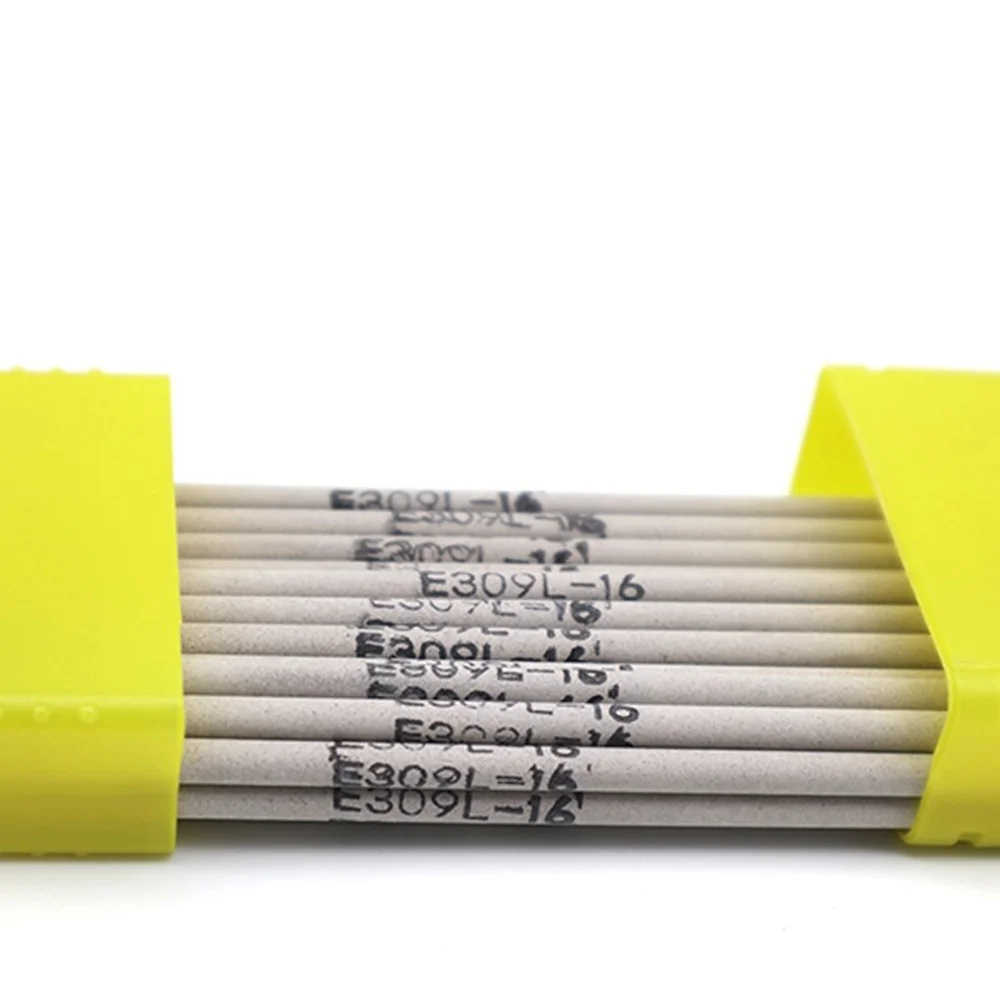

E309L-16
Chemical Composition Of Deposited Metal (%) | ||||||||||||||||||
items | C | Mn | Si | Cr | Ni | Mo | Cu | S | P | |||||||||
Requirements | ≤0.04 | 0.5-2.50 | ≤1.00 | 22.0-25.0 | 12.0-14.0 | ≤0.75 | ≤0.75 | ≤0.03 | ≤0.04 | |||||||||
Typical Results | 0.027 | 0.85 | 0.67 | 24.20 | 13.09 | 0.09 | 0.092 | 0.009 | 0.020 | |||||||||
Mechanical Properties of Deposited Metal (AW) | ||||
items | Tensile Strength Rm (MPa) | Elongation A4(%) | ||
Requirements | ≥510 | ≥25 | ||
Typical Results | 565 | 41 | ||

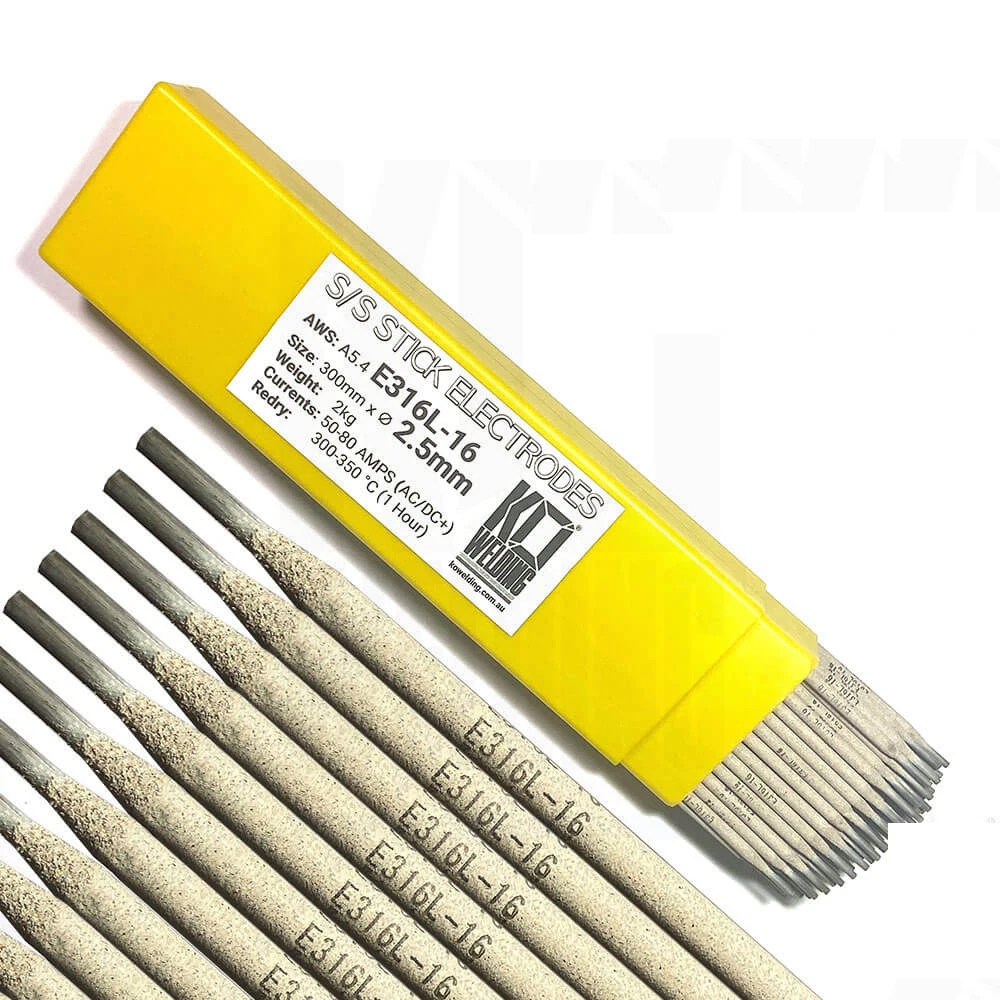

E316L-16
Chemical Composition Of Deposited Metal (%) | ||||||||||||||||||
items | C | Mn | Si | Cr | Ni | Mo | Cu | S | P | |||||||||
Requirements | ≤0.04 | 0.5-2.50 | ≤1.00 | 17.0-20.0 | 11-14 | 2-3 | ≤0.75 | ≤0.03 | ≤0.04 | |||||||||
Typical Results | 0.030 | 1.01 | 0.68 | 19.01 | 11.82 | 2.46 | 0.08 | 0.015 | 0.025 | |||||||||
Mechanical Properties of Deposited Metal (AW) | ||||||||||||||||||
items | Tensile Strength Rm (MPa) | Elongation A4(%) | ||||||||||||||||
Requirements | ≥490 | ≥25 | ||||||||||||||||
Typical Results | 580 | 45 | ||||||||||||||||
Attention:
1.The electrode must be re-dry by 320℃-350℃ for 1 hour before welding,
2.The rust, oil, water and other impurities of the weld area must be removed before welding.
3.DC*is better than AC, lower heat input is suggested, the temperature of preheat and interpass keep under 150℃.
1.The electrode must be re-dry by 320℃-350℃ for 1 hour before welding,
2.The rust, oil, water and other impurities of the weld area must be removed before welding.
3.DC*is better than AC, lower heat input is suggested, the temperature of preheat and interpass keep under 150℃.
Excellent material
The whole is made of high-quality steel, which is not easy to rust, has a smooth surface and a long service life.
Professional production
Professional production technology, stable structure, attention to every detail.
Control quality
Use professional testing equipment to strictly test products to ensure product quality.
E309-16 STAINLESS STEEL ELECTRODES Test
Welding Beginning
Little Smoke
Slag Seperated with Steel
Smooth Welding Surface
