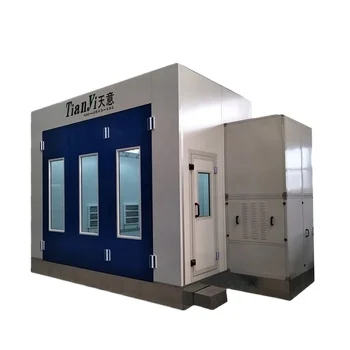

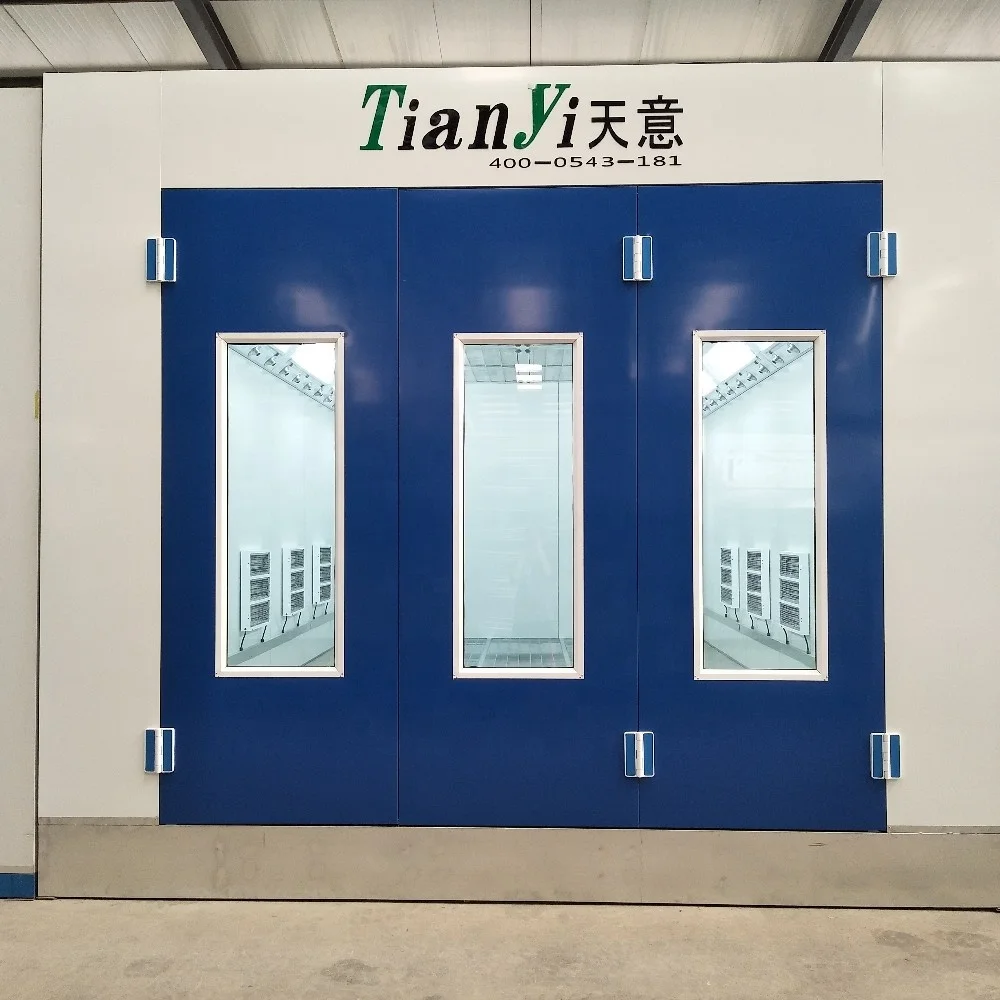

Tianyi Factory Spray Paint Bake Booth Diesel Heating Spray Booth

Dimensions:

Length (mm)

Width (mm)

Height (mm)

Booth Outside

7,000

5,560

3,430

Booth Inside

6,900

4,000

2,800

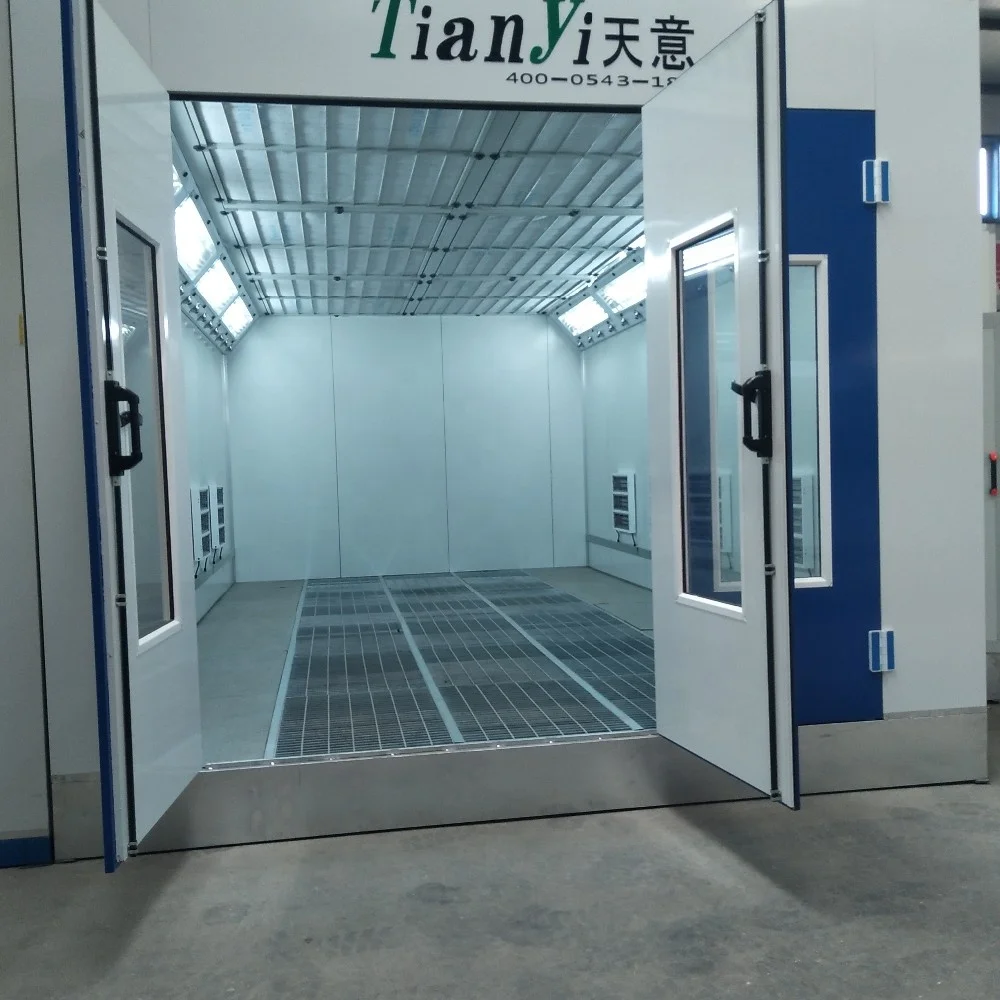

Entrance Door

3-fold main doors,with safety glass windows,    (aluminum alloy frame), handle and lock.

3,000

2,500

Personnel Door

700

1,900

Features:

Total Power 17KW; 380v/3phase/50hz

Noise < 75 db

1. Walls & Ceiling

-  EPS colorful(gray,blue and red) steel skin panel,50mm thick,steel 0.5mm thick,tongue&groove style,anti-flame and heat-insulation, steel (galvanized)roof panel(0.8mm).

2. Basement System

- Metal Pedestal (Galvanized), with Filter Tray* 2rows & Ramps a couple

- Grid Plates (Galvanized)* 2rows

- Diamond Plates (Powder Coated or Galvanized)* 3rows

3. Heating System

- Italy Riello G20 Diesel Burner.Stainless steel heat exchanger,argon arc welding.        5~10 minutes reaching the baking temperature 60°c~80c.

 1 unit of cabinet(rock wool insulation) for the burner&heat exchanger;

 2 pcs of air ducts

4. Filter System

- Primary Filter* 1set, filtering rate > 83%

- Ceiling Filter,Italy SF 700G high efficiency filter, filtering rate > 97%

- Floor filter (fiberglass filter)  filtering rate > 70%

- activated carbon filter.

Full galvanized grilled.

5. Air System

- Air-Intake Fans* 1units,  V-belt Fans with 7.5KW motor each

- Air-Exhaust Fan* 1unit, V-belt fans with 7.5 KW motor

- Air velocity 0.30 m/s

- Cabinet for the fans* 1unit, and Air Ducts* 3pcs, and Air Damper(pneumatic)* 1unit

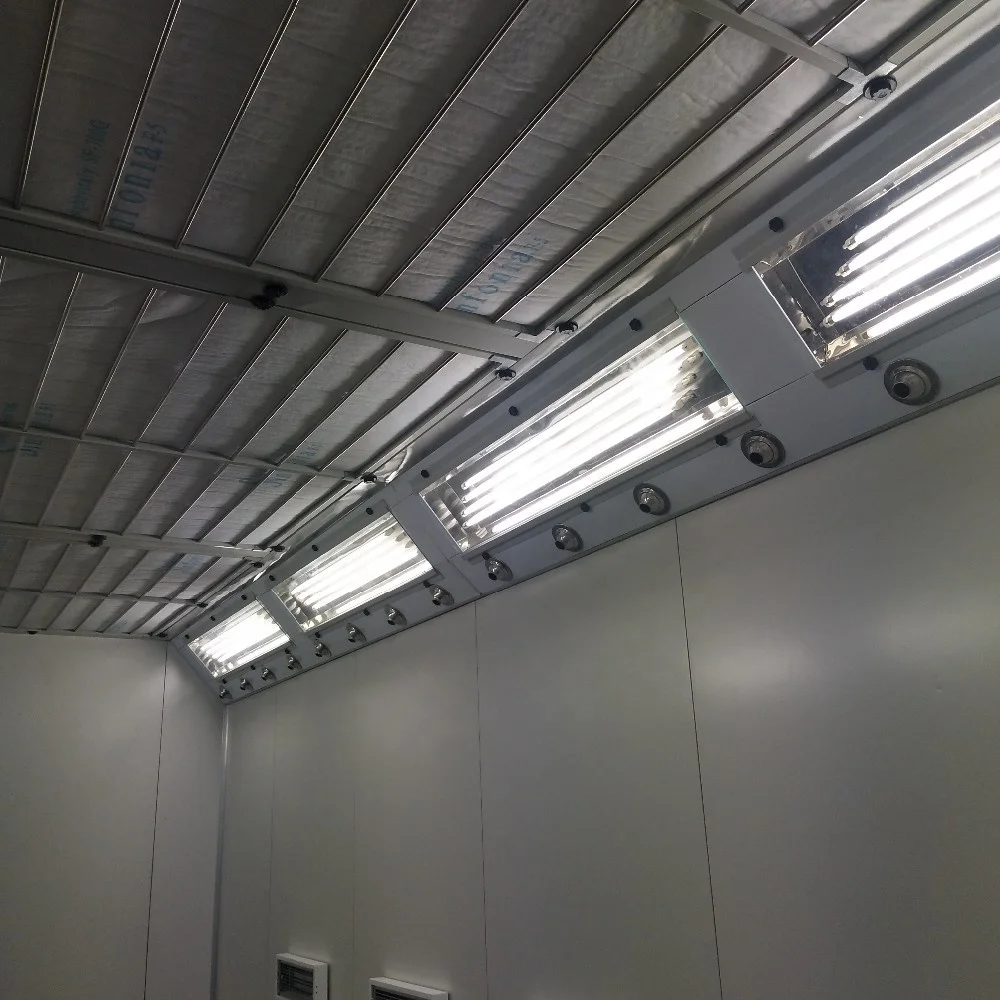

6. Illumination

- Ceiling Lights: 10Units×4Pcs=32Pcs×40W, with electronic ballasts,power-coated light box.   Side Lights: 8Units×2Pcs=16Pcs×30W, with electronic ballasts,                   horizontally set,power-coated light box.

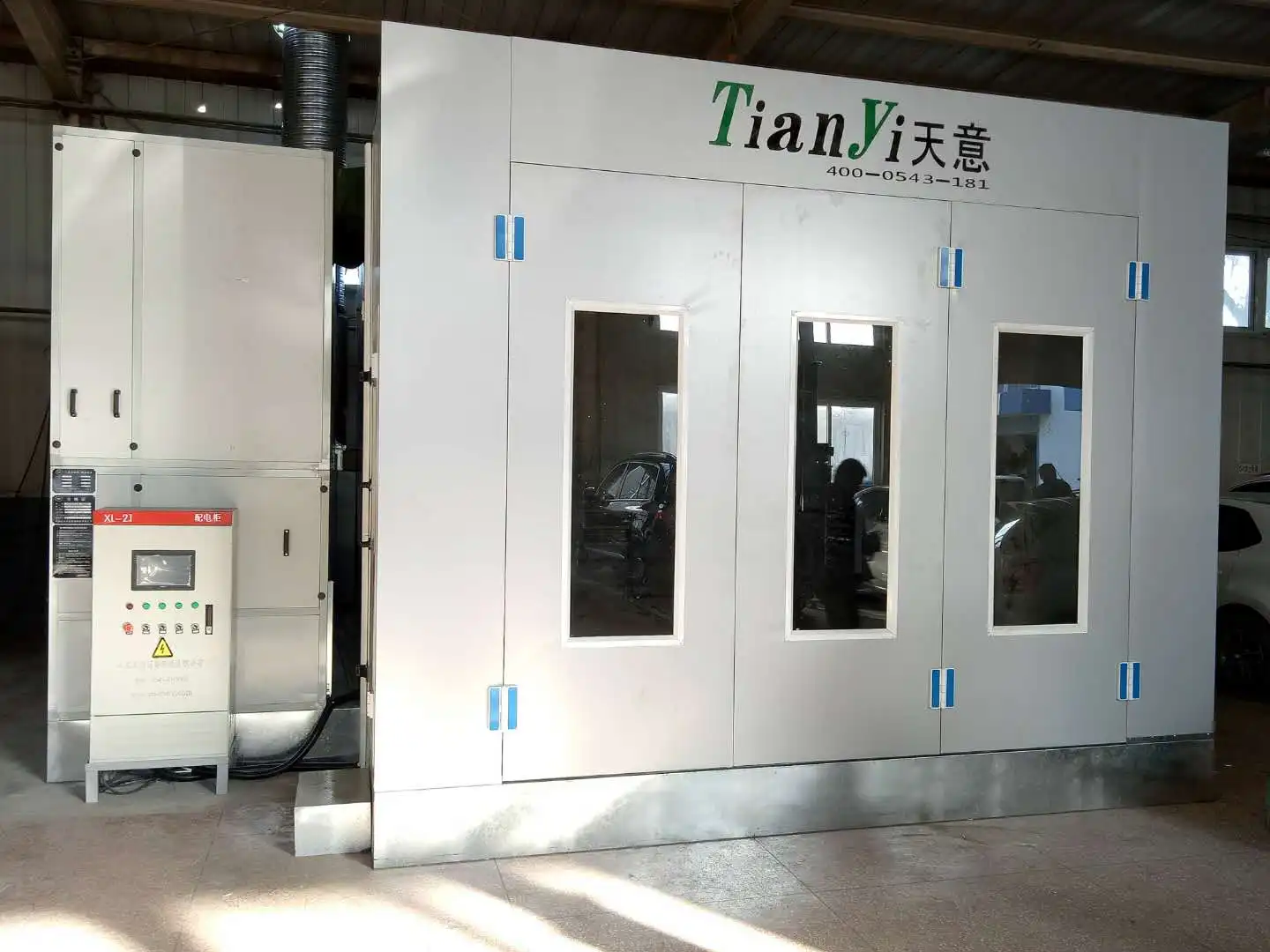

7. Control system

- Micro-computer programmed controlling,Power switch,spray/baking switch,light switch, breakdown alarm,emergency stop. .

** Included

- All Hardware, Fasteners, and Sealants

    Note

- Any size! Any Structure! All possible!
