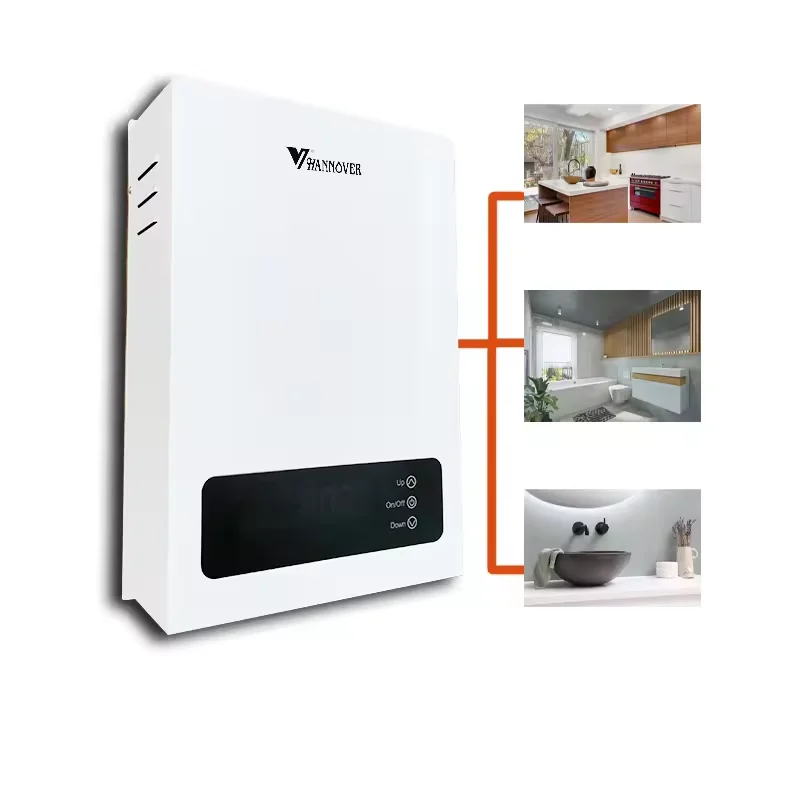

Hannover DSC New arrival CE 220V18KW whole house instant electric water heater tankless hot water both undersink and bath
- Category: >>>
- Supplier: Hannover Electric Appliance Co. Ltd.
Share on (1601203129645):
Product Overview
Description
Product Description
Specification
Model | MQ1 | ||||||||||||||
Reference NO. | 120 | 140 | 160 | 180 | 120 | 140 | 160 | 180 | |||||||
Internded appliance A | 1B+1S | 1B+2S | 2B+1S | 2B+2S | 1B+1S | 1B+2S | 2B+1S | 2B+2S | |||||||
Rated voltage | 12KW | 14KW | 16KW | 18KW | 12KW | 14KW | 16KW | 18KW | |||||||
Rated frequency | single phrase 220V-240V | three phrase 380V-400V | 380-400V(3phase) | ||||||||||||
Rated current | 50A-55A | 59A-63A | 67A-73A | 75A-82A | 16.7A-18.2A | 19.4A-21.2A | 22.2A-24.2A | 25A-27.3A | |||||||
Circuit breaker | 63A | 80A | 80W | 100A | 25A | 25A | 32A | 32A | |||||||
Recommend wire | 3X10mm2 | 3X10mm2 | 3X16m2 | 3X16m2 | 5X2.5mm2 | 5X2.5mm2 | 5X2.5mm2 | 5X4mm2 | |||||||
Water temperature | 32℃-55℃ | 32℃-55℃ | |||||||||||||
Applicable pressure,MPa | 0.03-0.6MPa | ||||||||||||||
Max pressure ,MPa | 1.2MPa | ||||||||||||||
Activation flow rate ,L/min | 1.2L-1.5L/min | ||||||||||||||
Rated hot water flow rate ,L/min | 7.6-8.8L/min | ||||||||||||||
Hot water capacity | endless | ||||||||||||||
connectors ,pipe thread | G 1/2 BSPT | 2.5 | 2.8 | 3.0 | |||||||||||
Product size | 360mmX580mmX180mm | ||||||||||||||
Carton size | 425mmX240mmX625mm(1 piece/Carton) | ||||||||||||||
20GP container quantity | 450 pieces | ||||||||||||||
40HQ container quantity | 1000pieces | ||||||||||||||
