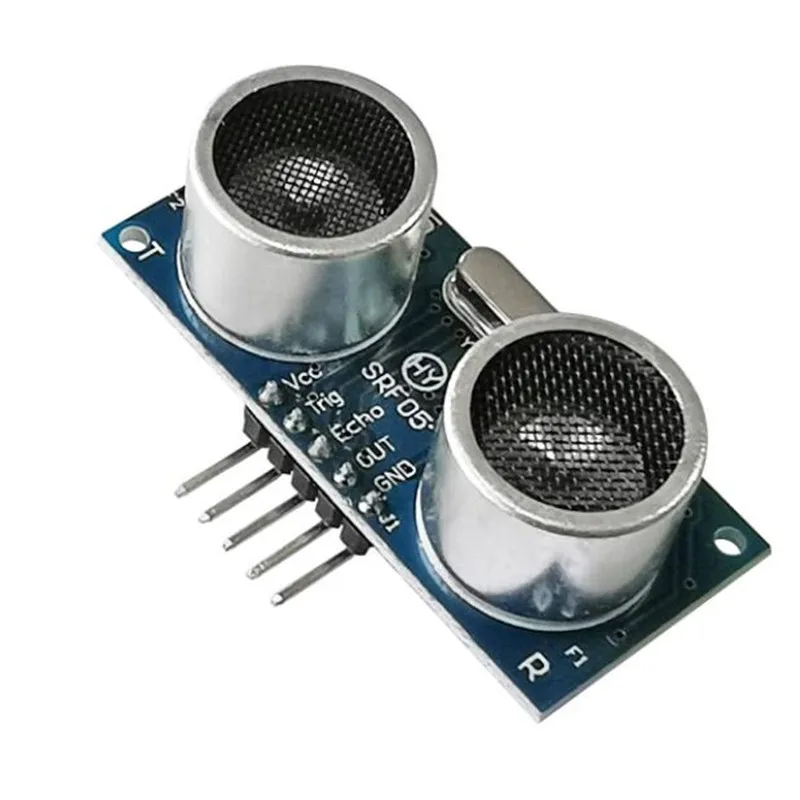

SRF05 Ultrasonic Ranging Module Ultrasonic Sensor HY SRF05

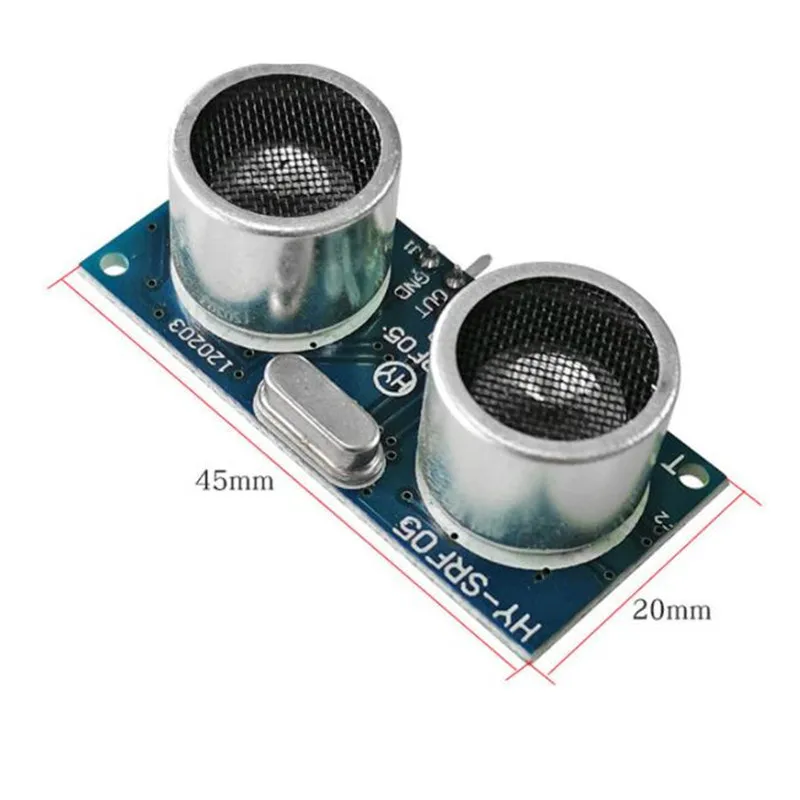

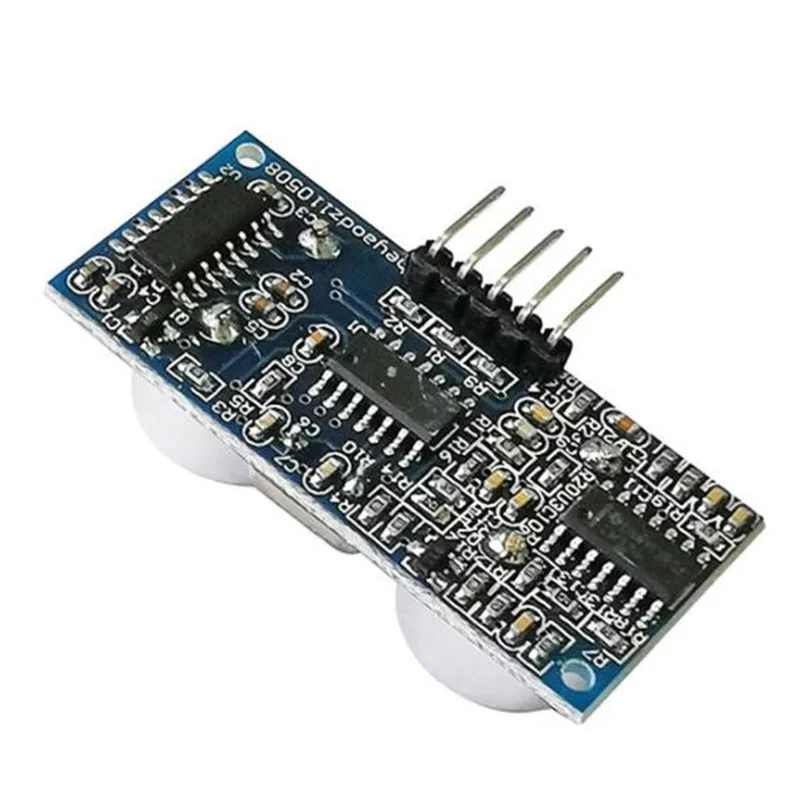

 HY-SRF05 SRF05 Ultrasonic Ranging Module Ultrasonic Sensor HY-SRF05

1: operating voltage: DC5V  2: static current: less than 2mA

3: level output: high 5V    4: level output: bottom 0V

5: induction Angle: no more than 15 degrees 6: detection distance: 2cm-450cm

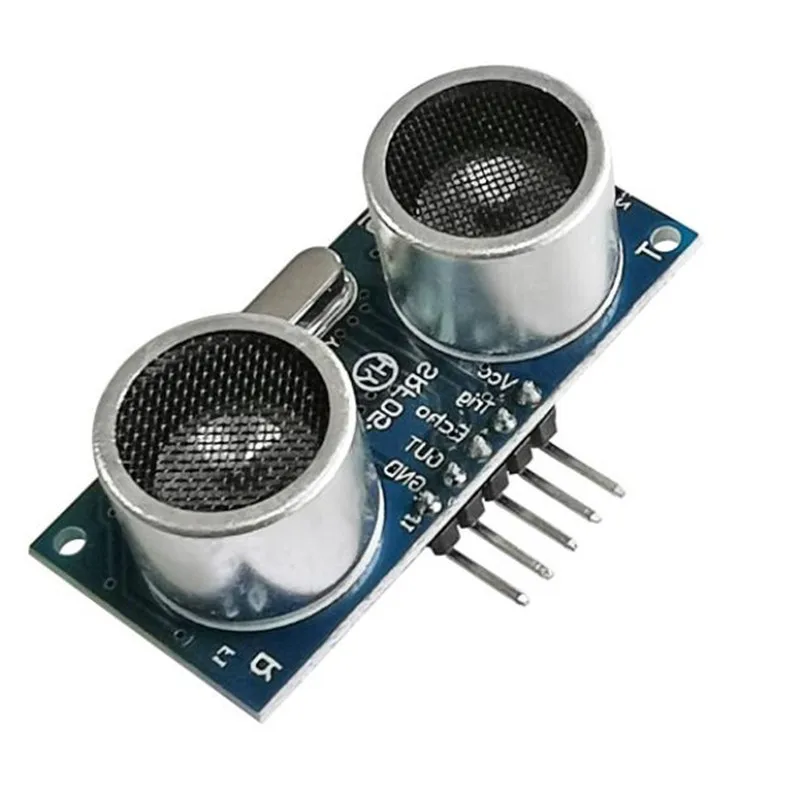

able connection mode: VCC, TRIG (control end), ECHO (receiving end), GND

Usage of this product: send a high level of more than 10US to a control port, then you can wait for the high level output at the receiving port. A output can be open timer timing, when this port becomes low power normally can read the value of the timer, at this time for the ranging time, can calculate the distance. By doing this over and over again, you can achieve the value of your moving measurements

 Working principle of the module:

(1) Using IO trigger ranging, give at least 10us high level signal;

(2) The module automatically sends 8 40khz square waves to automatically detect whether any signal is returned;

(3) If a signal is returned, output a high level through IO, and the duration of the high level is

The time of the ultrasonic wave from emission to return. Test distance =(high level time * sound speed (340M/S))/2
