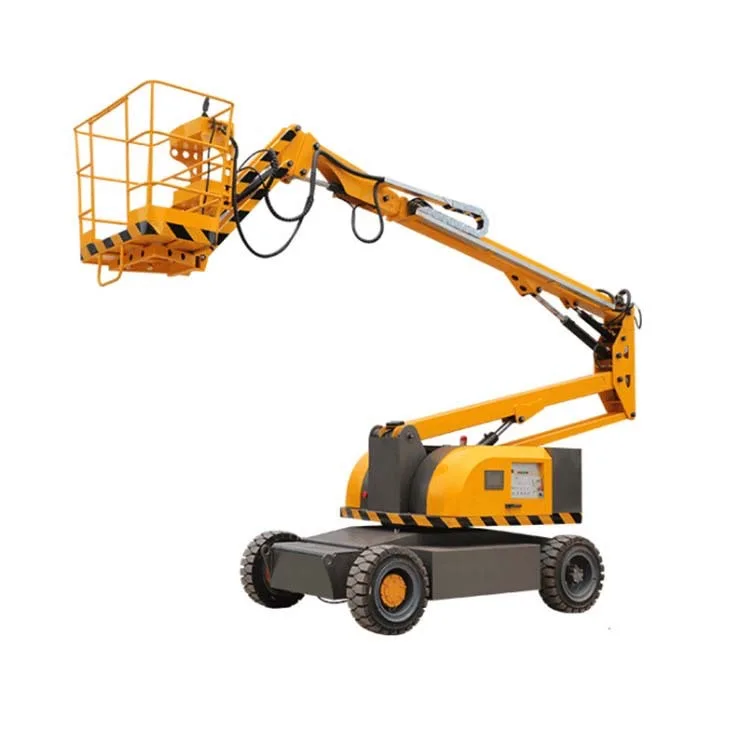

14m 16m 18m Self Propelled Articulated Boom Lift Aerial Work Platform Boom Lift
- Category: >>>
- Supplier: Henan Yugong Machinery Equipment Co. Ltd.Henan Ltd.
Share on (1601203185261):
Product Overview
Description
Product Description
Articulating Boom Lifts
Articulating Boom Lifts are also a popular model for those low-height aerial work requirements. With the maximum working height being 12.52m, they are ideal for constructions, decorations, telecommunications, advisement placement,airports,etc. Browse the below specifications to find the charming of this small articulated boom lift.
boom lift is one type of aerial work man lift platform used by construction companies, shipyards, cleaning and installation service companies and so on. Towable boom lift is mainly featured by its compact size, stable lifting, 360 degree rotating and multi powers with the max platform height from 10m to 22m.
Product Features
Crank arm lift is a commonly used lifting mechanism device, widely used in construction sites, warehouses and other places. The following is a detailed introduction to the design principle and working mechanism of the crank arm lift.
Crankshaft lift is mainly composed of crank arm, outrigger, lifting mechanism, hydraulic system and control system.
Secondly, let's introduce the working mechanism of the crank arm lift. The curved arm can realize up-down and left-right rotary movement through the control of the hydraulic system, so as to meet the needs of different angles of operation. The telescopic design of the legs enables the lift to maintain a smooth working condition in different terrains and working environments. The lifting mechanism is controlled by the hydraulic system, which can realize the lifting and lowering movement, and can keep smooth at different heights. The control system can monitor the data of the lift, and can alarm and stop in time to ensure the safety of work.
To summarize, the curved arm lift is a kind of lifting mechanical device that realizes lifting and rotating movement through the hydraulic system. Its design principle and working mechanism make the lift can adapt to different operational needs, and ensure the safe operation of the lift. In practical application, the curved arm lift can be widely used in construction sites, warehouses and other places to provide convenience and safety for operators.
Advantages and highlights:
1. The Max Working Radius is 8.9M, free working scope.
2. Motor rear axle drive driving type, working more efficient.
3. Σ-shaped boom combine and zero tail swing design make it more productive.
4.Advanced motor driven technologies;
5.steering differential control technologies;
1. The Max Working Radius is 8.9M, free working scope.
2. Motor rear axle drive driving type, working more efficient.
3. Σ-shaped boom combine and zero tail swing design make it more productive.
4.Advanced motor driven technologies;
5.steering differential control technologies;
Specification
Model | YG-TZ12 | YG-TZ16 | YG-TZ18 | ||
Maximum working height | 12m | 16.6m | 20m | ||
Maximum platform height | 10m | 14.6m | 18m | ||
Maximum horizontal extension | 5.8m | 8.52m | 10.6m | ||
Maximum carrying capacity | 200kg | 230KG | 230KG | ||
Gradeability | 25% | 25% | 25% | ||
Minimum turning radius | 2.16m | 1.8m | 2.2m | ||
Running speed (km/h) | decline | 3km/h | 6.3km/h | 4km/h | |
rising | 0.8km/h | 1.1km/h | 3km/h | ||
Closing length | 4.35m | 7.7m | 8.35m | ||
Car closing width | 1.5m | 2.28m | 2.3m | ||
closing height | 1.99m | 2.18m | 2.53m | ||
Platform size (length × width × height) | 1.1m×0.65×1.13m | 1.52x0.77x1.1m | 1.8x0.8x1.15m | ||
Platform rotation | 355° | 360° | 355° | ||
Ground clearance | 0.15m | 0.3m | 0.3m | ||
Battery | 48/320 V/Ah | 48/330 V/Ah | 48/400 V/Ah | ||
Wheelbase | 1.65m | 2.1m | 2.54m | ||
Feature:
Track Crawler Articulated Boom Lift is one of the most ideal aerial lift platform for both indoors and outdoors maintenance work.
It can rotate 360 degree in the air and platform height is from 10m to 20m. Articulated boom lift is driven by Diesel,Gas,AC
electricity,DC Battery or Hybrid Power.It is widely used in neighborhood unit, road light maintenance, factories high place
maintenance, construction site and so on.
Track Crawler Articulated Boom Lift is one of the most ideal aerial lift platform for both indoors and outdoors maintenance work.
It can rotate 360 degree in the air and platform height is from 10m to 20m. Articulated boom lift is driven by Diesel,Gas,AC
electricity,DC Battery or Hybrid Power.It is widely used in neighborhood unit, road light maintenance, factories high place
maintenance, construction site and so on.

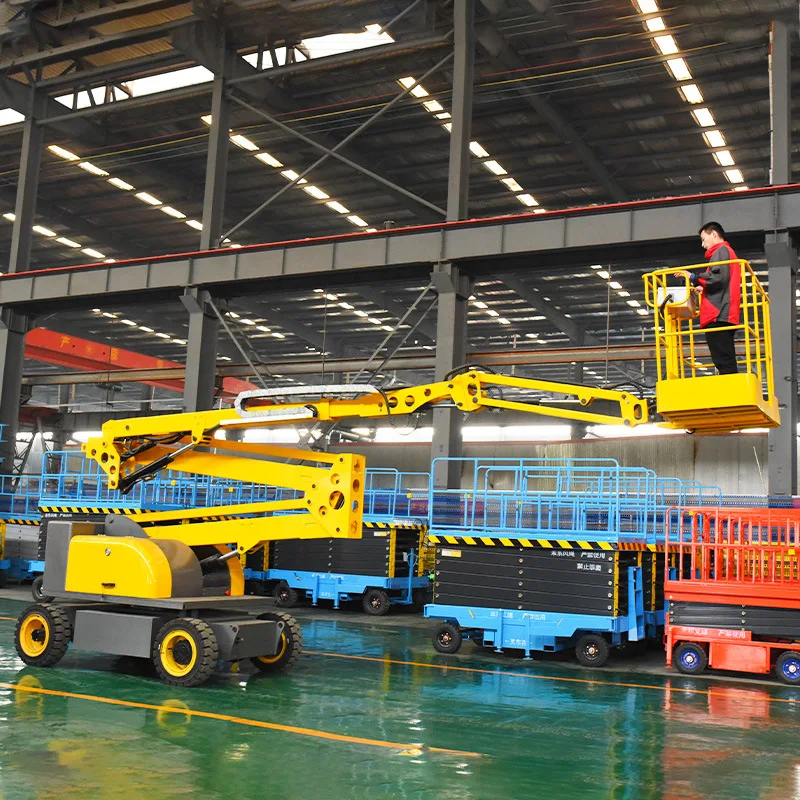

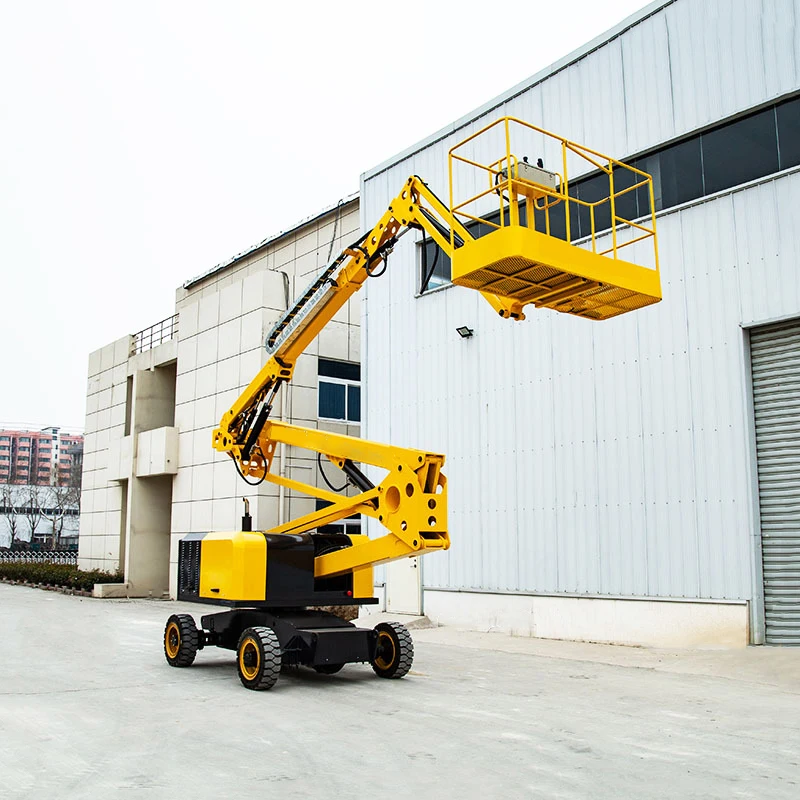

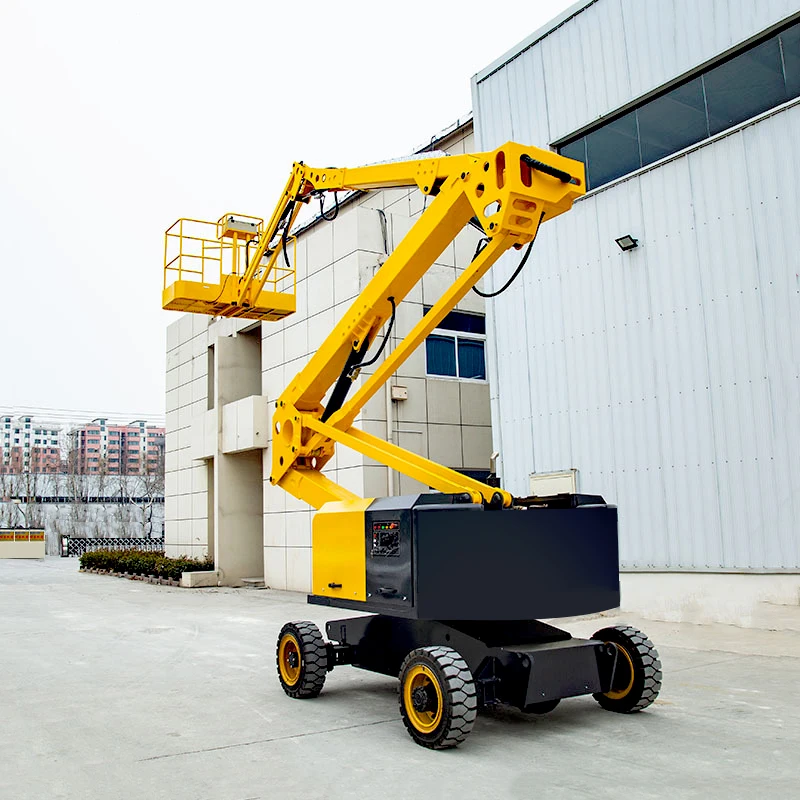

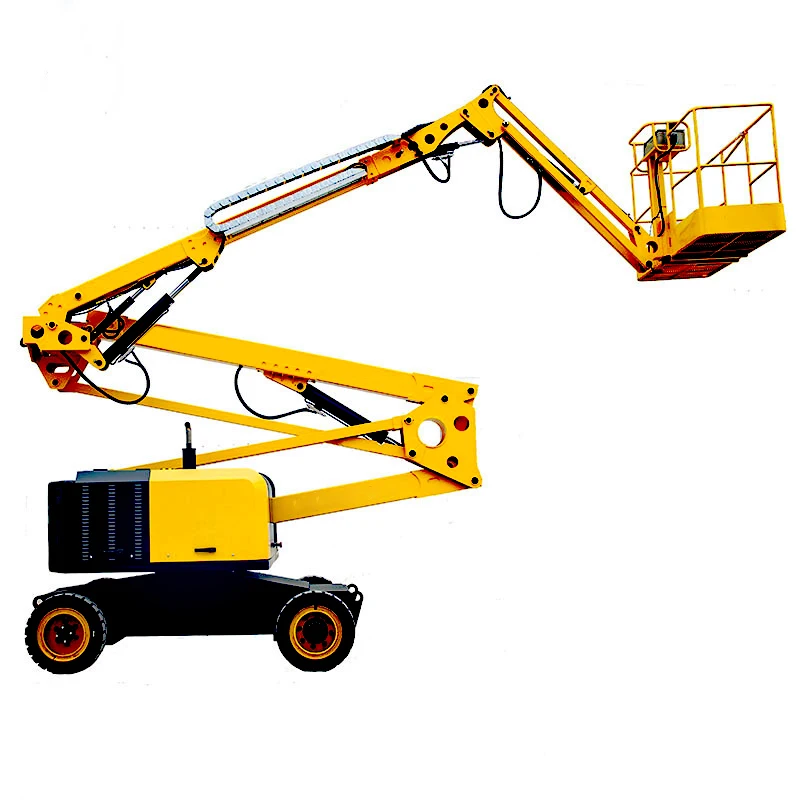

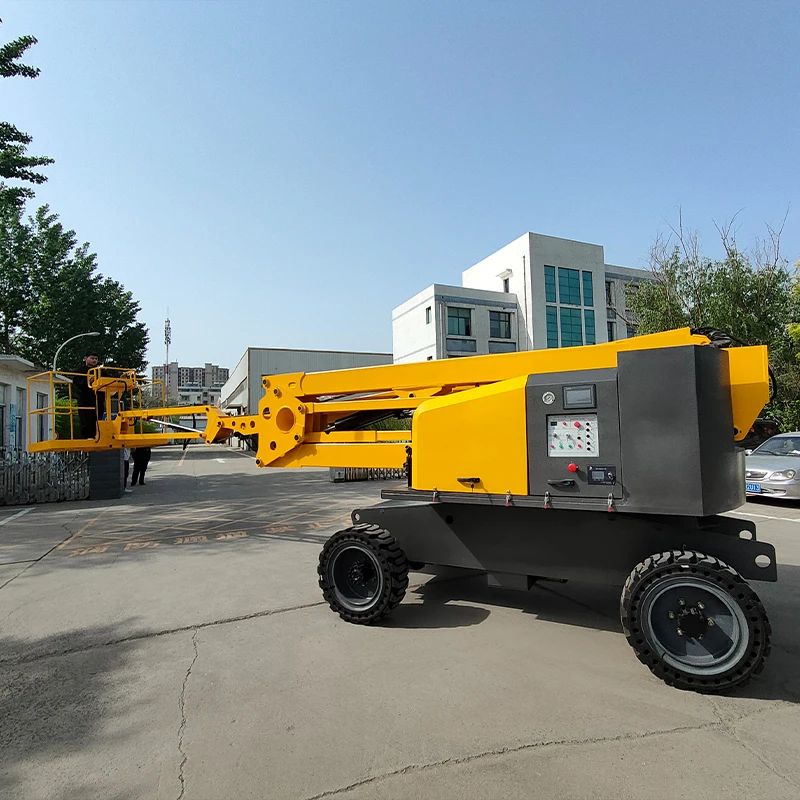

Details Images
Crank lift is widely used in municipal, electric power, street light, highway, wharf, advertising, gardening, community property, factory and mining enterprise workshop and other industries range of lifting operations. It can cross the obstacles for aerial work, and when the platform is lifted to any position, it can work while walking, with compact structure, flexible steering, and the width of its floor can ensure the equipment to enter the narrow passage and crowded working area. Alternate power unit to operate the working platform reset, convenient transportation mode, can be towed to any place. Easy-to-recognize operator panel, multiple mechanical, electrical and hydraulic safety protections, advanced integrated hydraulic and electrical integrated system.
Packing & Delivery

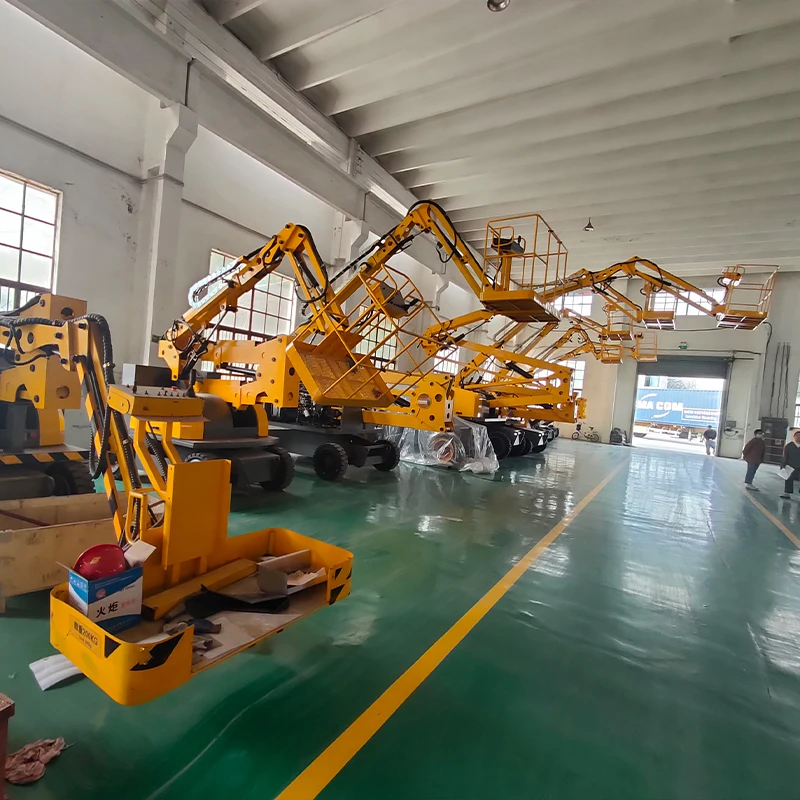

Company Profile
