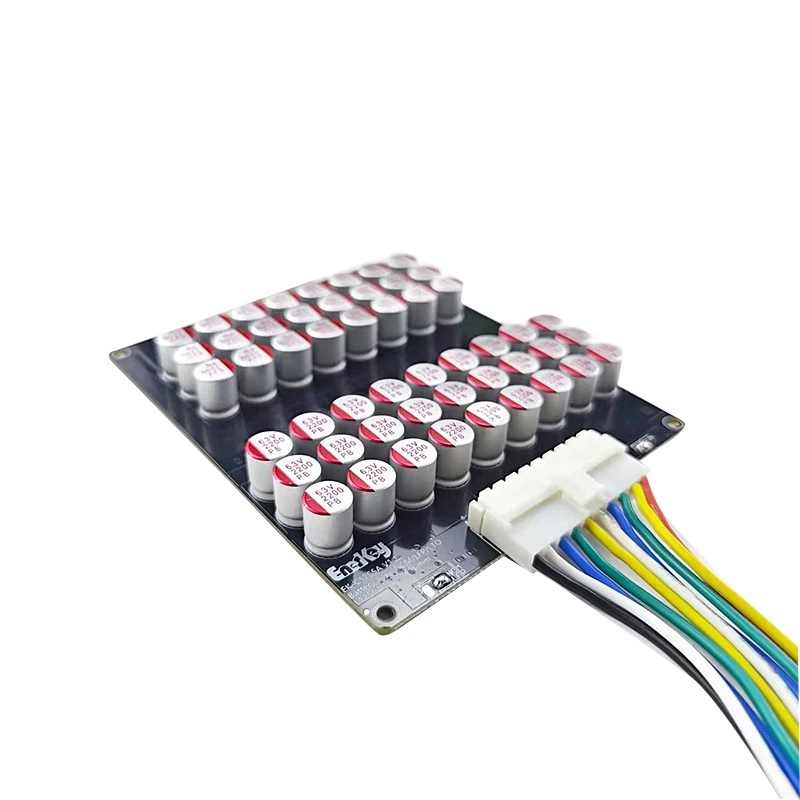

Active Balancer Battery Vhlisx 5.5A Battery active Balancer 3S 5S 6S 12S 21s applies to NCM/LFP/LTO
- Category: >>>
- Supplier: Shenzhen Willys Energy Co. Ltd.
Share on (1601203193456):
Product Overview
Description
5.5A Battery Active Balancer Battery active Balancer 3S 5S 6S 12S 21s Applies to terene lithium, lithium iron phosphate, and lithium titanate.
Working voltage: 1.8V-4.5V Suitable for ternary lithium, lithium iron phosphate, lithium titanate. Working principle, the capacitor fit transfers the charge mover, the equalization board is connected to the battery, and the equalization is started. The original new ultra-low internal resistance MOS, ZOZ copper thickness PCB
Brand Name | Vhlisx |
Material | PCB board |
Country of origin | China |
MOQ | 1 pc |
Battery Type | LifePo4/Lipo/LTO |
Balance type | Capacitive Energy transfer Active Balancing |
Product | 3-21S 5A lifep4 ternary lithium battery Active balancer with Acrylic Protective Case |
Products Description
Feature: Working voltage: 1.8V-4.5V Suitable for ternary lithium, lithium iron phosphate, lithium titanate.
Working principle, the capacitor fit transfers the charge mover, the equalization board is connected to the battery, and the equalization is started.
The original new ultra-low internal resistance MOS, 2OZ copper thickness PCB Equilibrium current 0-5.5A, the more balanced the battery, the smaller the current, with manual sleep switch, sleep current mode is less than 0.1mA, the balance voltage accuracy is within 5mv! The quiescent current is about 12 mA.
It is recommended that the battery capacity is 60-300AH. With under-voltage sleep protection, the voltage will stop automatically when the voltage is lower than 3.0V, and the standby power consumption is less than 0.1mA. LTO Only means that this edition is only applicable to lithium titanate.
The indication without LTO applies to ternary lithium and lithium iron phosphate. for all means suitable for ternary lithium, lithium iron phosphate, lithium titanate.
Applications
Main Application
Rv/Electric sailing boat/Golf Cart/Forklift Home energy storage/Industrial and commercial energy storage.....
Company Profile
About Us
Shenzhen Willys Energy Co., Ltd was founded in 2014, is a professional lithium battery industrial application solution provider, covers an area of more than 10,000 square meters, products are used in industrial energy storage, home energy storage, commercial energy, power communication, medical electronics, security communications, transportation logistics, mapping and other fields. New energy power, smart home and other fields. We focus on this field for many years, with an experienced technical team, advanced equipment, scientific management system, excellent quality control. To provide global customers with the best quality products and personalized service. We have our own production base in Dongguan, the company is committed to on-demand development, continuous
innovation, and constantly improve the product in the application environment, electrical performance and other aspects of customized research and development capabilities.
Dedicated to provide global users with competitive battery energy storage solutions.
innovation, and constantly improve the product in the application environment, electrical performance and other aspects of customized research and development capabilities.
Dedicated to provide global users with competitive battery energy storage solutions.
Certifications
Production Workshop
FAQ
Q1: What are there included for a battery or pack, may I buy charger from you?
A1: Battery case, BMS, battery pack, can buy customzied connector, charger.
Q2: How long frequency does recharge the battery?
A2: Usually per 2 months to recharge the battery pack , to charge full the battery depends on the charger
current you use. 20A charger can charge full for 12V 100Ah battery in 5 hours, fast charger 50A in 2 hours.
Q3: What's the sample lead time, and bulk order delivery. How long I can get it?
A3: Fast delivery: If small quantity, can be finished in 3-5 days days after payement, bulk in 10-25 days depends on the quantity.
Shipping: sample order or small battery packs, we can ship by express through Fedex, UPS, TNT etc. If whole parcel over 50KG, can
ship by air or by sea, sea shipping is more cheaper. Customer can tell your nearest airport name and sea port name for sales
person to check the best option for you.
Q4. What is your warranty?
A4: We offer 1-5 years warranty for all our battery pack for different situation. We ensure at least 3000 cycle life for the
LiFePO4 battery pack, which means, after 3000@80% DOD, there will still around 60% capacityt left. You can use it for at least 10
years for normal 1 time charge and discharge everyday.
Q5: Can I customize the size of battery?
A5: Of course yes if yourquantity MOQ workable.
Q6: Can you print my logo on the battery cover?
A: Yes, OEM is available,we can print your logo on the battery case freely. Welcome to send us your logo design and dicuss with us
about the details.
Q7: How’s the package?
A7: Normally are cartons, but also we can pack it according to your requirements.
Q8. Can we put different LiFePO4 battery pack in parallel or series by ourself?
A8: Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention;
1> Make sure the voltage of each battery are same before put inparallel. If they are not same, charge them to the same rate.
2> Don't not put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack.
3> Advise us the target capacity of the whole pack if you would like to put them in series. We will choose the suitable BMS for
each battery.
4> If you are not professional in parallel and series batteries, please don't handle the battery by yourself. It may cause danger
and hurt the cycle life of battery.
Q9. Can we use it for car engine?
A9: Yes, our battery pack include BMS, you can use it for low speed car only or aux. power for standard car. Do not use it for
standard car directly, that will need more complex design BMS for the pack.
A1: Battery case, BMS, battery pack, can buy customzied connector, charger.
Q2: How long frequency does recharge the battery?
A2: Usually per 2 months to recharge the battery pack , to charge full the battery depends on the charger
current you use. 20A charger can charge full for 12V 100Ah battery in 5 hours, fast charger 50A in 2 hours.
Q3: What's the sample lead time, and bulk order delivery. How long I can get it?
A3: Fast delivery: If small quantity, can be finished in 3-5 days days after payement, bulk in 10-25 days depends on the quantity.
Shipping: sample order or small battery packs, we can ship by express through Fedex, UPS, TNT etc. If whole parcel over 50KG, can
ship by air or by sea, sea shipping is more cheaper. Customer can tell your nearest airport name and sea port name for sales
person to check the best option for you.
Q4. What is your warranty?
A4: We offer 1-5 years warranty for all our battery pack for different situation. We ensure at least 3000 cycle life for the
LiFePO4 battery pack, which means, after 3000@80% DOD, there will still around 60% capacityt left. You can use it for at least 10
years for normal 1 time charge and discharge everyday.
Q5: Can I customize the size of battery?
A5: Of course yes if yourquantity MOQ workable.
Q6: Can you print my logo on the battery cover?
A: Yes, OEM is available,we can print your logo on the battery case freely. Welcome to send us your logo design and dicuss with us
about the details.
Q7: How’s the package?
A7: Normally are cartons, but also we can pack it according to your requirements.
Q8. Can we put different LiFePO4 battery pack in parallel or series by ourself?
A8: Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention;
1> Make sure the voltage of each battery are same before put inparallel. If they are not same, charge them to the same rate.
2> Don't not put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack.
3> Advise us the target capacity of the whole pack if you would like to put them in series. We will choose the suitable BMS for
each battery.
4> If you are not professional in parallel and series batteries, please don't handle the battery by yourself. It may cause danger
and hurt the cycle life of battery.
Q9. Can we use it for car engine?
A9: Yes, our battery pack include BMS, you can use it for low speed car only or aux. power for standard car. Do not use it for
standard car directly, that will need more complex design BMS for the pack.
