item | value |
Model Number | TDJL-PS5260 |
Imaging Sensor | CMOS |
Wideangle | 145° |

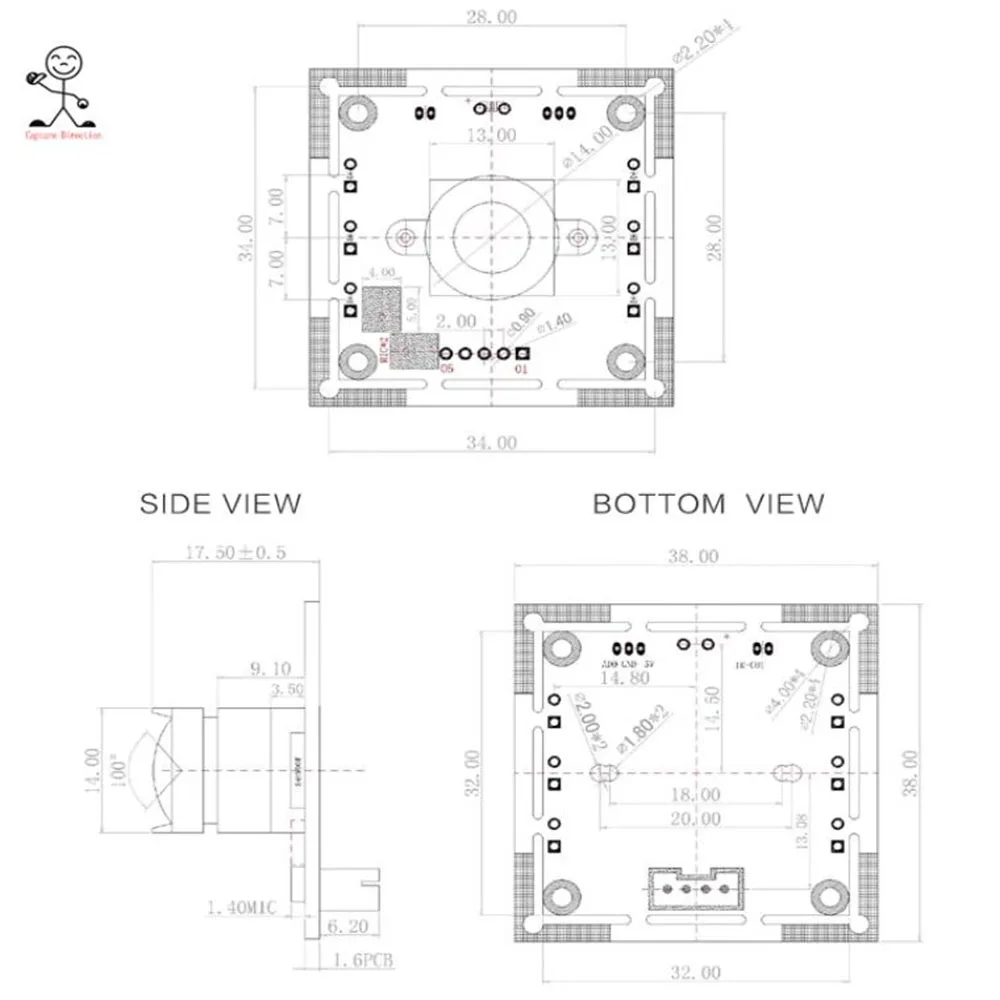

Size | 38*38*17.5mm |
Temperature operation | -30C to 70C |
Focus | Fixed |
Object distance | 30cm |
Resolution | 600LW/PH |
Interface | USB 2.0 |
Power supply | DC 5V 800mW max |
Operate system | Win XP/WIN7.8/android 4.0 linux |
Max resolution | 1920*1080 |
Sensitivity | 4700mV |
S/N Ratio | 46 db |
Max Dynamic range | 83 db |
Shutter type | Electronic rolling shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPEG |
Lens construction | 2G2P |
F/No | 2.4 |
EFL | 3.0mm |

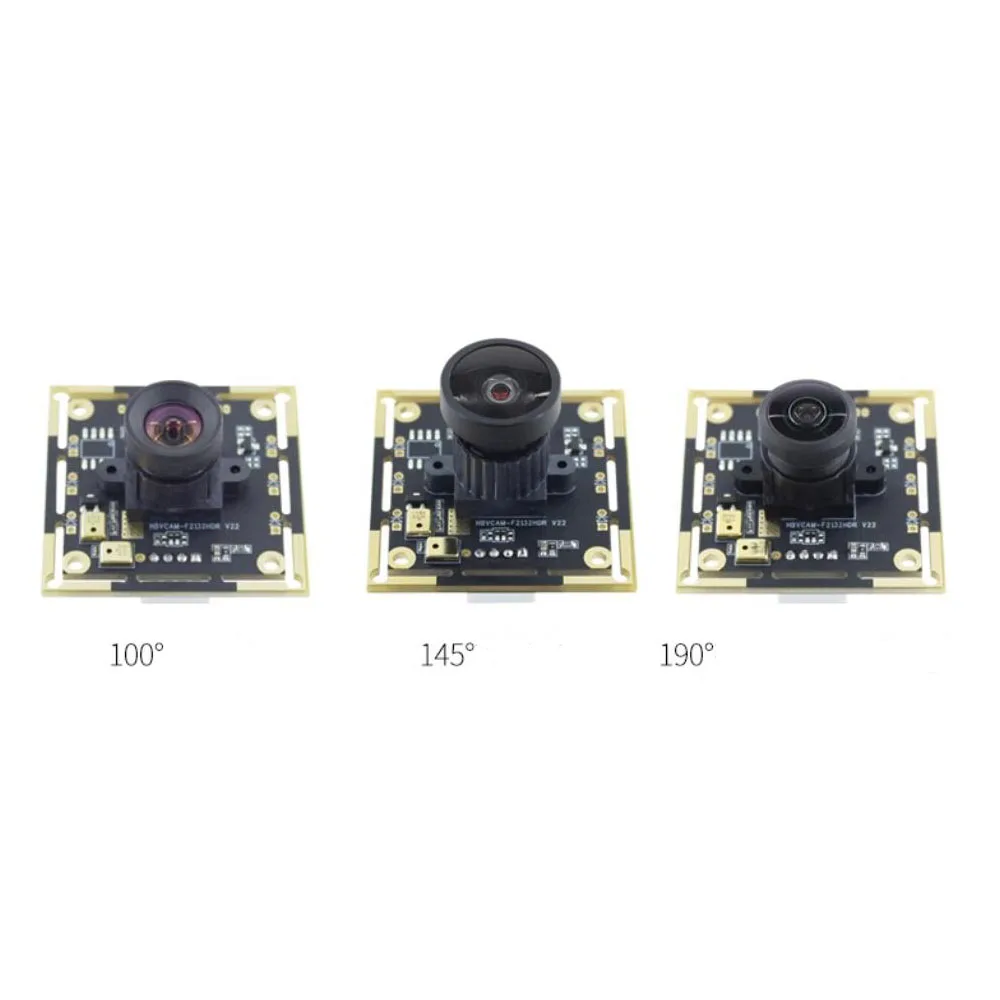

FOV | 100 degrees no distortion / manual focus 145 degrees with distortion / manual focus 190 degrees panoramic wide angle / manual focus |
TV distortion | <5% |
Relative iiiumination | 70% |
IR Filter | 650nm |

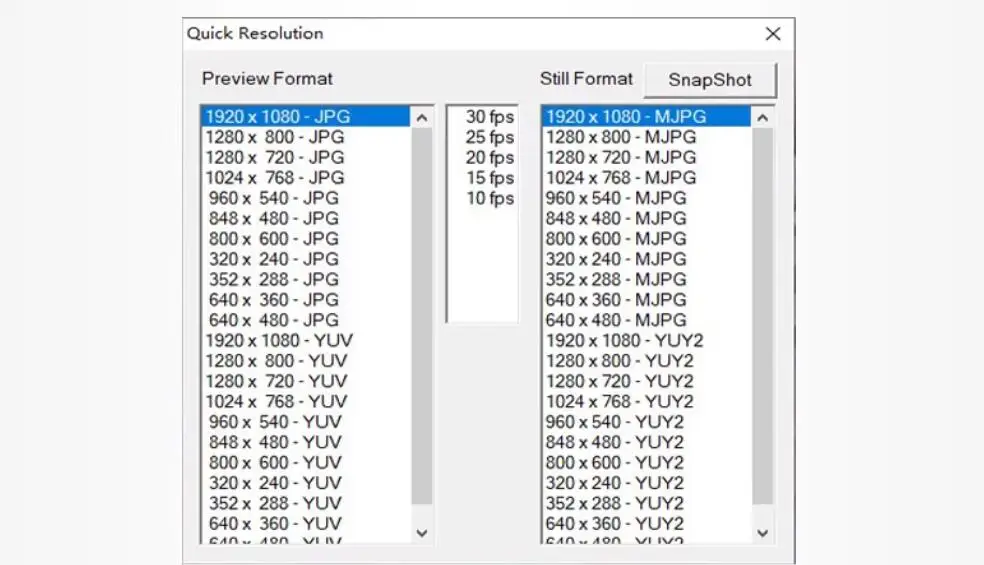

Max transfer rate | MJPEG 320x240 30FPS YUY2 320x240 30FPS MJPEG 640x480 30FPS YUY2 640x480 30FPS MJPEG 1024x768 30FPS MJPEG 1280x720 30FPS YUY2 1024x768 30FPS YUY2 1280x720 30FPS MJPEG 1280x800 30FPS YUY2 1280x800 10FPS 5FPS MJPEG 1920x1080 30FPS YUY2 1920x1080 5FPS |
