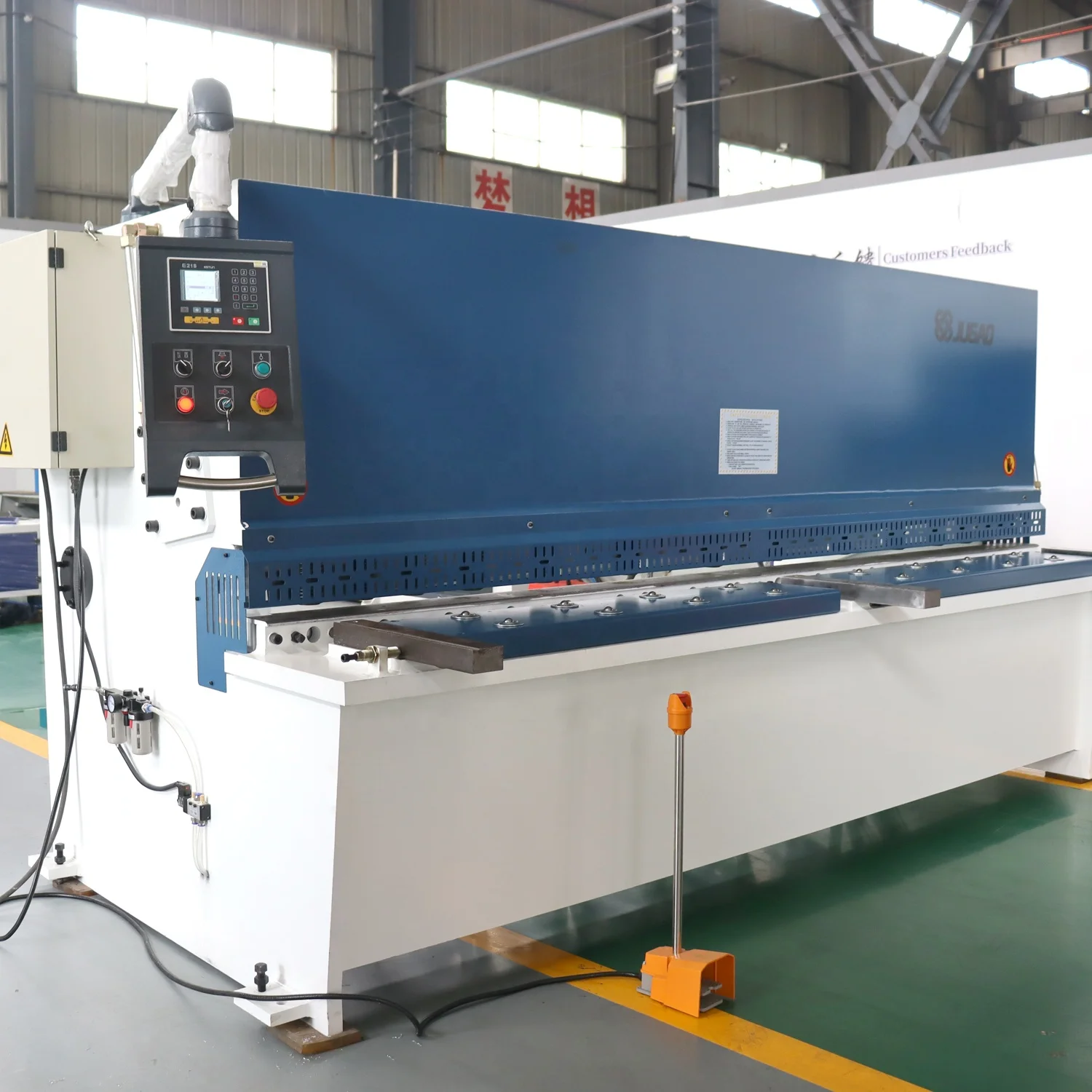

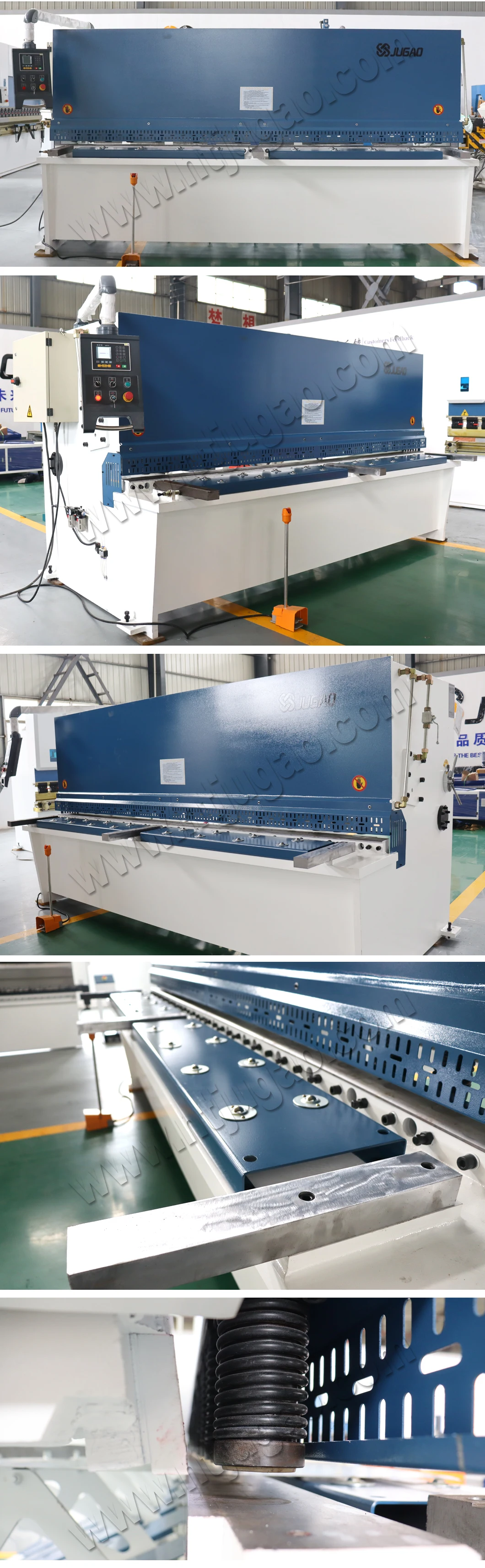

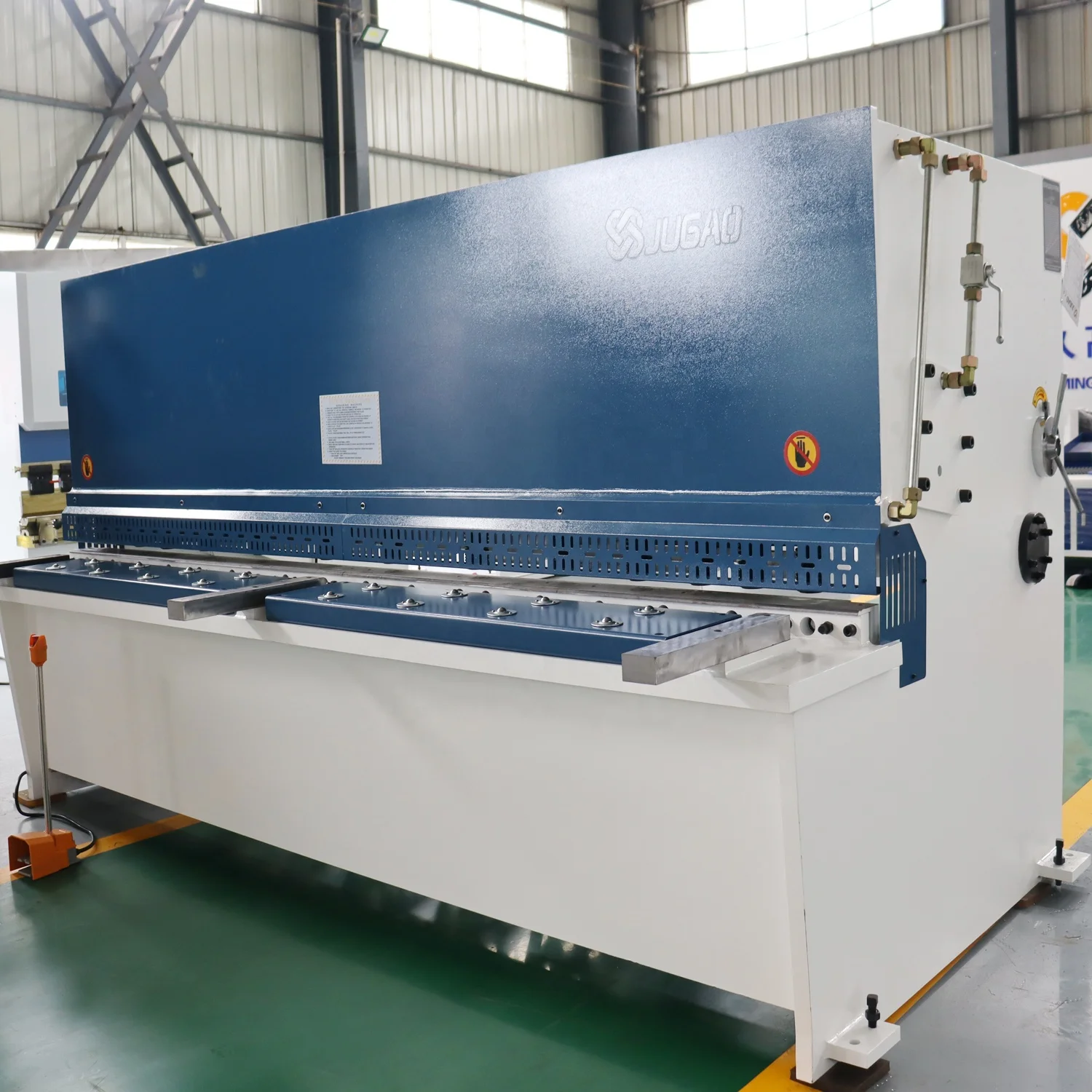

JUGAO 2 8mm Iron Stainless Steel Plate Sheet Hydraulic Swing Beam Shears Shearing Machine

Product Overview

Description

JUGAO 2-8mm Iron Stainless Steel Plate Sheet Hydraulic Swing Beam Shears Shearing Machine

Features

1. Streamlined design originated from EU, main structure consists of rack, cutter holder, oil cylinder, hydraulic controller, backgauge etc. Finite-element analysis of main parts, Welding parts uses tempering, vibration and other processing methods to eliminate internal stress ensuring structural strength and rigidity;

2. Cutter holder use three-point support rolling guide rail, reducing the friction to the greatest extent, and realizing seamless rolling during cutter holder moving;

3. Left-most front holder configured with verticality regulator and front positioning device, easy operation and high efficiency;

4. Simple and effective blade adjusting mechanism rearranges blade clearance through CNC controller and improves the cutting quality.

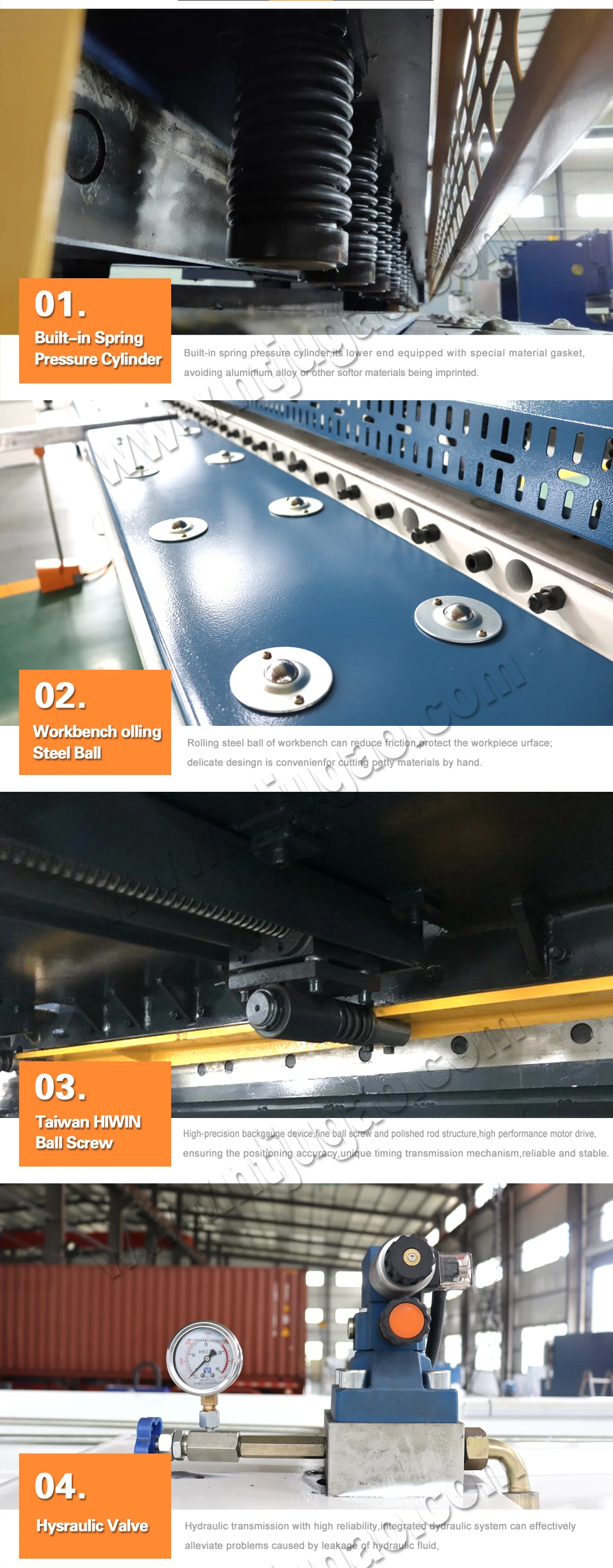

5. Through fine ball screw and polished rod structure, good-performance servo motor control X-axis to ensure the accuracy, and unique designed timing transmission mechanism to ensure operation stable and reliable;

6. Light and shadow line is conductive to manual scribing for cutting; stable and reliable hydraulic transmission; integrated hydraulic system is able to significantly reduce problems caused by hydraulic fluid leakage;

7. High-quality alloy tool steel is capable enough to against impact load and high wear resistance when cutting;

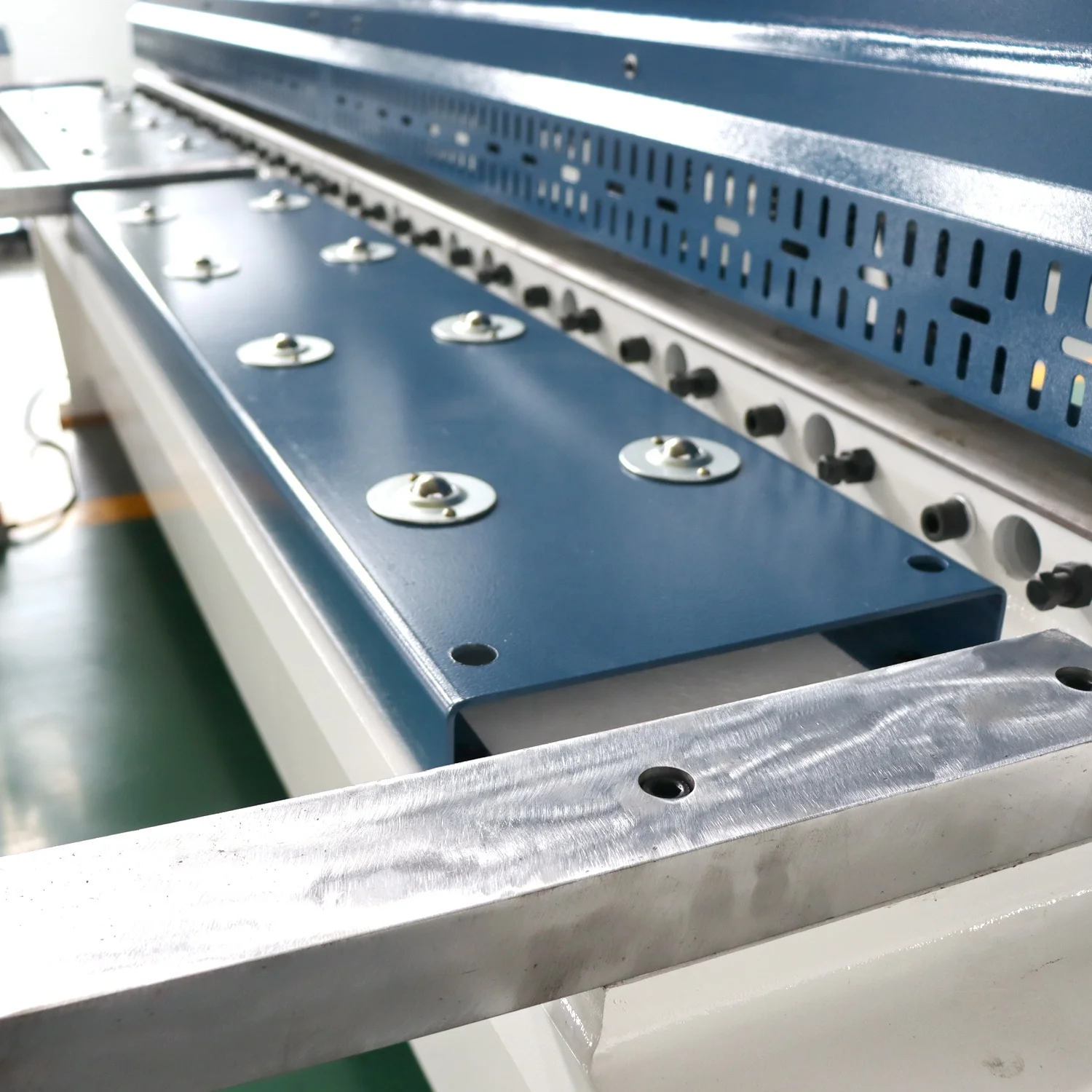

8. Referring to ergonomic design, user-friendly operation interface, improving the operation precision and comfortability; rolling ball workbench to reduce friction and prevent work piece surface from scratching; unique and practical safety guard, line with safety specifications, protect the personal safety; exquisite design, petty work piece can be done easily by hand.

STANDARD EQUIPMENTS

      √ Hardened blades.

                - Top blades : 2 sides

                - Bottom blades : 4 sides

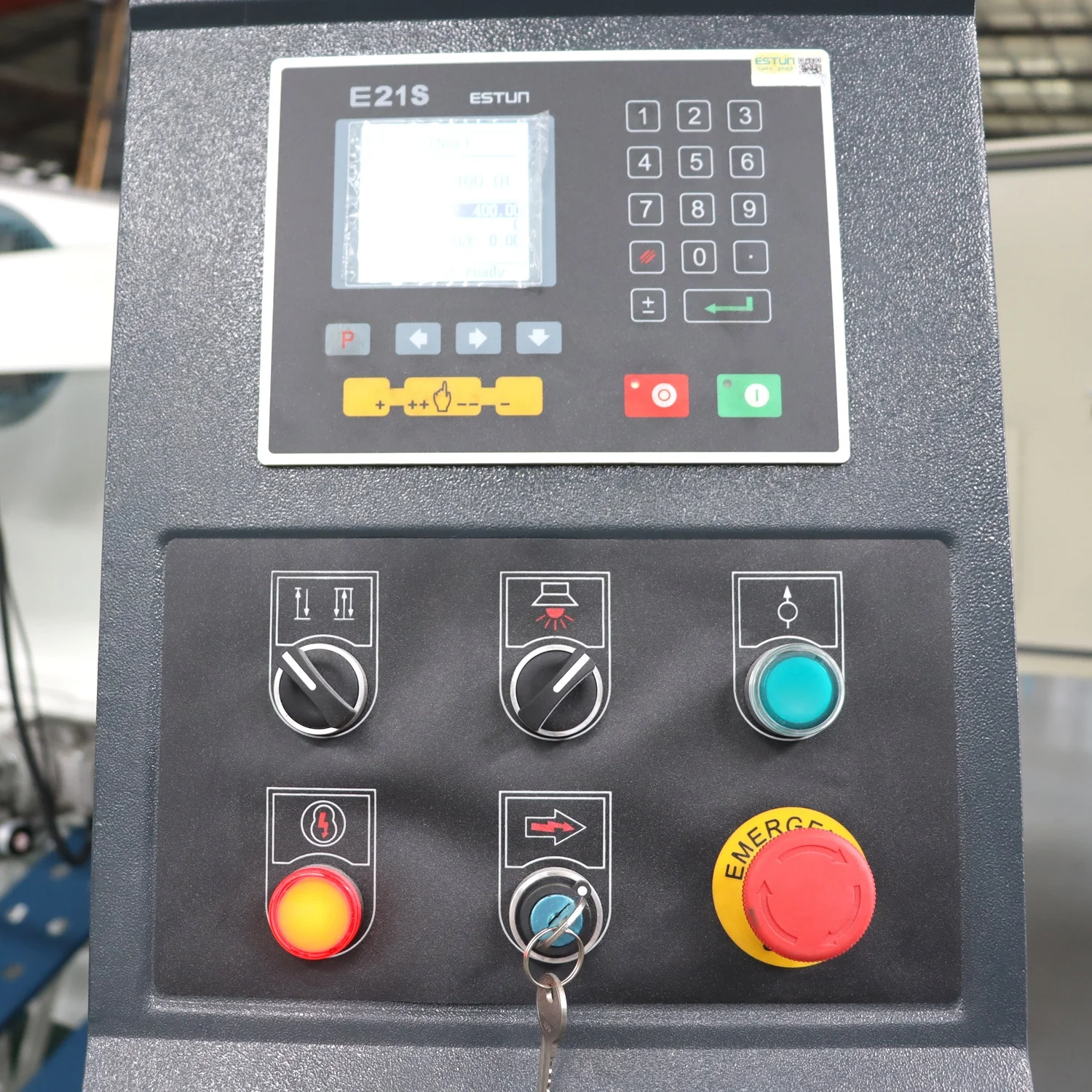

      √ E21S controller.

      √ 250mm throat depth.

      √ 600mm motorized backgauge system with 0,1 mm accuracy.

      √ 800mm side gauge and front support arms.

      √ Metric and inch rulers.

      √ Front, side and back safety panels which are suitable for CE norms.

      √ Sheet sliding system.

      √ Schneider Electric System.

      √ Rexroth hydraulic system.

      √ Hold down cylinders.

      √ Moveable foot pedal.

      √ Manual  blade gap adjustment.

      √ Emergency stop button.

      √ Collapsible finger protection.



OPTIONAL EQUIPMENTS

   √ Optional throat depth.

   √ Front angle gauge.

   √ Side gauge and front support arms in optional lengths.

   √ Sheet conveyor and stacking system.

   √ Front Gauge X1, X2 axis and backgauge X3, X4 axis.

   √ Optional backgauge stroke.

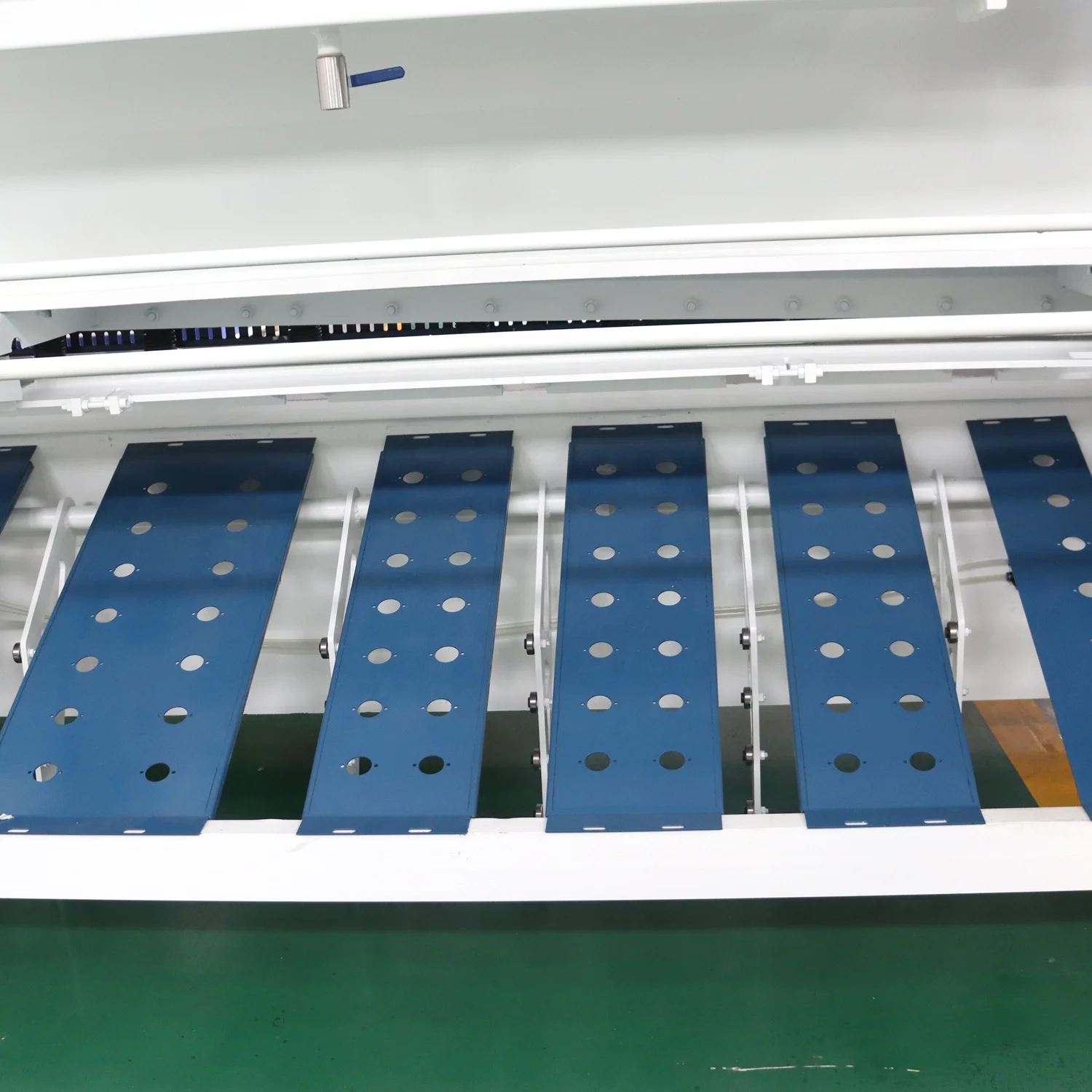

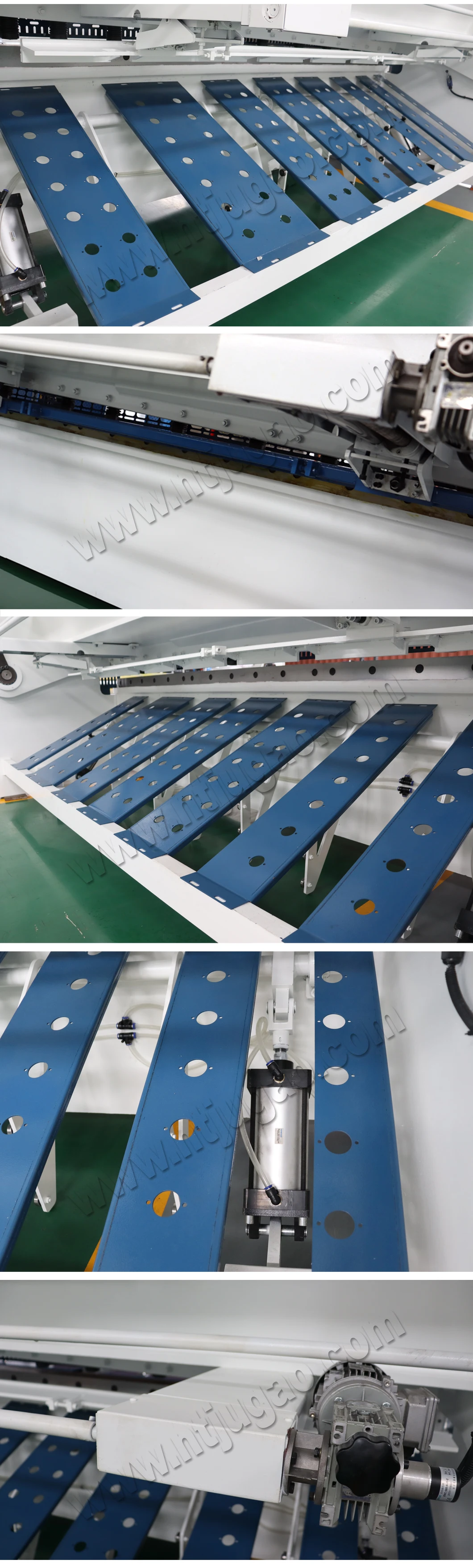

   √ Sheet support system for thin sheets.

        1- Pneumatic support system. (Lever type)

        2- Pneumatic support system. (Monobloc panel type)

   √ Hydraulic oil cooling and heating system.

   √ Optional solid table.

   √ Stainless steel blades.

   √ Ability to increase stroke amount per minute.

   √ Light safety system for finger protection.

   √ Optional alternative colors.

   √ Coolant system or heater can be placed in electric panel during ambient conditions.

   √ Double foot pedal.

   √ Electrical panel or controller can be placed on right side of the machine.

   √ Laser cutting line.

   √ Central lubrication system.

No	Model	Max cut thickness	Max cut length	Ram Stroke	Cutting angle	Motor	Machine Szie
		mm	mm	n/min	°	kw	mm
1	4x2500	4	2500	20-40	0.5-1.5	5.5	3100x1600x1700
2	4x3200	4	3200	20-40	0.5-1.5	7.5	3800x1800x1700
3	6x2500	6	2500	16-35	0.5-1.5	7.5	3150x1650x1700
4	6x3200	6	3200	14-35	0.5-1.5	7.5	3860x1810x1750
5	6x4000	6	4000	10-30	0.51.5	7.5	4630x2030x1940
6	6x5000	6	5000	10-30	0.5-1.5	11	5660x2050x1950
7	6x6000	6	6000	8-25	0.5-1.5	11	6680x2200x2500
8	8x2500	8	2500	14-30	0.5-1.5	11	3170x1700x1700
9	8x3200	8	3200	12-30	0.5-1.5	11	3870x1810x1780
10	8x4000	8	4000	10-25	0.5-1.5	11	4680x1900x1860
11	8x5000	8	5000	10-25	0.5-1.5	15	5680x2250x2200
12	8x6000	8	6000	8-20	0.5-1.5	15	6800x2350x2700
13	10x2500	10	2500	10-25	0.5-2.0	15	3270x1730x1800
14	10x3200	10	3200	9-25	0.5-2.0	15	3990x2250x2200
15	10x4000	10	4000	6-20	0.5-2.0	15	4720x2490x2500
