characteristic | 100W |
Working mode | pulsed |
Center wavelength | 1064±3nm |
Output average power@25°C | 100-110W |
Repetition frequency | 20-200kHz |
Light pulse width | 150-190ns |
Beam quality (M2) | 〈1.6 |
Full power frequency | 65kHz |
Maximum pulse energy | 1.6mj |
type of output | QCS |
Spot diameter1/e2 | 4~6mm |
Fiber optic armored cable length | 3m |
fiber source cooling mode | Air cooling |
Working environment temperature | 10~40°C |
Working environment humidity | 10%~95% |
power adjustment | 1-100% |
cleaning working area | 100*100mm |
working voltage | AC220V50HZ/60HZ |
weight | 11KG |

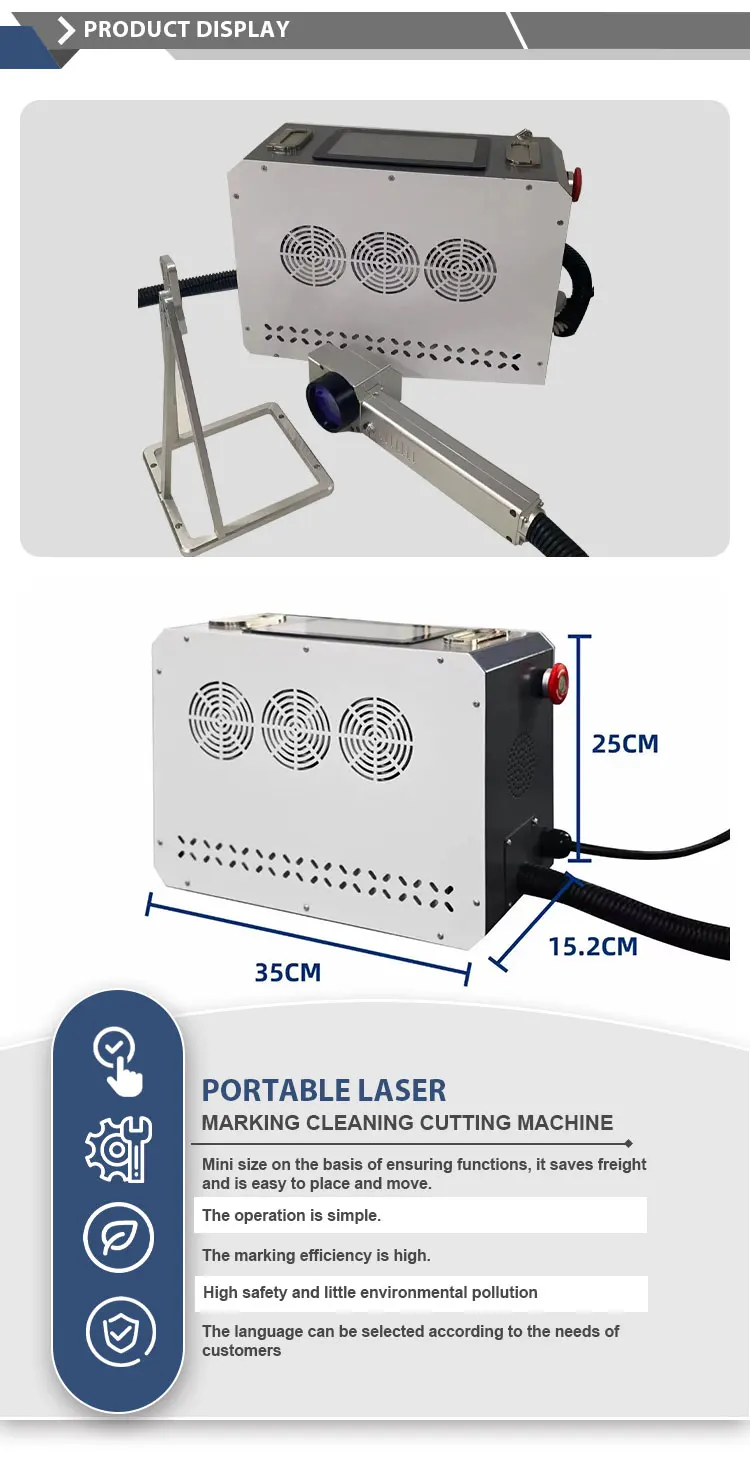

size | 35cmX15cmX25cm |
