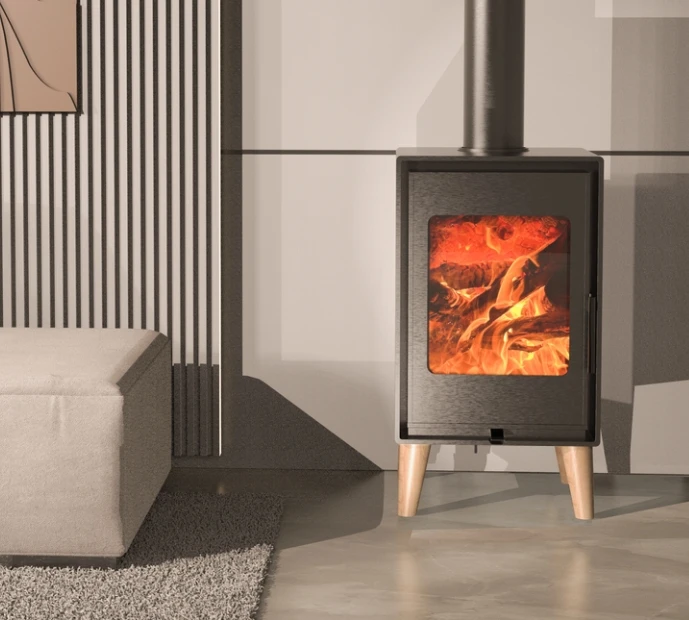

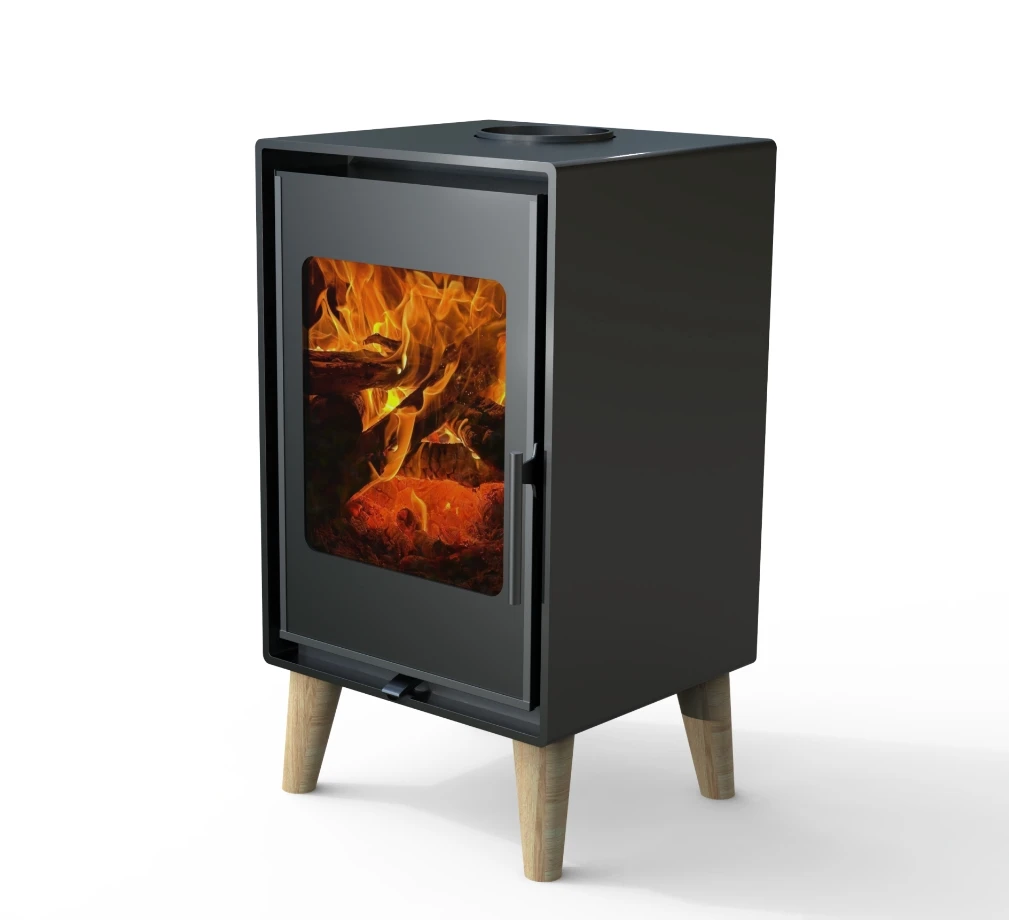

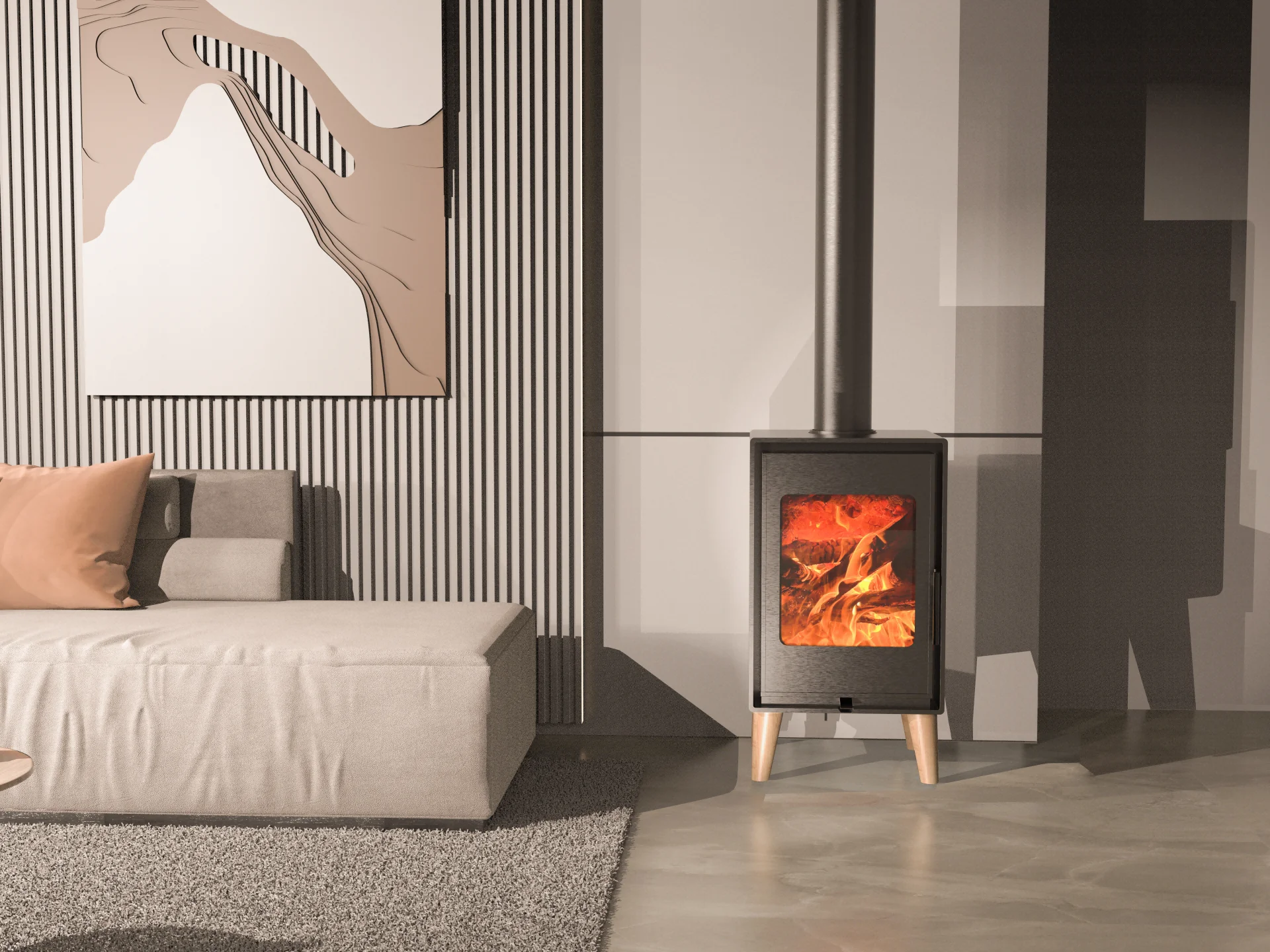

Modern Style Space Saving Home Wood Burning Stove Factory Direct Sales from China for Living Room Fireplaces
- Category: >>>
- Supplier: Shandong Yidingyuan International Trade Co. Ltd.
Share on (1601203586111):
Product Overview
Description
Details Images
Product Paramenters
Brand Name | Pansee | |
Model Number | PF-08 | |

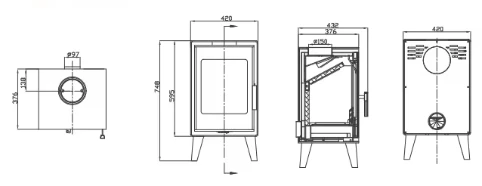

Heigth*Width*Depth | MM | 748*420*432 |
Nominal Heat Output | KW | 5 |
Weigth | KG | 85 |
Thermal Efficiency | % | 77.5 |
Dust Emission | MG/m³ | 26 |
CO emissions@13%O₂ | % | 0.07 |
Room Heating Capacity | ㎡ | 80-100 |
Flue Pipe Outlet | MM | 150 |
Advantage | High-temperature Resistant | |
Material | Carbon Steel |

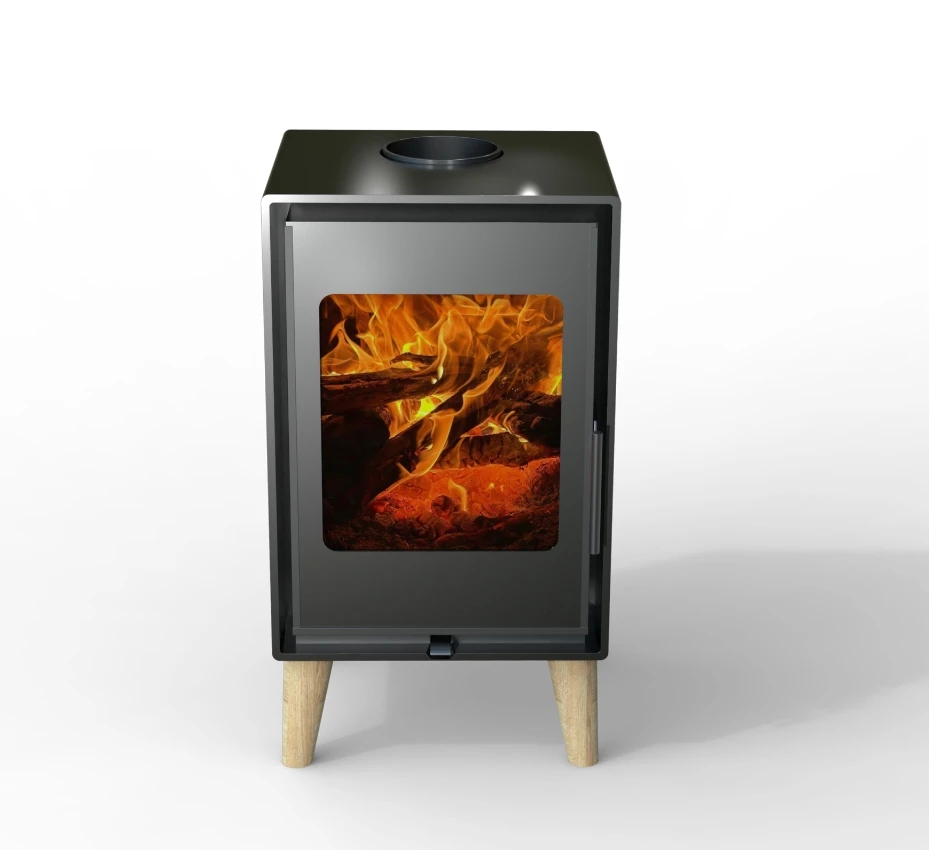

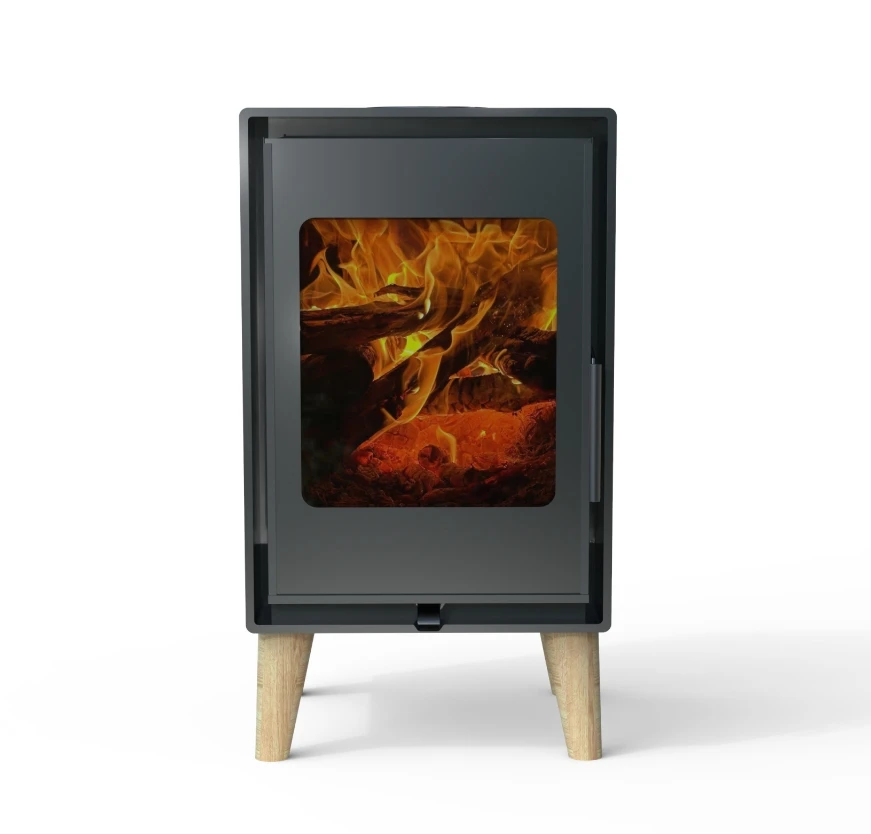

Product Description

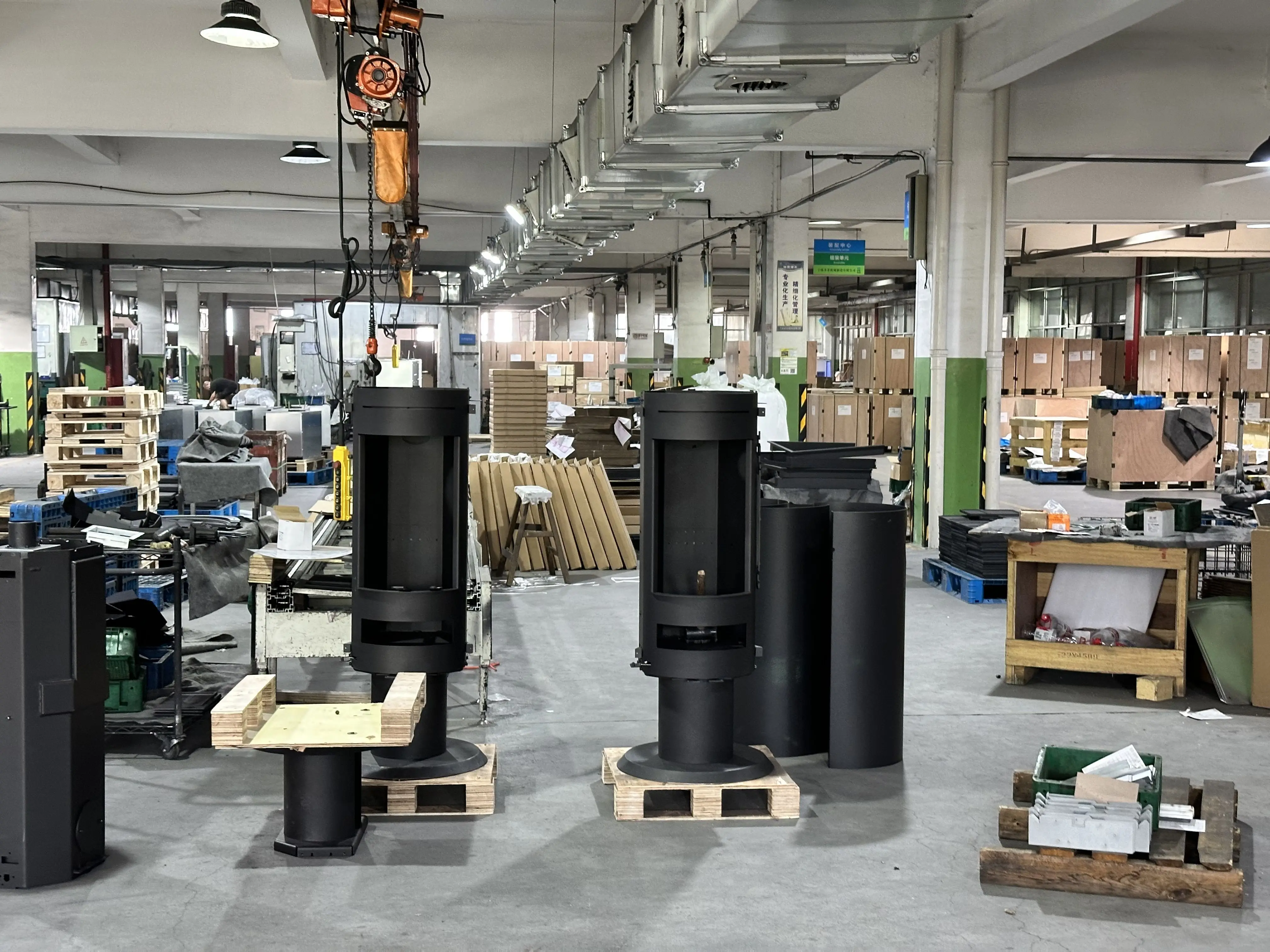

Company Profile
Shandong Yidingyuan International Trade Co., Ltd
We are a leading manufacturer of combustion chamber products in China. We take pride in our exceptional craftsmanship, meticulous attention to detail, and commitment to providing the greatest value to our customers. We have our own product lines and are dedicated to technological innovation and enhancing product quality. All of our products are manufactured strictly in accordance with ISO 9001 standards.
Our products have obtained multiple international certifications, including CQC, CE, AS/NZS, CSA, and EPA. With the philosophy of offering high-quality products, reasonable pricing, and excellent after-sales service, we look forward to establishing cooperative relationships with customers worldwide.
Certifications
Packing & Delivery
After Sales Service
We hereby guarantee that the warranty period for main components of the stove is 24 months in the following cases:
1.The stove was operated a1nd maintained in accordance with the requirements and instructions in the operating manual,
2.The stove is installed and maintained only by a qualified dealer or technical personnel.
2.The stove is installed and maintained only by a qualified dealer or technical personnel.
Within the 24 month warranty, only the following components and parts can be repaired:
• Glass
• Thermocouple
• PC board
• Auger motor
• Exhaust blower
• Convection Blower
• Igniter
• Thermocouple
• PC board
• Auger motor
• Exhaust blower
• Convection Blower
• Igniter
The warranty does not apply to the following cases, but we can charge to repair.
1. Damage arising from owner's improper handling, installation, operation, maintenance or storage,
and unauthorized repairing;
2. Damage arising from non-conforming power voltage;
3. Force majeure;
4. 12 month warranty expires;
5. Any damage and loss arising from uncontrollable factors such as operating environment, voltage, pressure,temperature, and humidity, as well as non-conforming of local environment with the circuit.
and unauthorized repairing;
2. Damage arising from non-conforming power voltage;
3. Force majeure;
4. 12 month warranty expires;
5. Any damage and loss arising from uncontrollable factors such as operating environment, voltage, pressure,temperature, and humidity, as well as non-conforming of local environment with the circuit.
Notice:
Claims can only be filed by proof of purchase. The warranty period starts from the issuing date of receipt. Within warranty
period, components and parts can be replaced and changed, but the cost of labour and freight shall be borne by users.
period, components and parts can be replaced and changed, but the cost of labour and freight shall be borne by users.
FAQ
Do stoves require a chimney?
require a suitable chimney or professionally installed flue system.
Where can I get spare parts?
spare parts and to provide any other information you require.
Can the doors be left open while burning?
For safety and heat efficiency the doors should remain closed.
What warranty do I get?
Our Stoves will replace, free of charge, any working part that fails (under normal operating conditions) within 12 months of
purchase. Consumables such as glass, firebox lining boards or stove rope and adhesives are not guaranteed.
purchase. Consumables such as glass, firebox lining boards or stove rope and adhesives are not guaranteed.
How do I clean the chimney?
You will require a chimney sweep to clean the chimney. It is essential to provide a dedicated chimney cleaning access door when
installing the flue of the stove in some situations. In other situations the chimney can be swept through the firebox.
installing the flue of the stove in some situations. In other situations the chimney can be swept through the firebox.
Who should install my stove?
Our Stoves want you to enjoy the maximum performance from your appliance. To ensure this, it is essential that they are installed
correctly. We strongly recommend that your stove is installed by a suitably qualified installer.
correctly. We strongly recommend that your stove is installed by a suitably qualified installer.
Why is the stove smoking when lit?
A flue with back draught problems is almost certainly the cause of a smoking stove. Also check adequate ventilation is present. A
qualified fitter should complete both a smoke pressure and flow test prior to fitting the stove to ascertain the integrity of the flue.
qualified fitter should complete both a smoke pressure and flow test prior to fitting the stove to ascertain the integrity of the flue.
Why should I "Run in" my stove?
To begin, light a series of small fires over a period of a few days to allow the paint finish to cure. The stove is finished with a highly heat resistant paint. The finish can be renovated with stove paint available from your local stove retailer. If the stove is not "run in" correctly, this may cause the paint to discolour and flake.
What is Over Firing?
Your stove should never be used in a manner to cause over firing. Over firing can be caused by over loading the stove with fuel,
and with primary controls open. If any part of stove glows "red" your stove is over firing and your draught control should be
adjusted to restrict airflow to stove. Over firing can cause permanent damage to the appliance, which is not covered by warranty.
and with primary controls open. If any part of stove glows "red" your stove is over firing and your draught control should be
adjusted to restrict airflow to stove. Over firing can cause permanent damage to the appliance, which is not covered by warranty.
