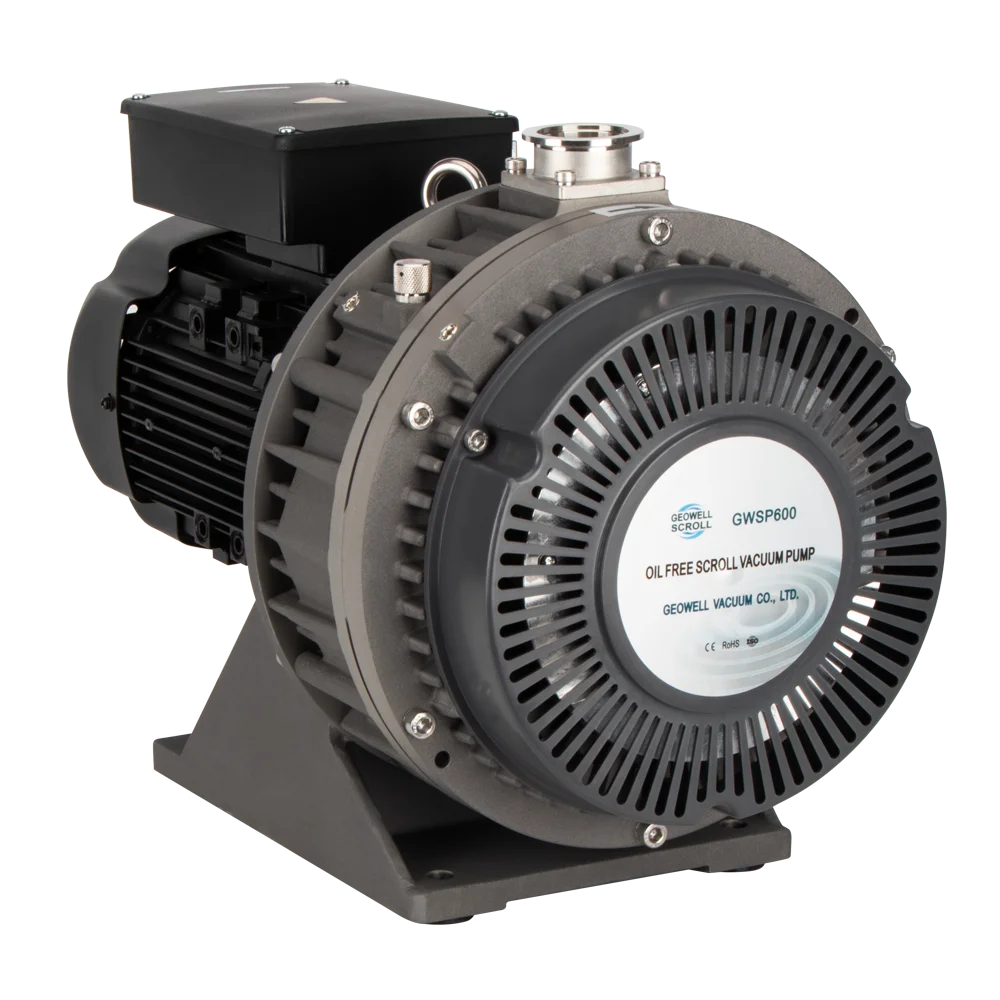

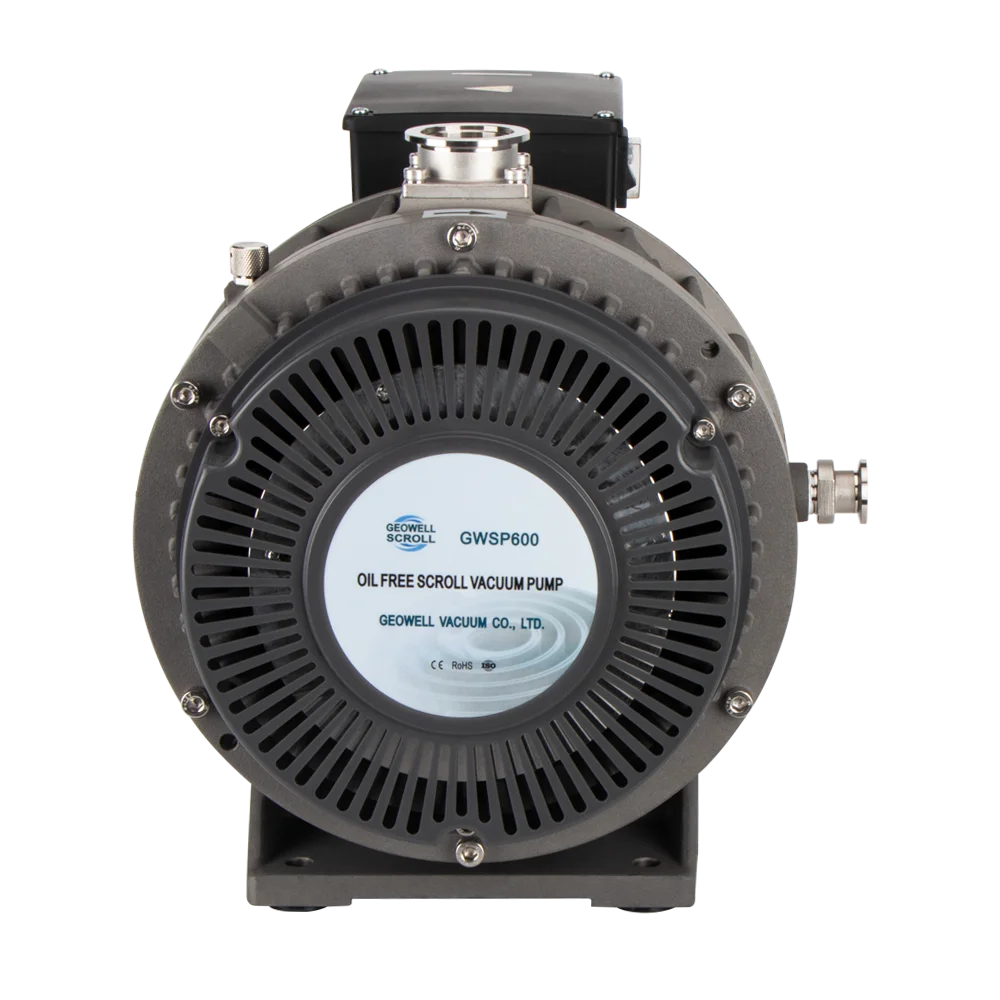

GWSP600 Electric Dry Scroll Pump Factory Price Oil Free for LED Vacuum Annealing Furnace Customizable OEM High Pressure
- Category: >>>
- Supplier: Shenyang Geowell Applied Technology Co. Ltd.
Share on (1601203610068):
Product Overview
Description
Working Principle.
GWSP oil free scroll vacuum pump is constructed with pump head assembly, crank pin assembly, bracket assembly, air flush assembly,and exhaust valve assembly.Two spiral cylinders, one offset and orbiting against the other fixed with an offset of 180° to form several crescent-shaped pockets of different sizes. By means of an eccentric drive, the orbiting scroll is made to orbit about the fixed scroll, reducing the volume of the pockets and compressing gas from outside towards the inside thereby pumping the gas from vacuum chamber.
Features & Benefits

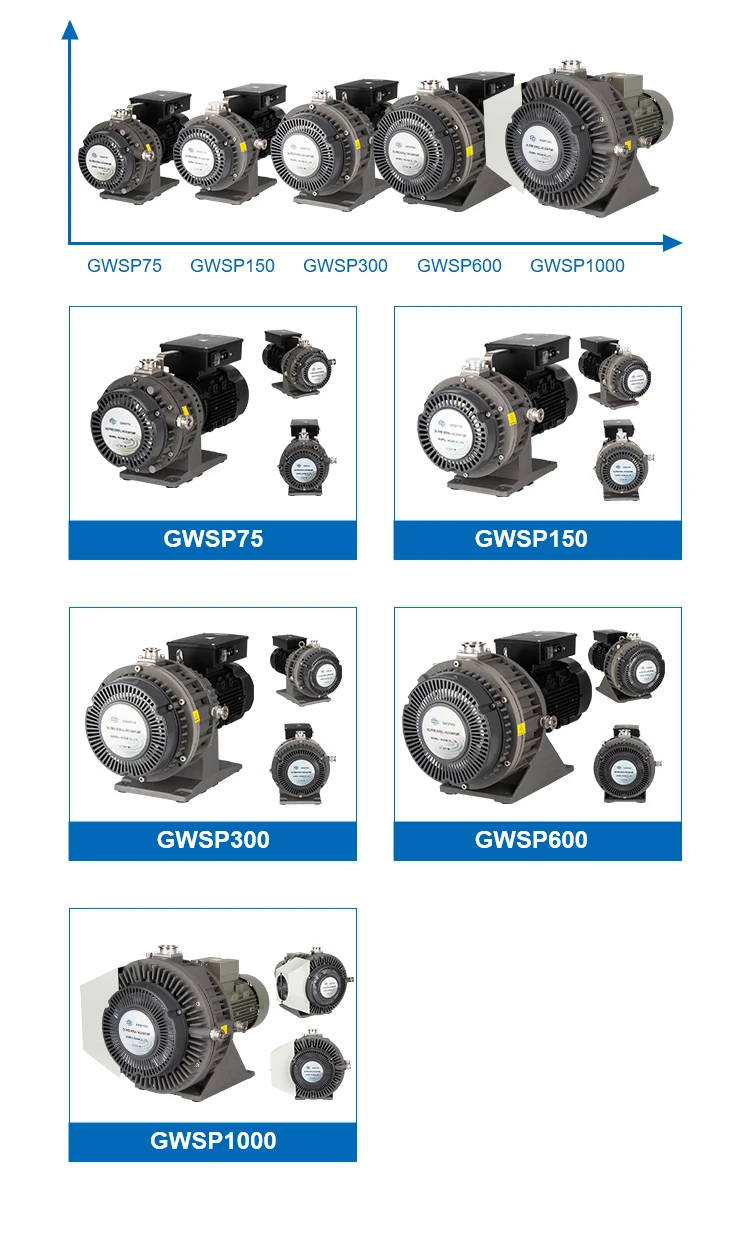

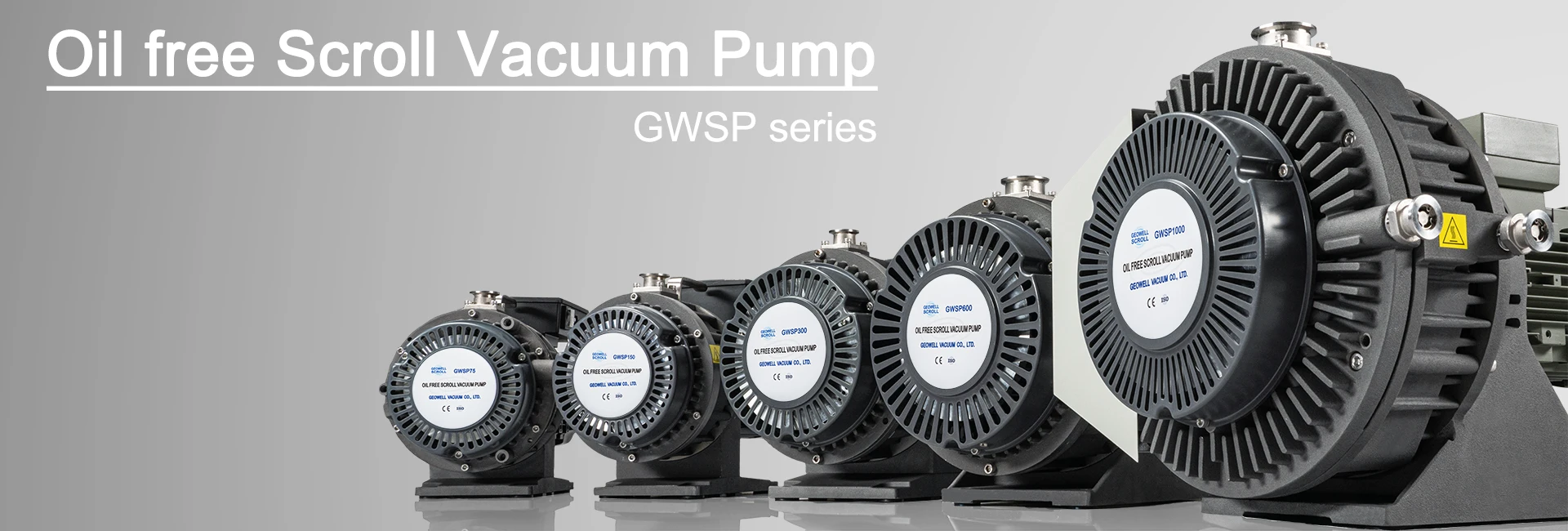

No oil clean vacuum.Wide product lineup.
Suitable for all type of power supply around the world.
Low vibration, low noise.
High efficiency, ease of maintenance.
No water cooled, no oil lubricated, no daily maintenance
Product Description

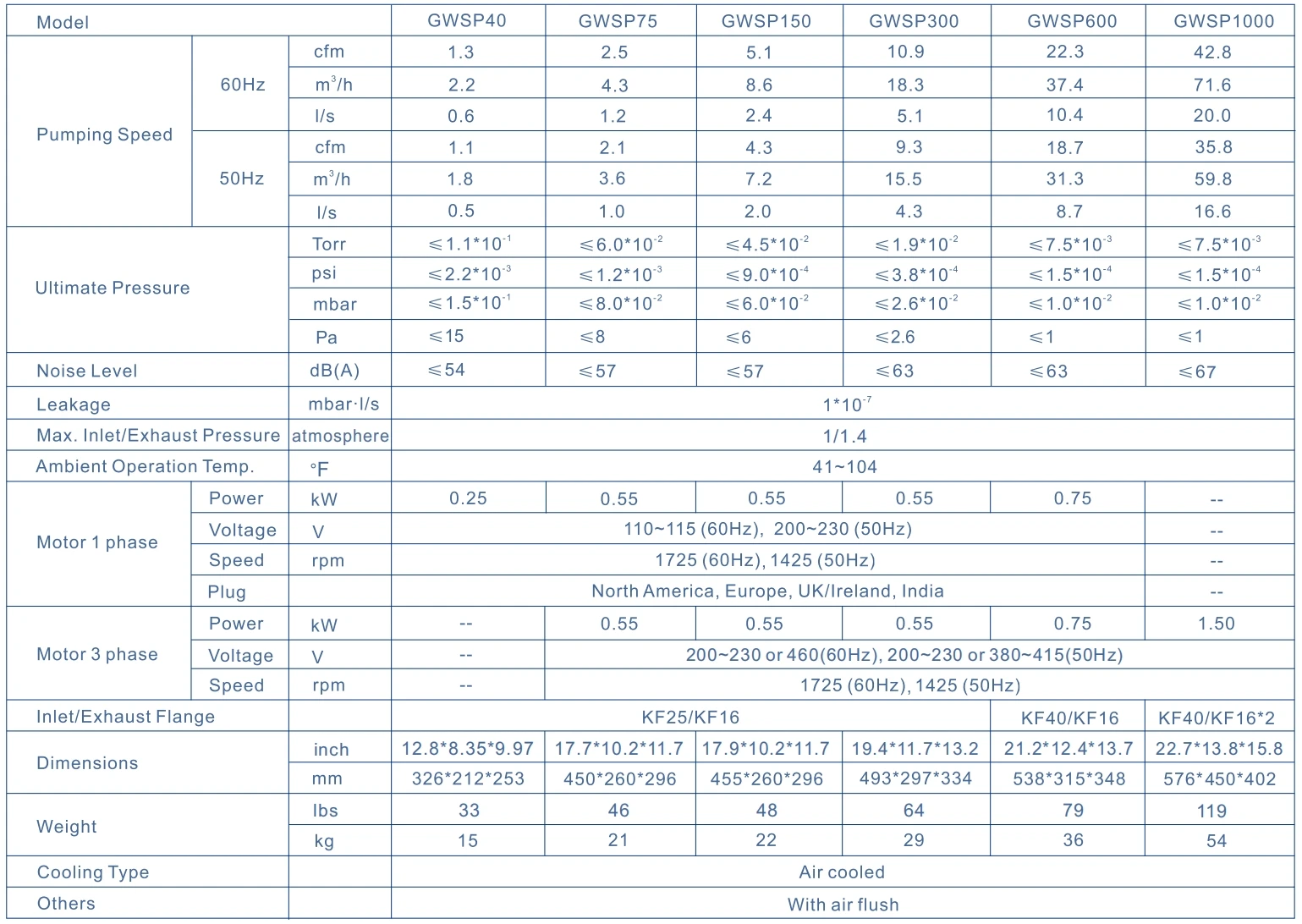

Technical Specifications

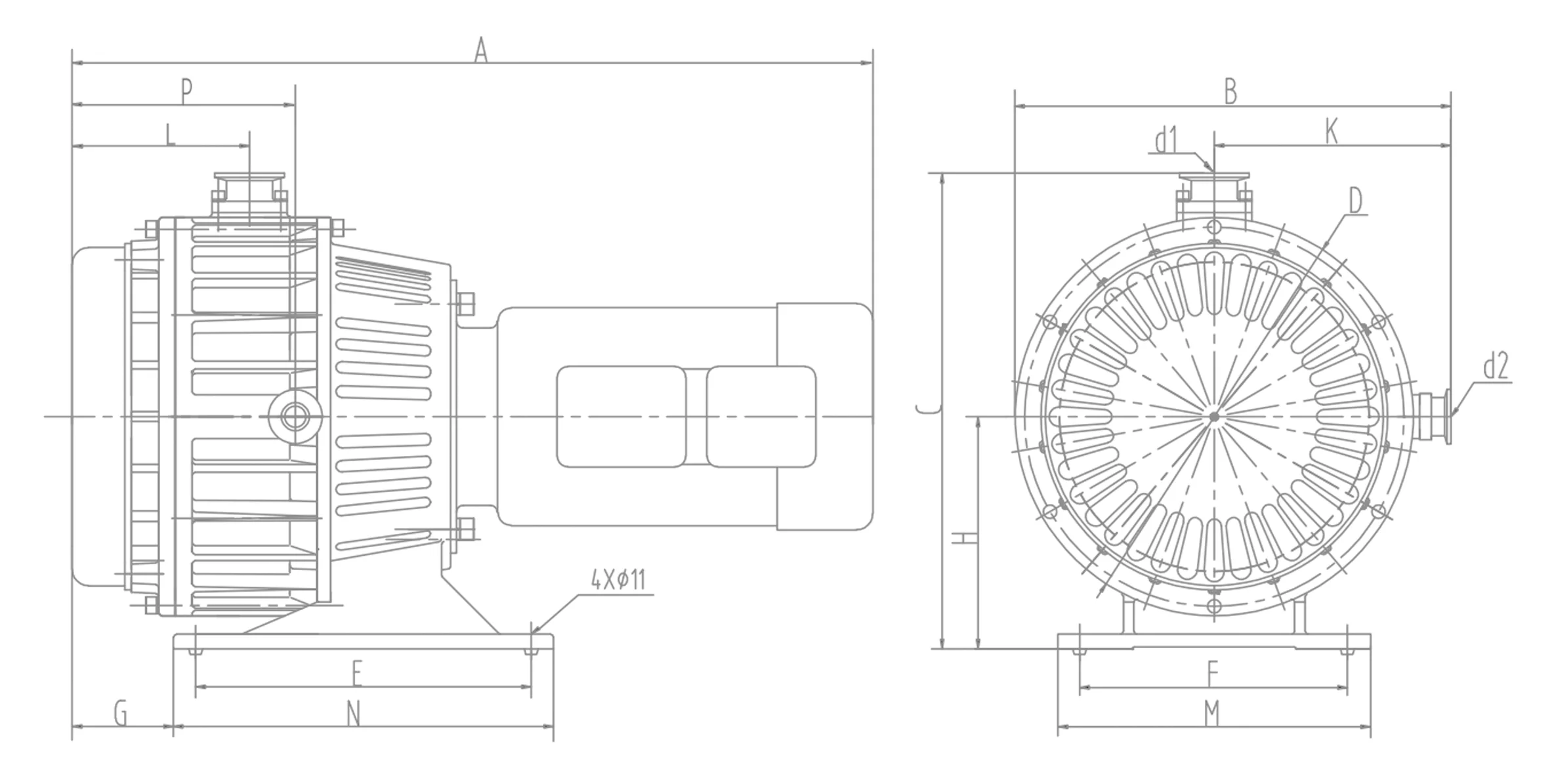

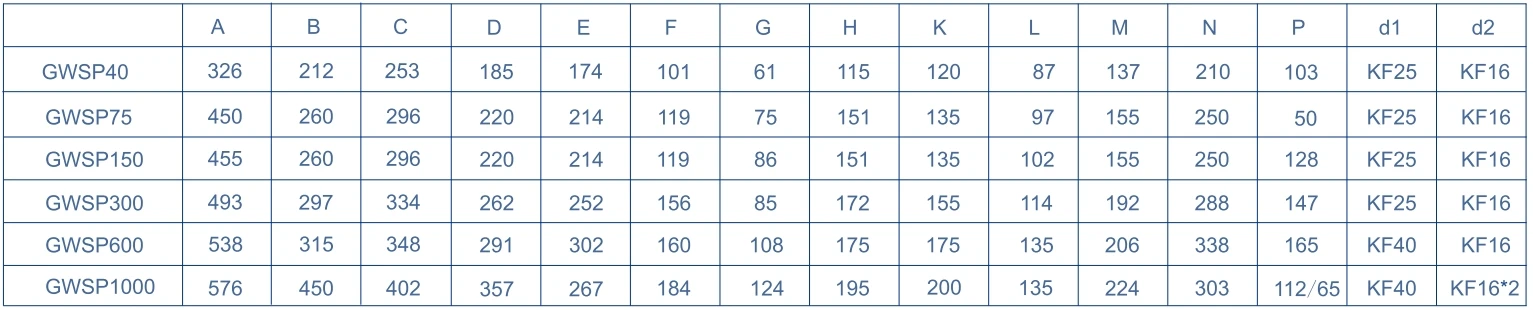

GWSP Structure Size

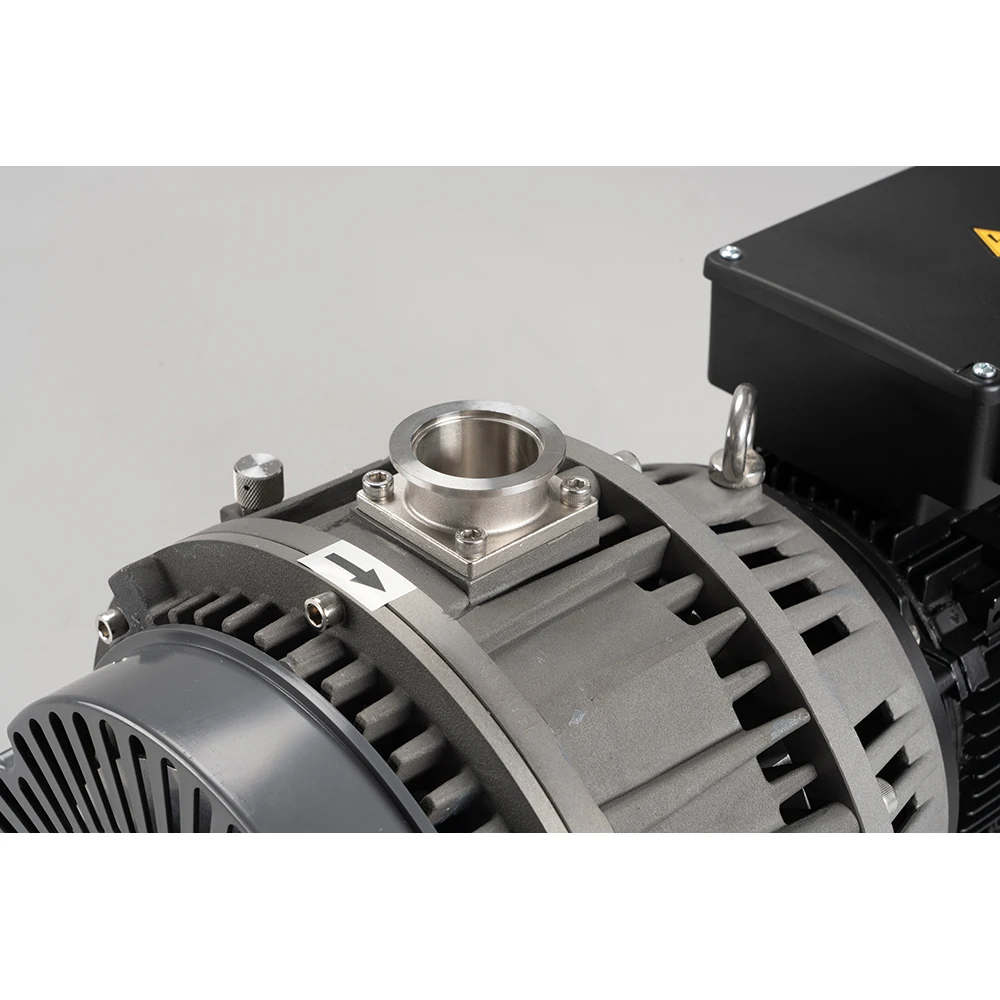

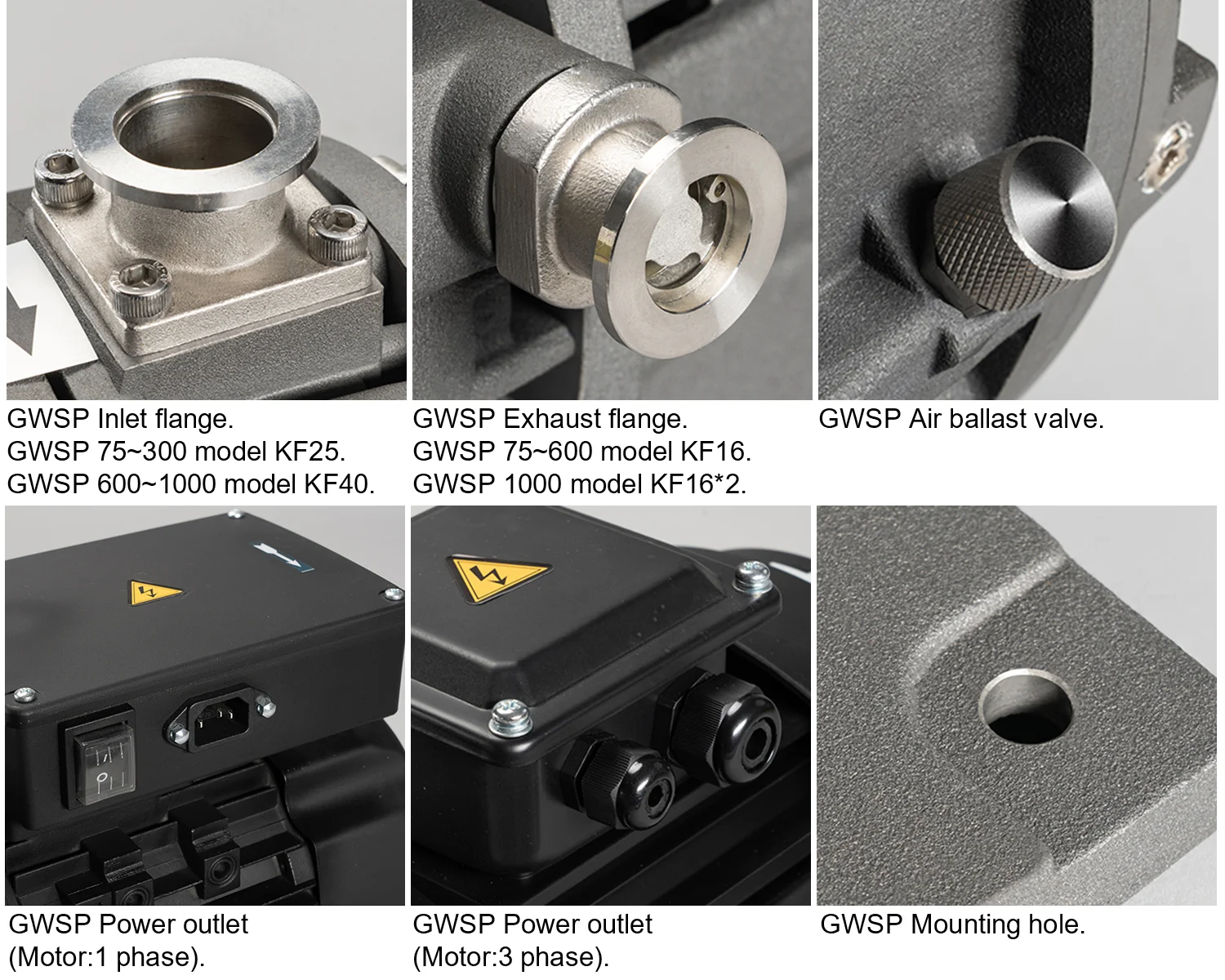

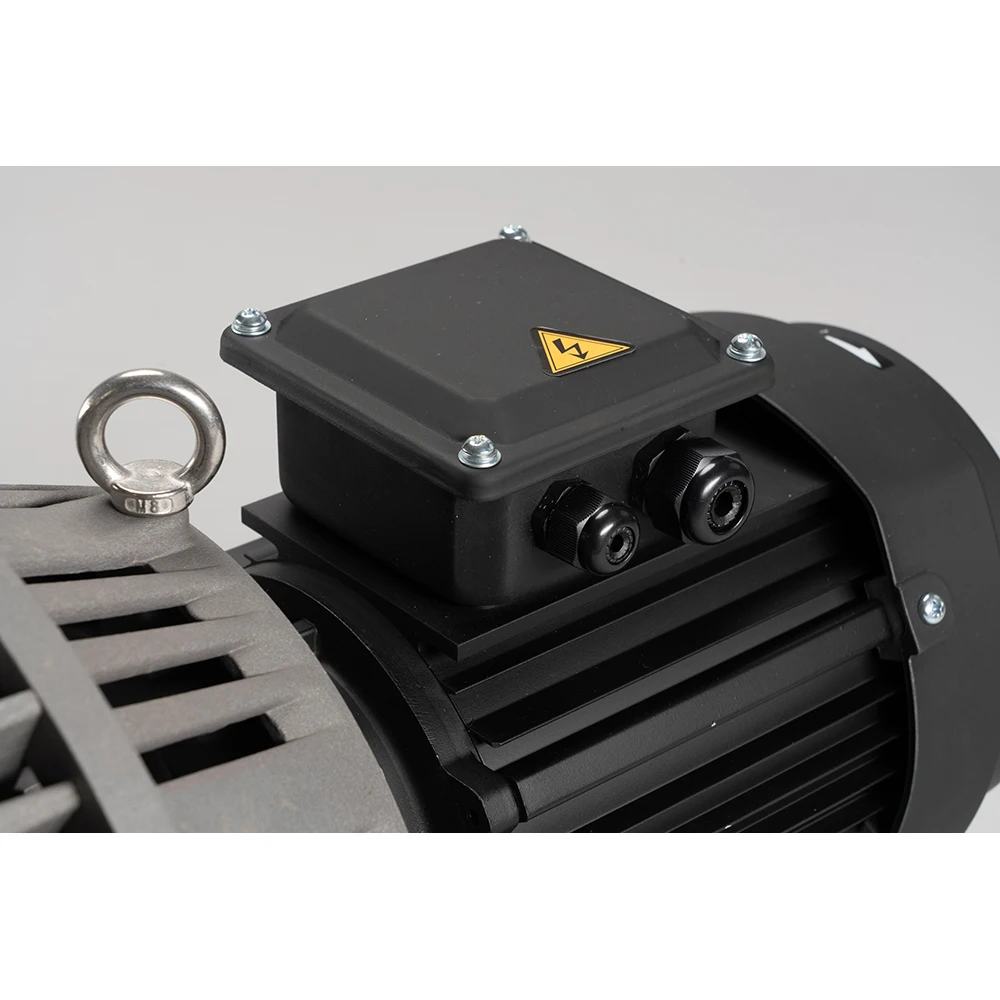

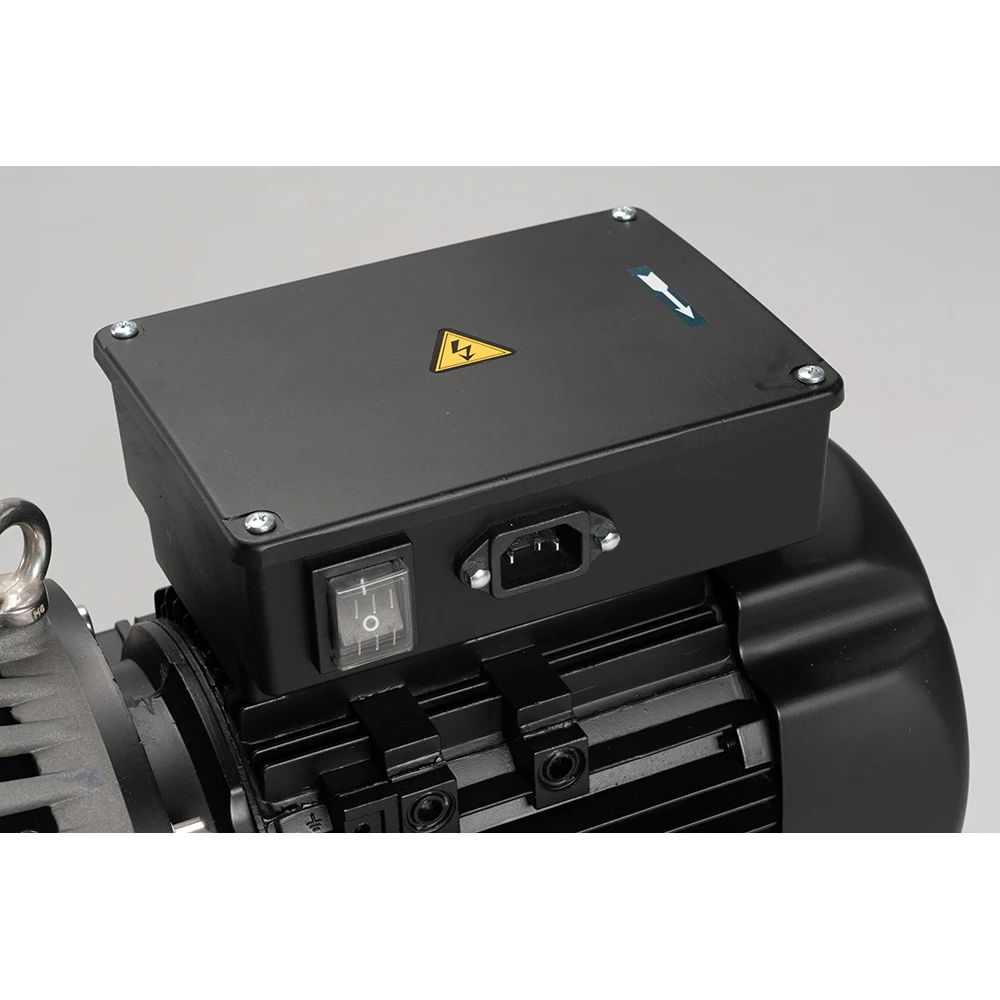

Product details

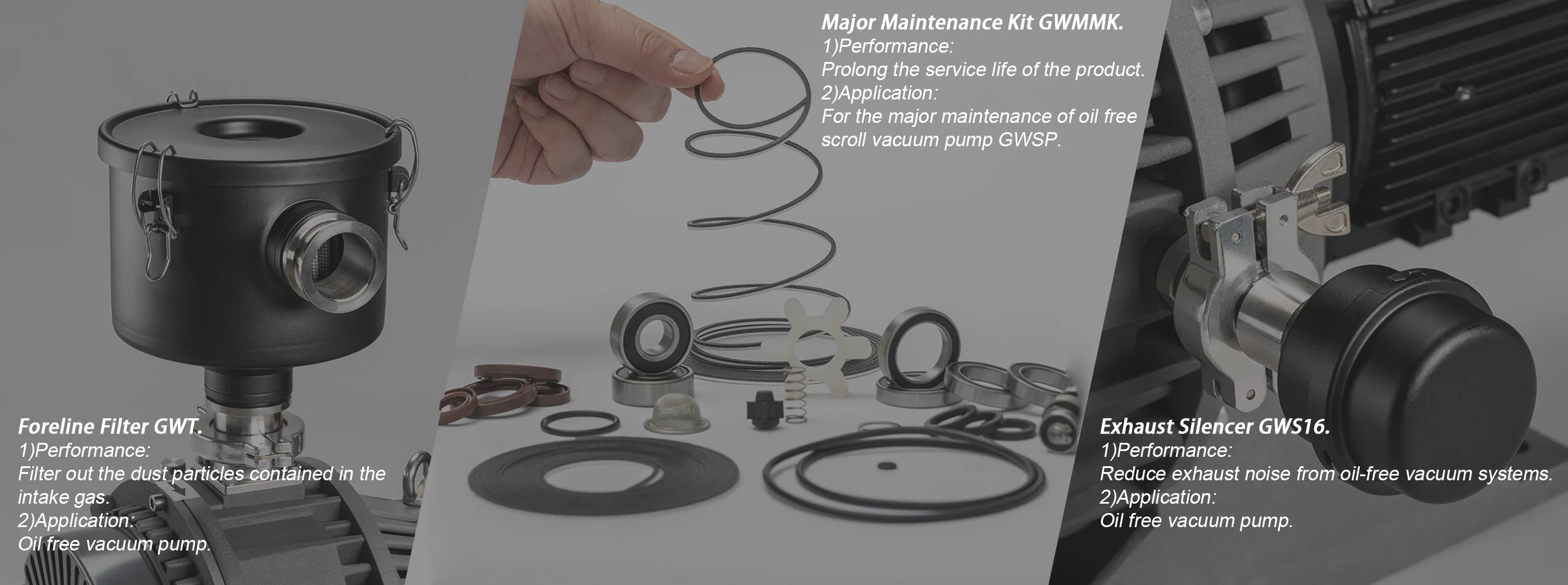

Related Products
Quality Control
Application Field

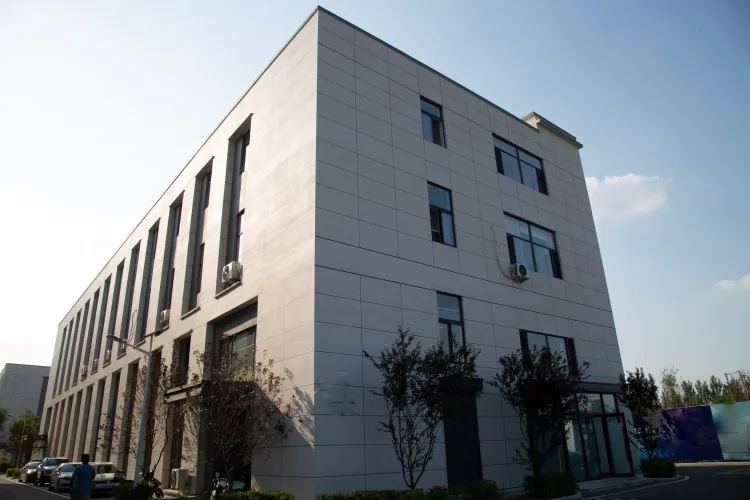

Company Profile
Company Information.
GEOWELL VACUUM CO.,LTD. is a HI-TECH enterprise in China dedicating in manufacturing, research anddevelopment, marketing of oil free scroll vacuum pumps and vacuum compressors since 2002. GEOWELL has been providing users and partners with premium quality products that are efficient and dependable, GEOWELL believe the integration of high performance and high reliability product and service will bring the highest value to both our customers and ourselves.
Certificates.
GEOWELL created a road of independent R&D of oil-free scroll vacuum pump technologies. From basic theoretical research,application development to mass production, GEOWELL accumulated more than 60 technical patents and proprietary technologies, andcertificated with CE of Europe, EAC of RUSSIA and ISO9001.
GEOWELL
GEOWELL participated in overseas market exhibitions and exported its products to overseas markets.
Packaging and shipping

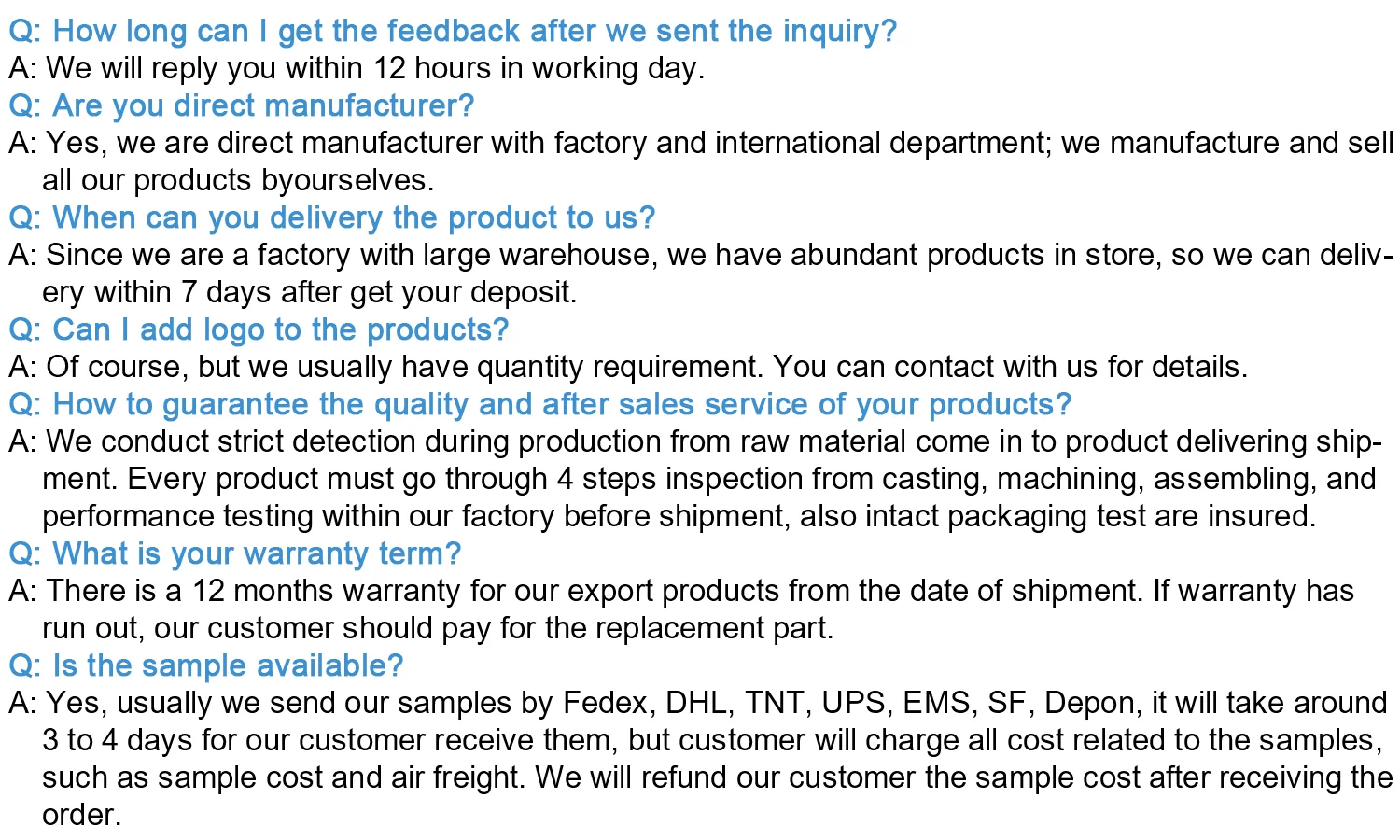

FAQ
