Product Overview
Description
XIDLY -China Wholesale Full Range 6" Dual-cone Dynamic Blue tooth Active Ceiling Speaker
Products Description
The Two Way Voice Wall Mounting Speaker Series offers three sizes of options with rated power 20W,30W,40W separately.These 100 volt distributed speakers use two-way sound system by adopting polypropylene woofer driver and silk dome tweeter.
Built-in step-down transformers to simplify impedance calculations and to minimize power loss over the speaker cables,are most appropriate for high-voltage audio distribution systems.

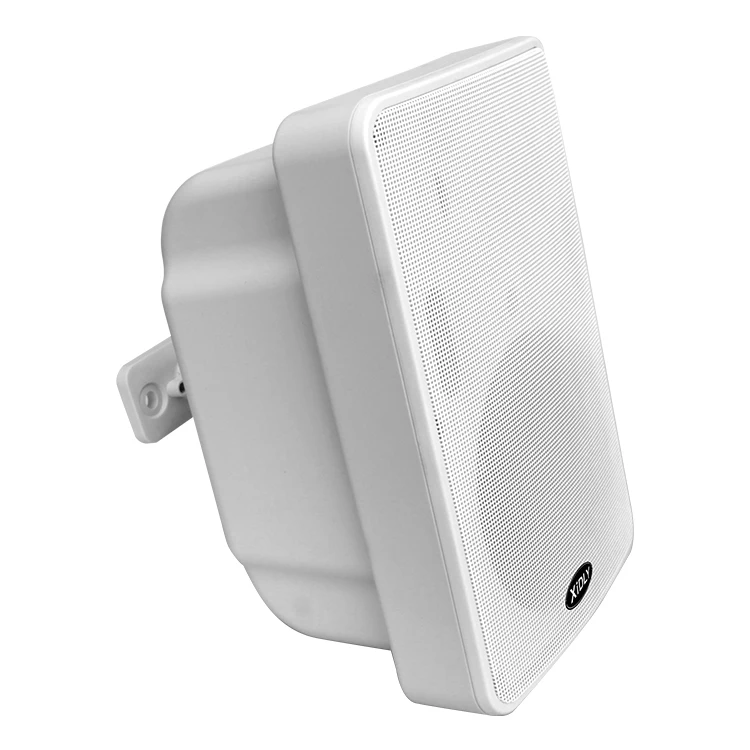

The trapezoidal design allows for the enclosures to be mounted neatly into corners with U shaped stainless and rotatable mounting bracket is supplied.

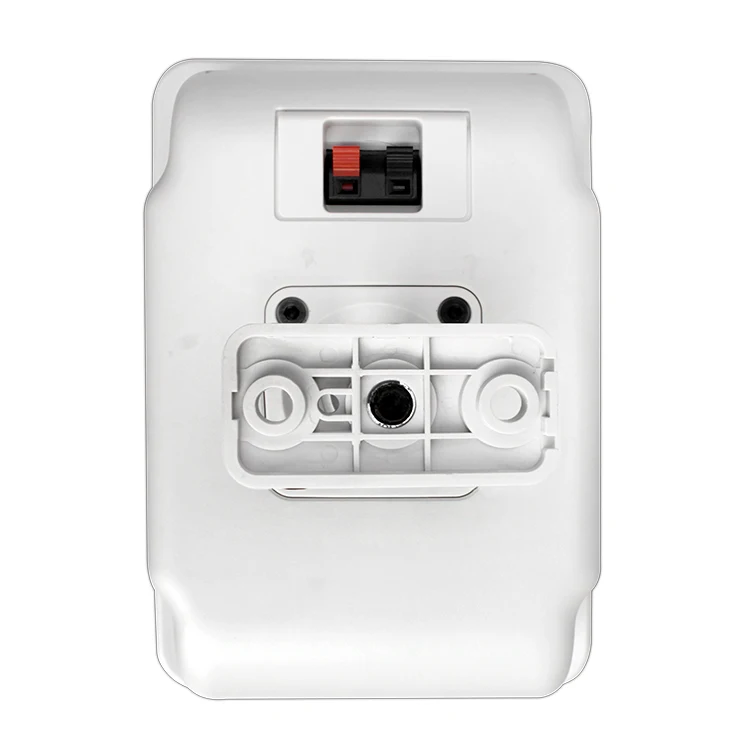

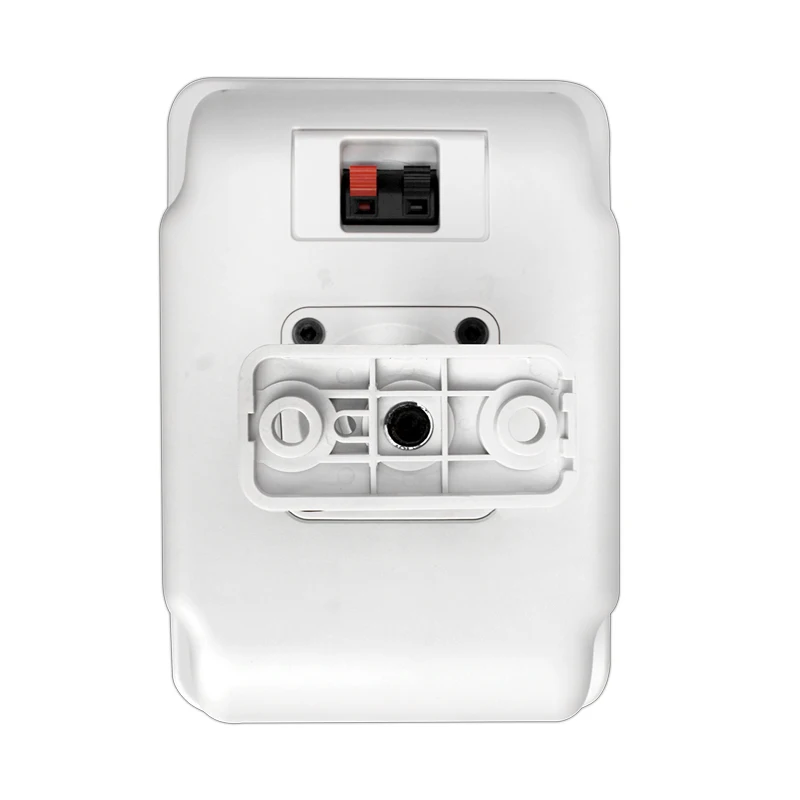

A sophisticated version with wattage tappings selectable by an integral rotary switch on rear for selections of 70 volt,100 volt and 8 Ohm.
Features
* 2-way wall mount speaker.
* Three speaker sizes are available with separate woofer size 4”, 5” and 6”.
* Black and white color are available.
* Built-in 100V transformer (this technique of line input 100V reduces signal losses on a longer distance and allows easy parallel connection of multiple loudspeakers).
* Also 8 Ohm input is available without transformer.
* ABS enclosure, metal grille, metal bracket.
* Fast installation by U shaped stainless and rotatable mounting bracket could be adjusted at request.
* Three speaker sizes are available with separate woofer size 4”, 5” and 6”.
* Black and white color are available.
* Built-in 100V transformer (this technique of line input 100V reduces signal losses on a longer distance and allows easy parallel connection of multiple loudspeakers).
* Also 8 Ohm input is available without transformer.
* ABS enclosure, metal grille, metal bracket.
* Fast installation by U shaped stainless and rotatable mounting bracket could be adjusted at request.
Specification
Model | XY-1134BG | XY-1135BG | XY-1136BG | ||
Rated Power (W) | 20W | 30W | 40W | ||
Line Voltage (V) | 100V | 100V | 100V | ||
Frequency Response | 95-20kHz | 80-20kHz | 65-20kHz | ||
Sensitivity (1w,1n) | 90dB | 90dB | 90dB | ||
Dimensions (mm) | 170*135*255mm | 188*142*280mm | 205*160*310mm | ||
Material | ABS enclosure, metal grille, metal bracket; Black and White available | ||||
Net Weight | 2.50kg | 2.80kg | 3.30kg | ||
Gross Weight | 3.0kg | 3.30kg | 3.70kg | ||
Speaker Driver | 4"*1+1"*1 | 5"*1+1"*1 | 6"*1+1"*1 | ||
