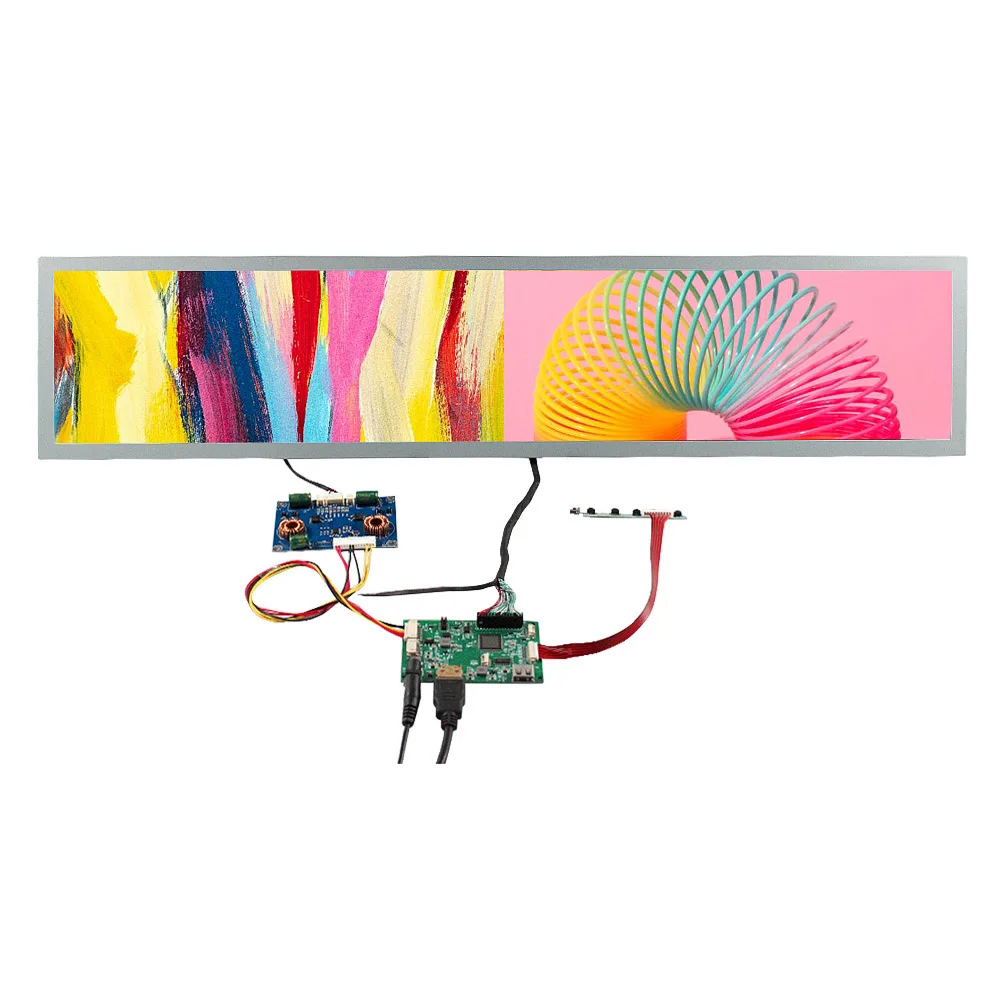

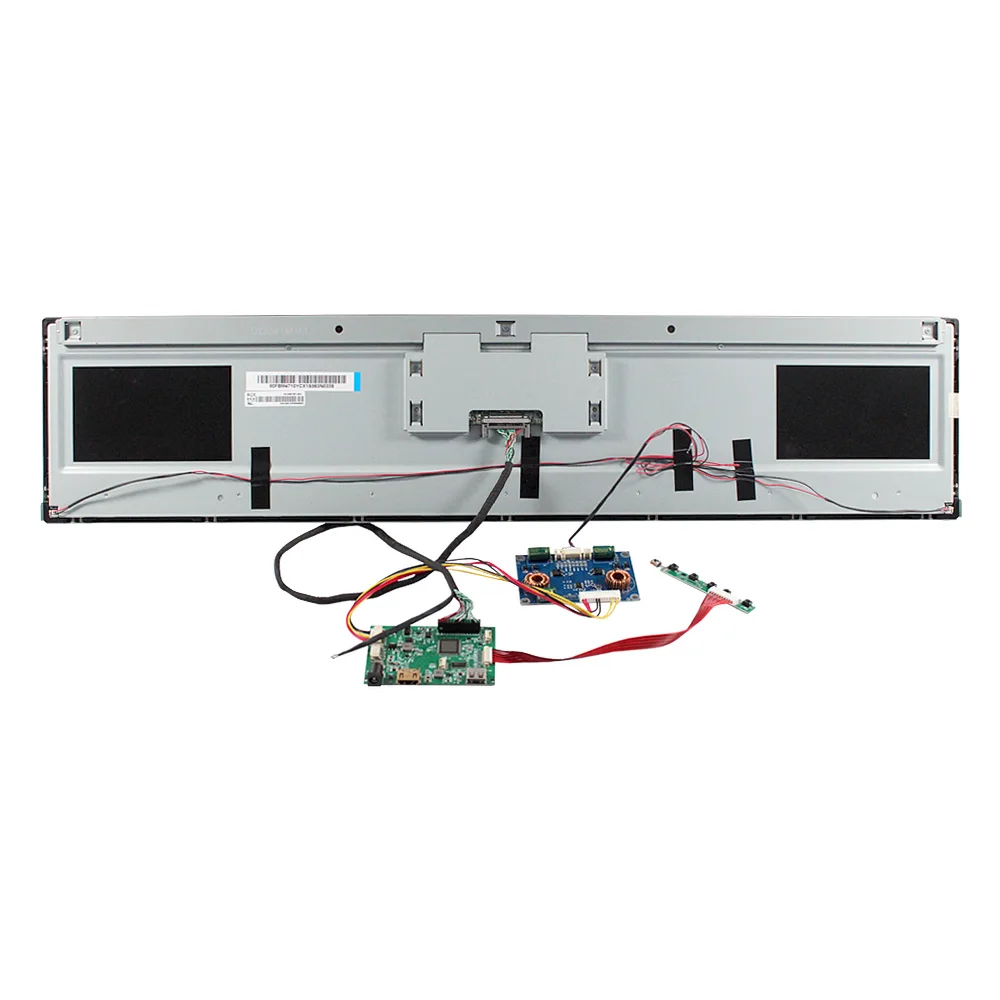

51Pin Lvds Ultrawide Lcd Digital Signage Screen Auto Playback 28Inch 1920X360 Lcd Stretched Bar Display With Hd Mi Usb Lcd Board

Share on (1601203717852):


Price:$386.00 - $430.00

Quantity:


Product Overview

Description





Product Description


Product Name:
51Pin Lvds Ultrawide Lcd Digital Signage Screen Auto Playback 28Inch 1920X360 Lcd Stretched Bar Display With Hd-Mi Usb Lcd Board
Details:
Display Mode IPS, Normally Black, Transmissive
Resolution 1920(RGB)×360
Outline Size 732× 165×20.2 (H×V×D)
Display Area 699.64×121.104 (H×V)
Brightness 700 cd/m² (Typ.)
Contrast Ratio 1200:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS(1ch 8bit) Connector 51Pin
Backlight WLED
Input Voltage 12V (Typ.)


Compatible Work With:

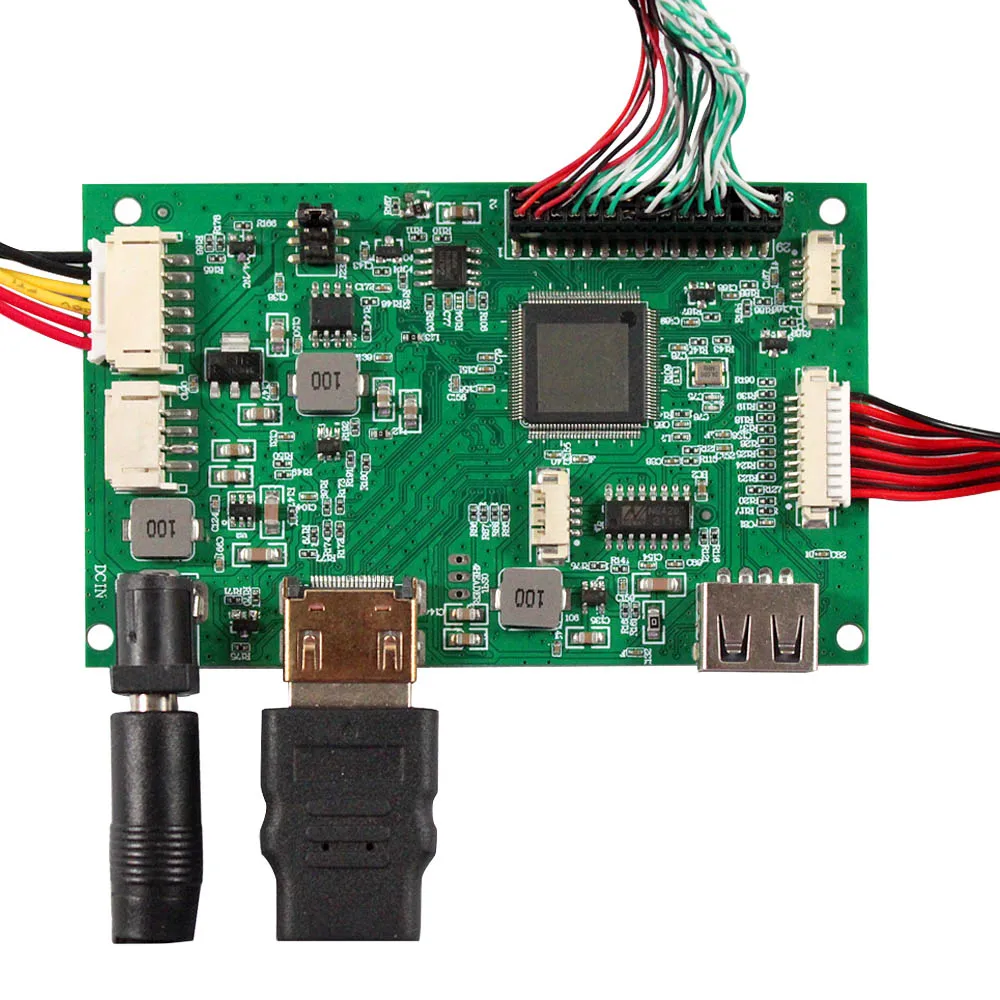

LCD Controller Board
Details:
HD-MI.USB LCD Board Support Rotate Image 180degree for 30Pin LVDS
Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Voltage To LCD Panel: 3.3V 5V 12V (Jumper optional)
Photoresistors Input Support Automatic brightness adjustment
External human body induction signal template, automatic startup and shutdown of human body induction
Video Input: HD-MI USB
HD-MI: Support HD-MI 1.4
USB: Support Video Playback, Picture Playback, Text Playback
Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and plugged into the USB of the driver board, the power can be upgraded, and it will automatically restart after completed)
Audio: Speaker Support 8ohm 2W/ 4ohm 2W
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 90mm x 51mm x 14mm

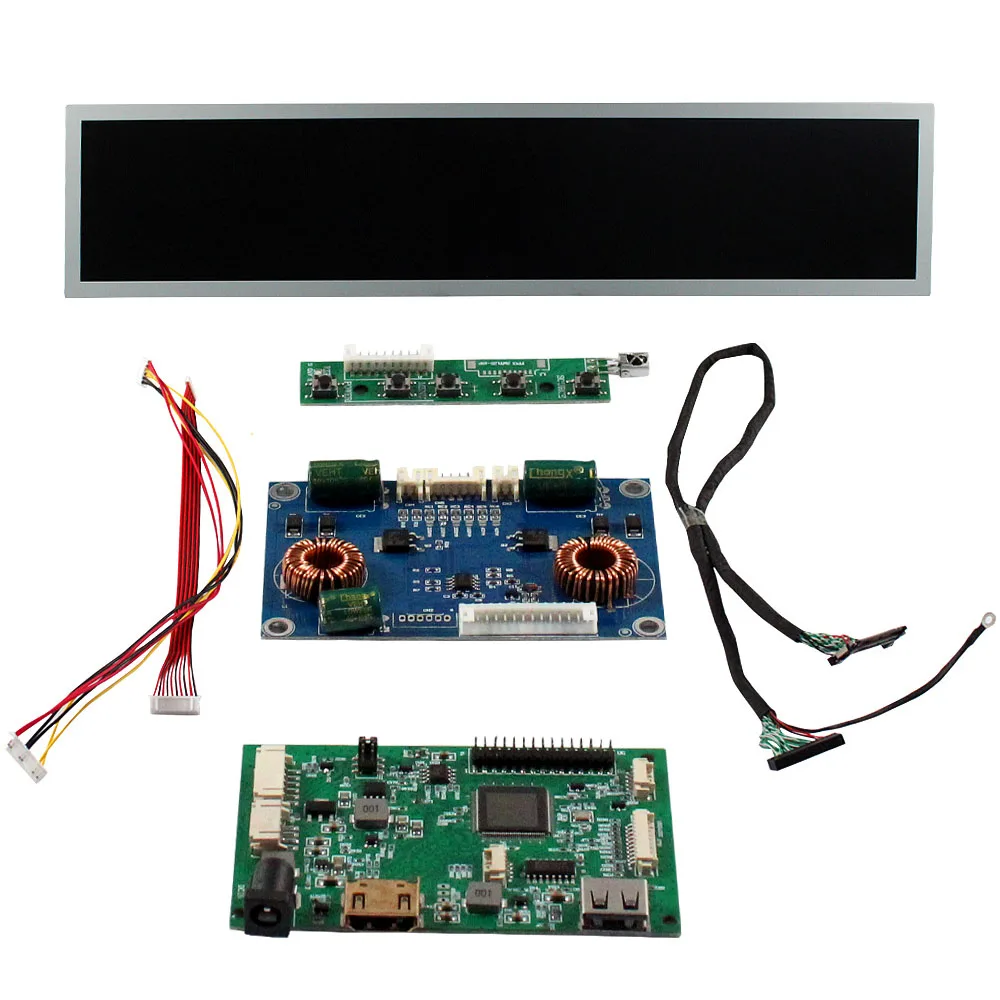

Packing list:
1× HD-MI LCD Board for 30Pin VS-TY2660H-V823
1× 28" DV280FBM-NB2 1920x360 LCD Screen

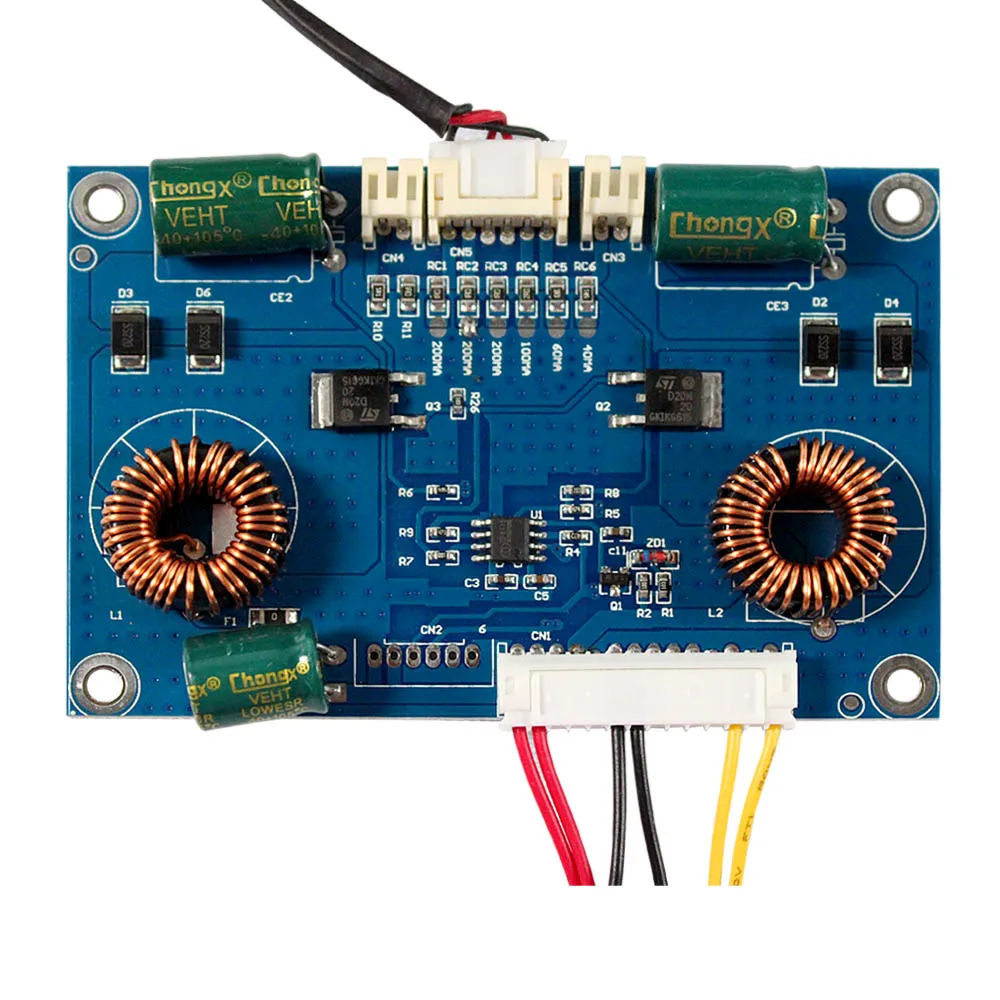

1× Inverter Board
1× LVDS Cable
1× Keyboard With Cable


Details Images
