Precision Meets Performance rotary airlock valve for Accurate and Efficient Material Transfer Solutions

Share on (1601203727036):


Price:$720.00 - $800.00

Quantity:


Product Overview

Description





Products Description

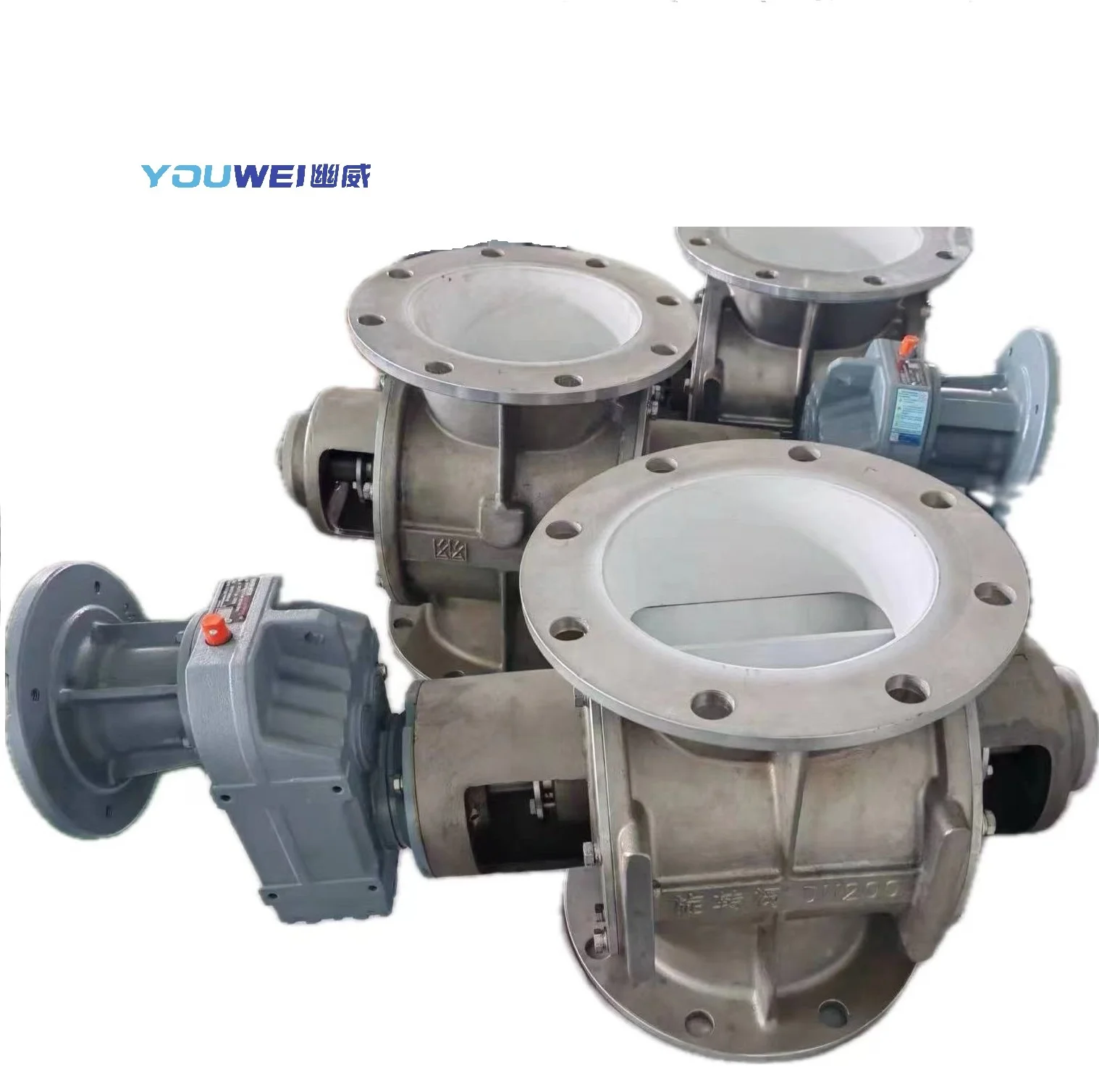

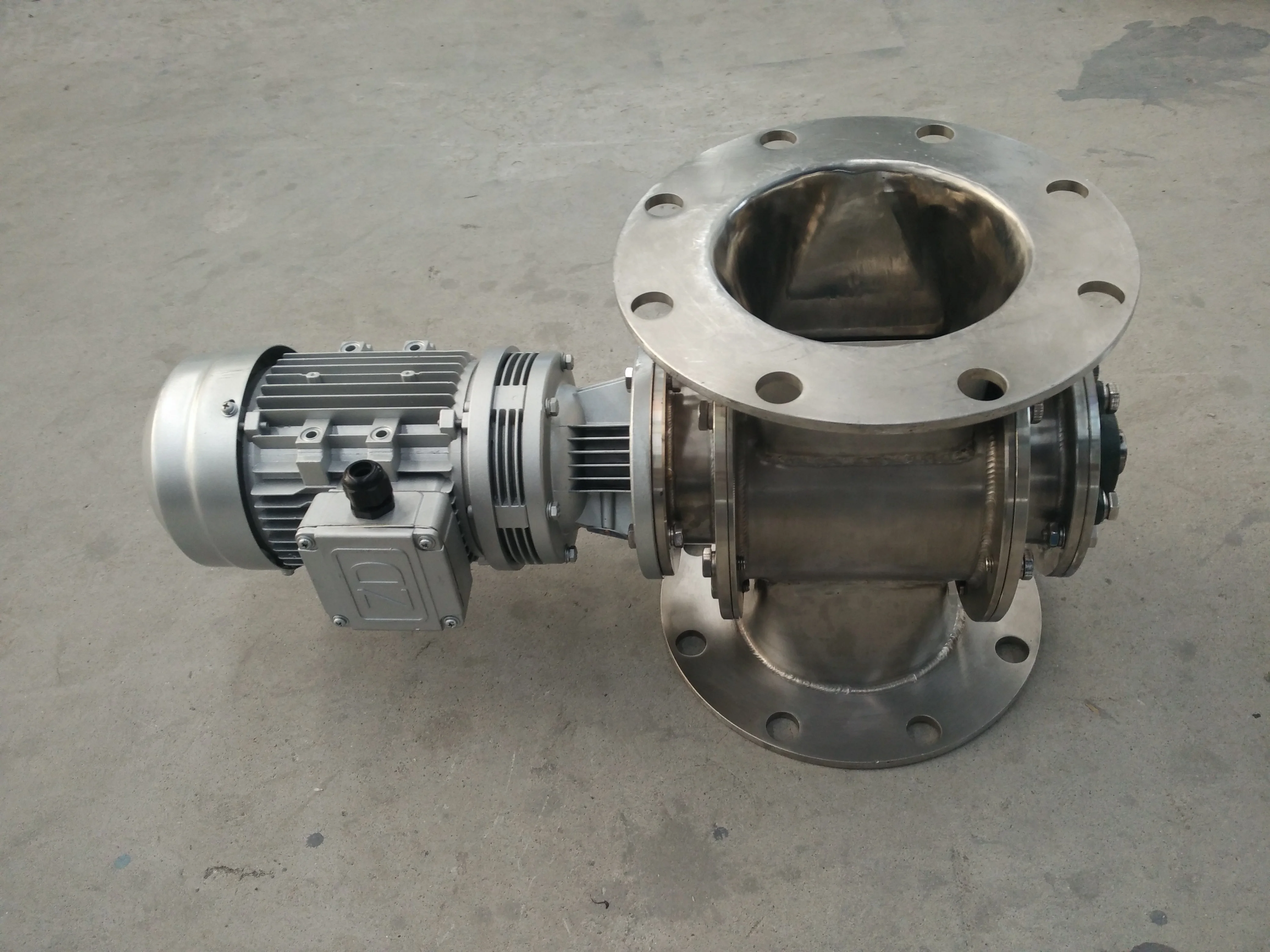

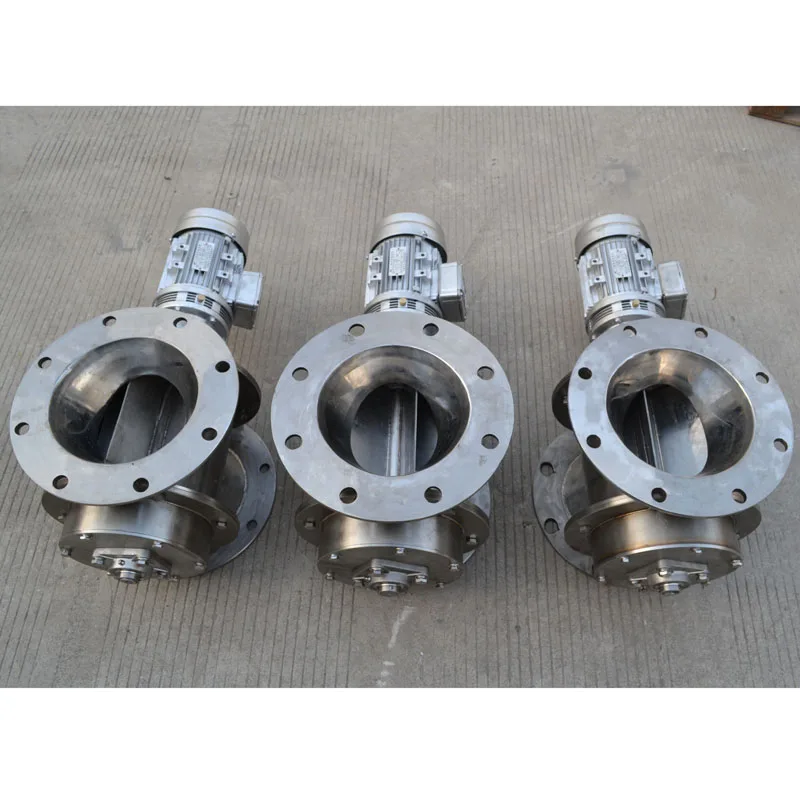

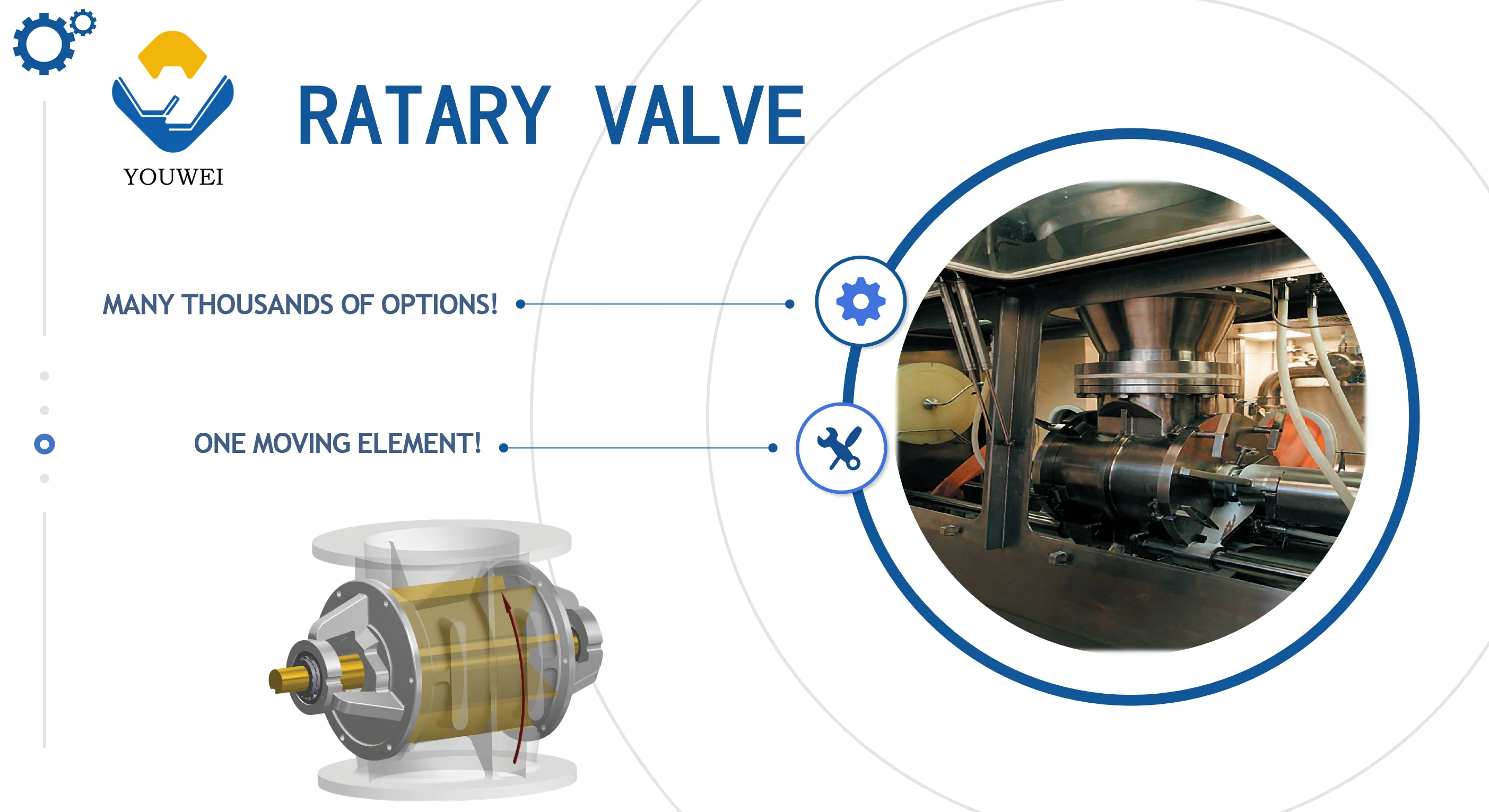

Shanghai YouWei Powder Equipment Co,.Ltd Ratary Valve
Rotary Valves are compact devices widely used in bulk handling systems to control the discharge of powders and granular solids, normally under gravity, between two parts of a system; usually when there is a gas pressure differential between the two parts.

By definition, in their basic construction - ignoring any drive, they are the simplest of machines each incorporating just one moving element; a multi-vane rotor.

Whereas the compact and economic simplicity
of rotary valves provided for continuous development over time to become highly versatile devices, and
are now established as important, reliable, and often vital components when correctly specified for the application.

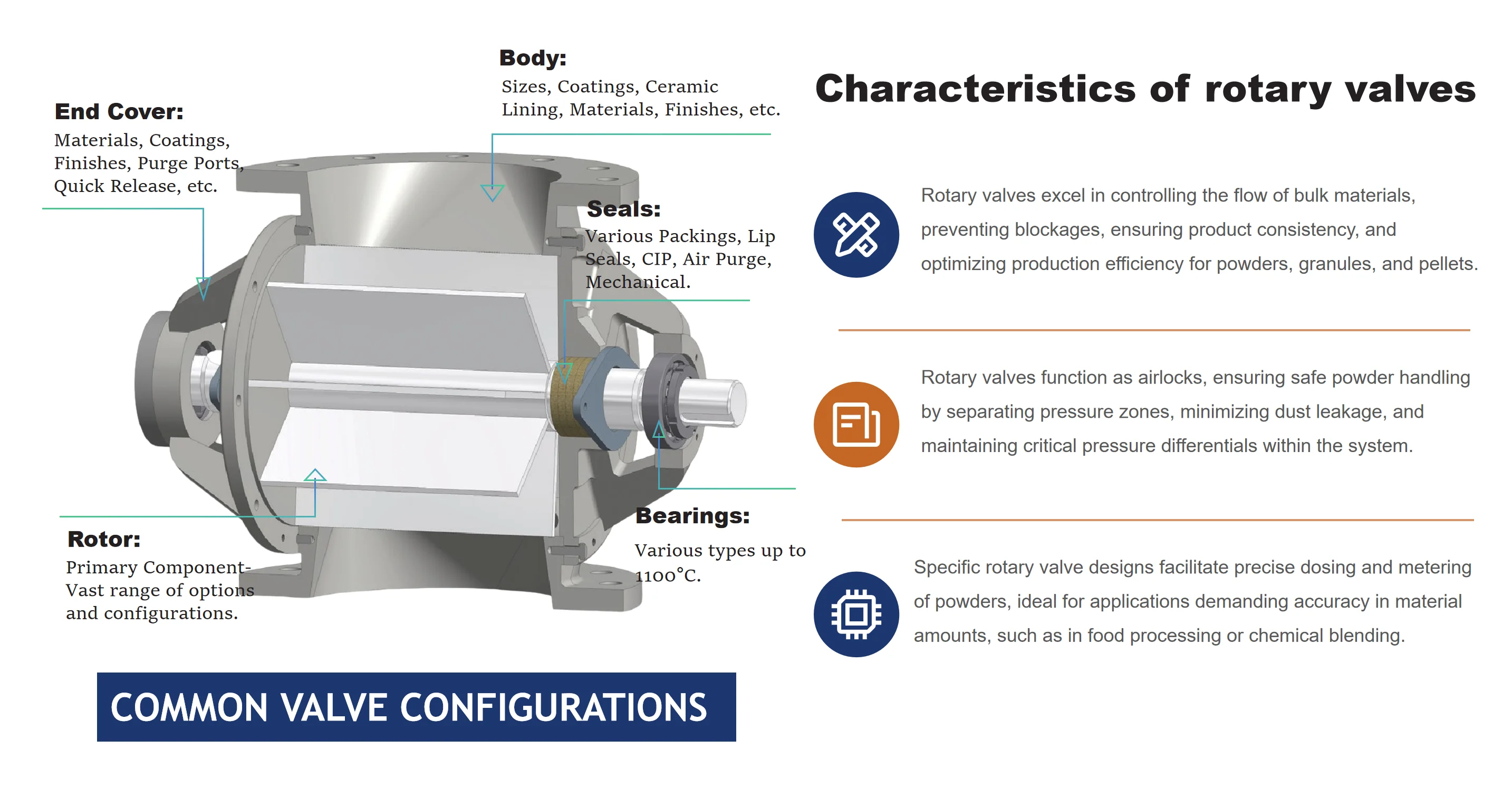

Product Characterustics

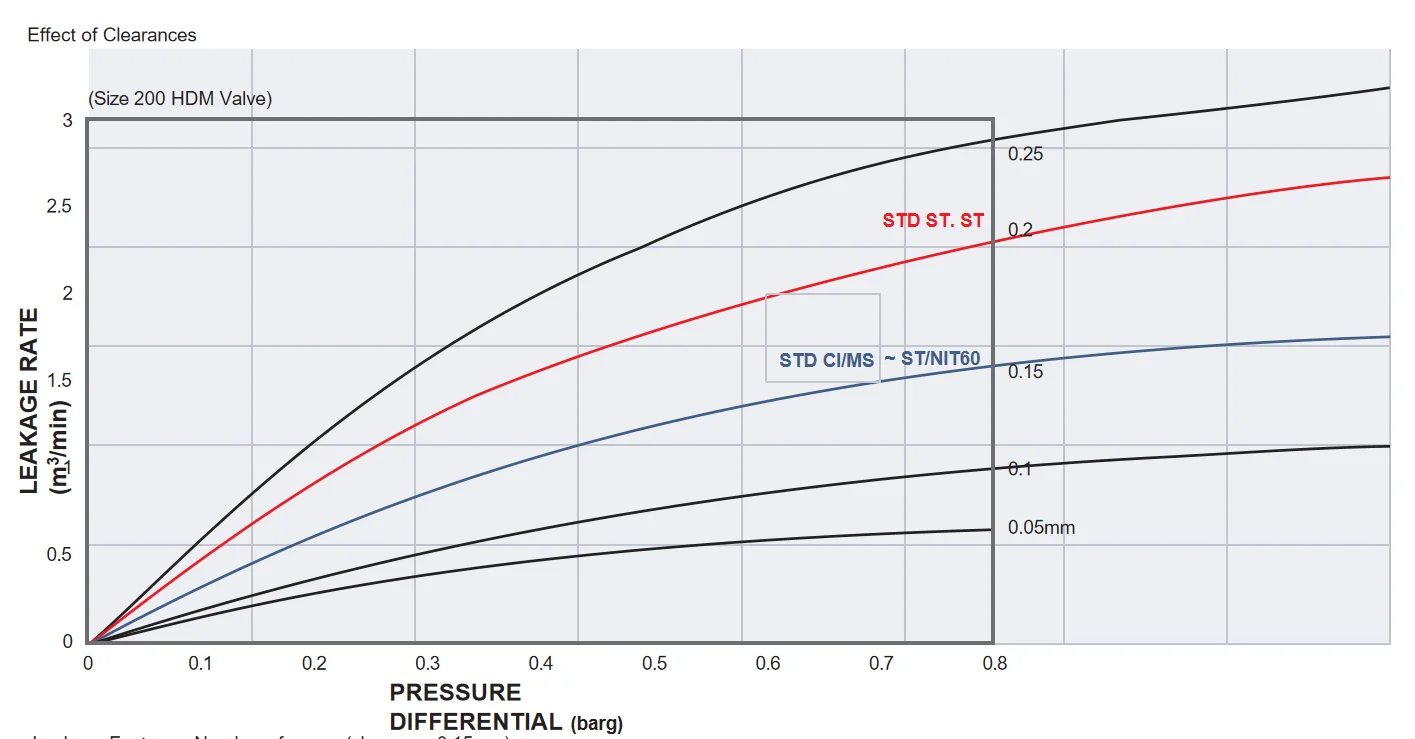

Shows leakage values at different clearances; it should be noted that changes in clearance does not produce a linear change in leakage values; another reason to keep clearances as small possible.
333

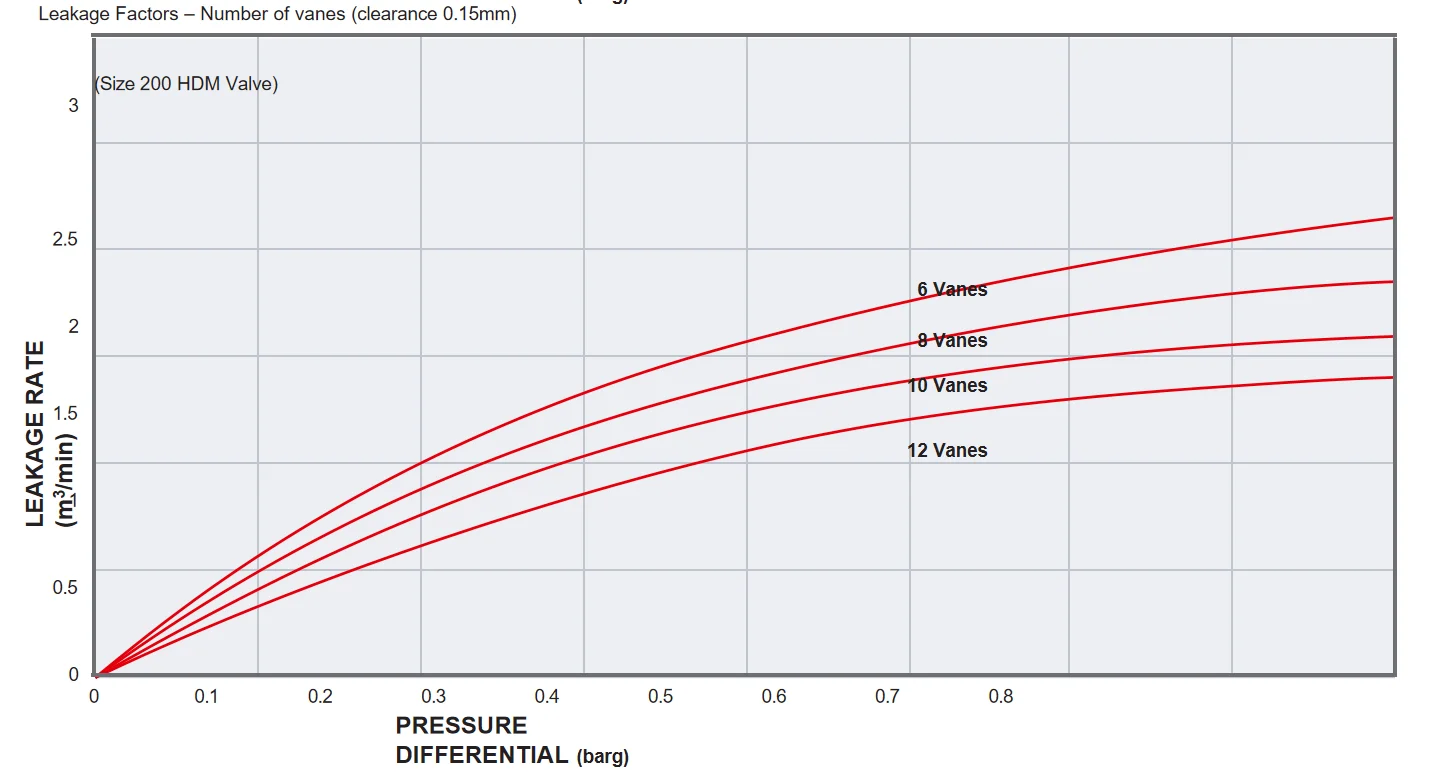

Shows how leakage is reduced by fitting rotors having extra vanes. However extra vanes reduce the filling efficiency so needs to be applied with care.

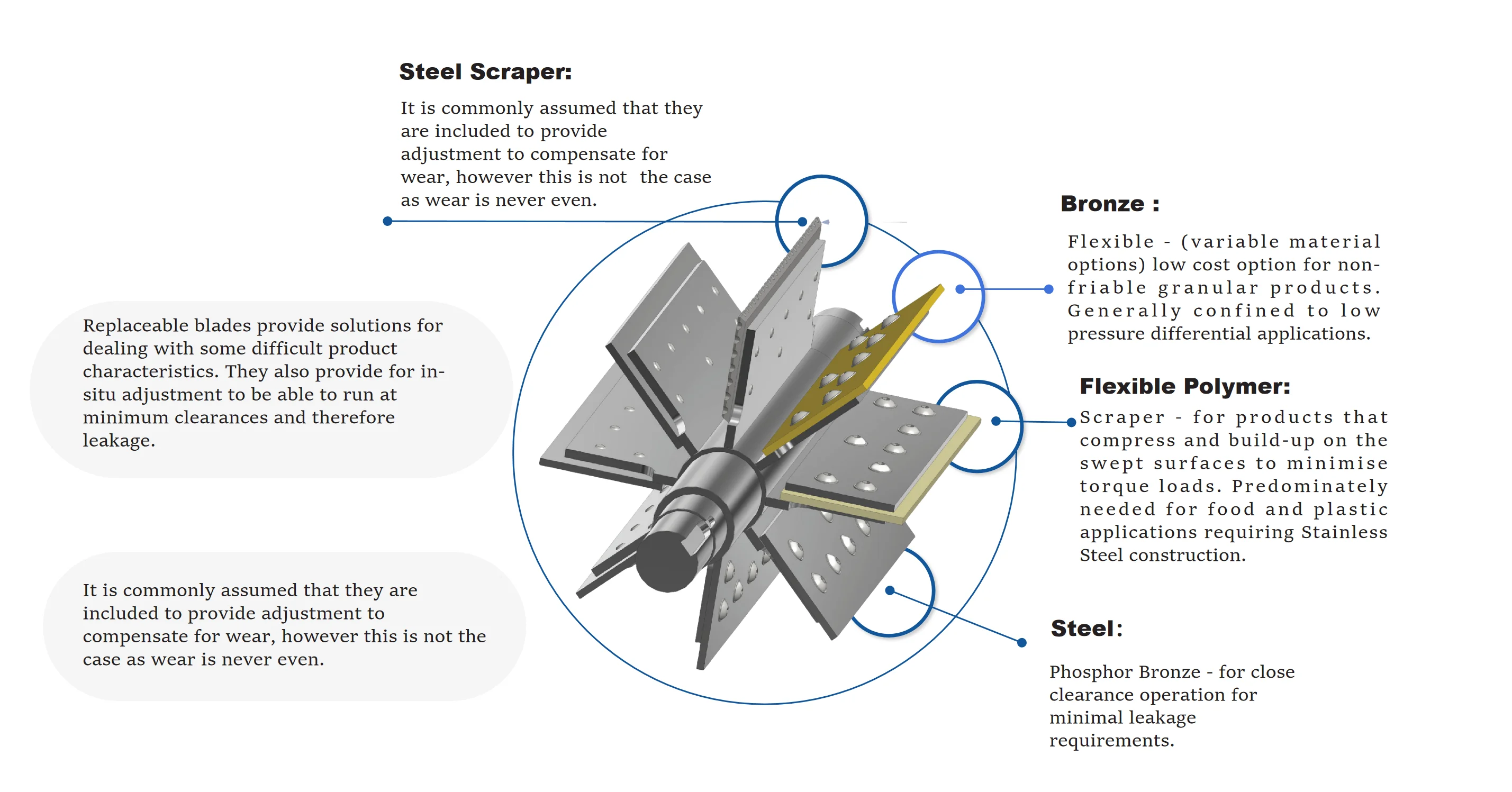

Accessory Details






Technical Parameter


Model
Dimensions
power
Motor direction
Material
volume
UV-XZF-DN150
300*600*1000
0.75kw
90°/180°
nylon /304/316L
Customize
UV-XZF-DN200
300*600*1000
0.75kw
90°/180°
nylon /304/316L
Customize
UV-XZF-DN250
400*600*1000
1.1KW
90°/180°
nylon /304/316L
Customize
UV-XZF-DN300
400*600*1000
1.5KW
90°/180°
nylon /304/316L
Customize
UV-XZF-DN350
400*800*1200
2.2kw
90°/180°
nylon /304/316L
Customize
UV-XZF-DN400
400*800*1500
3kw
90°/180°
nylon /304/316L
Customize

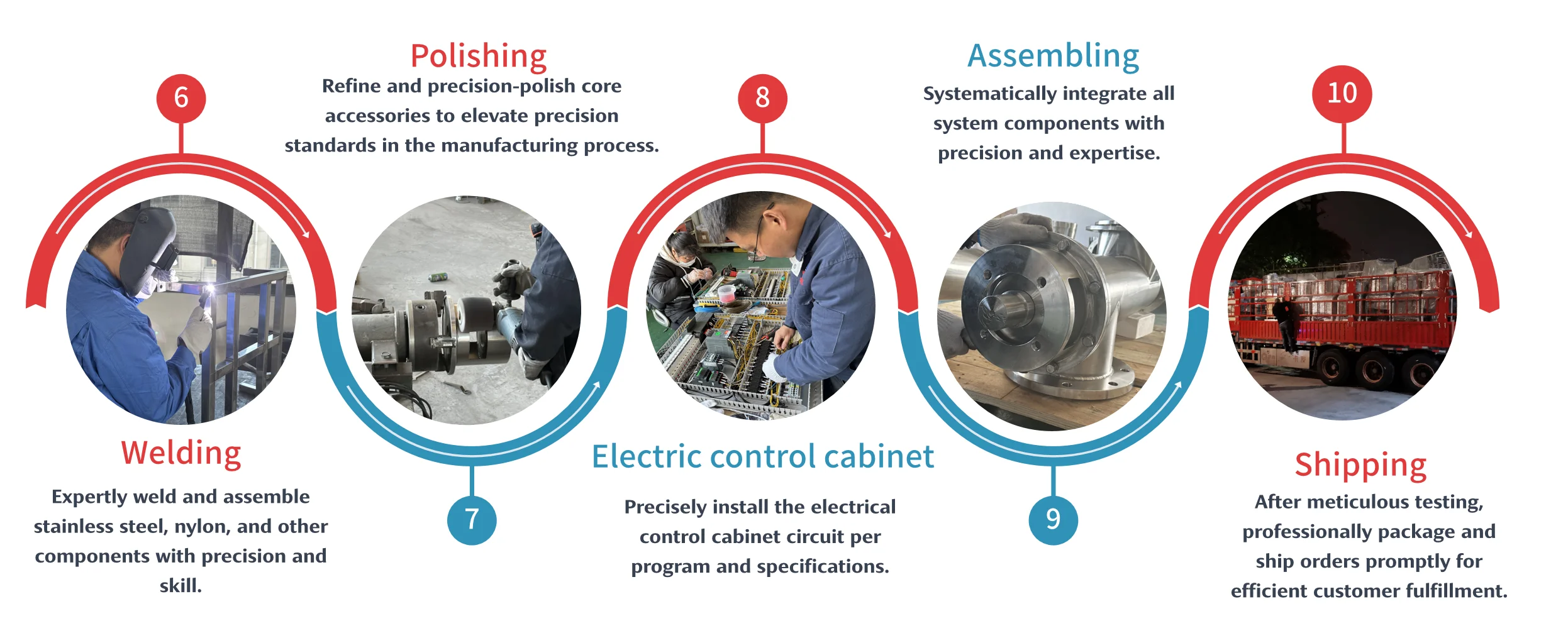

Equipment production process

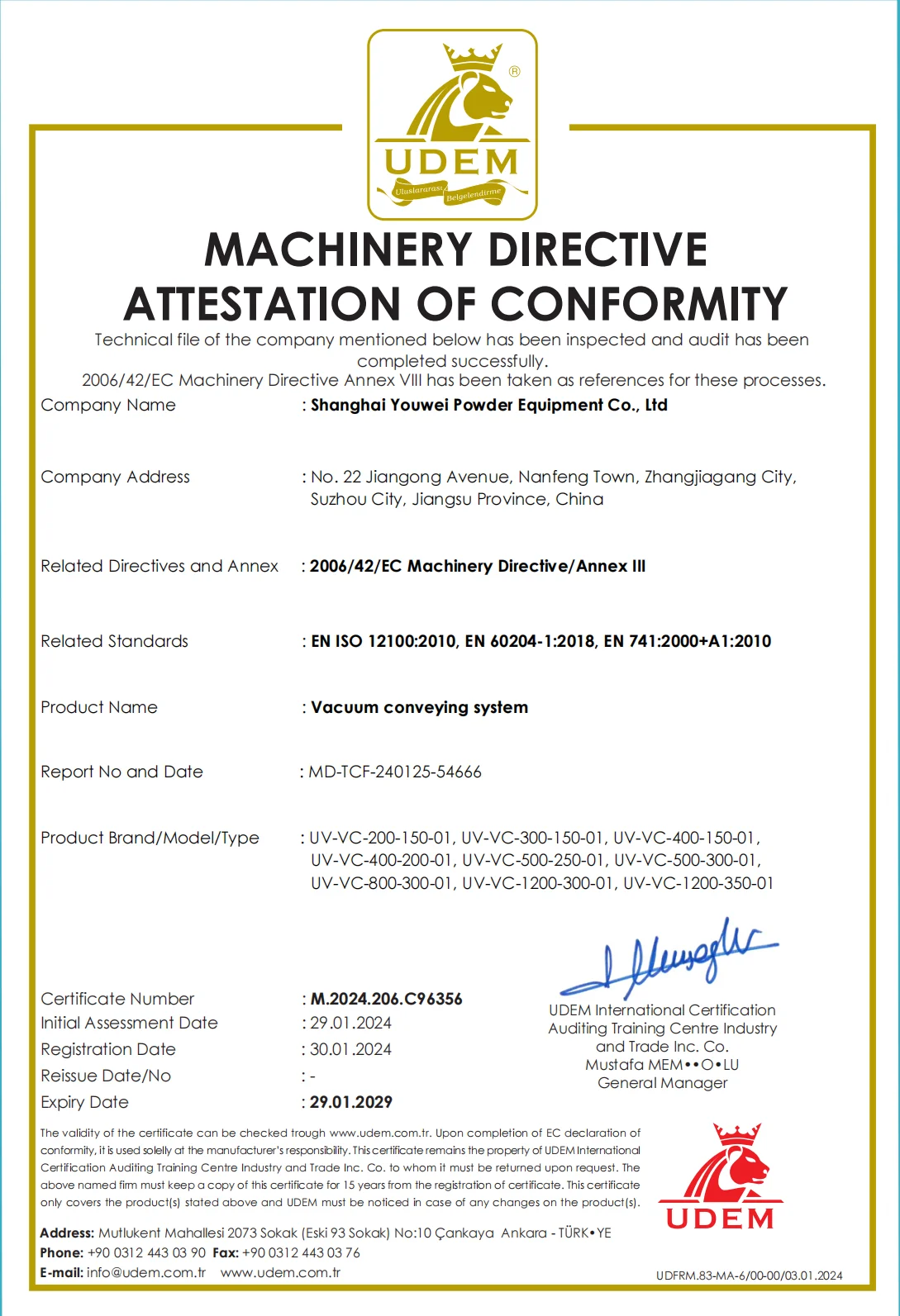

Certifications






Company Information




Company Profile

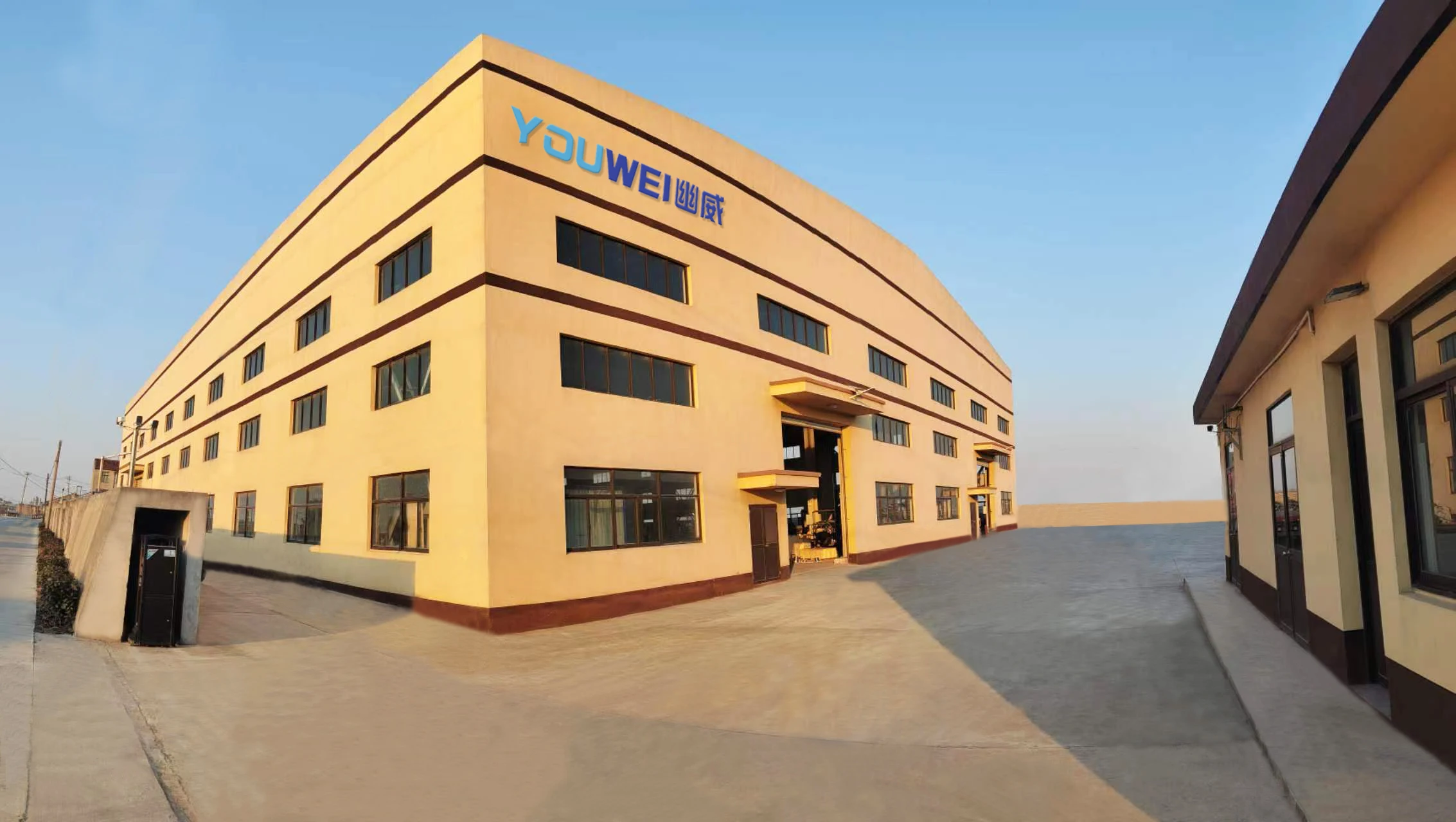

Founded in 2011, Shanghai Youwei Powder Equipment Co., Ltd. is a production-oriented processing enterprise specializing in powder unpacking, conveying, weighing, metering, batching and packaging equipment manufacturing. The registered capital of the company is 12 million. The company has two processing bases in Zhangjiagang City and Qidong City, with a plant area of nearly 8,000 square meters.

For more than ten years, we have been deeply engaged in the field of material handling automation, and we have always been guided by customer needs, and have independently developed equipment such as small bag feeding station, ton bag unpacking machine, vacuum feeding machine, weighing and metering batching, ton bag packaging machine and so on. We have rich industry experience in the food ingredients industry, lithium battery cathode and anode industry, and pharmaceutical intermediates industry.

The company adheres to the spirit of integrity, pragmatism and innovation, and provides high-quality systematic solutions for all kinds of users with rich experience in technology development , and goes hand in hand with users to create a better future.
