Swagelok Type Hikelok up to 10000 psi 316 ss Steel Pipe and Fittings Pipe Plugs
Swagelok Type Hikelok up to 10000 psi 316 ss Steel Pipe and Fittings Pipe Plugs
Swagelok Type Hikelok up to 10000 psi 316 ss Steel Pipe and Fittings Pipe Plugs
Swagelok Type Hikelok up to 10000 psi 316 ss Steel Pipe and Fittings Pipe Plugs
Swagelok Type Hikelok up to 10000 psi 316 ss Steel Pipe and Fittings Pipe Plugs
Swagelok Type Hikelok up to 10000 psi 316 ss Steel Pipe and Fittings Pipe Plugs
Swagelok Type Hikelok up to 10000 psi 316 ss Steel Pipe and Fittings Pipe Plugs

Swagelok Type Hikelok up to 10000 psi 316 ss Steel Pipe and Fittings Pipe Plugs

Share on (1601203733728):


Price:

Quantity:


Product Overview

Description



Product Description



Hikelok Manufacturer 316 ss Steel Pipe and Fittings Pipe Plugs

Hikelok has a wide range of products, including instrument valves and fittings, ultra-high pressure products, ultra-high purityproducts, process valves, vacuum products, sampling system, pre-installation system, pressurization unit and tool accessories.
Hikelok instrument pipe fittings series cover TCN, TPN, THN, TLN, TRB, PC, TP, THP, THC, TA, TME, TSE, T45E, TFE, T45FE, TMT, TFBT, TFRT, TMST, TMBT, TFT, TFC, TPU, UBJ, UGJ, UOJ. Fractional size is from 1/8 to 2 inch. The max working pressure is up to 15,000 psig (1,034bar).

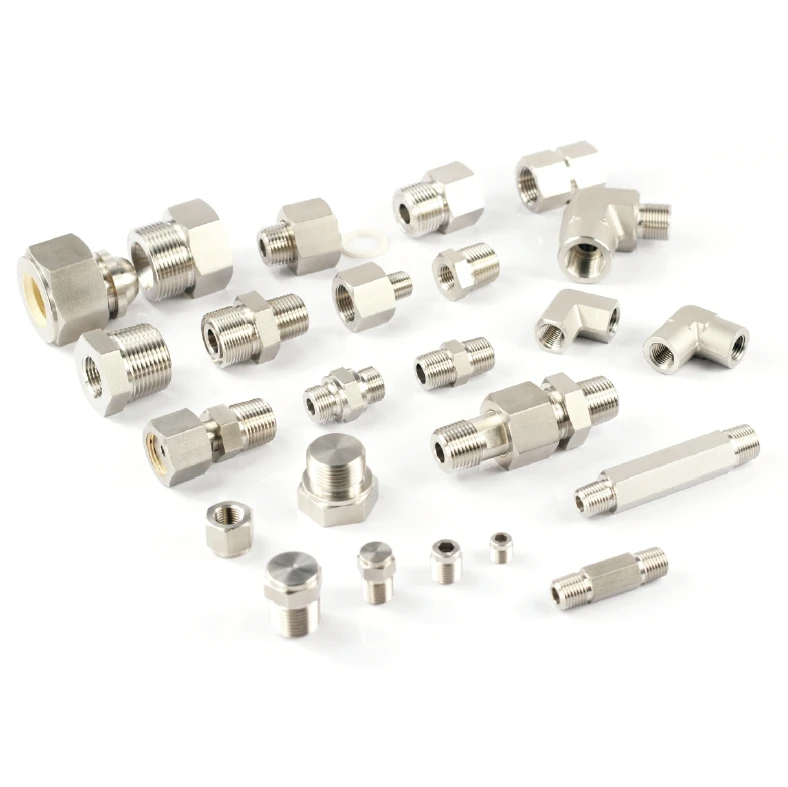

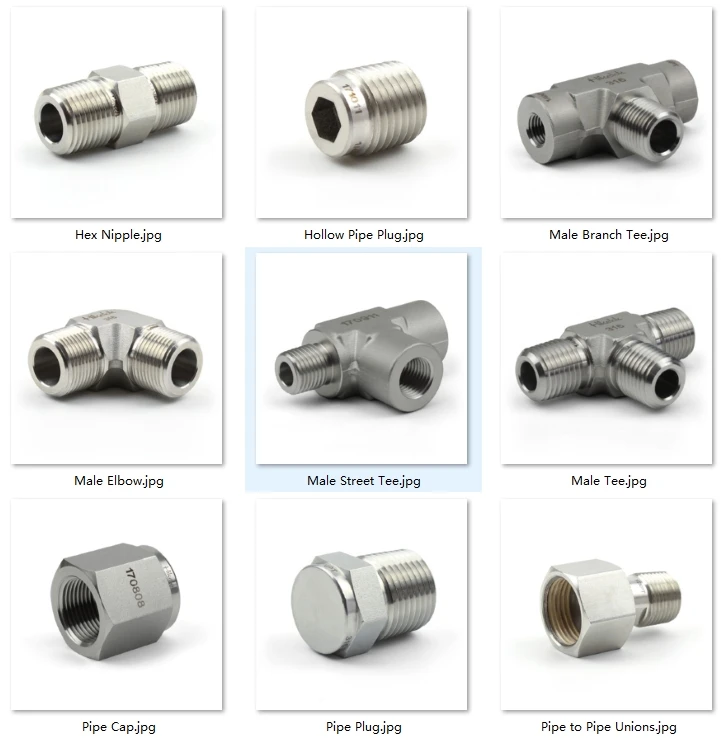

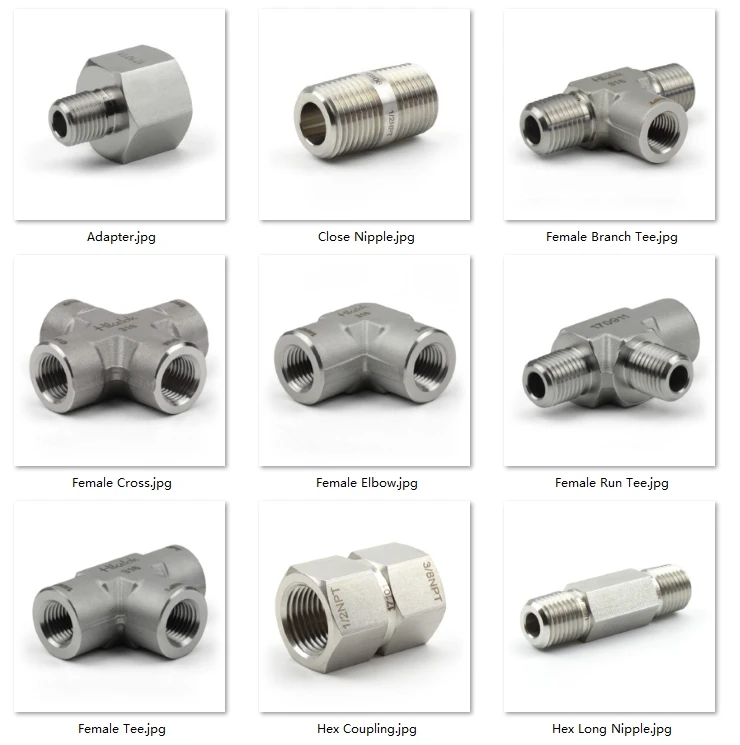

Close Nipples Special Pipe Nipples Hex Nipples Hex Long Nipples




Pipe Caps Pipe Plugs Hollow Pipe Plugs Hex Couplings




Reducing Bushings Adapters Male Elbows Street Elbows




Female Elbows Male Tees Male Street Tees Female Tees




Female Run Tees Female Branch Tees Male Branch Tees Female Crosses




Pipe to Pipe Unions Union Ball Joints Union Gasket Joints Union O-ring Joints




Specification


item
Hikelok Manufacturer 316 ss Steel Pipe and Fittings Pipe Plugs
Warranty
1 year
Certificate
ISO, PED, ABS F1387
Place of Origin
China
Brand Name
Hikelok
Model Number
Pipe fittings
Shape
Straight, Tee, Cross, Elbow
Size
1/16 - 2 inch, 2 - 50mm
Material
316 SS

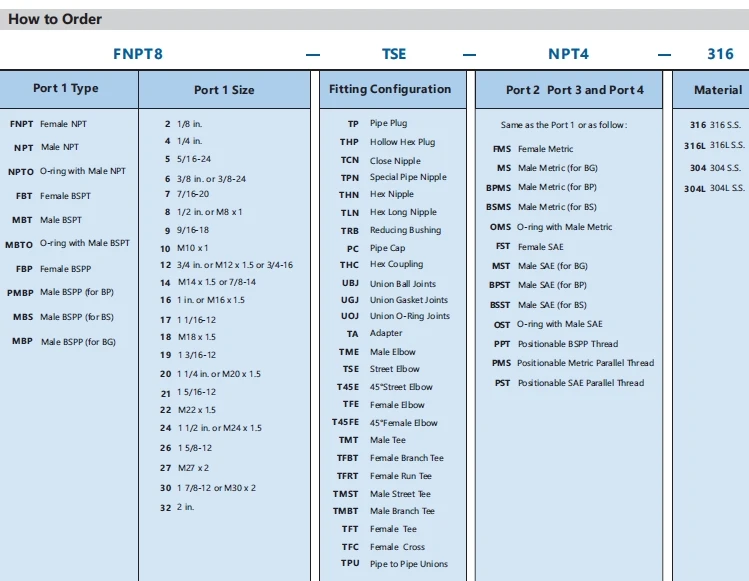

How To Order


1, Send us an email with product type, size, quantity.
2, Provide us of the model of Swagelok, Dk-lok or Parker.




Certifications




Company Profile



Hikelok - Solution Provider of Fluid System

Hikelok, Founded in China in 2011, is a top manufacturer of instrument fittings and valves, ultra-high pressure and ultra-high purity fittings and valves. Our factory is verified by TUV, and got certifications such as CE; ABS; ISO9001; ISO 14001; ISO 45001. All our products are designed in strict acordance with ISO, ANSI, ASME, ASTM, API, MSS, EN, GB, HG, JB and other standards.





Product Range: ISO, ANSI, ASME, ASTM, API, MSS, EN, GB, HG, JB and other standards.

Fittings: Twin Ferrule Tube Fittings, Threaded Pipe Fittings, Welded Fittings, Quick Connectors, Vacuum Fittings, Flange Fittings.

Valves: Ball valves, Needle valves, Proportional Relief Valves, Check Valves, Metering Valves, Gauge Valves, Plug Valves, Instrumentation Manifolds, Block And Bleed Valves, Globe Valves, Root Valves, Filters.

Ultra-high Pressure Products: Ultra-High Pressure Fittings, Ultra-High Pressure Ball Valves, Ultra-High Pressure Needle Valves, Ultra-High Pressure Check Valves, Ultra-High Pressure Safety Valves, Ultra-High Pressure Filters, Sub-Sea Valves.

Ultrahigh-Purity Products: EP Tubes, VCR Fittings, Miniature Butt-Weld Fittings, Pressure Reducing Regulators, Diaphragm Valves, Bellows Sealed Valves.

Other Products: Sampling Systems, Sampling Cylinders, Air Headers. Tubing & Flexible Hoses: Tubing and Pipes, Metal Flexible Hoses.

Tools: Pressure Gauges, Plastic Clamp Supports, Tube Deburring Tools, Gap Inspection Gauges, Tube Cutters, Tube Benders, Preswaging Tools, Pipe Thread Sealants.
