Supply Ka Band LNB With Price
US $12.90-$13.90
RS RADIO 87.5 108MHz 30M 1/2 Feeder Cable Fm Transmitter 500w Broadcast Radio Station Equipment
- Category: >>>
- Supplier: Liaoning Risheng Electronic Technology Co. Ltd.
Share on (1601203734010):
Product Overview
Description
Products Description
Technical specifications |
1. Frequency Range：87.50MHz～108MHz,step 10KHz |
2. .Output Power：0~500W continuously adjustable |
3.Carrier Frequency precision：±200Hz |
4.Output power tolerance :±1dB |
5.Output impedance: 50Ω |
6.RF output connector: 7/16' DIN (L29) -female |
7.Residual wave radiation :< -70dB |
8.Parasitic amplitude modulation noise: < -50dB |
9.Pilot frequency deviation: ±0.1Hz |
10.38KHz residual component in the S signal :< -50dB |
11.Audio pre-emphasis :0μs/25μs/ 50μs/75μs optional |
12.Signal-to-noise ratio: ≥92dB (1kHz, 100% modulation) |
13.Stereo separation ≥73dB (L → R, R → L) |
14.Distortion ≤0.01% (30Hz ~ 120000Hz, 100% modulation) |
15.Frequency response ±0.01dB (no emphasis, no de-emphasis) |
16.Left and right channel level difference ≤0.01dB (100% modulation) |
17.Power supply voltage :100VAC~265VAC/ 47Hz~63Hz |
18.Operating environment temperature -10 ° C ~ +45 ° C |

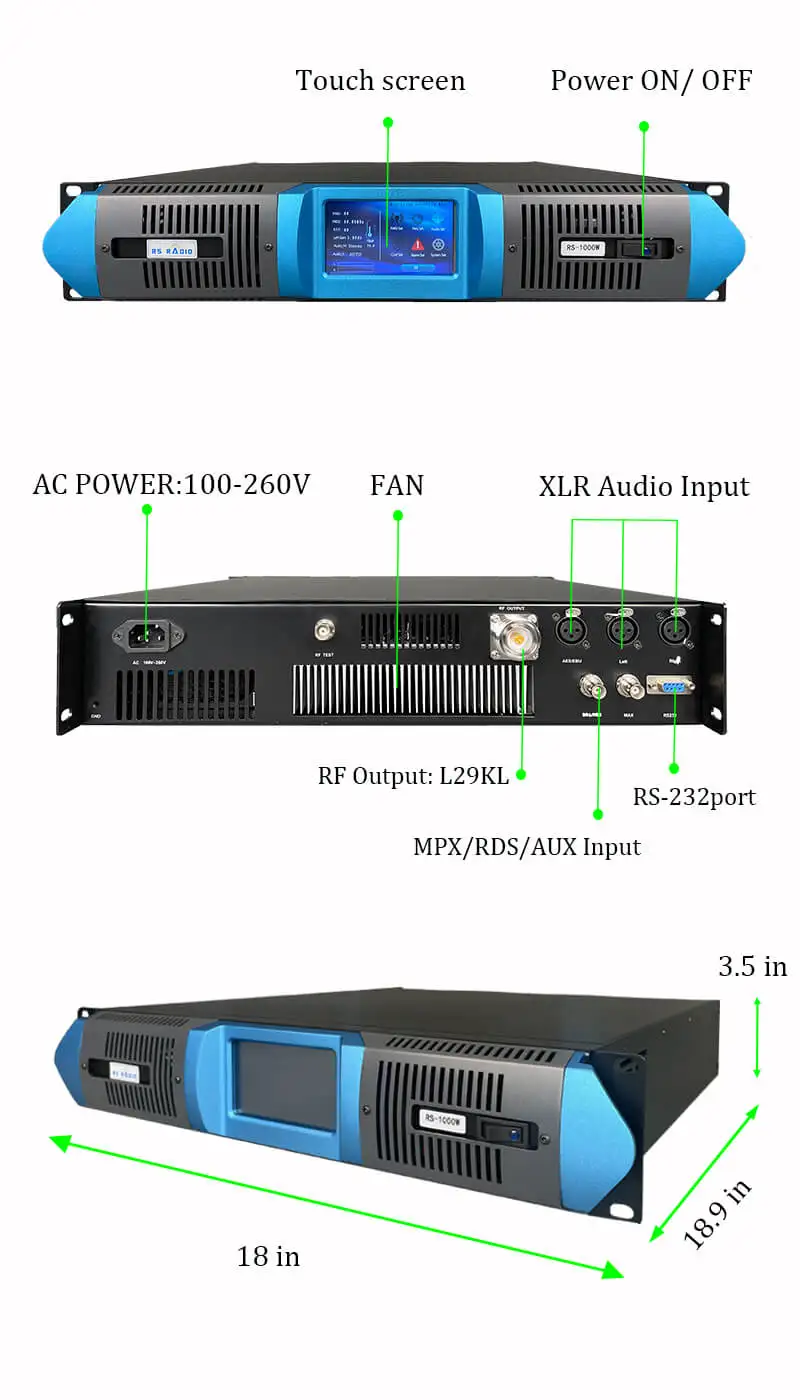

19.Size：2U (width 18in × height 3.5in × depth 18.9in) |
20.Weight：13Kg (including packaging) |
RS-CM500W series is a professional FM stereo/Mono broadcasting transmitter. The advanced digital technologies,Digital Signal Processor(DSP), are used in the transmitters to get little size , high performance and high reliability. They are widely used for professional radio stations to transmit high quality FM radio programs.
More than that, the RS-CM500W FM transmitter is now gradually showing its high-quality characteristics to the world, especially in the radio station equipment market.
More than that, the RS-CM500W FM transmitter is now gradually showing its high-quality characteristics to the world, especially in the radio station equipment market.
FEATURES

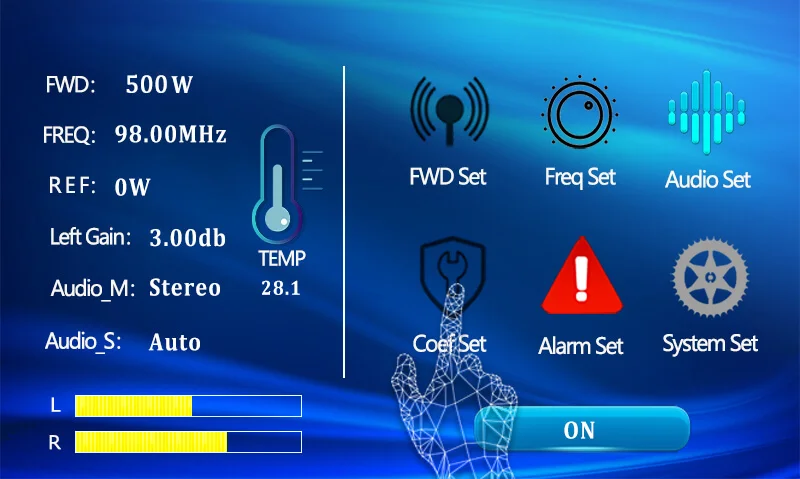

* Touch Screen without buttons make setting more easily.
* This is the RS-CM500W product,All-digital technologies DSP+PLL, better sound quality.
* Upgrade frequency step to 10Khz.
* You can set the automatic startup and shutdown time
* Exquisite craftsmanship，Standard 19 inches, 2U whole aluminium alloy cabinet.
Wiredrawing and oxidation makes surface bright,clean and elegant.
* Big LCD display all the parameters in real time. displays working frequency, volume,
FETMOS temperature, forward power and SWR.
* Provided with the series of protection function, own active protection and raise alarm
prompts once meet any trouble while working.
* Accurate operating index and perfect protection measures make you are more aware of the
operating status of your machine.
* Easily installation and simply operations.
* High quality and excellent technical performances. AGC circuit to keep the Output Power
stability.
* Each machine has been examined strictly by a series of quality inspection and function test
to guarantee best operating function.

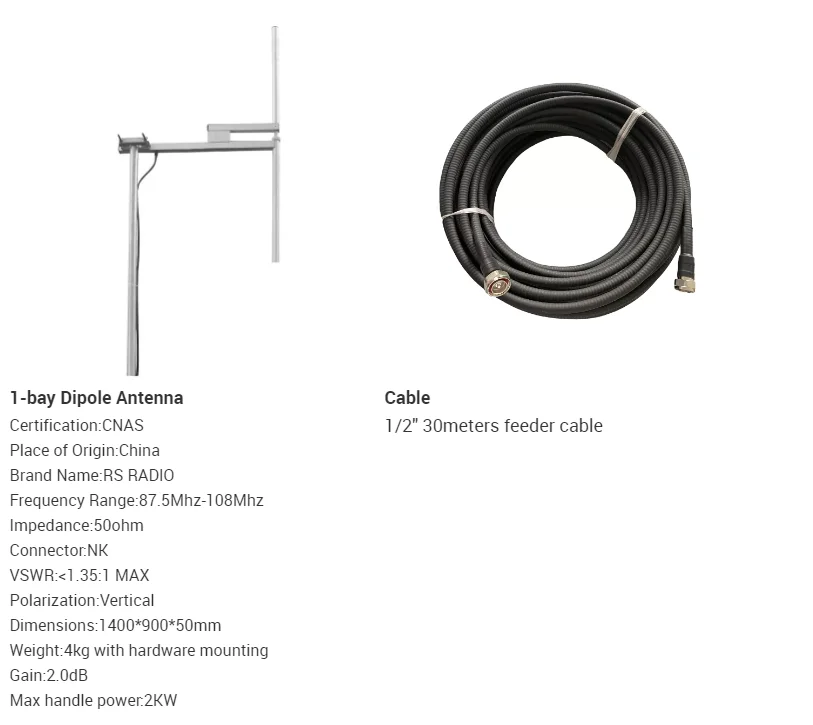

1-bay Antenna
Certification:CNAS
Place of Origin:China
Brand Name:RS RADIO
Frequency Range:87.5Mhz-108Mhz
Impedance:50ohm
Connector:NK
VSWR:<1.35:1 MAX
Polarization:Vertical
Dimensions:1400*900*50mm
Weight:4kg with hardware mounting
Gain:2.0dB
Max handle power:2KW
Place of Origin:China
Brand Name:RS RADIO
Frequency Range:87.5Mhz-108Mhz
Impedance:50ohm
Connector:NK
VSWR:<1.35:1 MAX
Polarization:Vertical
Dimensions:1400*900*50mm
Weight:4kg with hardware mounting
Gain:2.0dB
Max handle power:2KW
Feeder Cable
1/2" 30meters feeder cable
