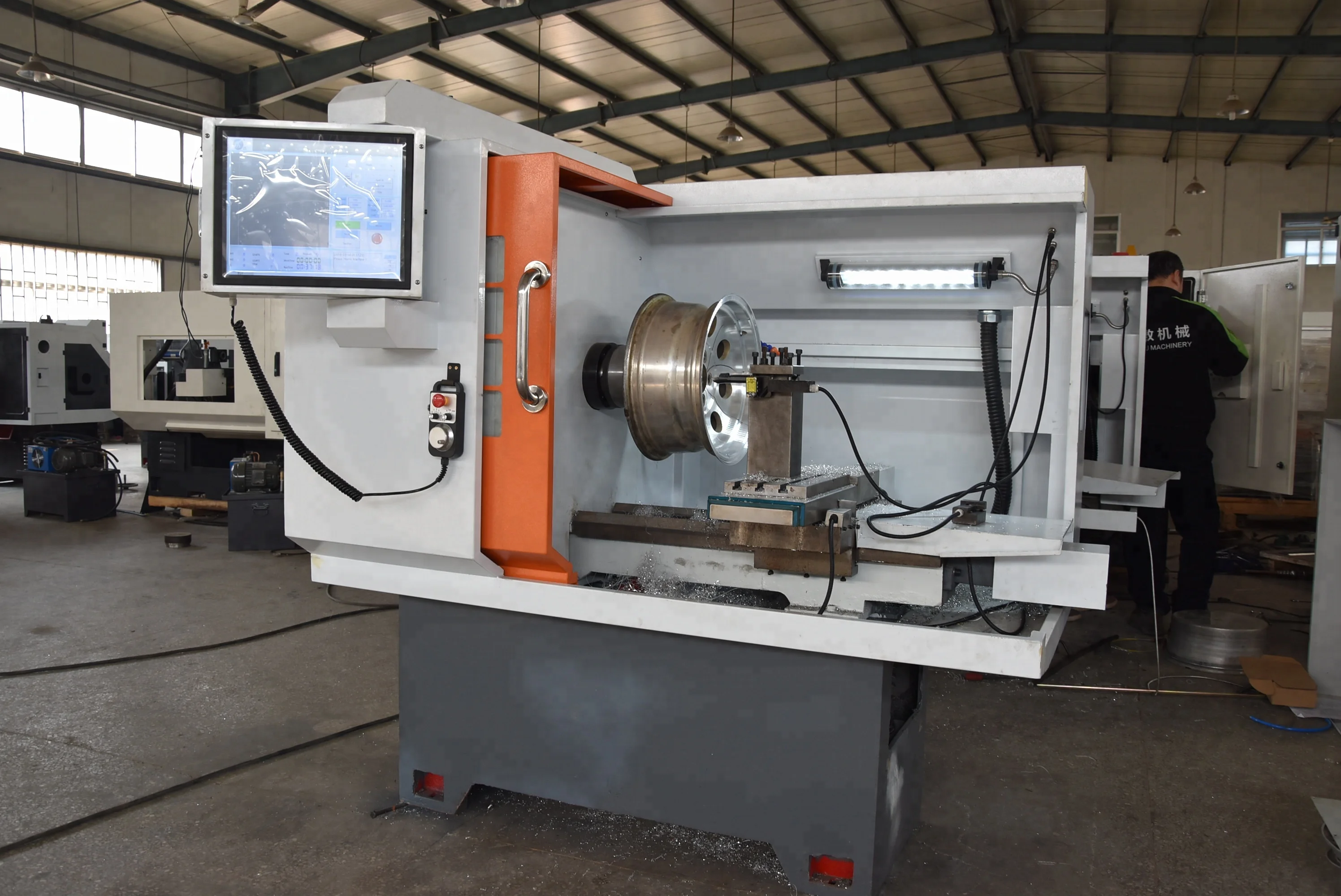

Hot Selling CNC Alloy Wheel Lathe CK6160Q Rim Surface Refurbishment
- Category: >>>
- Supplier: Taian Haishu Machinery Co. Ltd.
Share on (1601203797635):
Product Overview
Description

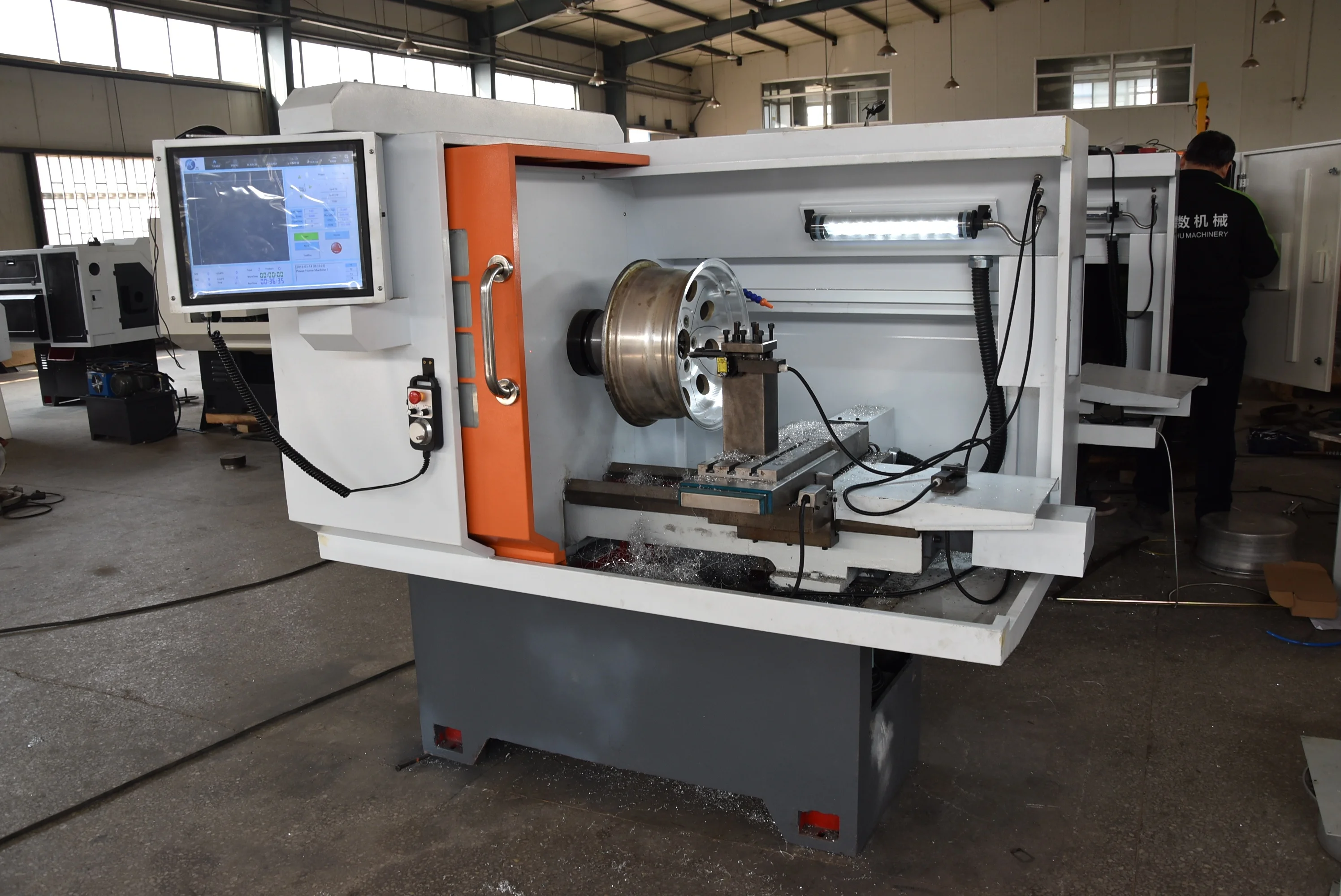

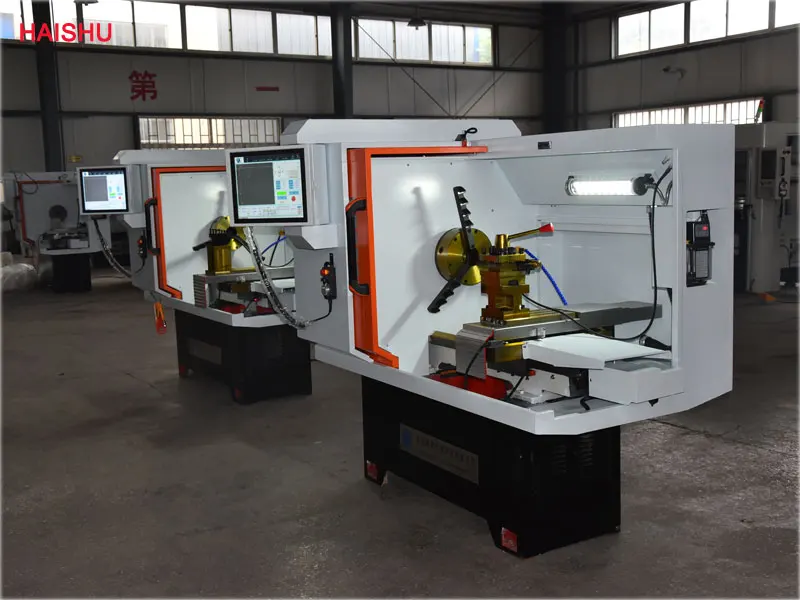

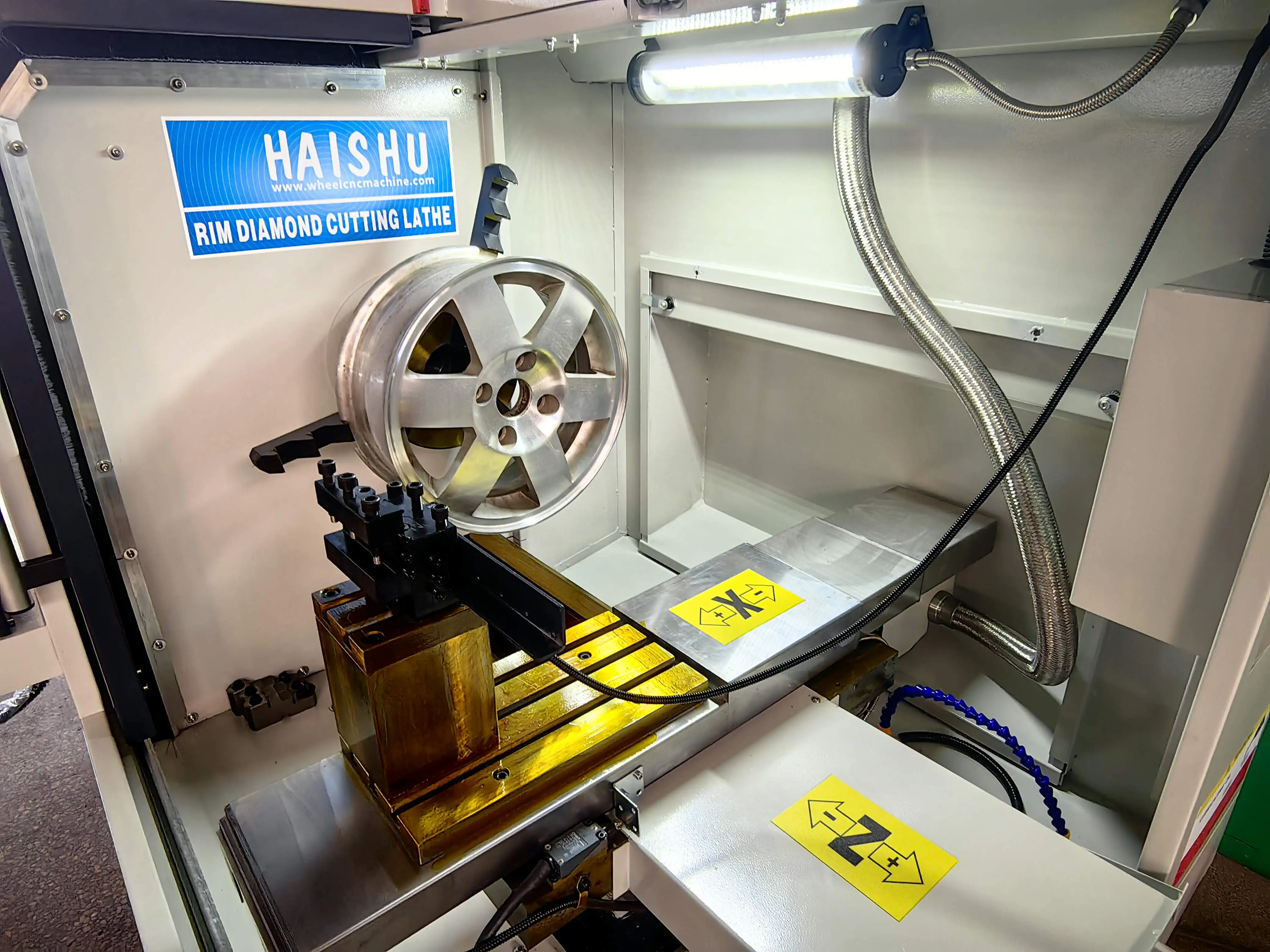

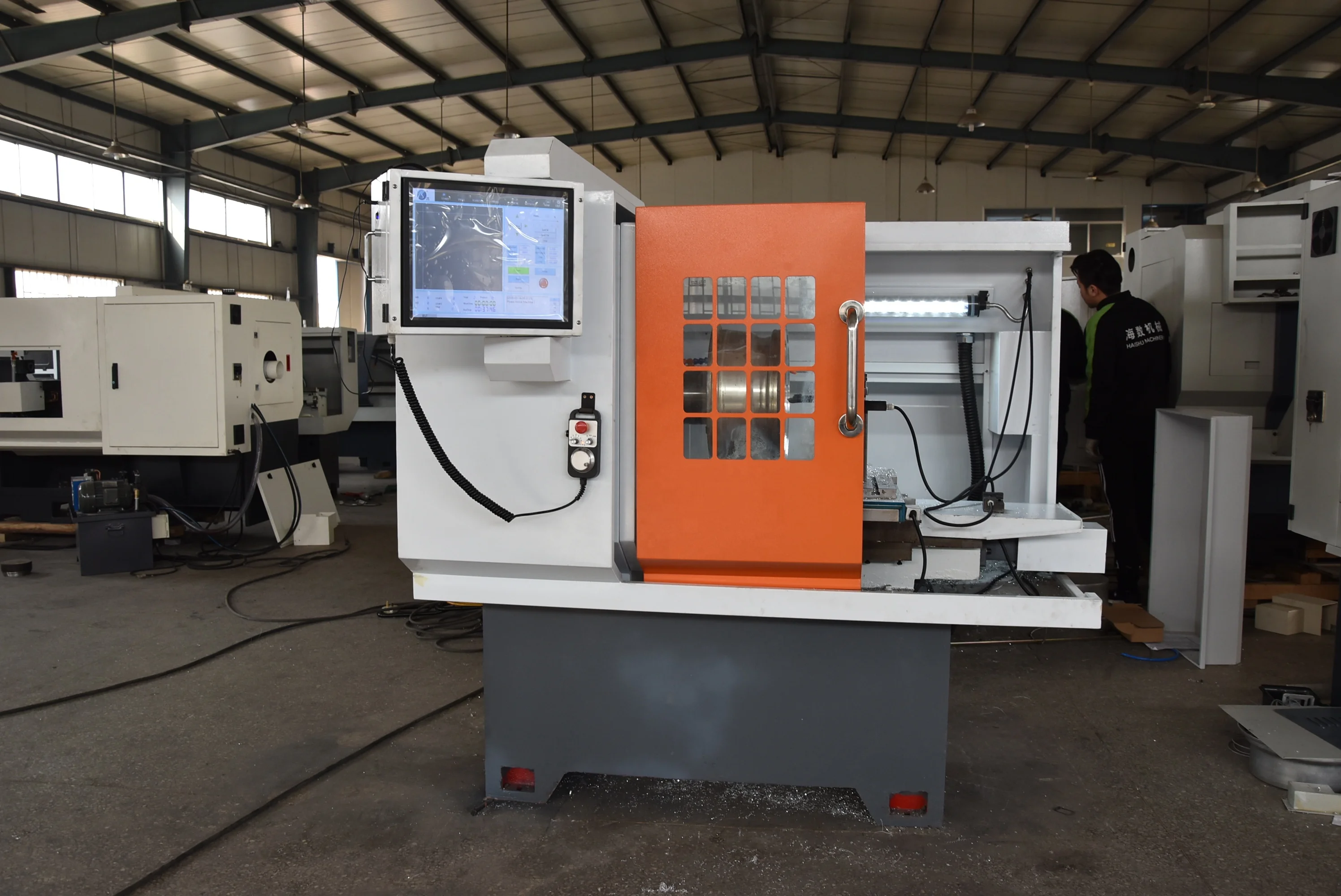

Hot Selling CNC Alloy Wheel Lathe CK6160Q Rim Surface Refurbishment
CNC Alloy Wheel Lathe Main features:
* The CNC Alloy Wheel Lathe is exclusively developed by Taian HAISHU company economical special wheel repair lathe.
* The Wheel Reconditioning Lathe is economical products, cost-effective,easy to operate and maintain.
* The CNC Alloy Wheel Lathe has a good protective effect and a beautiful appearance, and adopts single-spindle and
single-tool frame structure, which has high production efficiency and processing precision.
* The Wheel Reconditioning Lathe is economical products, cost-effective,easy to operate and maintain.
* The CNC Alloy Wheel Lathe has a good protective effect and a beautiful appearance, and adopts single-spindle and
single-tool frame structure, which has high production efficiency and processing precision.
CNC Alloy Wheel Lathe Reasonable structure
Wheel diameter range is 24 ". The CNC Alloy Wheel Lathe area is small, professional is strong, value for money, operation and use more convenient.
CNC Alloy Wheel Lathe Sturdy durable
Cast iron bed. The CNC Alloy Wheel Lathe bed is made of cast steel in horizontal structure.
CNC Alloy Wheel Lathe Product performance

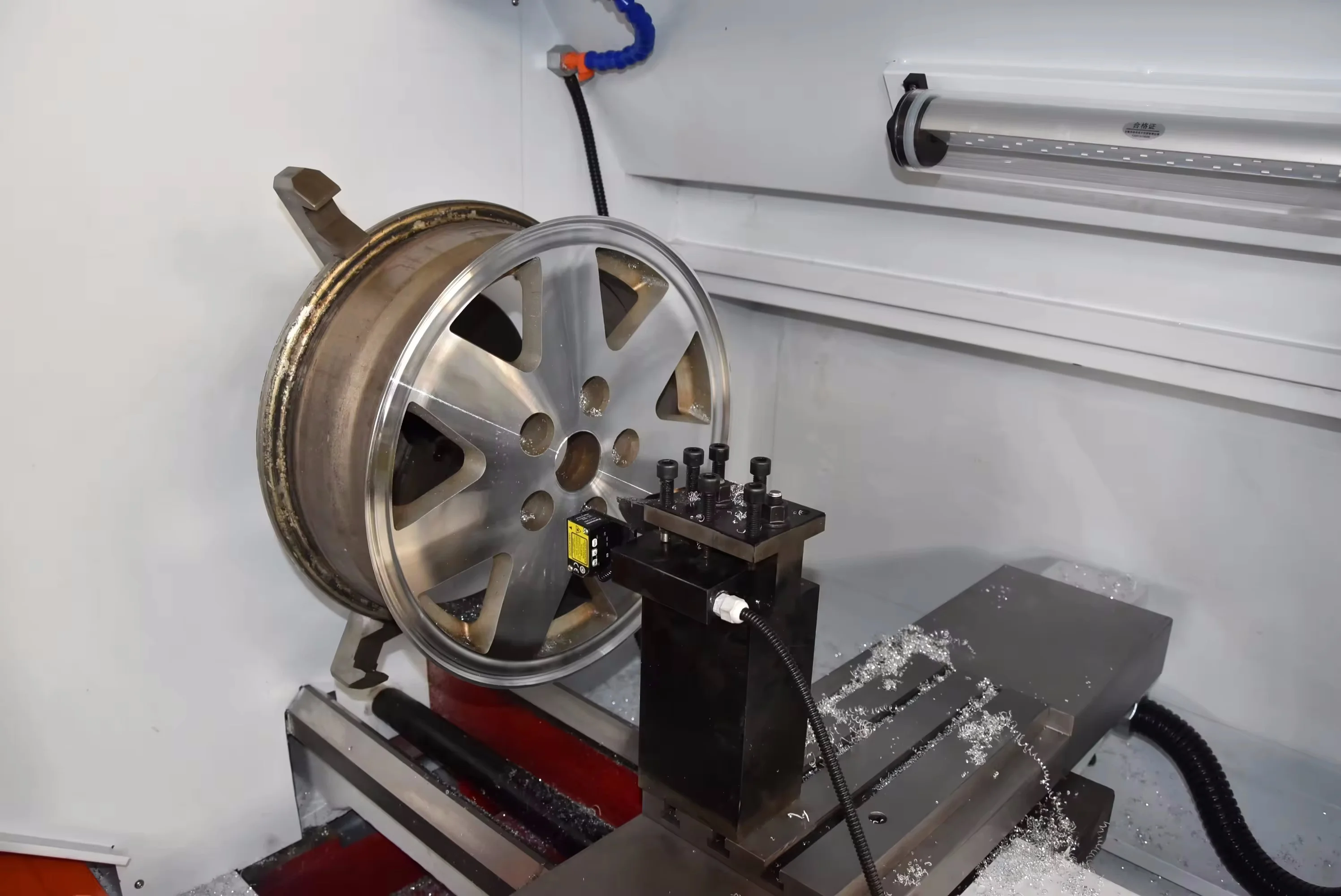

Laser non-contact measurement or probe contact measurement optional, both can also be configured. Laser measurements enable fast scanning.
The CNC Alloy Wheel Lathe with teaching function. The overall surface of the wheel can be repaired, but also can be partially repaired.
The CNC Alloy Wheel Lathe with teaching function. The overall surface of the wheel can be repaired, but also can be partially repaired.
CNC Alloy Wheel Lathe Easy to operate
Self-developed special wheel repair software. LCD touch screen configuration. Wheel surface measurements and program optimization are done all at once on the machine tool system,So simple, easy to understand and easy to operate.
After sales, the CNC Alloy Wheel Lathe can enjoy the following services:1. Software free upgrade.2. The hub cnc machine with a network interface, Users can accept remote operation and technical training on the machine's LCD display.
After sales, the CNC Alloy Wheel Lathe can enjoy the following services:1. Software free upgrade.2. The hub cnc machine with a network interface, Users can accept remote operation and technical training on the machine's LCD display.
Item | Unit | CNC Alloy Wheel Lathe CK6160Q |
Max. wheel diameter | Inch | 22" |
X-axis maximum stroke | mm | 320 |
Main motor power | kw | 3 |
Rail width | mm | 260 |
Max. workpiece length | mm | 500 |
Wheel measuring direction | X,Z | |
Measuring tool | mm | Laser, probe (optional) |
Measurement method | Point measurement and quick scan | |
Program optimization | Manual and automatic | |
Number of wheel processing programs | 100000 | |
CNC System | "HAISHU" special system (touch screen operation, 17 "screen LCD display). | |
Wheel processing | surface, rim | |
Mchining accuracy | IT6~IT7 | |
Surface roughness | um | Ra0.8~1.6 |
Main drive form | Frequency control, servo drive (optional) | |
Spindle speed | rpm | Factory setting 150~2800 |
Fast-moving feed | mm/min | X :5000 Z :8000 |
Repeat accuracy | mm | X :0.01 Z :0.015 |
Turret form | Fixed turret,Electric turret (optional) | |
Section of turning tool | mm | 25×25 |
Machine size(L×W×H) | mm | 1900×1400×1750 |
Net weight | kg | 1300 |
Configuration

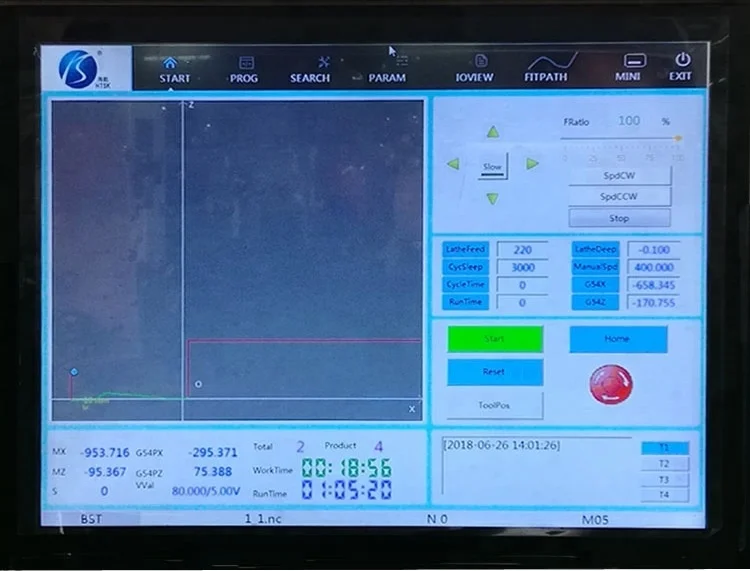

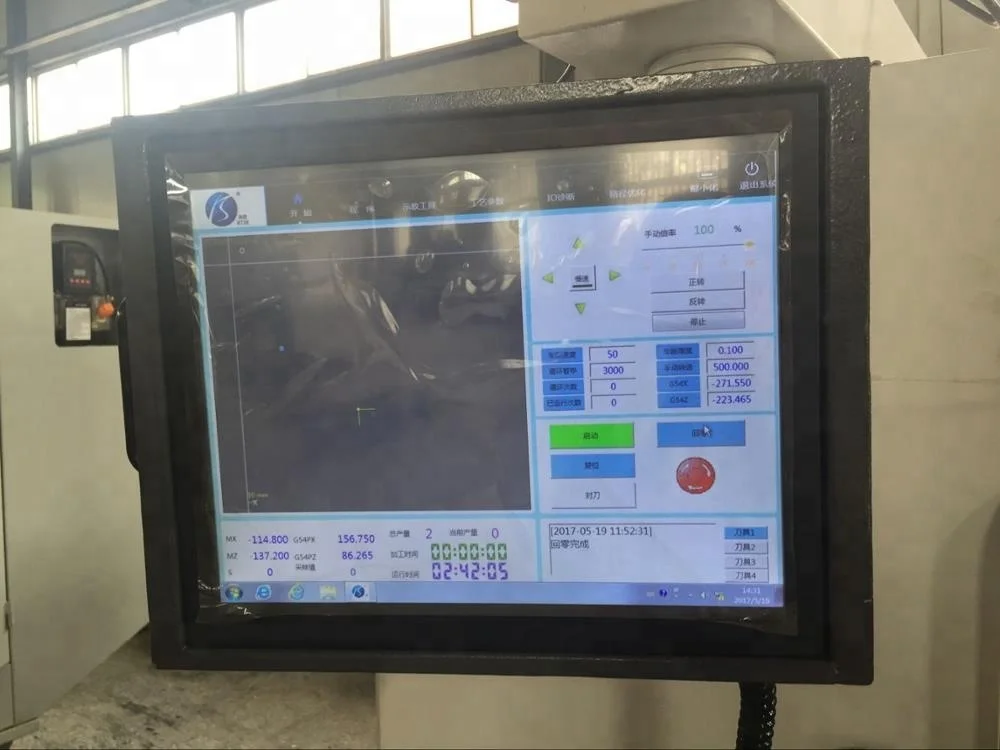

Touch screen system
Touch screen system specially developed for wheel repair, with one click operation, easy to operate.It can be continuously updated and upgraded according to the different requirements of customers.The language also can be customized.
Laser detection
Laser detection can achieve one click quick scanning, automatic generation of turning program, completed within 30 seconds.
One click optimization easy operate for fast and efficient turning.
Long jaws
Designed for the characteristics of wheel hubs, the chuck extension claw can hold up to 24 inches.And provide a special chuck wrench, which can easily clamp and release the wheel hub with one hand.

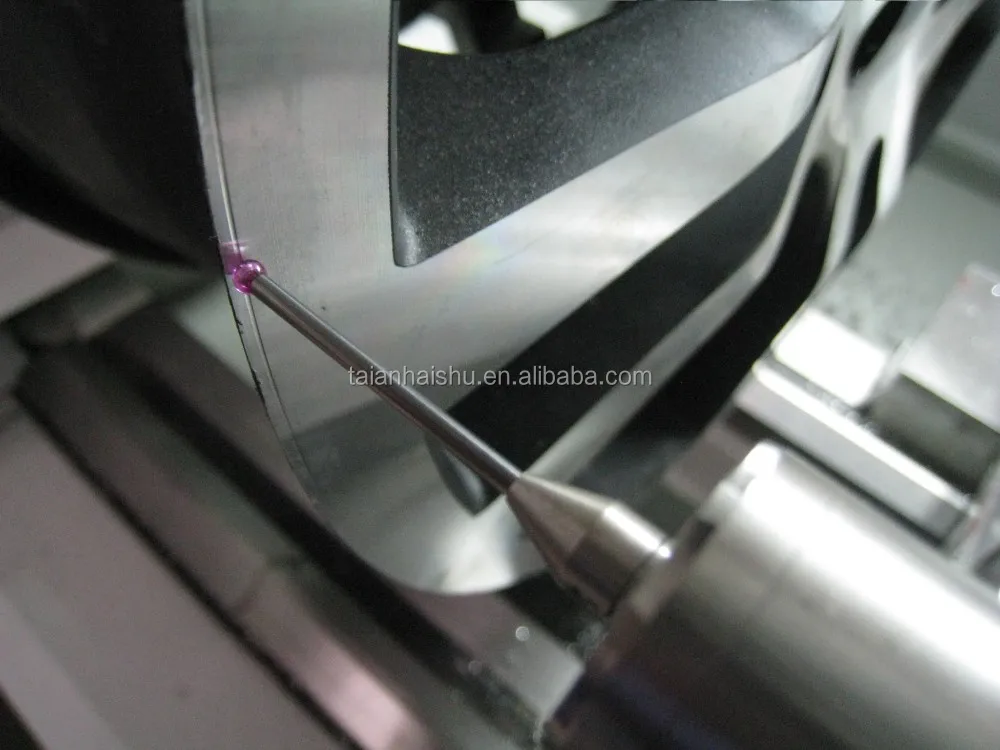

Touch probe
Detect point by point, accurate data, suitable for complex wheel hubs. Automatic generation of machining programs, one click optimization.
CNC Alloy Wheel Lathe Row Tool
Improving usability and convenience of tools: enhancing the hygiene and antibacterial ability of tools; Increase the utilization space.
Customized different claws
Special curved jaws and 4 or 6 claws can be Customized according to customer requirements can process special ultra-high and big wheel hubs
SYNTEC system
It is also possible to install this system specifically for customers who are already accustomed to and proficient in using SYNTEC to meet their usage habits and purchasing requirements.
Mandrel
Mandrel clamping hubs with high precision, good wear resistance and strong reusability can also be customized.
CNC Alloy Wheel Lathe MPG
Install MPG on Wheel Reconditioning Lathe,Teaching style mechanical work origin and endpoint setting for hub CNC lathes, with manual step adjustment to make the entire work process simpler and more convenient.
Taian HAISHU Machinery Co., Ltd, established in 2010, is a professional manufacturer engaged in the research, development, production, sale and service of CNC machine tools. Products include: CNC Alloy Wheel Lathe,CNC lathe, wheel CNC lathe, pipe CNC lathe, turning center, machining center and special CNC machine tools.
We are located in Taian city with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, we have an experienced research and development team of CNC machine tools, they are always available to discuss your requirements, to provide customers with machining solutions and ensure customer satisfaction. In recent years, our company have produced a lot of special-purpose CNC machine tools for our customers, such as fully automatic turning milling machine tools,five-axis machining center, five-axis tool grinder,car wheel automatic processing lines.
In addition, we have obtained CE certification and ISO9001 certification. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as United States, Britain, Germany, Turkey, Australia, Peru, South Korea, South Africa and across Europe, Asia, Africa, North America, South America, Oceania 120 countries.
We also welcome OEM and ODM orders for CNC Alloy Wheel Lathe and other cnc machines. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
We are located in Taian city with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, we have an experienced research and development team of CNC machine tools, they are always available to discuss your requirements, to provide customers with machining solutions and ensure customer satisfaction. In recent years, our company have produced a lot of special-purpose CNC machine tools for our customers, such as fully automatic turning milling machine tools,five-axis machining center, five-axis tool grinder,car wheel automatic processing lines.
In addition, we have obtained CE certification and ISO9001 certification. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as United States, Britain, Germany, Turkey, Australia, Peru, South Korea, South Africa and across Europe, Asia, Africa, North America, South America, Oceania 120 countries.
We also welcome OEM and ODM orders for CNC Alloy Wheel Lathe and other cnc machines. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
