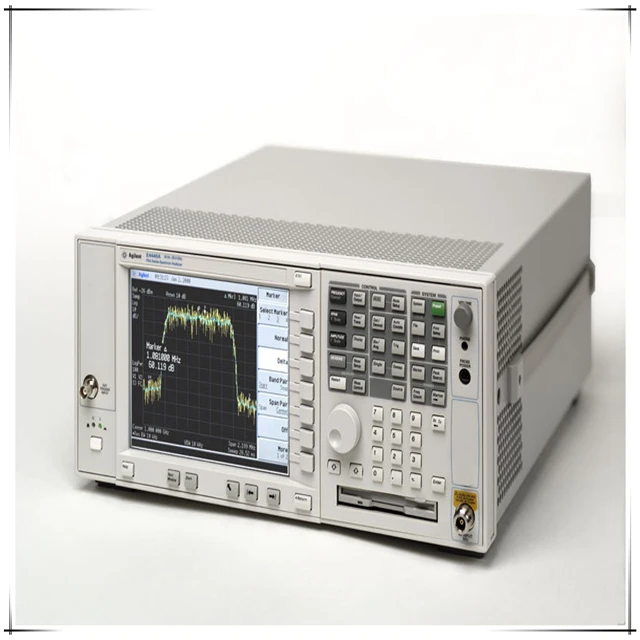

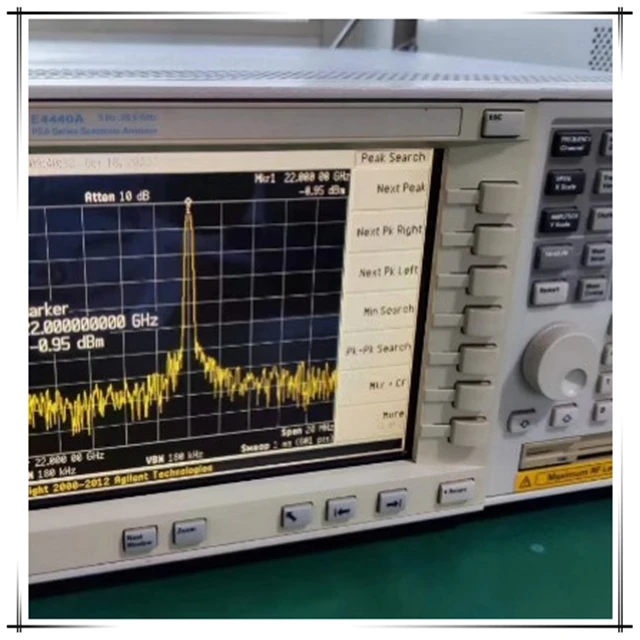

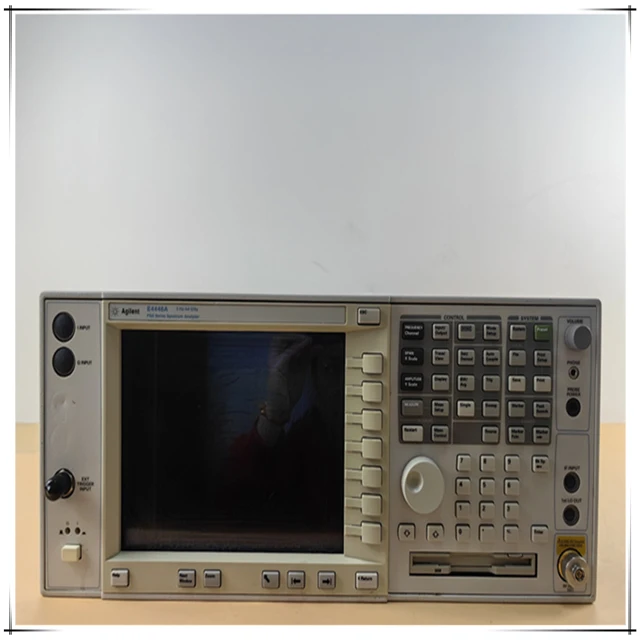

Used Agilent E4446A PSA series spectrum analyzer 3HZ 44ghz network analyzer
- Category: >>>
- Supplier: Shenzhen Huazexun Electronic Technology Co. Ltd.
Share on (1601203798545):
Product Overview
Description
Product Description
Specification
item | value |
Place of Origin | America |
Brand Name | Agilent |
Model Number | E4446A |
Product details
Agilent E4446A PSA series spectrum analyzer 3HZ-44ghz
Brand: Agilent
property
*+/-0.24dB absolute amplitude accuracy
*-155dBm/Hz display average noise level (DNAL)
* Phase noise at 10kHz bias: -118 dBc/Hz
*81 dB W-CDMAACLR Dynamic range
Analysis bandwidth
*40 or 80 MHz analysis bandwidth supports the capture and measurement of complex signals. View:
*-78dB (rated) third order intermodulation
*0.5 dBIF frequency response
*-78dB (rated) third order intermodulation
flexibility
* Flexible platform with 16 optional and easy to use built-in measurement software PSA Measurement software
* Power Suite One-click power measurement for more than 20 wireless systems PSA Power Suite one-click power measurement
Description
The E4440 series measures complex RF and microwave signals in the range.
E4443A 3Hz-6.7GHz
E4445A 3Hz-13.2GHz
E4440A 3Hz-26.5GHz
E4447A 3Hz-42.98GHz
E4446A 3Hz-44GHz
E4448A 3Hz-50GHz
Brand new! HSDPA/HSUPA measurement parts
Brand new! Built-in receiver special parts
View a PSA High bandwidth digital Converter video demonstration
Learn about one-button power measurement
Learn about 40/80 MHz bandwidth digitizer
Learn more about PSA calibration software
Main features:
Dynamic range
*-166dBm Display Average noise level (DANL)
*+17dBm third-order Intermodulation (TOI) (+19 dBm typical)
*-116dBc/Hz phase noise (10 kHz offset) (-118dBc/Hz typical)
precision
*±0.62 dB absolute amplitude accuracy (±0.24 dB typical)
*±0.38 dB frequency response (±0.11 dB typical)
*± 0.07dB logarithmic amplification linearity
Speed:
* Fast low-level parasitic search
*<30ms fast ACP measurement
*50 measurements/second local update rate, 45 measurements/second remote measurement
Standard features:
For more features and information, please refer to the PSA Series brochure
* Full digital IF with automatic range function
* Phase noise optimization
* Complete detector kit
*160 resolution bandwidth Settings (10% step)
*2dB stepping attenuator
*FFT and sweep measurement modes
* Gate pass sweep frequency
* Full set of single key power measurements
EMI measurement with built-in CISPR and MIL standard pre-compatible EMI detector and bandwidth
Optional features:
*40MHz or 80MHz bandwidth digital converter
* Built-in preamplifier (option 1DS: 100 kHz-3 GHz; Options 110: 10 MHz - 6.7 GHz)
* Easy to use built-in PSA series measurement key
* Modulation analysis and link to 89601A vector signal analysis software
Brand: Agilent
property
*+/-0.24dB absolute amplitude accuracy
*-155dBm/Hz display average noise level (DNAL)
* Phase noise at 10kHz bias: -118 dBc/Hz
*81 dB W-CDMAACLR Dynamic range
Analysis bandwidth
*40 or 80 MHz analysis bandwidth supports the capture and measurement of complex signals. View:
*-78dB (rated) third order intermodulation
*0.5 dBIF frequency response
*-78dB (rated) third order intermodulation
flexibility
* Flexible platform with 16 optional and easy to use built-in measurement software PSA Measurement software
* Power Suite One-click power measurement for more than 20 wireless systems PSA Power Suite one-click power measurement
Description
The E4440 series measures complex RF and microwave signals in the range.
E4443A 3Hz-6.7GHz
E4445A 3Hz-13.2GHz
E4440A 3Hz-26.5GHz
E4447A 3Hz-42.98GHz
E4446A 3Hz-44GHz
E4448A 3Hz-50GHz
Brand new! HSDPA/HSUPA measurement parts
Brand new! Built-in receiver special parts
View a PSA High bandwidth digital Converter video demonstration
Learn about one-button power measurement
Learn about 40/80 MHz bandwidth digitizer
Learn more about PSA calibration software
Main features:
Dynamic range
*-166dBm Display Average noise level (DANL)
*+17dBm third-order Intermodulation (TOI) (+19 dBm typical)
*-116dBc/Hz phase noise (10 kHz offset) (-118dBc/Hz typical)
precision
*±0.62 dB absolute amplitude accuracy (±0.24 dB typical)
*±0.38 dB frequency response (±0.11 dB typical)
*± 0.07dB logarithmic amplification linearity
Speed:
* Fast low-level parasitic search
*<30ms fast ACP measurement
*50 measurements/second local update rate, 45 measurements/second remote measurement
Standard features:
For more features and information, please refer to the PSA Series brochure
* Full digital IF with automatic range function
* Phase noise optimization
* Complete detector kit
*160 resolution bandwidth Settings (10% step)
*2dB stepping attenuator
*FFT and sweep measurement modes
* Gate pass sweep frequency
* Full set of single key power measurements
EMI measurement with built-in CISPR and MIL standard pre-compatible EMI detector and bandwidth
Optional features:
*40MHz or 80MHz bandwidth digital converter
* Built-in preamplifier (option 1DS: 100 kHz-3 GHz; Options 110: 10 MHz - 6.7 GHz)
* Easy to use built-in PSA series measurement key
* Modulation analysis and link to 89601A vector signal analysis software
