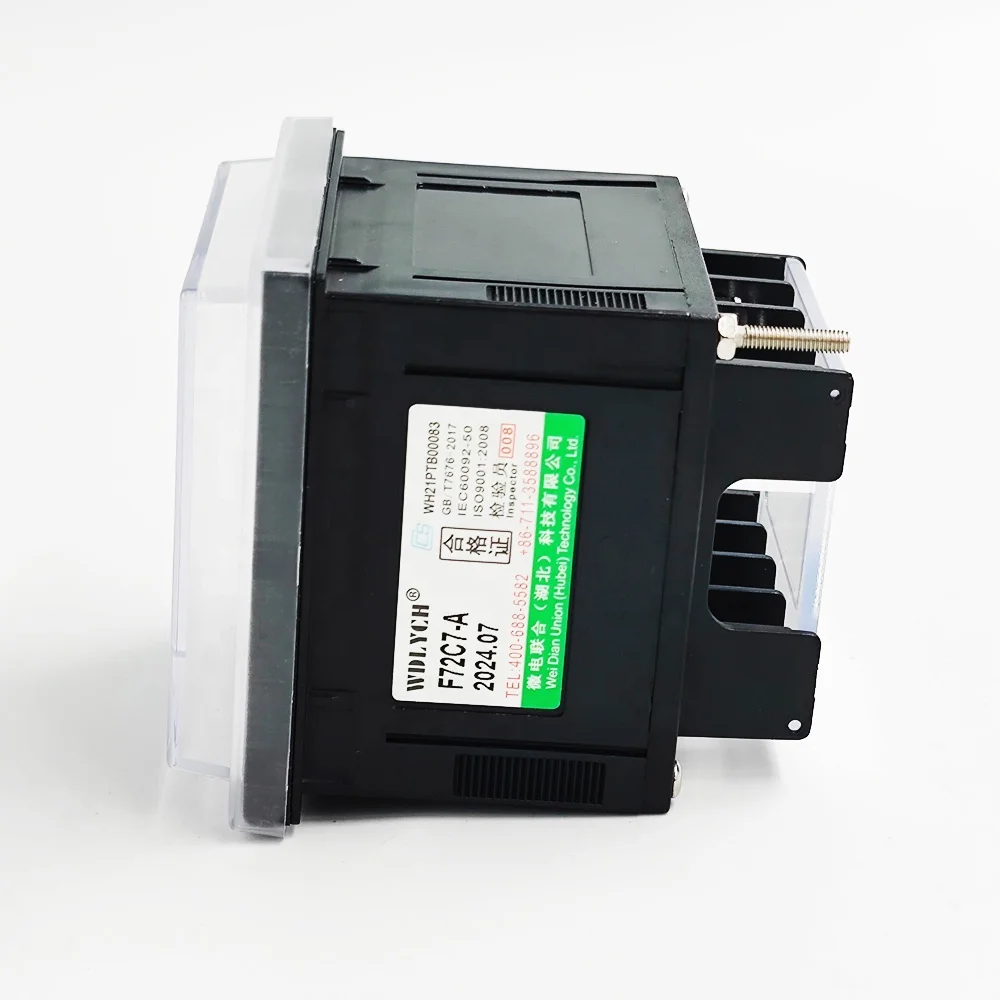

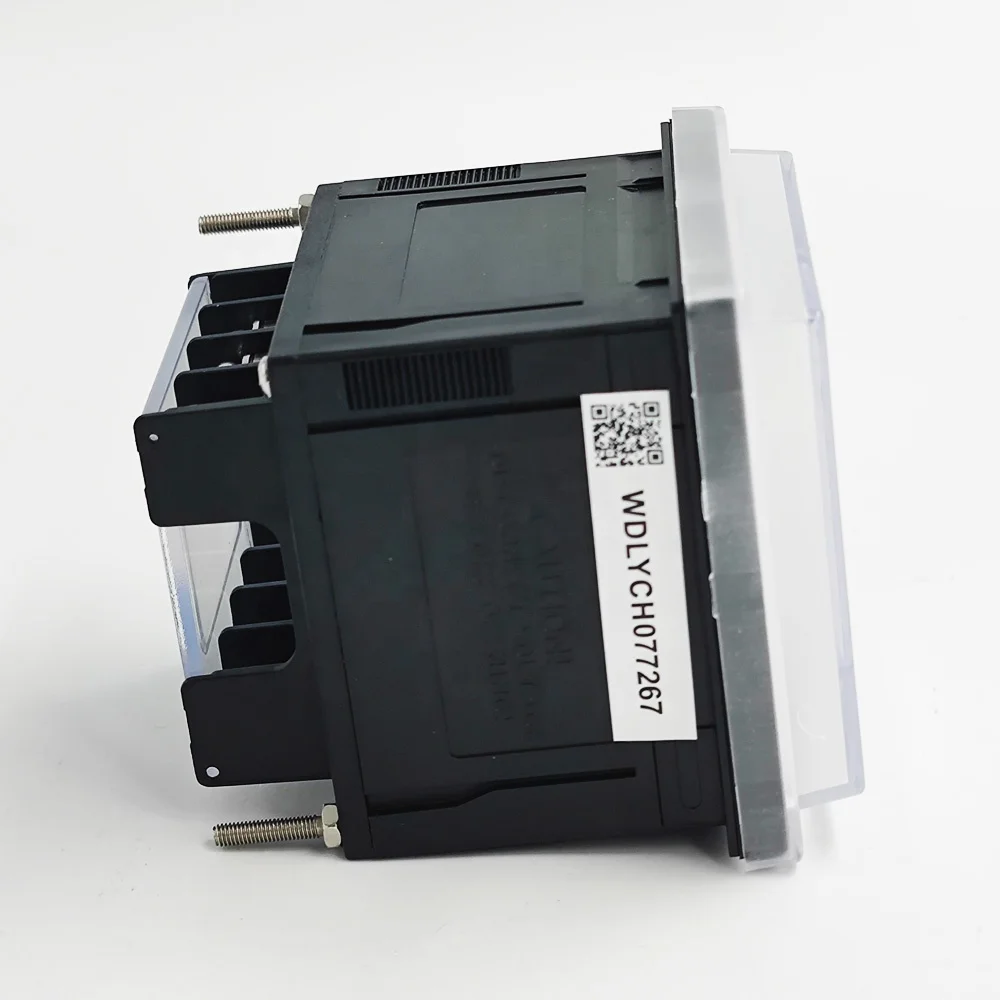

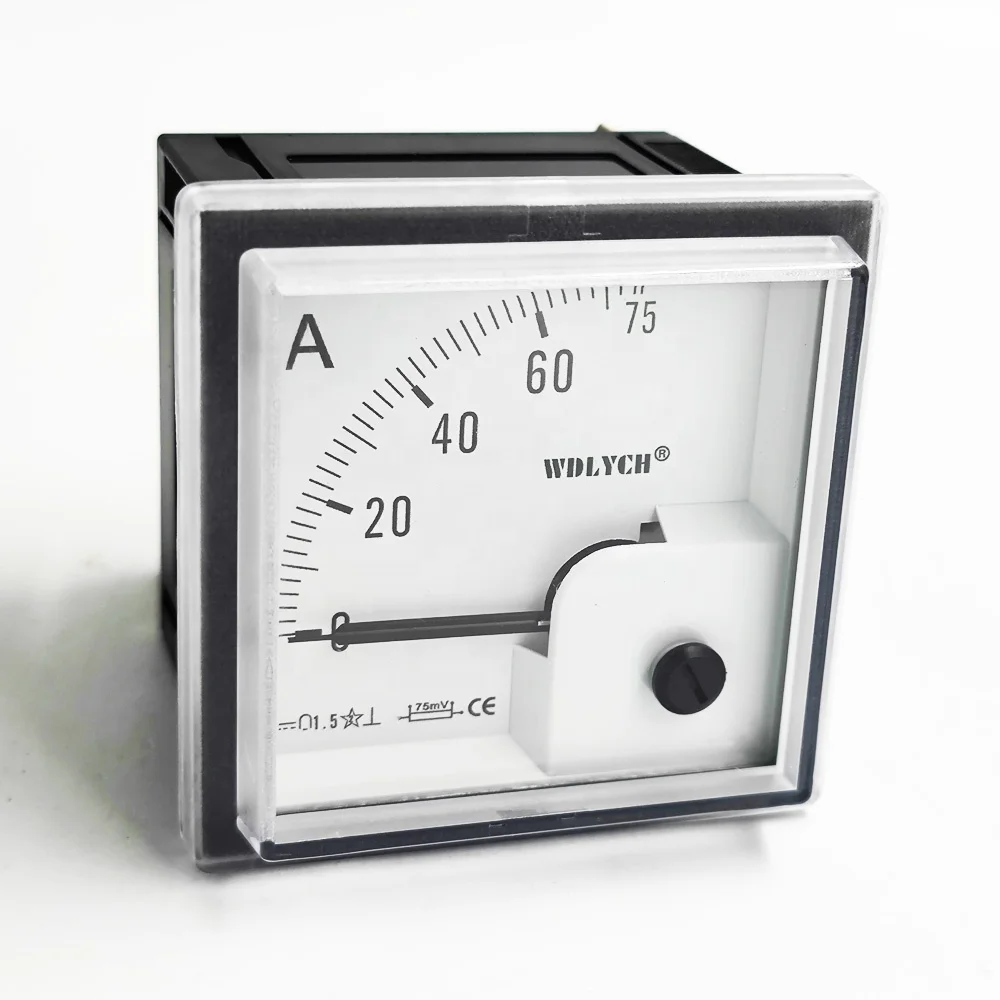

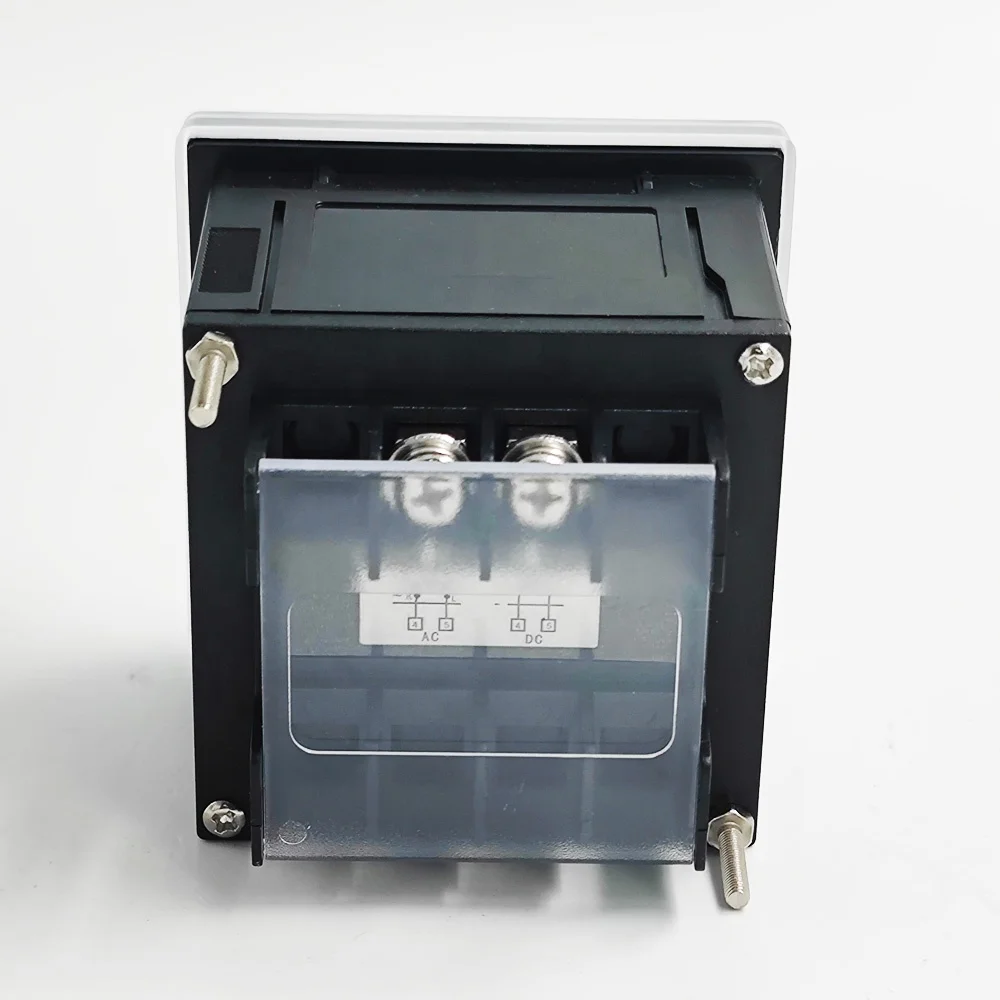

Factory Custom Panel Analog 72mm 75MV 0-70A Ammeter Current Ampere Meter for Marine System
The moving coil, analog type meters, WD 48/72/96/110/80 housed in molded polycarbonate cases are suitable for the measurement of AC currents and voltages. Moving coil rectifier instruments measure average values and are calibrated to indicate RMS values, assuming a sinusoidal waveform for frequencies from 40 to 10000 Hz (AC current for frequency range of 40 to 1000 Hz and AC voltage for frequency range of 40 to 1000 Hz. These instruments offer several advantages in switchboards and generating set panels. A number of meters can be mounted in a panel cut-out (mosaic mounting). Front glass, bezel & dial can easily be replaced.Technical Data
Model | Dimensions | Measurement Range |
WDZ96-ACA | 96*96mm | 0-9000A(By CT, 2rd current 5A,1A,0.5A ) |
WDZ72-ACA | 72*72mm | |
WDZ96-DCA | 96*96mm | 0-3000A(By Shunt, 2rd current 50mV,75mV) |
WDZ72-DCA | 72*72mm |
Specification
Product name | Marine Type 72mm Analog DC Ammeter |
Indicating Angle | 90° |
Color of Shell | Black/white , board frame , terminal plate : Black |
Color of Dial Plate | Black/white, other colors are available on requests |
Function | Used for measuring AC/DC current measurement |
Temperature | -13-33℃, 100% comply with accuracy class |
Overshoot | Less than 20% when scale reaches to 2/3 |
Insulation | Circuit & shell: AC2600V/1 minute(Water area) |
Vibration | 24.5m/s2 |
Impact Resistance | 147m/s2 |
Material | Shell/terminal board: ABS; Cover: Transparent Glass |
Technical Standards | GB/T7676-1998 |
Environment | GB8355-1987 |
Safety Standards | GB4793-20 |
Working Temperature | -40℃-65℃ |

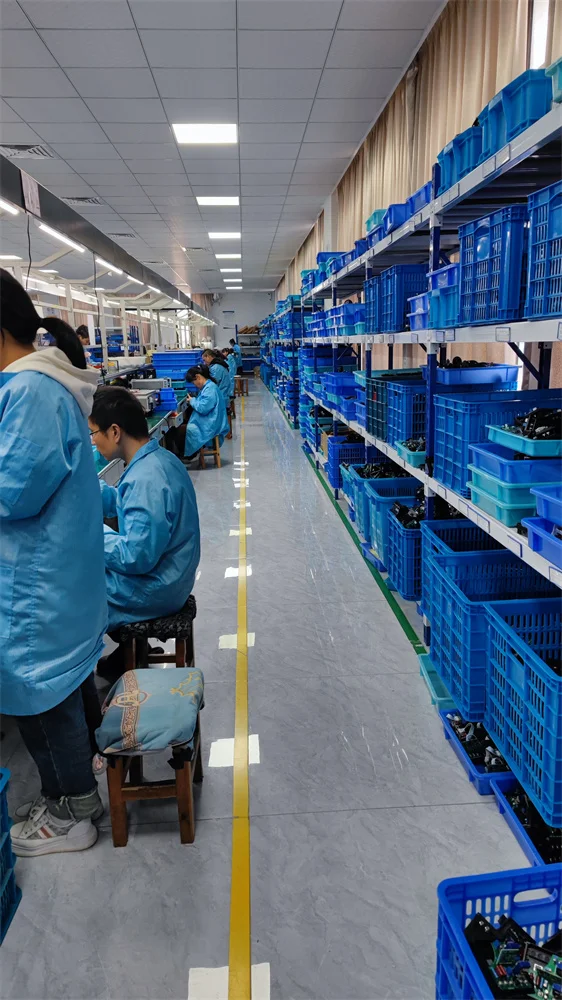

Company Profile

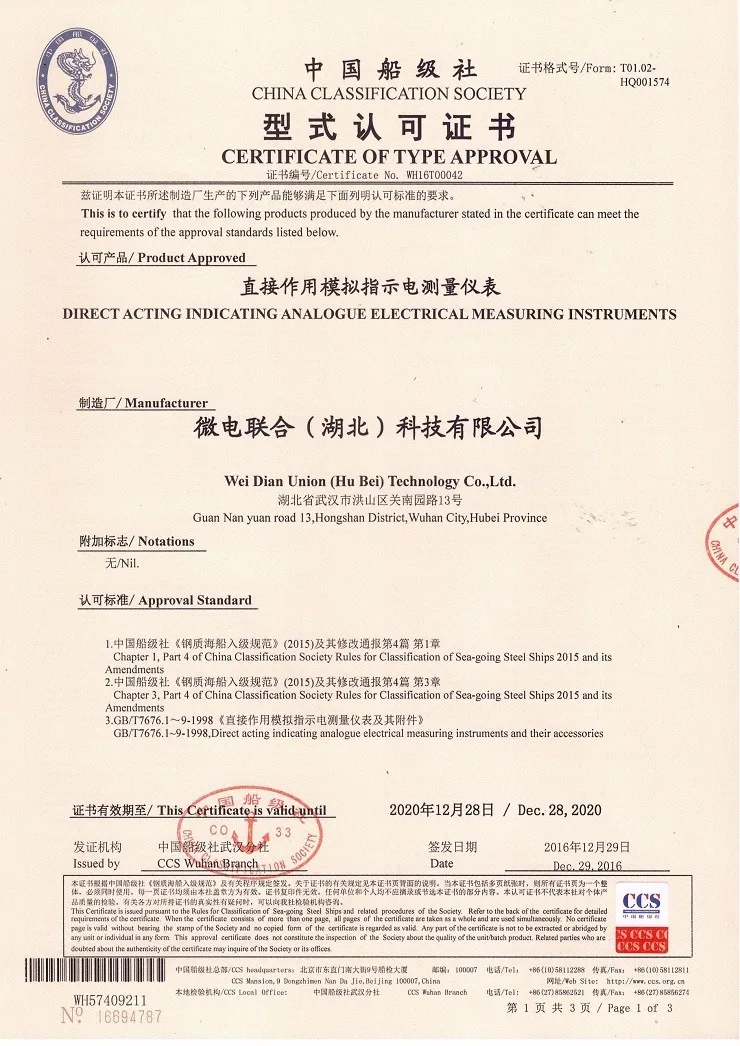

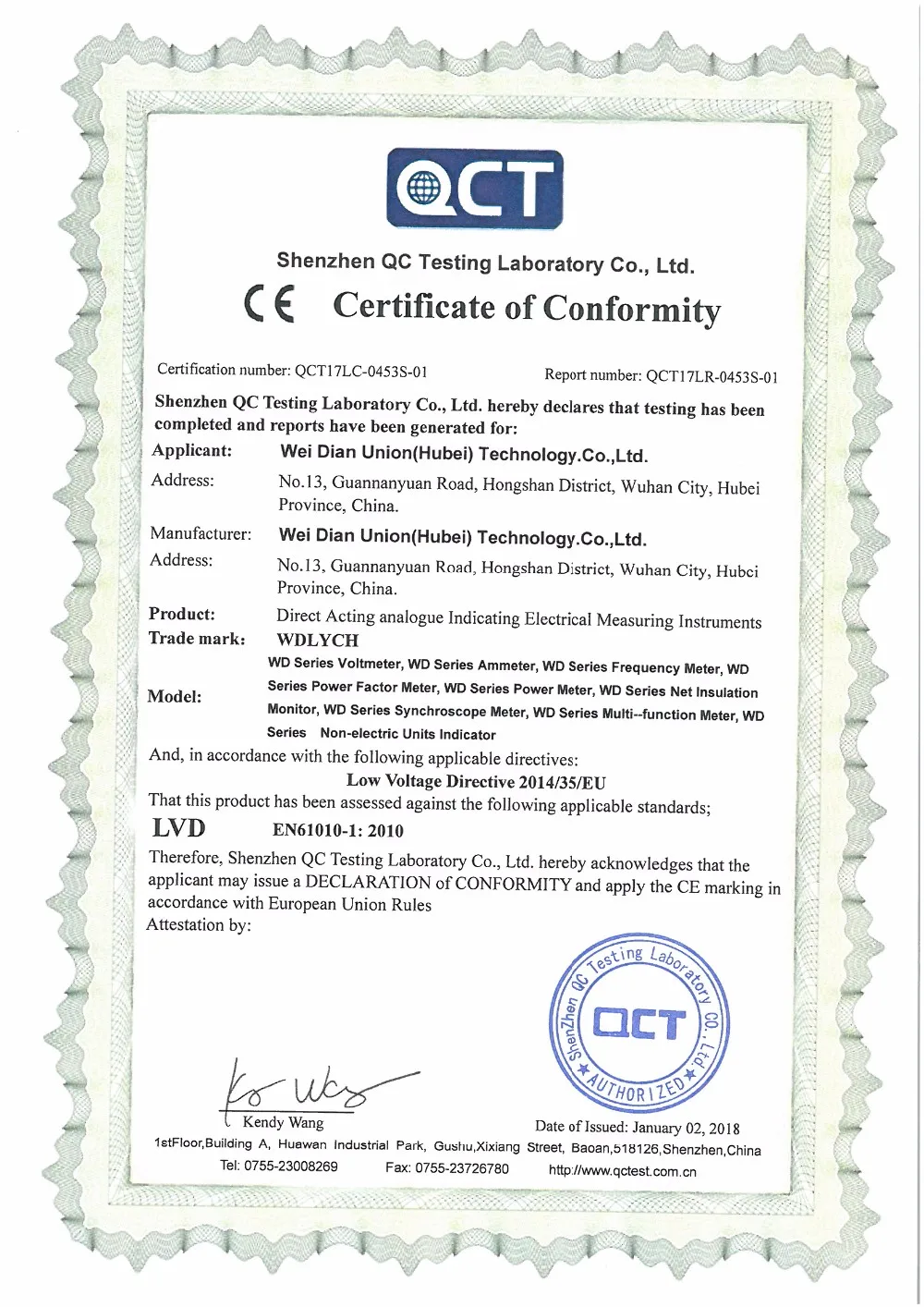

Wei Dian Union(Hubei) Technology Co.,Ltd. Located in Optics Valley of China--- Wuhan East lake high-tech development Zone,established in 2008, with factory area of 5000 ² and 120 employees. We are the member of National Standardization Committee for Electric Meters & Instruments. Wei Dian Union are specialized in manufacturing electric measuring instrument and current transformer with a concentration in R&D, Production, sales & after sales, which guarantee us strictly comply with standard of GB/T22264-2008 & GB/T7676-98 to operate. Now , we have ISO9001-2008 certificate, digital meter have passed CE, while marine meter approved by China Classification Society (CCS).Our products are widely used in transmission & distribution power system of shipping, aviation, railway, oil, chemistry, metallurgy, electric, power station, intelligent building, industrial instrument,etc. With the principle of "Pursuing for precision and perfection, unifying thinking and behavior ", continuous exploration and innovation to meet customers' demands. Reliable quality and good after-service receive more and more trust from users.

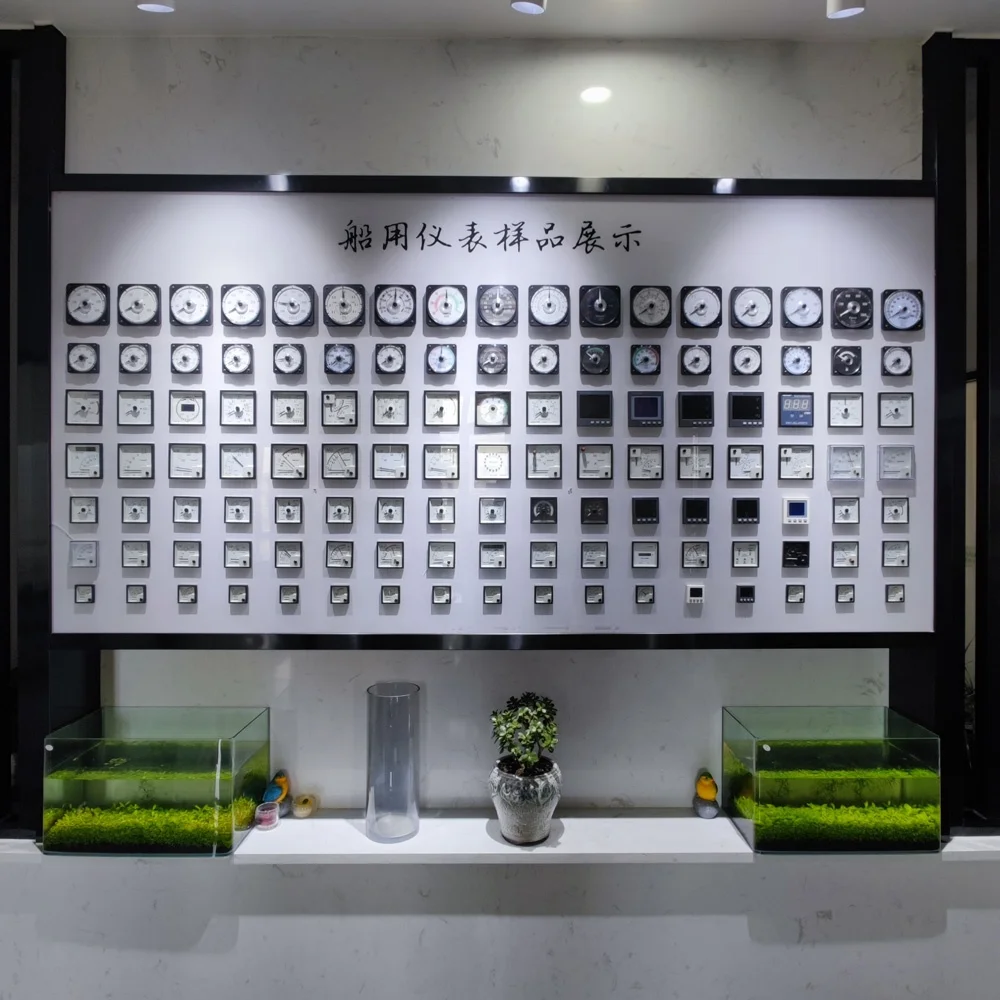

Product List
Analog Panel Meters / Digital Meters:
Land Type / Marine Type Voltmeter, ampere/current meters, frequency meters, power meters, reverse power relay, power factor meters, power transducer, electric meters, non-electric measuring meters, SZT synchroscrope meters, net insulation monitors, rudder angle meters, temperature meters, phase sequence meters, time delayed alarm meters, tachometers, pressure meters, CSD type marine transformer, current transformer, shunt, marine type voltage transformer etc. Meters can be customized as your requirements.
Land Type / Marine Type Voltmeter, ampere/current meters, frequency meters, power meters, reverse power relay, power factor meters, power transducer, electric meters, non-electric measuring meters, SZT synchroscrope meters, net insulation monitors, rudder angle meters, temperature meters, phase sequence meters, time delayed alarm meters, tachometers, pressure meters, CSD type marine transformer, current transformer, shunt, marine type voltage transformer etc. Meters can be customized as your requirements.

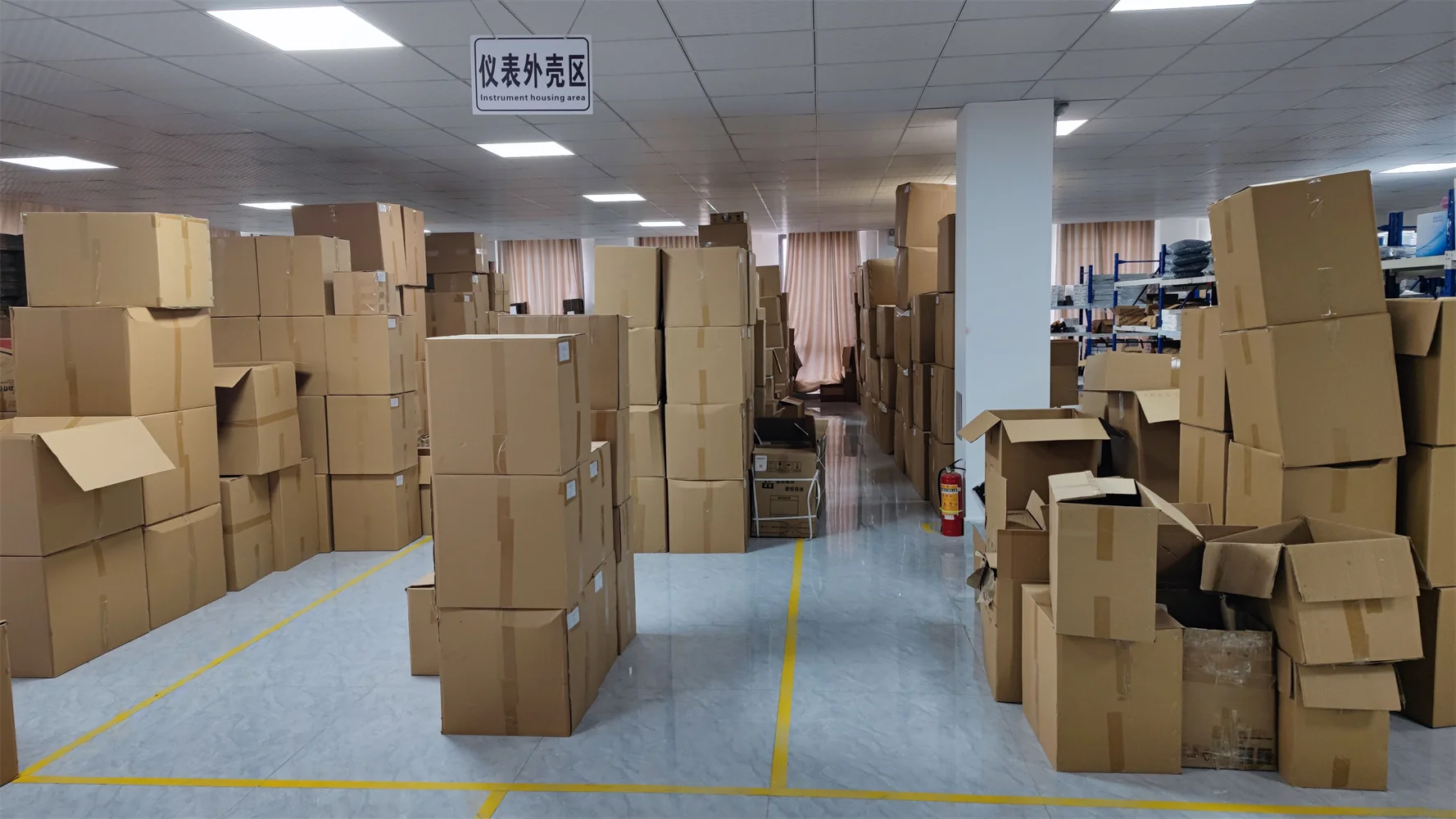

Packing
