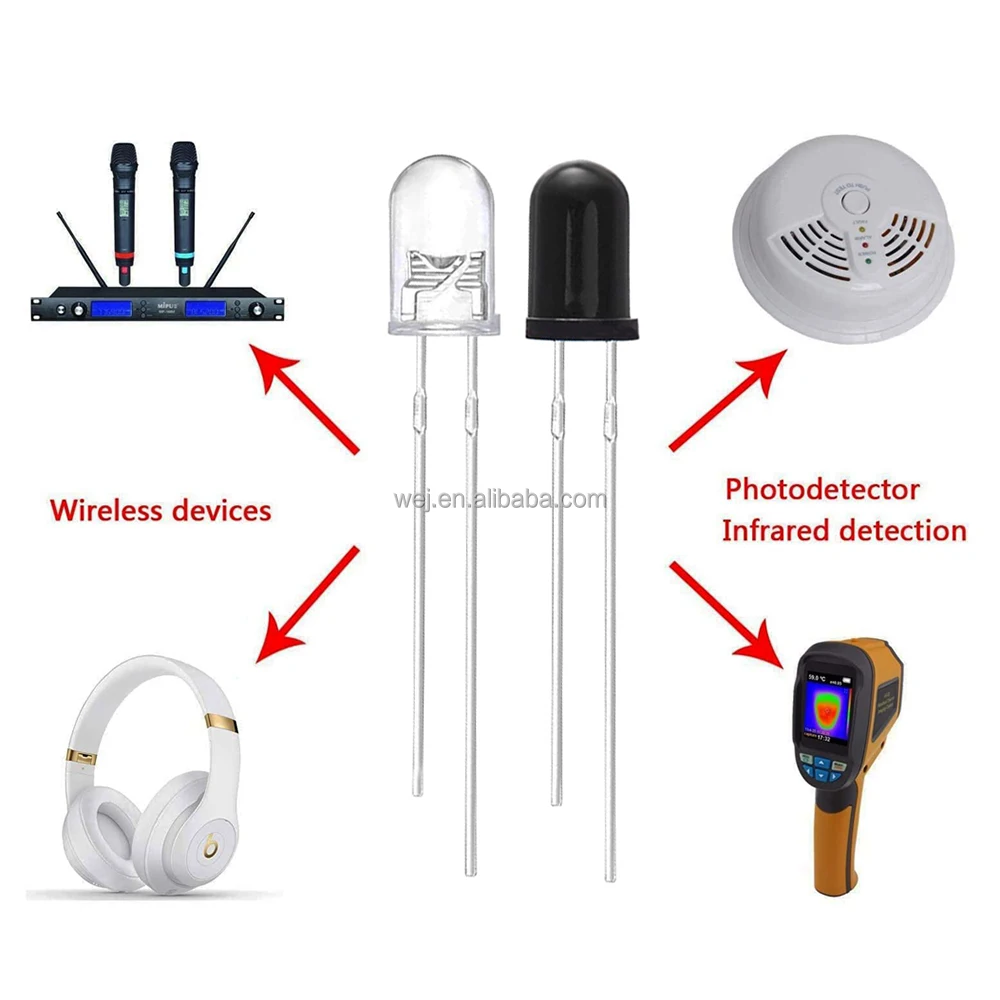

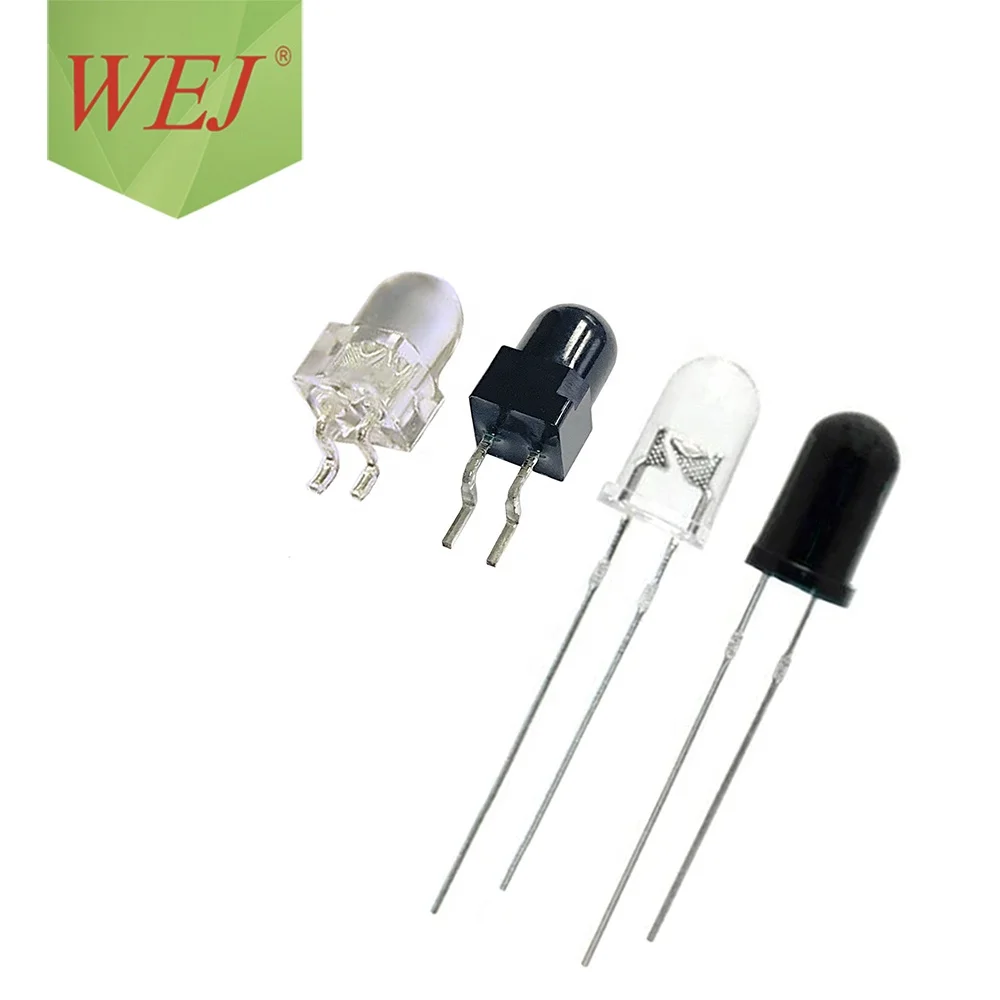

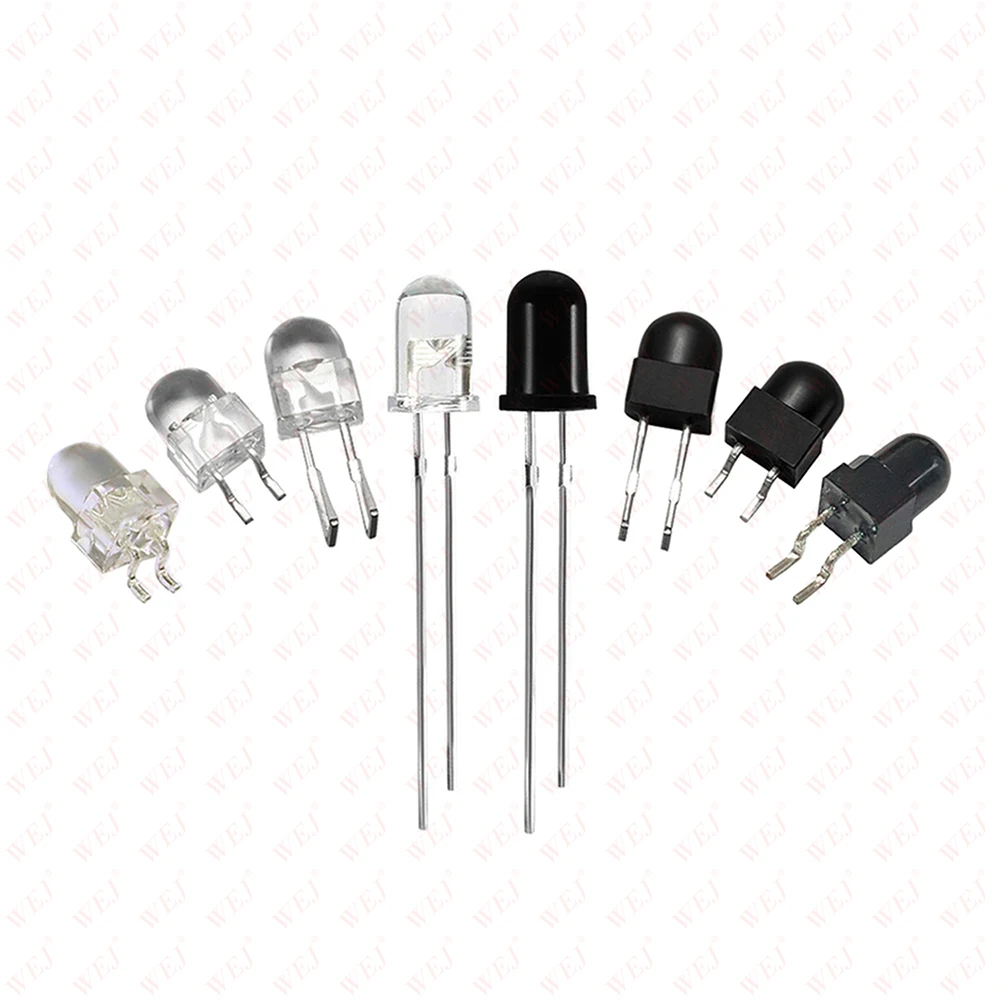

5mm DIP 850nm 940nm IR infrared photodiode led through hole transmitter and Receiver Diode for smoke detector/light curtains/
- Category: >>>
- Supplier: Shenzhen Yongerjia Industry Co. Ltd.
Share on (1601203882297):
Product Overview
Description
Product Description

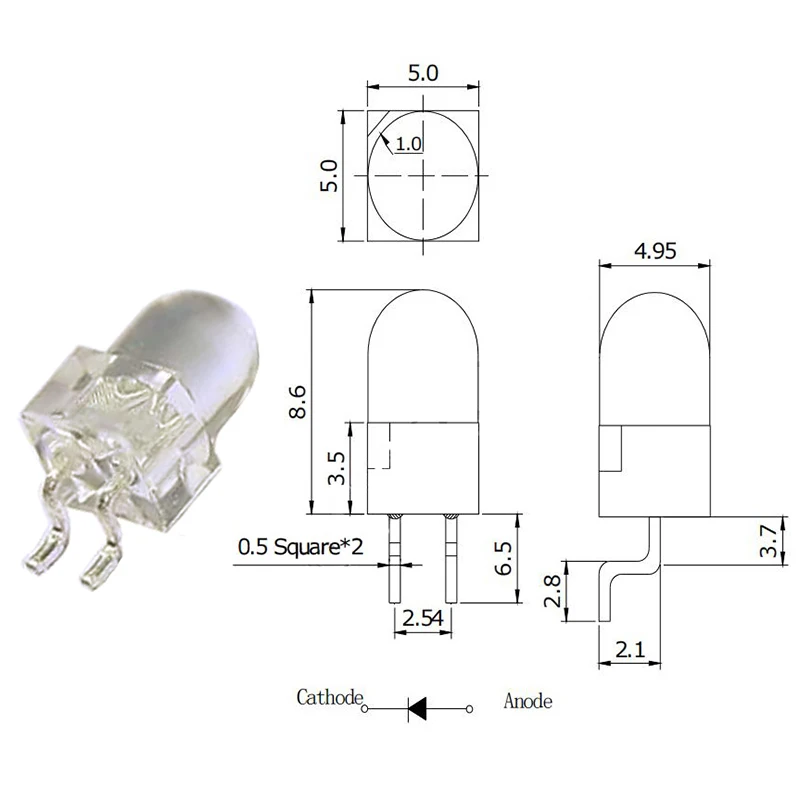

Model Number | WEJ5C3JC-T4A-2 | WEJ563JC-T4A-DZ |
Forward Current | 100mA | 100mA |
Forward Voltage | 1.1-1.2V @50mA | 1.1-1.2V @50mA |
1.2-1.5V @100mA | 1.2-1.5V @100mA | |
Radiant Intensity | 90-170mW/Sr @50mA | 14-16mW/Sr @50mA |
150-270mW/Sr @100mA | 30-35mW/Sr @100mA | |
Peak Wavelength | Typ: 850nm | Typ: 850nm |

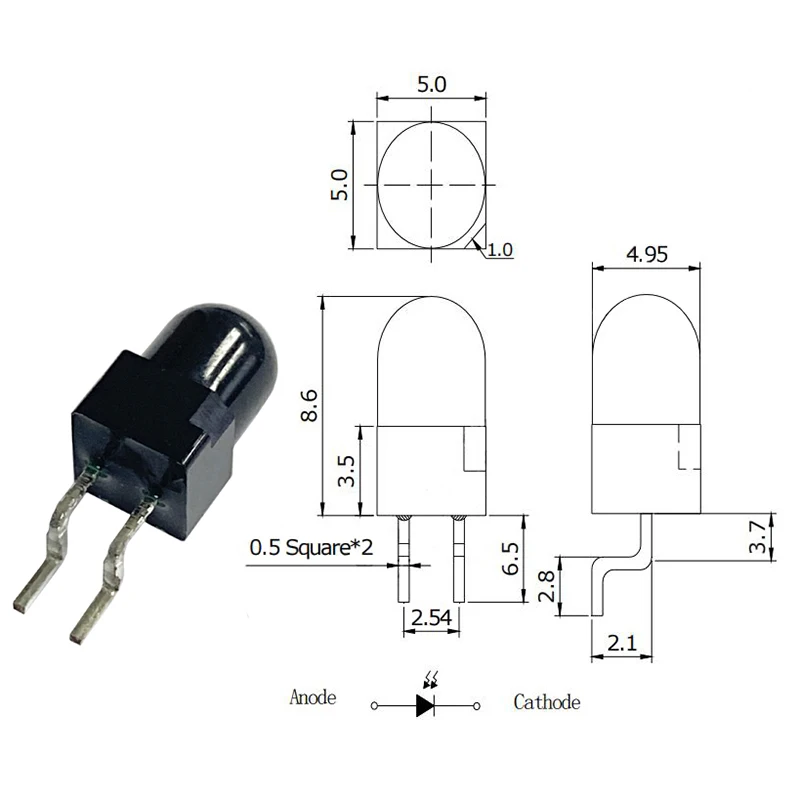

Model Number | WEJ5CAPD-K64-8 | WEJ56APD-K60-DZ |
Range Of Spectral Bandwidth | 700-1000nm | 860-1000nm |
Wavelength Of Peak Sensitivity | Typ:850nm | Typ:940nm |
Reverse Light Current | 25-45uA | 10-20uA |
Rise Time/Fall Time | Typ:45/45nS Max:50/50nS | Typ:45/45nS Max:50/50nS |

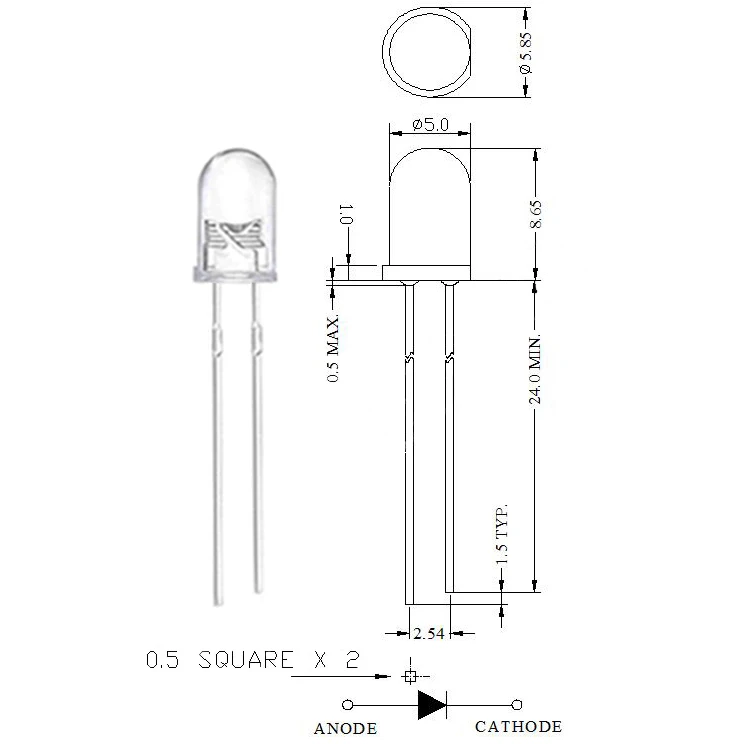

Model Number | WEJ504JC-E0J1 | WEJ503JC-T2A |
Forward Current | 100mA | 100mA |
Forward Voltage | 1.4-1.65V @20mA | 1.2-1.4V @20mA |
1.4-1.8V @100mA | ||
Radiant Intensity | 90-110mW/Sr @20mA | 20-28mW/Sr @20mA |
85mW/Sr @100mA | ||
Peak Wavelength | Typ: 850nm | Typ: 850nm |

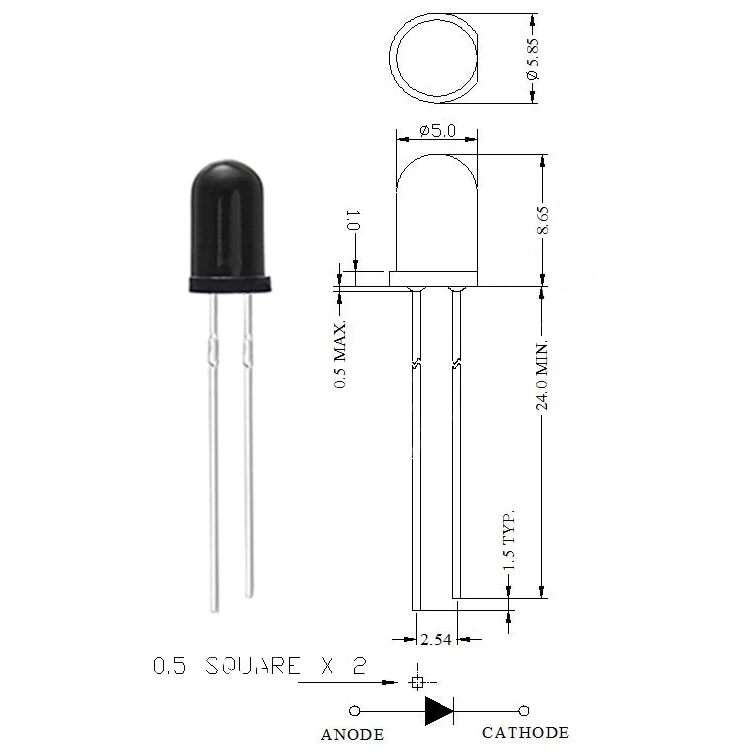

Model Number | WEJ503PD-60J1 | WEJ503PD-K60 |
Range Of Spectral Bandwidth | 700-1000nm | 860-1000nm |
Wavelength Of Peak Sensitivity | Typ:850nm | Typ:940nm |
Reverse Light Current | 10-25uA | 20-30uA |
Rise Time/Fall Time | Typ:50/50nS | Typ:5/5nS |
For more product details please contact us
