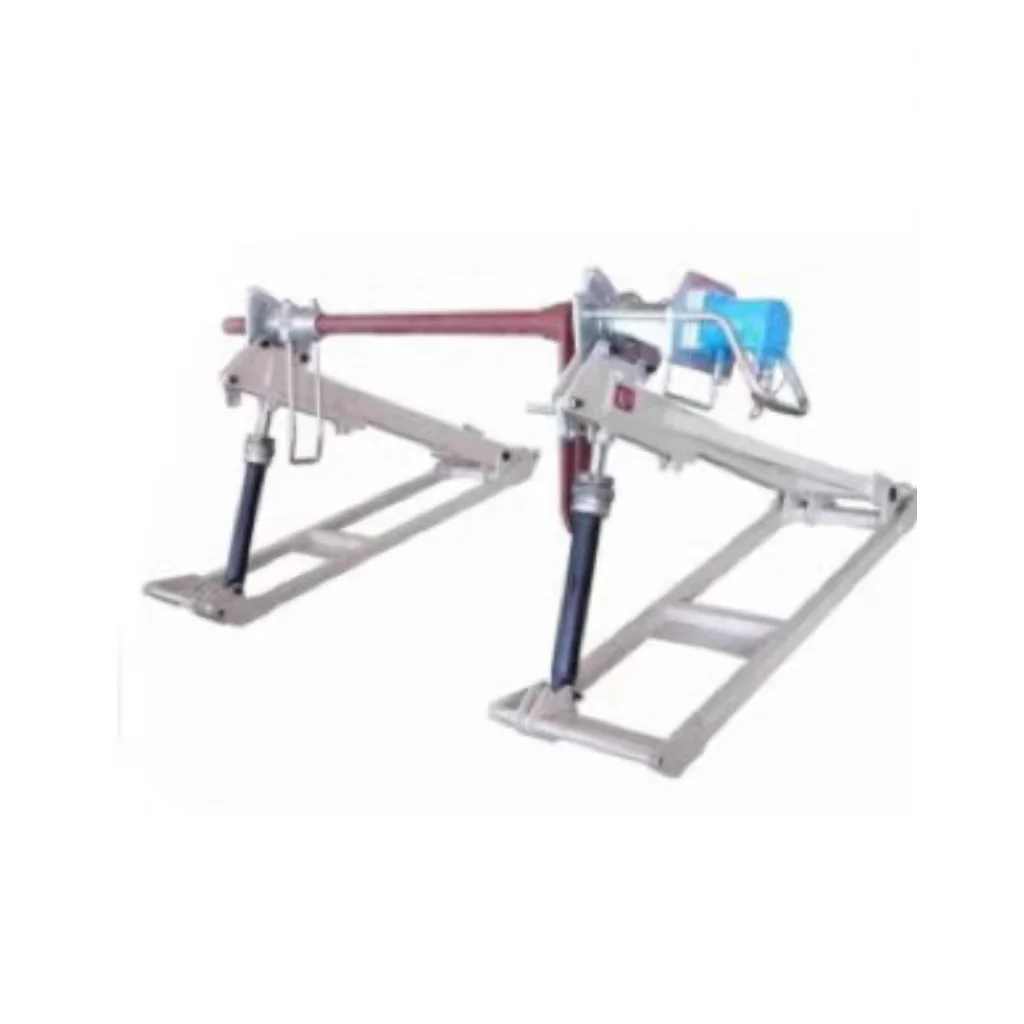

Hydraulic Conductor Reel Stands
- Category: >>>
- Supplier: Ningbo Donghuan Power Technology Co. Ltd.Ningbo Ltd.
Share on (1601203966800):
Product Overview
Description
| Item No. | 15151 | 15152 | |
| Model | SIPZ-5H | SIPZ-7H | |
Applicable Cable Reel | Diameter(mm) | Φ1250~2240 | Φ1250~2500 |
| Max plate width(mm) | 1400 | 1400 | |
| Hole Diameter(mm) | Φ80~125 | Φ80~125 | |
| Max weight(KG) | 5000 | 7000 | |
| Max working torque(N.m) | 1200 | 2000 | |
| Max speed(rpm) | 45 | 45 | |
| Axle diameter(mm) | Φ76 | Φ76 | |
| Length of hydraulic tube(m) | 13 | 13 | |
| Weight(KG) | 270 | 350 | |
Explain:Connect with hydraulic tensioner or hydraulic puller tensioner throught quick coupling.
