Product Overview
Description
System Overview

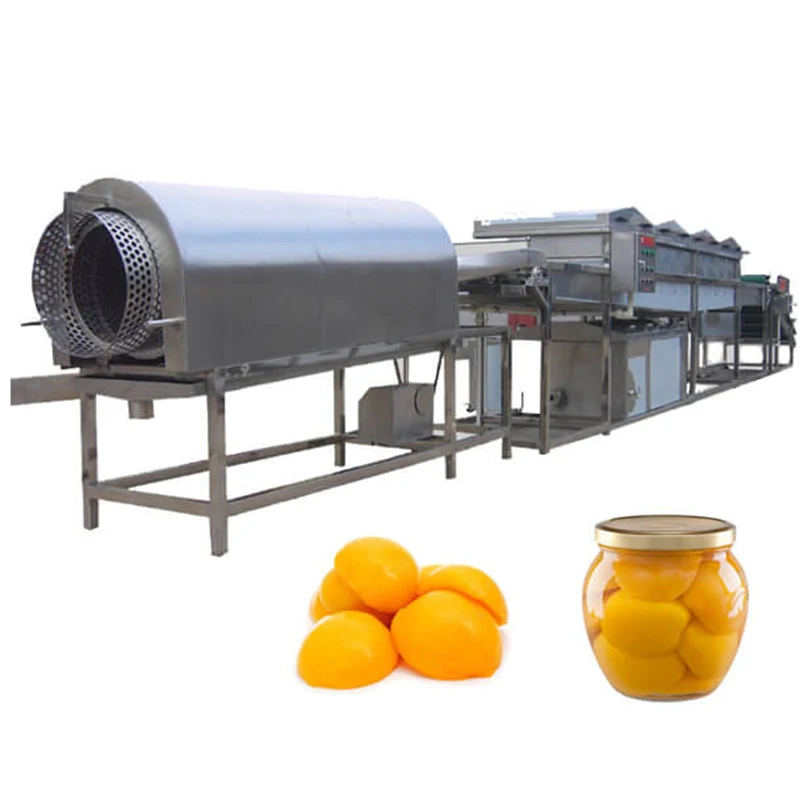

Complete canned yellow peach process line
mainly equipment specification:
| Description | Cpacity | Power | ||
| Yellow peach Brush Turner | 3 | T/H | 1.1 | kw |
| Yellow peach Spiral Precooker | 2 | T/H | 1.5 | kw |
| Yellow peach Alkali Sprinkler | 3-5 | T/H | 3 | kw |
| Yellow peach Mesh Belt Continuous Precooker | 3-5 | T/H | 3 | kw |
| Yellow peach Drum Peeler | 3-5 | T/H | 0.55 | kw |
| Yellow peach splitting machine | 0.4-0.5 | T/H | 1.5 | kw |

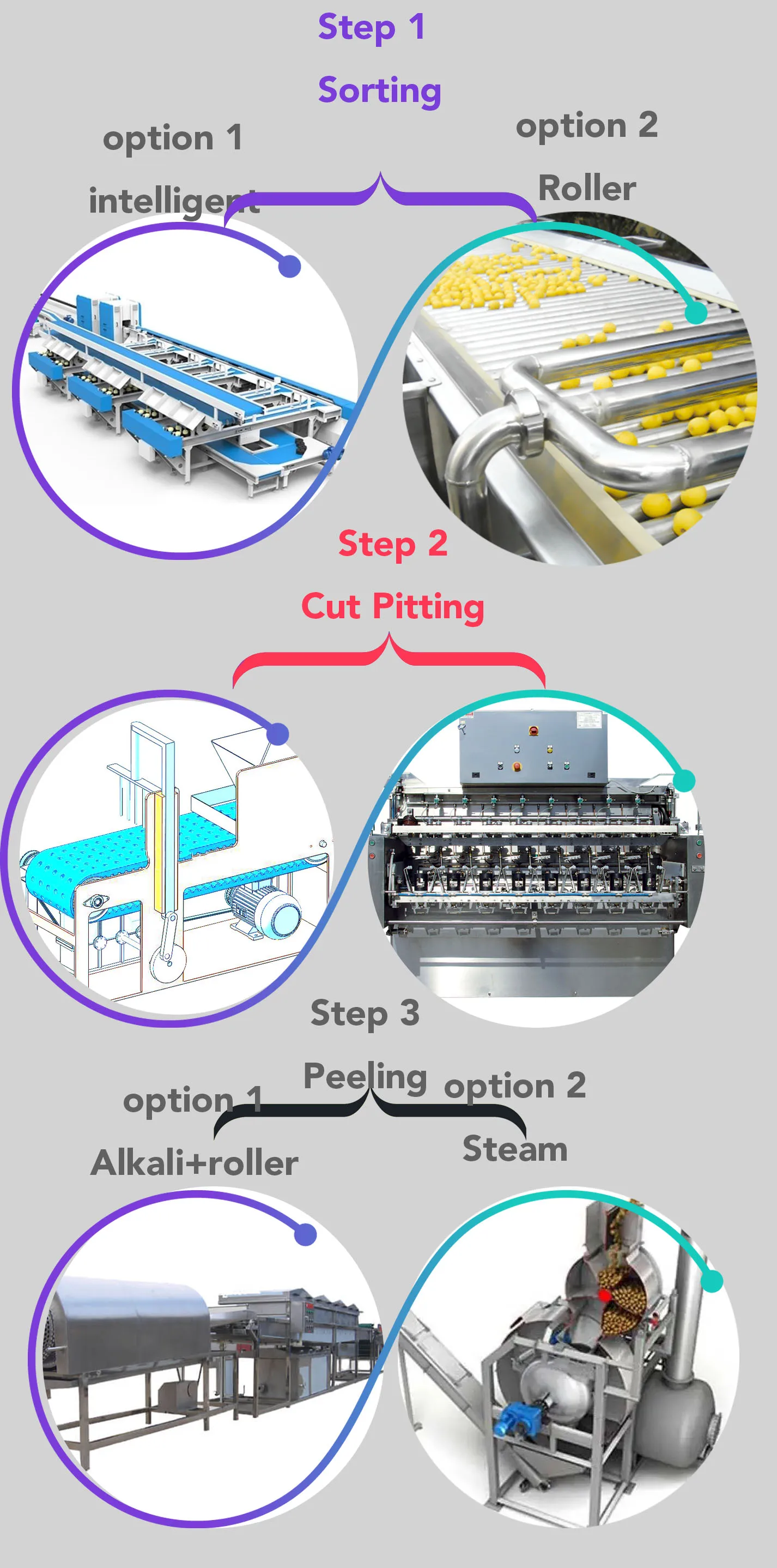

Canned yellow peach process line key equipment overview
Specification
I yellow peach soring system

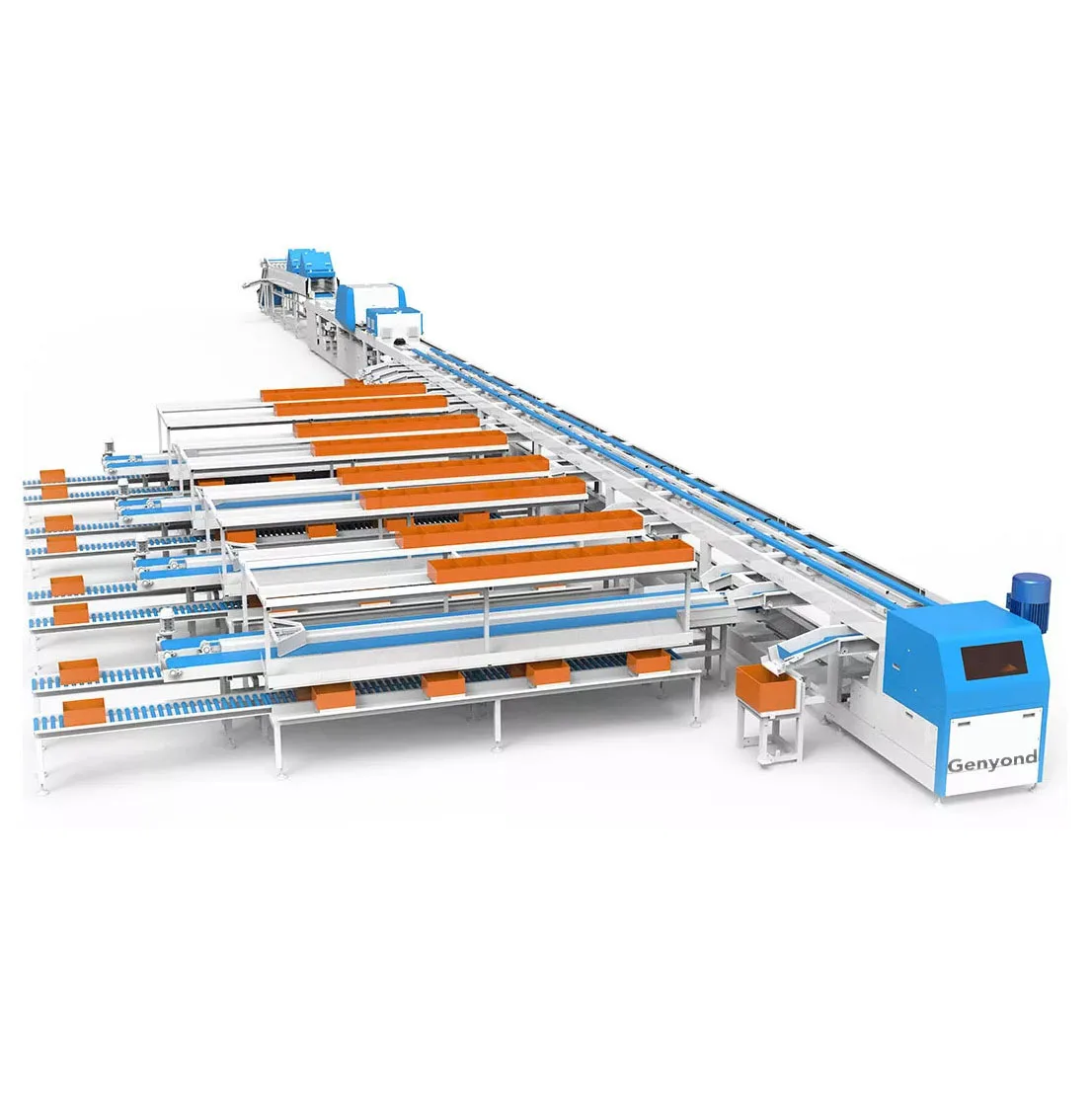

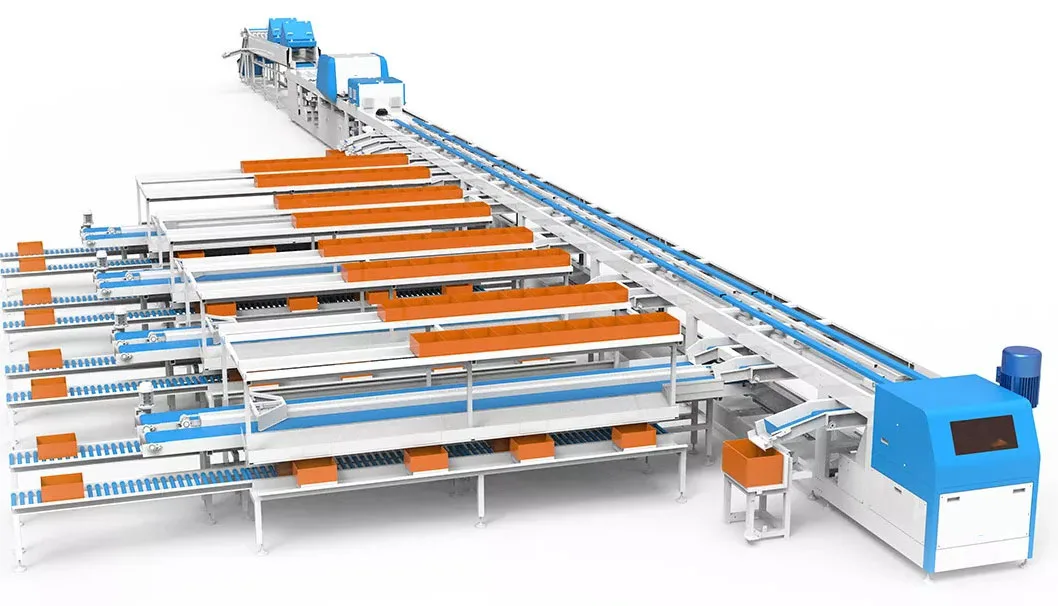

option 1 optical sorting
| Technical parameters | |
| Lane quantity | 1, 2, 4...... |
| Outputs quantity | As per demand |
| Speed | 3pcs/lane/s |
| Grading items | Size, color, exterior defect, weight, shape, interior defect, sugar brix |
I sorting and grade option 2 roller bar grading

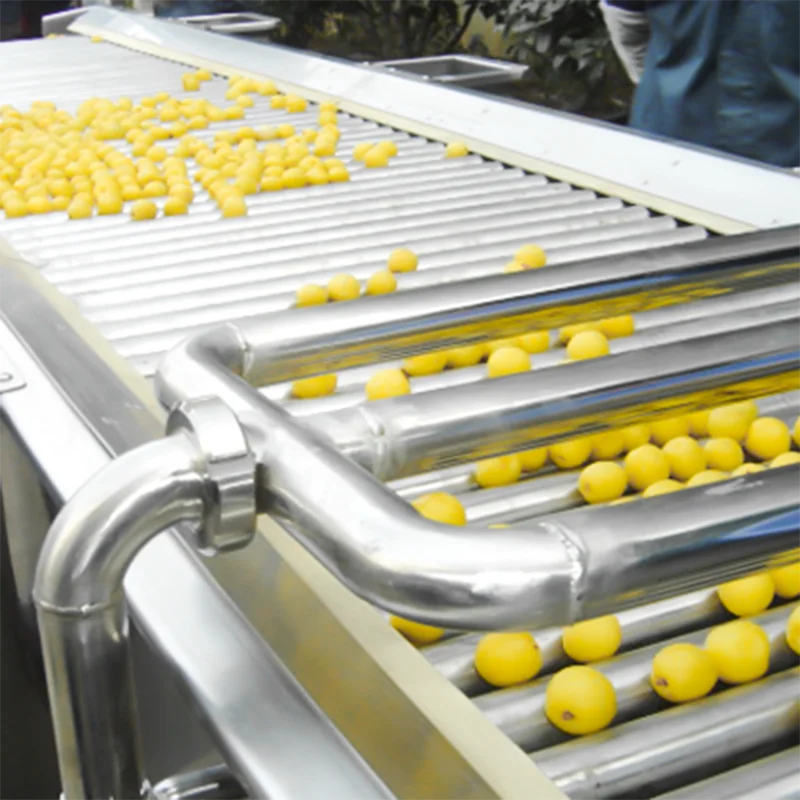

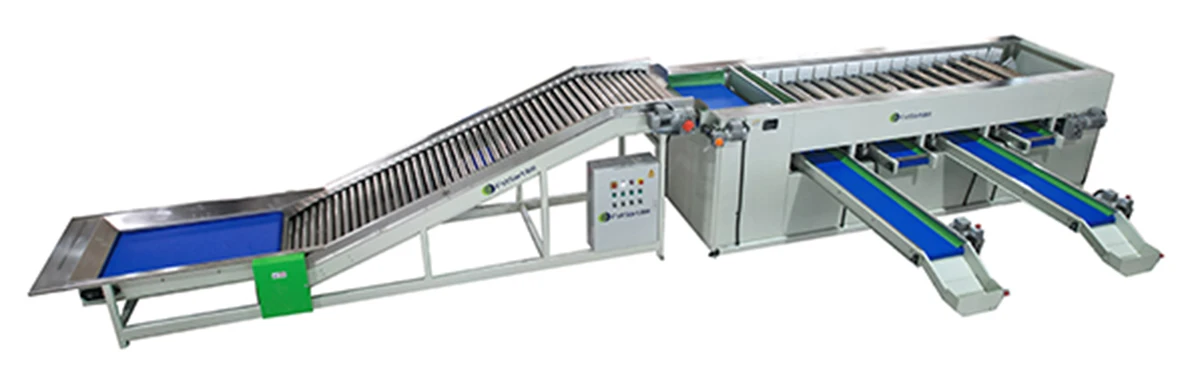

Yellow peach Roller bar grading machine specification
| Model | GG-6000B |
| Scope of application | Peach |
| Dimensions | 9800*5500*1400mm |
| Sorting level | 4 levels. |
| Working efficiency | 6-8t/h |
| Working power | 380V |
| Rated power | 2.9kw |
II Cutting and Pitting

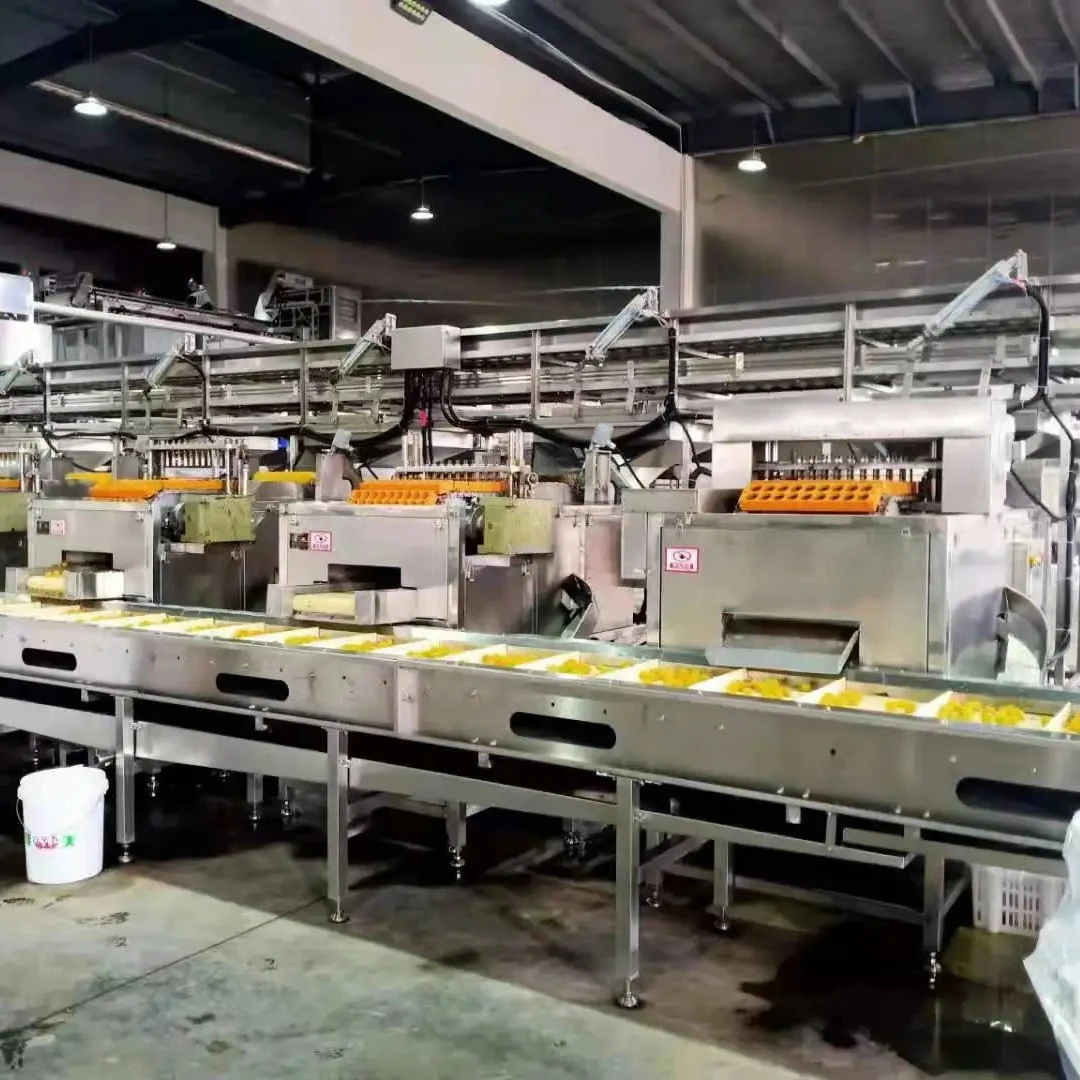

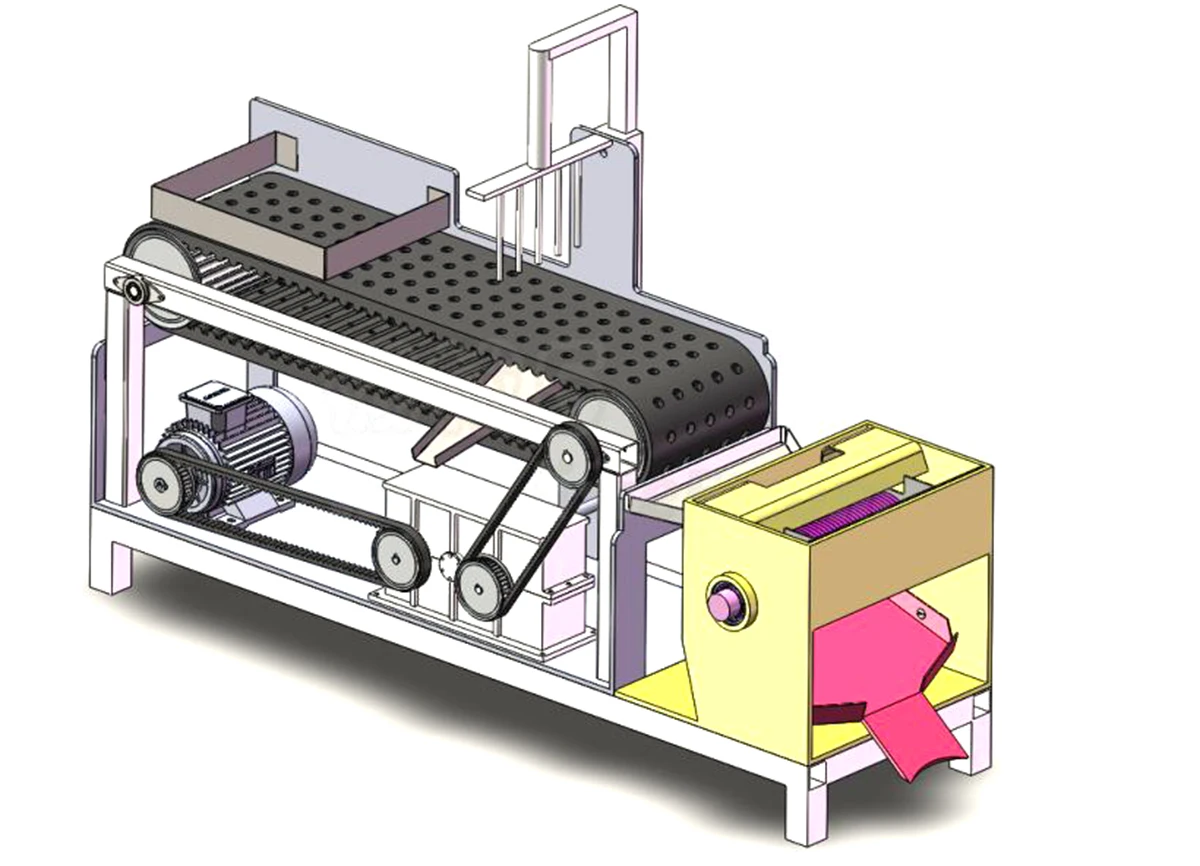

Yellow peach pitting machine specification:
| Model | Application range/Capacity | Power | Dimension | Stone Remove Rate | |||
| HGZ190 | Peach size | 20-30mm | 30-40mm | 40-50mm | 1.5kw | 2300*1280*1250mm | 100% |
| Cpacity (PCS/H) | 58800 | 33600 | 16800 | ||||
| HGZ500 | Peach size | 30-40mm | 2.2kw | 2000*900*1230mm | 99% | ||
| Cpacity (PCS/H) | 37800 | ||||||
III Peeling
option1 alkali plus roller
structure and advantage:

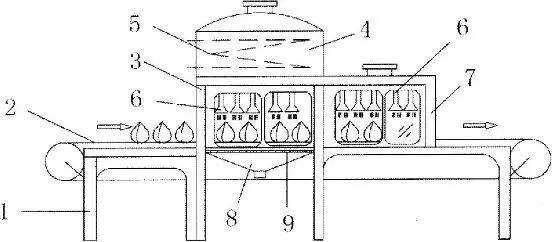

option1 alkali plus roller
structure and advantage:
 | 1. support 3. drenches the alkali device |
Advantage:
1, the pouring alkali device of the utility model is provided with heating storage alkali jar, and heater is equipped with in heating storage alkali jar inside, can add heat alkali liquid automatically, and alkali lye high temperature is at 90-95 ºC, and pericarp scalds under the corrosiveness soaking of high temperature alkaline solution to be accelerated with the pulp separating rate.
2, the pouring alkali bottom of device of the utility model is equipped with the alkali lye retracting device, in the alkali lye retracting device filter screen is housed, and can effectively filter out solid impurities such as pericarp, and alkali lye improves the alkali lye utilization rate through reusable edible after the filtration treatment.
3, pouring alkali device of the utility model and water washing device adopt corrosion-resistant high-pressure atomization spray thrower spray, improve the atomizing effect of interior alkali lye of device and clear water, thereby have improved the contact area of fruit and alkali lye and clear water, accelerate the separating rate of pericarp and pulp.
4, the yellow peach class drupe fruit of the utility model drenches caustic peeling equipment employing two-part spray mode, and fruit sprays thorough rinsing through the high pressure clear water after spraying through alkali lye again, can effectively remove the surplus alkali and the pericarp of fruit surface, has guaranteed product quality.
5, the yellow peach class drupe fruit of the utility model drenches the integration of operation of caustic peeling equipment through transport, pouring alkali device, water washing device and alkali lye retracting device; Improved the peeling efficient of stone fruit; Production capacity is improved; Look different IPs fruit fruit difference to some extent, production capacity is at 3-5t/h.

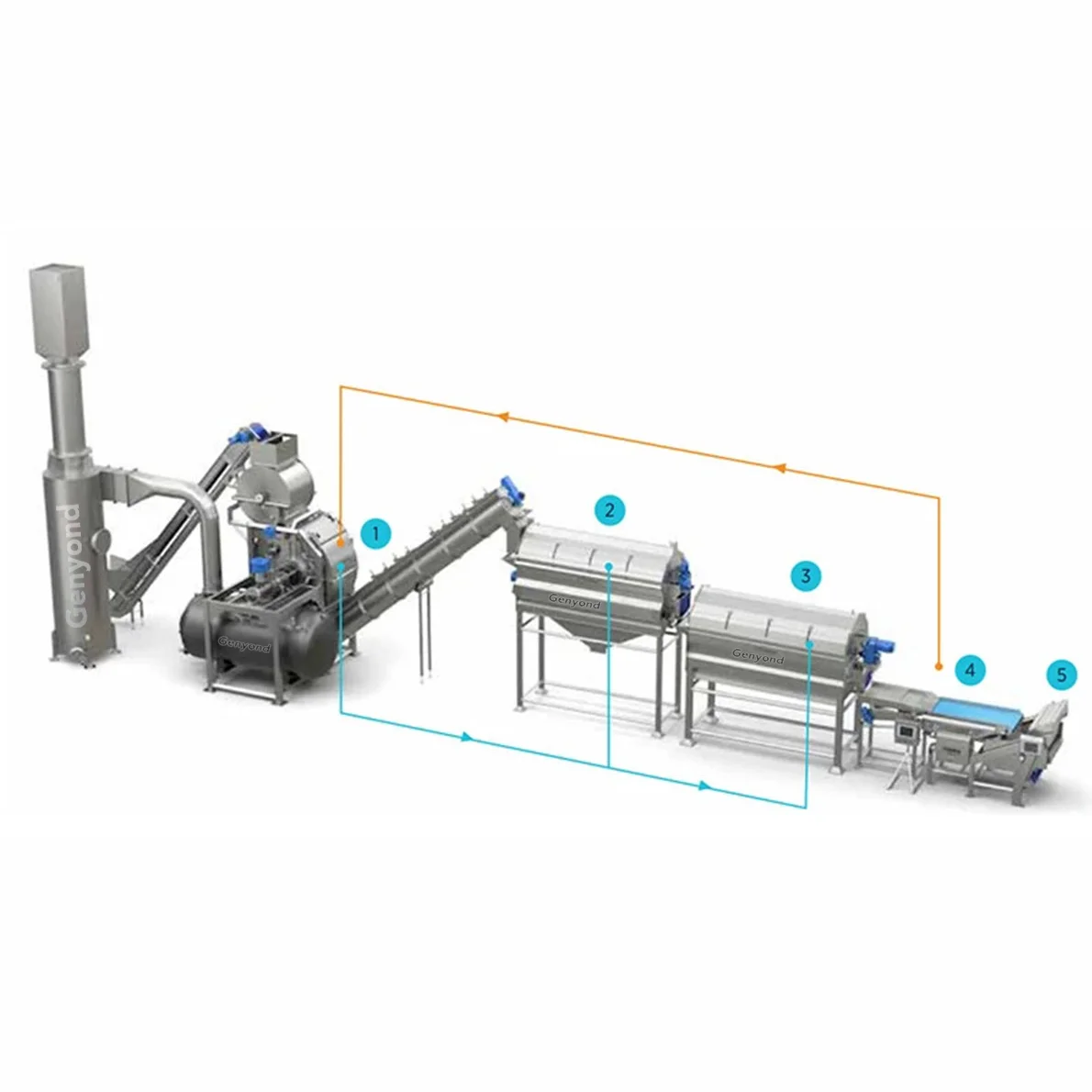

Yellow Peach peeling option2 steam peeler.

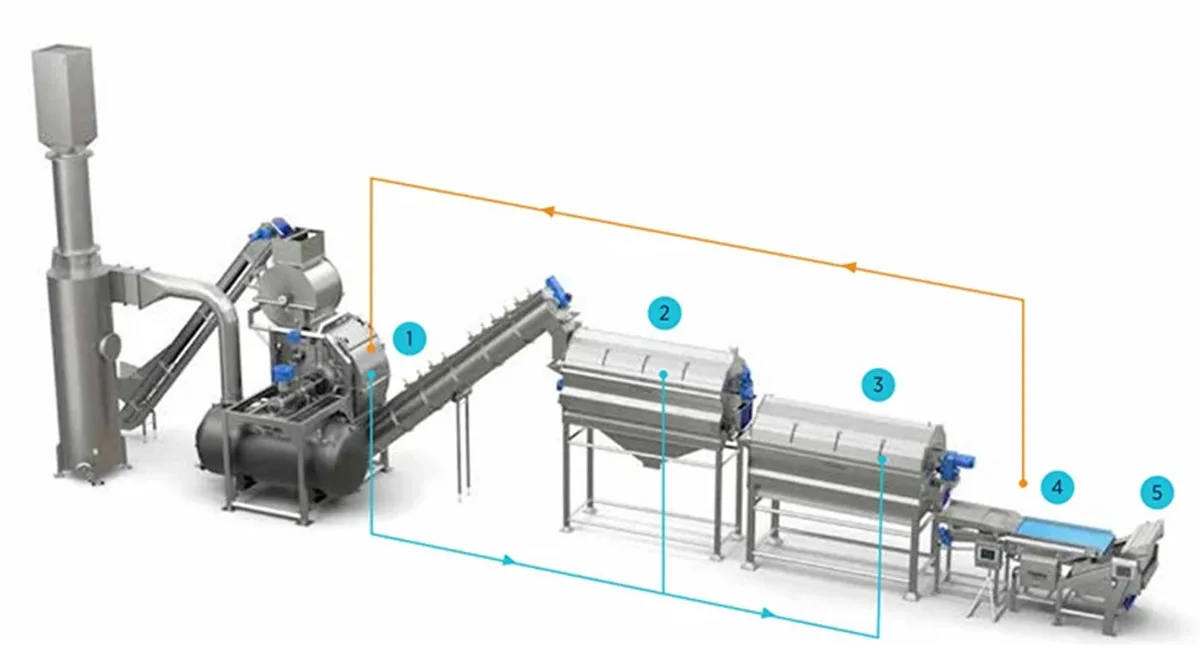

 | 1. steam peeler 2. dry peel separator 3. food washing equipment 4. 5A sorter 5. peel control module |
Steam peeler speciation:
| Pressure tank volume | 0.3 m3(material:16MnR) |
| Steam working pressure | 1.2~1.5MPa |
| Pressure tank working medium | saturated steam |
| Pressure tank temperature | 250°C |
| Pressure tank speed | 8rpm |
| Capacity | 1-20T/H(raw material) |
| Each feed capacity | 100-500kg |
| Total power | 6.2kw |
| Exhaust tank volume | 1 m3(material: Q235) |
| Compressed air | pressure≤0.7Mpa, consumption:0.2m3 |
| Size | L3800*W2700*H4600mm |
| Weight | 3500kg |

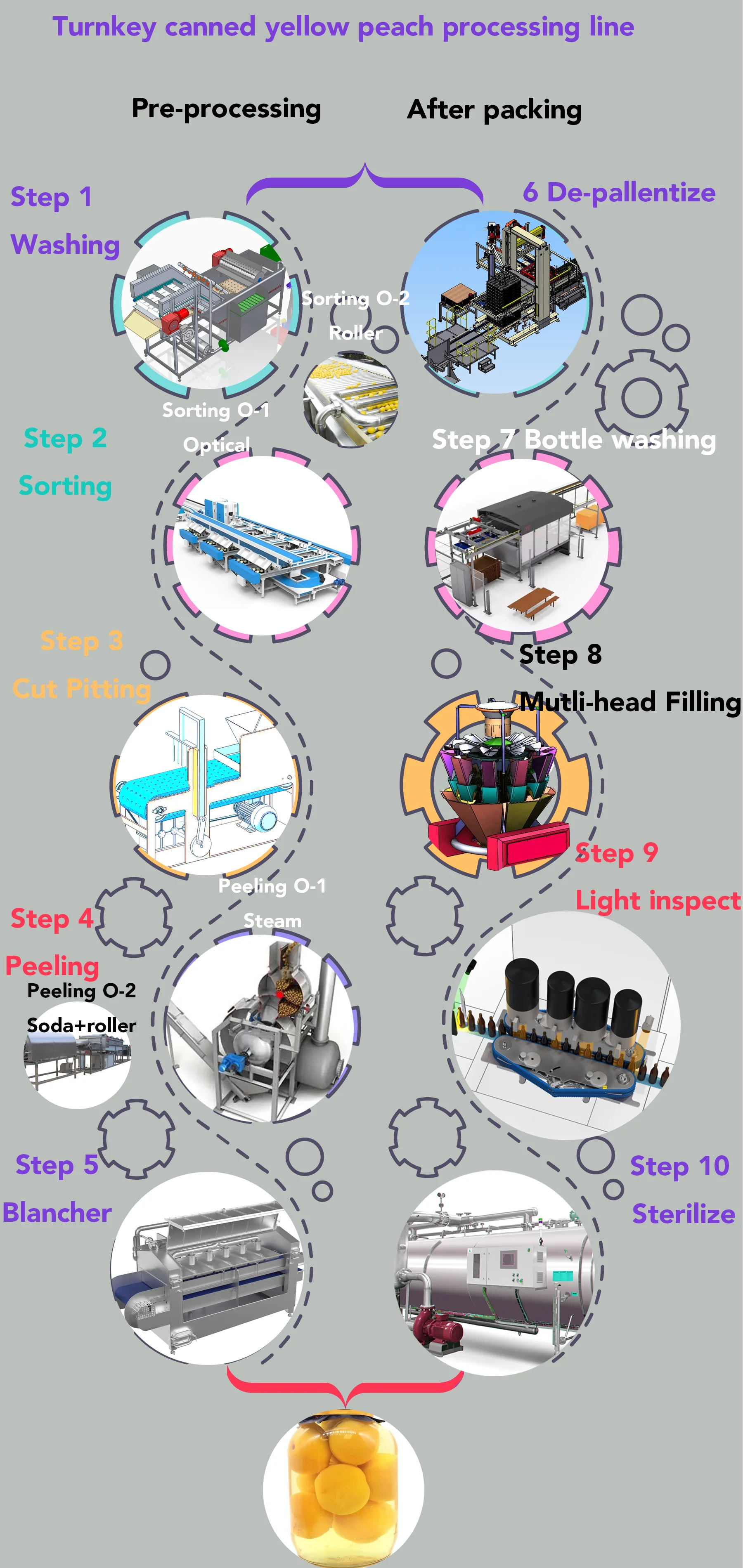

Work flow
Family Overview

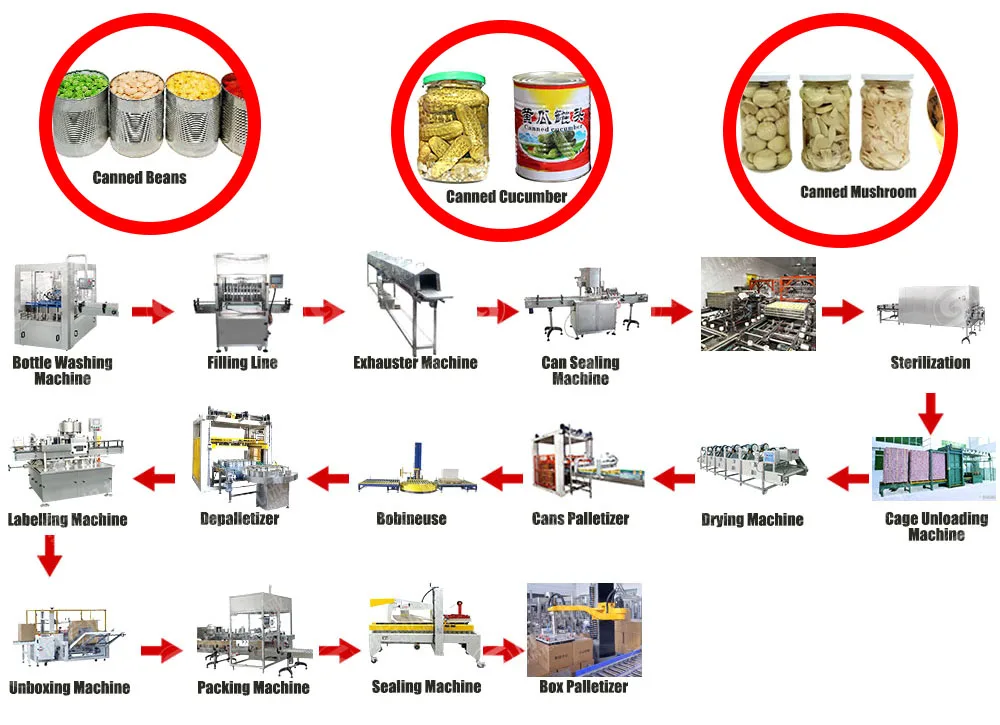

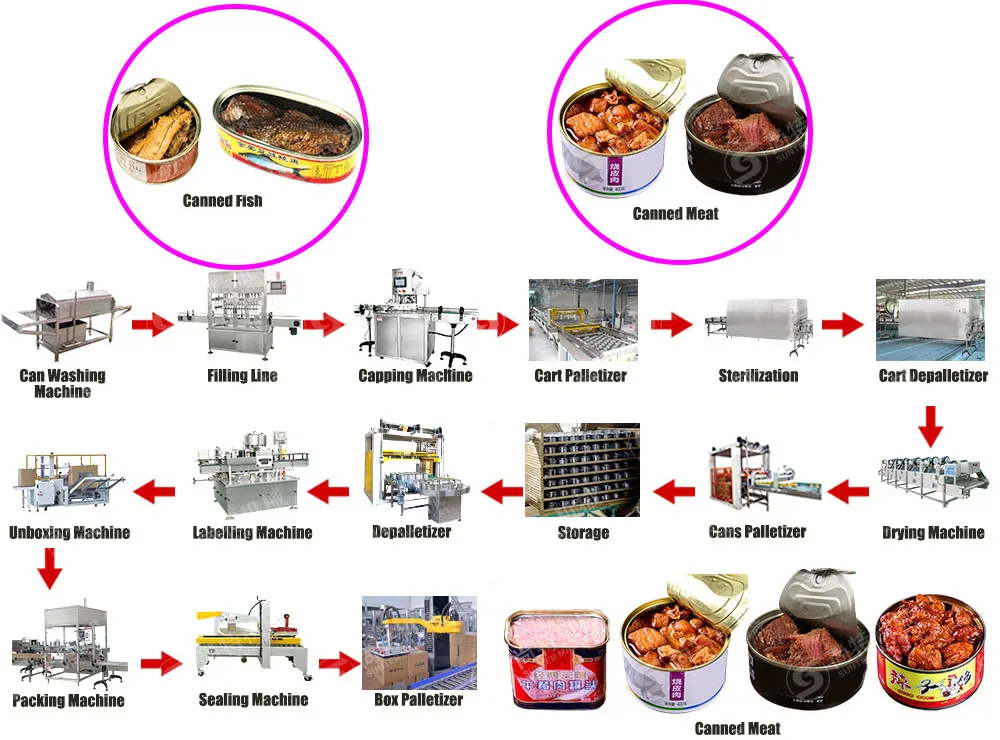

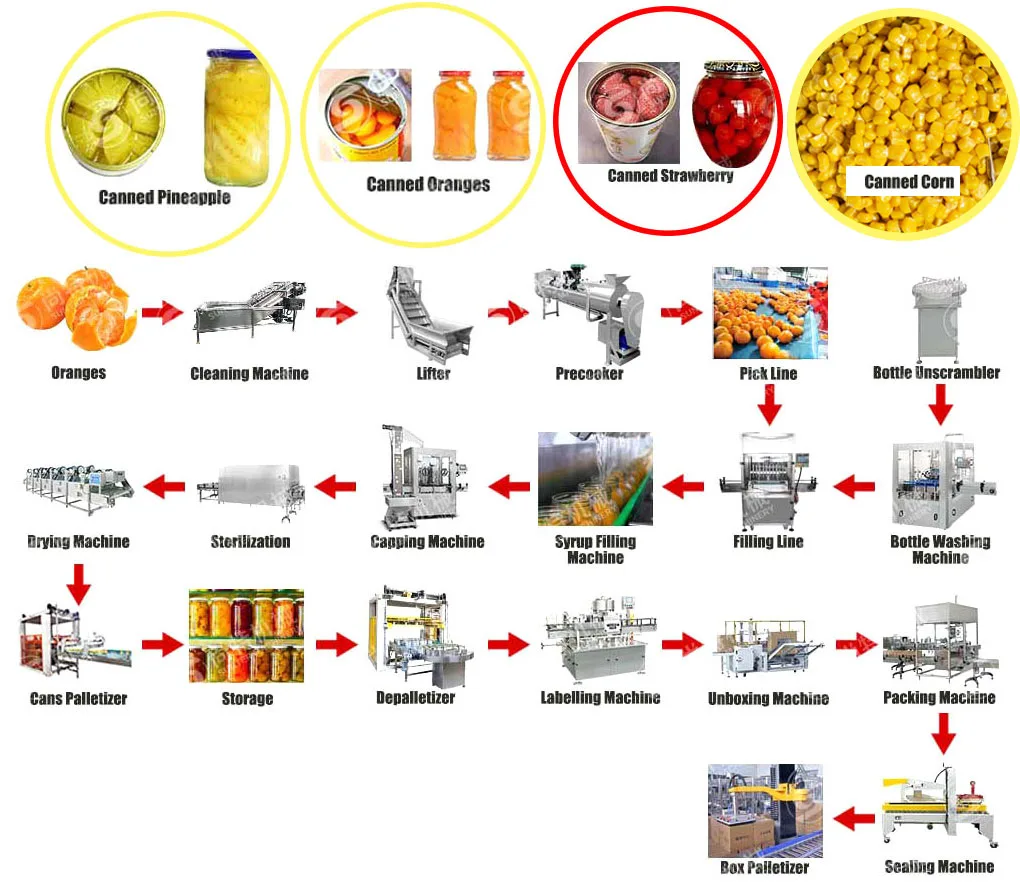

Turnkey solution with after packing work flow:
Canned Bean Production Line
Canned Cucumber Production Line
Canned Mushroom Production Line
Canned Orange Production Line
Canned Pineapple Production Line
Strawberry Canned Production Line
Canned Corn Production Line
Canned Fish Production Line
Canned Meat Production Line
