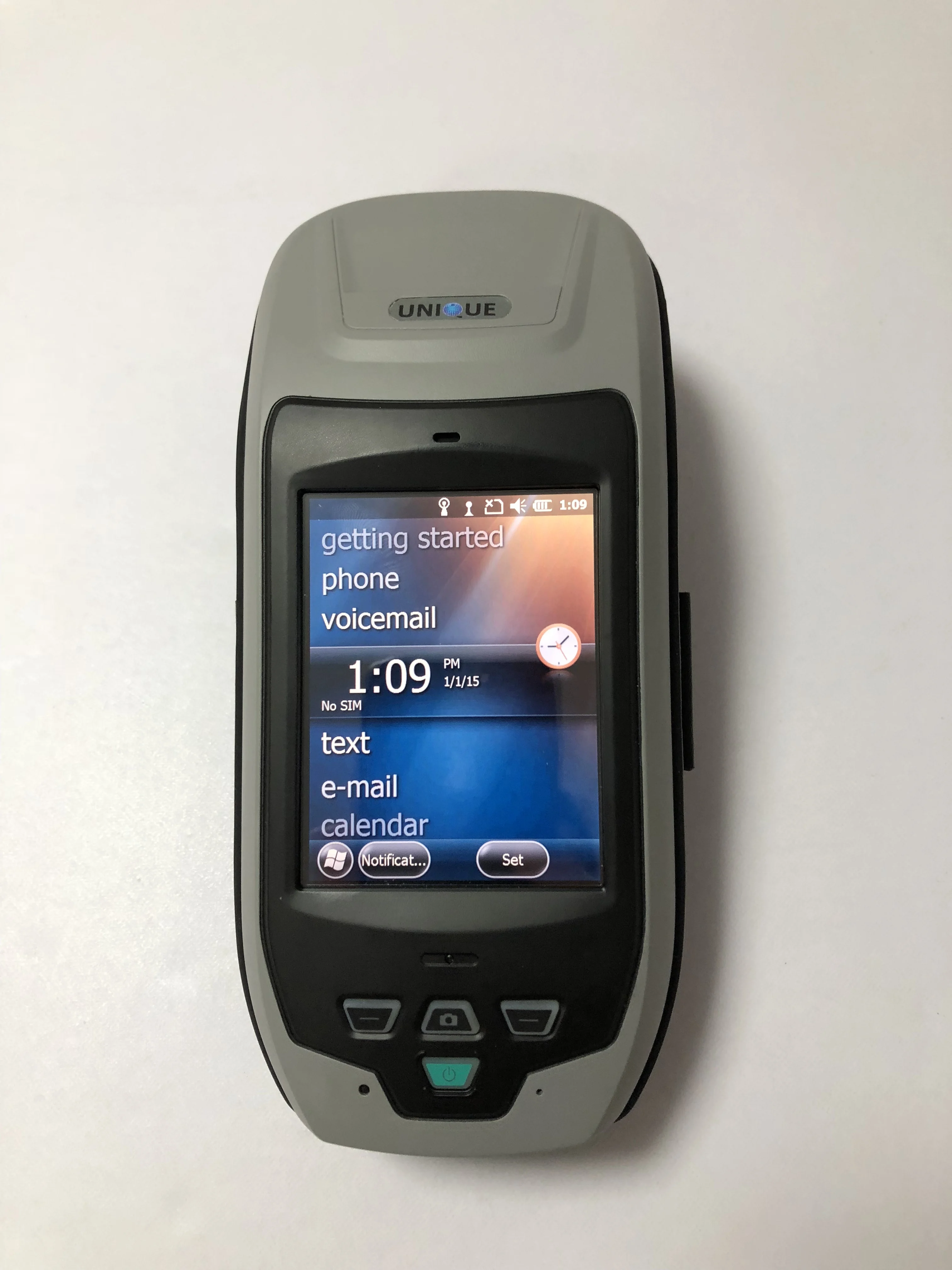

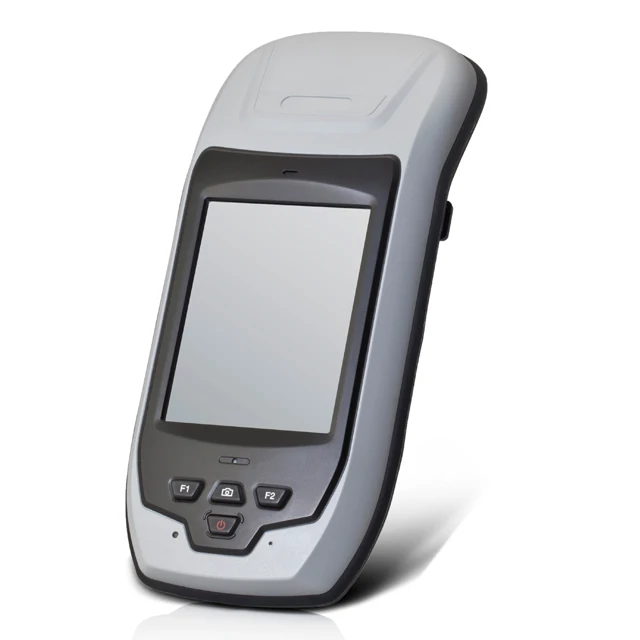

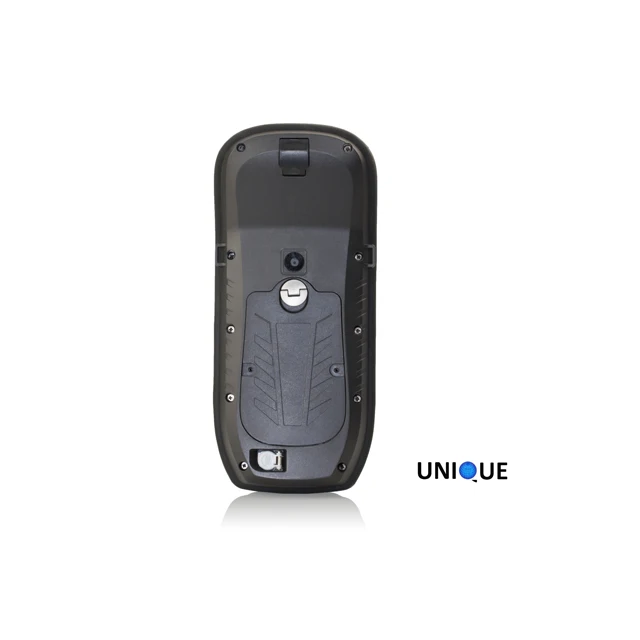

High precision handheld receiver U32U for suveying cheap gps rtk
- Category: >>>
- Supplier: Tianjin Unique Technology Co. Ltd.
Share on (1601204058777):
Product Overview
Description
Details Images
VR
Product Description
Applications
The U32U integrates wireless platform,professional GNSS,to facilitate data collection in any enviroment.
Data transfer and download is available via various communication systems.
The U32U adopts industry-leading standard design,suitable for field and low temperature operating environment,widely used in electrical inspection,land management,forestry census,survey,supply chain management and other fields.
With advanced technologies, the U32U facilitates industry information construction.
Features

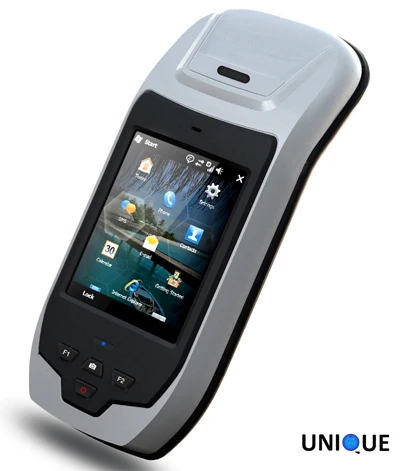

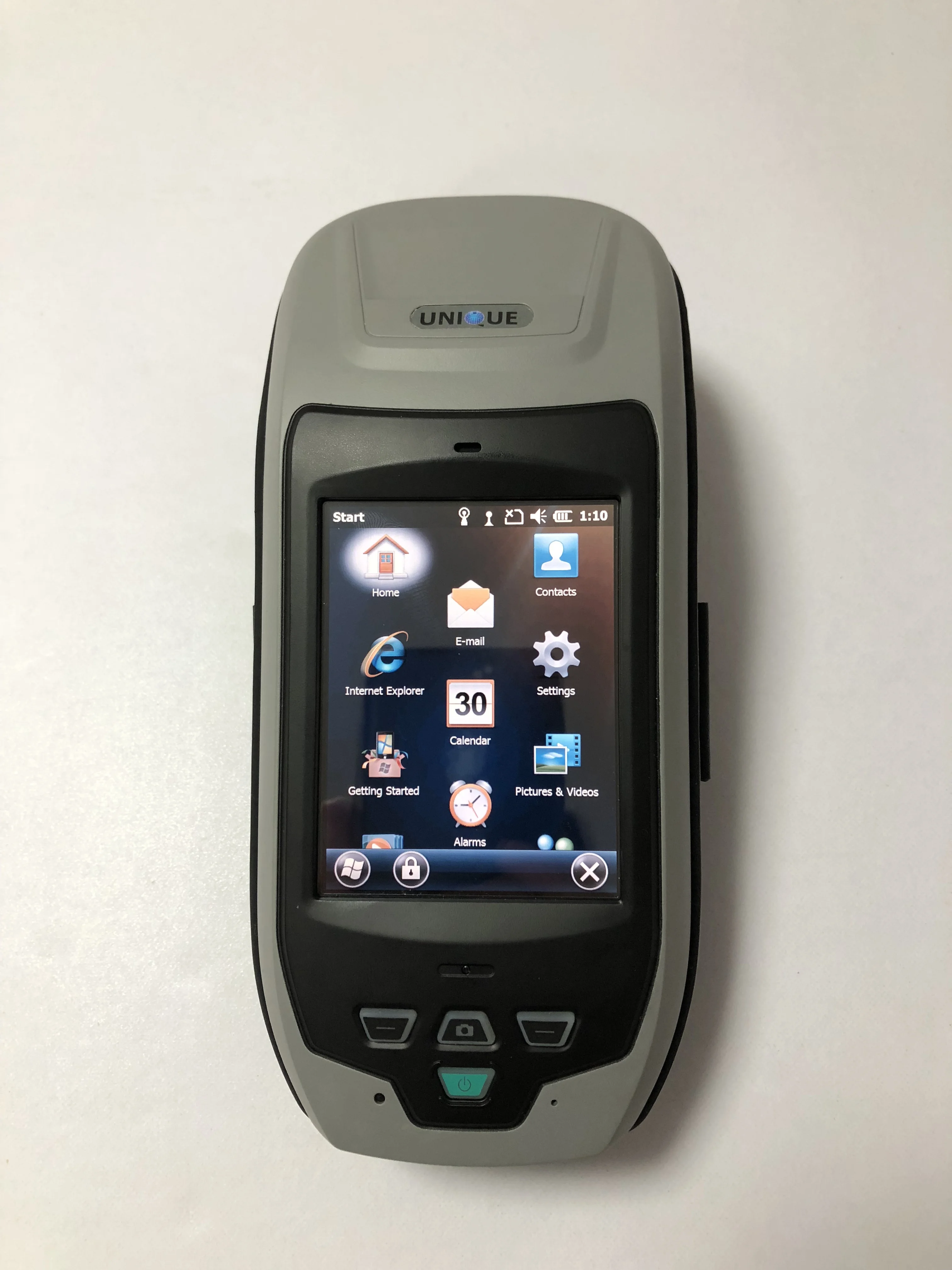

The U32U handheld RTK receiver adopts Microsoft's Windows Mobile 6.x operating system,integrating professional GNSS
module,camera,3G/2G communication,HD touch screen,Bluetoot and WiFi,RS232 port,to achieve real-time data acquisiton and processing wighout time/space restriction.
The U32U features compact and light,ergonomic design,easy to use and carry,IP65 industrial grade protection,1.2 meter drop protection,rugged.
Data transfer and download is available via various communication systems.
The U32U adopts industry-leading standard design,suitable for field and low temperature operating environment,widely used in electrical inspection,land management,forestry census,survey,supply chain management and other fields.
With advanced technologies, the U32U facilitates industry information construction.
Features
The U32U handheld RTK receiver adopts Microsoft's Windows Mobile 6.x operating system,integrating professional GNSS
module,camera,3G/2G communication,HD touch screen,Bluetoot and WiFi,RS232 port,to achieve real-time data acquisiton and processing wighout time/space restriction.
The U32U features compact and light,ergonomic design,easy to use and carry,IP65 industrial grade protection,1.2 meter drop protection,rugged.
Specification
Model | U32U (UM980） | |
Overview | Processor | 1GHz |
ROM | 1GB | |
RAM | 512MB | |
Operating system | Windows Embeded Handheld | |
Language | Multi-languages | |
Keypad | 4 programmable keys | |
Microphone | √ | |
Speaker | √ | |
Display | 3.7" TFT LCD, Sunlight readable, pressure sensitive touch screen | |
Resolution | 480 x 640 | |
Camera | 500 megapixel | |
Dimension (LxWxH) | 210mm x 95mm x 45mm | |
Weight | 630g with battery | |
GNSS Performance | GNSS | BDS: B1I B2I B3I B1C B2a B2b GPS: L1 C/A L1C L2P (Y) L2C L5 GLONASS: L1 L2 Galileo: E1 E5a E5b E6 QZSS: L1 L2 L5 L6 |
Channel | 1408 | |
Protocol output | NMEA-0183 | |
External antenna | √ | |
Accuracy | Autonomous | 1.5m horizontal,2.5m vertical |
BD B2b-PPP | 0.4m horizontal, 0.8m vertical | |
DGPS | 0.4m horizontal, 0.8m vertical | |
RTK | 0.008m horizontal, 0.015m vertical | |
Communications & Storage | USB Interface | Fischer - Type A USB |
Serial port | Fischer - DB9 serial port | |
Bluetooth | Bluetooth V2.0 | |
WIFI | √ | |
3G (WCDMA) | √ | |
Audio & Voice | _ | |
Storage expansion | TF, up to 32GB | |
Power | Input | DC 5V, 1A |
Detachable battery | 9,300mAh, 3.7V | |
Environment Specification | Operation temperature | ‐20℃ ~ +60℃ |
Storage temperature | ‐30℃ ~ +70℃ | |
Dust & Humidity | IP65 | |
Drop | 1.2m | |

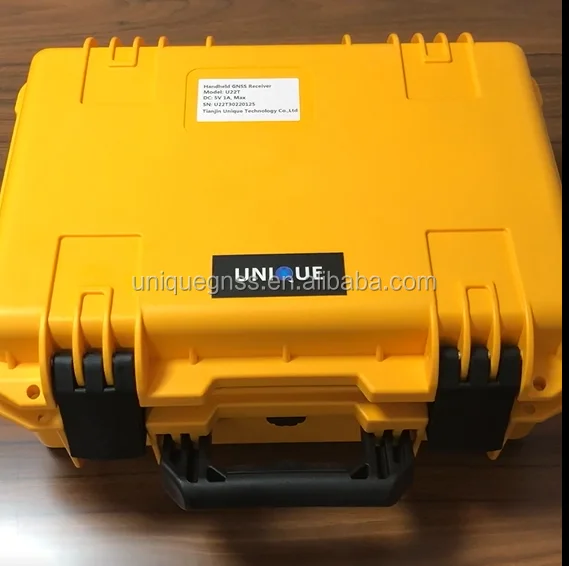

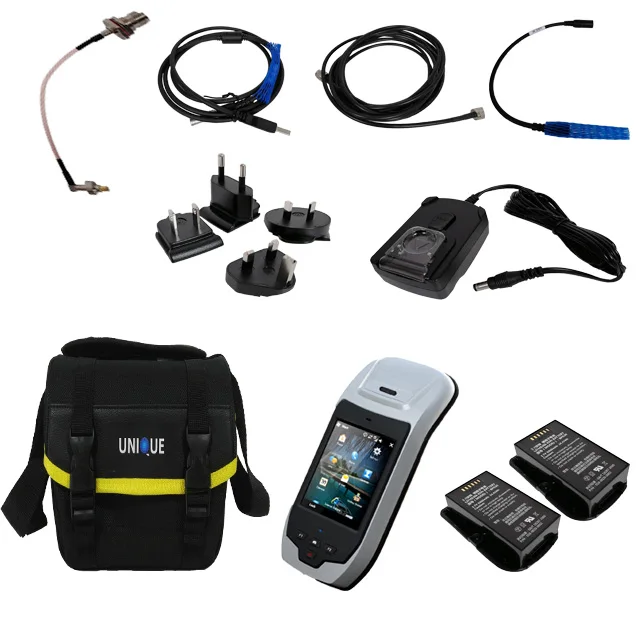

Accessories | Standard | AC adapter, USB Cable, Li-Ion Battery, 8GB TF, Strap with Stylus, Clear screen protector, Quick start guide, Pouch |

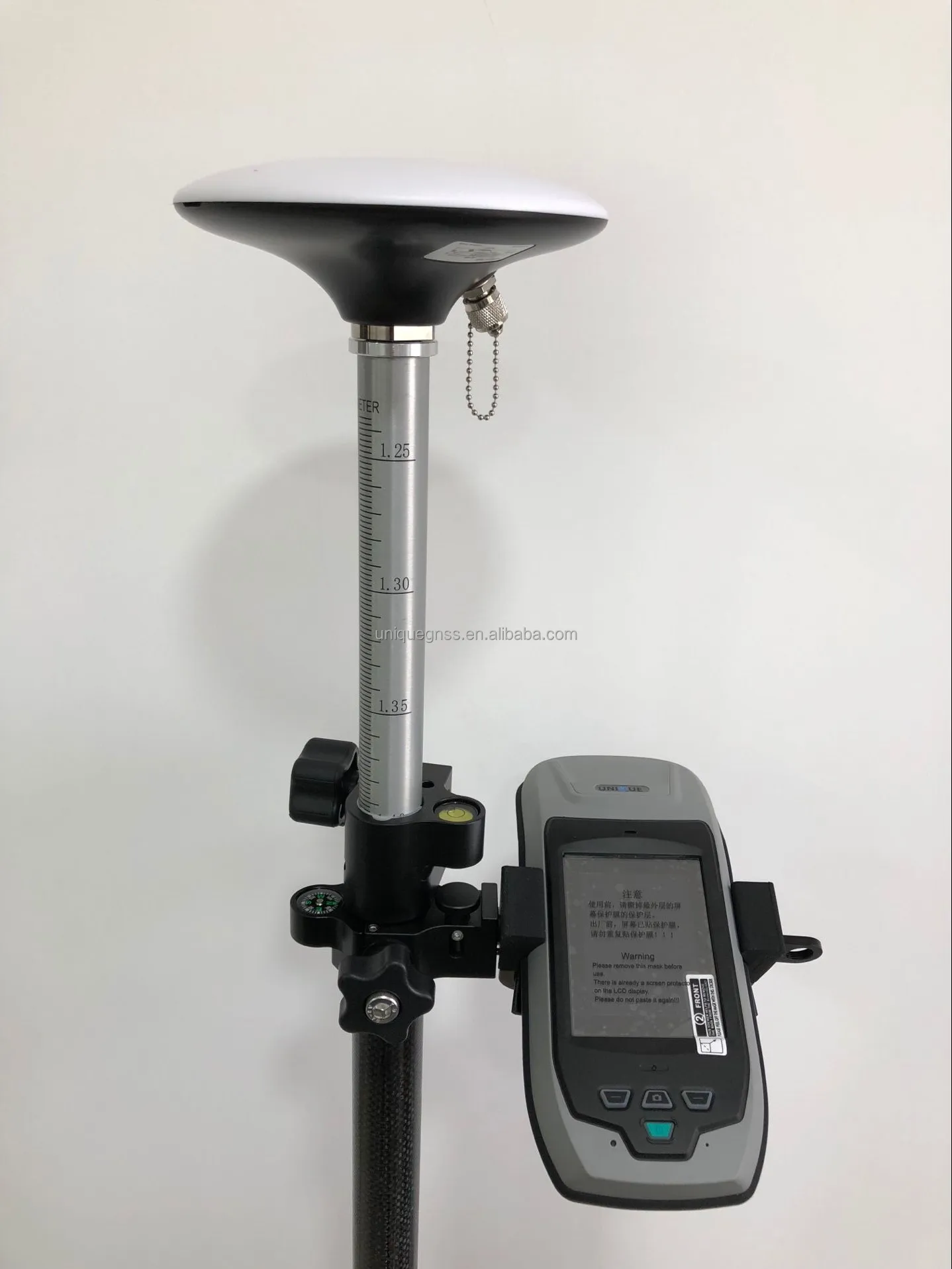

Optional | Serial port cable, Centering holder, Mounting Bracket and Pole Clamp, External GNSS antenna, Antenna cable, Neck strap, Carrying case |

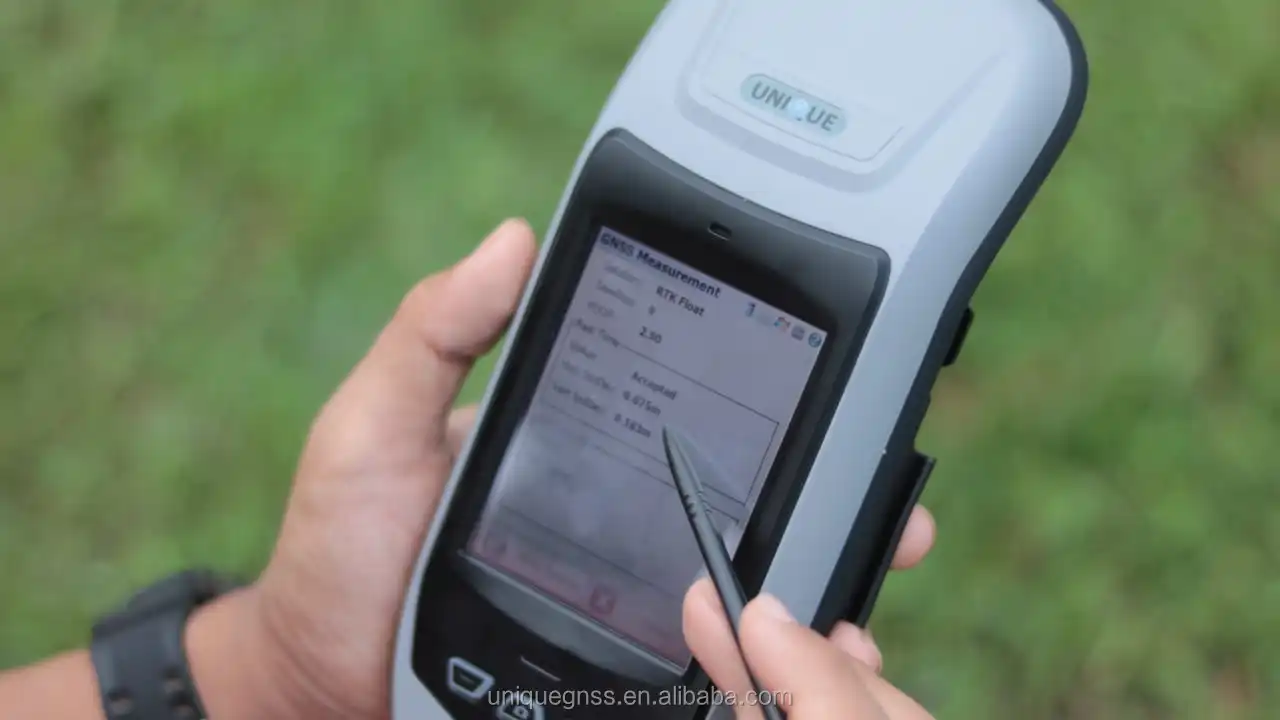

Successful cases
