Worry free after sales high performance hydraulic lifting crane mobile small telescopic boom utility vehicle for sale
Worry-free after-sales high performance hydraulic lifting crane mobile small telescopic boom utility vehicle for sale
Worry-free after-sales high performance hydraulic lifting crane mobile small telescopic boom utility vehicle for sale
Worry-free after-sales high performance hydraulic lifting crane mobile small telescopic boom utility vehicle for sale
Worry-free after-sales high performance hydraulic lifting crane mobile small telescopic boom utility vehicle for sale
Worry-free after-sales high performance hydraulic lifting crane mobile small telescopic boom utility vehicle for sale
Worry-free after-sales high performance hydraulic lifting crane mobile small telescopic boom utility vehicle for sale

Worry free after sales high performance hydraulic lifting crane mobile small telescopic boom utility vehicle for sale

Share on (1601204062613):


Price:$25,000.00

Quantity:


Product Overview

Description



Products Description


Brand
JQCM
Total mass
4495kg
Chassis model
Dongfeng Dolica
Curb weight
4300kg
Vehicle size
5995*2200*2900
Front overhang/rear overhang
1115/1580mm
Wheelbase
3308mm
Approach/departure angle
20/15°
Engine
Yunnei (160 horsepower)
Rear axle
130 impact axle
Gearbox
Wanliyang 8-speed gearbox
Fuel tank
70L
Tire specifications
700R16LT8PR
Maximum speed
95km/h
Maximum operating height
20m
Platform size
1500*700*1100
Maximum working range
14m
Platform rotation range
108°
Platform ear nail load
200kg
Cargo box size
3500*2200mm
Boom rotation angle
360°
Boom
2.2m*6 sections (inner rope)
Main hoisting mechanism
5 ton hoisting machine
Operating system
Electronic control with wireless remote control
Maximum lifting capacity
5000kg
Hydraulic system
Stepless speed regulation with emergency power
Maximum lifting height
20m
Operation mode
Medium operation
Power pump
Single pump
Slewing structure
360° arbitrary rotation


Product features: H-type hydraulic outriggers, 4 telescopic outriggers; interlocking for getting on and off the vehicle, limit protection, tilt alarm, emergency power source, two-way hydraulic balance valve; multi-function steering wheel.
Air conditioning + electric doors and windows + central locking, electric heated rearview mirrors, air brake, cruise control, ABS, all-inclusive cab, reinforced frame, leaf spring 3/6+5.

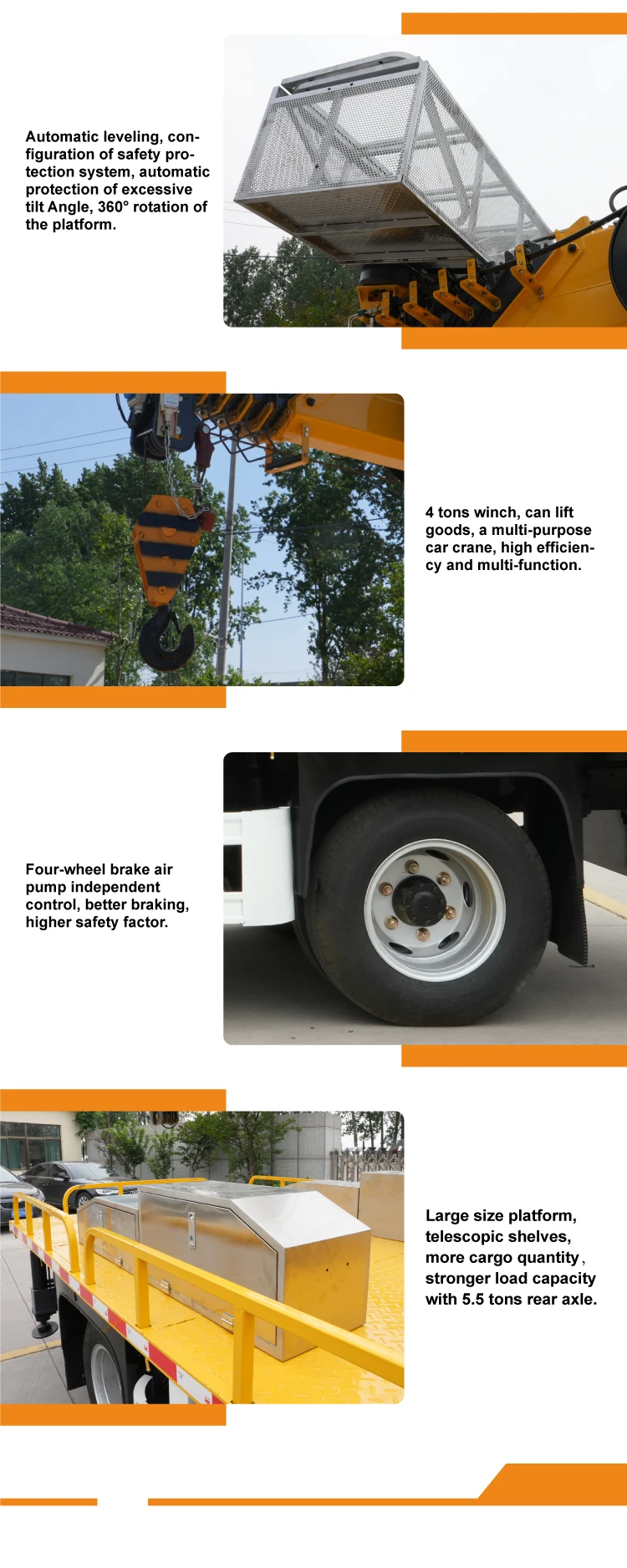

Working hanging basket
Foldable hanging basket can rotate 360 ​​degrees, overload protection
Hydraulic outriggers
Front and rear H-shaped outriggers, fully hydraulic outriggers, adaptable to various working conditions


Strong arm
Quick synchronous extension and retraction speed, strong lifting force
Comfortable driving
FAW Jiefang chassis has a large driving space and comfortable driving


The height can be selected as 23 meters, 27 meters, and 30 meters, and it can be matched with Jiangling/Dongfeng/FAW brand chassis. It can be customized according to needs, engine brand, color, vehicle weight, etc.
According to the product, it can be divided into multi-functional vehicles with high-altitude operation lifting and loading functions, and the brand can be selected; Dongfeng/Foton/FAW/a variety of load capacities and operating heights are available
