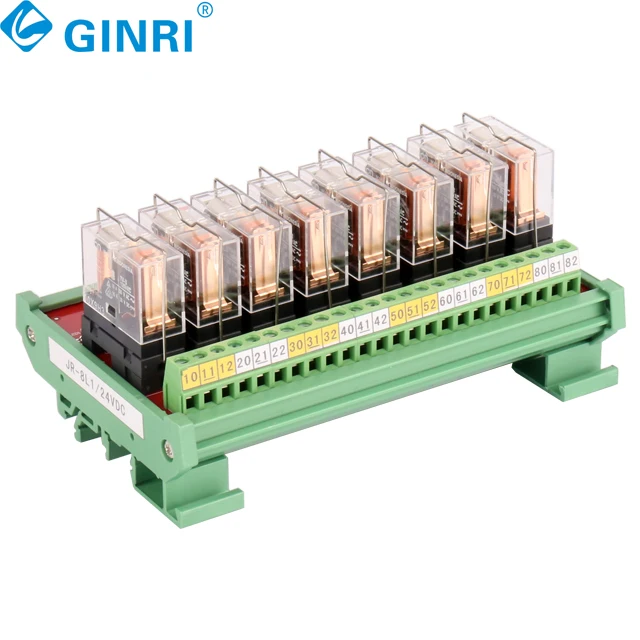

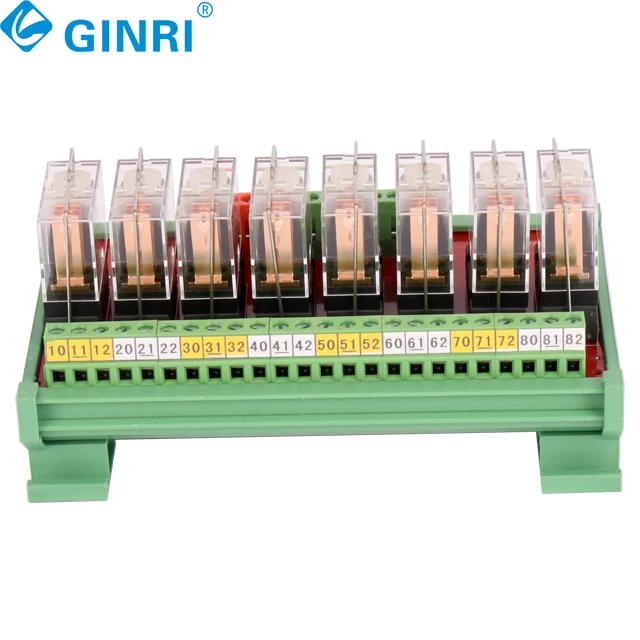

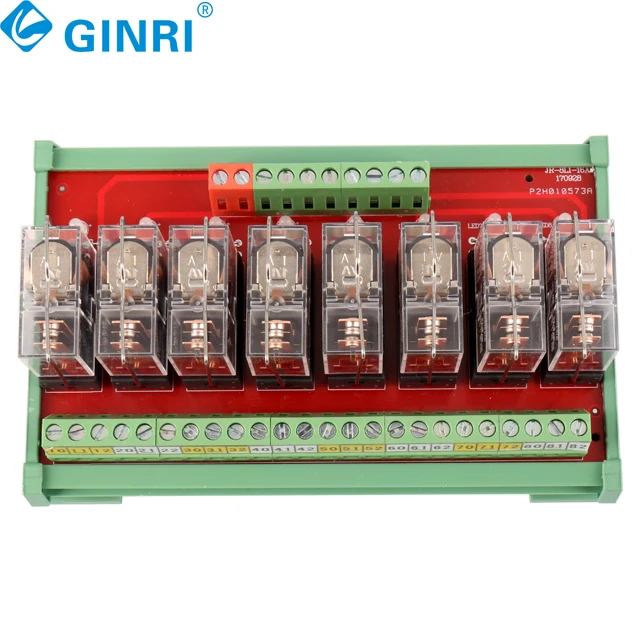

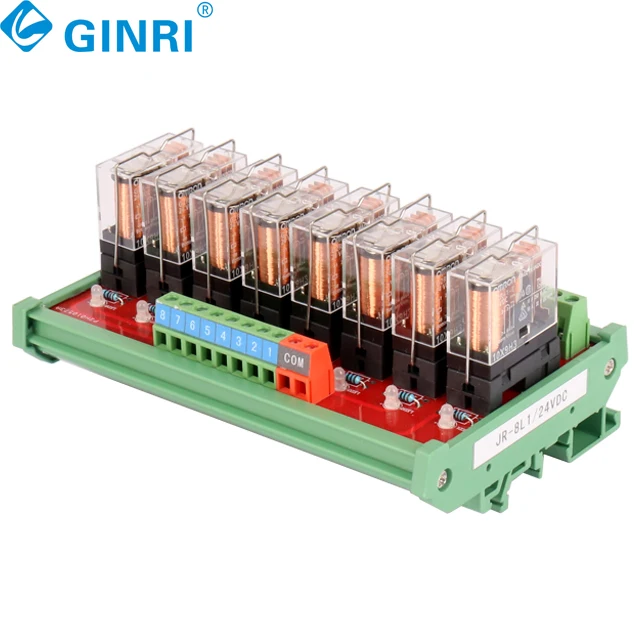

8 Channel 1CO 10A DC24V SPDT Relay Module PCB Amplifier Board
- Category: >>>
- Supplier: Wenzhou Ginri Power Automation Co. Ltd.
Share on (1601204215785):
Product Overview
Description
Product Description
Attention: This link is model JR-8L1, input voltage: DC24V. We will ship this model by default. If you need other settings, please contact customer service.
Application
■ Micro-controller ■ PLC control ■ Servo System ■ Electro-magnetic valve ■ DC Motors
■ CNC machine ■ Home intelligent control

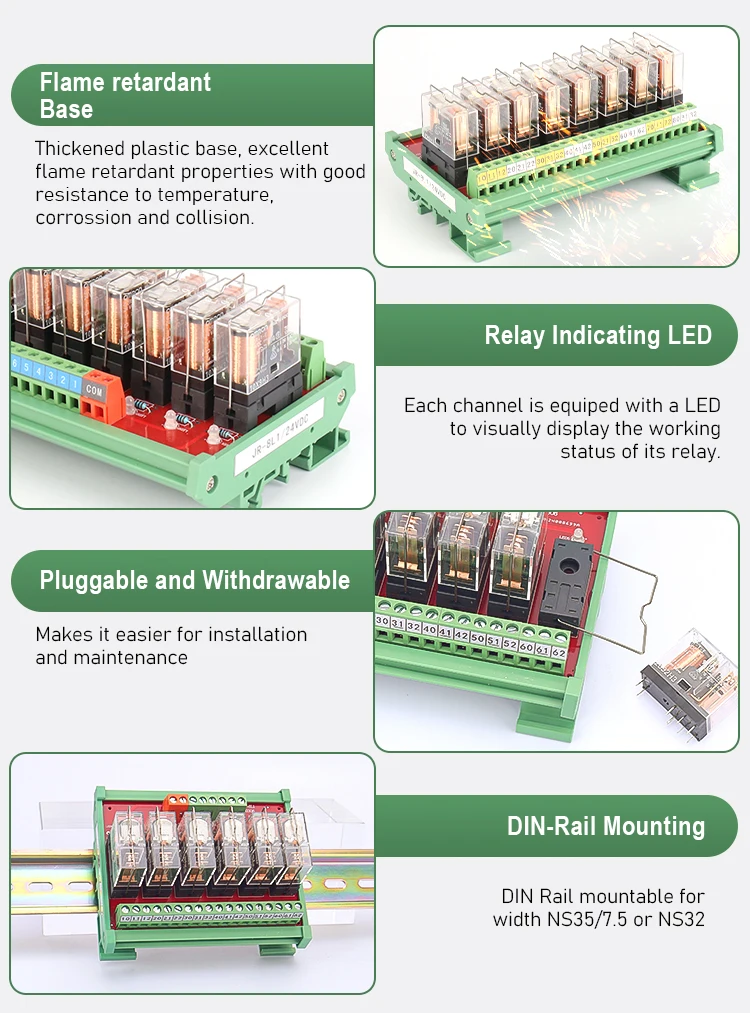

Features
■ Standard DIN rain mounted
■ Status indication for each input
■ Special circuit for self anti-interference
■ Isolation for each relay channel
■ with relay base, easy to replace

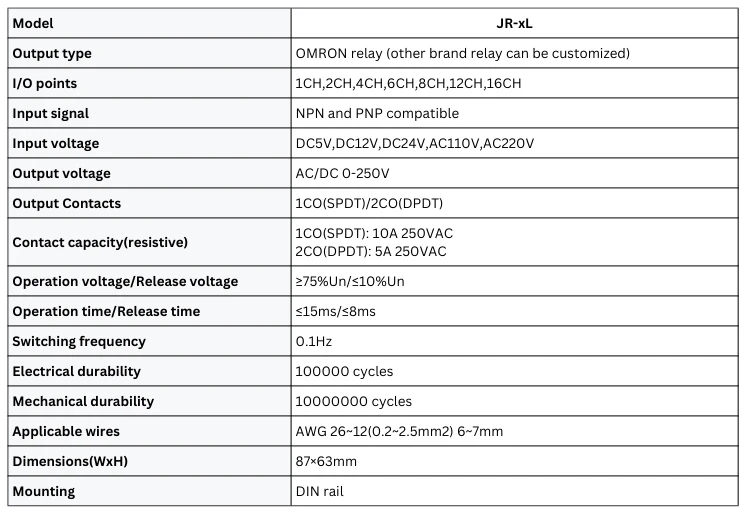

Parameter
Model: JR-8L1

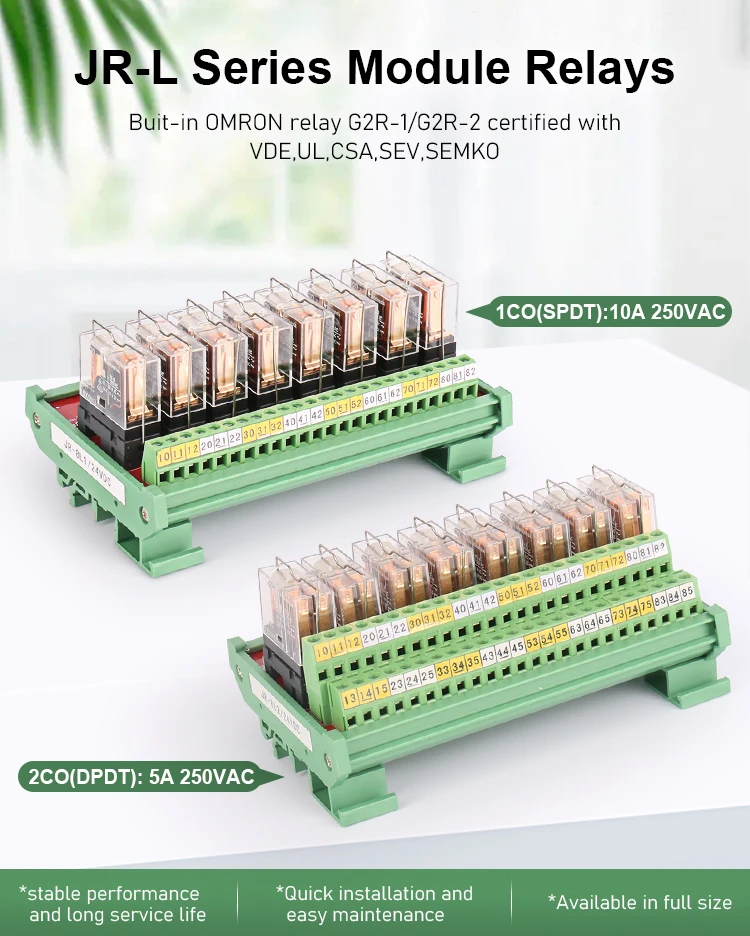

Output type: OMRON Relay
I/O points: 8
Input signal: NPN and PNP compatible
Input voltage: DC24V(DC5V, DC12V, AC110V, AC220V can be customized)
Output voltage: AC/DC 0-250V
Output Contacts: 1CO(SPDT)
Contact capacity(resistive): 10A 250VAC
Operation voltage/Release voltage: ≥75%Un/≤10%Un
Operation time/Release time:\t≤15ms/≤8ms
Switching frequency:\t0.1Hz
Dimensions(WxH): 134X87X63mm
Mounting: DIN rail, mounted on NS35/7.5 or NS32 guides

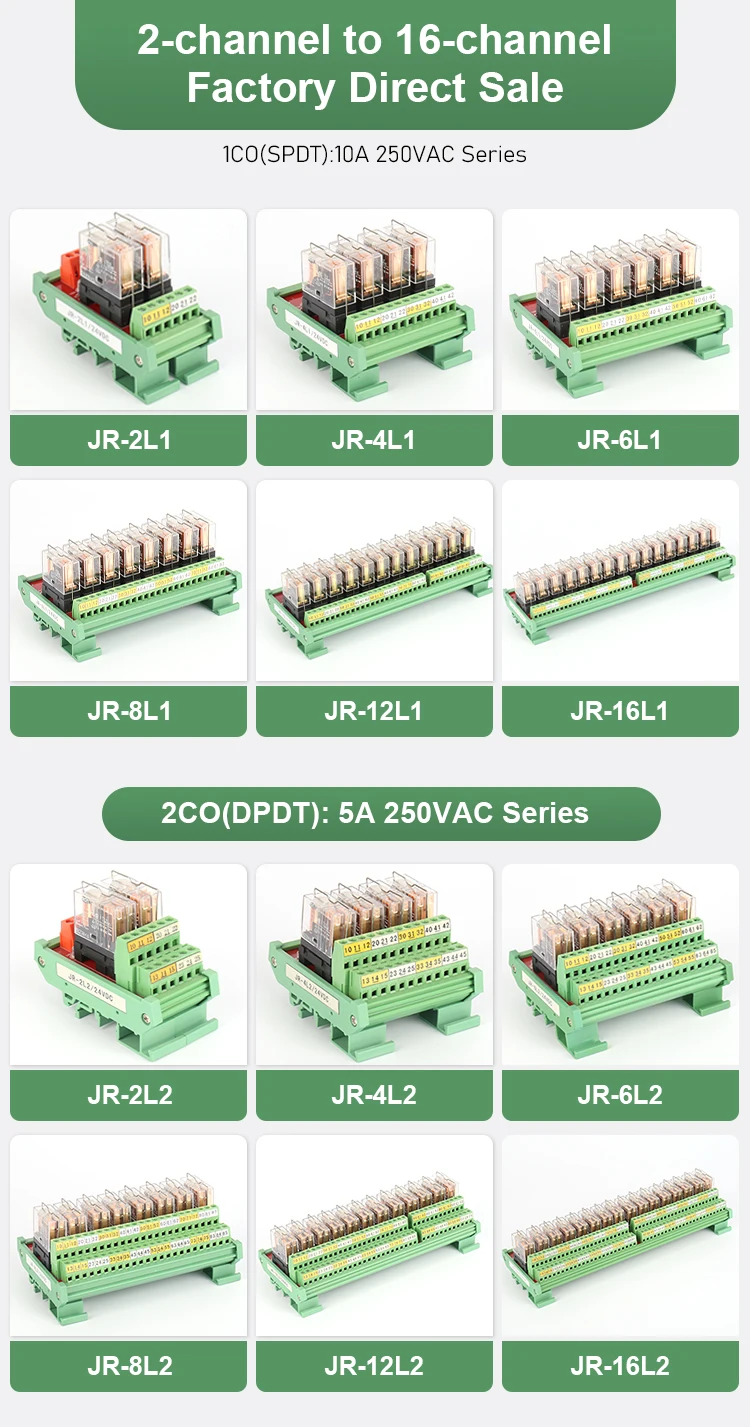

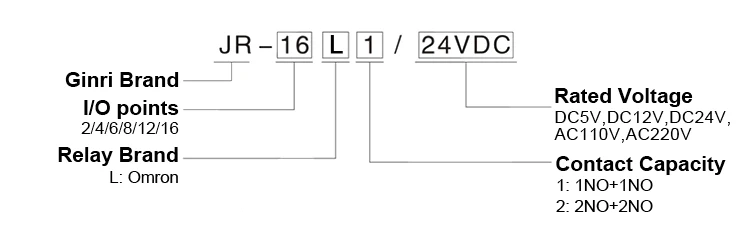

Ginri Selection Guide
Wiring diagram
Categories
Company Introduction
Ginri Power Automation Ltd. was established in 1995. We are specialized in R&D, production and sales of low voltage electrical equipment and automation control products. To our advantage, we have over 20 years experience in producing superior quality of voltage/current regulating products including Motor Protection Relay, Phase Failure Relays, Voltage Monitoring Relays, Current Monitoring Relay, Relay Modules, wall sockets for industrial and residential electric equipment protection.
FAQ
Q1. What advantages do you have? |
A1. Ginri Power Automation are the direct Manufacturer in Wenzhou China from 1995, we have professional developing, marketing & production team to offer you the most competitive price and best service. |
Q2. What’s your main product? |
A2. We are 100% focus on Automation Products Voltge Monitoring Relay, Motor Protection Relay, Relay Modules, and Connector-Terminal Conversion Units. |
Q3. Could you print our own logo? |
A3. Yes, Our company are available for Retail & Wholesale & OEM & ODM. |
Q4. How long is the quality guarantee? |
A4. 18 month warranty, our products are 100% inspection. |
Q5. How long is the deliver time? |
A5. It usually takes about 3 - 5 working days for sample order and 10 - 25 days for big order. |
Q6. What is your payment terms? |
A6. Our Payment term is T/T, Aliexpress, Western Union, PayPal, Money Gram, L/C at sight. |
Q7. How could I get your sample? |
A7. You can request sample order through our alibaba trade assurance service. |
