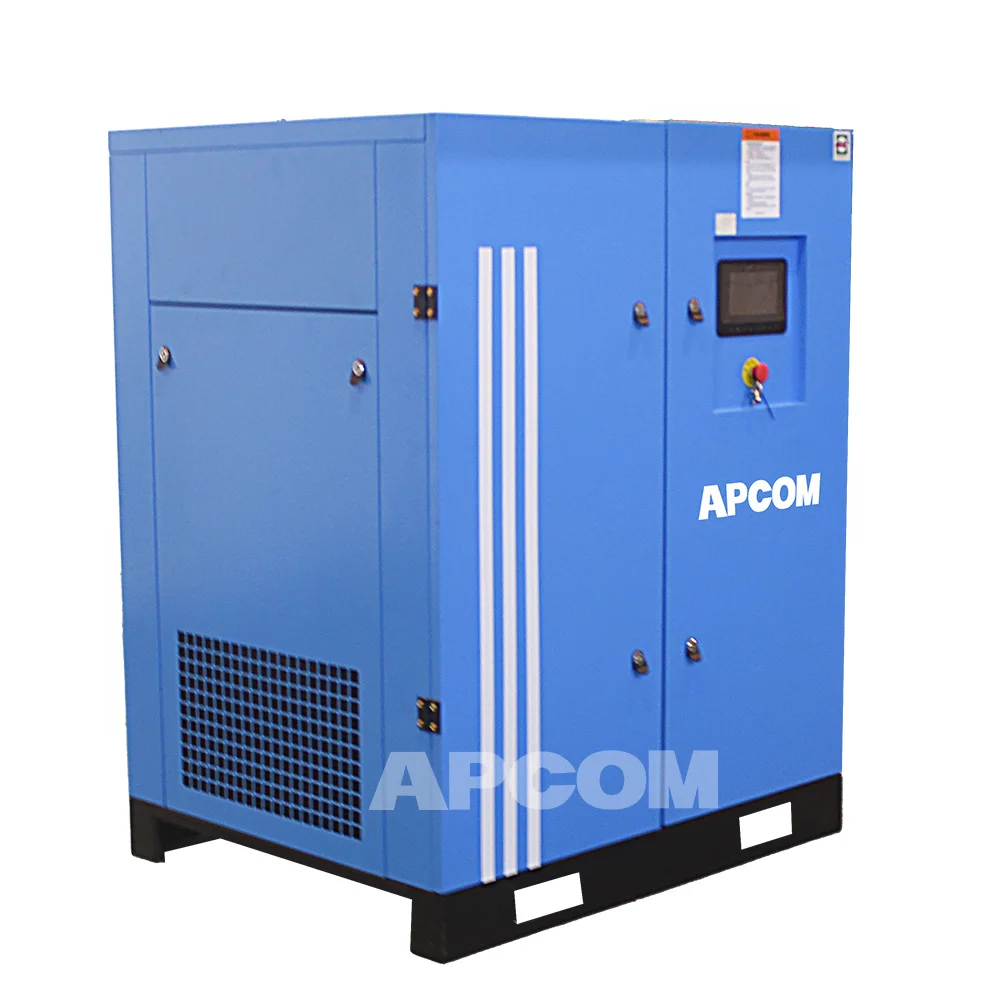

H APCOM 45kw Gas Air Compressor de ar Industrial 45 kw 75kw 90kw 60hp 100hp Pm Vfd Screw AirCompressor 8bar 10bar 13bar 400cfm
- Category: >>>
- Supplier: Shanghai APCOM Compressor Machine Co. Ltd.
Share on (1601204229147):
Product Overview
Description
Product Parameters
Model | SEN-60 | Air-end brand | Baosi/Hanbell | |
Power | 45kw/60hp | Air-end warranty | 5 years | |
Pressure | 7/10/13 bar | Size | 1500*1000*1300 mm | |
Air flow | 8.20 m3/min 7.30 m3/min 6.50 m3/min | Weight | 800kg |
MODEL Click on | POWER | Pressure/Capacity (m3/min) | SIZE | Outlet diameter | Weight | ||||
(KW) | 0.7 Mpa | 1.0 Mpa | 1.3 Mpa | (L×W×H)mm | KG | ||||
SEN-10 | 7.5 | 1.15 | 1.00 | 0.80 | 920*650*900 | G3/4" | 240 | ||
SEN-15 | 11 | 1.65 | 1.50 | 1.20 | 1100*750*1050 | G3/4" | 300 | ||
SEN-20 | 15 | 2.35 | 1.80 | 1.65 | 1100*750*1050 | G3/4" | 340 | ||
SEN-30 | 22 | 3.62 | 3.30 | 2.60 | 1350*870*1120 | G1" | 550 | ||
SEN-40 | 30 | 5.00 | 4.20 | 3.60 | 1350*870*1120 | G1" | 580 | ||
SEN-50 | 37 | 6.50 | 6.00 | 5.30 | 1500*1000*1300 | G11/2" | 700 | ||
SEN-60 | 45 | 8.20 | 7.30 | 6.50 | 1500*1000*1300 | G11/2" | 800 | ||
SEN-75 | 55 | 9.80 | 8.50 | 7.30 | 1850*1300*1550 | Dn65 | 1200 | ||
SEN-100 | 75 | 13.50 | 11.80 | 9.50 | 1850*1300*1550 | Dn65 | 1500 | ||
SEN-120 | 90 | 15.50 | 13.50 | 12.10 | 2350*1650*1800 | Dn65 | 1850 | ||
SEN-150 | 110 | 19.70 | 17.60 | 15.20 | 2600*1650*1800 | Dn65 | 1900 | ||
SEN-175 | 132 | 23.20 | 21.30 | 19.50 | 2600*1650*1800 | Dn80 | 2600 | ||
SEN-200 | 160 | 25.50 | 22.50 | 20.10 | 2800*1898*1895 | Dn80 | 2800 | ||
SEN-250 | 185 | 30.10 | 27.30 | 25.20 | 3100*2150*2000 | Dn100 | 3500 | ||
SEN-300 | 220 | 40.00 | 36.80 | 29.50 | 3100*2150*2000 | Dn100 | 4500 | ||
