Home Solar 10KVA Off Grid Dc to AC Solar Hybrid Inverter Pure Sine Wave 10.2KW with MPPT charge controller
- Category: >>>
- Supplier: Shenzhen Huiming New Energy Co. Ltd.
Share on (1601204306459):
Product Overview
Description
Specification
Model | 8200-48V | 10200-48V | ||
RATED POWER | 8200W | 10200W | ||
AC Inpiut | ||||
Voltage | 220/230/240VAC | |||
Selectable Voltage Range | 170~280VAC (For Personal Computers) | |||
90~280VAC(For Home Appliances) | ||||
Frequency Range | 50Hz/60Hz(Auto sensing) | |||
AC Voltage Regulation | 230VAC±5% | |||
Surge Power | 16400W | 20400W | ||
Efficiency(Peak)PV to INV | 98% | |||
Efficiency (Peak)Battery to INV | 94% | |||
Transfer Time | 10ms(For Personal Computers);20ms(For Home Appliances) | |||
BATTERY & AC CHARGER | ||||
Battery Voltage | 48VDC | 48VDC | ||
Floating Charge Voltge | 13.5VDC | 27VDC | ||
Overcharge Protection | 16VDC | 33VDC | ||
Maximum AC Charge Current | 50A | |||

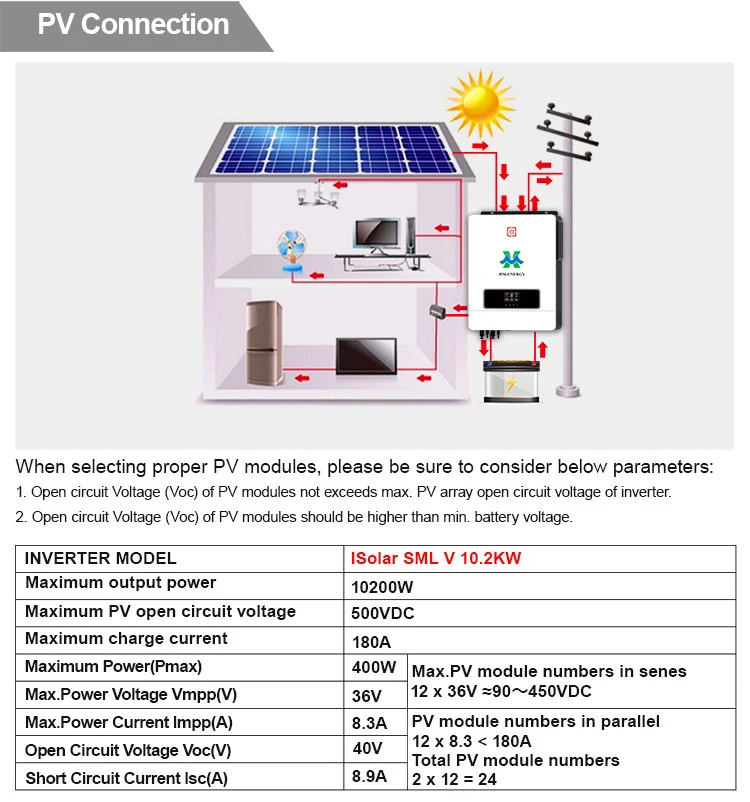

SOLAR CHARGER | ||||
Maximun PV Array Power | 8200W | 10200W | ||
MPPT Range@Operating Voltage | 90~450VDC | |||
Maximun PV Array Open Circuit Voltage | 500VDC | |||
Maximun Charging Current | 160A | |||
PHYSICAL | ||||
Dimension,D*W*H(mm) | 530*390*130 | |||
Cartoon Dimension, D*W*H(mm) | 620*463*205 | |||
Net Weight (kgs) | 15 | 15.2 | ||
Gross Weight(kgs) | 15.8 | 16.2 | ||
Communication interface | RS232/RS485/GPRS/WIFI | |||
OPERATING ENVIRONMENT | ||||
Humidity | 5% to 95% Relative Humidity ( Non~condensing) | |||
Operating Temperature | -10~50℃ | |||

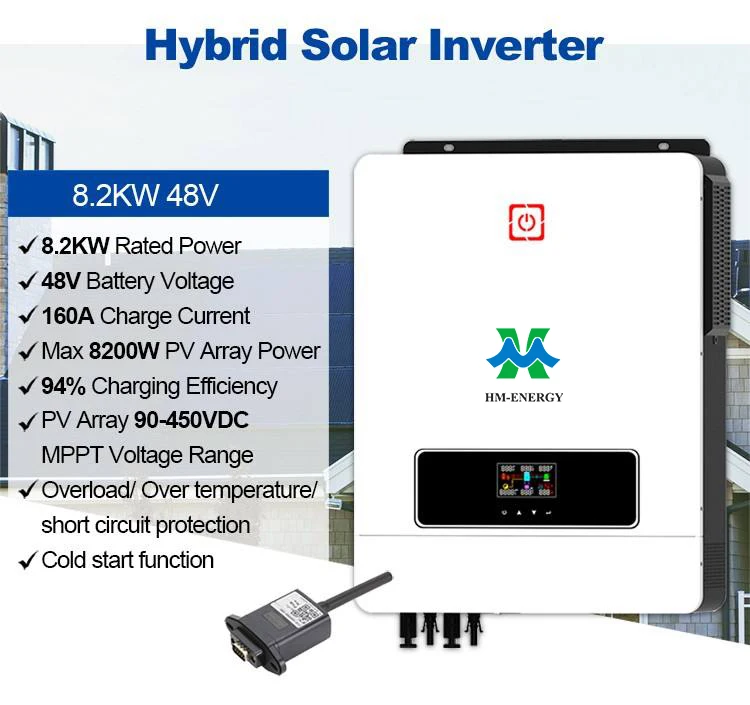

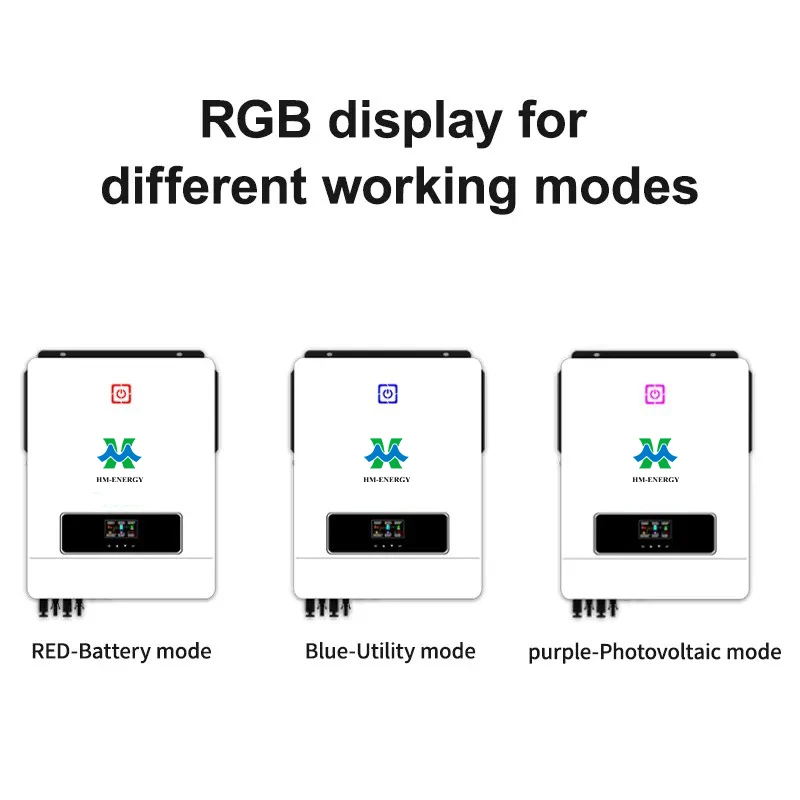

Products Description

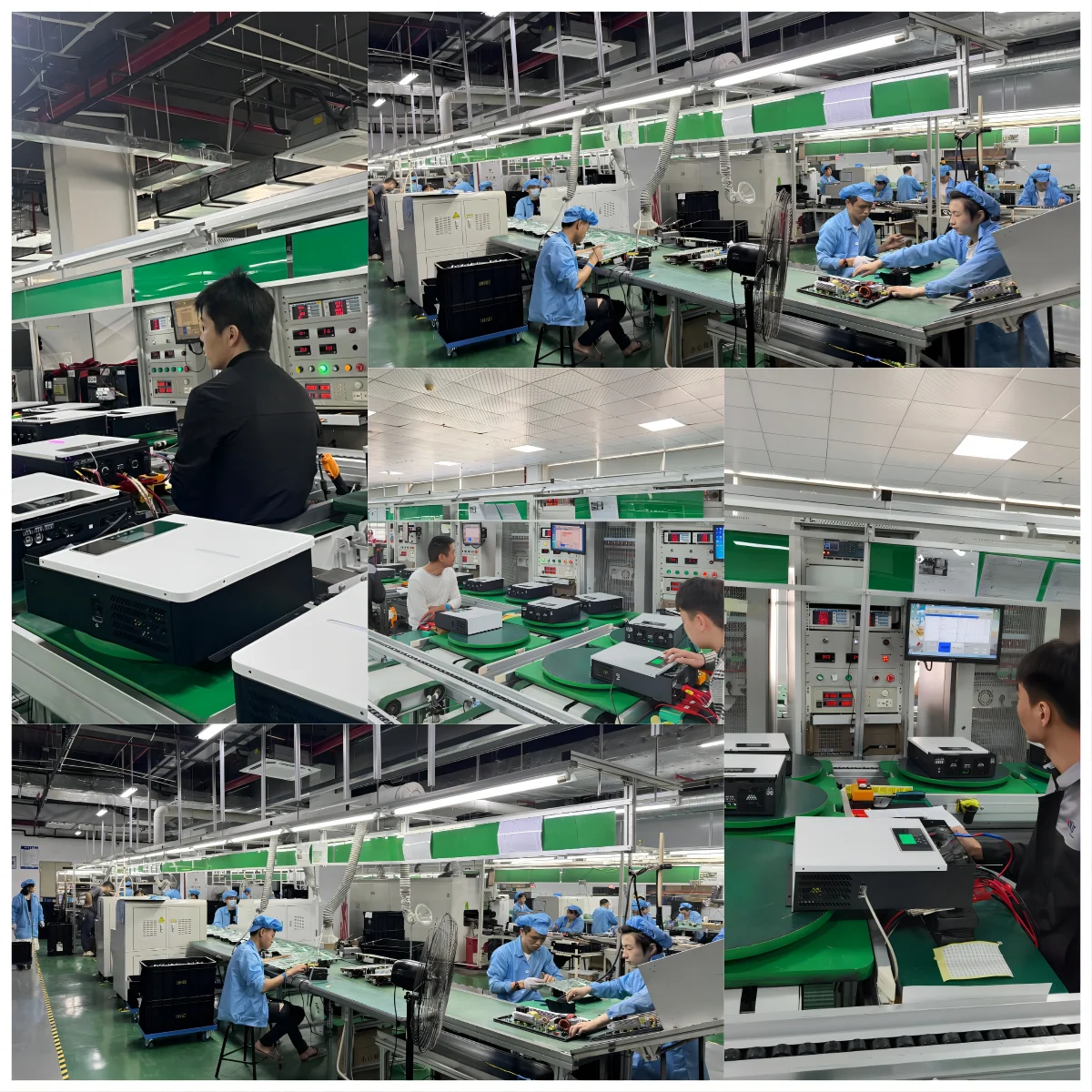

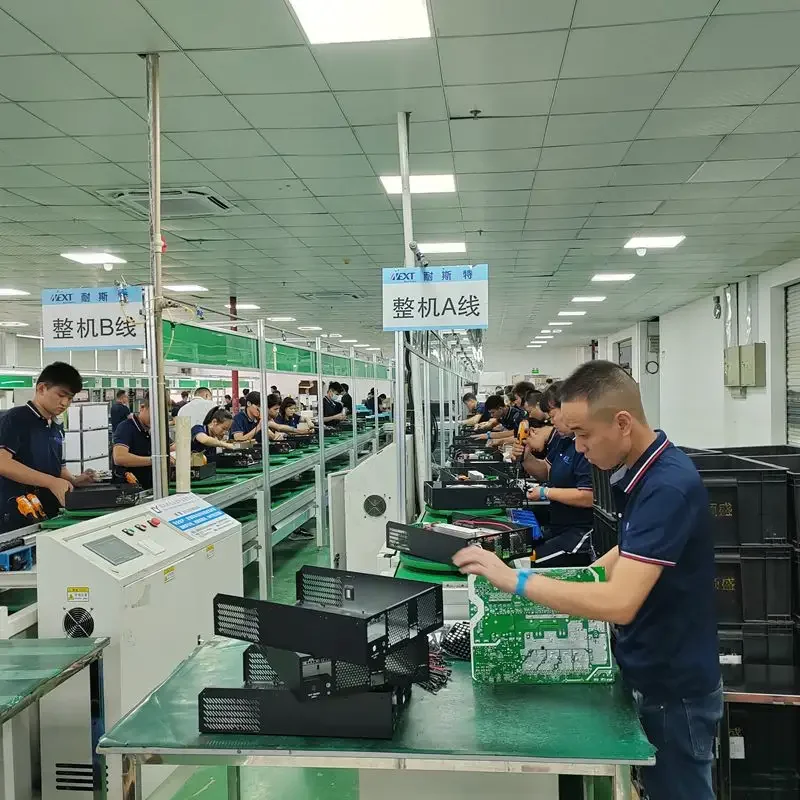

Our Factory
Certifications

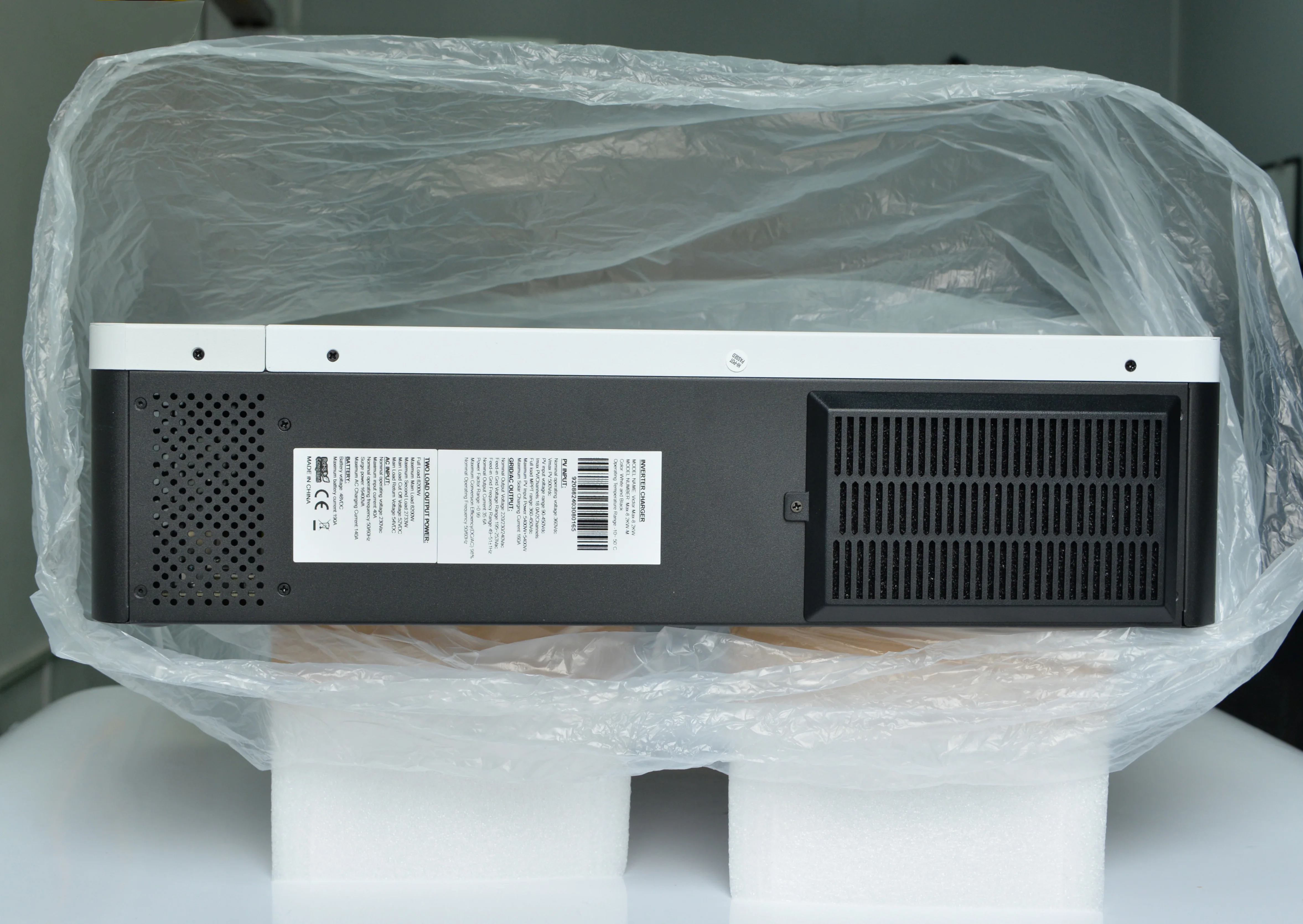

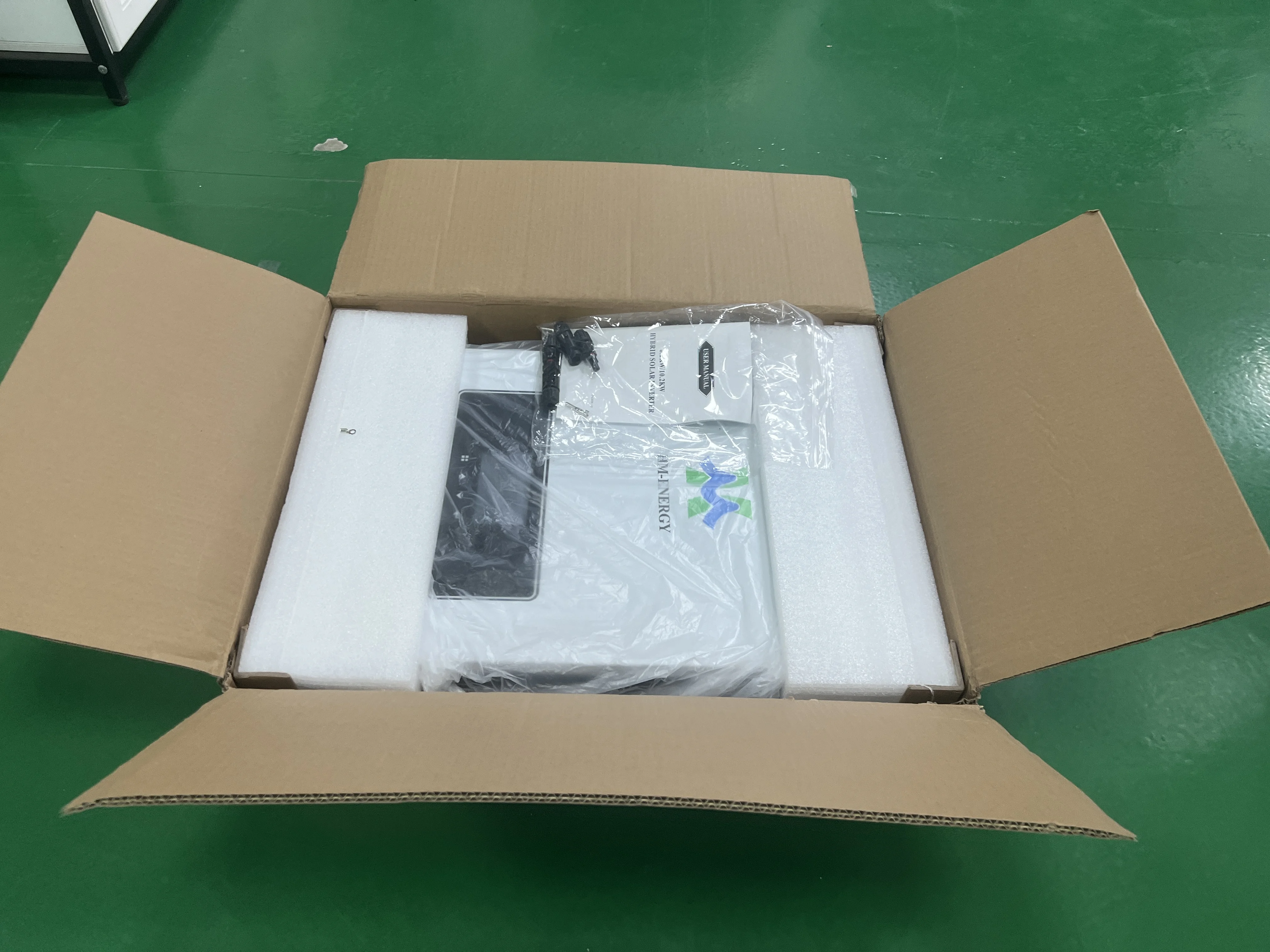

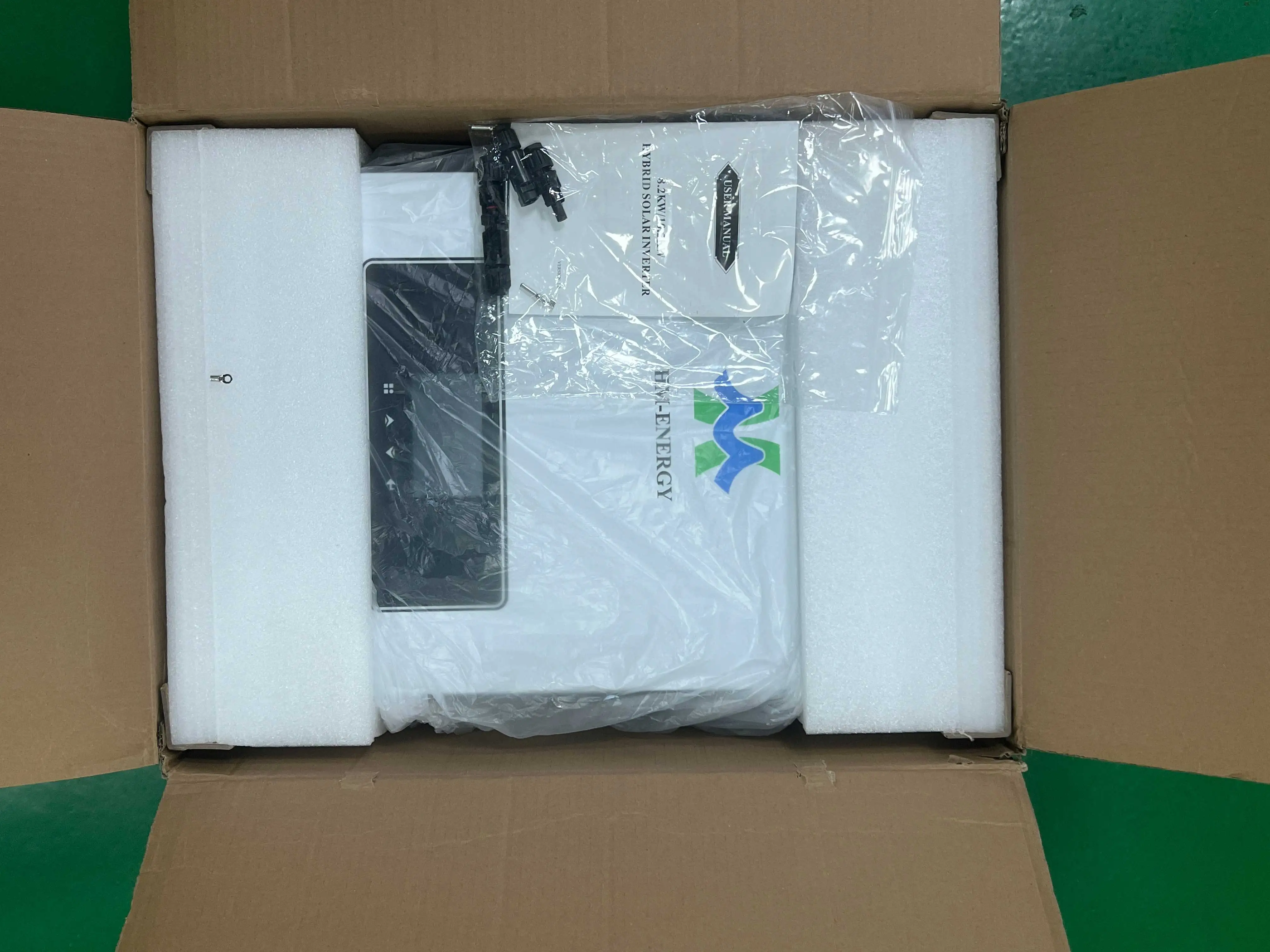

Product packaging
FAQ and Precautions
Q:Are you factory?
A: Yes, our factory and sales department are located in Shenzhen and we would be pleased to welcome you in our factory at any time when you are in Shenzhen
Q:What is the warranty for this inverter?
A: All products are at least 1 year warranty.
Q: What is the shipping way?
A: DHL, UPS, TNT, EMS and FedEx. Ship by sea.
Q:What is the payment method?
A:We normally require T/T advance payment 30% deposit and 70% before shipping.
Q:Can we design packaging?
A:Yes. We can do customer's own packing.
Q:Can we customize product?
A:Yes. OEM&ODM.
A: Yes, our factory and sales department are located in Shenzhen and we would be pleased to welcome you in our factory at any time when you are in Shenzhen
Q:What is the warranty for this inverter?
A: All products are at least 1 year warranty.
Q: What is the shipping way?
A: DHL, UPS, TNT, EMS and FedEx. Ship by sea.
Q:What is the payment method?
A:We normally require T/T advance payment 30% deposit and 70% before shipping.
Q:Can we design packaging?
A:Yes. We can do customer's own packing.
Q:Can we customize product?
A:Yes. OEM&ODM.
