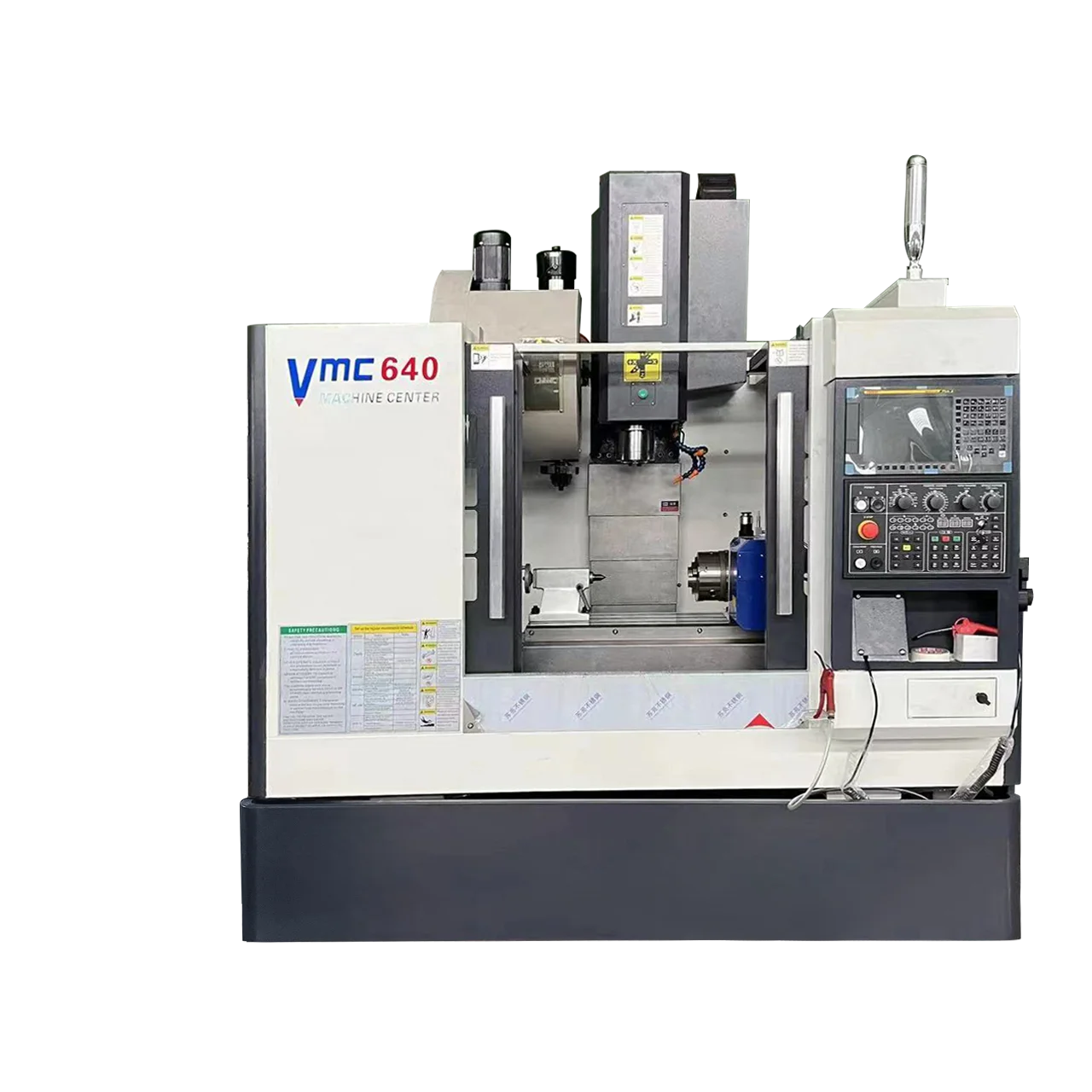

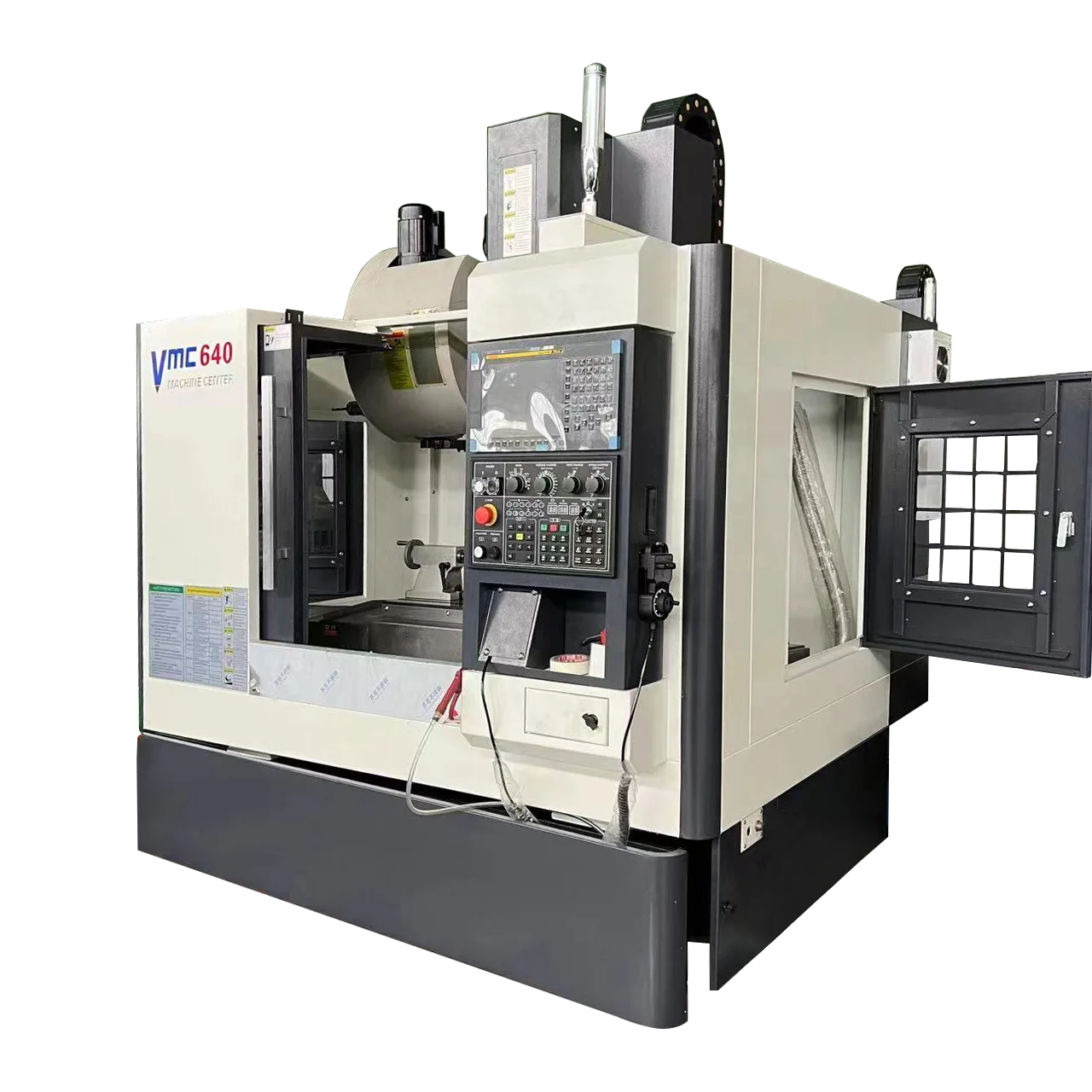

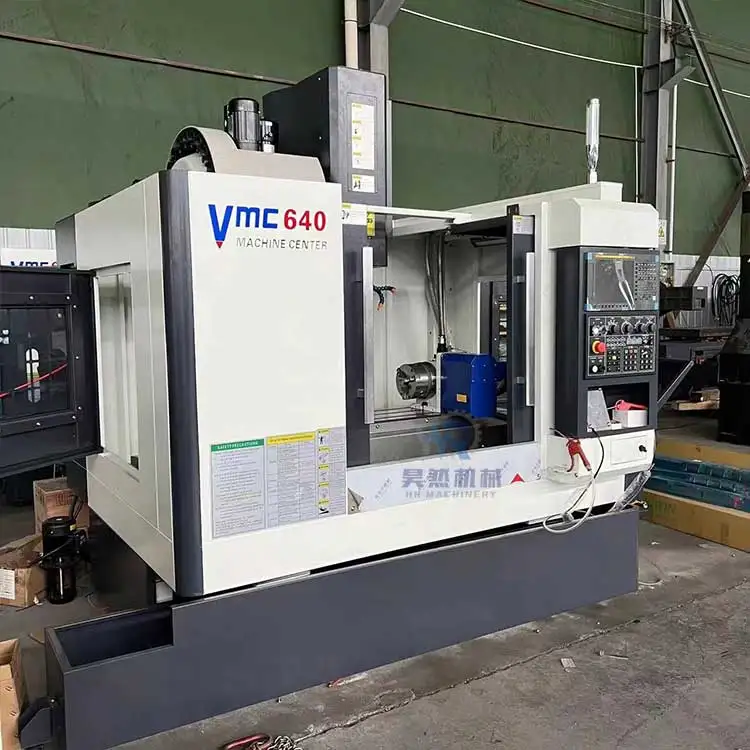

VMC640 4 axis cnc vertical milling machine small with fanuc controller cnc
- Category: >>>
- Supplier: Shandong HR Machinery Co. Ltd.
Share on (1601204309607):
Product Overview
Description
4 axis VMC640 CNC Vertical Machining Center CNC milling Machine
Product Description
Model | Vmc640 | VMC650 | VMC840 | VMC850 | VMC855 |
Table size (mm) | 800*300 | 1000*400 | 1000*400 | 1000*500 | 1000*550 |
Max. allowable load (Kg) | 400 | 400 | 300 | 500 | 500 |
X-axis stroke (mm) | 600 | 650 | 800 | 800 | 800 |
Y-axis travel (mm) | 400 | 400 | 400 | 500 | 550 |
Z-axis travel (mm) | 450 | 550 | 550 | 500 | 550 |
T-slot | 3-18-120 | 3-18-120 | 3-18-140 | 5-18-108 | 5-18-90 |
spindle center to Z-axis guide surface (mm) | 460 | 485 | 445 | 552 | 590 |
spindle end face to work table (mm) | 120-670 mm | 100-650 | 100-650 | 110-610 | 120-670 |
Spindle taper hole | BT40-120 | BT40-120 | BT40-120 | BT40-140 | BT40-150 |
Spindle speed (r/min) | 8000 | 8000 | 8000 | 8000 | 8000 |
X/Y/Z rapid movement (m/min) | 24/24/18mm | 48/48/48 | 30/30/18 | 48/48/48 | 48/48/48 |
Machine Weight (Kg) | 3000 | 3800 | 3200 | 5300 | 5500 |
Model | VMC966 | VMC1050 | VMC1160 | VMC1165 |
Table size (mm) | 1100*550 | 1200*420 | 1200*600 | 1200*600 |
Max. allowable load (Kg) | 600 | 500 | 800 | 800 |
X-axis stroke (mm) | 900 | 1000 | 1100 | 1100 |
Y-axis travel (mm) | 600 | 500 | 600 | 650 |
Z-axis travel (mm) | 600 | 550 | 600 | 650 |
T-slot | 5-18-100 | 5-18-100 | 5-18*100 | 5-18-100 |
spindle center to Z-axis guide surface (mm) | 663 | 575 | 650 | 710 |
spindle end face to work table (mm) | 100-700 | 100-650 | 120-720 | 120-720 |
Spindle taper hole | BT40-150 | BT40-150 | BT40-150 | BT40-150 |
Spindle speed (r/min) | 8000 | 8000 | 8000 | 8000 |
X/Y/Z rapid movement (m/min) | 48/48/48 | 18/18/18 | 36/36/24 | 36/36/36 |
Machine Weight (Kg) | 5600 | 5500 | 6500 | 6800 |
Model | VMC1265 | VMC1270 | VMC1370 | VMC1580 | Vmc1690 |
Table size (mm) | 1200*600 | 1200*700 | 1400*700 | 1700*800 | 1600*800 |
Max. allowable load (Kg) | 800 | 800 | 800 | 1500 | 1500 |
X-axis stroke (mm) | 1200 | 1200 | 1300 | 1500 | 1600 |
Y-axis travel (mm) | 650 | 700 | 700 | 800 | 900 |
Z-axis travel (mm) | 650 | 700 | 750 | 700 | 700 |
T-slot | 5-18-100 | 5-18-130 | 5-18-130 | 5-22-135 | 7-22-110 |
spindle center to Z-axis guide surface (mm) | 710 | 710 | 713 | 855 | 936 |
spindle end face to work table (mm) | 120-770 | 120-770 | 120-870 | 160-860 | 150-850 |
Spindle taper hole | BT40-150 | BT40-150 | BT40-150 | BT50-155 | BT50-190 |
Spindle speed (r/min) | 8000 | 8000 | 8000 | 6000 | 10000 |
X/Y/Z rapid movement (m/min) | 36/36/36 | 36/36/36 | 24/24/24 | 24/24/18 | 15/15/12 |
Machine Weight (Kg) | 7000 | 7000 | 8000 | 12000 | 12000 |
cnc vertical milling machine

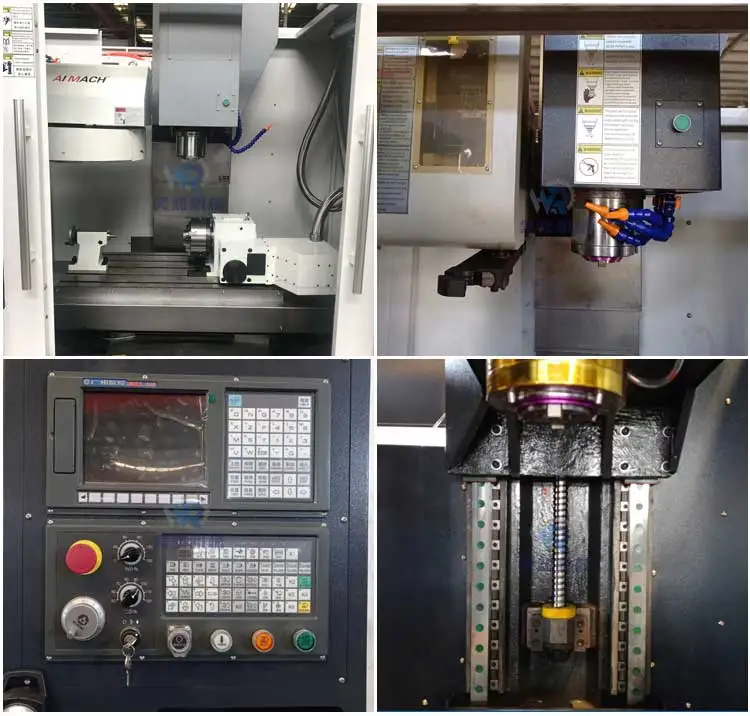

1. Castings: HT300 resin sand wear-resistant castings have high density and good wear resistance! The saddle adopts double-layer casting structure, which has strong rigid cutting ability.
2. Spindle: Taiwan high-speed spindle 8000rpm, simple and compact structure, high efficiency, low noise, low vibration and high precision.
3. Automatic tool change: Taiwan hat type (16 knives) tool magazine. Advantages: small wear, long life, easy adjustment, low failure rate.
4. Inspection: All equipment in the factory has undergone inspection steps such as laser interference, copiers, and actual measurement to ensure the production quality of each product
1. Castings: HT300 resin sand wear-resistant castings have high density and good wear resistance! The saddle adopts double-layer casting structure, which has strong rigid cutting ability.
2. Spindle: Taiwan high-speed spindle 8000rpm, simple and compact structure, high efficiency, low noise, low vibration and high precision.
3. Automatic tool change: Taiwan hat type (16 knives) tool magazine. Advantages: small wear, long life, easy adjustment, low failure rate.
4. Inspection: All equipment in the factory has undergone inspection steps such as laser interference, copiers, and actual measurement to ensure the production quality of each product
Detailed description
cnc milling machine the guide rail and lead screw in X, y and Z directions are equipped with protective devices to ensure the cleanness of the lead screw and guide rail and the transmission, motion accuracy and service life of the machine tool; The external protection of the machine tool adopts the full protection structure design, which is easy to operate, safe and reliable;
Application
It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection
mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.
Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing.
mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.
Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing.
Packing & Delivery
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 30 working days after payment.
2. Inner package: Stretchy film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 30 working days after payment.
Certifications
All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us.
Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
Company Profile

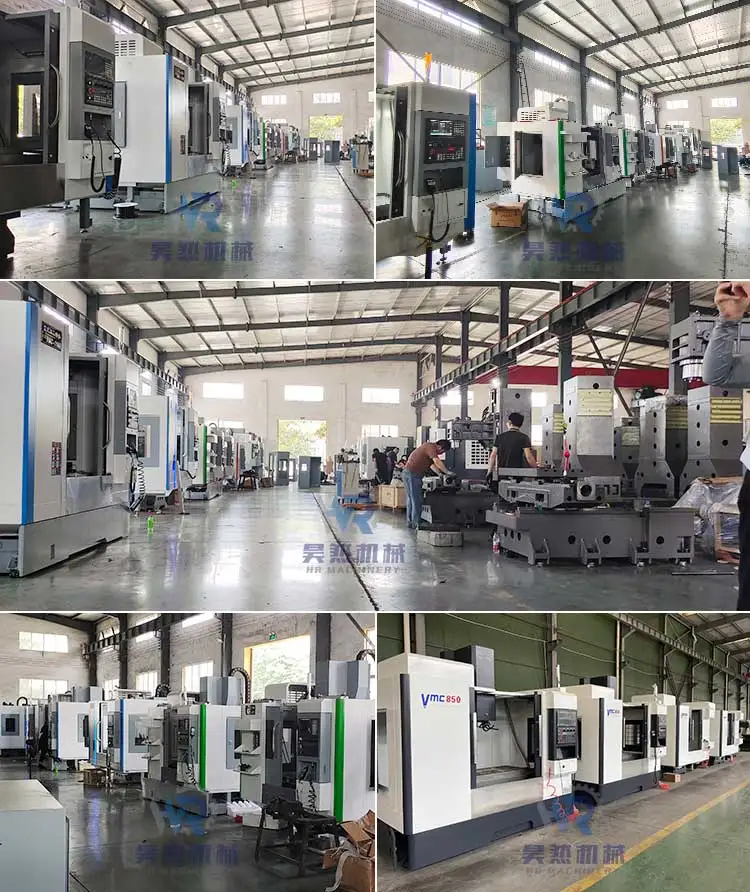

Shandong HR machinery Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while meeting the personalized needs of users.
Customer visiting
We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you.
Shandong HR is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
Shandong HR is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
FAQ

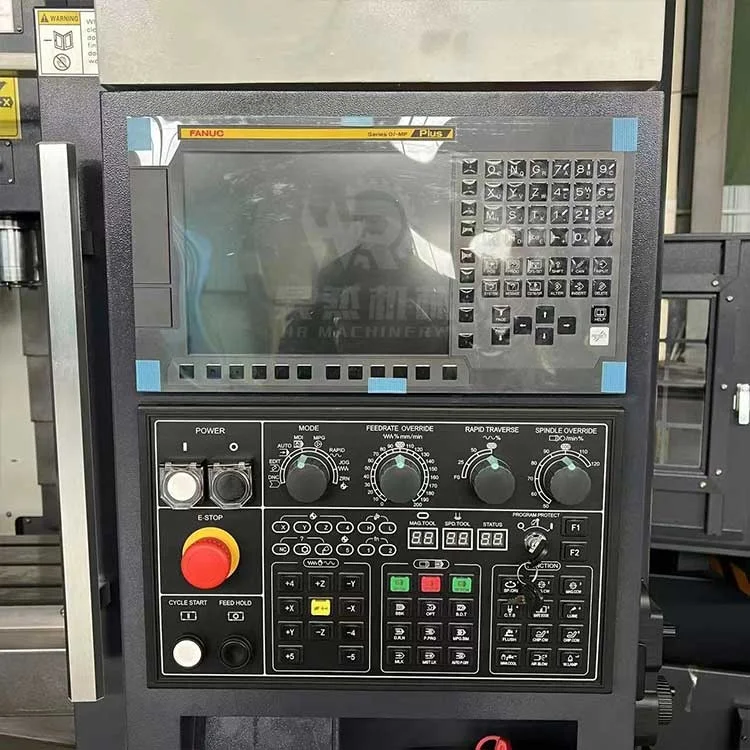

1.What CNC system do you use?
A:FANUC, SIEMENS, MISTSUBISHI, GSK etc. It depends on your choice.
2. Payment Terms
A:30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4.How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
5.Where is our factory located? How can I visit there?
A : Our factory is located in Ji nan City ,Shandong . You are warmly welcomed to visit us.
6.What's the MOQ?
A: 1 set .
7.How long is the machine warranty?
A:warranty is 3 year.If you need to replace accessories or parts after the warranty period, we will provide them to you at the cost price
A:FANUC, SIEMENS, MISTSUBISHI, GSK etc. It depends on your choice.
2. Payment Terms
A:30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4.How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
5.Where is our factory located? How can I visit there?
A : Our factory is located in Ji nan City ,Shandong . You are warmly welcomed to visit us.
6.What's the MOQ?
A: 1 set .
7.How long is the machine warranty?
A:warranty is 3 year.If you need to replace accessories or parts after the warranty period, we will provide them to you at the cost price
