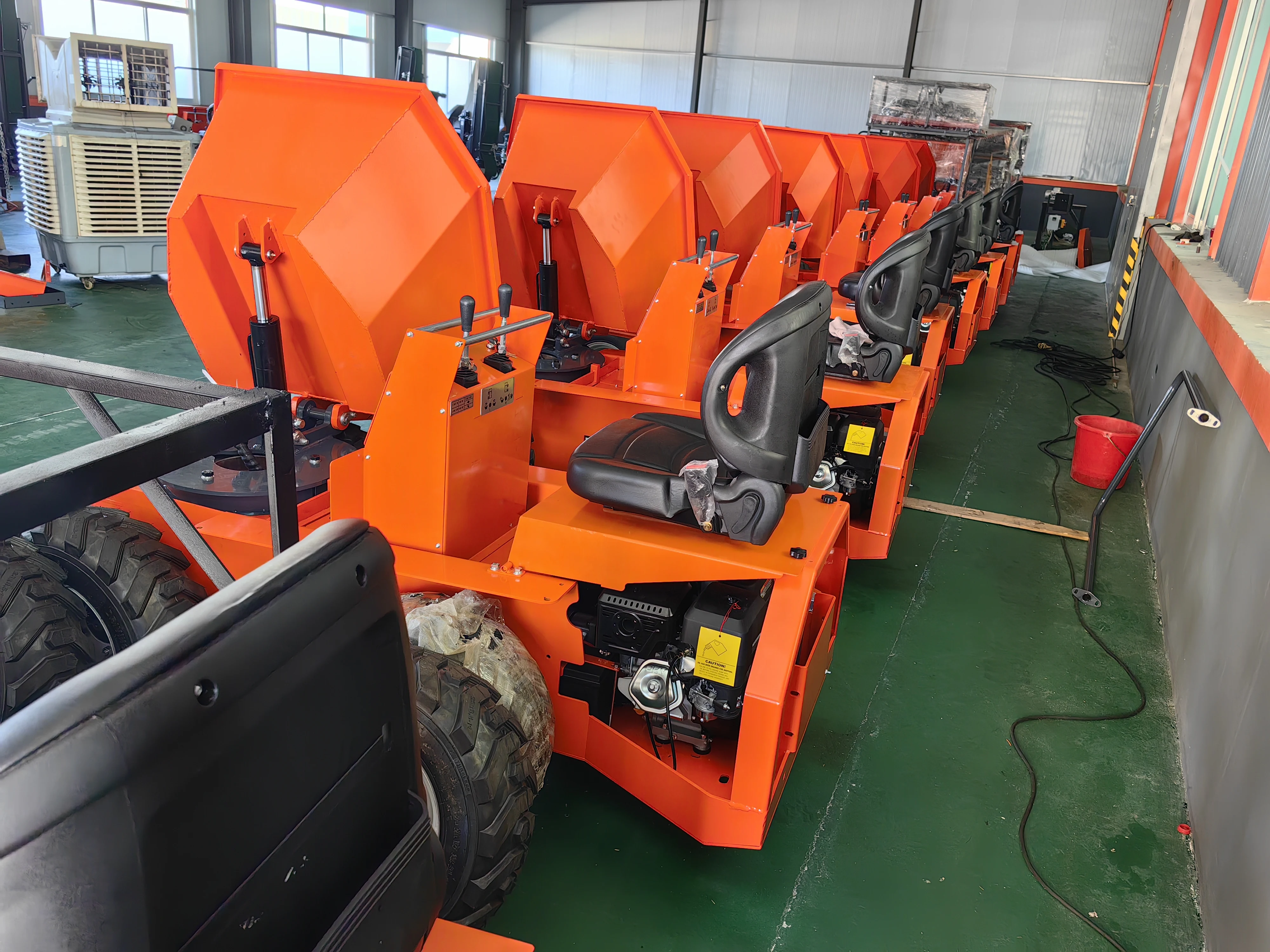

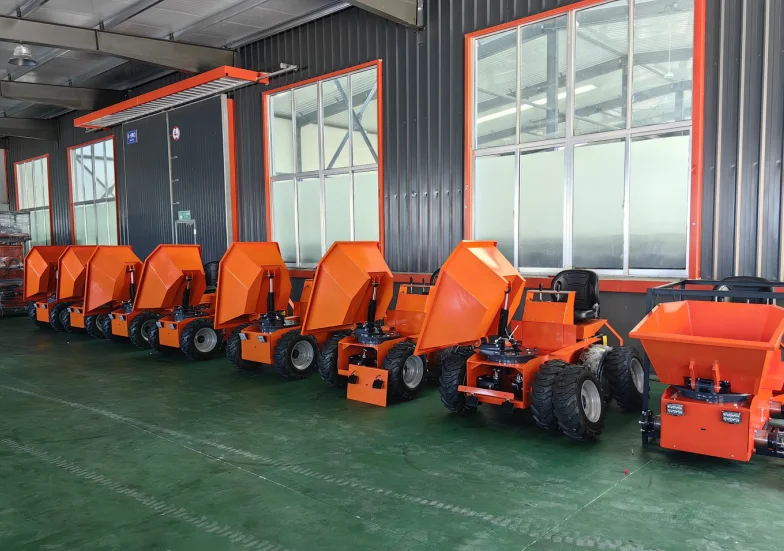

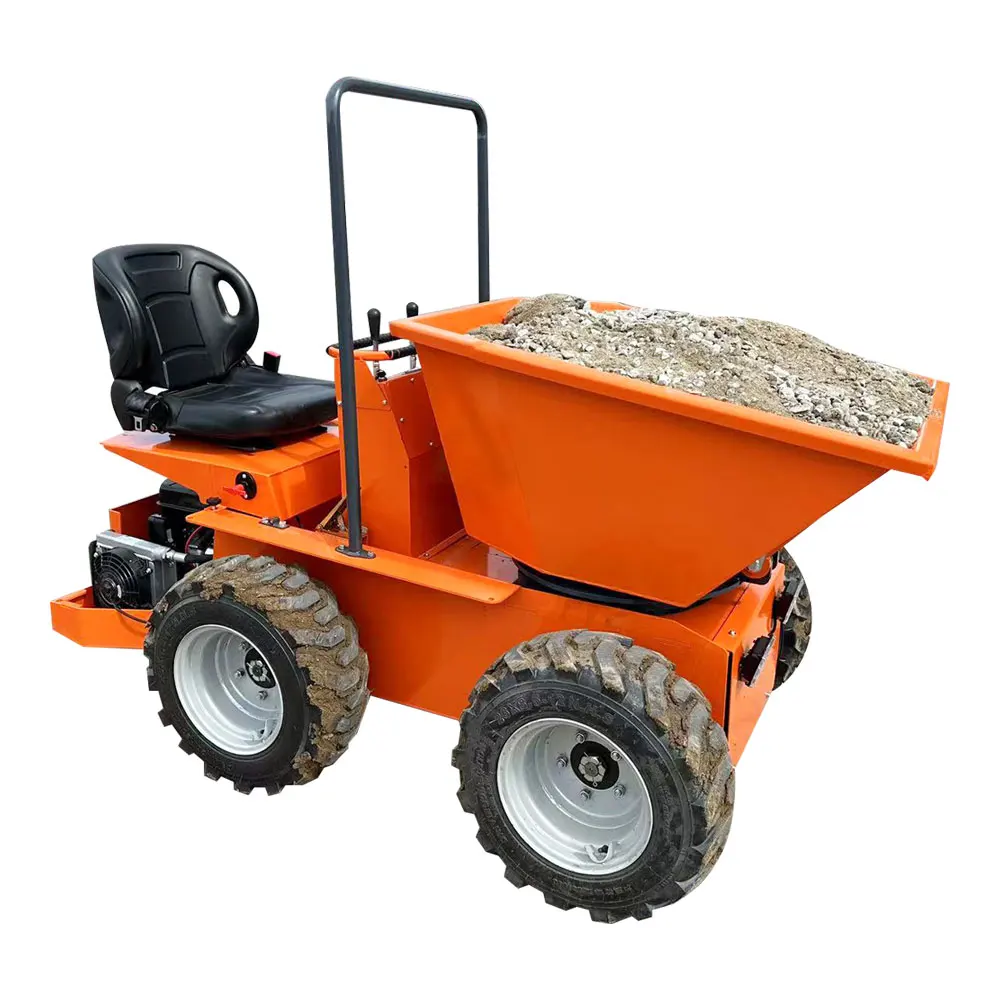

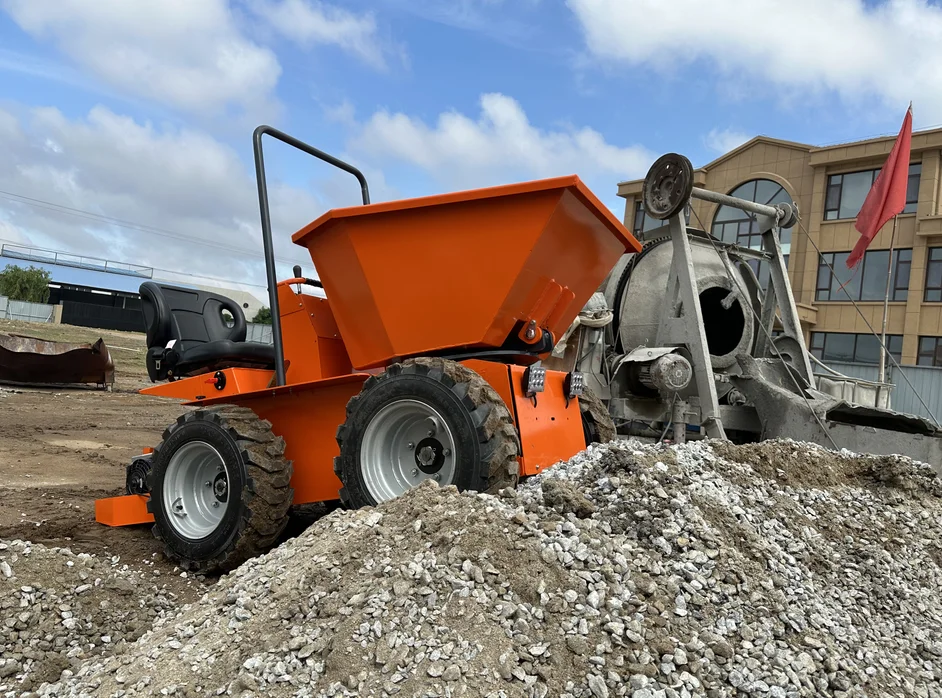

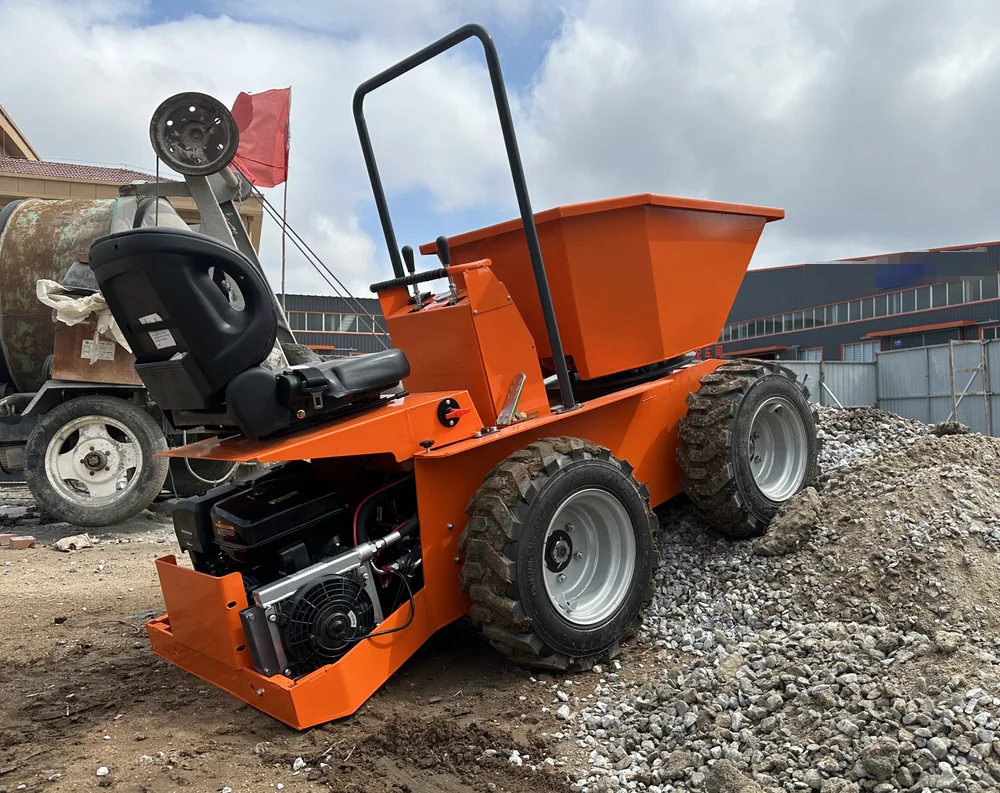

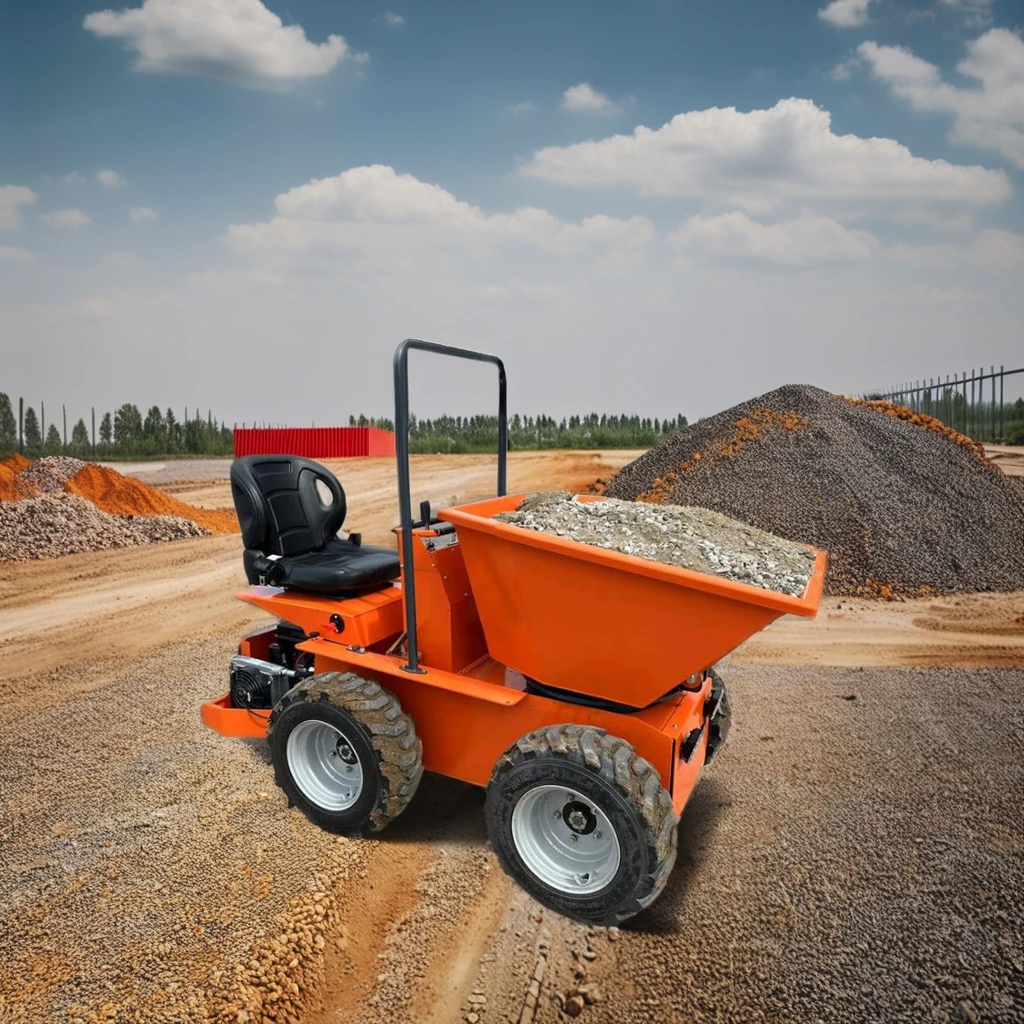

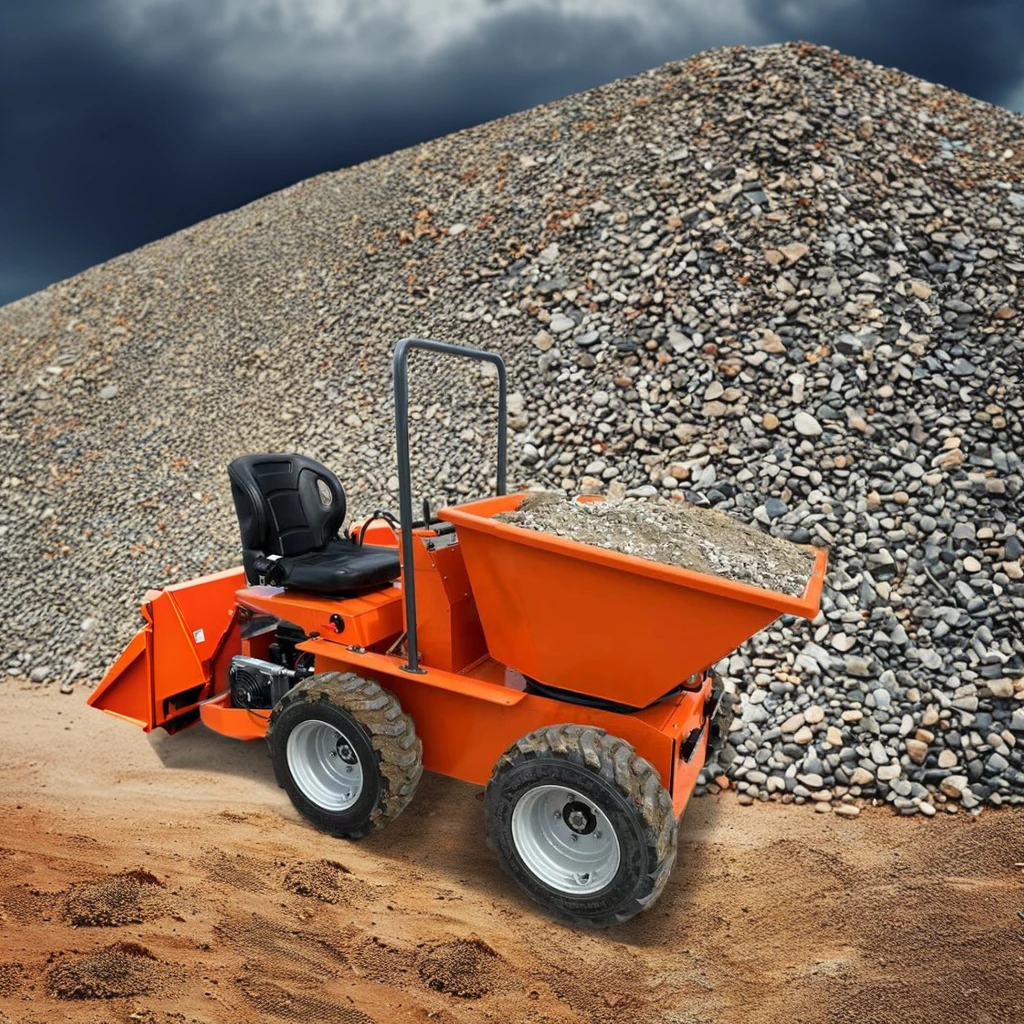

high quality 4 wheels hydraulic lift petrol mini skid steer dumper
- Category: >>>
- Supplier: Yantai Rima Machinery Co. Ltd.
Share on (1601204358952):
Product Overview
Description
Product Description
Model | RD500/15 | RD500/24 |
Engine | Petrol, LIFAN, 15HP, 10A | Petrol, LIFAN 24HP |
Petrol, KOHLER,14HP (Optional) | Petrol, HONDA GX630 (Optional) | |
Standard Bob-weight | 25kg | 25kg |
Tipping load *) | 500kg | 500kg |
Standard bucket capacity | 0.34m³ | 0.34m³ |
High speed | 0-6km/h | 0-6km/h |
Low speed | 0-3km/h | 0-3km/h |
Hydraulic flow on low speed | 20-40L/min | 20-40L/min |
Motor | 490cc | 490cc |
Pump | 12ml/r | 12ml/r |
Pulling force | 650kg | 650kg |
Working pressure | 19Mpa | 21Mpa |
Oil cooler | Yes | Yes |
Hydraulic tank capacity | 32L | 32L |
Wheel | 23x8.5-12 | 23x8.5-12 |
Transmission drive | 4-WD | 4-WD |
Weight | 745kg | 763kg |
Packing size | 2250×1100×1250mm | 2250×1100×1250mm |

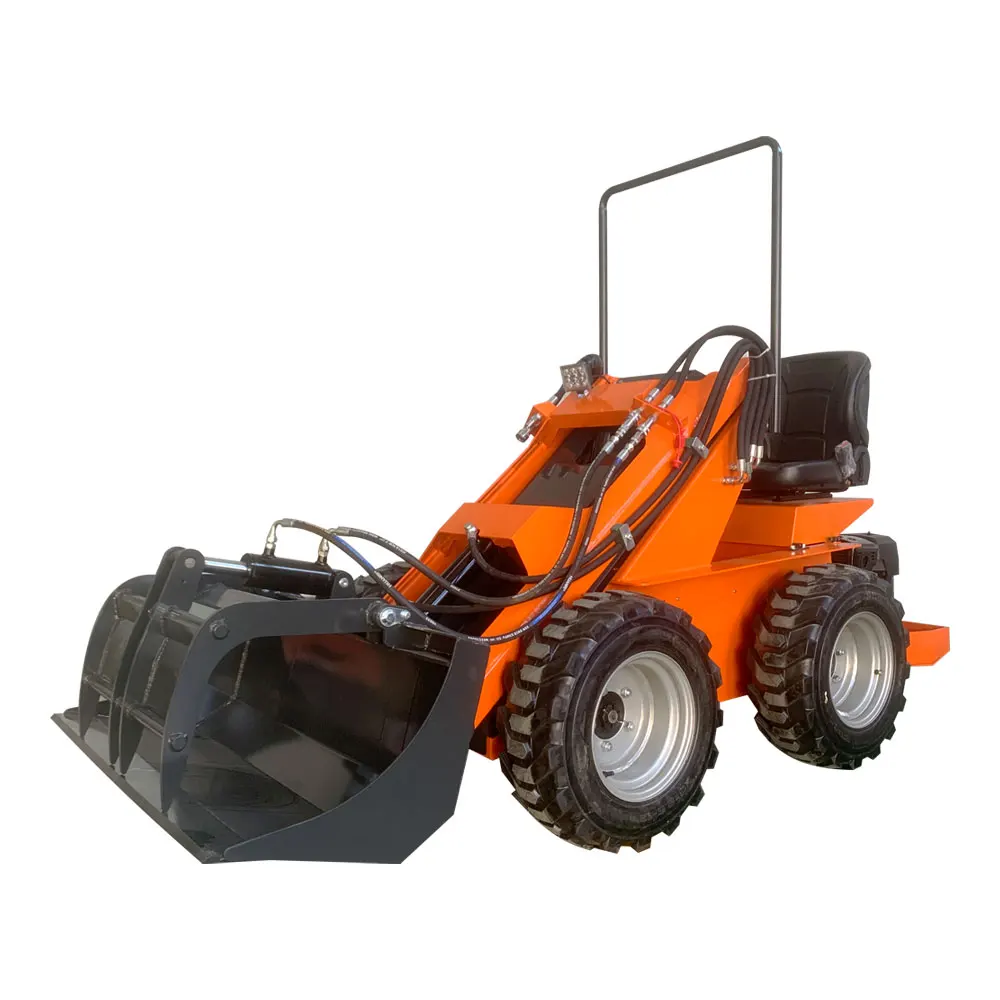

Model | RL500/15 | RL500/24 |
Engine | Petrol, LIFAN, 15HP, 10A | Petrol, LIFAN 24HP |
Petrol, KOHLER,14HP (Optional) | Petrol, HONDA GX630 (Optional) | |
Standard Bob-weight | 25kg | 25kg |
Tipping load *) | 500kg | 500kg |
High speed | 0-6km/h | 0-6km/h |
Low speed | 0-3km/h | 0-3km/h |
Hydraulic flow on low speed | 20L/min | 20L/min |
Hydraulic flow on high speed | 40L/min | 40L/min |
Transmission drive | 4-WD | 4-WD |
Drive motor | Hydraulic | Hydraulic |
Pulling force | 650kg | 650kg |
Working pressure | 19Mpa | 21Mpa |
Oil cooler | Yes | Yes |
Hydraulic tank capacity | 32L | 32L |
Bucket width | 1130mm | 1130mm |
Standard bucket weight | 61kg | 61kg |
Wheel | 23x8.5-12 | 23x8.5-12 |
Loader weight without bucket | 733kg | 763kg |
