Water Curtain Fire Sprinkler High Quality Firefighting Equipment with Competitive Prices
- Category: >>>
- Supplier: Quanzhou Sanxing Fire-Fighting Equipment Co. Ltd.
Share on (1601204373017):
Product Overview
Description
Products Description

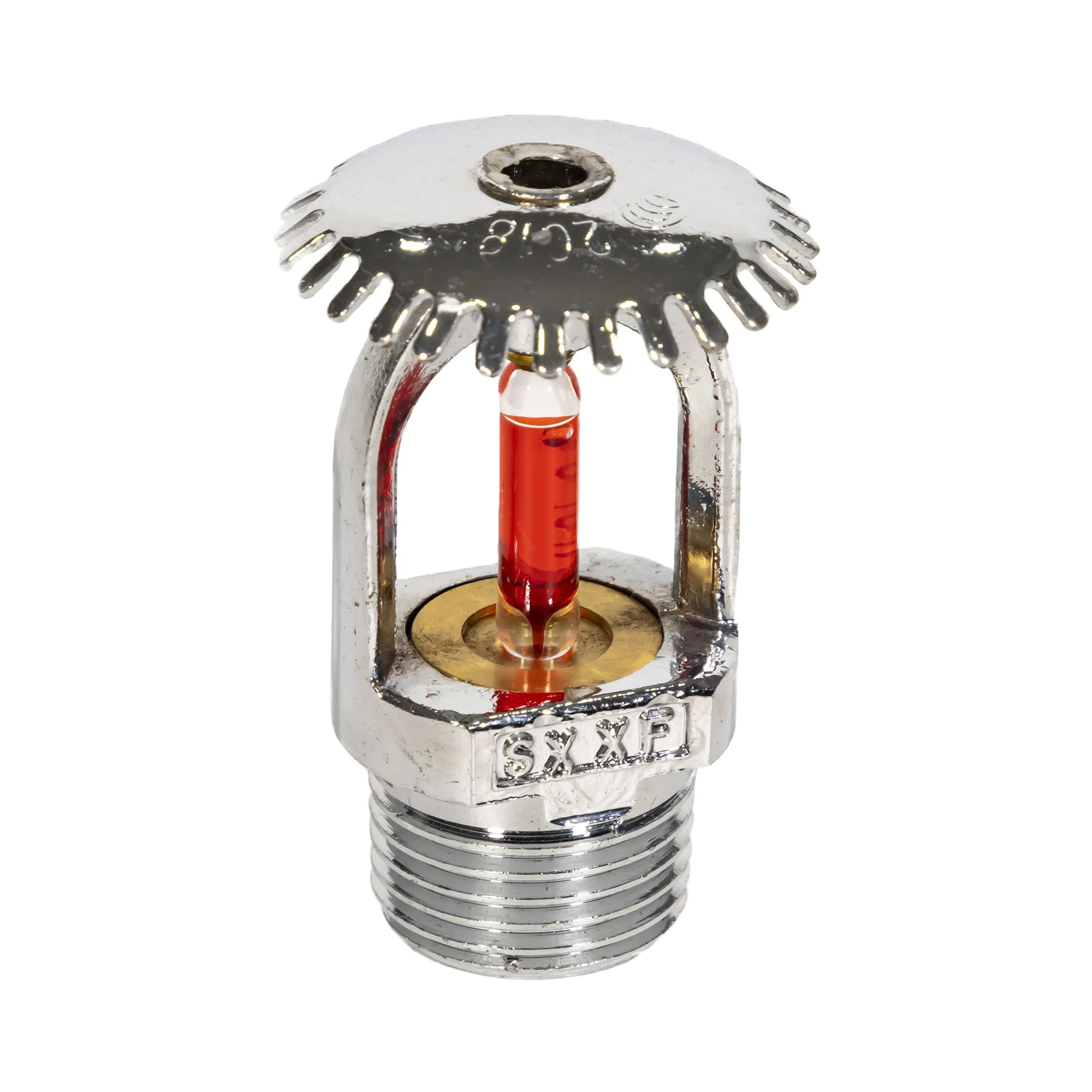

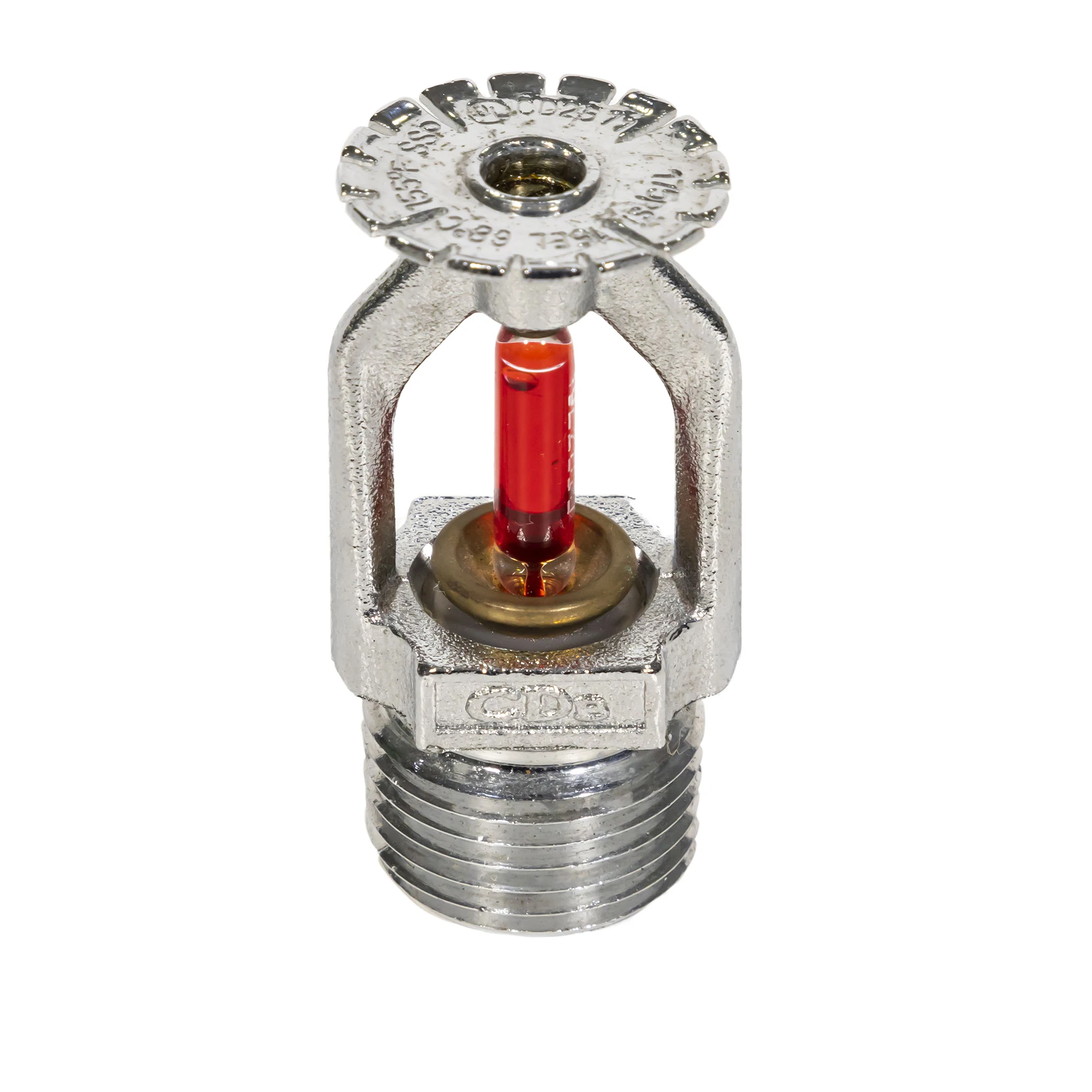

Glass Bulb Fire Sprinkler
1. Fire Sprinkler is an important part of wet-type auto spraying system. It is usually installed inside the building and structures with light fire danger, medium fire danger and heavy fire danger, such as workshop, warehouse, hotel, shop, recreational place, hospital, cinema, office building and garage.
2.The sprinkler consists of sprinkler frame, sealant and glass bulb. It is to be installed in the protective district via ductwork, acting as a fire detector and auto sprayer.
3. In case of fire inside the protective district, the atmosphere temperature rises up and the liquid inside the glass bulb expands after being heated and explodes after reaching the operating temperature of the glass ball. The sealant drops and the sprinkler sprays to the protective district for fire extinguishments subject to the preset shape of spraying.
2.The sprinkler consists of sprinkler frame, sealant and glass bulb. It is to be installed in the protective district via ductwork, acting as a fire detector and auto sprayer.
3. In case of fire inside the protective district, the atmosphere temperature rises up and the liquid inside the glass bulb expands after being heated and explodes after reaching the operating temperature of the glass ball. The sealant drops and the sprinkler sprays to the protective district for fire extinguishments subject to the preset shape of spraying.
Product Name | Fire Sprinkler |
Brand Name | Sanxing |
Place of Origin | Fujian, China |
Body Material | Chrome and Copper |
Certification | CCCF / ISO9001 |
Nominal Diameter | 15mm / 20mm |
Thread Size | 1/2 Inches, 4/3 Inches |
Applicable Medium | Clean water |
Applicable Scene | school, office, kitchen, warehouse, workshop |
Exterior | Chromeplated or customize according to your requirement. |
Packing | Packed in carton or according to your requirement. |
Transportation | By Sea From XiaMen Port |
Product Paramenters

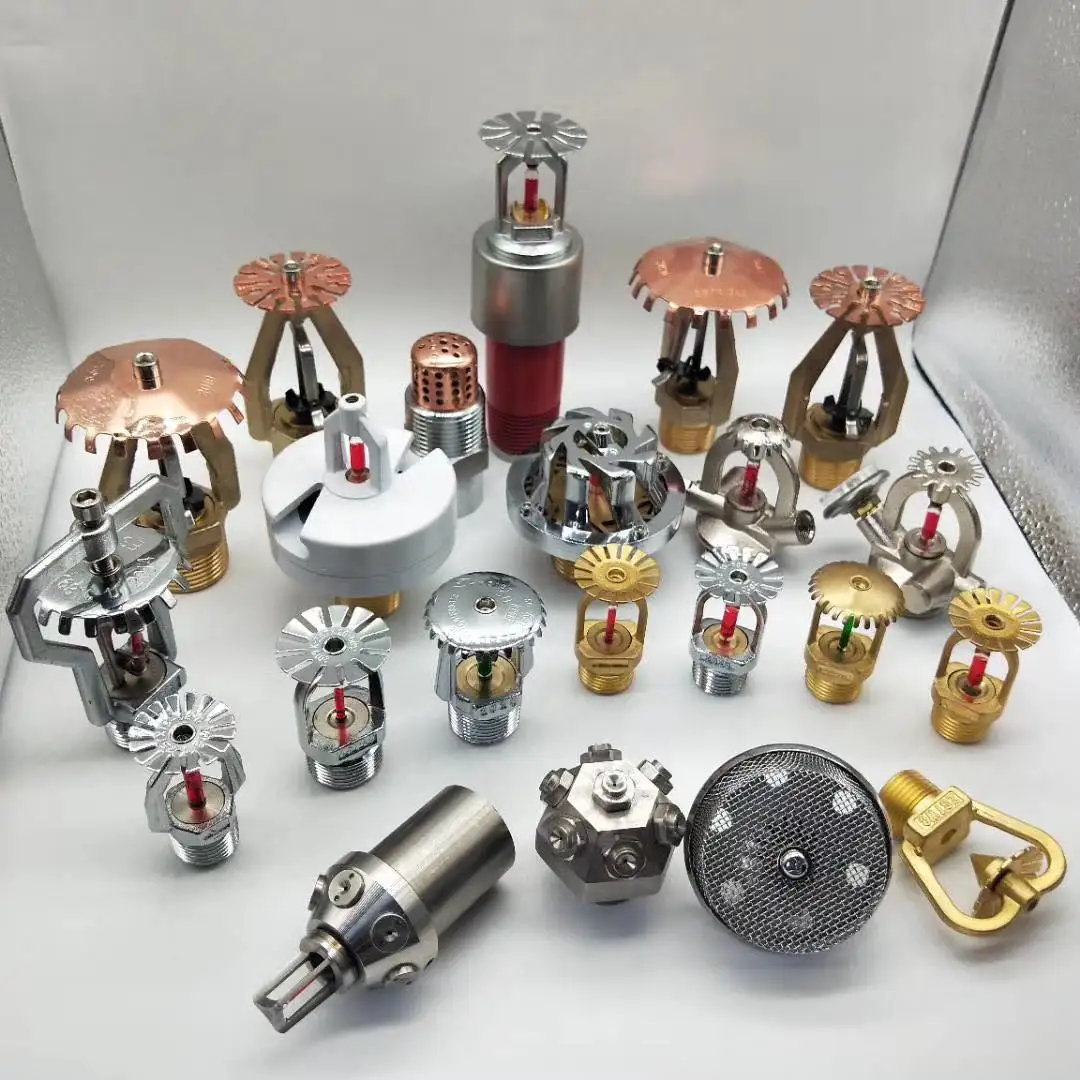

Type | Specification | Nominal Diameter(mm) | Thread Size (inch) | K Factor (K) |
Conventional | T-ZSTP | DN15 DN20 | 1/2" 3/4" | 80 115 |
Pendent | T-ZSTX | |||
Upright | T-ZSTZ | |||
Sidewall | T-ZSTB | |||

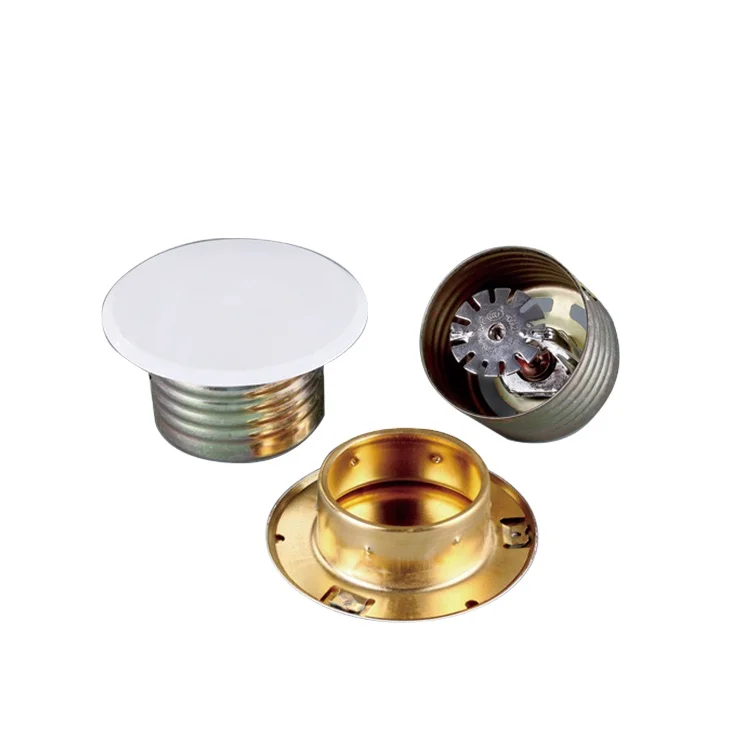

Concealed | ZSTDY |
Nominal Temp. Rating | 135°F/57°C | 155°F/68°C | 175°F/79°C | 200°F/93°C |
Max. Ambient Temp. Allowed | 115°F/46°C | 135°F/57°C | 155°F/68°C | 180°F/82°C |
Max. Recommended Ambient Temp | 100°F/38°C | 100°F/38°C | 150°F/65°C | 150°F/65°C |
Glass Bulb Color | Orange | Red | Yellow | Green |
Packing & Delivery
Packed by carton or according to your requirement.
