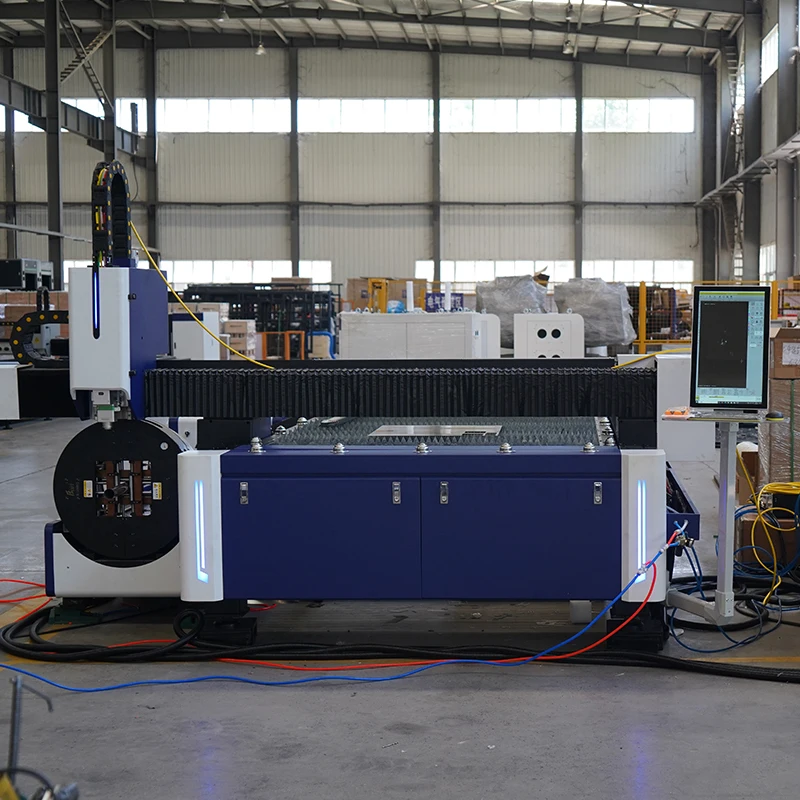

Accurl Ipg 3000W Fiber Laser Cutting Machine 6M Laser Metal Cutting Machine Pipe And Sheet
- Category: >>>
- Supplier: Shandong Leapion Machinery Co. Ltd.
Share on (1601204379879):
Product Overview
Description
Product Description

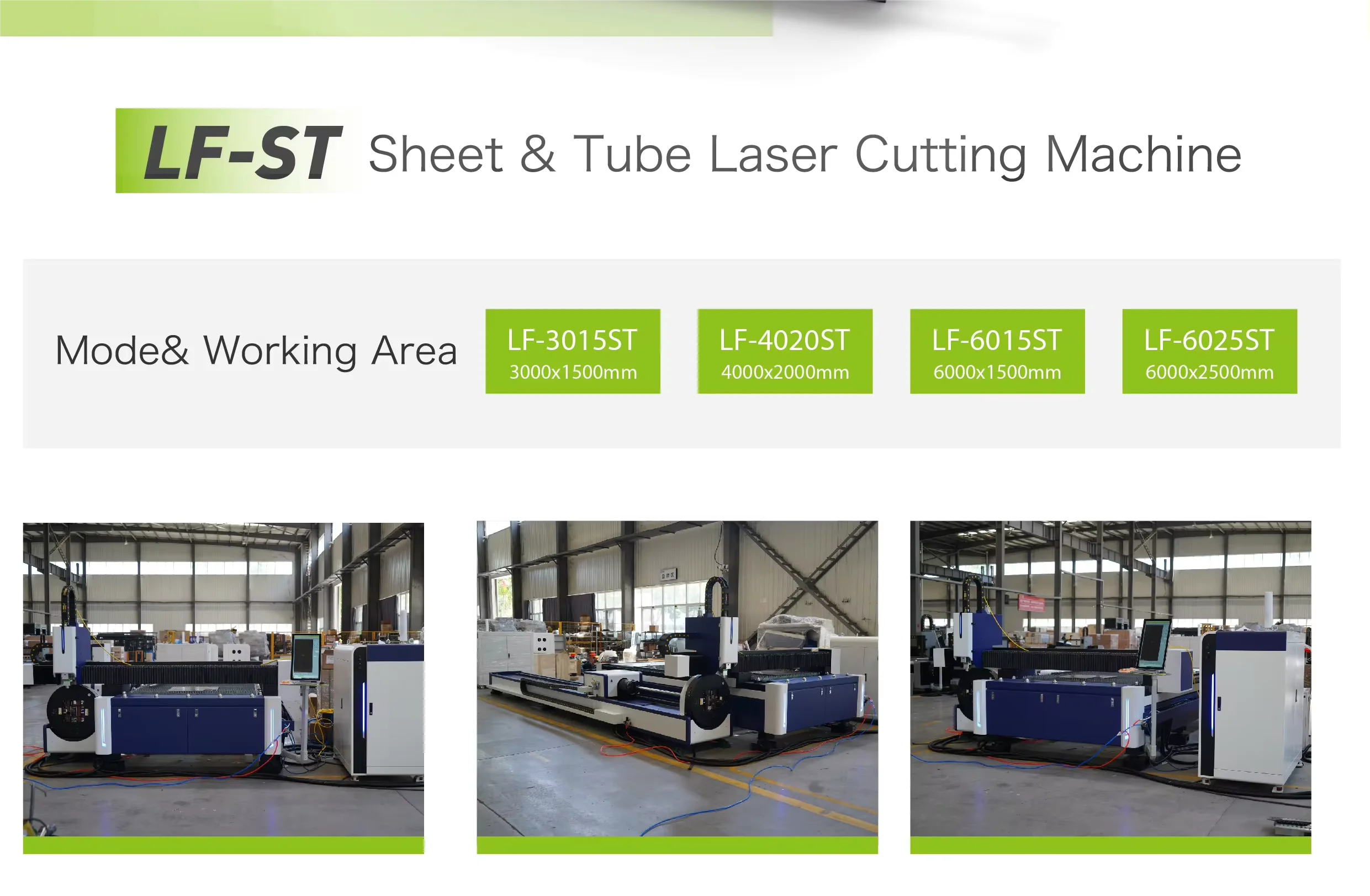

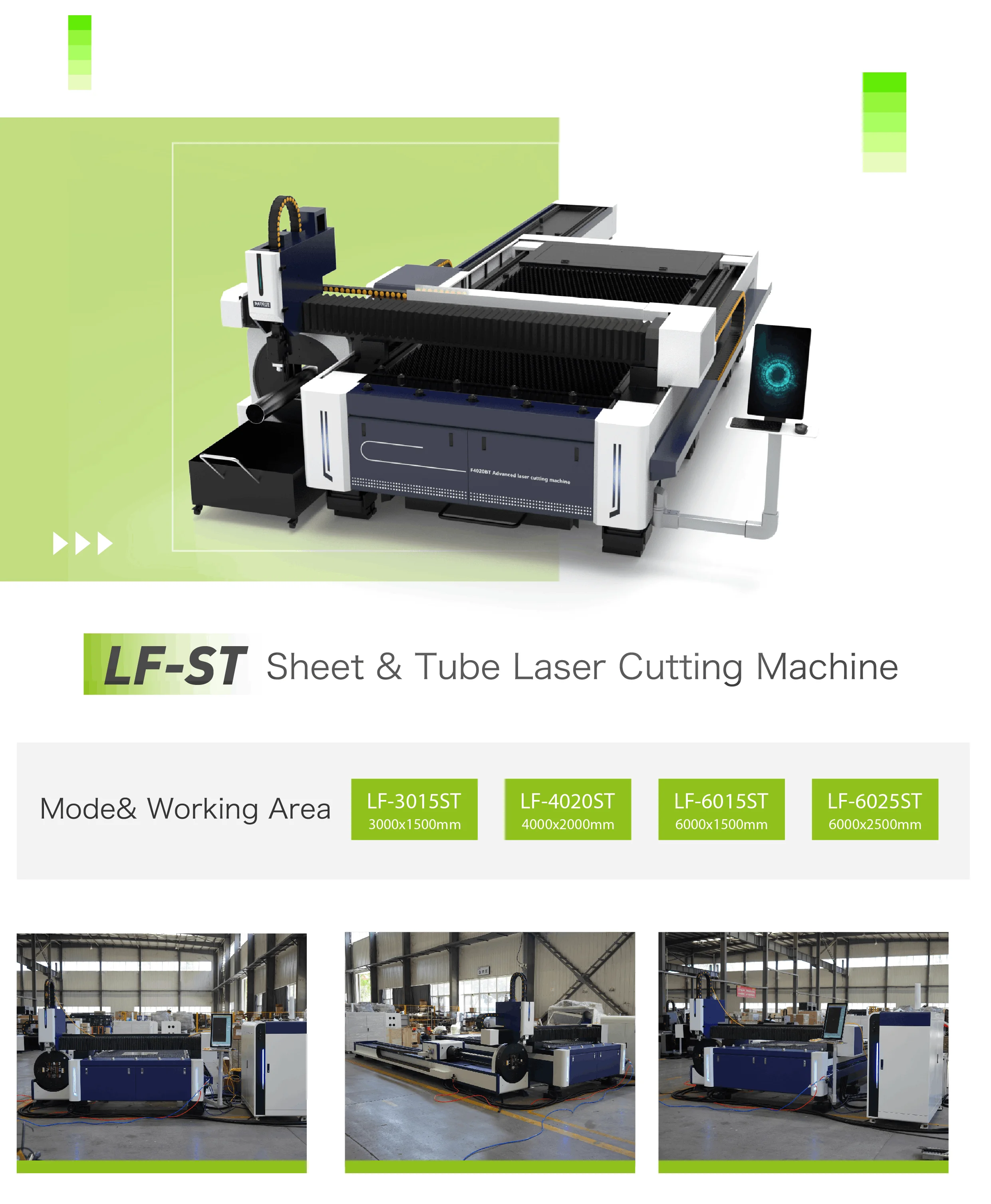

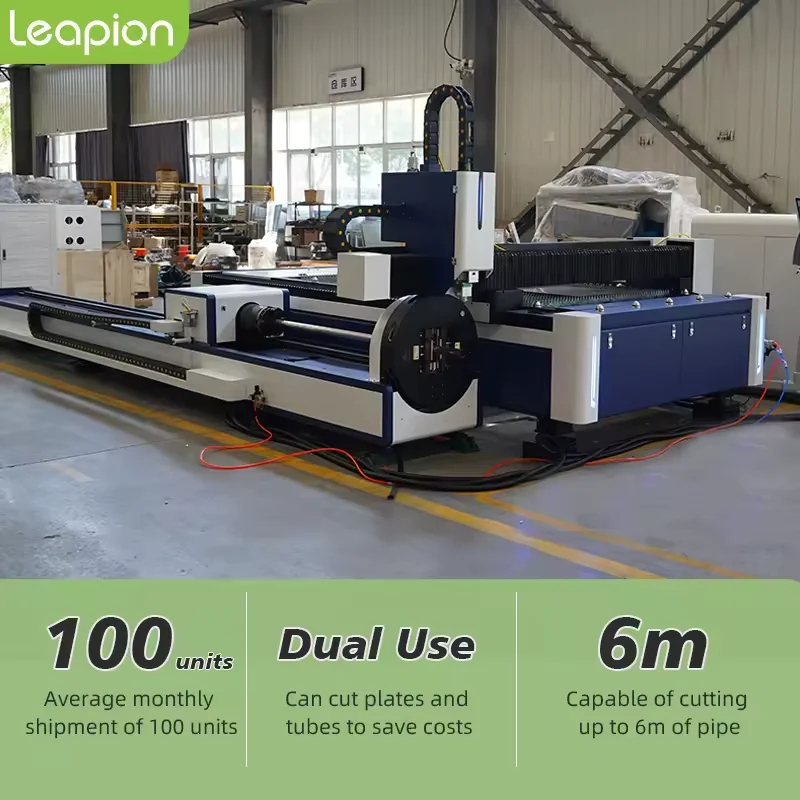

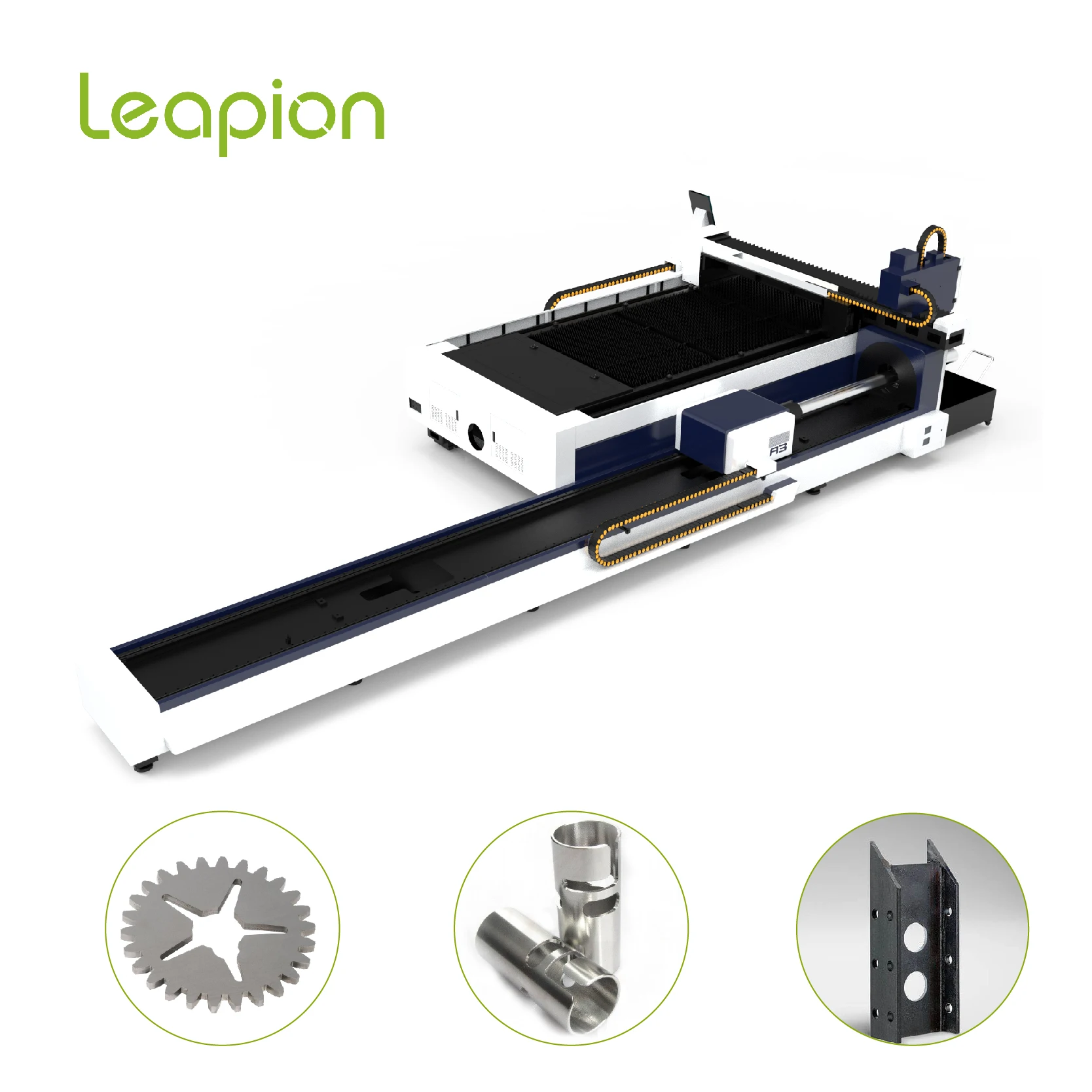

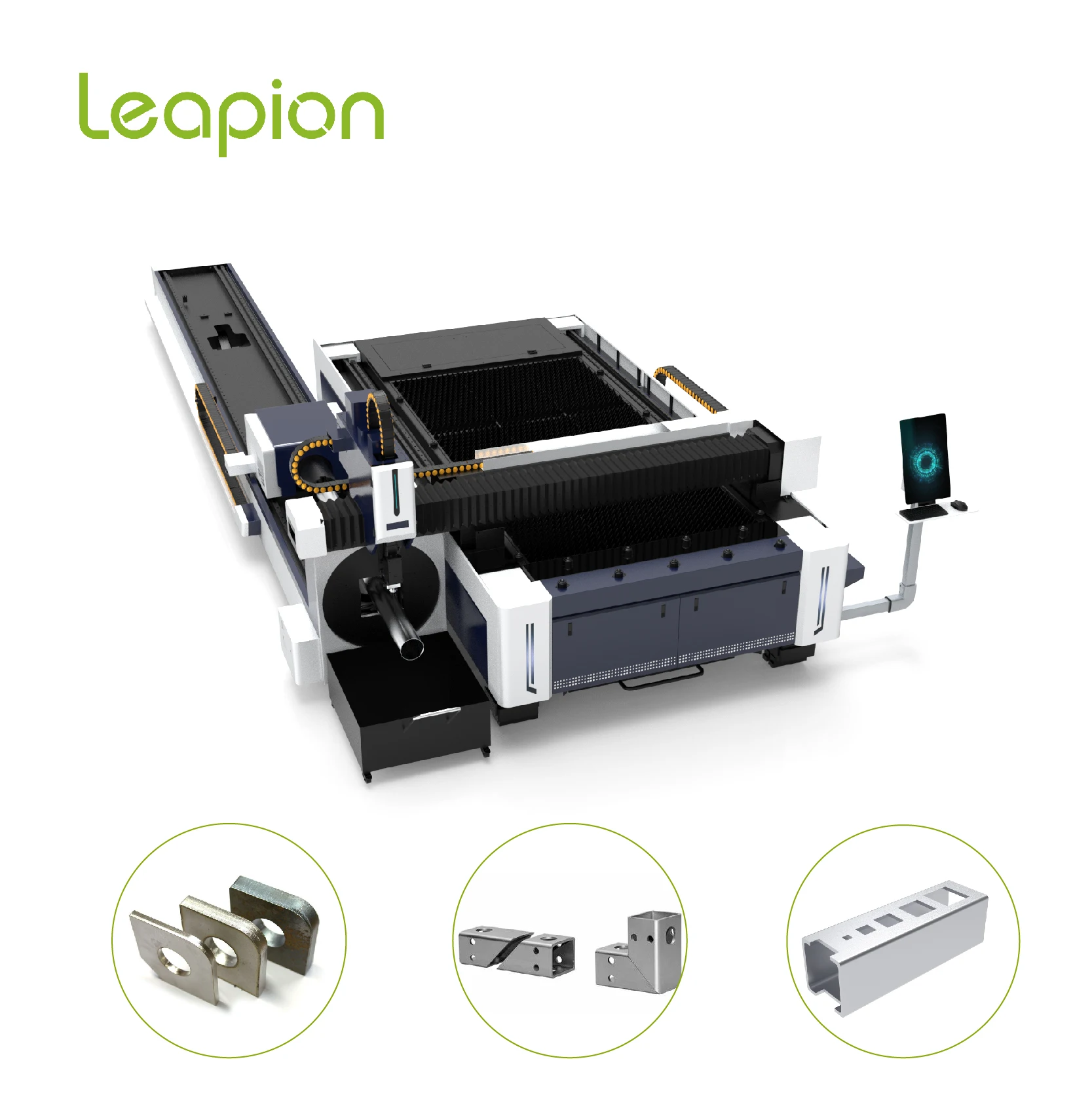

LF-STFiber Laser Cutting Machine 2000W for Metal Sheet And Tube
LF-ST Fiber Laser Cutting Machine is our best choice for customers who have more needs. Max power can reach 6000w for 3015 cutting area, and the working area can customerized according to your need. lt combines sheet and tube cutting capabilities, processing various materials and cheap price for customers to use. At the same time, highly integrated, with a long lifespan and energy-efficient design that significantly reduces costs. Its advanced controls are user-friendly, making it easy to learn and maintain with less downtime. With the Internet to use, you have more possibility to do your projects and make plans.

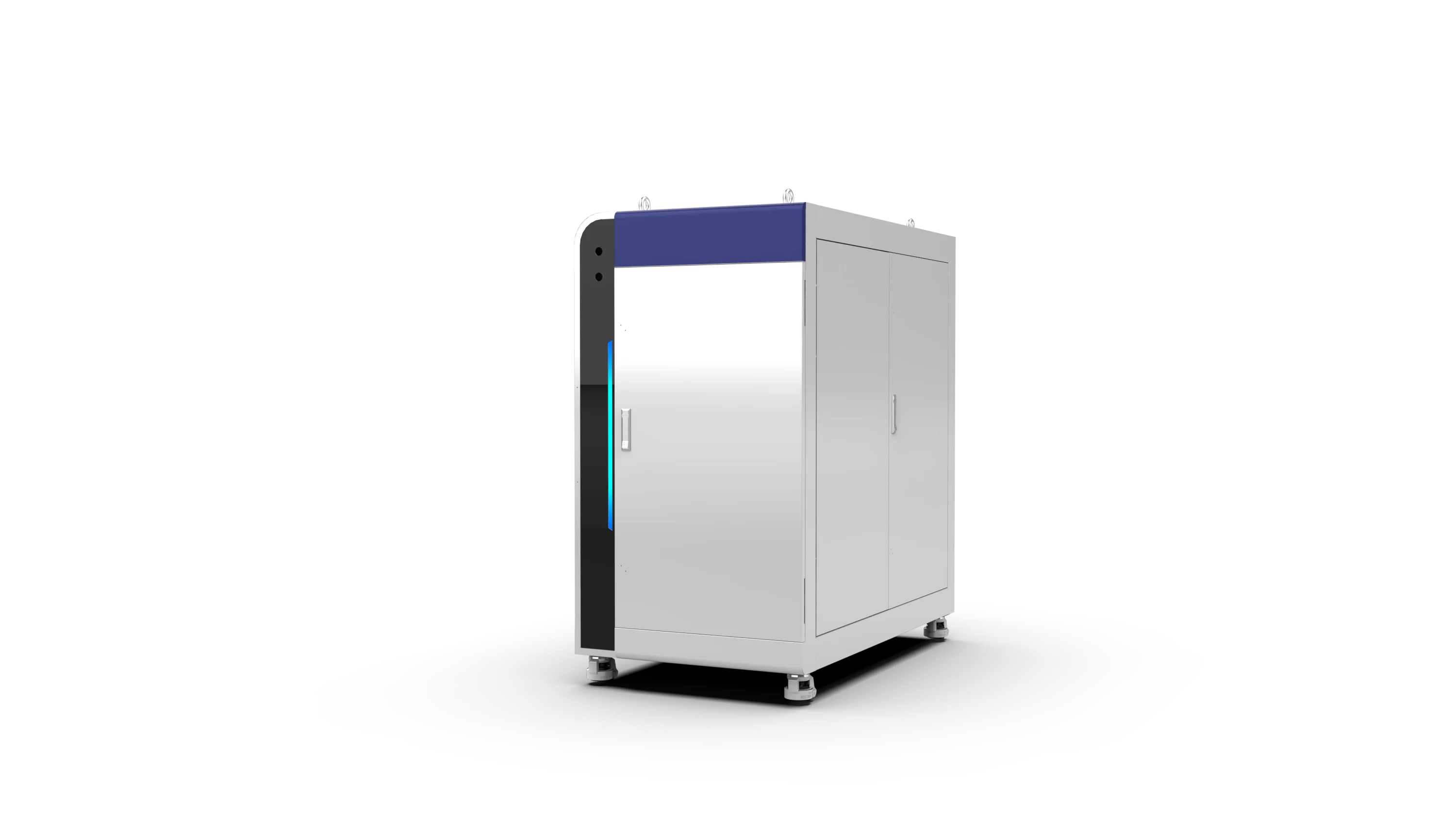

Independent Control Box
The LF-ST offers a standalone control cabinet design, All electrical components and lasers are housed in a separate control cabinet with dust-proof design to improve the life of electrical components and save material andassembly time costs for personnel.
Machine Details
Machine frame
Strength steel plate welding bed using bevelling welding process, to achieve equal strength welding between steel plates, after
the internal stress annealing process, to ensure that the bed is sturdy and durable, not easy to deform, more stable. Great vibration damping effect, to ensure that the high cutting accuracy.
the internal stress annealing process, to ensure that the bed is sturdy and durable, not easy to deform, more stable. Great vibration damping effect, to ensure that the high cutting accuracy.
Cast Aluminium Gantry
Our beam is made from high-grade aluminum. This material is chosen for its strength. It ensures swift and agile cutting motions.
Precision is maintained and effectively ensures that the bed will not be deformed in long-term use, and has excellent shock
resistance, rigidity and stability.
Precision is maintained and effectively ensures that the bed will not be deformed in long-term use, and has excellent shock
resistance, rigidity and stability.
Laser System
Laser Source
Leapion use Chinese most famous brand ,Professional cutting laser source, small in size, light in weight, and easy to move. With high-quality beam quality, high light conversion efficiency, the light emitting mode is more conducive to achieving a good cutting effect.
Laser Head
Raytools fiber optic cutting head can be continuously focused to complete the rapid perforation of thick plates and automatic
cutting of different thicknesses and materials, and work continuously and stably for a long time under high power.
cutting of different thicknesses and materials, and work continuously and stably for a long time under high power.
Main Components
Reducer
We use high-quality gearboxes, ultra-quiet, high-precision type products. Precise positioning and high precision servo motor
performance; maintenance-free and free installation. Long-life high-grade lubricant, no need to change.
performance; maintenance-free and free installation. Long-life high-grade lubricant, no need to change.
Servo Driver
The fast-responding, enabling high-speed, high-precision control and efficient use of energy, with stable motors. keeping the
distance between the nozzle and the pipe unchanged, effectively guaranteeing the cutting quality.
distance between the nozzle and the pipe unchanged, effectively guaranteeing the cutting quality.
Servo Motor
Servo motors stabilise and drive the beam to control the movement of the Z-axis according to the programmed instructions to complete the cutting operations with complex precision, and the user can adjust the parameters according to their needs.
Water Chiller
Chinese high quality water chiller can take away the heat generated in time, control the temperature accurately and stabilise the light output rate of the laser, so as to ensure the normal work of the laser cutter.
HIWIN Rail
Hiwin linear guide, for the four-row single arc tooth contact linear guide, while integrating the optimised structure design of
the heavy-duty precision linear guide, high speed, high load, high rigidity and high precision.
the heavy-duty precision linear guide, high speed, high load, high rigidity and high precision.
YYC Gear
YYC Gear adopts German standard precision manufacturing, rack tooth surface quenching hardness HRC58, can reach DIN6 level precision requirements, suitable for precision CNC equipment, high precision, wide range of applications.

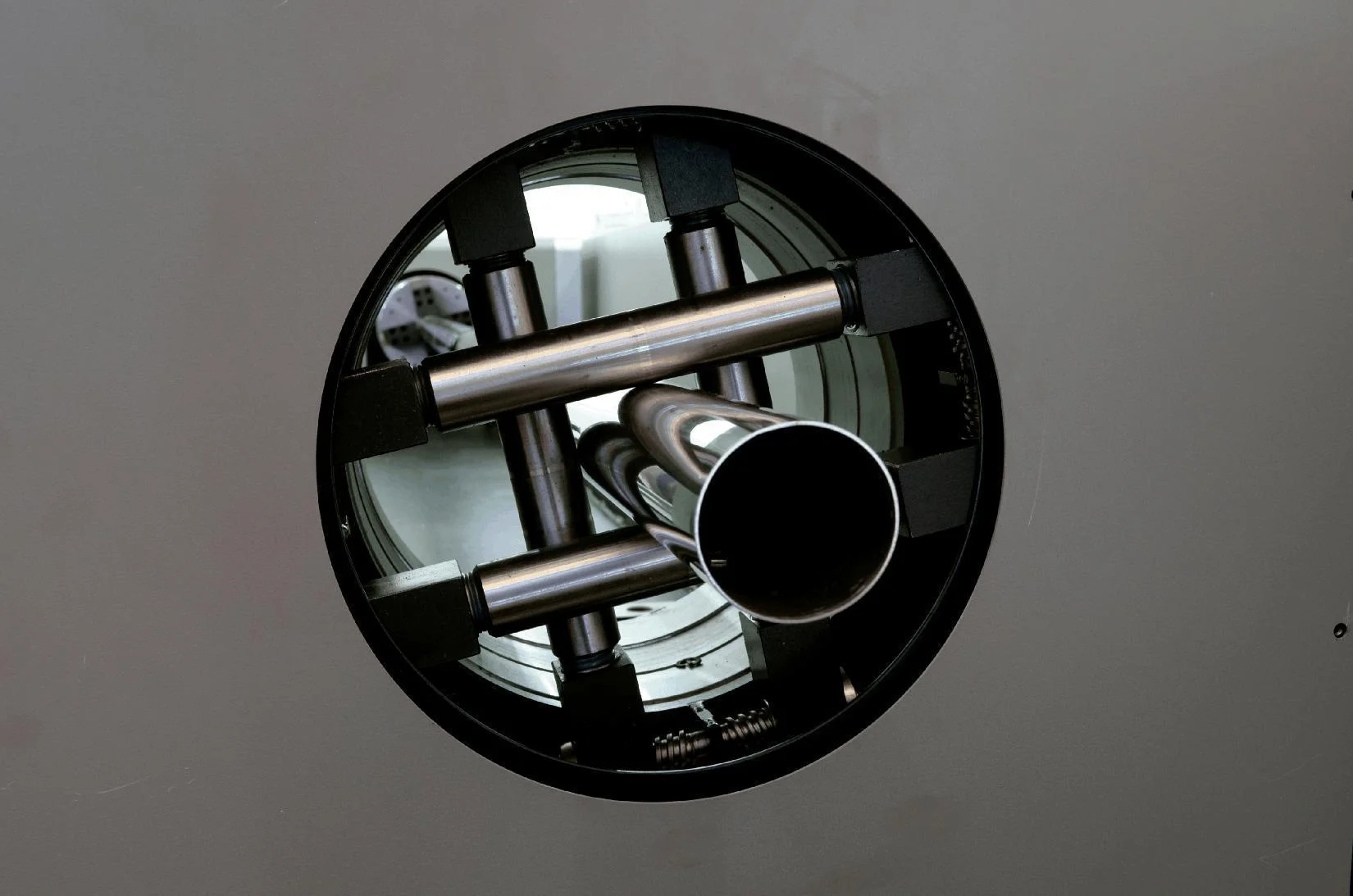

Pneumatic Chuck
The laser pneumatic chuck adopts a fully enclosed structure with tight dustproof function, and the internal parts adopt high-end heat treatment and grinding process to ensure the service life of the chuck, high clamping accuracy, durability, strong clamping force and very stable performance.
Control System
Wireless Controller
The machine comes with the wireless controller, which is easy to use and allows most operations to be carried out just through the handle, allowing control operations to be carried out from a distance when the machine is in operation, for safe operation.
Control Panel
Emergency stop switch position change is convenient to shoot close to the emergency stop button in case of emergency , with
keyboard and usd socket for easy data recording.and the large-size operation screen caters to various customer needs.
keyboard and usd socket for easy data recording.and the large-size operation screen caters to various customer needs.
Control System
Leapion use the most famous brand in China, with great feedback from our customers and special functions such as flying cutting to help customers better use, improve production efficiency and save resources for tube and sheet. We also supply Leapion own made
system.
system.
Cutting Software
These are two sets of software developed specifically for the laser cutting industry depth custom, easy to cut sheet and pipe ,feature-rich, suitable for a variety of processing occasions, and it includes laser cutting process handling, common nesting
functions and laser processing control.
functions and laser processing control.
Product Parameters
Model | LF-ST Fiber Laser Cutting Machine For Metal Tube And Sheet |
Laser Power | 2000W (Option: 2000W, 3000W,4000W,6000W) |
Cutting Area | 3000x1500mm |
Tube Cutting Length | 6000mm |
Tube Cutting Diameter | Round Tube 20mm-230mm, Square Tube 20mm-150mm |
Laser Output Power Adjustment Range | 10% - 100% |
Laser Source | MAX (Option: Raycus, IPG, BWT, Reci) |
Cutting Ability | Sheet: 20mm carbon steel, 10mm stainless steel Tube: 8mm carbon steel, 4mm stainless steel |
Laser Cutting Head | Leapion (Option: Raytools, WSX, Au3tech) |
Control System | Leapion (Option: FSCUT, Au3tech, Raytools) |
Support Languages | Chinese Simplified, Chinese Traditional, English, Polish, Turkish, Arabic, Japanese, Korean, German, Spanish, Russian, French, Portuguese, Italian, Hungarian, Czech, Finnish, Vietnamese and so on. Customized language accepted |
Maximum Acceleration | 1.5G |
Positioning Accuracy | ±0.03mm |
Auxiliary Gas | Compressed air, oxygen, nitrogen |
Voltage | 380V 3PH 50HZ/60HZ (Option: 440V) |
Recommend Container | One 40 HQ |
Application ＆ Samples
Application Industry
Wide range of industry applications, advertising sheet metal processing, cabinet production industry, machinery and equipment manufacturing industry, kitchenware industry, automotive industry, aerospace, shipbuilding, lift production industry, etc.

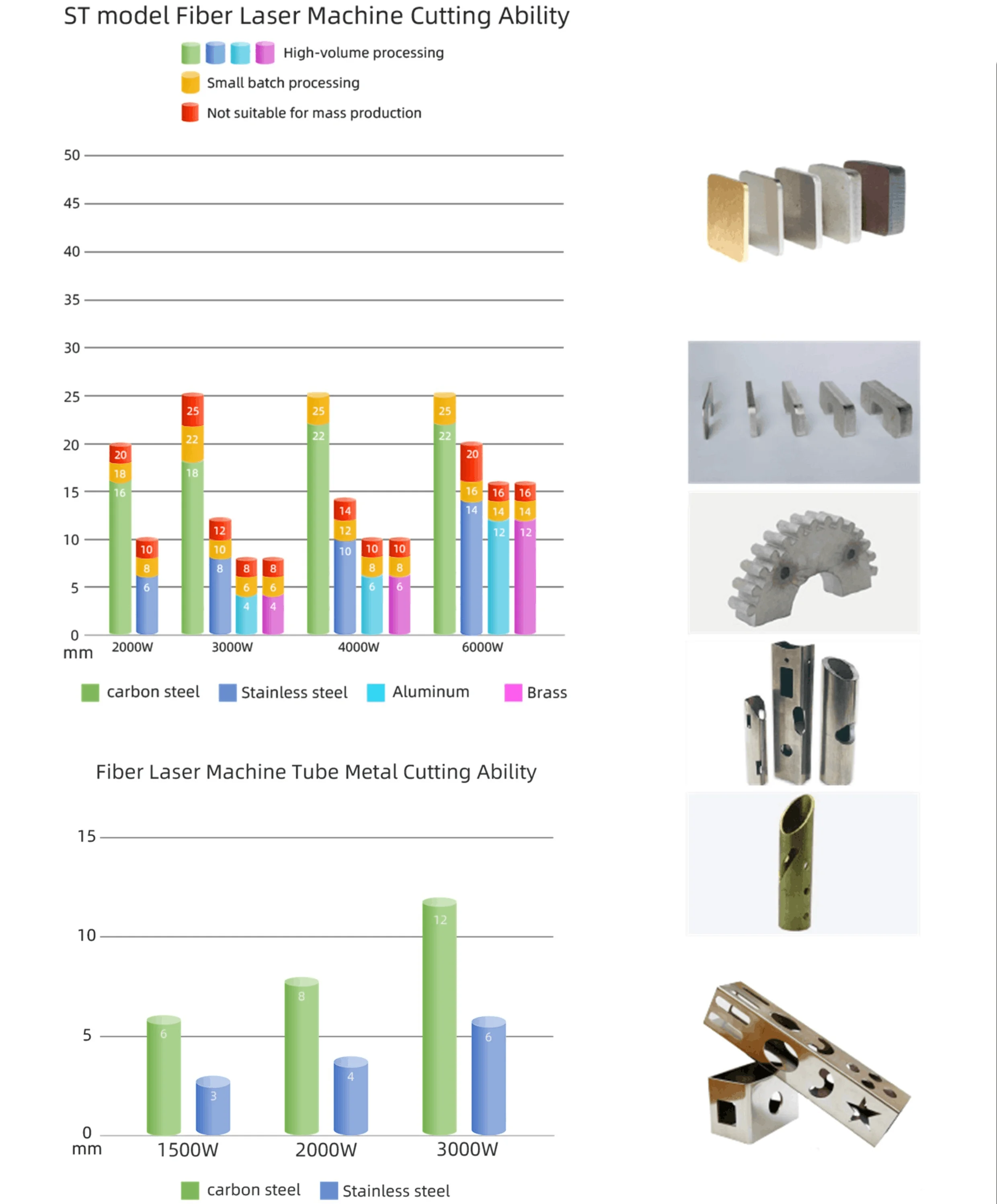

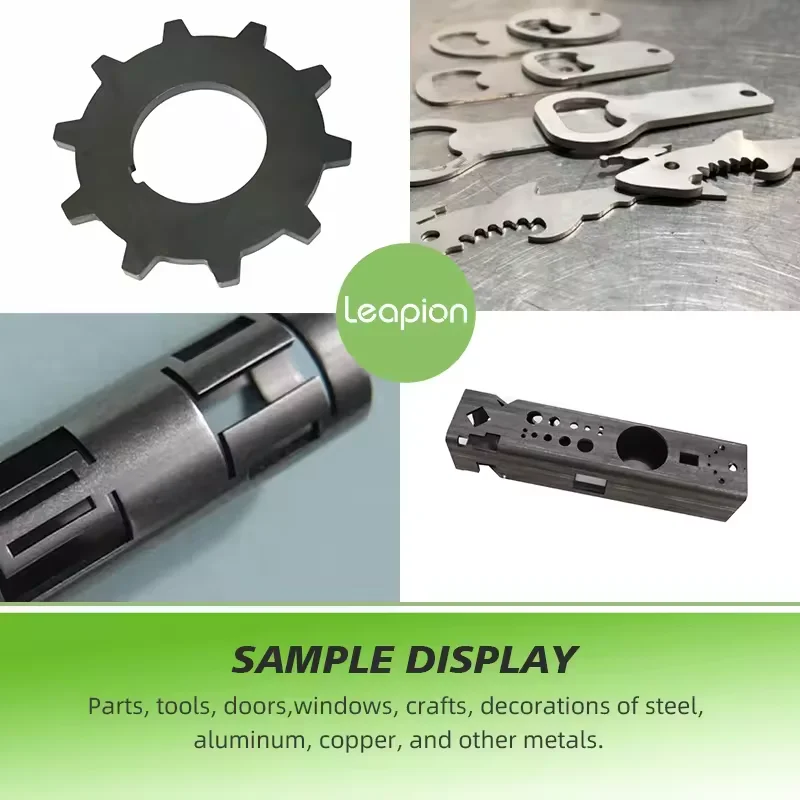

Cutting Sample & Ability

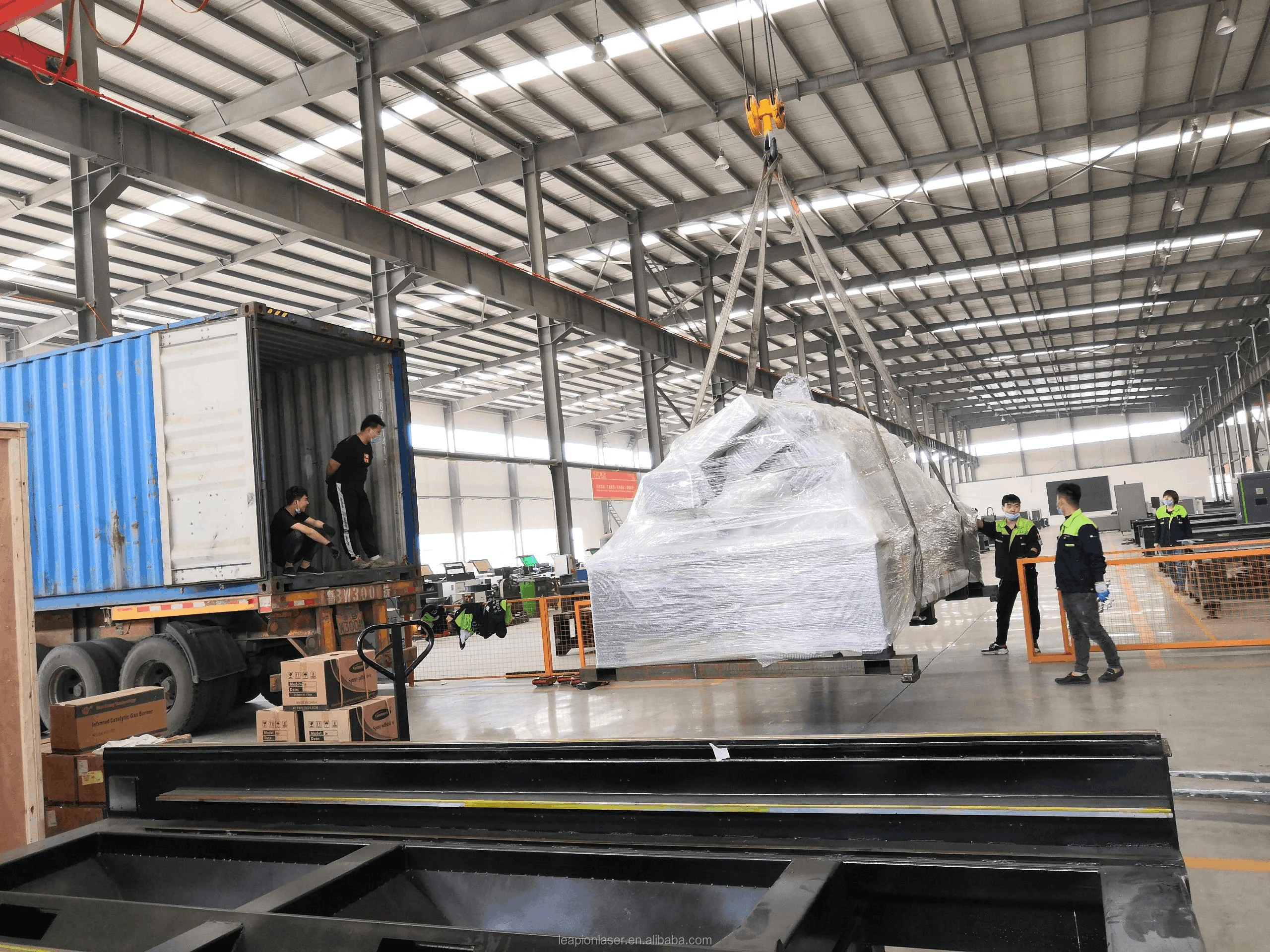

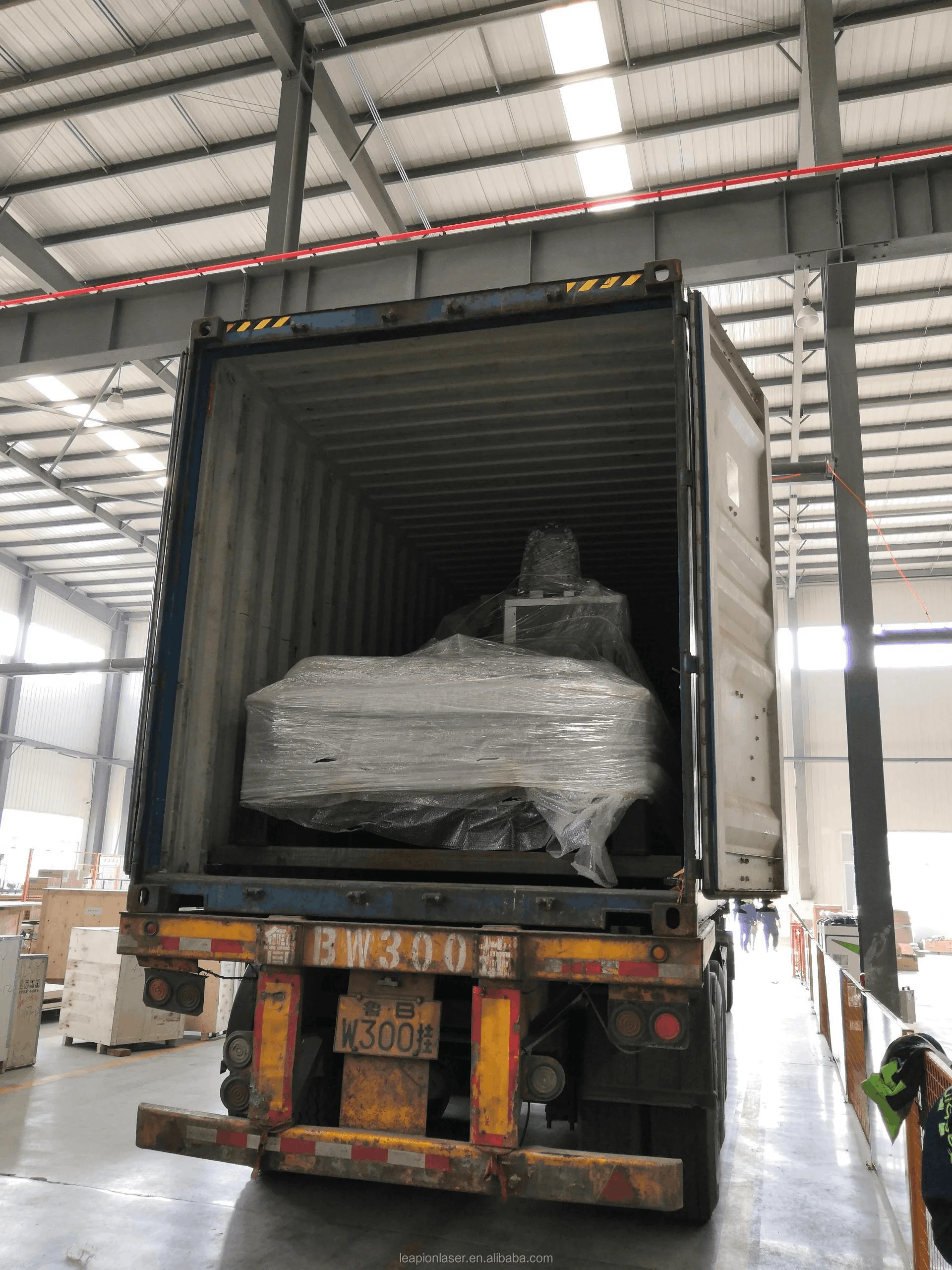

Product Shipment
Shipment Method | Land freight, Sea Freight |
Package Method | Direct load machine into Container Load 1 sets Machine in one 40HQ, biggest save shipping cost for distributor. |
Certifications
Warm Tips
If you need us to make the corresponding certification. Please inform Leapion's sales staff and we will do our best to cooperate and provide maximum support to you.
Company Introduction
Company Video
FAQ
1. What is the MOQ?
The minimum order is 1 unit. For customers who need to customize the logo, the MOQ is also 1 unit, and for customers who need to modify the exterior color, the MOQ is also 1 unit, but the production time will be longer.
2. What terms of trade are offered?
Leapion can provide suitable terms according to your specific needs, including: EXW, FOB, CFR, CIF, DAP, DDP, etc.
3. What payment methods are accepted?
We accept: credit card, debit card, bank transfer, L/C, etc. You are welcome to pay us through Alibaba's "Trade Assurance Order", which can guarantee your rights and interests.
4. How to get sample testing service?
Please send us the DXF. format to make the cutting test for you.
We provide three options for sample testing service.
① If you don't need us to mail the tested samples to your address, and we have the metal materials you need to tested in stock, then we offer free testing service. Simply contact us with your specific needs. We will send you the test pictures and videos within 5 working days.
② if you need us to send the tested samples by Express, please pay the express fee.
③ If you need special metal samples for testing, please send the samples to our address or pay us the cost for purchasing metal materials.
5. How to confirm the most suitable model of equipment for me?
We suggest you can contact us, Leapion will provide you 1 to 1 VIP service, professional sales staff will recommend the most suitable equipment for you. For faster communication, we recommend that you confirm the following information before contacting us:
① which metal material you need to cut
② the maximum thickness of each metal material
③ the voltage of your local factory
④ the trade terms you required
⑤ Required Time
