Milk Pasteuriser/Small Milk Processing Line/Milk Pasteurizer and Homogenizer
$1,280.00-1,500.00
milk beer juice ice cream Pasteurizer Plate/Tubular Pasteurization Equipment Dairy UHT sterilizer Milk Pasteurization
- Category: >>>
- Supplier: Shanghai Unibang International Trading Co. Ltd.
Share on (1601204399846):
Product Overview
Description
Product Description

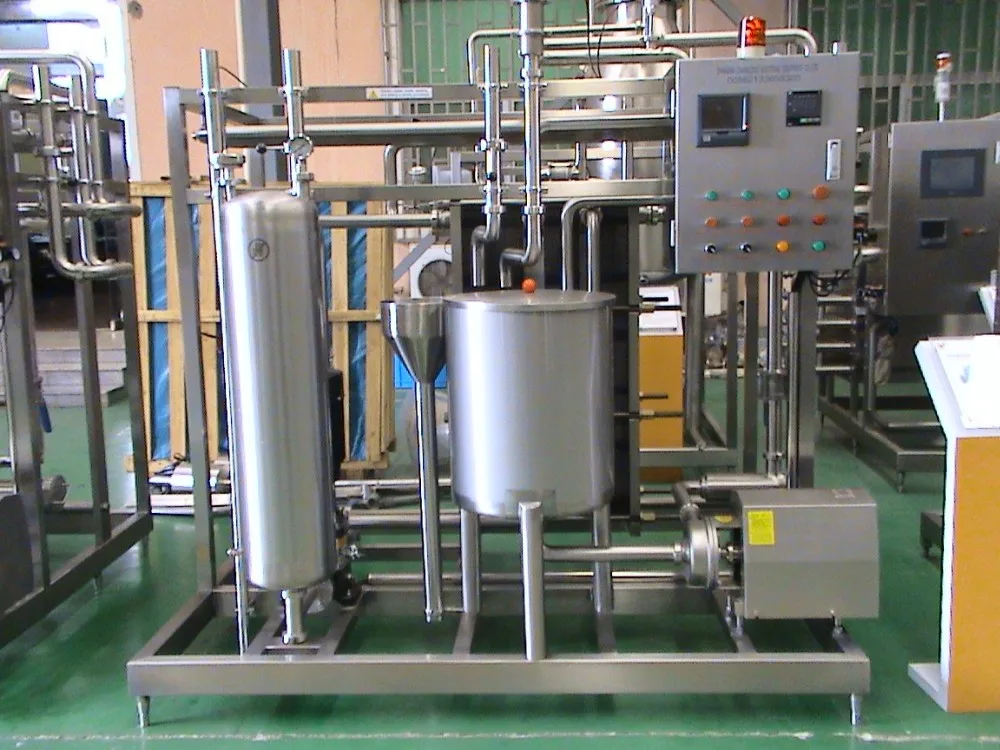

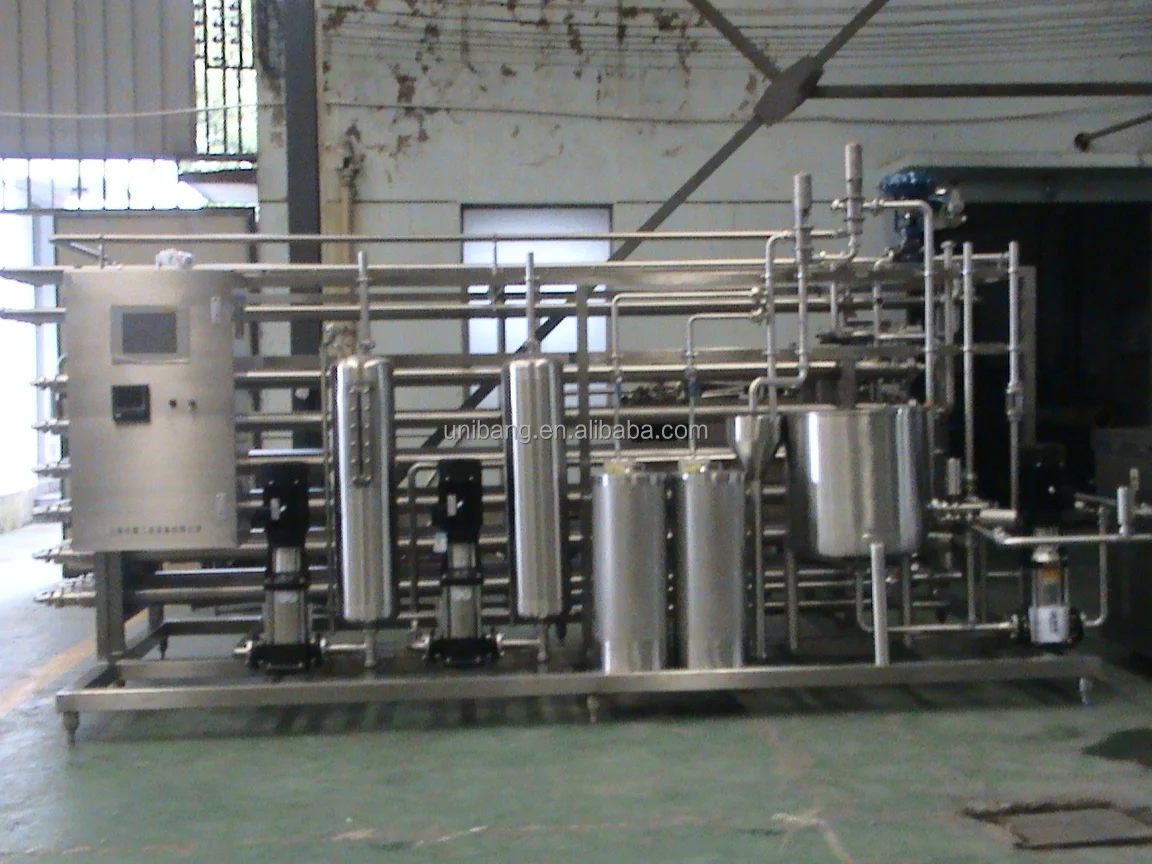

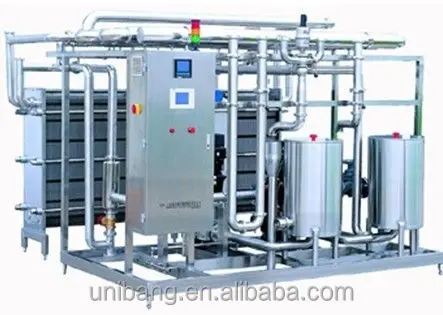

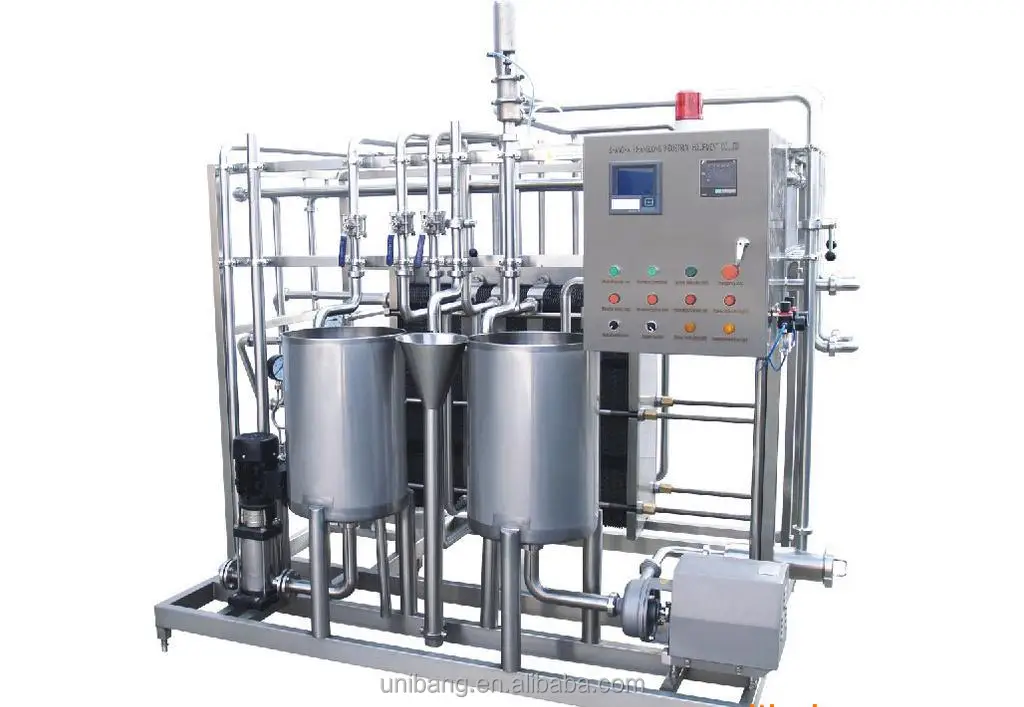

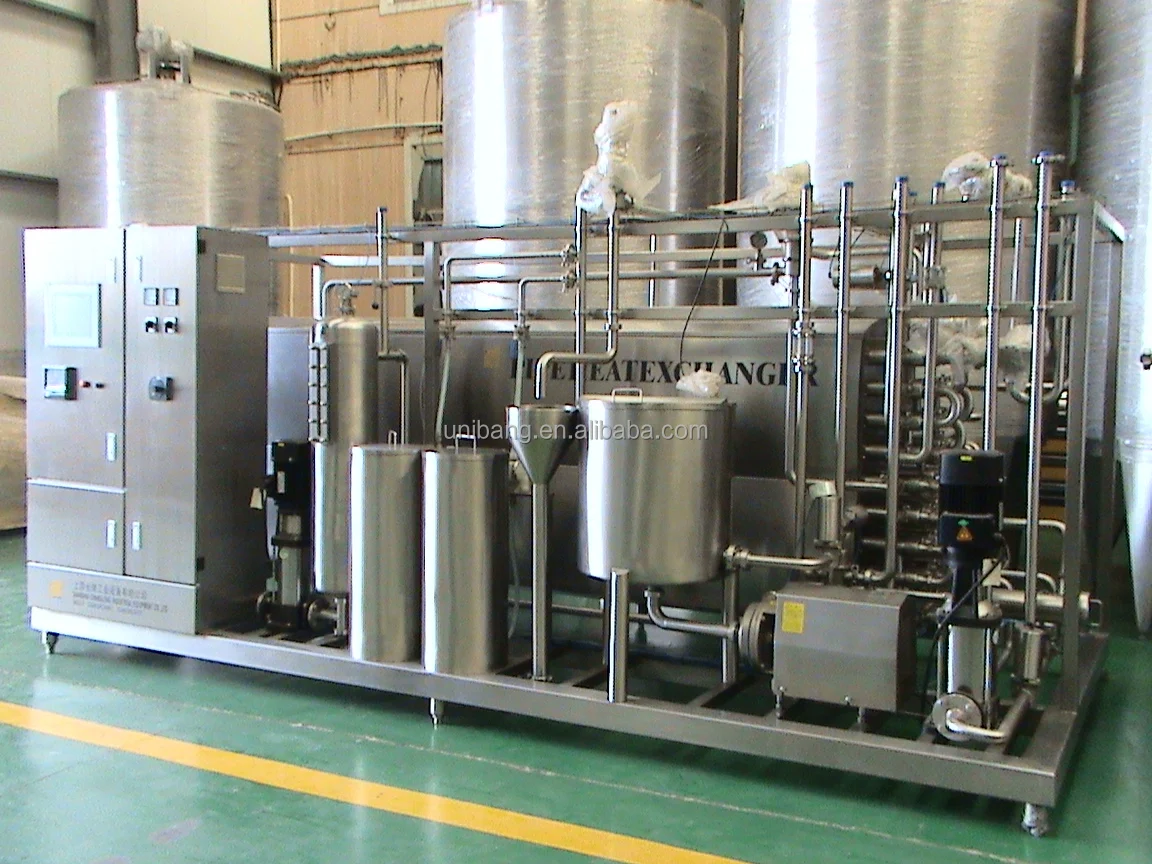

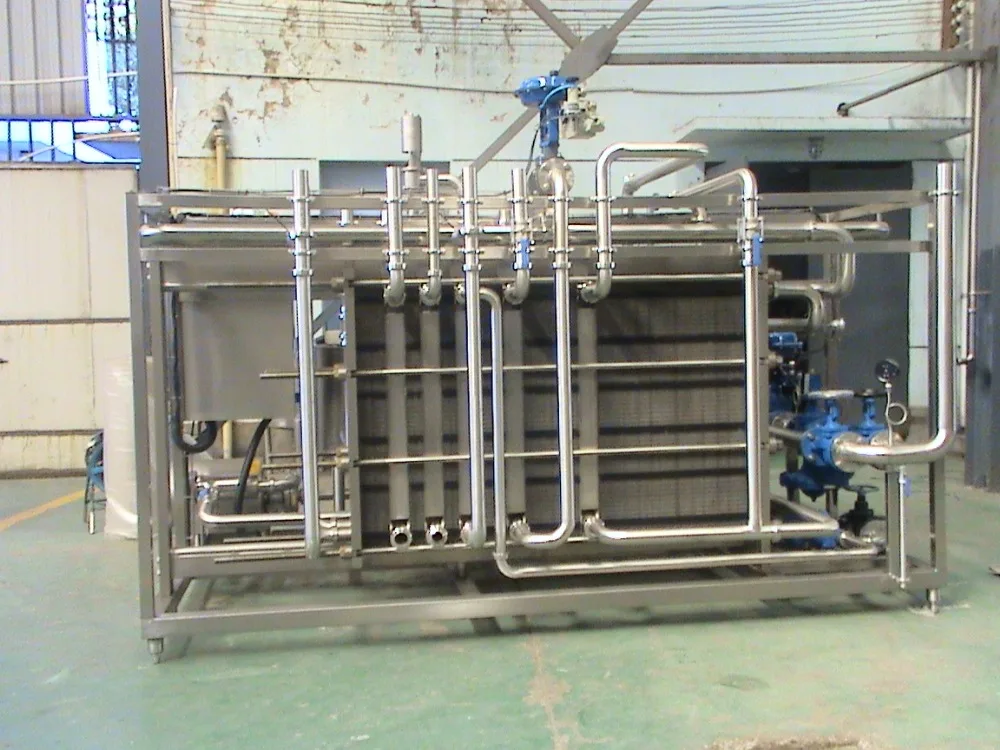

PLATE TYPE PASTEURIZER
What is plate pasteurizer?
The plate pasteuriser is a heat-exchange system between hot water and the milk to be pasteurised. Depending on the programmed
temperature the microbial flora of the milk is altered, resulting in better preservation.
temperature the microbial flora of the milk is altered, resulting in better preservation.
A Versatile and Cost-Effective Solution for Food and Beverage Processing
Plate pasteurizers are a versatile and cost-effective solution for food and beverage processing. They are continuous sterilization equipment specially designed for low viscosity fruit juice (apple juice or orange juice), dairy products, milk, syrup, liquid egg products, beverages, juices, wines, or similar liquid materials. Plate pasteurizers are ideal for keeping food and beverages safe and extending their shelf life.

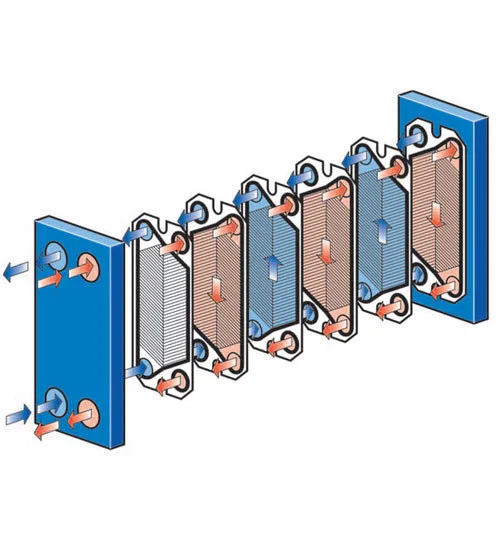

What is the pasteurization process in plate heat exchanger?
Plate Heat Exchangers are incredibly efficient for energy usage in milk pasteurisation. During pasteurisation milk is heated to a
high temperature and then quickly cooled before bottling or packaging to keep it fresh for longer. This process makes the milk
safer to drink by killing the bacteria.
high temperature and then quickly cooled before bottling or packaging to keep it fresh for longer. This process makes the milk
safer to drink by killing the bacteria.
Product Parameters
Plate sterilizer control and basic parameters
* Control mode:
semi-automatic control, full automatic control (PLC control, touch screen display).
* Equipment main configuration:
Material pump, balance tank, steam controlling system, hot water system, temperature control and recorder, electrical control system, etc.
* Production capacity: 0.5-40T/H
* Sterilization machine process description:
5℃ inlet →65℃ homogenization →85～137℃ sterilization, Holding : 5～30 seconds →5～90℃ outlet →buffer tank / filling machine (working technology of sterilizer is according to user needs )
* Steam pressure: ≥ 0.6mpa Steam consumption: 50 ~ 2500kg/h
* Compressed air: ≥ 0.6mpa
* Cooling water inlet temperature: ≤30℃. Inlet pressure : ≥ 0.3mpa
* Chilled water inlet temperature: ≤10℃ Inlet pressure : ≥ 0.3mpa
Sterilization Processing Techniques
* Fresh Milk Sterilizing Technology :

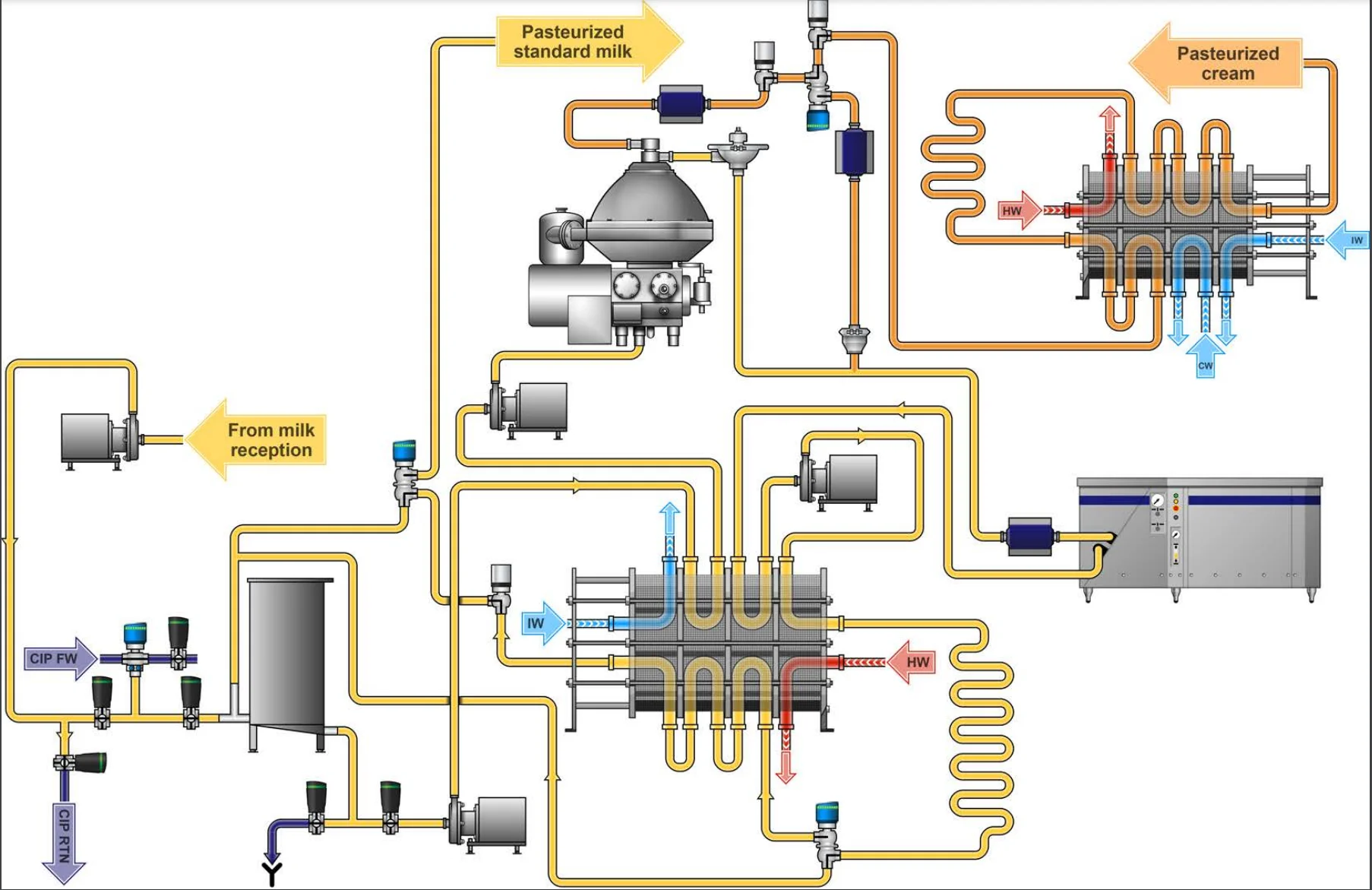

5℃inlet→ 45℃Cream Separator →65℃ homogenizer →85-95℃ Sterilizing, holding : 30S →5℃ Storage Tank / Filling Machine
* Ice Cream Sterilizing Technology :
45℃ inlet→65℃ homogenizer →85℃ Sterilizing, 30S →8℃ Aging Tank
* Yoghurt Sterilizing Technology :
5℃ inlet→65℃ homogenizer →95℃ Sterilizing, 300S →4℃ Storage Tank ( 43℃ fermentation tank )
* Coconut Milk （Coconut water）Sterilizing Technology :
5℃ inlet→65℃ homogenizer →98℃ Sterilizing, 30S →4℃ Storage Tank /Filling machine
* Beer Sterilizing Technology :
4℃ inlet→74℃ Sterilizing, 30S →4℃ Storage Tank
* Juice Sterilizing Technology :
25℃inlet→85-95℃ Sterilizing, holding : 30S →25/50℃ Storage Tank / Filling Machine
The sterilization machine process is designed according to user requirements
Please contact us for more information
5℃inlet→ 45℃Cream Separator →65℃ homogenizer →85-95℃ Sterilizing, holding : 30S →5℃ Storage Tank / Filling Machine
* Ice Cream Sterilizing Technology :
45℃ inlet→65℃ homogenizer →85℃ Sterilizing, 30S →8℃ Aging Tank
* Yoghurt Sterilizing Technology :
5℃ inlet→65℃ homogenizer →95℃ Sterilizing, 300S →4℃ Storage Tank ( 43℃ fermentation tank )
* Coconut Milk （Coconut water）Sterilizing Technology :
5℃ inlet→65℃ homogenizer →98℃ Sterilizing, 30S →4℃ Storage Tank /Filling machine
* Beer Sterilizing Technology :
4℃ inlet→74℃ Sterilizing, 30S →4℃ Storage Tank
* Juice Sterilizing Technology :
25℃inlet→85-95℃ Sterilizing, holding : 30S →25/50℃ Storage Tank / Filling Machine
The sterilization machine process is designed according to user requirements
Please contact us for more information
Buying Guides

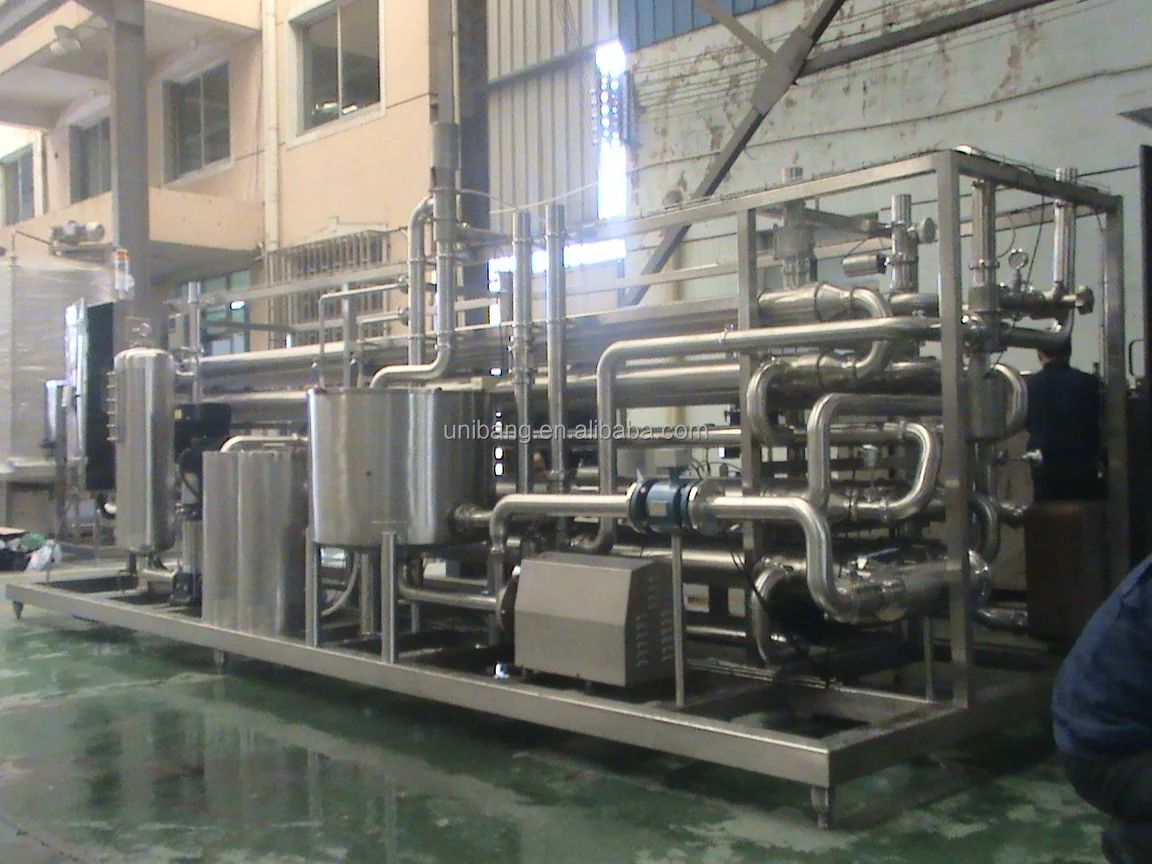

Plate Pasteurizer technology Plate UHT Pasteurizer technology | ||||||||||
Name | Unit | BR16-PUT-6B | BR16-PUT-12B | BR26-PUT-28B | BR26-PUT-50B | |||||
BR16-UHT-8B | BR16-UHT-15B | BR16-UHT-35B | BR4-UHT-70B | |||||||
flow rate | t/h | 1 | 2 | 5 | 10 | |||||
exchanging area | m2 | 6～8 | 12～15 | 28～35 | 50～70 | |||||
production inlet temp | ℃ | 5 | 5 | 5 | 5 | |||||
sterilizing temp | ℃ | 85～95 | 85～95 | 85～95 | 85～95 | |||||
125～142 | 125～142 | 125～142 | 125～142 | |||||||
production outlet temp | ℃ | 4～92 | 4～92 | 4～92 | 4～92 | |||||
holding time | S | 5～30 | 5～30 | 5～30 | 5～30 | |||||
Steam consumption | KG/H | ≦90 | ≦180 | ≦450 | ≦900 | |||||
ice water flow | t/h | 3 | 6 | 15 | 30 | |||||
cooling water flow | t/h | 3 | 6 | 15 | 30 | |||||
Medium pipe size | MM | Ф38 | Ф38 | Ф51 | Ф76 | |||||
Power | KW | 5 | 6 | 10 | 18 | |||||
Related Products
Company Profile

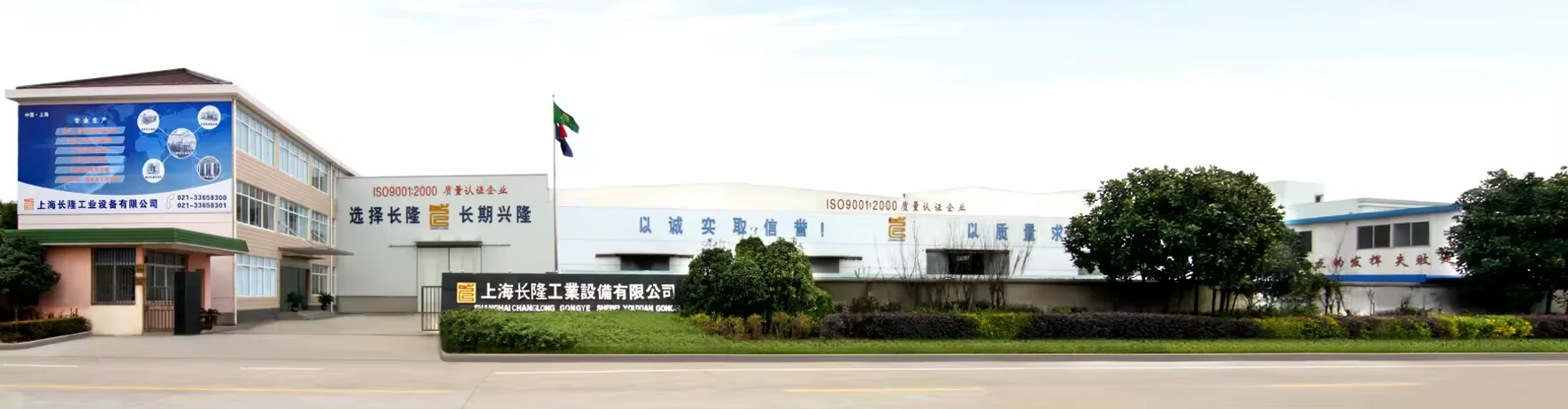

Shanghai Unibang International Group Co.,Ltd.
Established in 1996 at Shanghai, Shanghai UNIBANG international Group Co.,ltd has been 28 years old , She is a famous machinery manufacturer and distributor at domestic and overseas .
we have excellent engineers and experiences in designing and concentrating on Pasteurizer, Homogenizer, Filling machines, Conveyor System and Packing machine, all the equipment are widely used in Snack & Nuts & Dry Fruits & Bakery & Dairy & Juice beverage etc food industries . And all the equipments have been exporting to more than 70 countries all over the world( Such as USA, Australia, New Zealand , Argentina, Colombia , Spain , Japan ,Thailand , Middle-East Countries etc .)
we have excellent engineers and experiences in designing and concentrating on Pasteurizer, Homogenizer, Filling machines, Conveyor System and Packing machine, all the equipment are widely used in Snack & Nuts & Dry Fruits & Bakery & Dairy & Juice beverage etc food industries . And all the equipments have been exporting to more than 70 countries all over the world( Such as USA, Australia, New Zealand , Argentina, Colombia , Spain , Japan ,Thailand , Middle-East Countries etc .)
We have ability to supply the whole processing line from A to Z for your food. And there are 3 branch companies in UNIBANG Group
as following:
* Globule Sanitary Conveyor Pty Ltd.
(Snack & Nuts & Dry Fruits & Meat & Seafood Packing machine & Bundling Form Sealing Machine )
* Shanghai Changlong Industrial Equipment Co.,Ltd.
(Dairy & Juice Beverage Heat exchanger & Pasteurizer &UHT & Homogenizer.)
(PET & Glass & Can Bottle Filling & Carbonated Mixer system)
* Shanghai Hongli Conveyor Co.,Ltd.
(Spiral Cooling Tower & Spiral Lift & Modular Belt &Chains& Conveyor Components )
as following:
* Globule Sanitary Conveyor Pty Ltd.
(Snack & Nuts & Dry Fruits & Meat & Seafood Packing machine & Bundling Form Sealing Machine )
* Shanghai Changlong Industrial Equipment Co.,Ltd.
(Dairy & Juice Beverage Heat exchanger & Pasteurizer &UHT & Homogenizer.)
(PET & Glass & Can Bottle Filling & Carbonated Mixer system)
* Shanghai Hongli Conveyor Co.,Ltd.
(Spiral Cooling Tower & Spiral Lift & Modular Belt &Chains& Conveyor Components )
FAQ
Q1:Which city are you in? How can I get to your factory? Are you a Group company or factory?
A1: We are in Shanghai. China . It will take 1 hour from PVG and HongQiao Airports to our factory .
We are manufacturer with Group branch office .
Manufacturing scope is mainly for Dairy, Juice and Beverage Heat Exchanger, UHT Pasteurizing Equipment, CIP cleaning system and pre-treatment processing line design &producing &installation .
We have been offering turnkey solutions with more than 20 years experience.
Q2: Why is your price higher than others?
A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.
Q3: What is the equipments delivery time?
A3: Normally 30-60 working days depends on different machines,
Heat Exchanger making period : within 15 working days .
Plate UHT Pasteurizer making period : within 30 working days .
Aseptic UHT sterilizer making period : within 50 working days .
Homogenizer and CIP cleaning system making period : within 40 working days .
PET & Glass & Can Bottle Filling machine& Carbonated Mixer system : within 40 working days .
Q4: How to install your machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines If needed.
Or you can arrange engineers to study in our factory. You are responsible for air tickets, accommodation and our engineer fee USD300/-day/person.
Q5: How long time for installation and testing ?
A5: Subject to machines and the situation in your factory. If everything is
ready, it will take about 5 days for installation, and 5-10 days for testing and training .
Q6: How about the spare parts?
A6: We will send one year enough easy-broken spare parts together with the machines for free,
Q7: What is your guarantee?
A7: We have one year guarantee sine the equipment is Acceptable debugging and supplying life-long technical support. Our service
also including machine maintain and spared parts .
Q8: What is your payment term?
A8: Single equipment payment item : 50%T/T as advance payment, then 50%T/T before shipping .
Turnkey project of Processing line payment item : 40%T/T as advance payment, then 60%T/T before shipping .
A1: We are in Shanghai. China . It will take 1 hour from PVG and HongQiao Airports to our factory .
We are manufacturer with Group branch office .
Manufacturing scope is mainly for Dairy, Juice and Beverage Heat Exchanger, UHT Pasteurizing Equipment, CIP cleaning system and pre-treatment processing line design &producing &installation .
We have been offering turnkey solutions with more than 20 years experience.
Q2: Why is your price higher than others?
A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.
Q3: What is the equipments delivery time?
A3: Normally 30-60 working days depends on different machines,
Heat Exchanger making period : within 15 working days .
Plate UHT Pasteurizer making period : within 30 working days .
Aseptic UHT sterilizer making period : within 50 working days .
Homogenizer and CIP cleaning system making period : within 40 working days .
PET & Glass & Can Bottle Filling machine& Carbonated Mixer system : within 40 working days .
Q4: How to install your machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines If needed.
Or you can arrange engineers to study in our factory. You are responsible for air tickets, accommodation and our engineer fee USD300/-day/person.
Q5: How long time for installation and testing ?
A5: Subject to machines and the situation in your factory. If everything is
ready, it will take about 5 days for installation, and 5-10 days for testing and training .
Q6: How about the spare parts?
A6: We will send one year enough easy-broken spare parts together with the machines for free,
Q7: What is your guarantee?
A7: We have one year guarantee sine the equipment is Acceptable debugging and supplying life-long technical support. Our service
also including machine maintain and spared parts .
Q8: What is your payment term?
A8: Single equipment payment item : 50%T/T as advance payment, then 50%T/T before shipping .
Turnkey project of Processing line payment item : 40%T/T as advance payment, then 60%T/T before shipping .
