2 Cameras Car Video Recorder security HD 1080P Night Vision Remote Monitoring 4G Dash Cam

Dimensions

105mm*86mm*32 mm

Weight

240g

GNSS

GPS,GLONASS,GALILEO,BEIDOU,AGPS,QZSS,SBAS

Receiver

64 channel

Tracking Sensitivity

-160 dB

Position Accuracy

< 2.0 m CEP

Velocity Accuracy

< 0.1 m/s

Hot Start

< 1 s

Warm Start

< 4 s

Cold Start

< 28 s

LTE FDD:B1/B2/B3/B4/B5/B7/B8/B20/B28/B66

LTE FDD:B1/B3/B5/B8

Data transfer

LTE:Max10Mbps(DL)/Max5Mbps(UL)

Data support

SMS (TXT/PDU)

Input Voltage range

9‒36V DC

Power Consumption

At12V<6mA(OnlineSleep)
At12V<150mA(Normal)
At12V<270mA(Full load)

Operating environment

Operating Temperature

-20 °C to +70 °C

Storage Temperature

-40 °C to +85 °C

Operating Humidity

5% to 95% non-condensing

Ingress Protection Rating

IP50

Resolution

2.0MP

Sensor Resolution

1920*1080

View angle

Forward:110°D backward:140°D

Pan-til

Forward:50°   backward:40°

After the device is powered on, the system automatically starts recording videos. 1080P resolution HD loop video

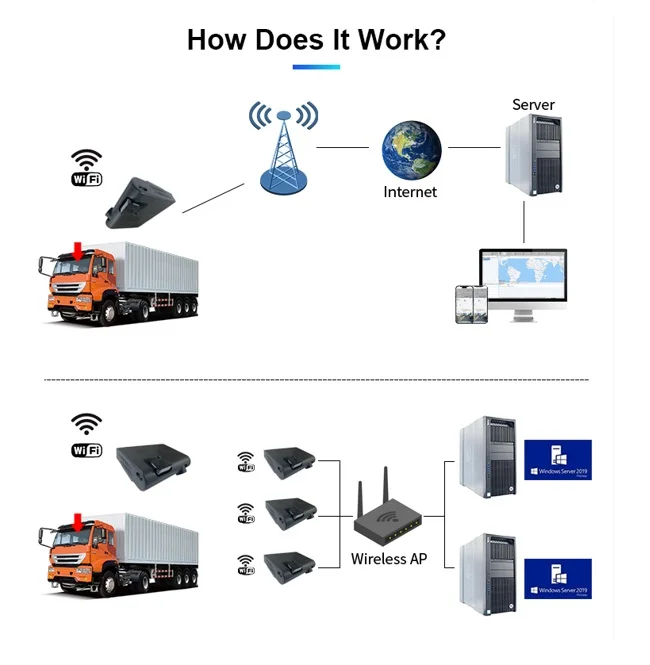

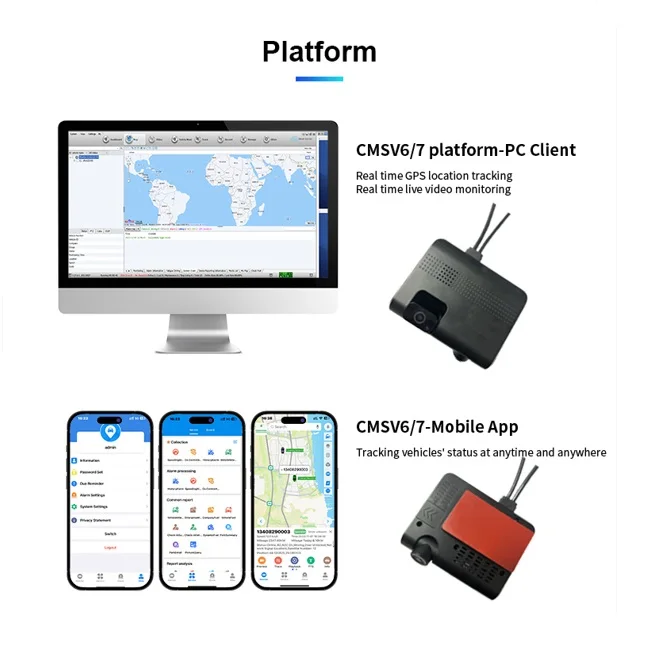

The device can upload data information, video, driving track, vehicle alarm and so on through the mobile network

Real-time positioning

GPS&BD dual mode positioning can record vehicle trajectory

Vibration alarm

After extinguishing (ACC off) thevehicle vibration isdetected,a vehicle vibration alarm isimmediatelytriggered and uploaded to the
platform, at the sametime, a photo is uploaded, and the wake up devicerecording lasts for five minutes

Collision alarm

In the processofdriving,ifthereisavehicle collision, avehicle collision alarm should be immediately startedand uploaded to the
platform, and the first 10s to 5svideo should be pushed to the platfom.
