Graphene Condensatore Supercapacitor4.2v 4000f Farad Ultra Capacitor 4.2v Super Capacitor
- Category: >>>
- Supplier: Dongguan City Gonghe Electronics Co. Ltd.
Share on (1601204407536):
Product Overview
Description

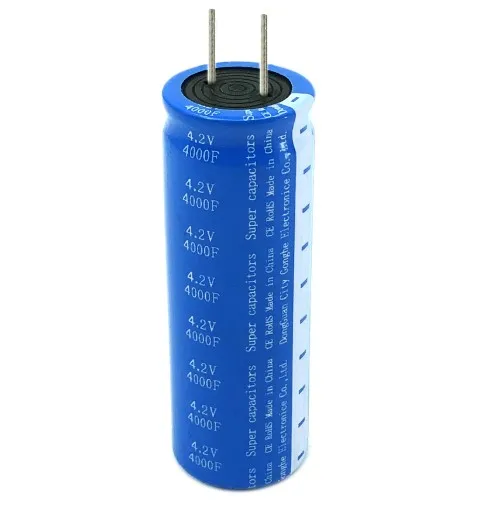

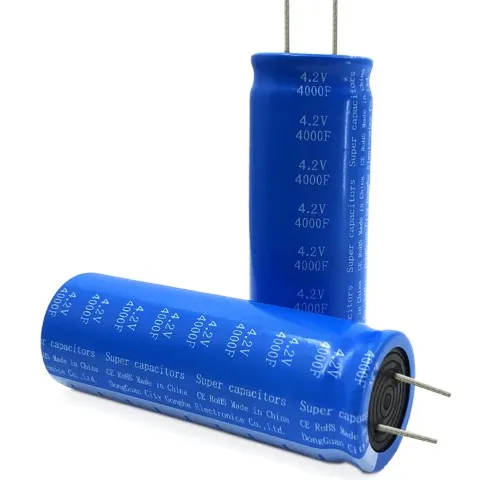

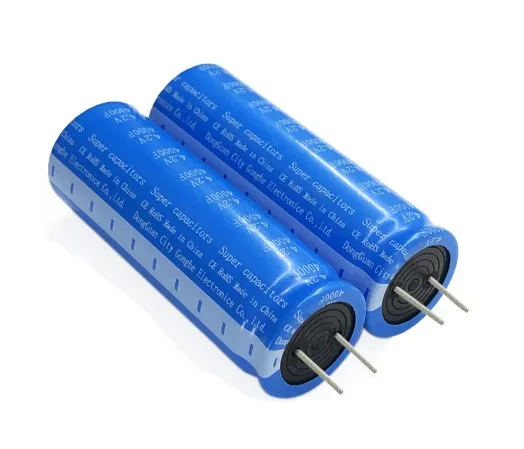

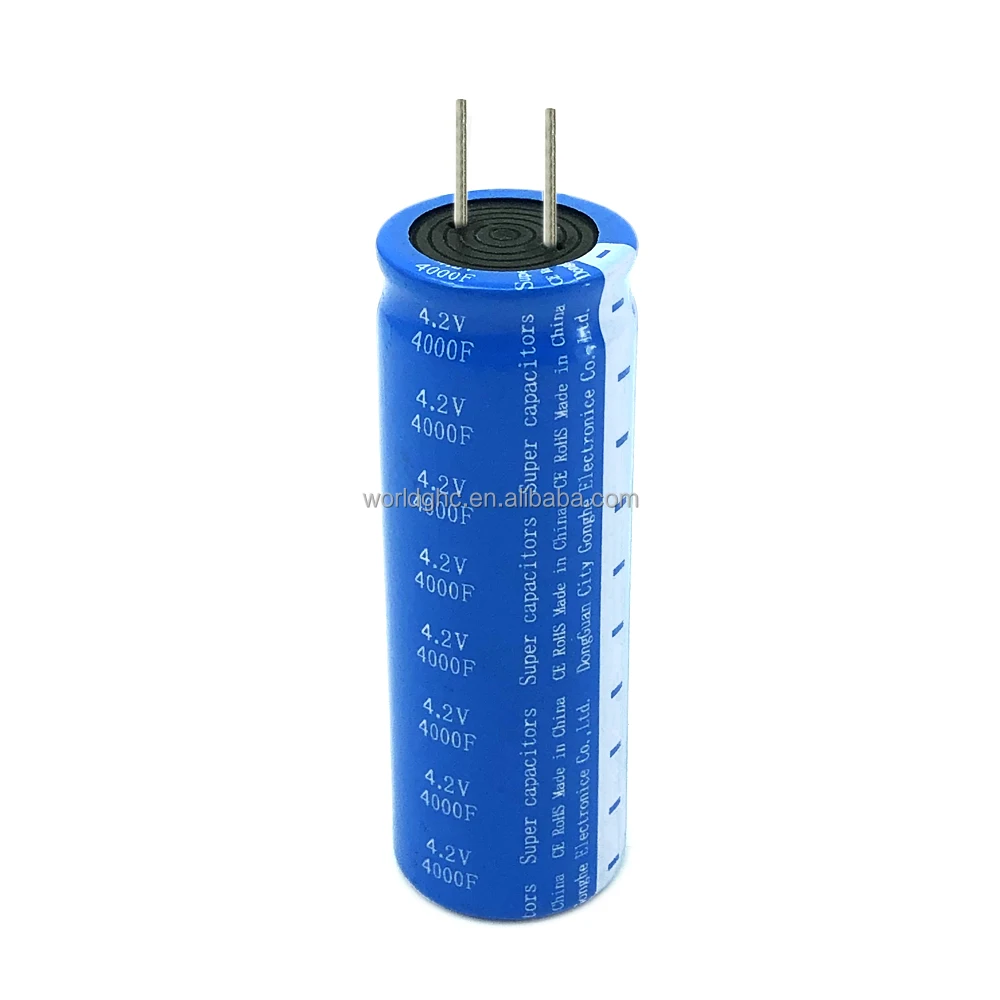

Graphene Condensatore Supercapacitor4.2v 4000f Farad Ultra Capacitor 4.2v Super Capacitor
Product Description
| MODEL NUMBER: | C424000R |
| PLACE OF ORIGIN: | GUANGDONG,CN |
| TERMINAL: | RADIAL/PIN |
| WORKING TEMPERATURE: | FROM -40 TO +70 |
| ESR: | 45mΩ |
| LEAKAGE CURRENT: | ≤0.5 mA |
| CHARGING AND DISCHARGING TIME: | MORE THAN 20,000 TIMES |
| NORMAL CURRENT: | 3 A |
| STORED ENERGY: | 15 WH |
| MAXIMUM CONTINUOUS CURRENT: | 6 A |
| MAXIMUM PEAK CURRENT: | 30 A |
| MOQ: | 24PCS |
| SPECIFICATION: | 4.2V4000F |

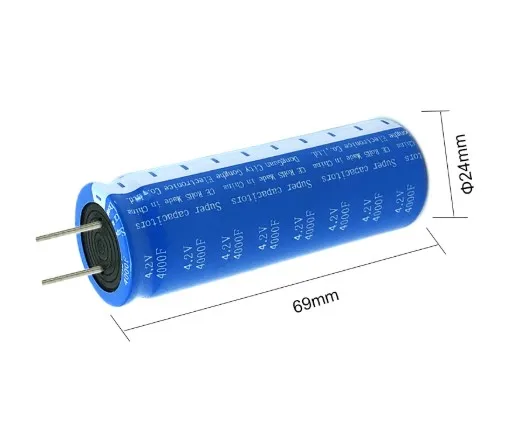

| SIZE: | D24*69MM |
| WEIGHT: | 70 G |
| WARRANTY TIME: | 3 YEARS |
| COLOUR: | BLUE OR As Customized |
| APPLICATION: | Heavy industry equipment Vehicle system Fan pitch system hybrid car Rail UPS and telecommunication systems High impact and vibration environment |
Δ We can ship items to all over the world.and we had been shipped to many countries
Eg: Italy,Spain,France,Australia,Iran, Germany, Netherlands, Brazil, Japan, Pakistan, South Africa and India and so on.
Δ. You can choose ship by DHL,UPS,TNT ,EMS ,FedEX, E-packetChina, Post Air Mail.
Δ. Delver time: After payment 3-5 days.
Compared information
| Supercapacitor vs. Battery | |||
| Traditional (high power) super capacitor | High energy super capacitor | Battery | |
| The Cycle Life | 0.5-1.2 million times | 4-11 thousand times, DOD 100% 1C charge and discharge | 800-3000 times |
| Safety | Safety | "No combustion, no spontaneous combustion, no explosion At present, there are no cases of customers " | Unsafe, spontaneous combustion, combustion support, explosion |
| Self-discharge | Very large | Very small 180 days is more than 80% | Relatively small |
| Management lines | Relatively simple | Simple | Complex |
| Temperature range | -40℃—70℃ | -40℃—70℃ | -20℃—50/60℃ |
| The charge and discharge rate | Very good | 2C-10C large rate | Charge and discharge is relatively small, less than 3C, low temperature 0.2C / 0.5C |
| Energy density | 3-10wh/kg | 70-220wh/kg,270-350wh/kg | 100-300wh/kg |
| Weight | Very heavy | Lighter | Lighter |
| Volume | Very large | Smaller | Smaller |
