Single Head Pneumatic Metal Chamfering Machine for Chamfering round Bar and round Pipe
Single-Head Pneumatic Metal Chamfering Machine for Chamfering round Bar and round Pipe
Single-Head Pneumatic Metal Chamfering Machine for Chamfering round Bar and round Pipe
Single-Head Pneumatic Metal Chamfering Machine for Chamfering round Bar and round Pipe
Single-Head Pneumatic Metal Chamfering Machine for Chamfering round Bar and round Pipe
Single-Head Pneumatic Metal Chamfering Machine for Chamfering round Bar and round Pipe
Single-Head Pneumatic Metal Chamfering Machine for Chamfering round Bar and round Pipe

Single Head Pneumatic Metal Chamfering Machine for Chamfering round Bar and round Pipe

Share on (1601204428678):


Price:$3,300.00 - $3,600.00

Quantity:


Product Overview

Description

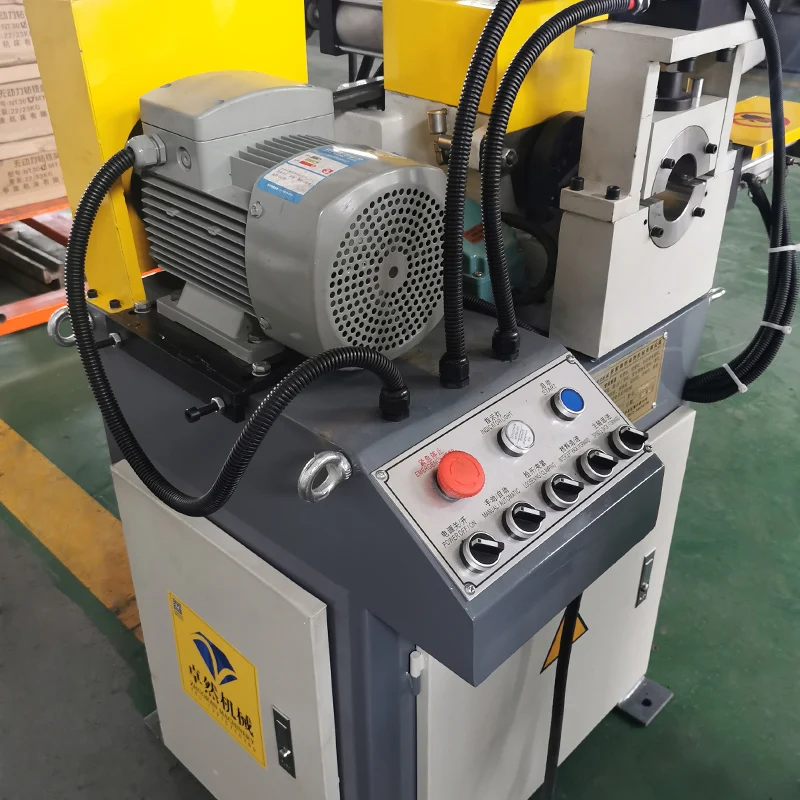

Single-Head Pneumatic Metal Chamfering Machine for Chamfering round Bar and round Pipe






Tube / Bar Chamfering Machine
1. Single head or double head chamfered machine available.

2. Pneumatic or hydraulic are available.

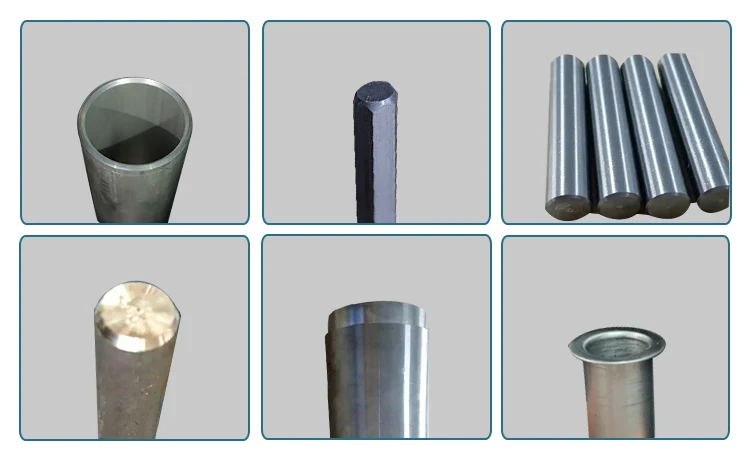

3. It can process general iron pipes, steel pipes, aluminum pipes, copper pipes, stainless steel pipes, bar materials, PVC pipes, nylon pipes, hexagonal rods, etc.

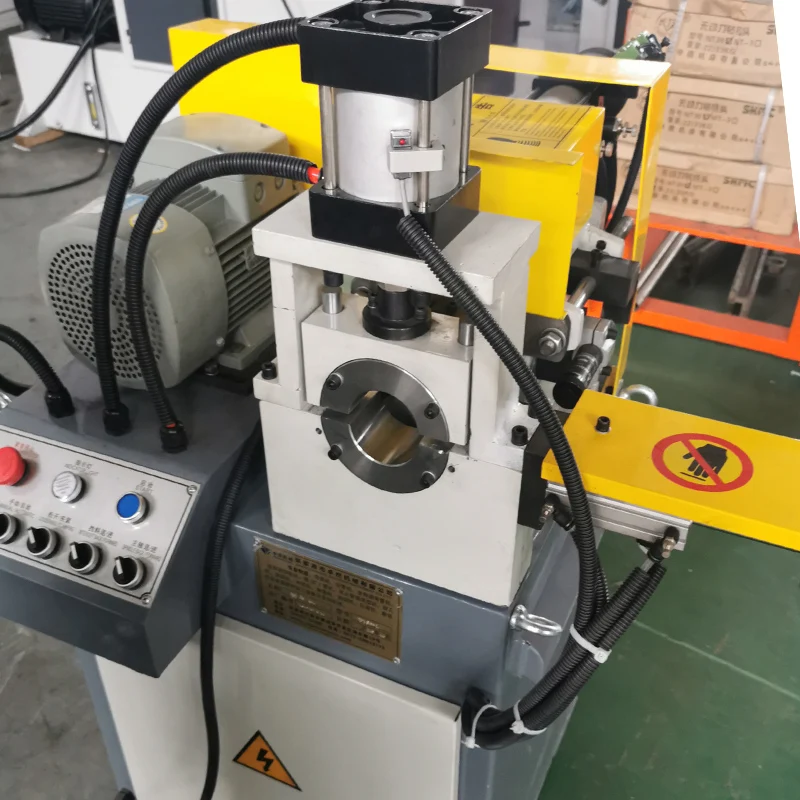

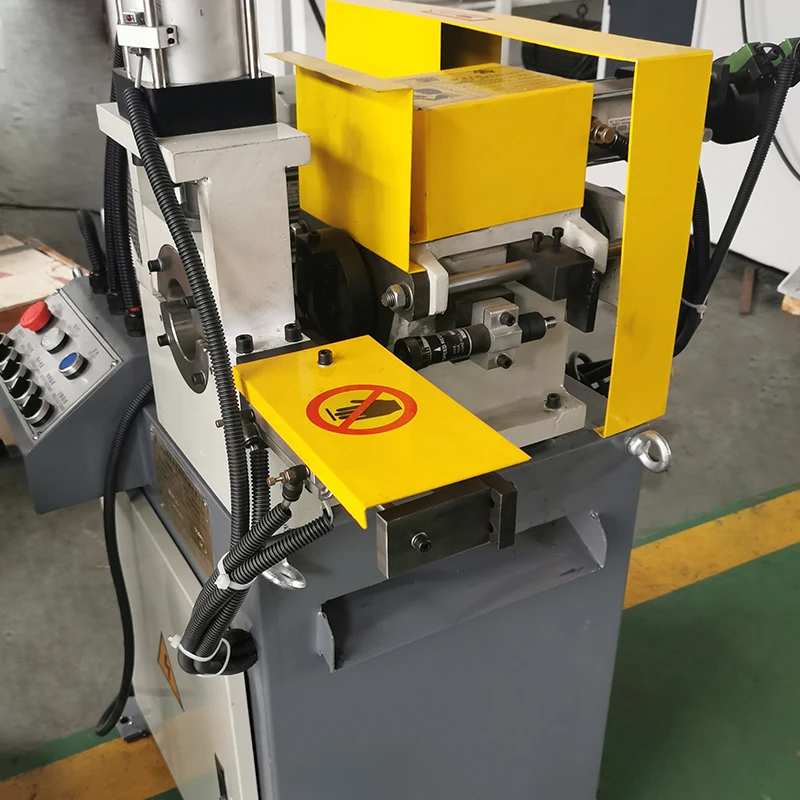

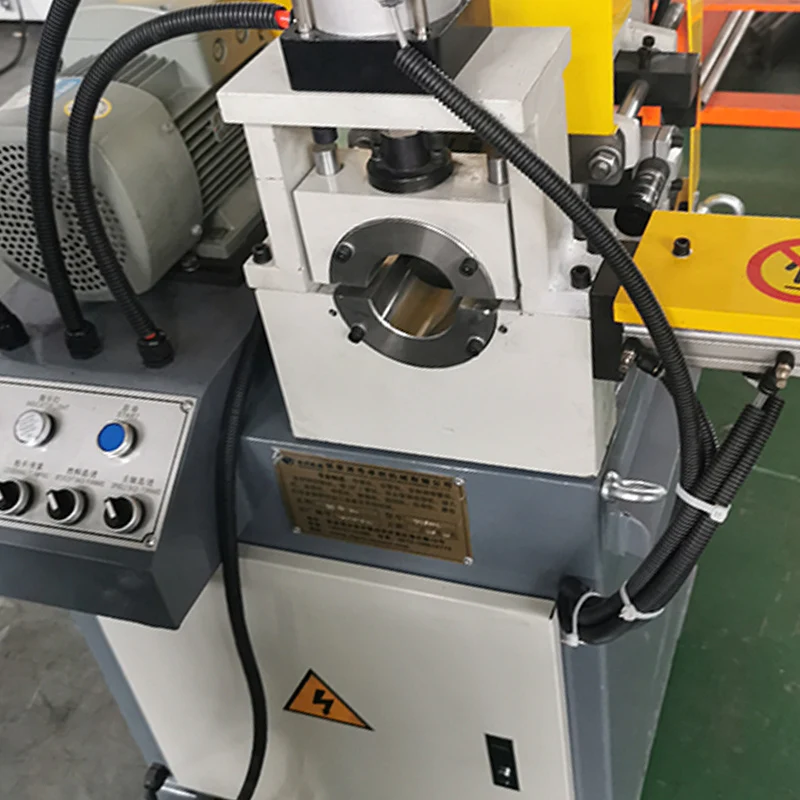

DJ80NC pneumatic chamfer

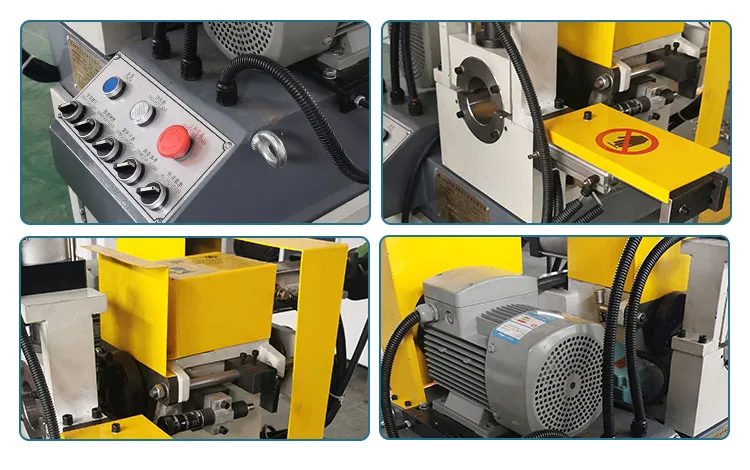

1 .Special design feeding mechanism, type exchange is easy to save time;

2. Super cutter head design, blade installation solid, custom carbide tool, increase tool life;

3. Double feed speed, saving working hours, and slow easy to adjust the segment, perfect processing;





4.Belt vibrates feeding to ensure ranked neat；

5.Specially design feeding institution,it's really realiable ；

6.Super saw head design,saw blade fixs firm,growing the life ofsawblade;

7.Feeding speed,saving hours of work,process is perfect.






Item/Mode
DJ-50
DJ-80
DJ-120

The main molor
0.75KWx4F
1.5KWx6P
2.2KWx6P

The use of compressed air
0.6-0.9Mpa
0.6-0.9Mpa
0.6-0.9Mpe
60ml/min
120ml/min
120ml/min

The use of ihe knle head
Standard cutter head range
Standard cutter head range
Standard cutter head range
φ20-xφ52mm
φ20-xφ80mm
φ38-xφ120mm
Pipe diameterφ9-52mm
Pipe diameterφ20-80mm
Pipe diameterφ38-120mm

Processing capacity
Round rod outside cornerφ9-52mm
Round rod outside cornerφ16-50mm
Round rod outside cornerφ32-60mm

Standard equpment
Standard cutter head
Standard cutter head
Standard cutter head
Jig set
Jig set
Jig set

Special accessornes
Small cutter head and special blade
Jigs of different sizes
Jigs of different sizes

(to be revsed)
Jigs of different sizes

Machine weight
110kg
380kg
450kg

Machine size(cm)
550x480x880
800x750x1350
930x750x1350




Recommend Products

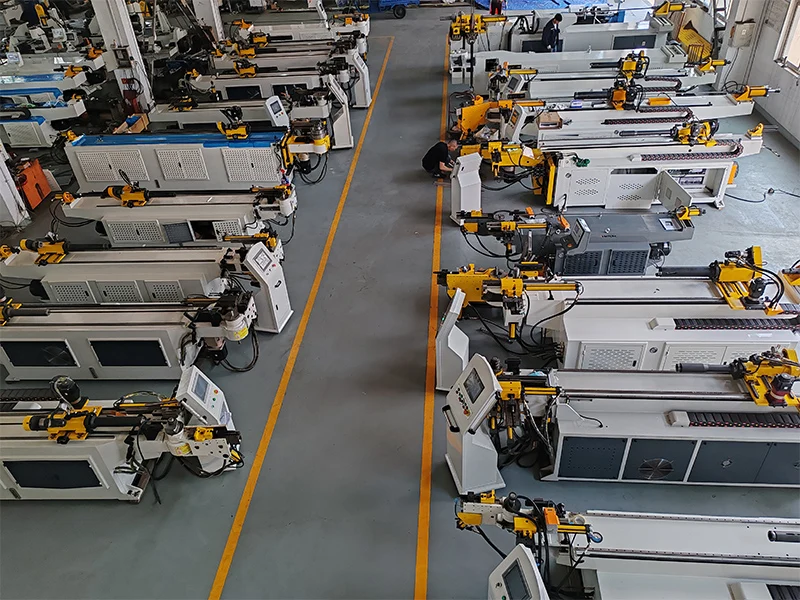

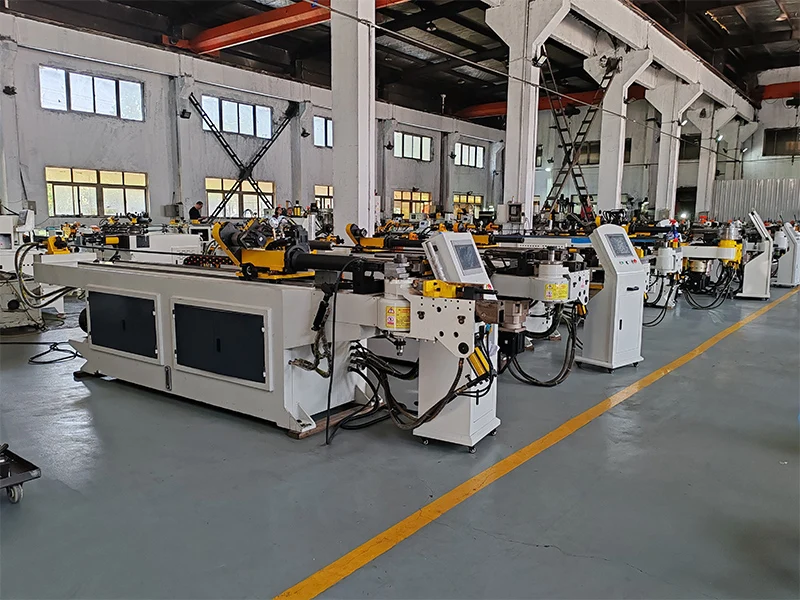

Zhangjiagang Zhuoran Machinery Co., LTD has been engaged in the production of pipe processing machinery for 10 years, with strong design and development capabilities, using the latest 3D design technology and PROE high-precision production and testing equipment, has developed a variety of automatic pipe processing machines.










1. How to quickly choose the most suitable product for you?
You have to inform us following details:
(1)Pipe/tube materials
(2)Max. outside diameter of the pipe/tube
(3)Wall thickness range of the pipe/tube
(4)Max bending radius (CLR)
(5)The drawings if possible

2.Do you provide any training to ensure that our users can operate the machine well?
We will provide detailed video and instructions for the machine, We can also send our workers to your company for a free training.The customer needs to take in charge the hotel, the fight and the food during the training.

3.How long can you provide the warranty?
Our machine has a one-year warranty, and we use all stable components with a long service life.
4.How to ensure quality?
We have factories. We are industry experts and have been operating for more than 10years, We always adhere to the policy of "high quality, all-round service".

5.What delivery time for pipe bend machine?
Generally completed within 7-15 working days, customized products are 30 working days after receiving the advance payment, please contact customer service to determine the exact time.

6.Where is your factory?How do i get there?
Our factory is located in Zhangjiagang City, Suzhou (next to Shanghai). You can fly directly to Shanghai Hongqiao or Pudong Airport.
