New K20 20W JPT Mopa Fiber Laser Machine Pulsed Operation for Deep Marking Engraving Cutting on Metal Guns Jewelry Color Marking
- Category: >>>
- Supplier: Keyso Co. Ltd.
Share on (1601204434911):
Product Overview
Description
Products Description

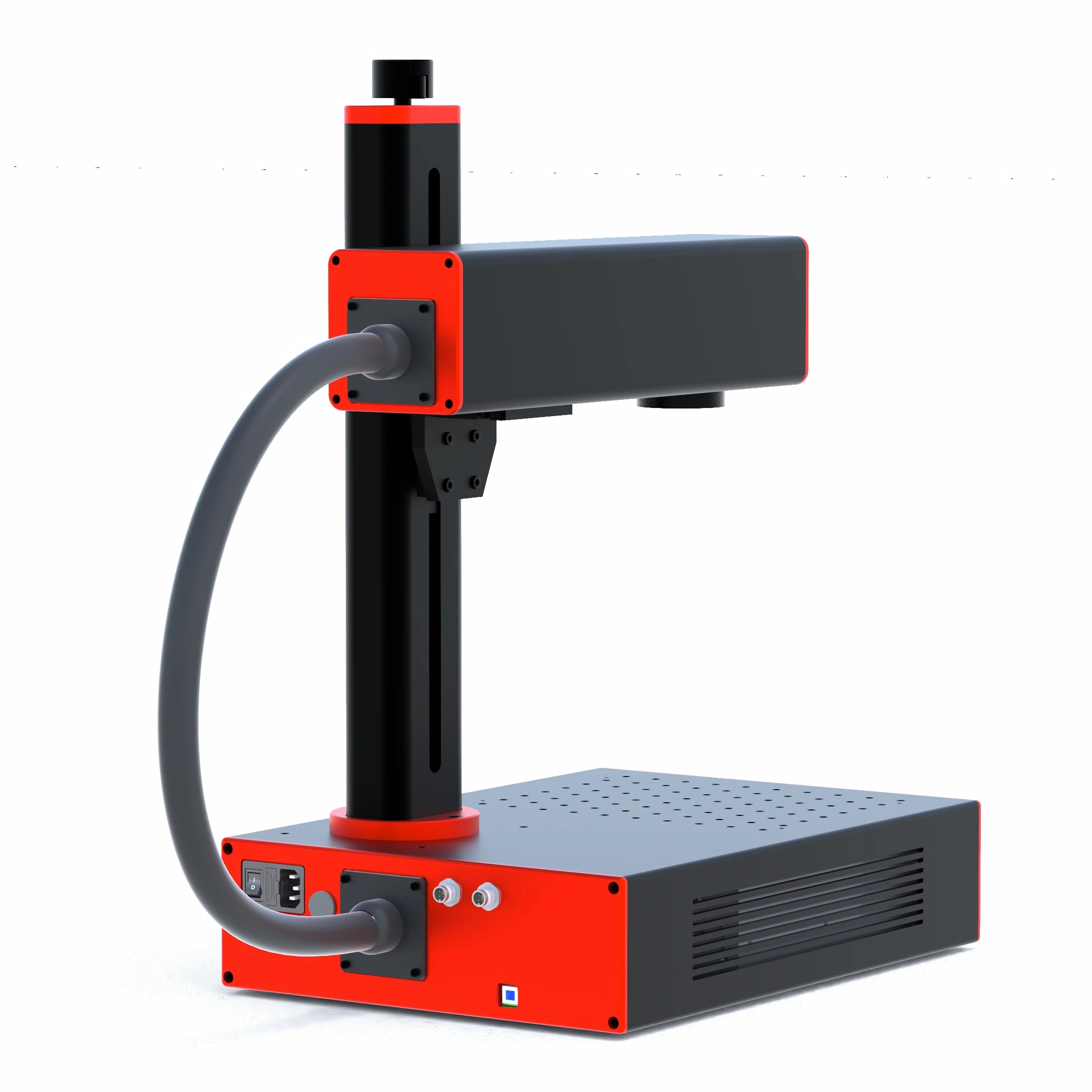

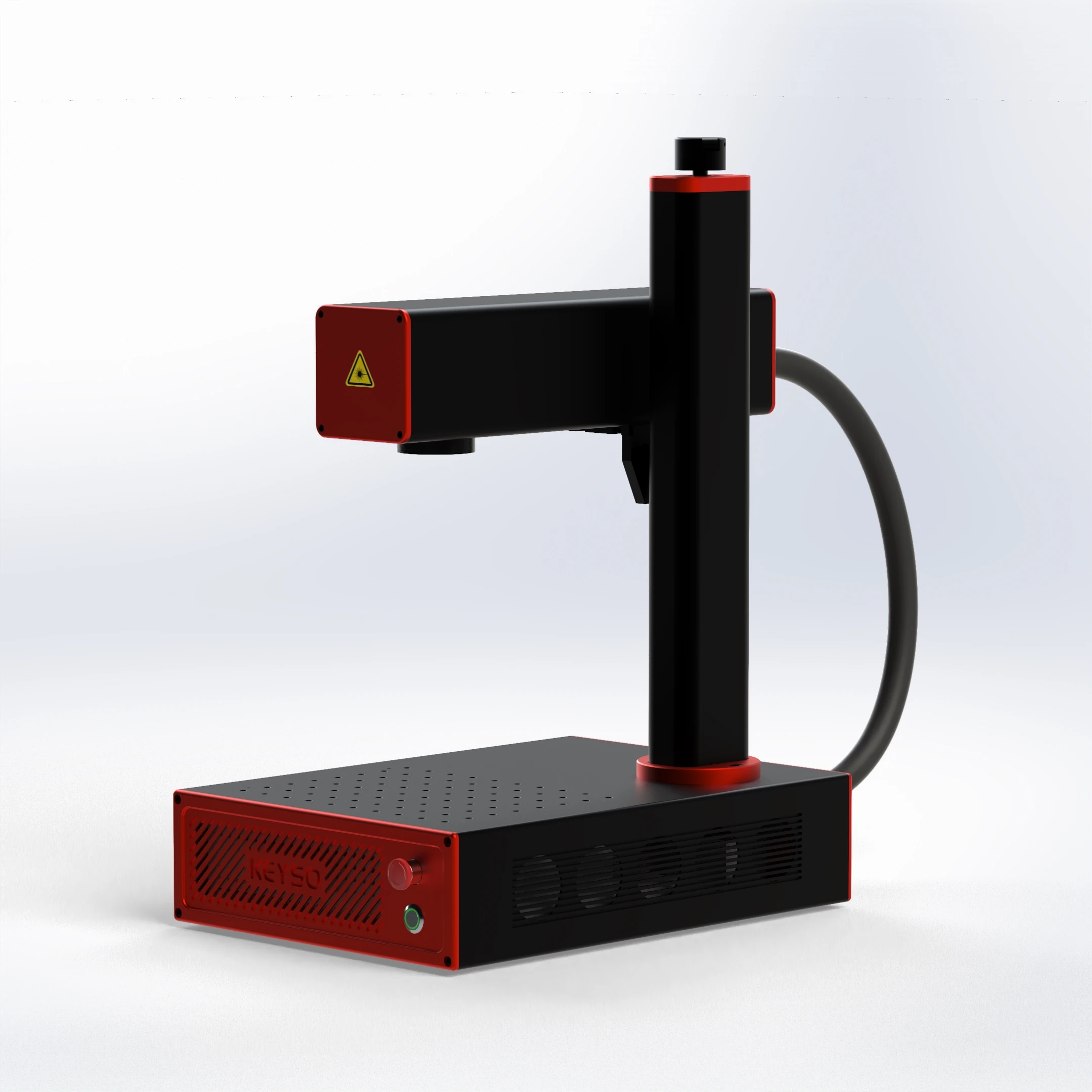

Powerful Industrial Mopa Laser Marker
Heavy-duty design, based on cast aluminum structure, and high-quality optical components guarantee strength and low maintenance.
20W is adapted for most applications for surface marking, 30W is the solution for fast and high-contrast marking,
20W is adapted for most applications for surface marking, 30W is the solution for fast and high-contrast marking,
Color Mark on Stainless Steel
Technical Specifications | ||||||
Model | K20 MOPA | K30 MOPA | K20 | |||
Laser technology | Fiber laser, wavelength 1064 nm | |||||
Laser power | 20w | 30w | 20w | |||
Frequency | 1~4000 kHz | 30~60 kHz | ||||
Pulse width | 2~500 ns | 100 ns | ||||
Scanner speed | Up to 2 m/s (79 in/s) | |||||
Filed lens quantity | 1pcs | 2pcs | 1pcs | |||
Filed lens size (mm) | 110*110 mm | 110*110 mm 175*175 mm | 110*110 mm | |||
Filed lens size (in) | 4.3*4.3 in | 4.3*4.3 in 6.9*6.9 in | 4.3*4.3 in | |||

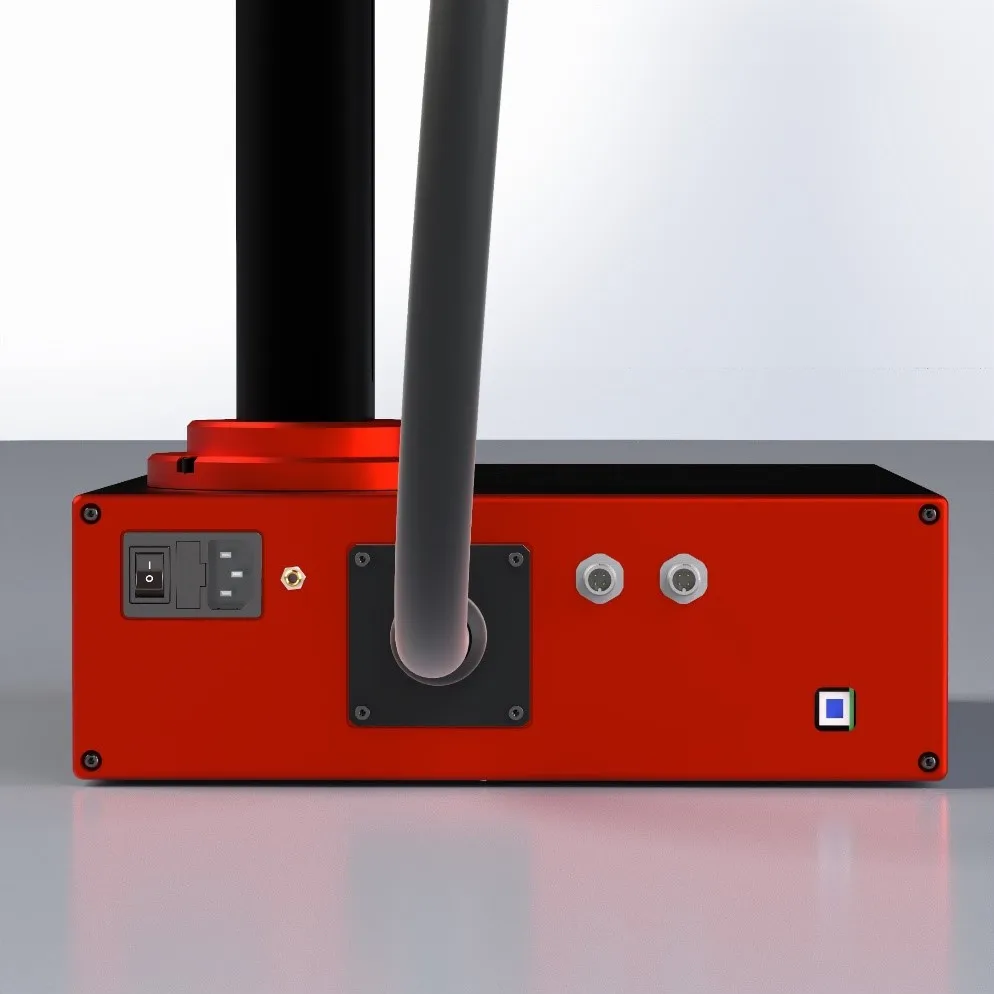

Communication interfaces | USB, I/O (Ethernet TCP/IP optional) | |||||
Compatible software | KeysoCAD, LightBurn | |||||
Laser safety classification | Class 4 | |||||
Marking head cable length | 1 m (39 in) | |||||
Power consumption rate | 255 W | 305 W | 255 W | |||
Rated voltage | 110~250 VAC, 50~60 Hz | |||||
Operating temperature | 10 to 40°C (50 to 104 F) | |||||
Humidity level | 10-85% | |||||
Net weight | 18 kg | 19 kg | 18 kg | |||
Package size | L*W*H=70*40*30 cm | |||||
Package weight | 22 kg | 23 kg | 22 kg | |||
Overall Dimension
Features of KEYSO K Series

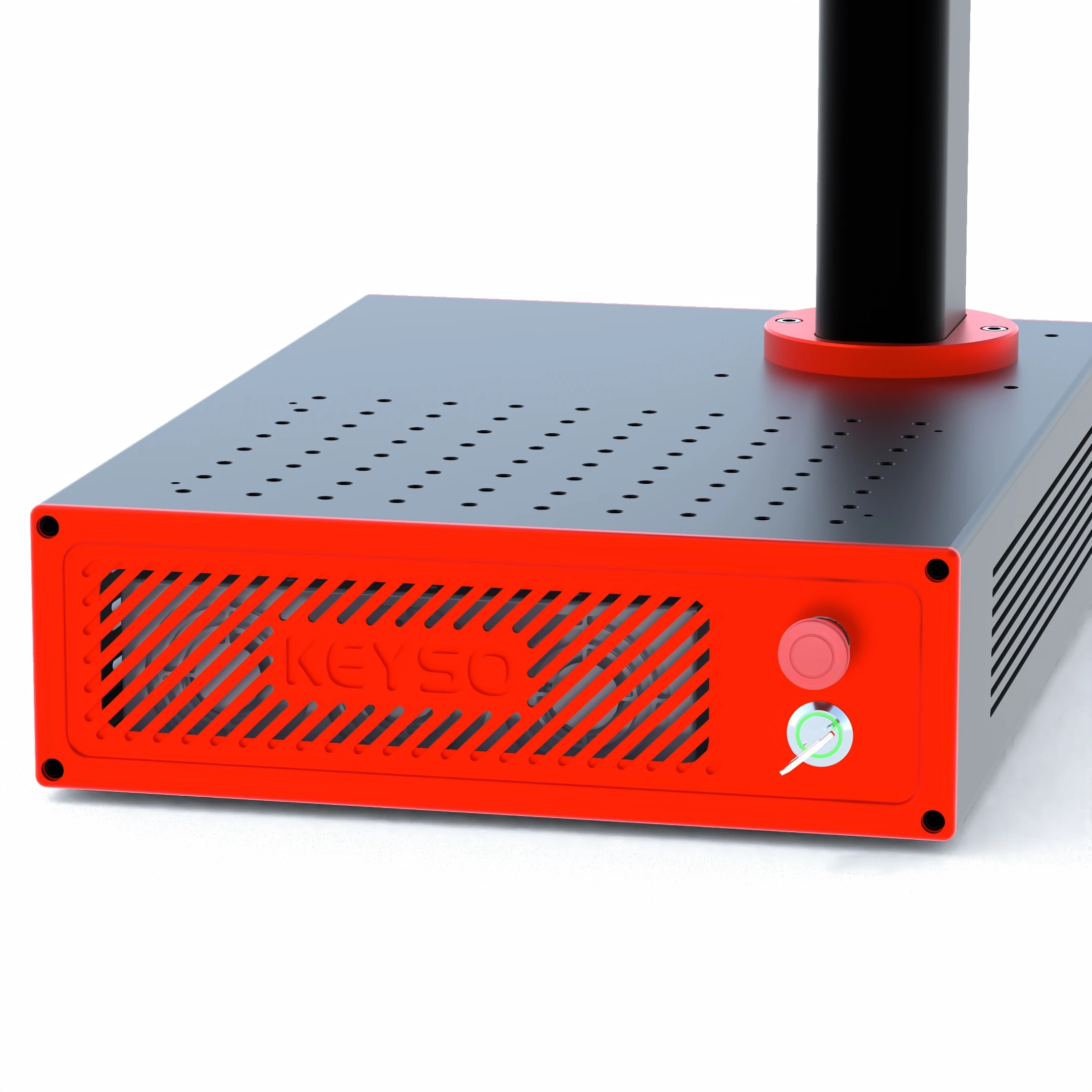

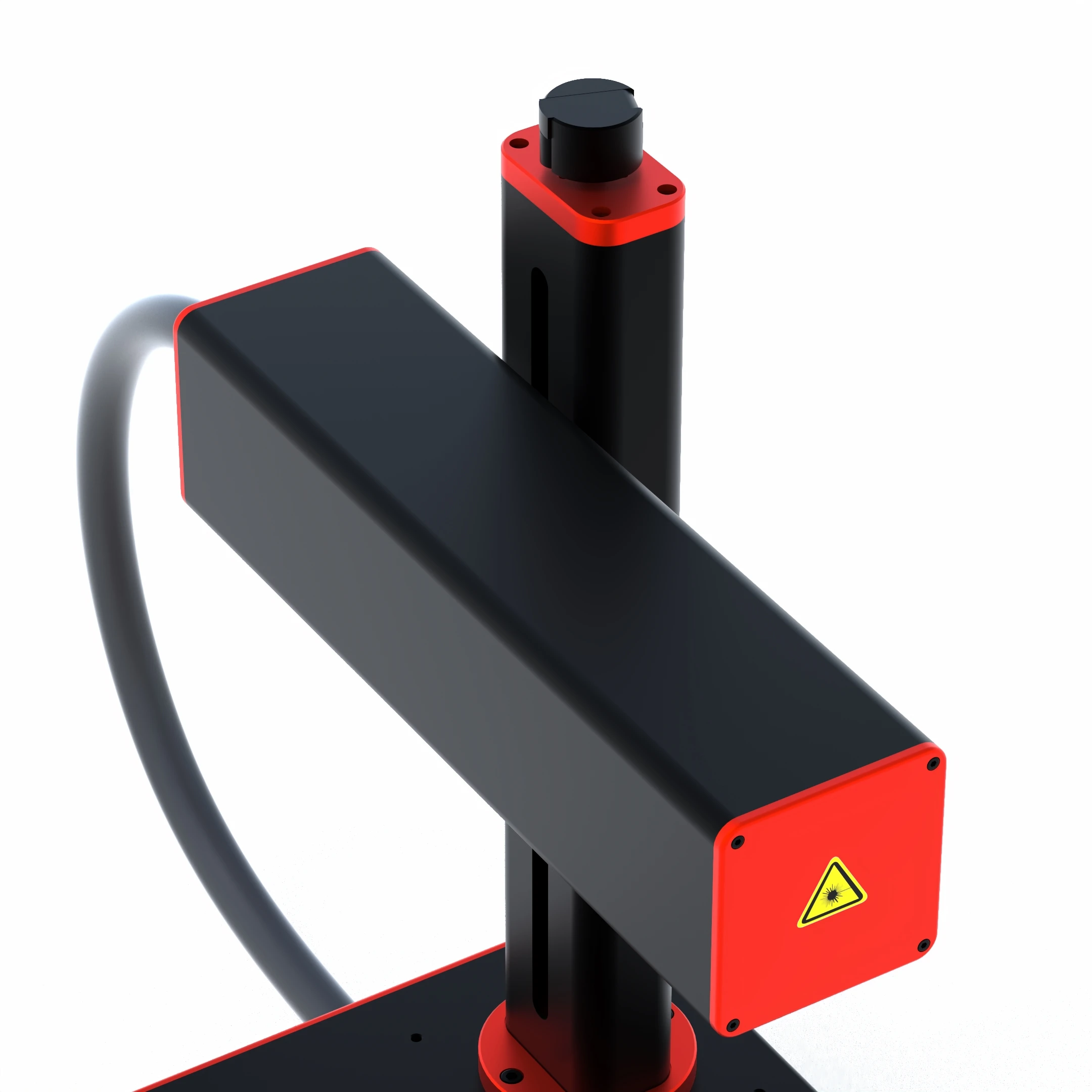

Extruded aluminum head and case
Integrated design, small size, cut by high accuracy CNC center
Anodized dyeing for durable color
Integrated design, small size, cut by high accuracy CNC center
Anodized dyeing for durable color
Industrial standard
20W~50W high laser power, 100000 hours laser life
20W~50W high laser power, 100000 hours laser life

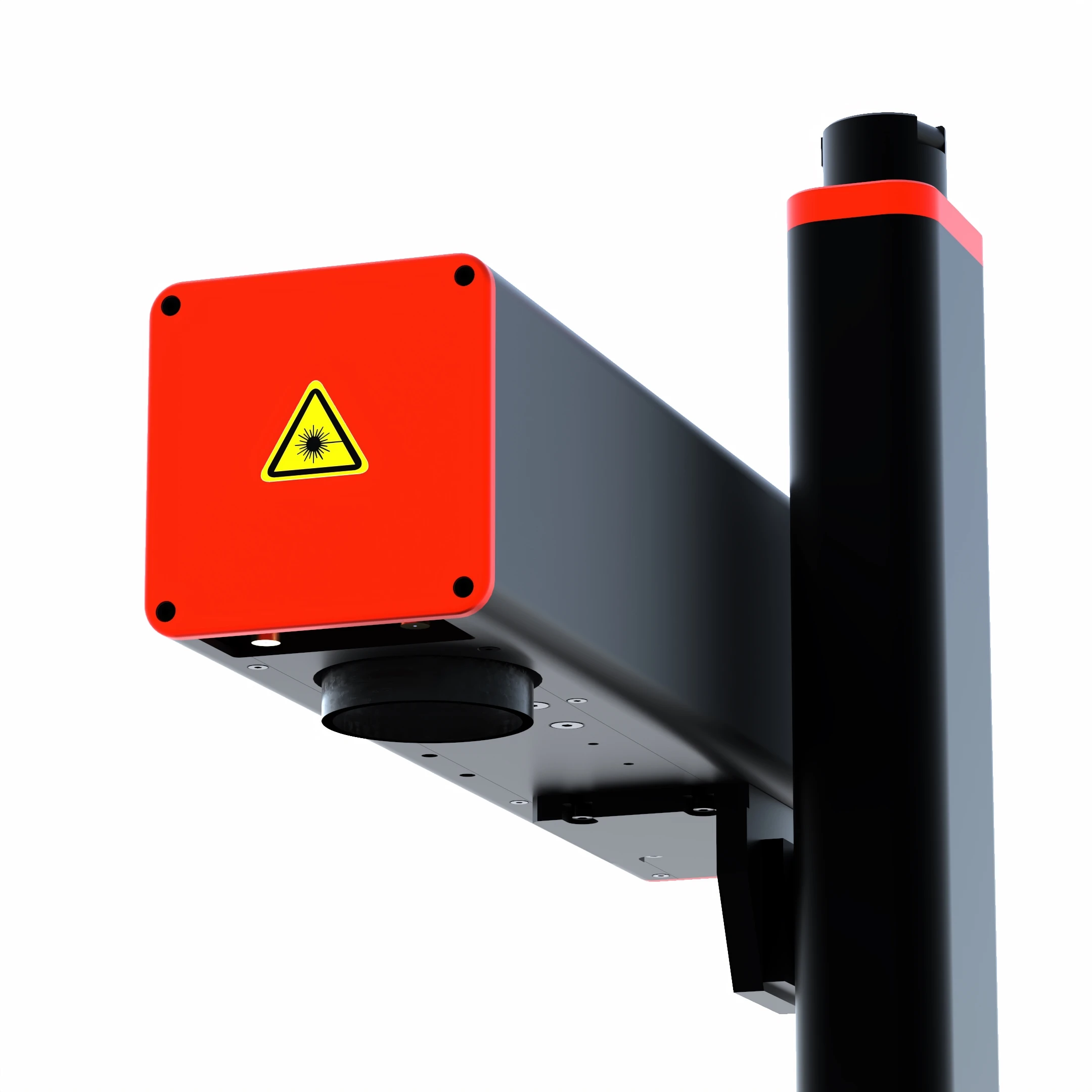

High-speed scanner
Rated marking speed 2m/s, rated positioning speed 10m/s, with 2 red indicator
Rated marking speed 2m/s, rated positioning speed 10m/s, with 2 red indicator

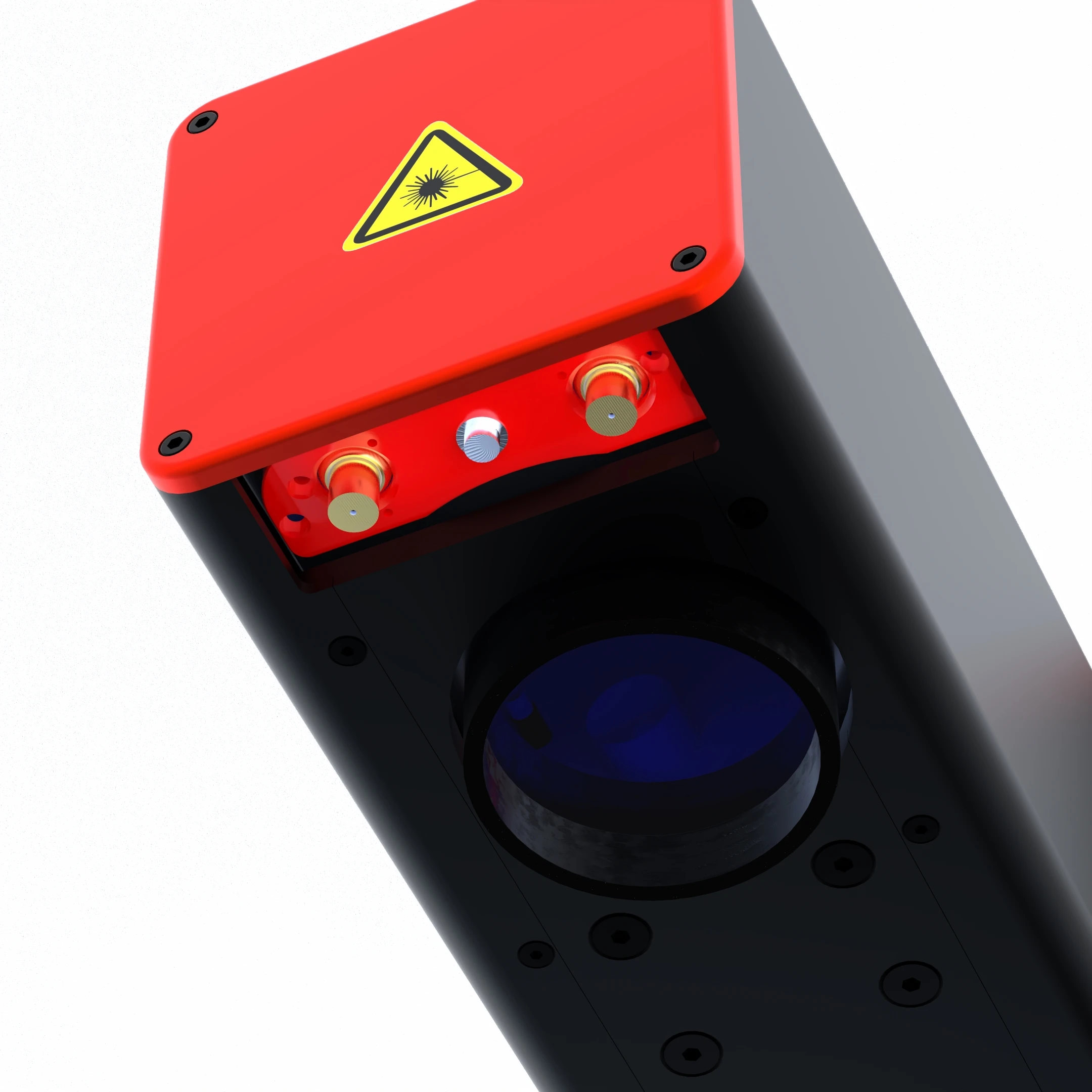

Integrated laser path
Small size, fully enclosed laser path
Small size, fully enclosed laser path
Double lens
30W equipped with 2 field lenses as standard, eliminating the anxiety of choice
30W equipped with 2 field lenses as standard, eliminating the anxiety of choice
Easy maintenance
Fully screw mounted, easy access to all parts, low maintenance cost
Fully screw mounted, easy access to all parts, low maintenance cost
Exquisite accessory package
CE certified OD6+ grade protective goggles 1 pcs
*Optical density (OD) is used to express the percentage of laser light of a specific wavelength that can pass through laser
protective glasses.
*For example: OD1+: indicates that 10% of laser of a specific wavelength can pass through laser protective glasses.
*The same principle is as follows:
OD5+:0.0001%
OD6+:0.00001%

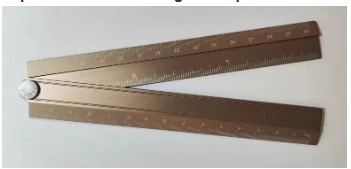

Imperial + Metric folding ruler 1pcs
protective glasses.
*For example: OD1+: indicates that 10% of laser of a specific wavelength can pass through laser protective glasses.
*The same principle is as follows:
OD5+:0.0001%
OD6+:0.00001%
Imperial + Metric folding ruler 1pcs
Multiple function clamp 2 pcs
Patent application is pending, picture is temporarily unavailable
Foot switch and Allen wrench each 1 pcs
Patent application is pending, picture is temporarily unavailable
Foot switch and Allen wrench each 1 pcs
Sample gift package 1 set
Package include: 1 pcs portable 8 oz bottle, 1 box painted aluminun card, 1 pcs brass coin, 1 pcs blue stone slate, 2 pcs dog tag,
2 pcs key tag, 2 pcs stainless ring.
Note: We may change the gift package according to purchase availability, without further inform.
Branded 64GB USB disk 1 pcs
2 pcs key tag, 2 pcs stainless ring.
Note: We may change the gift package according to purchase availability, without further inform.
Branded 64GB USB disk 1 pcs
Power cable (according to models)1 pcs, USB cable 1 pcs
Optional: Smoke and dust filter
200W power, 280m³/h, AC220V (AC110V available)
Software
K series laser marker support 2 different software (no need to change control card)
1. KeysoCAD (similar as EzCAD)
For customer who is familiar with EzCAD, we have KeysoCAD software as replacement (Free to use). The good feature of KeysoCAD is, it supports Windows 7 to Windows 11. There is no need to keep a windows 7 computer anymore! Download KeysoCAD software user manual here: keyso.com.cn
2. LightBurn
LightBurn (Need to buy license) is a native application written for Windows, Mac OS, and Linux. we officially opened our API to LightBurn for 100% stable and compatible. Learn for LightBurn here: lightburnsoftware.com
200W power, 280m³/h, AC220V (AC110V available)
Software
K series laser marker support 2 different software (no need to change control card)
1. KeysoCAD (similar as EzCAD)
For customer who is familiar with EzCAD, we have KeysoCAD software as replacement (Free to use). The good feature of KeysoCAD is, it supports Windows 7 to Windows 11. There is no need to keep a windows 7 computer anymore! Download KeysoCAD software user manual here: keyso.com.cn
2. LightBurn
LightBurn (Need to buy license) is a native application written for Windows, Mac OS, and Linux. we officially opened our API to LightBurn for 100% stable and compatible. Learn for LightBurn here: lightburnsoftware.com

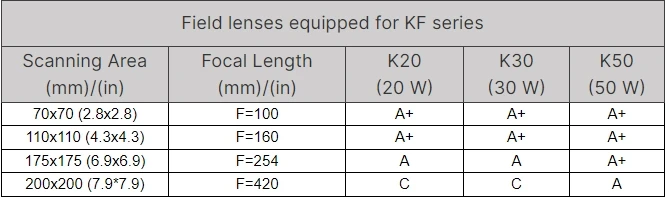

Field lens choice reference
KEYSO Laser Marker Model Compare
Available Certificate
CE and FDA
CE and FDA
Services of KEYSO
Video and manual
Provide video tutorial and user manual.
Remote support
We can build remote support for troubleshooting and machine operation.
Free test
A free test can be provided before purchasing, to know the laser performance on certain materials. And get suggested settings.
FAQ
Q: Is your company a trader or a factory?
A: We are a factory with R&D, OEM, and ODM capabilities.
Q: Where is your company located? Can I come to visit?
A: Our R&D and sales center is in Changsha city, and our manufacturing center is in Liaocheng city. You are welcome to visit us.
Q: Do you recruit dealers? What are the conditions of dealers.
A: We welcome dealers, please contact us for specific conditions.
Video and manual
Provide video tutorial and user manual.
Remote support
We can build remote support for troubleshooting and machine operation.
Free test
A free test can be provided before purchasing, to know the laser performance on certain materials. And get suggested settings.
FAQ
Q: Is your company a trader or a factory?
A: We are a factory with R&D, OEM, and ODM capabilities.
Q: Where is your company located? Can I come to visit?
A: Our R&D and sales center is in Changsha city, and our manufacturing center is in Liaocheng city. You are welcome to visit us.
Q: Do you recruit dealers? What are the conditions of dealers.
A: We welcome dealers, please contact us for specific conditions.
