AX3000Mbps WIFI6 802.11ax openwrt switch microchip modules openwrt router with pcie slot wifi module domotica module openwrt
- Category: >>>
- Supplier: Shenzhen Gainstrong Technology Co. Ltd.
Share on (1601204530734):
Product Overview
Description
Specification

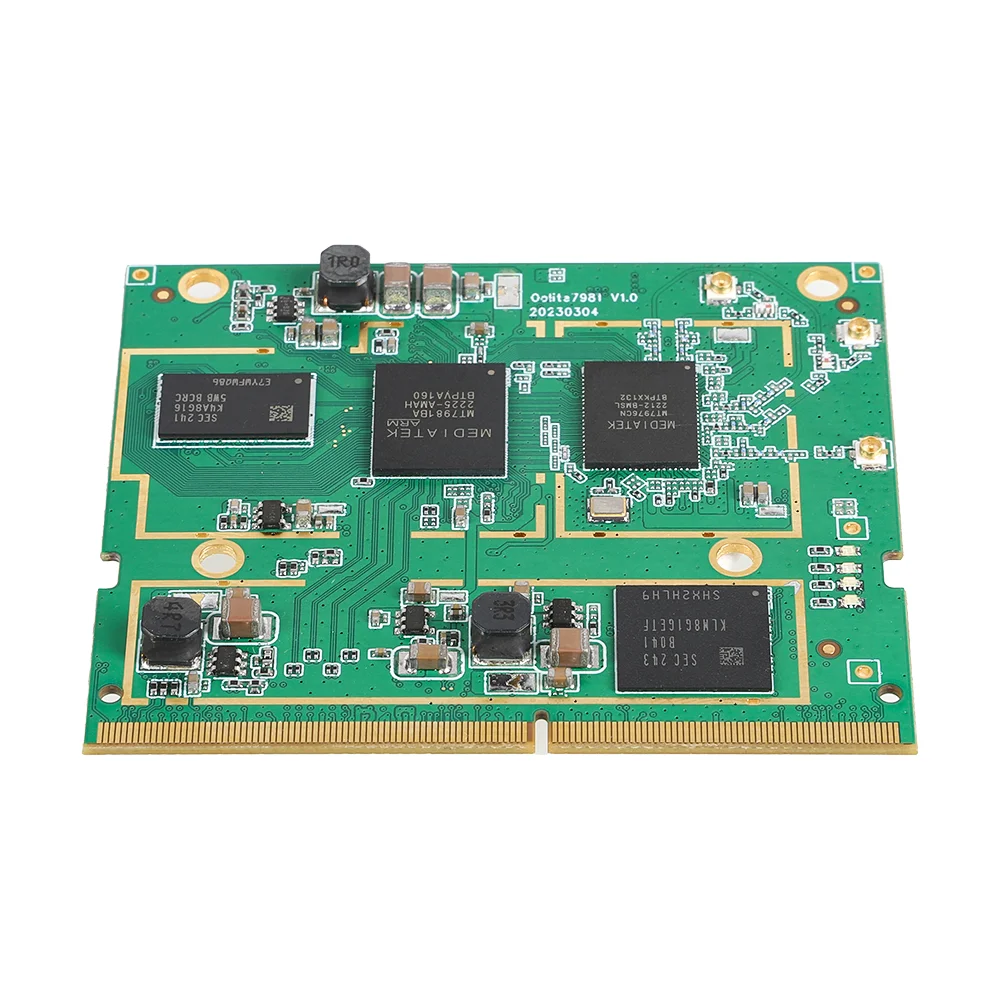

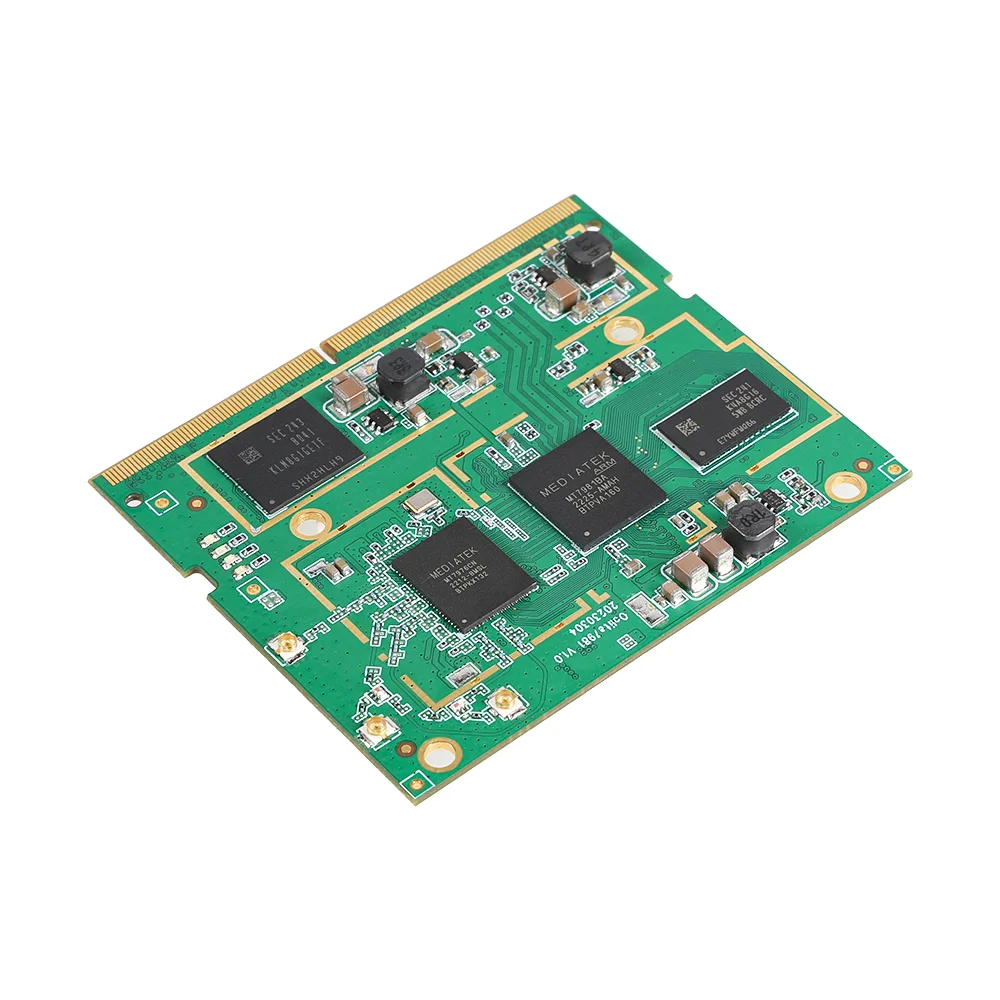

Oolite-MT7981B V1 Module Characteristics:
MT7981B Embedded dual-core ARM® Cortex-A53
MT7981B Embedded dual-core ARM® Cortex-A53
RAM: default 512MByte (1GB optional)
SPI NAND Flash: default 128MByte (256MByte optional)
Support EMMC(4GB/8GB) optional Nand Flash and eMMc can only choose one Support Nor Flash (16MByte/32MByte/64MByte )optional
2x2 (2ss) 11ax 2.4GHz + 3x3 (2ss) 11ax 5GHz( Total 3*IPEX，Two dual -frequency antennas，one 2.4GHz antennas)Integrated PA, LNA
and TR-SW 20/40/80/160MHz bandwidth
Support up to 1024QAM
1-port 10/100/1000Mbps ethernet( Integrate 1G PHY)
1-port 10/100/1000/2.5Gbps HSGMII
1 x USB 3.0 (or 1x PCIe )
GPIOs
Support JTAG interface
OpenWrt / Linux 5.4 SDK
Power supply voltage: 12V/1.5A or 5V/3A

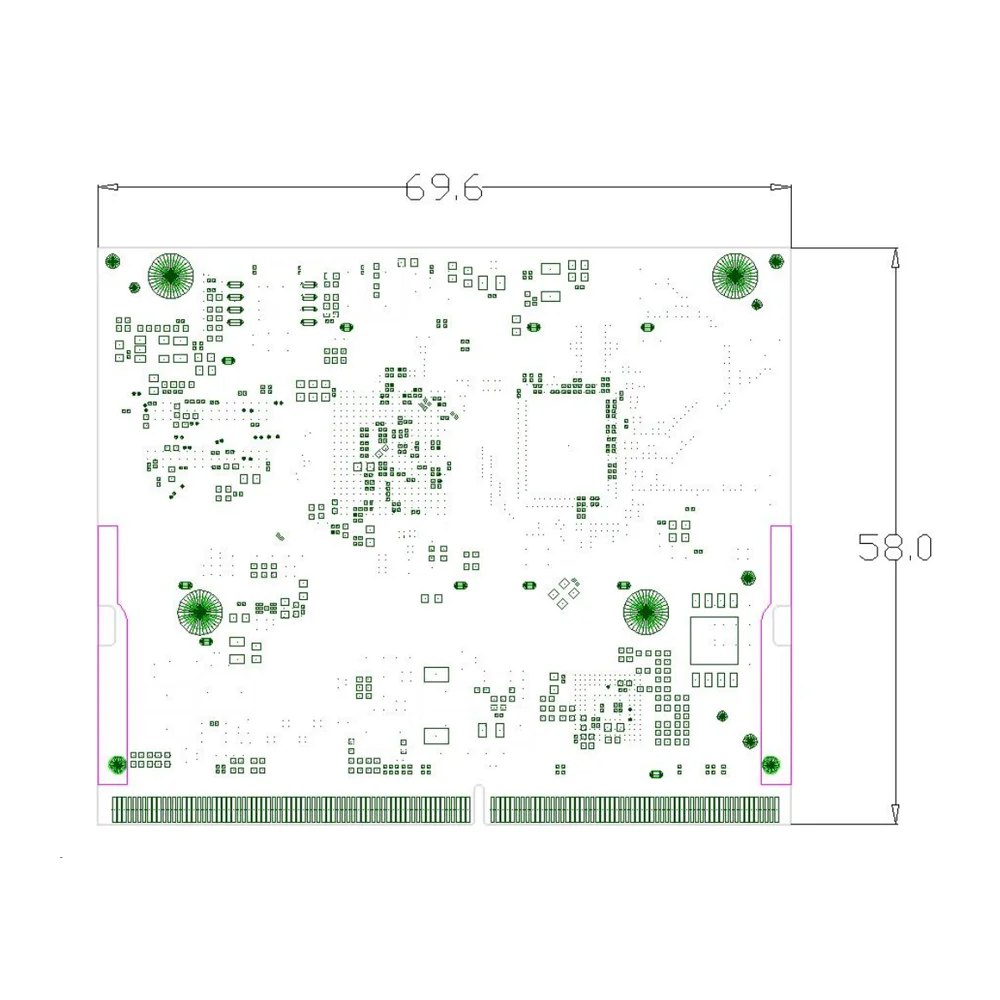

Size: 69.9mm x 58mm x 4.8mm
MT7981B Embedded dual-core ARM® Cortex-A53
RAM: default 512MByte (1GB optional)
SPI NAND Flash: default 128MByte (256MByte optional)
Support EMMC(4GB/8GB) optional Nand Flash and eMMc can only choose one Support Nor Flash (16MByte/32MByte/64MByte )optional
2x2 (2ss) 11ax 2.4GHz + 3x3 (2ss) 11ax 5GHz( Total 3*IPEX，Two dual -frequency antennas，one 2.4GHz antennas)Integrated PA, LNA
and TR-SW 20/40/80/160MHz bandwidth
Support up to 1024QAM
1-port 10/100/1000Mbps ethernet( Integrate 1G PHY)
1-port 10/100/1000/2.5Gbps HSGMII
1 x USB 3.0 (or 1x PCIe )
GPIOs
Support JTAG interface
OpenWrt / Linux 5.4 SDK
Power supply voltage: 12V/1.5A or 5V/3A
Size: 69.9mm x 58mm x 4.8mm
Product Description
MT7981B is a highly integrated wireless network router system-on-chip used for high wireless performance, home entertainment, andhome automation and so on.
MT7981B is fabricated with advanced silicon process and integrates a Dual-core ARM® Cortex-A53
MPCoreTM operating up to 1.3GHz and more DRAM bandwidth. This SoC also includes a variety of peripherals, including SGMII, and USB3.0 (Host) ports. To support popular network applications, MT7981A also implements two 2.5Gbps HSGMII Ethernet interface.
MPCoreTM operating up to 1.3GHz and more DRAM bandwidth. This SoC also includes a variety of peripherals, including SGMII, and USB3.0 (Host) ports. To support popular network applications, MT7981A also implements two 2.5Gbps HSGMII Ethernet interface.
MT7981B combines with a RF chip, they can provide dual-band concurrent chipset solution for WIFI6E AX3000 wireless router platform.
Besides the connectivity features, the hardware-based NAT engine with QoS embedded in MT7981B transporting the audio/video streams in higher priority than other non-timely services also enriches the home entertainment application. The SFQ separating P2P sessions from audio/video ones so that MT7981B guarantees the streaming service.
With the advanced technology and abundant features, MT7981B is well positioned to be the core of next generation Smart WiFi AP router, and home gateway systems.
MT7976CN is an IEEE WiFi 6 MIMO RF chip which contains 2.4 GHz WI-Fi transceiver front-ends and 5 GHz WiFi transceiver front-ends.
Besides the connectivity features, the hardware-based NAT engine with QoS embedded in MT7981B transporting the audio/video streams in higher priority than other non-timely services also enriches the home entertainment application. The SFQ separating P2P sessions from audio/video ones so that MT7981B guarantees the streaming service.
With the advanced technology and abundant features, MT7981B is well positioned to be the core of next generation Smart WiFi AP router, and home gateway systems.
MT7976CN is an IEEE WiFi 6 MIMO RF chip which contains 2.4 GHz WI-Fi transceiver front-ends and 5 GHz WiFi transceiver front-ends.
RF parameters:

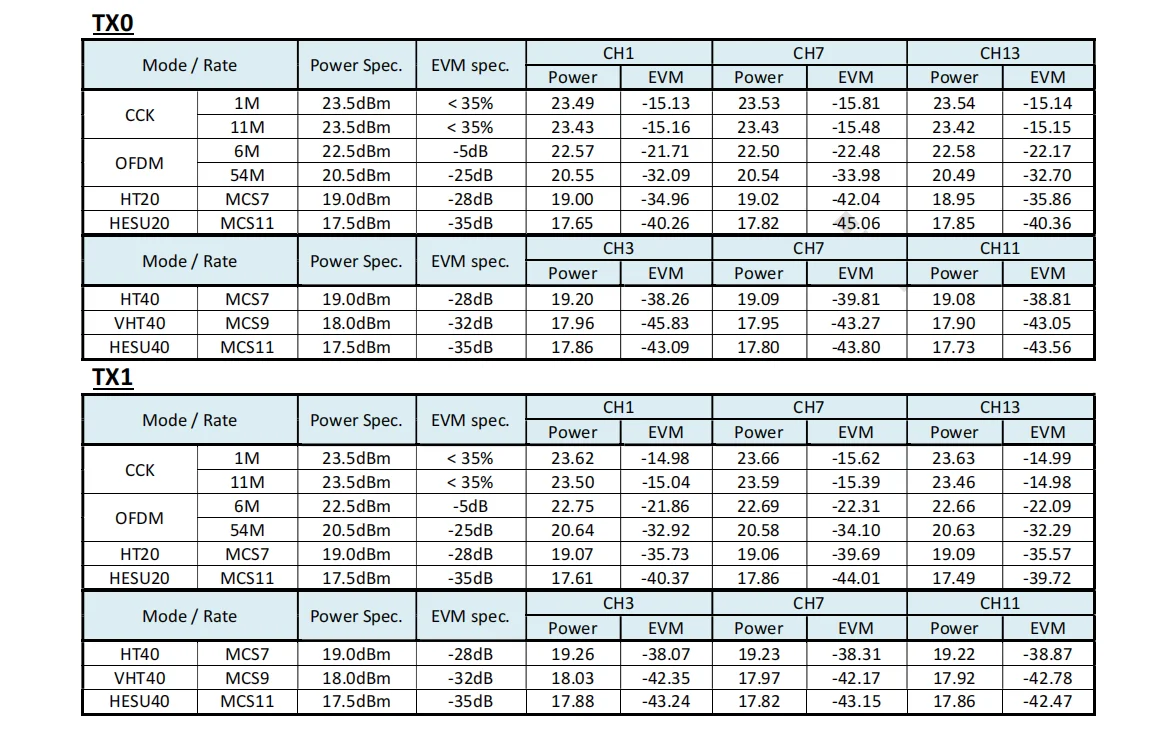

2.4G Band Transmitter power

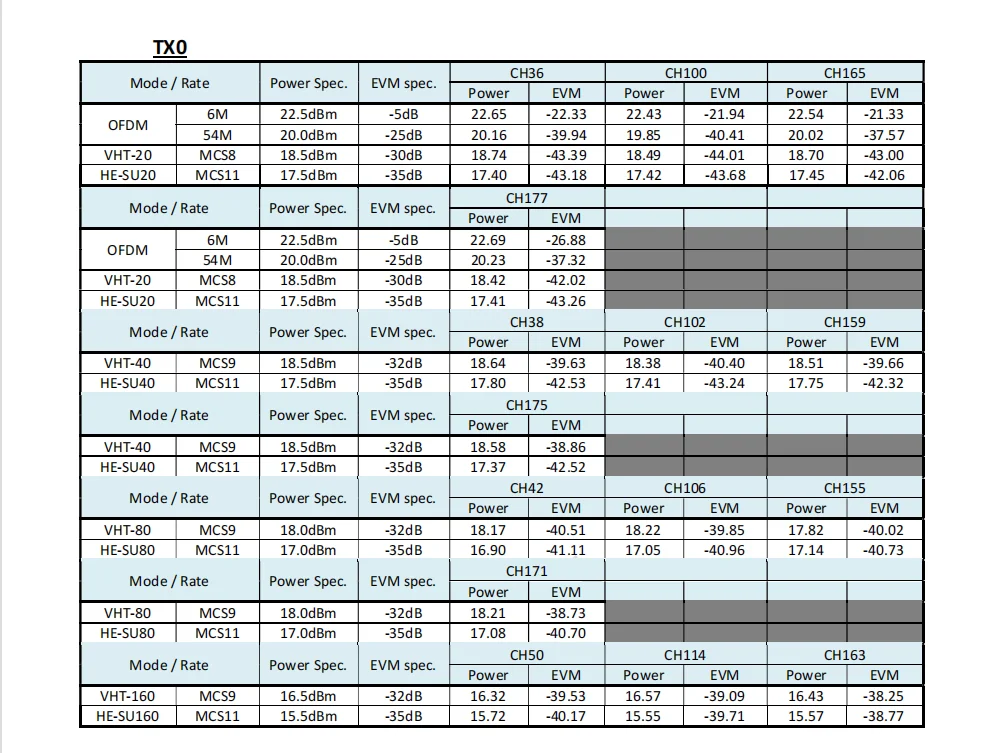

5G Band Transmitter power

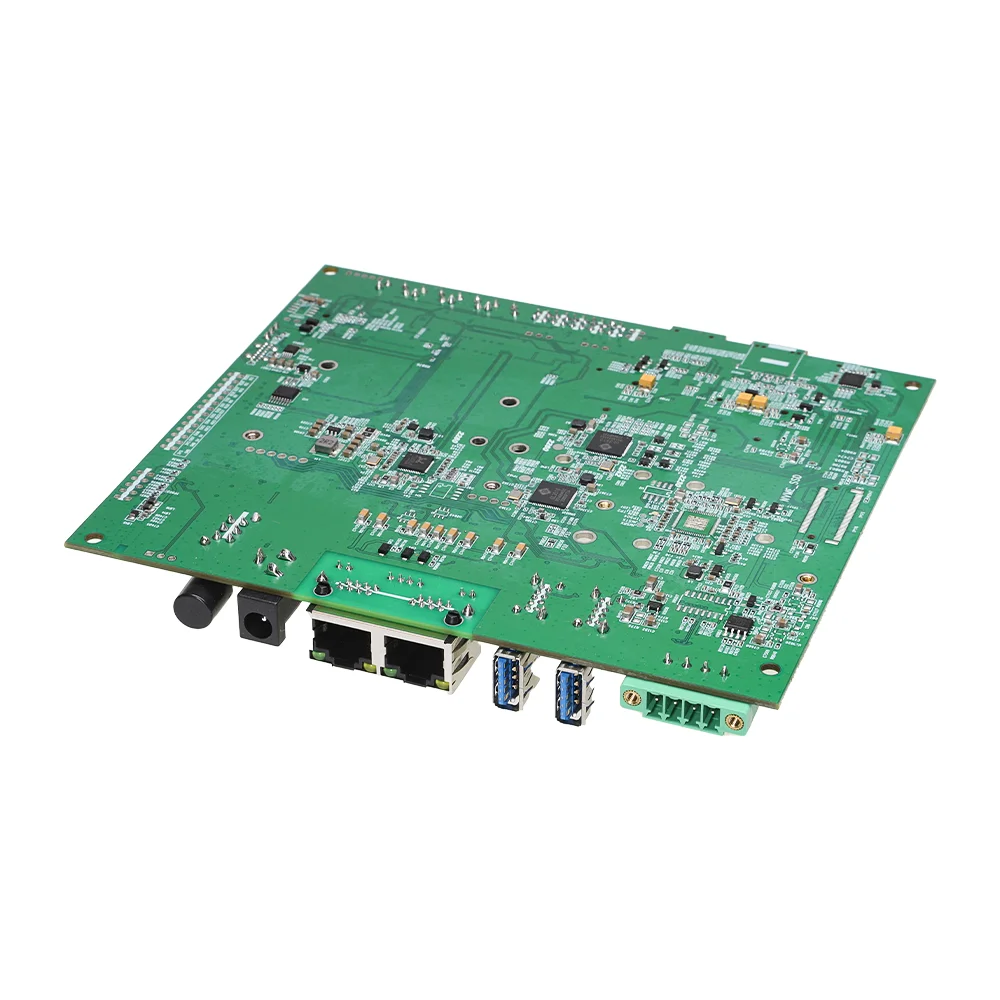

Development Board Hardware Reference Design
MT7981B Software SDK
